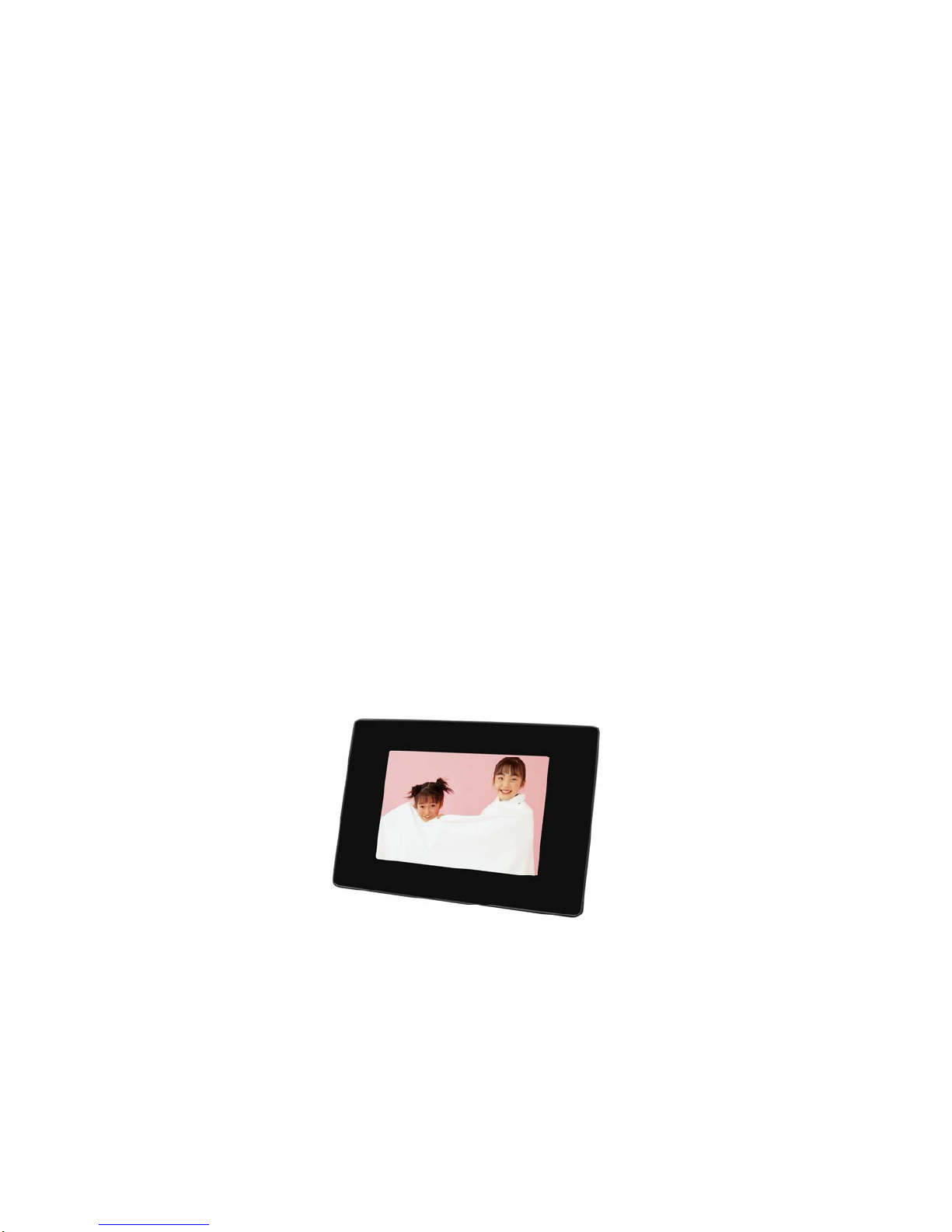

Rollei DPF102 Manuale utente

Digital Photo Frame

User’s Manual

Contents

Product Introduction………………………………………………………………2

Safe Precautions…... ………………………………………………………………2

Components. ……………………………………………………………………….3

Player overview. ……………………………………………………………………4

Connection. ………………………………………………………………………... 4

Connecting the Cards and USB Port. ………………………………………………... 5

Photo. ……………………………………………………………………………….6

Music. ……………………………………………………………………………….7

Mode. …………………………………………………………………………….…8

Movie. ………………………………………………………………………….…...8

Editing Files…………………………………………………………………………9

Setting….……………………………………………………………………………11

Default. ….………………………………………………………………………….14

Question &Answer. ………………………………………………………………..15

Troubleshooting. …………………………………………………………………...16

Product Specifications……………………………………………………………...17

FCC and Safely Information. ……………………………………………………...18

Product introduction

Digital Photo Frame is a convenient image album that keeps fun and cherished memories at your

fingertips.

With its bright and vivid LCD screen, the Digital Photo Frame eliminates the need for tedious photo

printing and injects a new level of convenience into your life.

With its diverse storage functions the Digital Photo Frame allows you to relive wonderful memories

anytime.

Safety Precautions

Make sure to review the Precautions to ensure user safety.

Power related

▲ WARNING: indicates information that, if neglected, could result in serious injury

and/or death to user.

▲ CAUTION: indicates information that, if neglected, could result injury to user

and/or material damage.

02. When connecting the power source, make sure that your hands are free of moisture.

Failure to do could result in electrical shock.

05. Do not connect the power supply to an electrical power strip with other various

connections. Failure to do so could result in file.

04. Do not let the Power cord get overly entangled and do not place any heavy objects on

the cord. Failure to do so could result in electrical shock.

03. Make sure that the power supply is firmly plugged in and not loose. Failure to do so

could result in electrical shock.

06. Disconnect the power supply during inclement weather conditions that include

thunder and lighting. Failure to do so could result in file.

01. Use only the authorized power supply product. Failure to do so could result in product

malf

Components

Digital Photo Frame x1

Remote Control x1

Power Adapter x1

User Manual x1

8. Spilling water or any other liquid on the product can cause critical damage.

9. Striking or scratching the LCD screen cause critical damage.

11. Subjecting the product to severe humidity and/or heat can cause damage.

10. When cleaning the LCD screen, avoid damage by turning off the power and then

wiping gently with a cloth.

12. Make sure to turn the power off before connecting or disconnecting the power

supply.

7. Dropping the product or subjecting it to a significant impact can cause critical

damage.

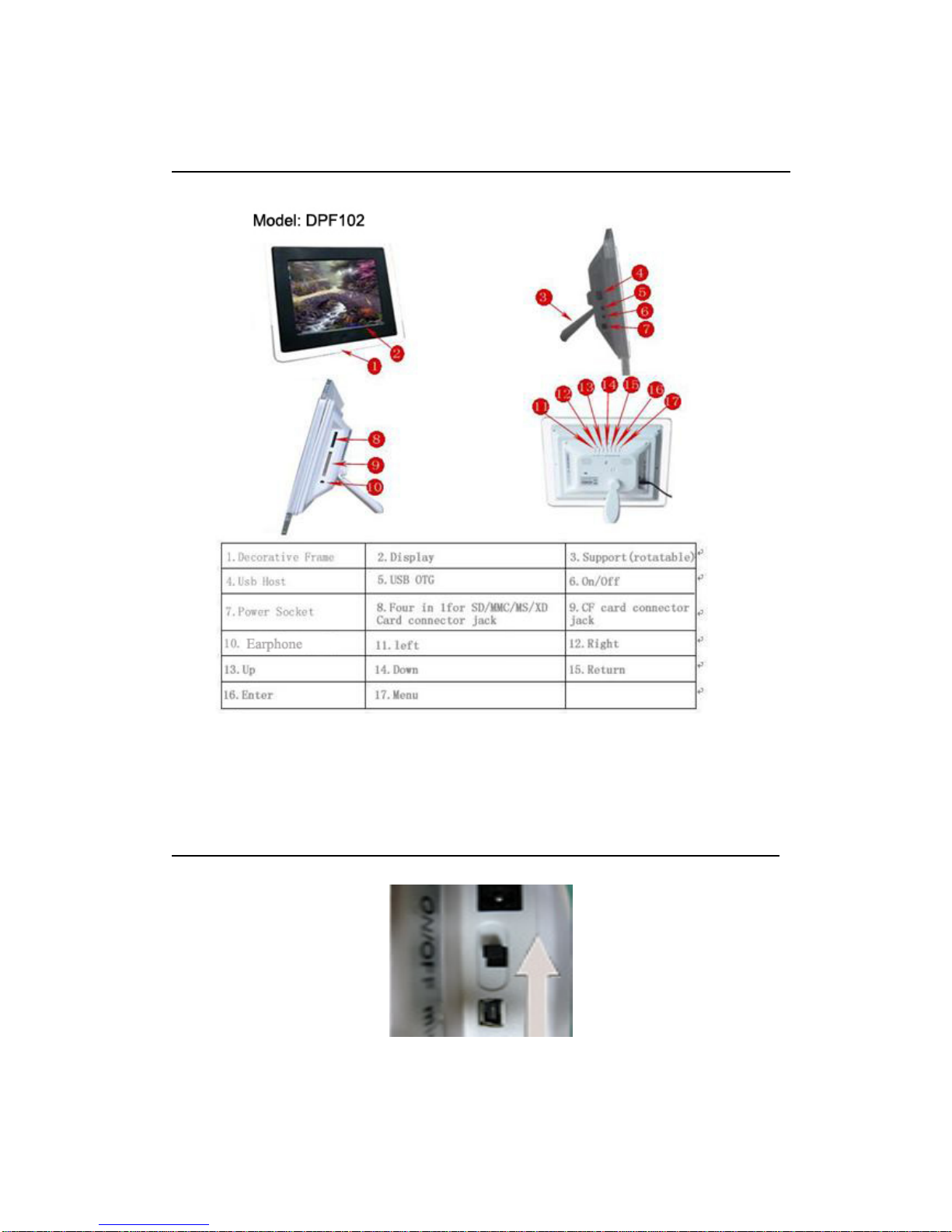

Player Overview

Connection

I．Power Connection

1. Connect the power adapter to the DC12V jack at the bottom side of the product.

2. Plug in the power cable.

3. Press POWER to turn the player on.

II. Connecting the Cards and USB Port

Remote Control

Mute Press Mute to toggle the sound on and off

Mode Adjust the background music

Power standby

AV Obligate

▲Upward

▼Down

←Left

→Right 　

Enter Confirm

OSD Press OSD to display the state of the playing file

Zoom Press the Zoom repeatedly to zoom in/out the picture

VOL+ Increase the volume

VOL- Decrease the volume

→→ Fast forward

←← Rewind

Last

ESC Press ESC to stop the current action and return to previous menu

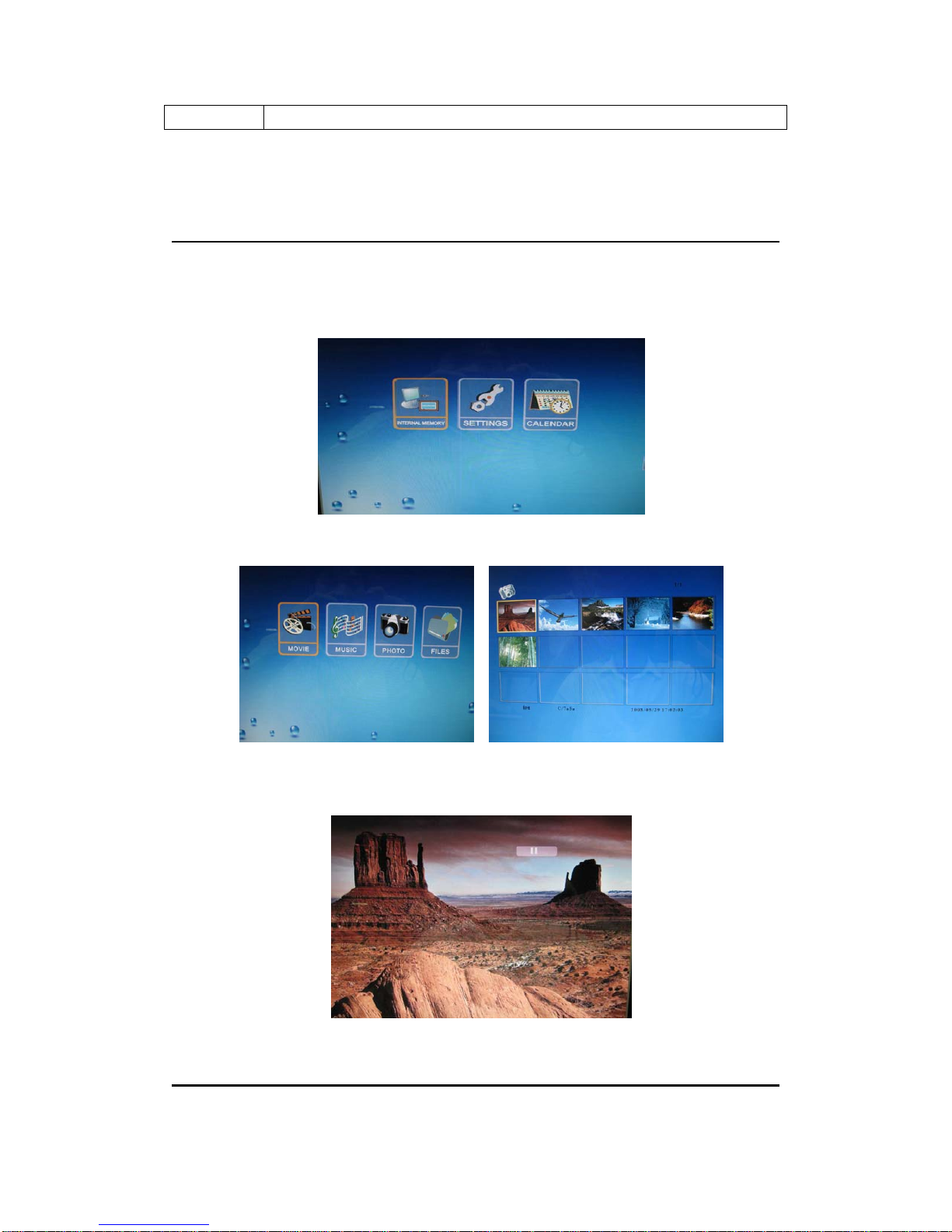

Enter the Photo Directory

Note: press ESC to return to main menu.

Select the device icon and press ENTER button to enter the device menu.

Use the directional keys to select PHOTO icon in the device menu and press ENTER to enter

the 3X5 photos screen.

Viewing a Photo in the full Pictures Screen

You can use the directional keys to select a photo, press ENTER to view it in the

full pictures screen.

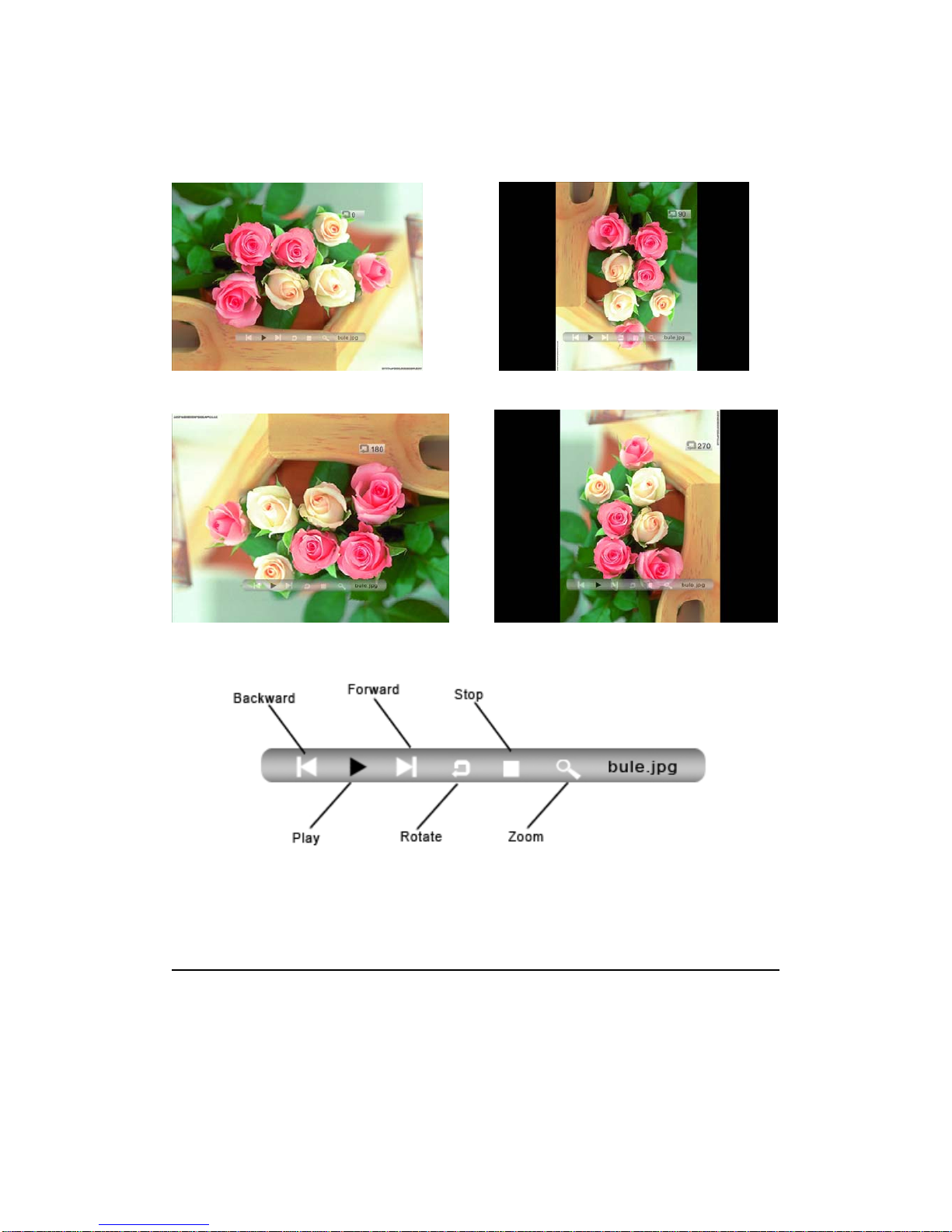

Viewing a photo in Full Screen

Rotating a Photo

After selecting the photo, use the OSD button to rotate (clockwise) the photo to the desired

position.

Music

This is the MP3 player functions.

Enter the Device Directory.

Select the device icon and press ENTER button to enter the device menu.

Enter the Music Directory

Use the directional keys to select MUSIC icon in the device menu and enter the music file

screen.

Selecting a Music File

Use the directional keys to move and select the desired music files.

Playing the music

After having selected the desired music file, press the ENTER button.

Adjusting the volume

During playback, use the Vol + or Vol – buttons to adjust the volume.

Muting the sound

During playback, press the mute button to mute the sound.

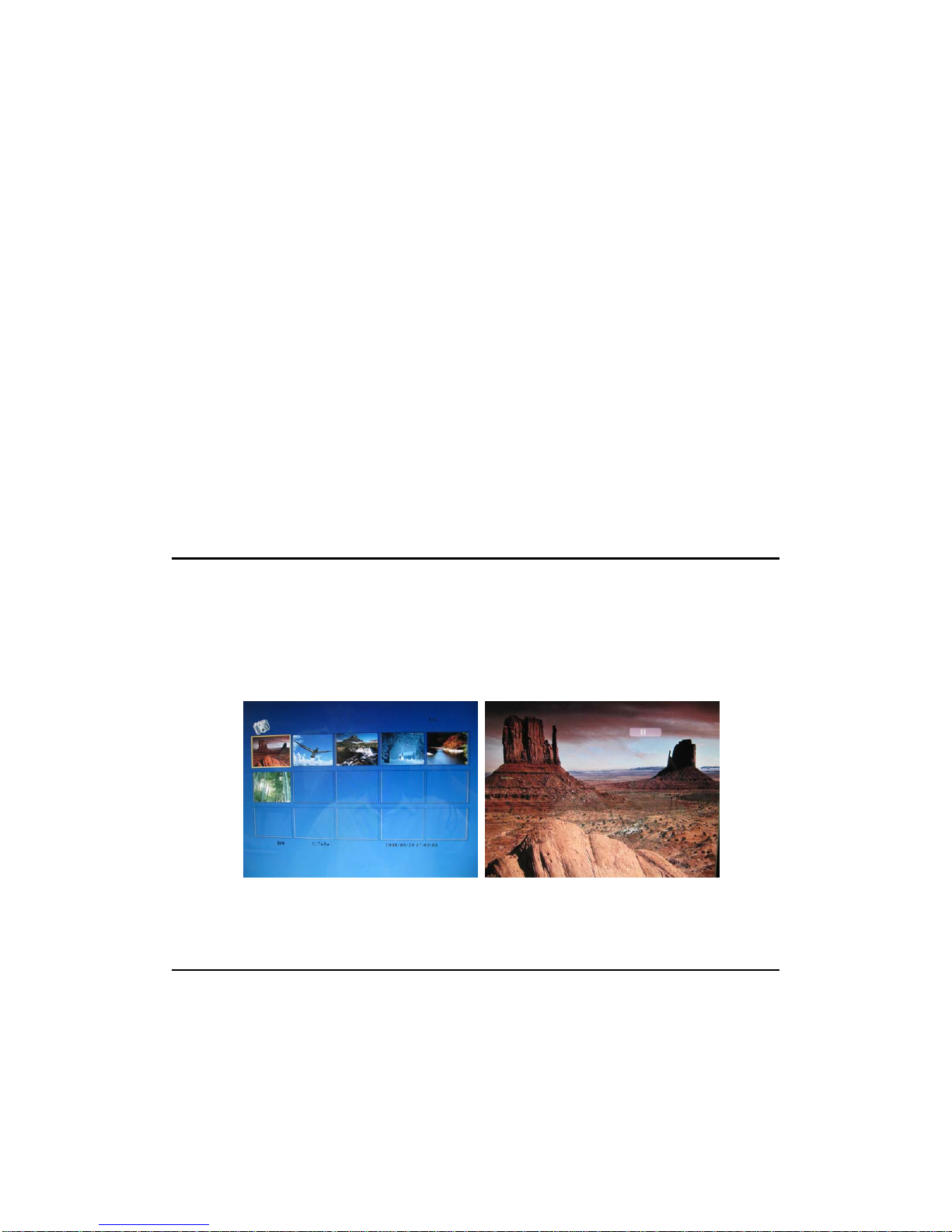

Mode

1. Use the navigation buttons on the remote control to select photo, then press ENTER to

enter the 3x5 photos screen.

2. Use the directional keys to select a photo, press ENTER to view it in the full

pictures screen

3. Press MODE to play the photos with music.

Movie

Avariety movie including digital camera videos, music albums, etc. can be played.

Select the device icon and press ENTER button to enter in to the device menu。

Use the directional keys to select MOVIE icon in the device menu and enter the movie list.

Selecting and playing a movie

After selecting the desired movie, press either ENTER button to play the movie.

Movie

Adjusting the volume

During playback, use the VOL(+) or VOL(-) buttons to adjust the volume.

Muting the sound

During playback, Press the MUTE button to mute the sound.

NOTE: This frame supports the following video file types for direct playback:

1. MPEG-1, MPEG-4(AVI)

2. Video recorded on most digital cameras.

Editing Files

Editing files

Use the navigation buttons on the remote control to select FILE icon in the device menu and

press ENTER to enter the file list.
