Romik 2152 Manuale utente
REV 4 10/15/21
Installation Instructions
Part No. 2152 / 6211
Product: Running Boards
Application:
Ford Edge 2015+
Lincoln MKX / Nautilus 2016+
Level of Difficulty: 12 3 4 5
Installation Time: 60 min

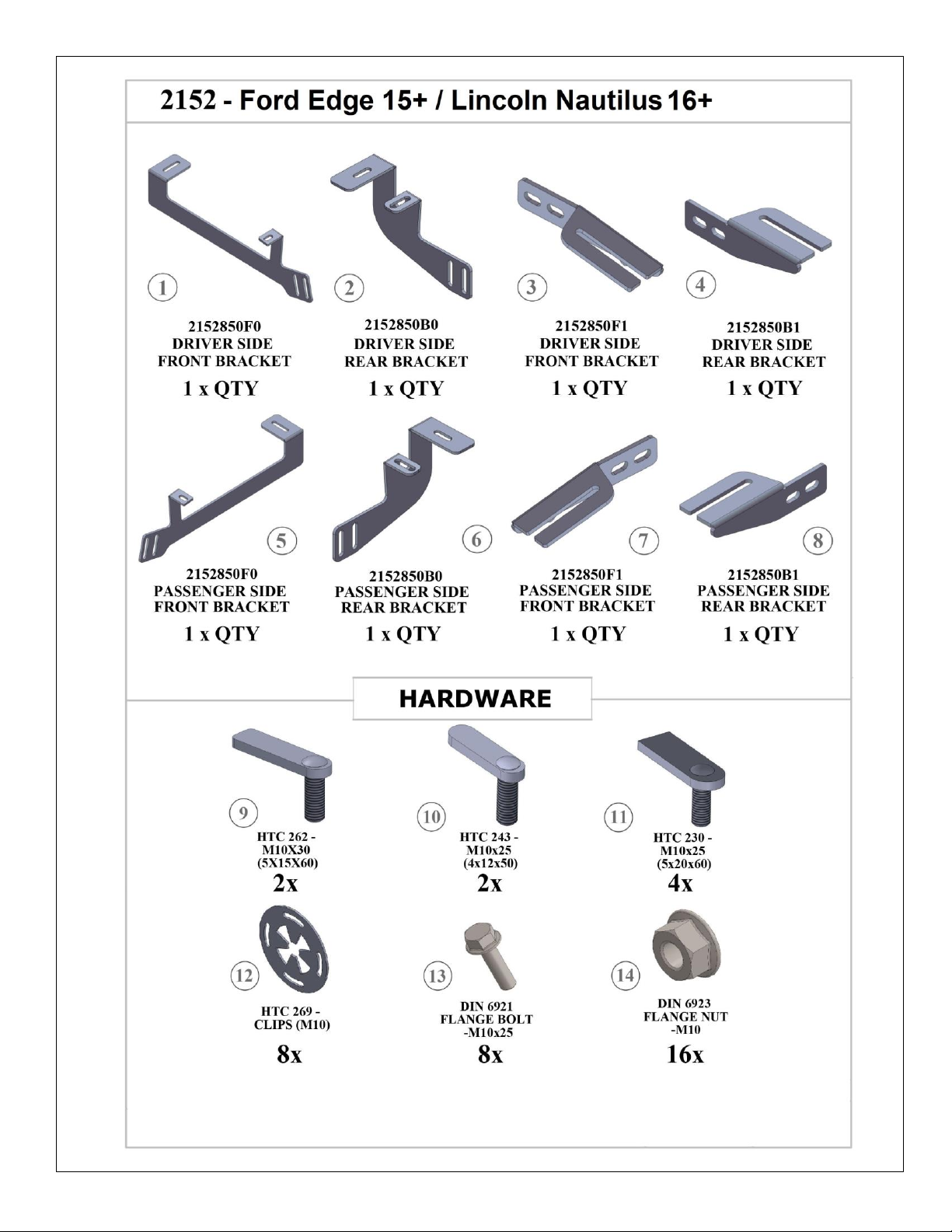

Hardware
Torque Specifications
M6 Bolt
3 ft-lbs.
M8 Bolt
7 ft-lbs.
M10 Bolt
16 ft-lbs.
M12 Bolt
28 ft-lbs.
ATTENTION: Use correct torque settings to avoid
damaging the running boards and or mounting
brackets. Failure to do so will void your warranty.
If you have any questions please contact our technical
team at 1-866-717-6645
Installation Instructions 2152 / 6211 Bracket Kit
NOTE: This vehicle requires undercarriage panel trimming and use of a level.
Step 1: Locate front mounting locations and hardware as per 1st page of this installation manual. Using a
utility knife cut a 4 ½ x 4 1/2 on indented area Figure 1, you do not have to remove the panel. We removed it
for instructional purposes.
Step 2; Install provided HTC 243 as shown Figure 2
Step 3: Locate outer support area and install provided HTC 262 as shown Figure 3 and 4. Install main bracket
as shown Figure 5. Install running board base plate using supplied M10 harware. Front plate is angled Figure 6
Video
Installation
Instruction:
Figure 1
Figure 2
HTC 243
Figure 3
Figure 4
HTC 262
Figure 5
Figure 6
Installation Instructions 2152 / 6211 Bracket Kit
Step 4: Locate rear bracket mouning area and remove material from cover as necessary Figure 7. Install
provided HTC 230 as shown Figure 8
Step 5: Install rear bracket as shown Figure 8, Install running board base plate using supplied M10 harware.
Step 6: Using a level proceed to last page of this manual for running board install instructions and torque
values
For Technicall support please call our team at 1-866-717-6645 and one of our experts will assist
you with this installation
Thank you for choosing Romik.
Figure 7
HTC 230
Figure 7
Figure 8
Running Board Installation Instructions
1) Flip your Romik running boards onto a flat surface, make sure to place the running boards on a
towel or cardboard in order to protect the surface Figure 1.
2) Loosen the M8 bolts on back of your running boards Figure 2. Depending on your model there
Will be either 6 or 8 bolts installed per side.
3) Once your brackets have been installed, place the running board onto the brackets as shown on
Figure 3.
4) Adjust running boards, centering on vehicle. Hand tight M8 hardware on running boards.
5) Follow the torque procedures, torque M8 hardware to 7 ft-lbs using a torque wrench.
6) Cleaning and maintaining your running boards is important, apply a light coat of a quality
carnauba wax at least 2X per year. Wash often with mild soap and make sure to remove all soap
Residue. Many car automatic carwashes use a strong soap, make sure to use enough water to
remove all residue.
7) Register your products at www.Romik.com/contact/productregistration
8) Warranty information at www.Romik.com/warranty
