Front Row / Front Row on Tour
X - Anbindungen
1
CN6
SW4
SW10
FHS6x10
Front Row / Front Row on Tour

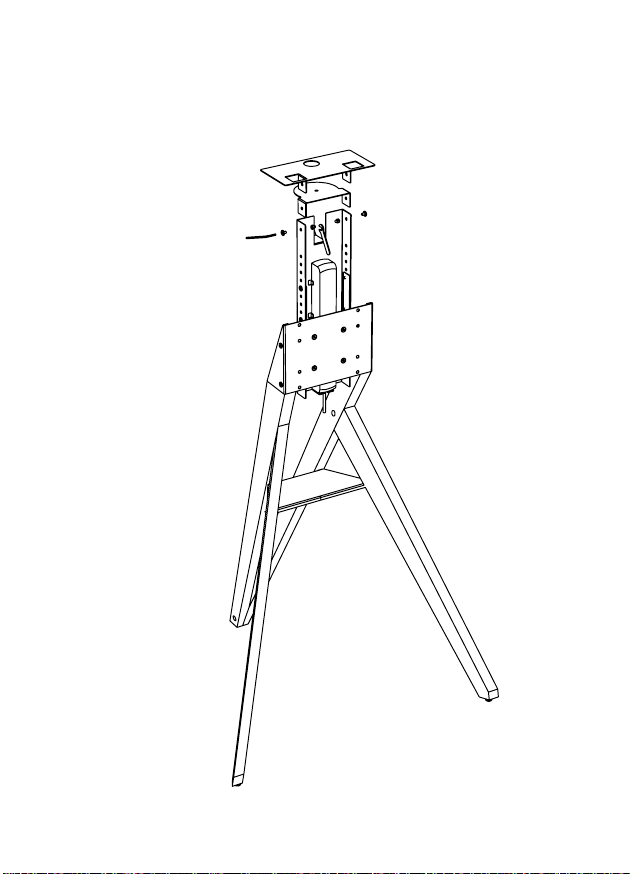

X - Anbindungen
2
SW4 Steckerleiste
FHS6x10
3
Front Row / Front Row on Tour
X - Anbindungen
SW4
SW10
CN6
FHS6x10
Camera
Plate 02
Camera
Plate 01
Montieren Sie entweder Camera Plate 01 oder Camera Plate 02.
Mount either Camera Plate 01 or Camera Plate 02.
4
Front Row / Front Row on Tour
X - Anbindungen
Optionale Montage der Adapterplatte für große Bildschirme.
Achten Sie darauf, die Distanzhülsen S18x10 zu verwenden.
Optional mounting of the adapter plate for large screens. Be sure to use the spacers S18x10.
SW4 SW10
CN6
FHS6x20
S18x10
Front Row / Front Row on Tour X - Anbindungen
Montage Set, Fitting Set
Bezeichnung
Denomination
Anzahl
Amount
Darstellung
S18x10
18 x 10
Distanzhülse
Spacer
4
FHS6x10
M6 x 10
Flachkopfschraube
Flat Headed Screw
10
CN6
M6
Hutmutter
Cap Nut
10
SW10
SW 10
Maulschlüssel
Jaw Wrench
1
FHS6x20
M6 x 20
Flachkopfschraube
Flat Headed Screw
4
SW4
SW 4
Inbusschlüssel
Allen Key
1
