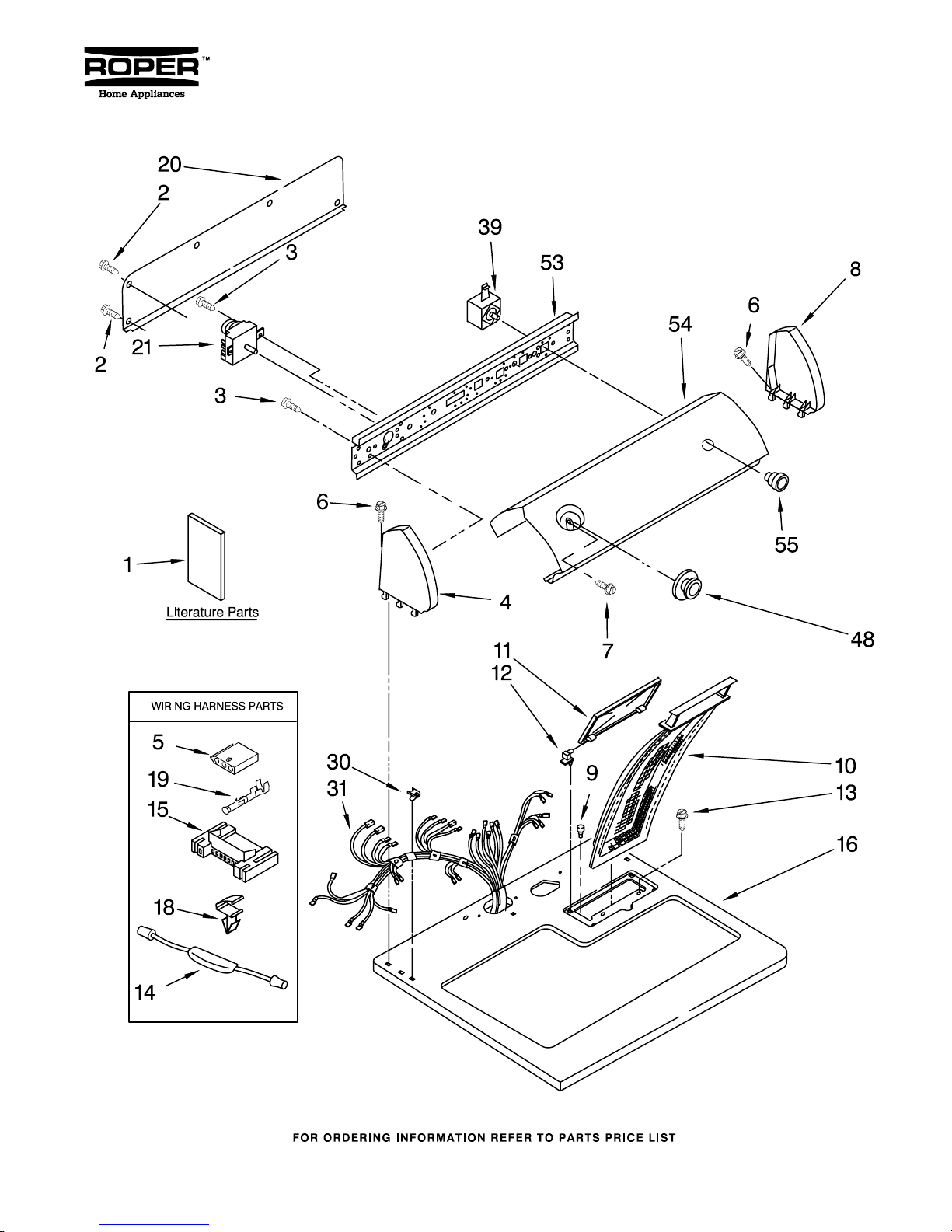

TOP AND CONSOLE PARTS
1
For Model: YREX4634KQ0
(Designer White)
2−01 Litho in U.S.A. (rcg) Part No. 4320257
29" ELECTRIC DRYER
TOP AND CONSOLE PARTS
2
OPTIONAL PARTS (NOT INCLUDED)
For Model: YREX4634KQ0
(Designer White)
4320257
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 Literature Parts
LIT3978913
Use & Care Guide
LIT3397620
Installation
Instructions
LIT3406689
Wiring Diagram
Following May Be Purchased
DO−IT−YOURSELF
REPAIR MANUALS
LIT677818
Dryer
2 693995 Screw, Hex Head
3 3390646 Screw, 8−18 x 5/16
4 8274437 Cap, End (L.H.)
5 3936144 Connector
6 388326 Screw, Console
7 3400859 Screw, Grounding
(8−18 x 7/32)
8 8274434 Cap, End (R.H.)
9 297535 Bumper, Lint Lid
10 339392 Screen, Lint
11 8283378 Cover, Lint Screen
12 3978605 Hinge, R.H.
3978606 Hinge, L.H.
13 688983 Screw, 8−18 x 5/8
14 3401076 Resistor Assembly
15 3395683 Connector
(Motor)
16 8271390 Top
18 3394427 Clip, Harness
19 94614 Terminal
20 8274261 Panel, Rear
Console
21 8299764 Timer, 60 Hz.
30 357213 Nut, Push−In (2)
31 3394316 Harness, Wiring
39 3977456 Switch,
Push−To−Start
48 8274380 Timer Knob
Assembly
53 8271418 Bracket, Control
54 3977926 Panel, Control
55 8274376 Knob, Push
To Start
Illus. Part
No. No. DESCRIPTION
PAINT, TOUCH−UP (1/2oz.)
72017 White
PAINT, PRESSURIZED SPRAY
(12 oz.)
350930 White
350938 Primer, Gray
PAINT, BULK (1 qt.)
799344 White (Uncut)
DRY RACK
689790 Dry Rack
CABINET PARTS
3
For Model: YREX4634KQ0
(Designer White)
4320257

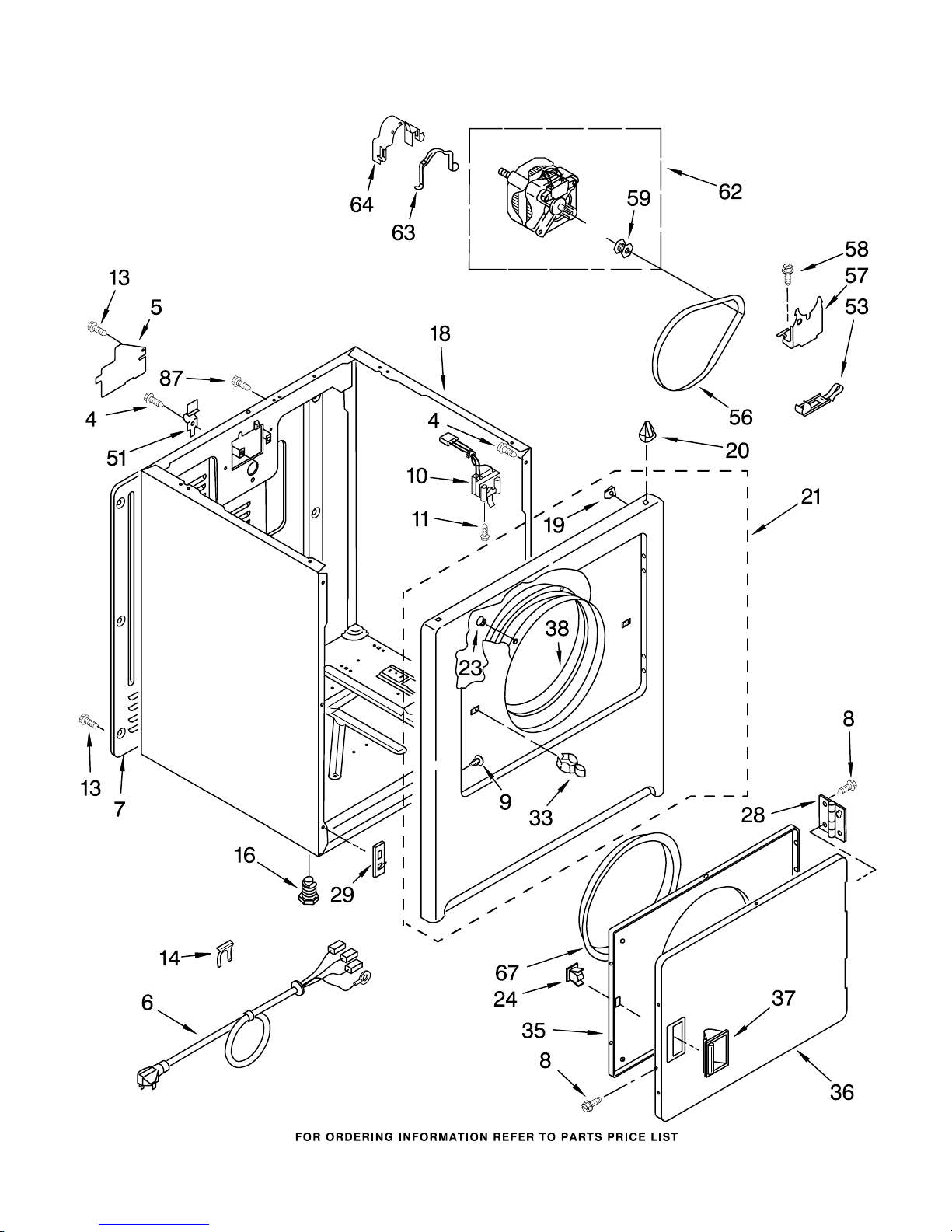

CABINET PARTS
4
For Model: YREX4634KQ0
(Designer White)
4320257
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
4 343641 Screw, 10−16 x 1/2
5 3394202 Cover, Terminal
Block
6 3394208 Cord, Power
7 3396807 Panel, Rear
8 342055 Screw, 8−18 X 1/2
9 3404413 Plug, Hinge
Hole (4)
10 3406104 Door Switch
Assembly
11 697773 Screw, 6−20 x 7/8
13 693995 Screw, Hex
Washer Head
14 694415 Clip, Strain
Relief
16 3392100 Foot, Dryer (4)
18 3399580 Cabinet Assembly
(Includes Illus.
Nos. 5, 7, 16,
29 & 57)
19 98234 Clip, Ground
20 690363 Lock, Front
Top (2)
21 3403571 Front Panel
Assembly
23 685203 Clip, Felt Pad
24 690081 Catch, Door
28 3405514 Hinge and Pin
Assembly (2)
29 3394083 Clip, Front
Panel (2)
33 696144 Strike, Door
35 3403371 Door, Rear
36 3403361 Door Front
37 3405184 Handle, Door
38 349464 Seal & Bearing
Assembly
51 238088 Hinge, Top (2)
53 3394332 Idler & Slide
Assembly
56 8066065 Belt, Drive
57 348780 Base, Motor
58 3400500 Bolt,
5/16−18 x 3/4
59 3394341 Pulley, 60 Hz.
62 3976707 Motor Assembly
60 Hz.
63 660658 Clamp, Motor
64 3404162 Clamp, Motor
(W/Shield)
67 3405245 Seal, Door
87 697776 Screw, 10−32 x 5/8
(External Ground)

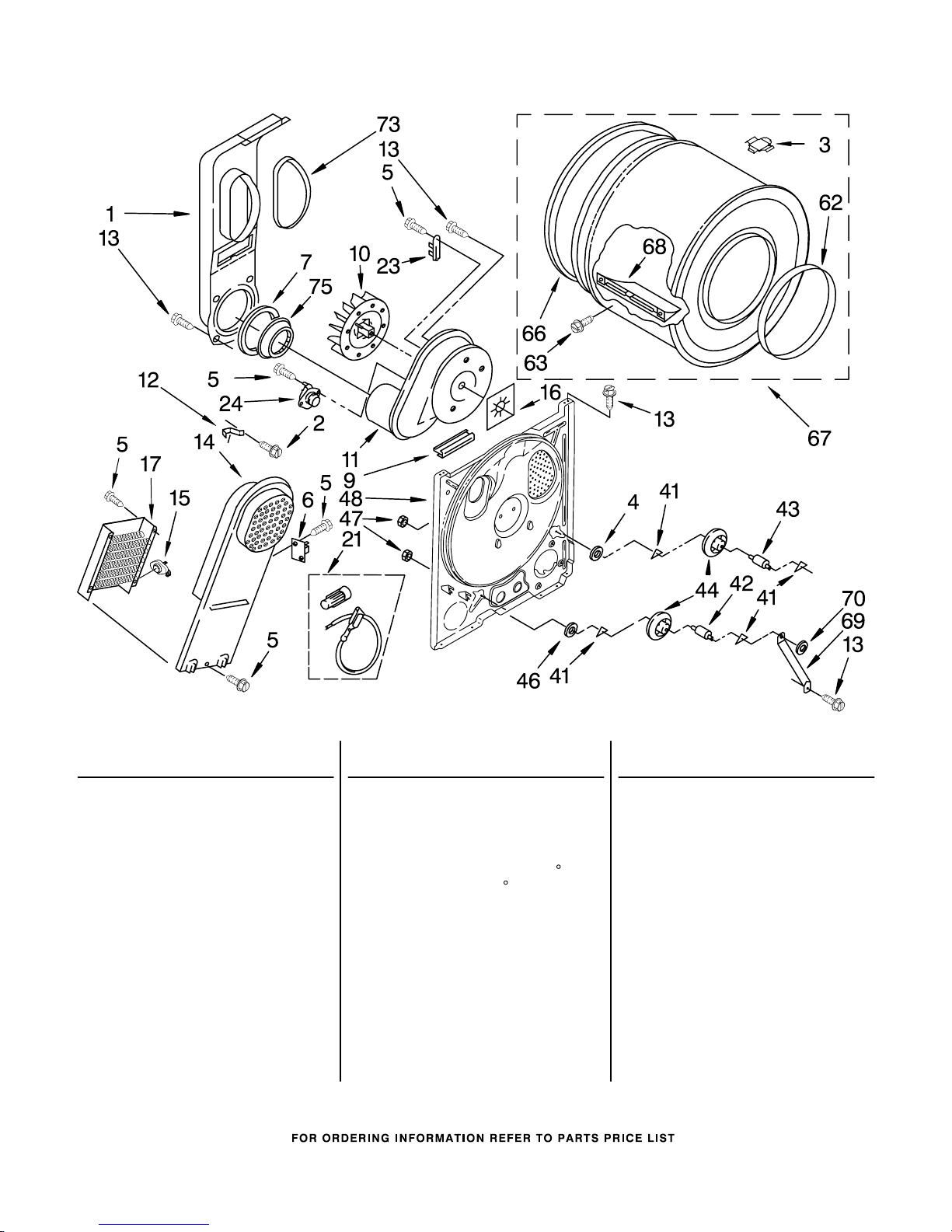

BULKHEAD PARTS
5
For Model: YREX4634KQ0
(Designer White)
4320257
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 694283 Lint Chute Assembly
2 489463 Screw, 8−18 x 5/8
3 8066086 Drum Hole
Plug
4 3388703 Washer, Support
5 90767 Screw, 8−18 x 3/8
6 3977393 Thermal Cut−Off
(Hi−Limit
Thermostat Illus.
No.15 Included)
7 347139 Seal, Lint
Chute
9 3392247 Pad, Blower
Housing
10 694089 Wheel, Blower
11 3405016 Housing, Blower
12 3398161 Clip
13 343641 Screw, 10−16 x 1/2
14 3397566 Box, Heater
15 3977767 Thermostat,
High Limit 250 F
(121.1 C) (60 Hz.)
16 3394196 Seal, Blower
Shaft
17 3403585 Element, Heater
(For 240 Volt
Installation)
21 279457 Wire Kit (For
Heater Element
Wiring Harness
Repair)
23 3392519 Fuse, Thermal
24 3387134 Thermostat,
Internal Bias
41 690997 Ring, Tri
42 3399506 Shaft, L.H.
43 3399507 Shaft, R.H.
44 3397588 Roller, Support
46 348197 Washer, Support
47 3359452 Nut, 3/8−16
48 3397264 Bulkhead
62 3394509 Ring, Bearing
63 97787 Screw, 11−16 x 3/4
66 8066085 Seal, Rear Drum
67 3396777 Drum Assembly
68 342847 Baffle, Drum
69 3976435 Bracket, Support
70 90296 Clip
73 339956 Seal
75 696302 Shield, Exhaust
