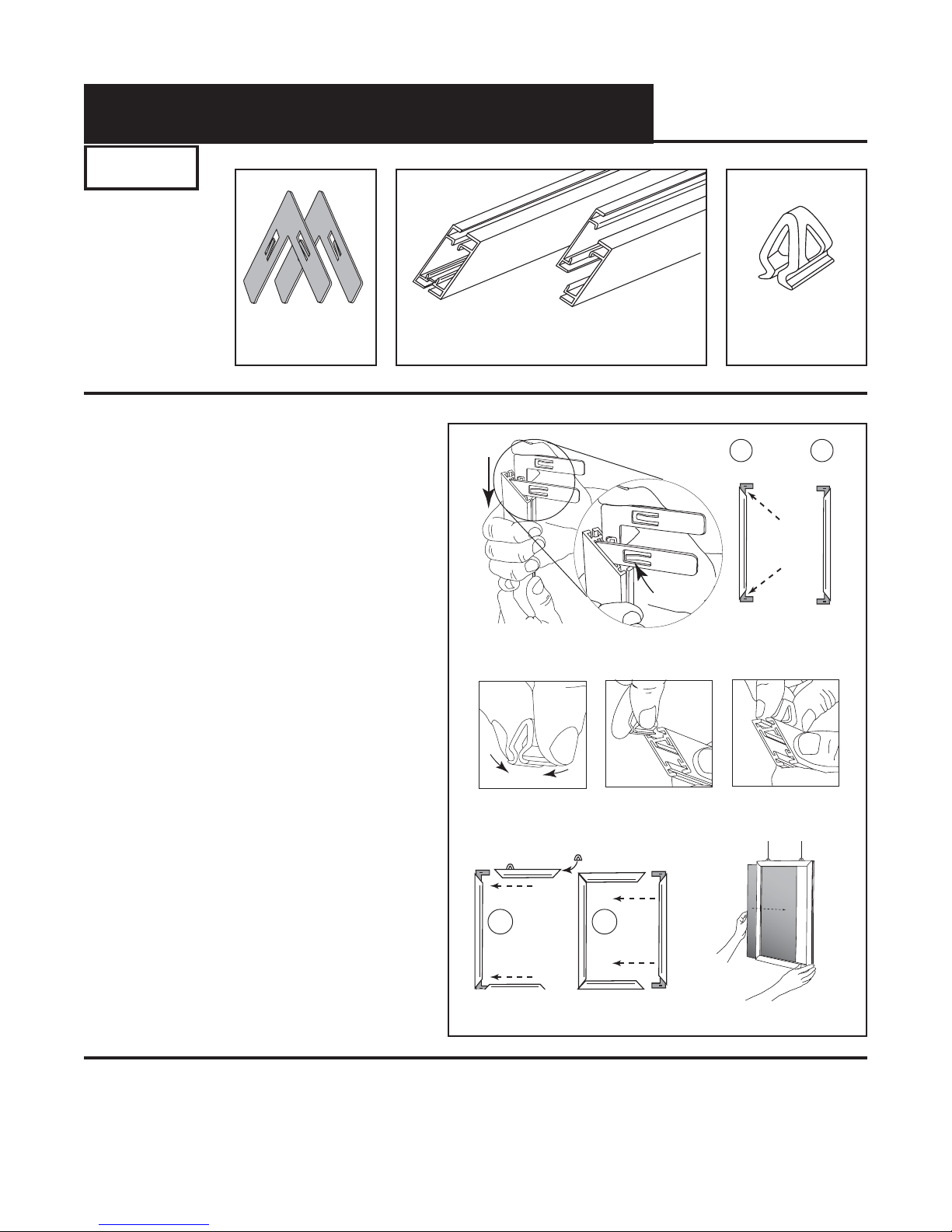

ROSE DISPLAYS ANOFRAME SQUARE WITH MULTICLIPS Manuale utente

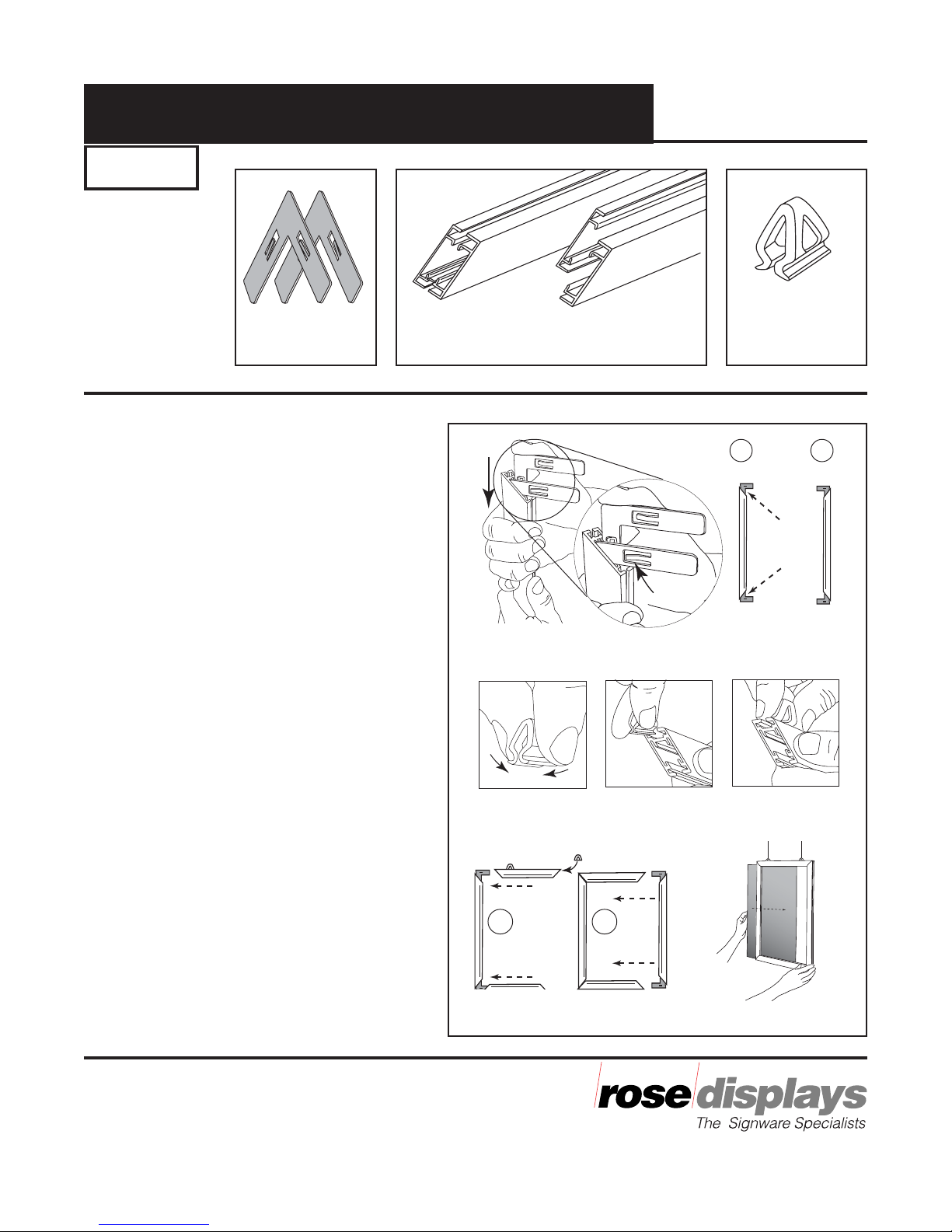

Parts

Instructions for assembly

Incept-7.31.02

The AnoFrame™ is a trademark of Rose Displays, Ltd. Neither the

manufacturer nor any sales agent may be held liable for injury, loss or

damage resulting from the use of these products.

Part #02INSAnoFrameSQMC

Corner

brackets

MultiClips

1UP-0101

AnoFrame rails

12AF-100

AnoFrame

split rails

Figure 1

Figure 3 Figure 4

Figure 5

Figure 2

solid rail w/

solid rail

split rails

Figure 6

Step 1

Insert corner brackets into vertical

AnoFrame sides. Fig. 1 & Fig. 2. Note:

Assembly brackets tension tabs face

towards outside of frames. Split rail side

is made up of 2 separate pieces.

Step 2

Squeeze sides of MultiClip together. Fig. 3

Step 3

Align the bottom rail of the MultiClip

with the top channel of the aluminum

holder. Slide MultiClip into rail. Fig. 4

Repeat steps 2 & 3 for second MultiClip.

Step 4

Assemble frame following steps in. Fig. 5

sliding sides together in the order shown.

Step 5

Insert poster. Fig 6.

AnoFrame

-Square Profile Instruction Sheet

split rails

solid rail

35 Congress Street, Salem, MA 01970

Tel# 1- 800 631-9707 Fax# 1-800-560-2890

e-mail:signware@rosedisplays.com

Parts

Instructions for assembly

Incept-7.31.02

The AnoFrame™ is a trademark of Rose Displays, Ltd. Neither the

manufacturer nor any sales agent may be held liable for injury, loss or

damage resulting from the use of these products.

Part #02INSAnoFrameSQ

Corner

brackets

MultiClips

1UP-0101

AnoFrame rails

12AF-100

AnoFrame

split rails

Figure 1

Figure 3 Figure 4

Figure 5

Figure 2

solid rail w/

solid rail

split rails

Figure 6

Step 1

Insert corner brackets into vertical

AnoFrame sides. Fig. 1 & Fig. 2. Note:

Assembly brackets tension tabs face

towards outside of frames. Split rail side

is made up of 2 separate pieces.

Step 2

Squeeze sides of MultiClip together. Fig. 3

Step 3

Align the bottom rail of the MultiClip

with the top channel of the aluminum

holder. Slide MultiClip into rail. Fig. 4

Repeat steps 2 & 3 for second MultiClip.

Step 4

Assemble frame following steps in. Fig. 5

sliding sides together in the order shown.

Step 5

Insert poster. Fig 6.

AnoFrame

-Square Profile Instruction Sheet

split rails

solid rail
