AnoFrame VersaMountTM Screw Base

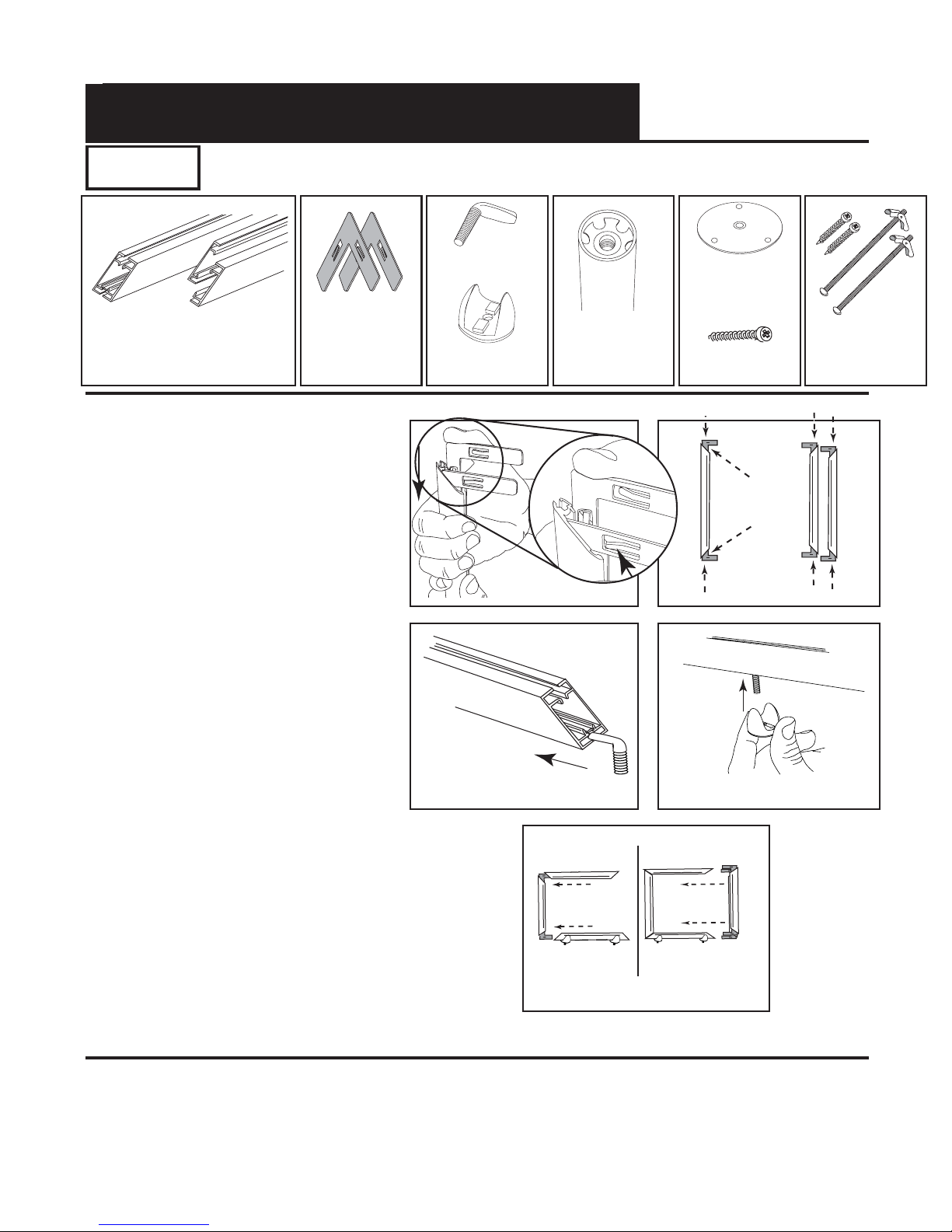

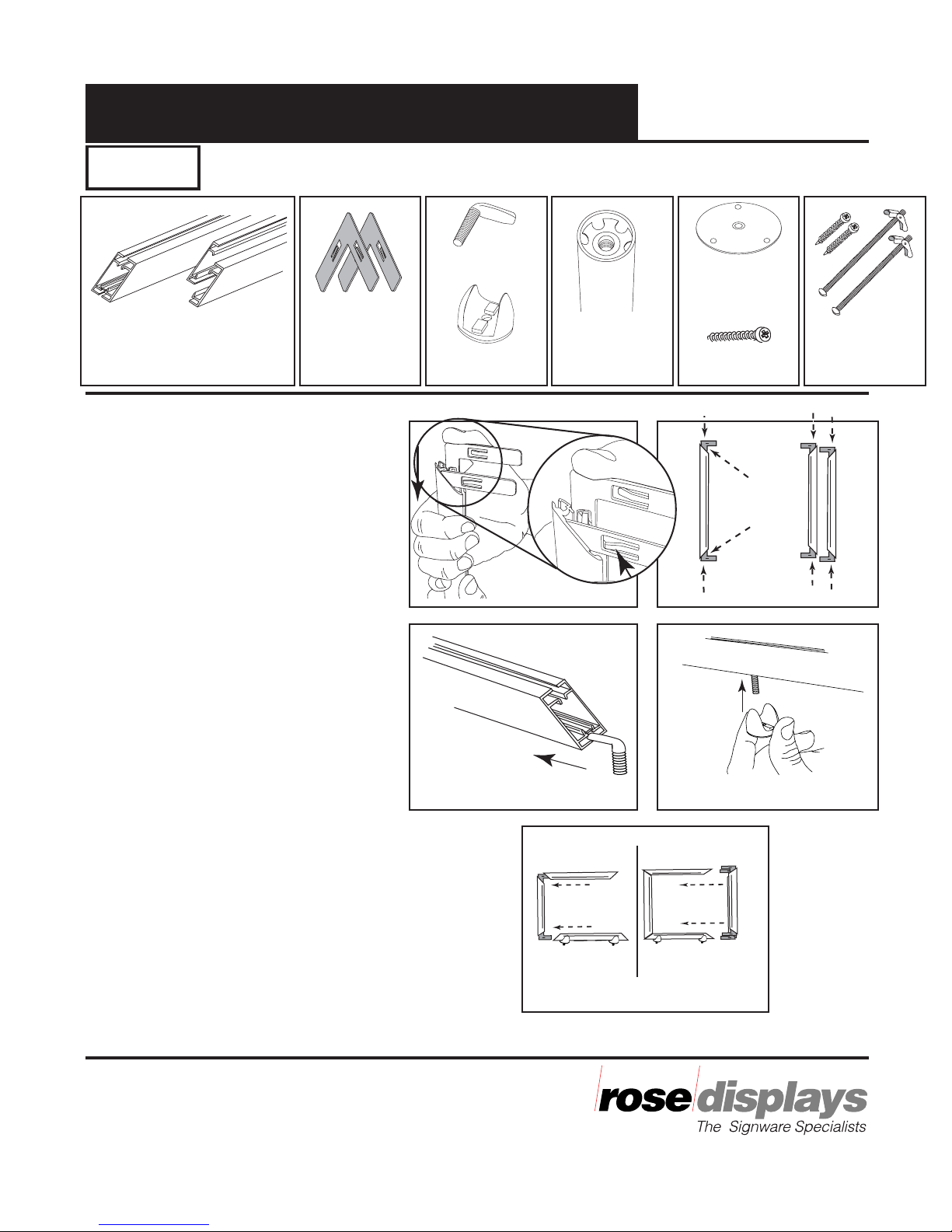

Step 1

Locate the two split rails and the solid

rail that is the same length as the split

rails.

Insert two corner brackets into each

end of the solid side Ano rail. Insert

one corner bracket into each end of

each split side Ano rail. Fig. 2

Note: Tension tabs on corner

brackets face towards outside of

frame. Fig. 1

Step 2

For ceiling application, slide screw

tabs into channel of top Ano rail. For

wall applications, slide into side Ano

rail. Fig. 3.

Step 3

Place one transitional collar over each

screw tab and push onto frame. Fig. 4.

Step 4

Finish assembling frame following the

sequence in Fig. 5.

Note: Placement of split rails will

depend on type of frame. Split rails

will be on the top for top-loading

frames and on the side for side-

loading frames.

split rails

solid rail

Instructions For Assembly

Incept-9.06.02

Figure 1

The AnoFrame VersaMount is a trademark of Rose Displays, Ltd. Neither

the manufacturer nor any sales agent may be held liable for injury, loss

or damage resulting from the use of these products.

Part #02INSVersaMountScrewBaseSQ

Figure 3

Corner

Brackets

AnoFrame

Rails

AnoFrame

Split Rails

Figure 2

Figure 4

Screw Tabs

Transitional

Collars Posts

Screw

Bases

Instruction Sheet (page 1 of 2)

solid rail

split rails

Figure 5

Wood Screws

or Togglebolts

Screws

#97-0451SQ

Parts

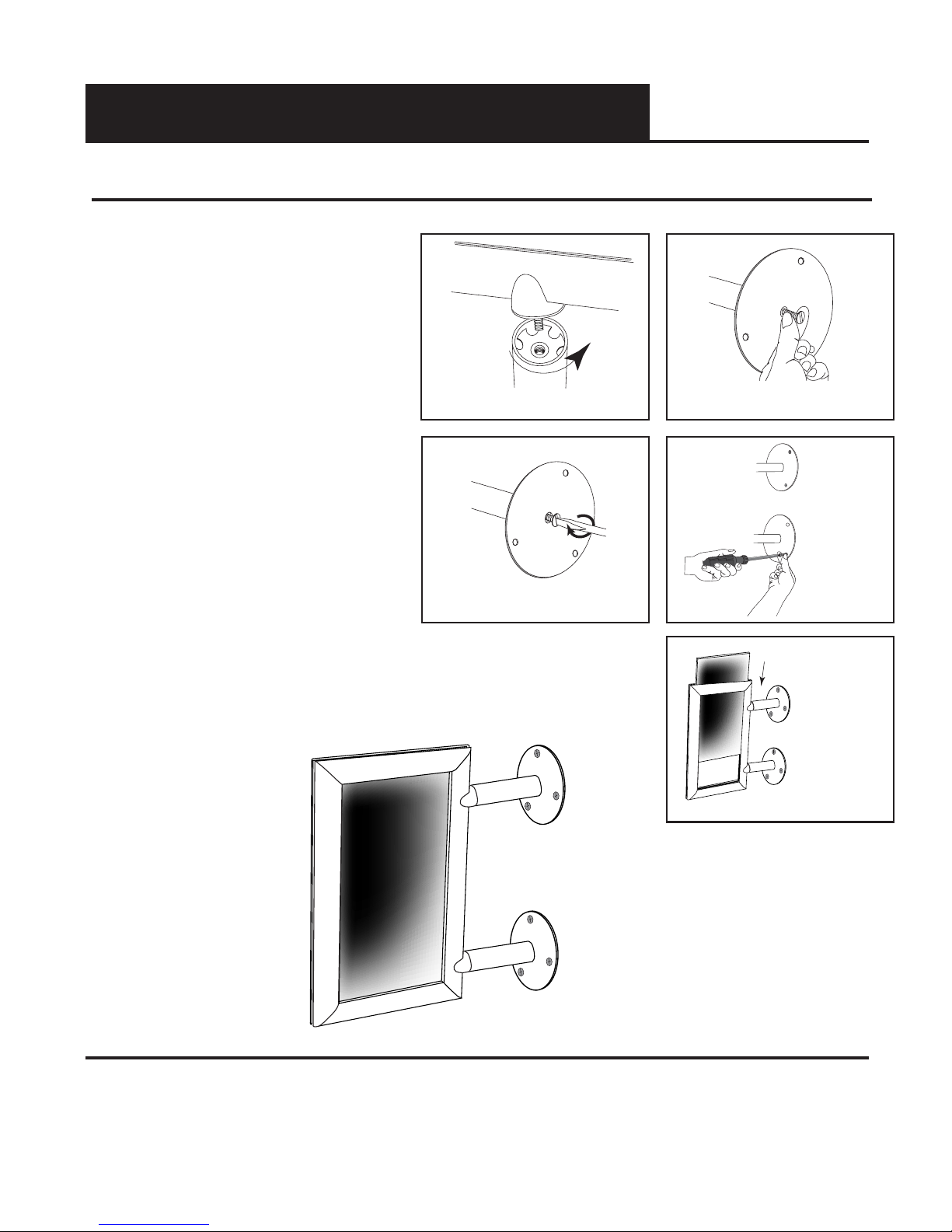

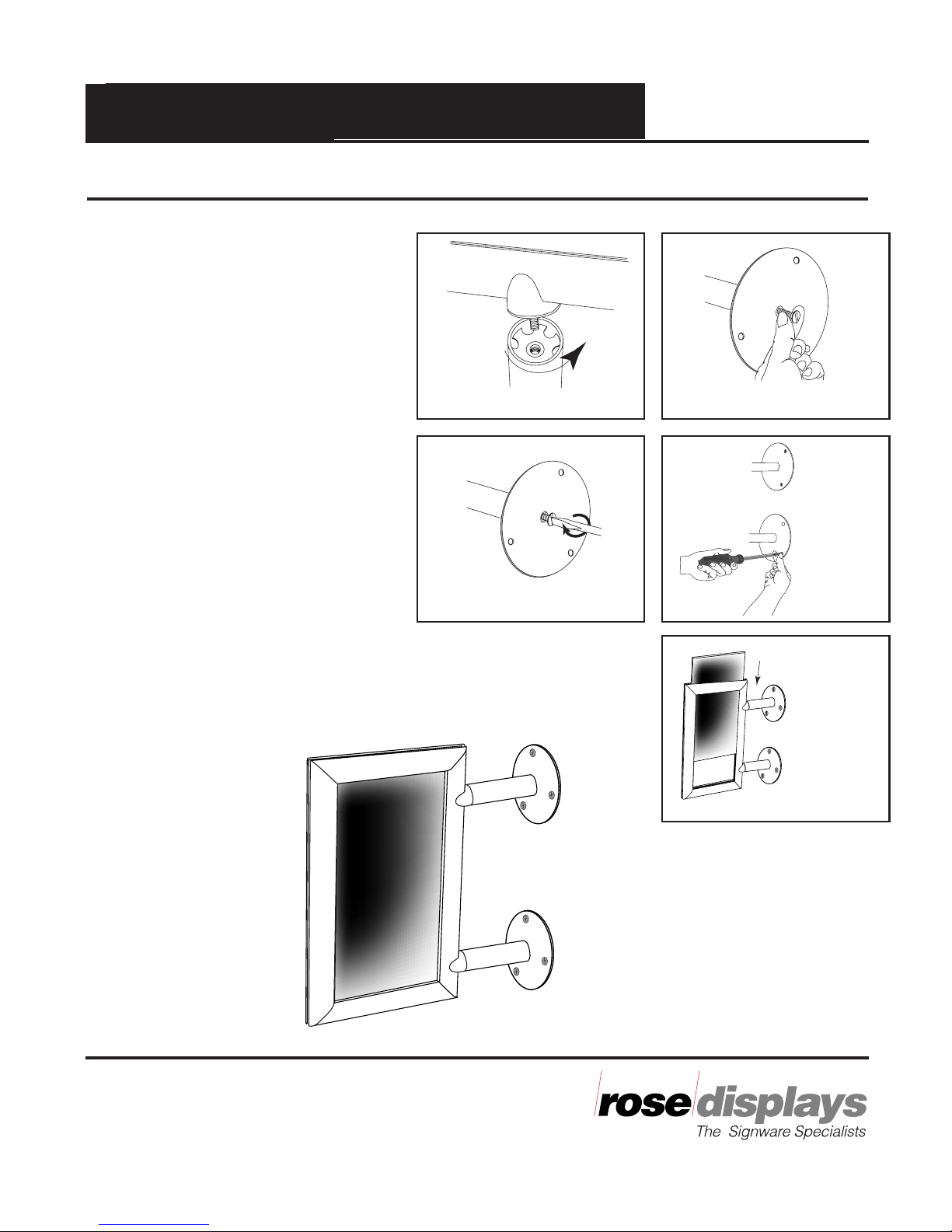

Step 5

Screw posts onto screw tabs and

tighten. Fig. 6

Note: Use the end of the post with

the smaller opening.

Step 6

Insert one screw into the middle

opening on each screw base and into

the post. Fig 7

Tighten with screwdriver. Fig. 8

Step 7

Install screw bases using wood screws

and screwdriver. Fig. 9

Note: Togglebolts are recommended

for drywall installations (predrilling

3/8” holes is necessary)

Step 8

Slide your graphic into the AnoFrame.

Fig. 10

Instructions For Assembly

Incept-9.06.02

Figure 6

The AnoFrame VersaMount is a trademark of Rose Displays, Ltd. Neither

the manufacturer nor any sales agent may be held liable for injury, loss

or damage resulting from the use of these products.

Part #02INSVersaMountScrewBaseSQ

Finished Look

35 Congress Street, Salem, MA 01970

Tel# 1- 800 631-9707 Fax# 1-800-560-2890

e-mail:signware@rosedisplays.com

Instruction Sheet (page 2 of 2)

AnoFrame VersaMountTM Screw Base

Figure 7

Figure 8 Figure 9

Figure

#97-0451SQ

Parts

AnoFrame VersaMountTM Screw Base

Step 1

Locate the two split rails and the solid

rail that is the same length as the split

rails.

Insert two corner brackets into each

end of the solid side Ano rail. Insert

one corner bracket into each end of

each split side Ano rail. Fig. 2

Note: Tension tabs on corner

brackets face towards outside of

frame. Fig. 1

Step 2

For ceiling application, slide screw

tabs into channel of top Ano rail. For

wall applications, slide into side Ano

rail. Fig. 3.

Step 3

Place one transitional collar over each

screw tab and push onto frame. Fig. 4.

Step 4

Finish assembling frame following the

sequence in Fig. 5.

Note: Placement of split rails will

depend on type of frame. Split rails

will be on the top for top-loading

frames and on the side for side-

loading frames.

split rails

solid rail

Instructions For Assembly

Incept-9.06.02

Figure 1

The AnoFrame VersaMount is a trademark of Rose Displays, Ltd. Neither

the manufacturer nor any sales agent may be held liable for injury, loss

or damage resulting from the use of these products.

Part #02INSVersaMountScrewBaseSQ

Figure 3

Corner

Brackets

AnoFrame

Rails

AnoFrame

Split Rails

Figure 2

Figure 4

Screw Tabs

Transitional

Collars Posts

Screw

Bases

Instruction Sheet (page 1 of 2)

solid rail

split rails

Figure 5

Wood Screws

or Togglebolts

Screws

#97-0451SQ

Parts

Step 5

Screw posts onto screw tabs and

tighten. Fig. 6

Note: Use the end of the post with

the smaller opening.

Step 6

Insert one screw into the middle

opening on each screw base and into

the post. Fig 7

Tighten with screwdriver. Fig. 8

Step 7

Install screw bases using wood screws

and screwdriver. Fig. 9

Note: Togglebolts are recommended

for drywall installations (predrilling

3/8” holes is necessary)

Step 8

Slide your graphic into the AnoFrame.

Fig. 10

Instructions For Assembly

Incept-9.06.02

Figure 6

The AnoFrame VersaMount is a trademark of Rose Displays, Ltd. Neither

the manufacturer nor any sales agent may be held liable for injury, loss

or damage resulting from the use of these products.

Part #02INSVersaMountScrewBaseSQ

Finished Look

Instruction Sheet (page 2 of 2)

AnoFrame VersaMountTM Screw Base

Figure 7

Figure 8 Figure 9

Figure

#97-0451SQ
