Rose electronics Rackview LCD Panel Mount 19" Manuale utente

Rackview Dual Rail - KVM Rack Drawer

Rose Electronics 10707 Stancliff Road

Houston, Texas 77099

Phone (281) 9337673 WWW.ROSE.COM

INSTALLATION AND

OPERATIONS MANUAL

Rackview 15”, 17”, 19” Dual Rail LCD

KVM Rack Drawer

1280 x 1024

Page 2

KVM Rack Drawer Dual Rail 15”-17”-19” WWW.ROSE.COM

LIMITED WARRA

Rose

Electronics warrants the

Rackview Product

to be in good working order for one year from the date of

purchase

from Rose

Electronic

s. Should this product fail to be in good working order at any time during this

one-year warranty period, Rose Electronics will, at its option, repair or replace the Unit as set forth below.

Repair parts and

replacement

units will be either

reconditioned

or new. All replaced parts

become

the

property of Rose

Electronics.

This limited warranty does not include service to repair damage to the Unit

resulting

from

accident,

disaster, abuse, or

unauthorized modification

of the

Unit, including

static discharge

and power surges.

Limited

Warranty

service may be obtained by

delivering

this unit during the one-year warranty period to Rose

Electronics

or an

authorized

repair center providing a proof of

purchase

date.

If this Unit is delivered by mail, you agree to insure the Unit or assume the risk of loss or

damage

in transit,

to prepay

shipping

charges to the

warranty

service location, and to use the original shipping container or its

equivalent. You must call for a return authorization number first. Under no

circumstances

will a unit be

accepted without a return

authorization

number. Contact an

authorized

repair center or Rose

Electronics

for

further information.

ALL EXPRESS AND IMPLIED

ARRANTIES

FOR THIS PRODUCT INCLUDING THE

WARRANTIES

MERCHANTABILITY

AND

FITNESS

FOR A

PARTICULAR

PURPOSE, ARE LIMITED IN

DURATION

TO A

PERIOD OF ONE YEAR FROM THE DATE OF

PURCHASE,

AND NO

WARRANTIES, W

HETHER

EXPRESS

IMPLIED, W

ILL APPLY AFTER THIS PERIOD. SOME STATES DO NOT ALLOW

LIMITATIONS

ON HOW LONG AN IMPLIED

ARRANTY

LASTS, SO THE ABOVE

LIMITATION

MAY

NOT APPLY TO YOU.

IF THIS PRODUCT IS NOT IN GOOD

ORKING ORDER AS

ARRANTED ABOVE,

YOUR SOLE

REMEDY

SHALL BE

REPLACEMENT

OR REPAIR AS

PROVIDED ABOVE.

IN NO EVENT

WILL ROSE

ELECTRONICS

BE LIABLE TO YOU FOR ANY DAMAGES

INCLUDING ANY LOST PROFITS, LOST SAVINGS OR OTHER

INCIDENTAL

CONSEQUENTIAL

DAMAGES ARISING OUT OF THE USE OF OR THE

INABILITY

TO USE SUCH

PRODUCT,

EVEN IF

ROSE

ELECTRONICS

OR AN

AUTHORIZED

DEALER HAS BEEN ADVISED OF THE

POSSIBILITY

SUCH DAMAGES, OR FOR ANY CLAIM BY ANY OTHER PARTY.

SOME STATES DO NOT ALLOW THE EXCLUSION OR

LIMITATION

INCIDENTAL

CONSEQUENTIAL

DAMAGES FOR CONSUMER PRODUCTS, SO THE ABOVE MAY NOT

APPLY

YOU. THIS

ARRANTY

GIVES YOU

SPECIFIC

LEGAL RIGHTS AND

YOU

MAY ALSO HAVE OTHER

RIGHTS W

HICH MAY

VARY

FROM STATE TO STATE.

IBM, AT, and PS/2 are trademarks of International Business Machines Corp. Microsoft and Microsoft

indows are registered trademarks of Microsoft Corp. Any other trademarks mentioned in this manual are

acknowledged

to be the property of the

trademark

owner.

No part of this manual may be reproduced, stored in a retrieval system, or transcribed in any form or any means, electronic or mechanical, including

photocopying and recording, without the prior written permission of Rose Electronics.

LIMITED WARRANTY

Page 3

KVM Rack Drawer Dual Rail 15”-17”-19” WWW.ROSE.COM

Rose Electronics Part # MAN-RV1-CDKVT

Printed In the United States of America – Revision 1.0

Table of Contents

Safety Instructions Page 4

Pre-Installation and Package Contents Page 5

Layout Diagram and Dimensions Page 6-7

Installation Procedure Page 7-9

OSD Function and Front Panel Controls Page 10-12

Cable Connections Page 12

Configuring Display Settings Page 12

Specifications Page 14

Technical Support Page 15

Page 4

KVM Rack Drawer Dual Rail 15”-17”-19” WWW.ROSE.COM

Safety Instructions

Please read all of these instructions carefully before you use the device. Save this manual for

future reference.

• Unplug equipment before cleaning. Don’t use liquid or spray detergent; use a moist cloth.

• Keep equipment away from excessive humidity and heat. Preferably, keep it in an air-conditioned

environment with temperatures not exceeding 50º Celsius (104º Fahrenheit).

• When installing, place the equipment on a sturdy, level surface to prevent it from accidentally

falling and causing damage to other equipment or injury to persons nearby.

• When the equipment is in an open position, do not cover, block or in any way obstruct the gap

between it and the power supply. Proper air convection is necessary to keep it from overheating.

• Arrange the equipment’s power cord in such a way that others won’t trip or fall over it.

• If you are using a power cord that didn’t ship with the equipment, ensure that it is rated for the

voltage and current labelled on the equipment’s electrical ratings label. The voltage rating on the

cord should be higher than the one listed on the equipment’s ratings label.

• Observe all precautions and warnings attached to the equipment.

• If you don’t intend on using the equipment for a long time, disconnect it from the power outlet to

prevent it being damaged by transient overvoltage.

• Keep all liquids away from the equipment to minimize the risk of accidental spillage. Liquid spilled

on to the power supply or on other hardware may cause damage, fire or electrical shock.

• Only qualified service personnel should open the chassis. Opening it yourself could damage the

equipment and invalidate its warranty.

• If any part of the equipment becomes damaged or stops functioning, have it checked by qualified

service personnel.

Regulatory Notices Federal Communications Commission (FCC)

This equipment has been tested and found to comply with the limits for a Class B digital device,

pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection

against harmful interference in a residential installation.

Any changes or modifications made to this equipment may void the user’s authority to operate this

equipment. This equipment generates, uses, and can radiate radio frequency energy and, if not

installed and used in accordance with the instructions, may cause harmful interference to radio

communications.

However, there is no guarantee that interference will not occur in a particular installation. If this

equipment does cause harmful interference to radio or television reception, which can be determined

by turning the equipment off and on, the user is encouraged to try to correct the interference by one or

more of the following measures:

• Re-position or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is

connected.

Page 5

KVM Rack Drawer Dual Rail 15”-17”-19” WWW.ROSE.COM

Pre-Installation and Package Contents

Before Installation:

It is very important to mount the equipment in a suitable cabinet or on a stable surface.

Make sure the mounting location has good ventilation, is out of direct sunlight, and away from

sources of excessive dust, dirt, heat, water, moisture and vibration.

Unpacking:

The equipment comes with the standard parts shown in package content. Check and make sure

they are included and in good condition. If anything is missing, or damaged, contact your supplier

immediately.

Package Contents:

1 x Rackview Unit

2 x Mounting bracket and slide rail sets

1 x Power Cable

1 x User Manual

2 x Keys

1 x Set of screws and washers

1 x set CPU Interface Cables

Pre-Installation:

a) Preparation

• Check all peripherals against the packing list. Make sure that the unit was not damaged during the

shipping process. If you encounter any problems, please contact your reseller

• Before installation, make sure all peripherals and computers have been turned off.

• The cabinet depth range must be between 19.84” - 39.37” (504 - 1000mm) for the 15” and 17” models,

and between 21.8” – 39.37” (554 – 1000mm) for the 19” model. Contact your reseller for deeper

cabinet application.

• Reliable grounding of rack-mounted equipment should be maintained. Particular attention should be

given to power supply connections other than direct connections to the branch circuit.

b) Power On Procedure

• Power on the Rackview (see power switch on back panel)

• Power on the KVM Switch or other connected product

• Power on the CPU

c) Cleaning Your Monitor

To clean your LCD safely, please follow these steps:

• Disconnect the power cord.

• Gently wipe the surface using a clean, dry microfiber cloth. Use as little pressure as possible.

Page 6

KVM Rack Drawer Dual Rail 15”-17”-19” WWW.ROSE.COM

Rackview Layout Diagram & Dimensions

Rackview Dual Rail 15” Model

Rackview Dual Rail 17” Model

Rackview Dual Rail 19” Model

Page 7

KVM Rack Drawer Dual Rail 15”-17”-19” WWW.ROSE.COM

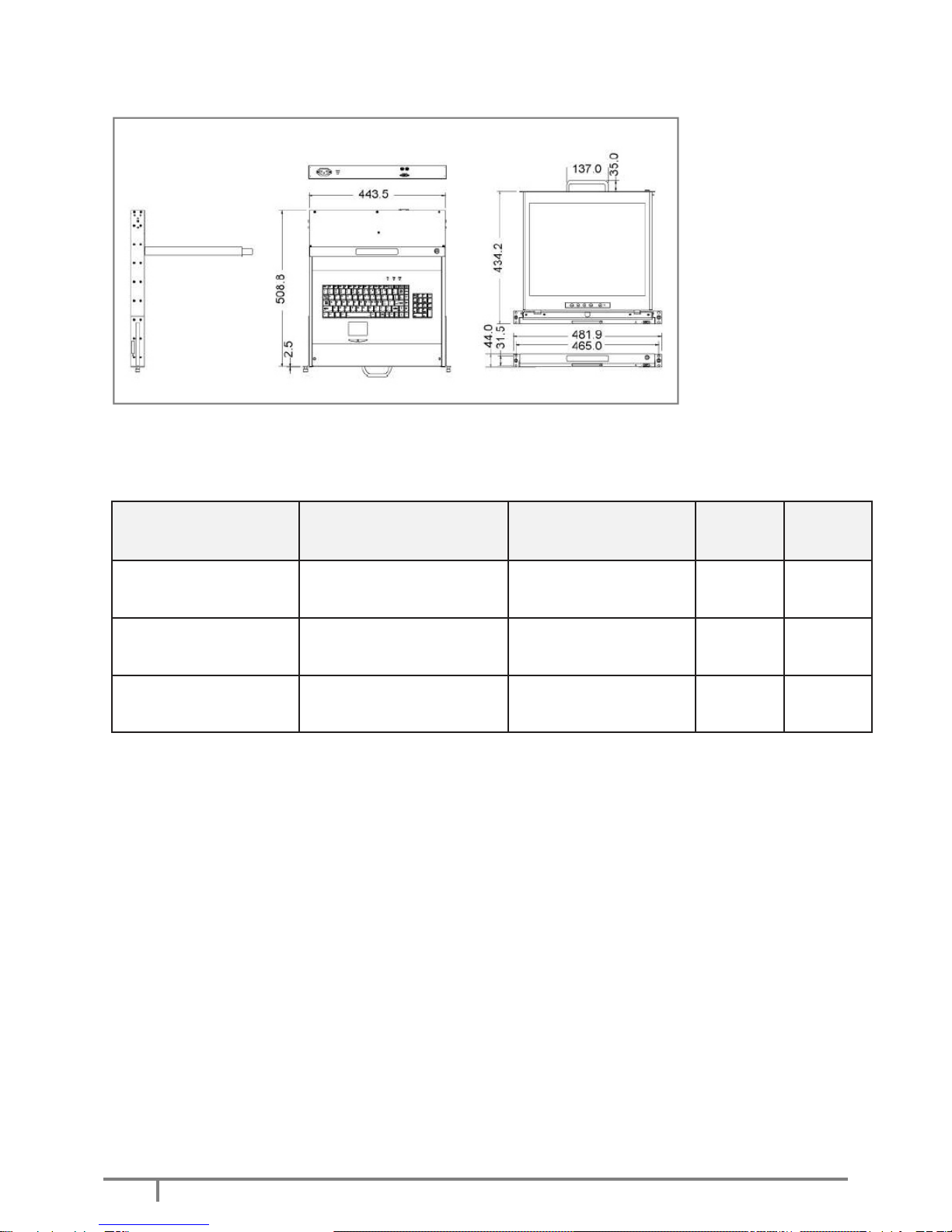

Rackview Product and Packaging Dimensions

Model

Product Dimension

(W x D x H) approx

Packing Dimension

(W x D x H) approx

Net

Weight

Gross

Weight

RV1-CDKVT15/DVI 449.8 x 443.4 x 44 mm

17.7 x 17.5 x 1.7 inch

605 x 560 x 202 mm

23.8 x 22.0 x 8.0 inch

10.5 kg

23.1 lbs

15.5 kg

34.2 lbs

RV1-CDKVT17/DVI 449.8 x 443.4 x 44 mm

17.7 x 17.5 x 1.7 inch

605 x 560 x 202 mm

23.8 x 22.0 x 8.0 inch

12.0 kg

26.5 lb

17.0 kg

37.5 lb

RV1-CDKVT19/DVI 511.3 x 443.5 x 44 mm

20.1 x 17.5 x 1.7 inch

664 x 564 x 185 mm

26.1 x 22.2 x 7.3 inch

12.5 kg

27.5 lb

19.0 kg

41.9 lb

Installation Procedure

Hardware Kit Contents

1. Short single bracket, long assembled bracket and support bracket ( x 2 of each)

Page 8

KVM Rack Drawer Dual Rail 15”-17”-19” WWW.ROSE.COM

2. Washers, nuts and keys

Installation Procedure

3. For a rack depth of 420-470mm (16.53 – 18.50”), with Rackview 15” and 17”, and for a rack depth

of 480-530mm (18.90” – 20.87”) with the Rackview 19”

Release the thumb screw on the front bracket (both sides).

Page 9

KVM Rack Drawer Dual Rail 15”-17”-19” WWW.ROSE.COM

Install the front bracket and fix using cabinet screws.

4. For a rack depth above 535mm (21.06”) with Rackview 15” and 17”, and for a rack depth

above 595mm (23.42”) with the Rackview 19”.

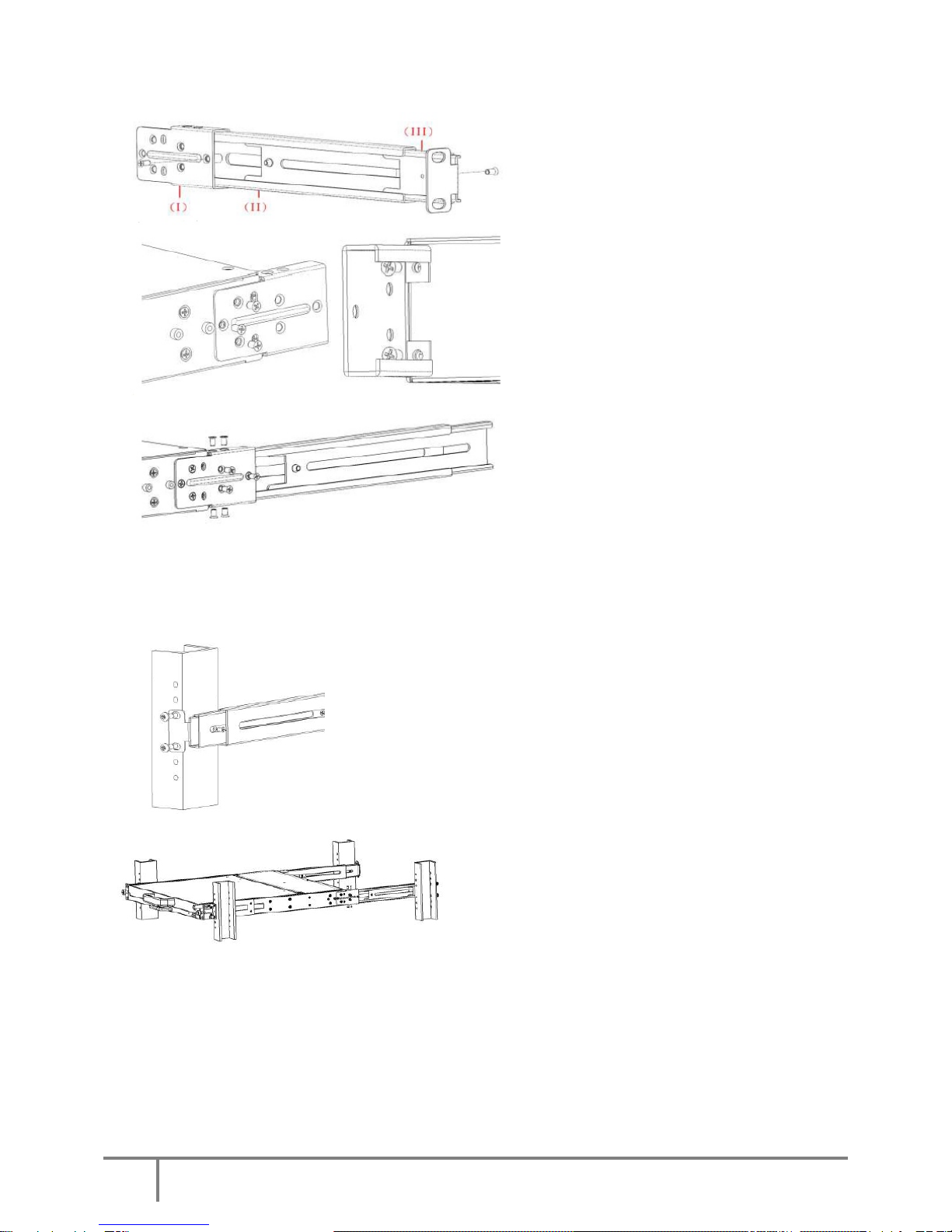

Remove the screws from the long assembled bracket.

Slide the long bracket into the existing rails and fix with 5 cap screws (each side).

Combine (I) and (II) together and fix with 7 cap screws.

Release the thumb screw from the front bracket and install the front bracket using cabinet screws.

Combine (I), (II) and (III) together and install the rear bracket using cabinet screws.

Page

KVM Rack Drawer Dual Rail 15”-17”-19” WWW.ROSE.COM

5. When the rack depth is greater then 680mm (26.77”) with Rackview 15” and 17”, and greater than

745mm (29.33”) with the Rackview 19”.

Use the support bracket in place of (III) when the rack depth is greater than the limits shown above.

OSD Function and Front Panel Controls

Altri manuali per Rackview LCD Panel Mount 19"

Indice

Altri manuali Rose electronics Cassetto LCD

Rose electronics

Rose electronics RV1-CKVT17 Manuale utente

Rose electronics

Rose electronics RackView RV1-CKVM15A Manuale utente

Rose electronics

Rose electronics RackView RVP-KVM15 Manuale utente

Rose electronics

Rose electronics RackView Dual Rail RV1-CDKVT19/DVI Manuale utente

Rose electronics

Rose electronics RackView RV1-LCDA17/Kn Manuale utente

Rose electronics

Rose electronics RackView RV2-KVM15 Manuale utente

Rose electronics

Rose electronics RackView RV1-CAKVT21L/DVI/Kn Manuale utente

Rose electronics

Rose electronics RV1-KVM15D Manuale utente

Rose electronics

Rose electronics RackView RV1-LCD15 Manuale utente

Rose electronics

Rose electronics Rackview LCD Panel Mount 19" Manuale utente

Rose electronics

Rose electronics RackView RV2-KVM15B Manuale utente

Rose electronics

Rose electronics Rackview LCD Panel Mount 19" Manuale utente

Rose electronics

Rose electronics RackView High-Resolution 17 Manuale utente

Rose electronics

Rose electronics Rackview LCD Panel Mount 19" Manuale utente

Rose electronics

Rose electronics RackView RV1-CAKVT17/DVI Manuale utente

Rose electronics

Rose electronics RackView RV1-KT-R Manuale utente

Rose electronics

Rose electronics KVM Rack Drawer Manuale utente

Rose electronics

Rose electronics RackView-Switch RV1-CSKVT17/DVI Manuale utente

Rose electronics

Rose electronics RackView RV1-KVM15C Manuale utente

Manuali Cassetto LCD popolari di altre marche

Acnodes

Acnodes KD 8228 Manuale utente

Ameriwood

Ameriwood 9524328PCOM Manuale utente

Kesseböhmer

Kesseböhmer TANDEM solo Manuale utente

Crystal Image Technologies

Crystal Image Technologies RMD-151-A Series Manuale utente

APW Wyott

APW Wyott Ease Extreme HDX-1-120 Manuale utente

NTI

NTI RACKMUX-V17-N Manuale utente

Austin Hughes

Austin Hughes CyberView L120 Manuale utente

Uplift Desk

Uplift Desk STR018 Manuale utente

Acnodes

Acnodes KDC 81932 Manuale utente

Acnodes

Acnodes RK1200T Manuale utente

StarTech.com

StarTech.com DuraView RACKCONS1501 Manuale utente

Mocka

Mocka Mischa Manuale utente

GRASS

GRASS DWD XP Manuale utente

StarTech.com

StarTech.com DuraView RACKCONS1701 Manuale utente

Fisher & Paykel

Fisher & Paykel IZONA CoolDrawer RB36S Manuale utente

Synergy Global Technology

Synergy Global Technology LCD1U17-44 Manuale utente

Fujitsu

Fujitsu RC25 Manuale utente

Acnodes

Acnodes RK 1000B Manuale utente
