Rosen DA-7169 Guida rapida
Table of Contents
1 Before You Begin ............................................ 2
2 Installing the DA-7169 Monitor ....................... 4
Parts Overview................................................. 8
4 Operating the DA-7169 Monitor ................... 11
5 Specifications ................................................ 16
6 Appendix ........................................................ 17
Page 2
Welcome to the In-Dash DA-7169 Operating Guide. Before
ou begin, read the following warnings and notes carefull .
Warning!
To avoid serious harm or injur to ou, others, the vehicle,
or the remote control unit, follow the instructions below.
To avoid short-circuiting the electrical s stem:
•When replacing a blown fuse, disconnect all power
supplies and power off the unit. Be sure to use the correct
replacement fuse.
•If the unit shows signs of overheating or malfunction,
power off the unit and consult our dealer immediatel .
Do not open the unit; there are no serviceable parts
inside.
To avoid damaging the LCD panel:
•Do not drop the LCD displa panel or subject it to direct
impact.
•If the LCD panel breaks, avoid contact with an broken
glass or leaking fluids. If ou come into contact with these
materials, flush and clean the affected areas with water.
Seek medical attention immediatel .
This unit uses high-qualit electronic components and is
manufactured under a stringent qualit -control s stem.
Properl maintain the remote control unit to ensure optimal
performance:
•Replace the batteries regularl . To avoid damage to new
batteries, do not use new and used batteries at the same
time. Batter life is six months.
•Use a soft, damp cloth (a lens cloth) to wipe dirt and
fingerprints off the screen. Chemical solvents, cleaning
agents, or corrosive detergents can cause irreparable
damage.
1 Before You Begin
Page 3
•Do not drop metal or foreign objects between the displa
screen and enclosure. Doing so ma impede the motor-
ized tra and cause an electrical short.
Important Notes
•When using the unit with a radio/TV tuner (model DA-2301),
reception qualit will var with geographical location and
climatic conditions.
•For safet , this unit can onl be activated when the
vehicles hand break is engaged. See our dealer for
details.
•Do not install the screen where it ma distract the driver.
•Avoid installing the displa screen in direct sunlight or
near hot air vents. Operating temperature for the displa
screen is 0oC to 60oC. If the internal temperature of the
vehicle is extremel high, cool down the inside of the
vehicle before operating the unit.
•Install the unit in a dr location, awa from condensation.
•To avoid a fire hazard, use the correct fasteners and
connecting cables during installation.
•The unit contains high voltages. To avoid electrical shock,
do not open the unit; there are no user serviceable parts
inside.
•See our authorized dealer if unsure how to proceed.
Before installing this display system,
ensure you are in compliance with
local traffic rules and regulations.
1 Before You Begin
Page 4
Precautions
1 This unit should be installed b a qualified service techni-
cian.
2 This product is designed to operate with a 12-Volt,
negative ground batter .
3 Disconnect the ground wire from the batter terminal
before connecting this unit to the electrical s stem.
4 Other products or accessories ma have wires that are
color-coded similarl to those for this unit. Refer to the
electrical diagrams of an other products before installa-
tion of the unit to avoid making wrong connections.
5 To avoid short-circuiting the electrical s stem, use proper
insulation and fastening materials.
6 Do not connect the units ellow wire directl to the
batter terminal. Connect the units red wire to the ACC of
the ignition switch. Failure to connect the red and ellow
wires properl ma drain the vehicles batter .
7 To avoid damaging the unit, use onl the accessories
supplied with the unit.
8 Do not install this product at an angle exceeding ±30°.
9 Do not install this product in a position that ma cause
injur to passenger(s) during an accident.
2 Installing the DA-7169 Monitor
Page 5
Electrical Connections
Color Code Function
Black Ground
Red ACC
Yellow +12 V
Blue +12 V Out (Max 1 Amp)
2 Installing the DA-7169 Monitor
Page 6
Signal Connections
Color Code Function
Gre /Yellow Video 1 In
Black /Yellow Video 2 In
Black/Black Video Out
Orange/Brown Rear View Camera/Night Switch
Signal
Signal & Control Signal & Control
2 Installing the DA-7169 Monitor
Page 7
Typical Wiring Diagram
The following is a t pical wiring diagram for an In-Dash DA-
7169 connected to model DVA-310x and a radio receiver with
a 40-Watt, 4-channel power amplifier.
2 Installing the DA-7169 Monitor
Page 8
Parts Overview
Front Panel
1 Mute (MUTE)
2 Remote sensor
3 Signal Source select (SRCE and CH / AV1 / AV2)
4 Pla er select and Pla /Pause (DISC & PLAY /
PAUSE)
5 AM/FM Radio select (BAND & AM/FM; when
interfaced with DA-2301)
6 OPEN / CLOSE
7 Disc select +/- (DISC)
8 Audio select (AUDIO)
9 Repeat function (REP)
7/8/9 Memor location (1 / 2 / 3 / 4 / 5 / 6)
10 Forward (>)
11 Up volume control
12 Backward (<)
13 Function mode (SEL)
14 Down volume control
15 Degree of tilt (ANGLE)
16 Displa mode (WIDE)
Page 9

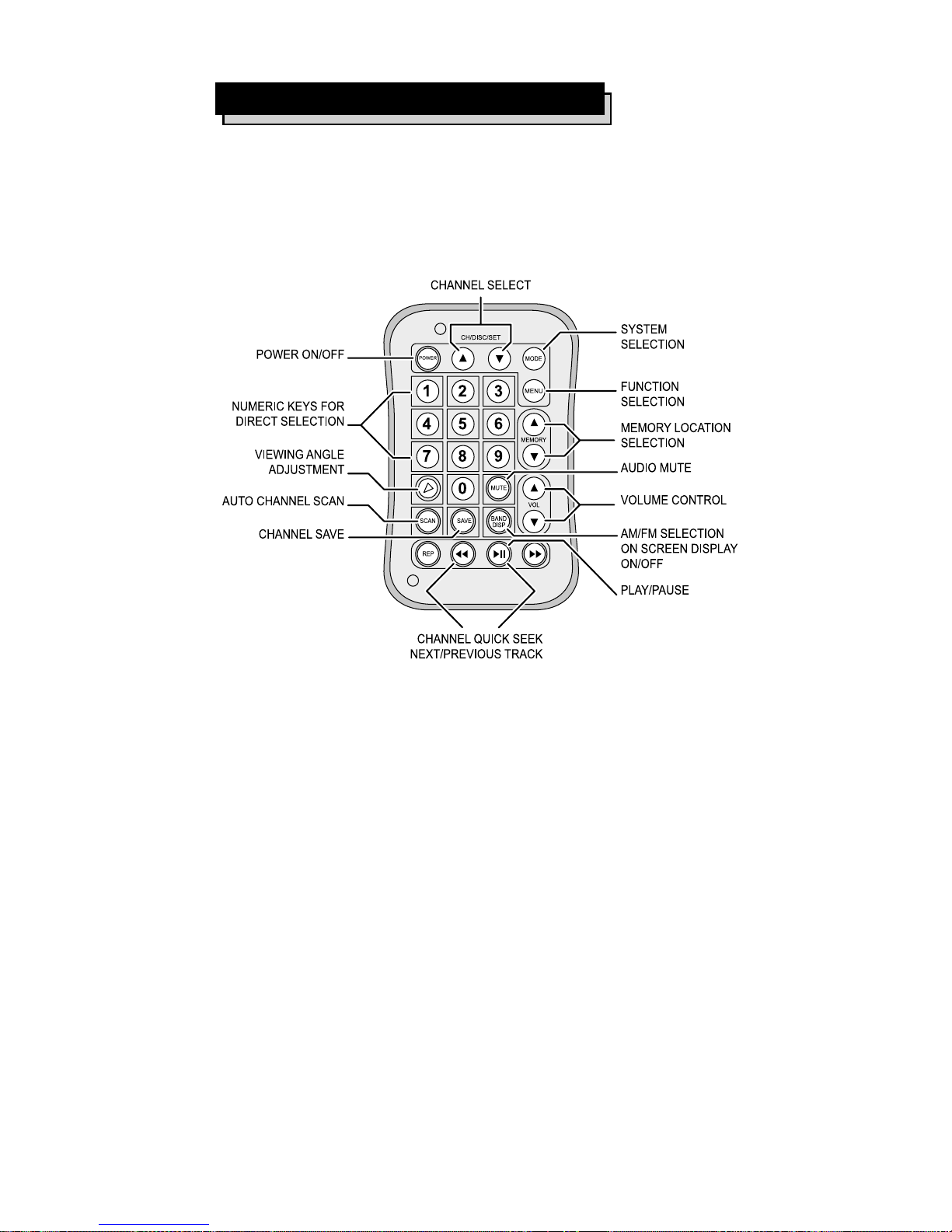

Remote Control Unit
Frequently Used Buttons
CHANNEL SELECT: Selects TV channels, disc title, or
desired settings on the MENU screen.
MODE: Selects the input video source. i.e. TV / AV1 / AV2.
MENU: Displa s menu screen of functions available.
POWER: Open (ON) or close (OFF) the monitor enclosure.
VIEWING ANGLE & DISPLAY MODE:
Press once to activate angle adjustment function. While in
this mode, press por q to set the tilt angle of the screen.
Press and hold to activate displa mode functions: ZOOM /
CINEMA / NORMAL / FULL.
Parts Overview
