Rosendahl Studiotechnik GmbH, Isoldenstraße 26
80804 München, Germany
Tel. +49 (0)89 3610 4802, Fax +49 (0)89 3610 4803
email:rosendahl.studiotechnik@t-online.de
www.rosendahl-studiotechnik.de
Generates LTCand MTCfrom biphase signals
Polarity, pulses per frame, format and
userbits programmable
Positional LTCand MTC-full /locate output
duringjog/shuttle
Electronic gear box for standard conversion
from 18, 24, 25, 30 to 24, 25, 30 fps
Biphase to
Time Code Interface
bif
The BIF biphase interface
converts biphase signals from
magmachines, film projectors or
editingtables into LTClongi-
tudinal time code and MTCmidi
time code simultaneously.
The input accepts bi-phase or pulse
&direction signals from 1 to 256
pulses per frame and can be connected
consequently with any film transport.
The electronic gear box resolves
any frame rate to 36, 48, 50, 60 Hz
or multiple signals.
The reference lock point, the user
bits, the time code format, the input
format and the pulses per frame
are programmable and stored in a non
volatile memory.
The direct conversion from bi-phase
signals into time code allows frame
accurate spottingby usingMTCfull /MMC
locate messages and positional LTC.
In „freerun“operation mode the
interface can also be used as an LTC
and MTCgenerator without loosingthe
actual biphase reference point.

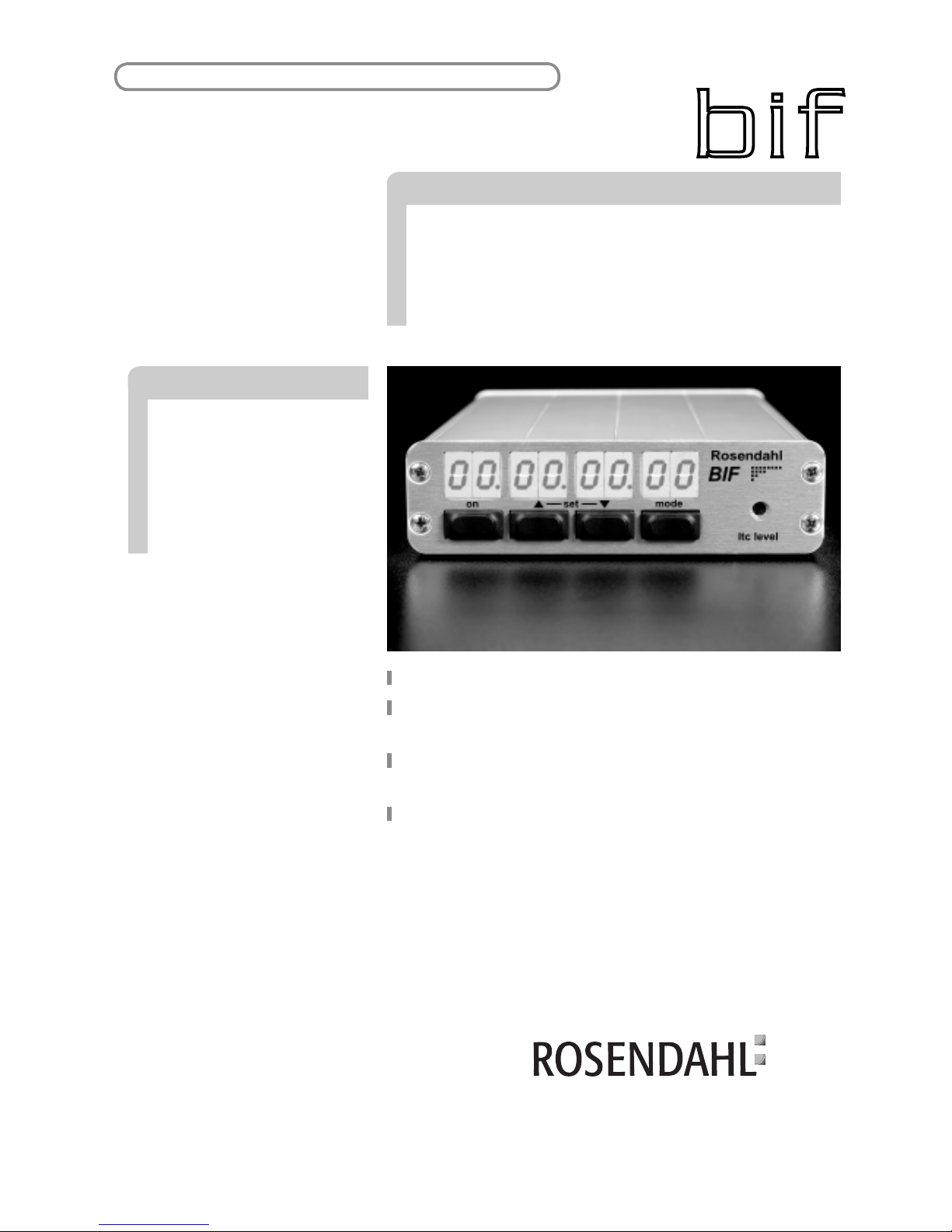

The interface has a robust aluminium
housing, a large 7-segment LEDdisplay
and a built-in power supply. An optional
rackmount kit for fittingthe unit into
a 19“rack is also available.
description
applications

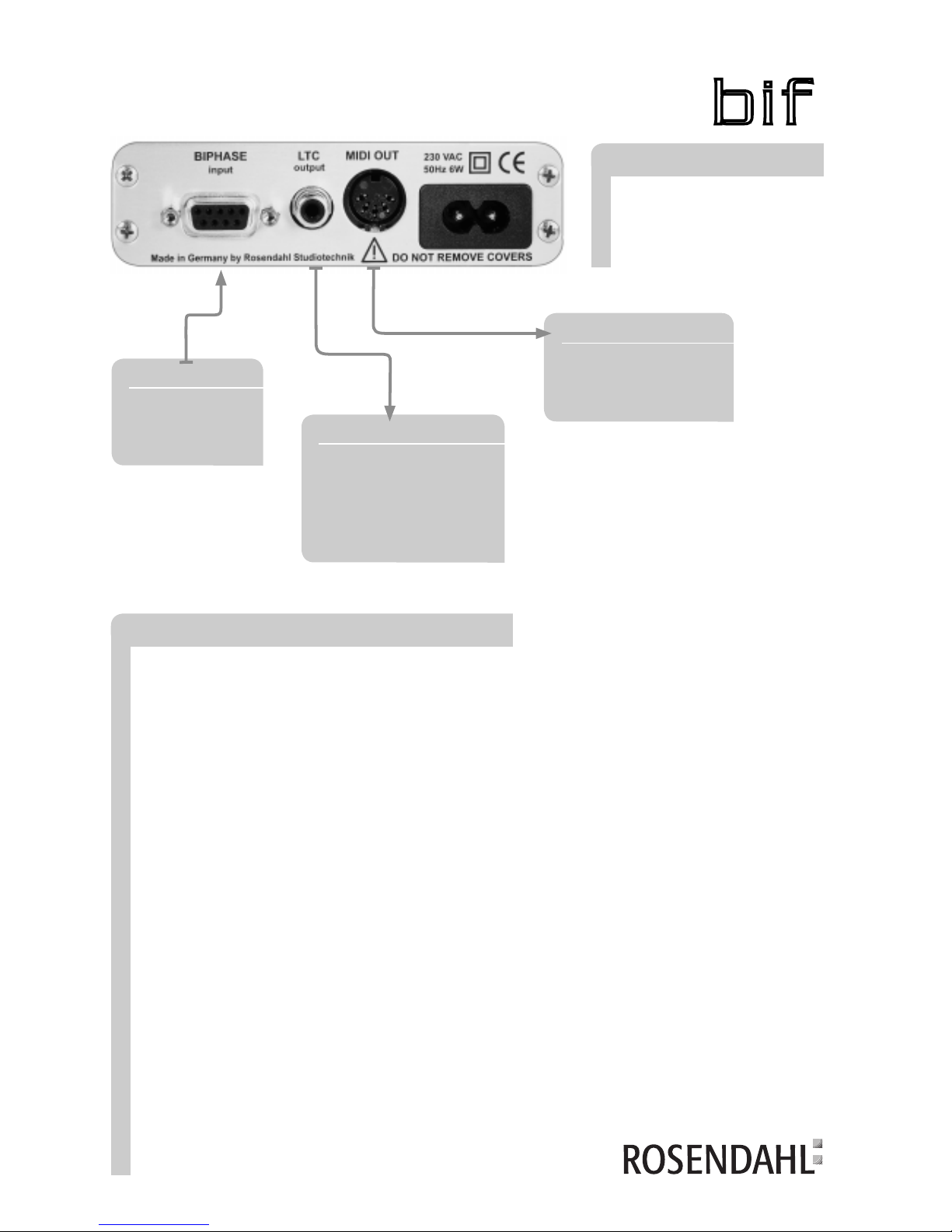

Biphase inputs
9-pin D-Sub female, two opto-isolated inputs (3-5V, 5 mA),
two TTL inputs (5V, 1K5 pull up), GND,
5V output (max 100 mA), pulses per frame programmable,
0-2,5 KHz biphase, 0-5 KHz pulse & dir.
LTC output
RCA female, 0-3 Vpp adjustable, 500 ohms,
positional time code output for cueing, 24, 25, 30d, 30 fps
MIDI output
5-pin DIN, The Complete MIDI1.0, MTCquarter frame
and full messages, MMClocate for cueing
Power
Euro two-pole, 230 VAC/30 mA or
115 VAC/60 mA version available
LEDDisplay
8x HP7503, 6mm (0,3“) red
Dimensions
11,4cm Wx 3,1 cm H x 16,8cm D,
1U-19“rackmount kit available
Weight
0,7kg
specifications
bif
Biphase master
film projector,
mag machine,
film editing table LTC time code slave
time code DAT,
hard diskrecorder,
tape-based digital multitrack
recorder,
automated mixer
MTC slave
digital audio workstation,
midi sequencer,
automated mixer
