Quick Installation Guide

Wireless Adapter RNX-N1/N1MAC

Quick Installation Guide

Wireless Adapter RNX-N1/N1MAC

The high-speed wireless USB 2.0 client adapter is the most convenient way to let you put a

desktop/notebook computer almost anywhere without the hassle of running network cables.

Now you don’t need to suffer from drilling holes and exposed cables. Once you are connected,

you can do anything, just like the wired network. This USB client adapter operates seamlessly

in 2.4GHz frequency spectrum supporting the 802.11b, 802.11g, and 802.11nwireless

standards. It’s the best way to add wireless capability to your existing wired network or simply

surf the web.

For advanced configuration, refer to the User’s Manual in the CD-ROM provided.

USB Adapter Description

USB Connector

The USB adapter is a standard USB

adapter that fits into any USB interface.

The USB adapter has two LED indicators

and a built-in antenna.

PWR and LINK

LED Indicator

USB Adapter for Windows 2000/XP/Vista– Installation

During the installation, Vista may need to copy systems files from its installation CD. Therefore,

you may need a copy of the Windows installation CD at hand before installing the drivers.

Follow the steps below in order to install the USB adapter drivers:

1. Insert the CD-ROM that was provided to you in this package. The setup should run

automatically. If the setup does not run automatically, then you must manually select the

setup.exe file from the CD-ROM drive.

2. Once the setup begins you will see the InstallShield Wizard. Select Rosewill

Configuration Tool and then click on the Next> button.

Quick Installation Guide

Wireless Adapter RNX-N1/N1MAC

3. Click on the Install button to begin the installation.

4. The installation is complete. Click on the Finish button.

5. Carefully insert the USB adapter into the USB port. Windows will then detect and

install the new hardware.

6. An Ricon will then appear in the system tray. Right click on the Ricon and then click on

Launch Config Utilities.

Quick Installation Guide

Wireless Adapter RNX-N1/N1MAC

Note: Click on Use Zero Configuration as Configuration Utility if you would like to use

Windows Zero Config.

USB Adapter Adding a Profile – Windows 2000/XP/Vista

The Profile tab is used to store the settings of multiple Access Points such as home,

office, café, etc. When adding a profile you are required to enter a profile name and

SSID as well as configure the power-saving mode, network type, RTS/fragmentation

threshold and encryption/authentication settings.

Quick Installation Guide

Wireless Adapter RNX-N1/N1MAC

1. Profile: Enter a name for the profile; this does not need to be the same as the

SSID.

2. SSID: Enter the SSID of the network or select one from the drop-down list.

3. Network Type: Select Infrastructure from the drop-down list.

4. TX Power: Select a transmit power from the drop-down list..

5. Click on the Apply button to save the changes.

USB Adapter for MAC OS 10.3, 10.4 and 10.5– Installation

1. Insert the CD-ROM that was provided to you in this package. The setup should run

automatically. If the setup does not run automatically, then you must manually select the

setup file from the CD-ROM drive.

2. Click on the Continue button to configure the next step.

Quick Installation Guide

Wireless Adapter RNX-N1/N1MAC

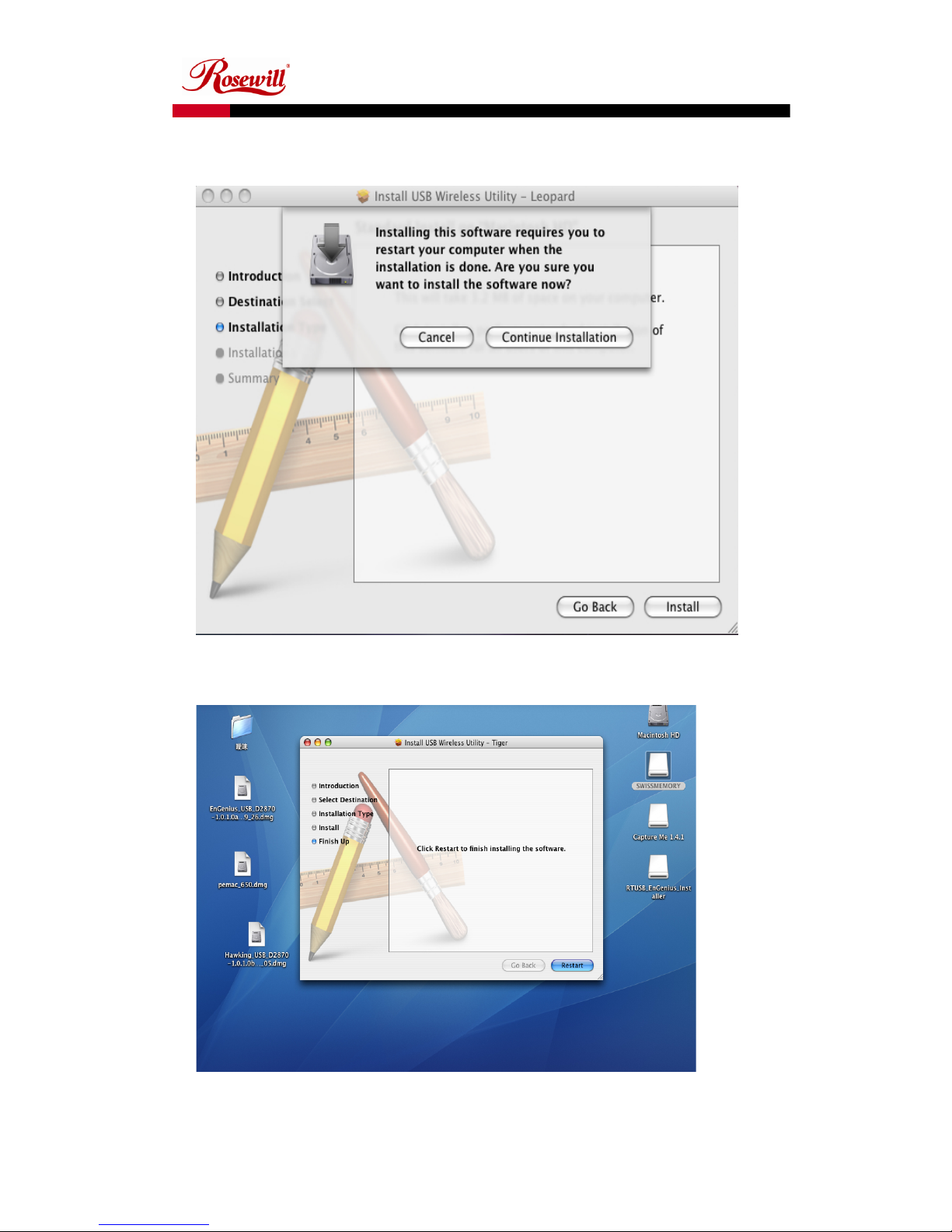

3. Select the Macintosh HD and then click on the Continue button.

4. Click on the Continue button to configure the next step.

5. The installation is complete. Click on the Restart button.

Quick Installation Guide

Wireless Adapter RNX-N1/N1MAC

6. Carefully insert the USB adapter into the USB port. MAC OS X will then detect and

install the new hardware.

7. The Rosewill Client Utility is installed in the Applications folder.

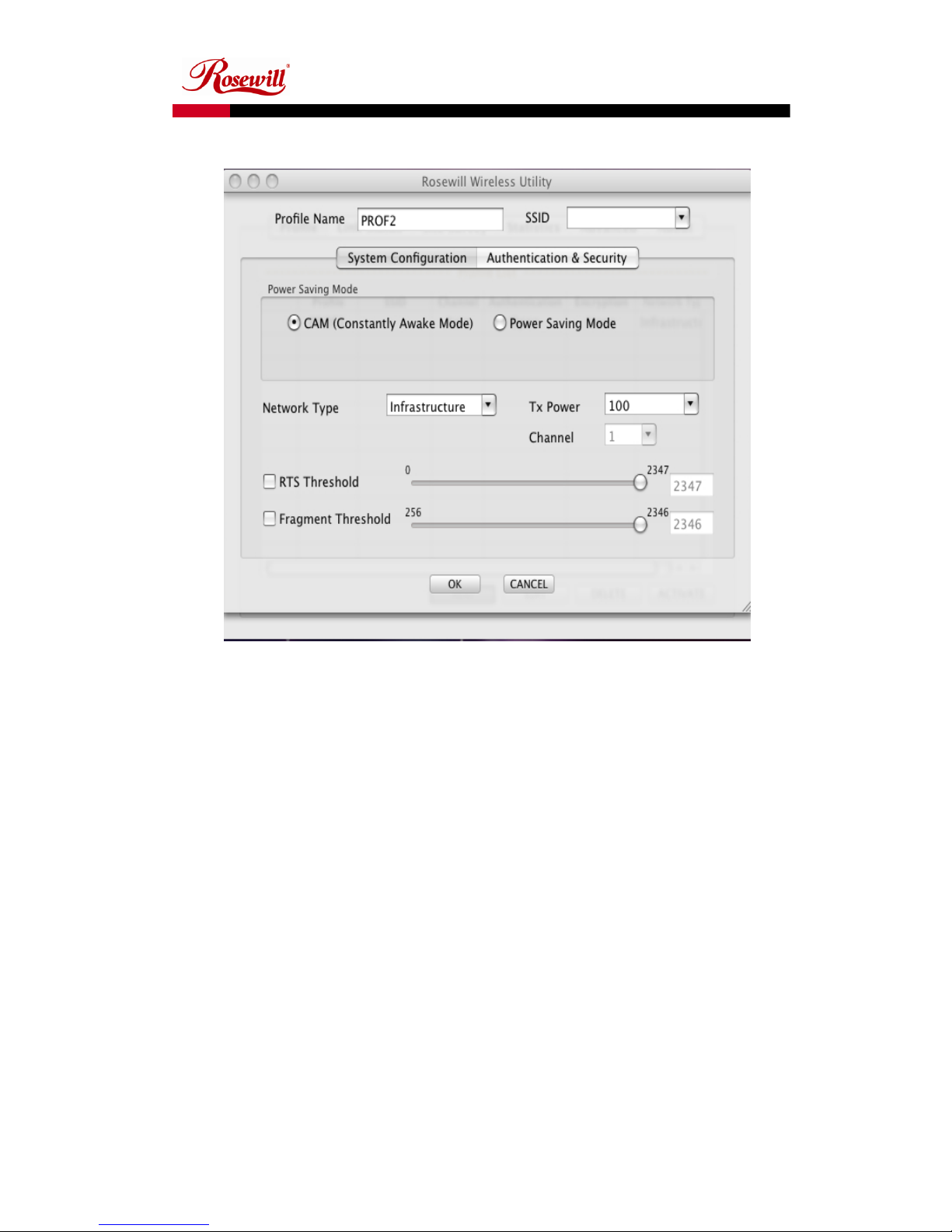

USB Adapter Adding a Profile – MAC OS 10.3 10.4 10.5

The Profile tab is used to store the settings of multiple Access Points such as home, office, café,

etc. When adding a profile you are required to enter a profile name and SSID as well as

configure the power-saving mode, network type, RTS/fragmentation threshold and

encryption/authentication settings.

Quick Installation Guide

Wireless Adapter RNX-N1/N1MAC

1. Profile: Enter a name for the profile; this does not need to be the same as the

SSID.

2. SSID: Enter the SSID of the network or select one from the drop-down list. The

SSID is a unique name shared among all points in your wireless network. The

SSID must be identical for all points in the network, and is case-sensitive.

3. PSM: Select a power saving mode (PSM) option.

CAM (Continuously Awake Mode): Select this option if your notebook is

always connected to the power supply.

PSM (Power Saving Mode): Select this option if your notebook uses its

battery power. This option minimizes the battery usage while the network is

idle.

4. Network Type: Select Infrastructure from the drop-down list.

5. TX Power: Select a transmit power from the drop-down list. If your notebook is

connected to external power then select 100% or auto, if not, select one of the

lower values for power saving.

6. RTS Threshold: Place a check in this box if you would like to enable RTS

Threshold. Any packet in the RTS/CTS handshake larger than the specified value

(bytes) will be discarded.

7. Fragment Threshold: Place a check in this box if you would like to enable

Fragment Threshold. Any packet larger than the specified value (bytes) will be

discarded.

8. Click on the Apply button to save the changes.

For advanced configuration, refer to the User’s Manual in the CD-ROM provided.
