Rosewill THOR Manuale utente

User’s Manual

V1.5

User ManualTHOR

CASE

Contents

Opening Chassis

Installing Motherboard

Installing Power Supply

Disassemble Chart P.2

P.2

P.4

P.5

P.6

P.7

P.8

P.9

Accessory Box

Installing External 5.25" Device

Installing External 3.5" Device

Installing 3.5”/2.5” HDD/SSD

Installation Guide

Information

Product Overview

Installing Add On Card

User ManualTHOR

CASE

Disassemble Chart

Front I/O Pin Define

140mm fan

230mm fan

Top fan holder

PSU dust filter Fan holder

Front panel

Left side panel

Right side panel

HD CONNECTOR

AUD GND

PRESENCE#

SENSE1_RETURN

NO PIN

SENSE2_RETURN

PORT1L

PORT1R

PORT2R

SENSE_SEND

PORT2L

USB2.0 CONNECTOR

USB+5V

LP-

LP+

GND

USB+5V

LP-

LP+

GND

Pin Pin

AC97 CONNECTOR

MIC

AUD GND

RET~R

RET~L

MIC

MIC~BIAA

FPOUT~R

+5V

FPOUT~L

USB3.0 CONNECTOR

User ManualTHOR

CASE

Accessory Box

14 x M/B standoff Motherboard

14 x M/B screw Motherboard

4 x PSU screw Power Supply

24 x HDD screw 3.5” HDD

24 x 2.5” HDD screw 2.5” HDD

4 x FDD screw 3.5“ devices

8 x Fan screw Fans

8 x Cable tie Cables

User ManualTHOR

CASE

Unscrew to remove left and right panels.

Place the power supply from the left side into

the chassis and secure with screws.

NOTICE :

-If your power supply is equipped with single

fan (120mm, 135mm or 140mm), please have

the fan face to the bottom.

-Please remember to clean the PSU dust filter

regularly.

User ManualTHOR

CASE

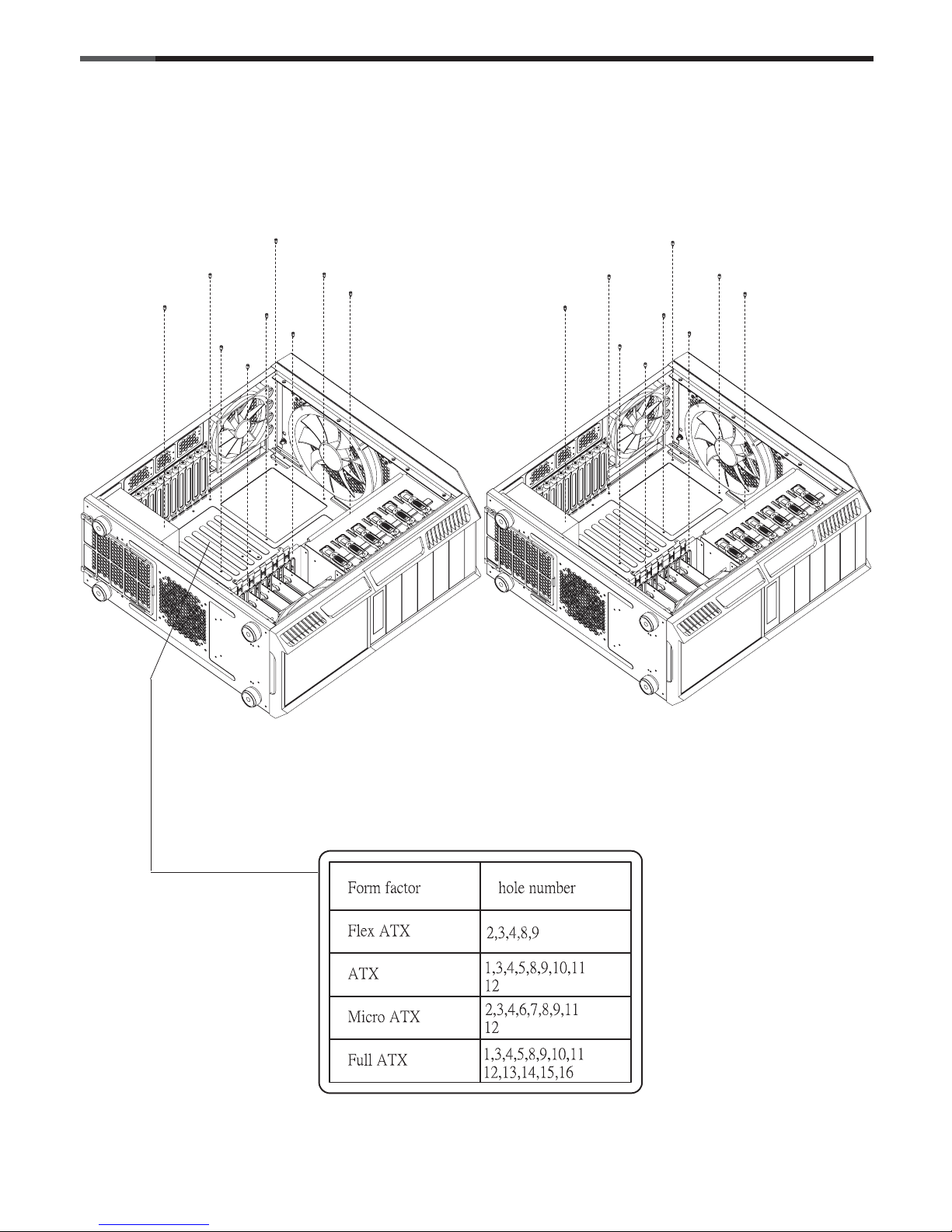

-Install motherboard stand-offs according to your motherboard’s form factor.

-Place the motherboard onto stand-offs and secure with screws.

NOTE : Full ATX = Extended ATX

User ManualTHOR

CASE

Release the kit and remove the expansion slot

cover.

Fasten the kit to fix the add-on card.

Install the add-on card.

User ManualTHOR

CASE

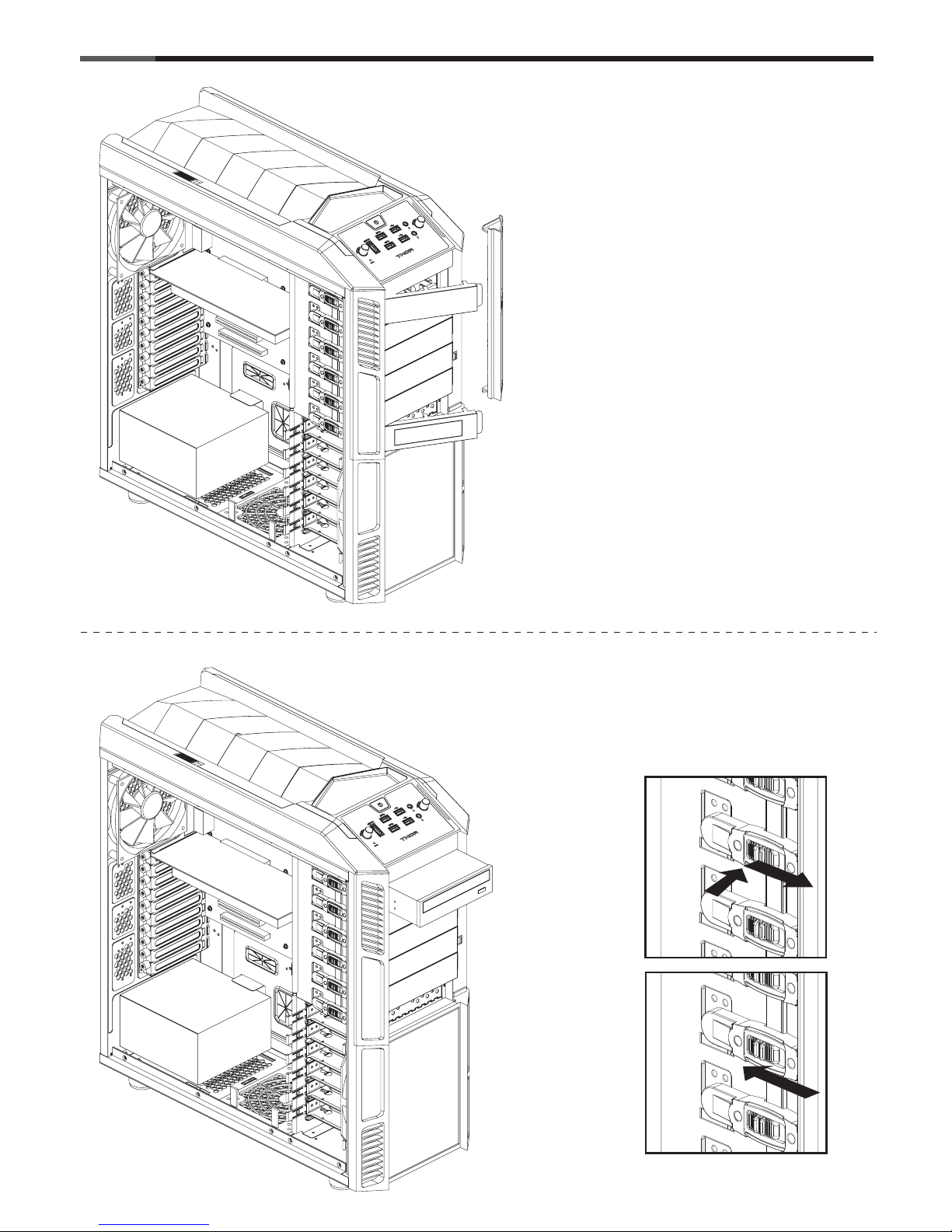

-Remove the front panel right side bar.

-Confirm which bay(s) you want to install

device(s) then remove the bay cover.

-Install the front panel right side bar back.

Insert the 5.25” device from the front

panel into the chassis then secure with

screw-less kits.

LOCK

UNLOCK

User ManualTHOR

CASE

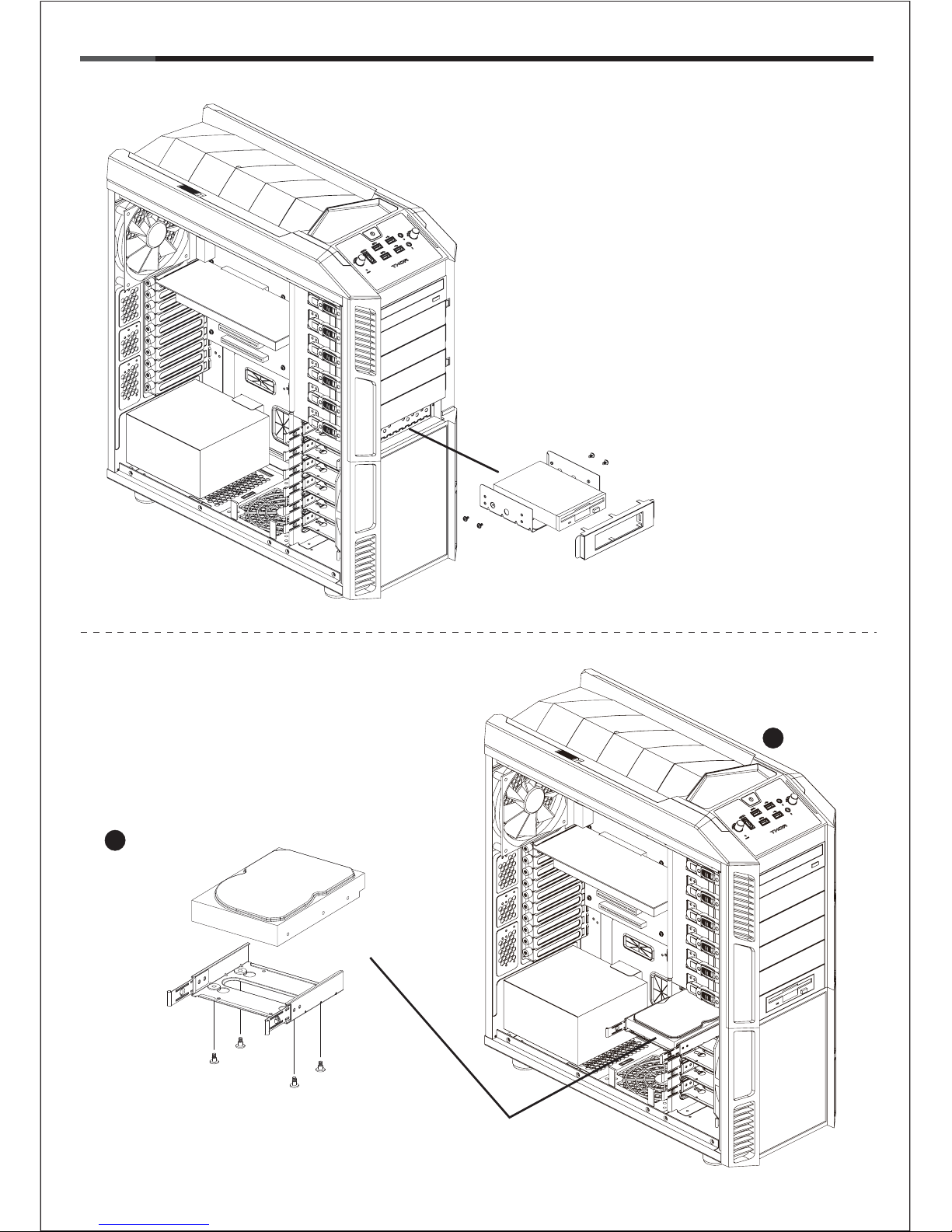

-Put the 3.5”/2.5“ HDD/SSD onto the HDD tray

then secure with screws.

-Slide it into its slot and push to bottom to secure

it.

-Secure the external 3.5” device onto the 5.25”

to 3.5” adapter with screws.

-Place it and the 5.25” to 3.5” bay cover to the

place and secure with tool-less kit.

User ManualTHOR

CASE

Thank you for purchasing a High-Quality Rosewill Product.

Please register your product at :http://www.rosewill.com

for complete warranty information and future support for your product.

If you have any question while using our products, please visit our website : www.rosewill.com

for latest driver & user manual or feel free to contact us.

Support Phone Number: 800-575-9885

Support Email: [email protected]
