Rosewill CASE 6A Series Manuale utente

CASE 6A series User Manual

Contents

Conﬁguration

Features Descriptions

Installation

1.Opening Chassis

2.Installing Motherboard

3. Installing Power Supply

4.Installing 5.25" Device

5.Installing 3.5" Floppy

6.Installing 3.5" HDD

7.Installing Add on Card

9.USB port

10.Audio Port

P. 2

P. 3

P. 4

P. 5

P. 6

P. 7

P. 8

P. 9

P.10

P.12

P.13

11.Front Panel LED P.14

12.System Control Connectors P.15

Information P.16

8.Clearing Air Filter P.11

CASE 6A series User Manual

Conﬁguration

Dimension (W x H x D)

M/B Size

Drive Bay

Expansion Slots

Thermal Solution

Air Filter

I/O Port Bracket

Megal Material

8.3" x 18.1" x 16.9"

ATX, Micro ATX

External : 4 x 5.25" + 2 x 3.5"

Internal : 5 x 3.5"

7Slots

1 x 120 mm fan in rear and 1 x 120 mm fan holder in front

One air ﬁlter in the front panel

Supports one I/O port bracket for standard ATX M/B

0.8 mm thickness SECC rustproof & galvanized JIS Steel

CASE 6A series User Manual

Features Descriptions

Rear 120mm Fan Front 120mm Fan Holder Sliding Rails for 5.25"

Device

Vertical sliding HDD cage

HDD cage with Shockproof

Rubber Pads

Add on Card Kit No Screw Neded to Secure

& Open the Left Side Panel

Front IO Ports

CASE 6A series User Manual

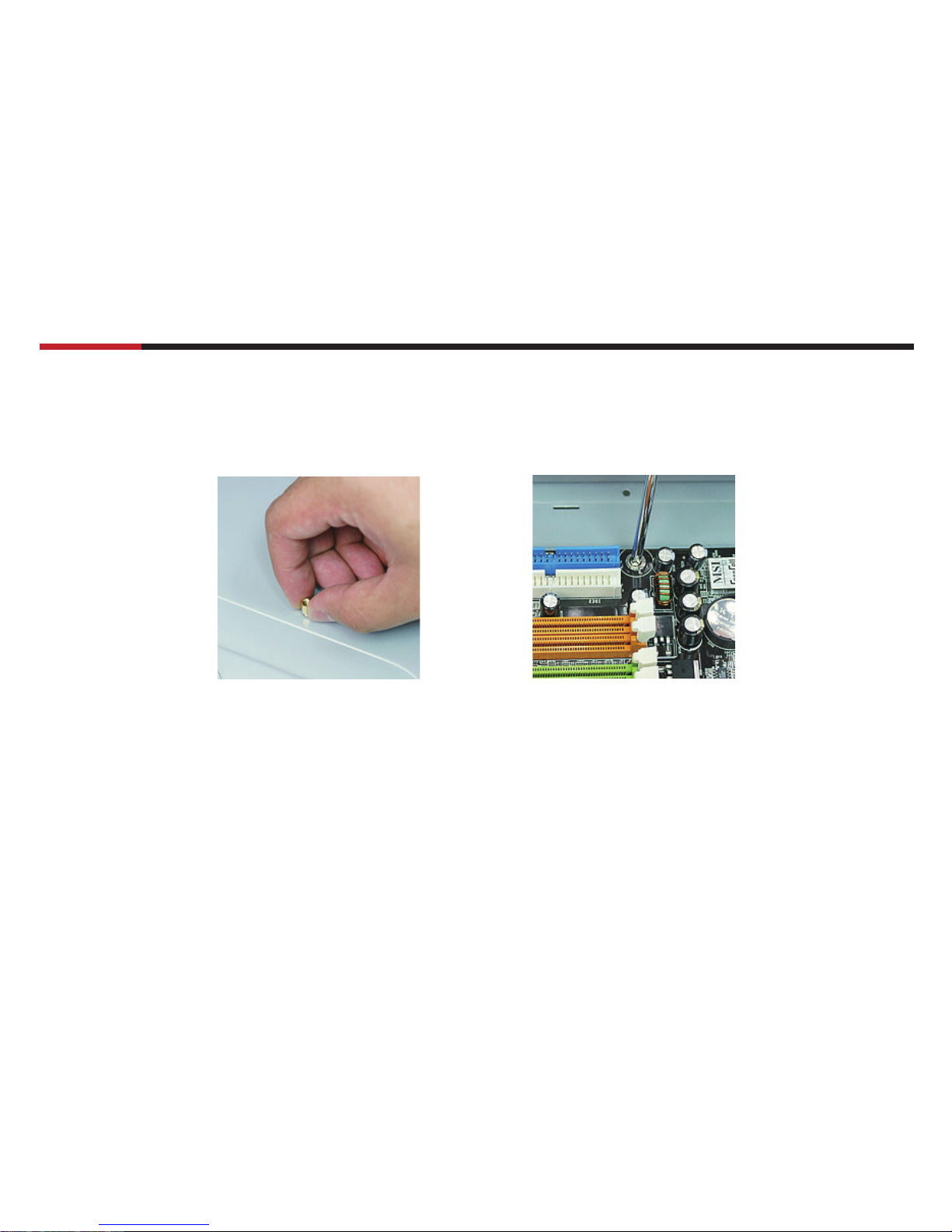

2.1

Locate and align the screw holes on the

motherboard and chasis; place the

motherboard at the correct position,

and then screw brass studs onto

chasis's metal shell

2.2

Secure the motherboard on the studs with

the screws #6-32

2.Installing Motherboard

CASE 6A series User Manual

3.1

Put your power supply in the right position and fasten screws from back panel of the case

3.Installing Power Supply

CASE 6A series User Manual

4.1

Locate the screw holes on both

sides of 5.25"device such as

CD-ROM and screw the rails

onto the 5.25" device

4.2

Insert the railed device into the

5.25" drive bay

4.Installing 5.25" Device

NOTE :

• Recommend to remove the 5.25" metal cover below the bay you

want to install your 5.25" device for easier installation

• When you feel difﬁcult to pull out your railed 5.25" device, push it

down a little will help you

CASE 6A series User Manual

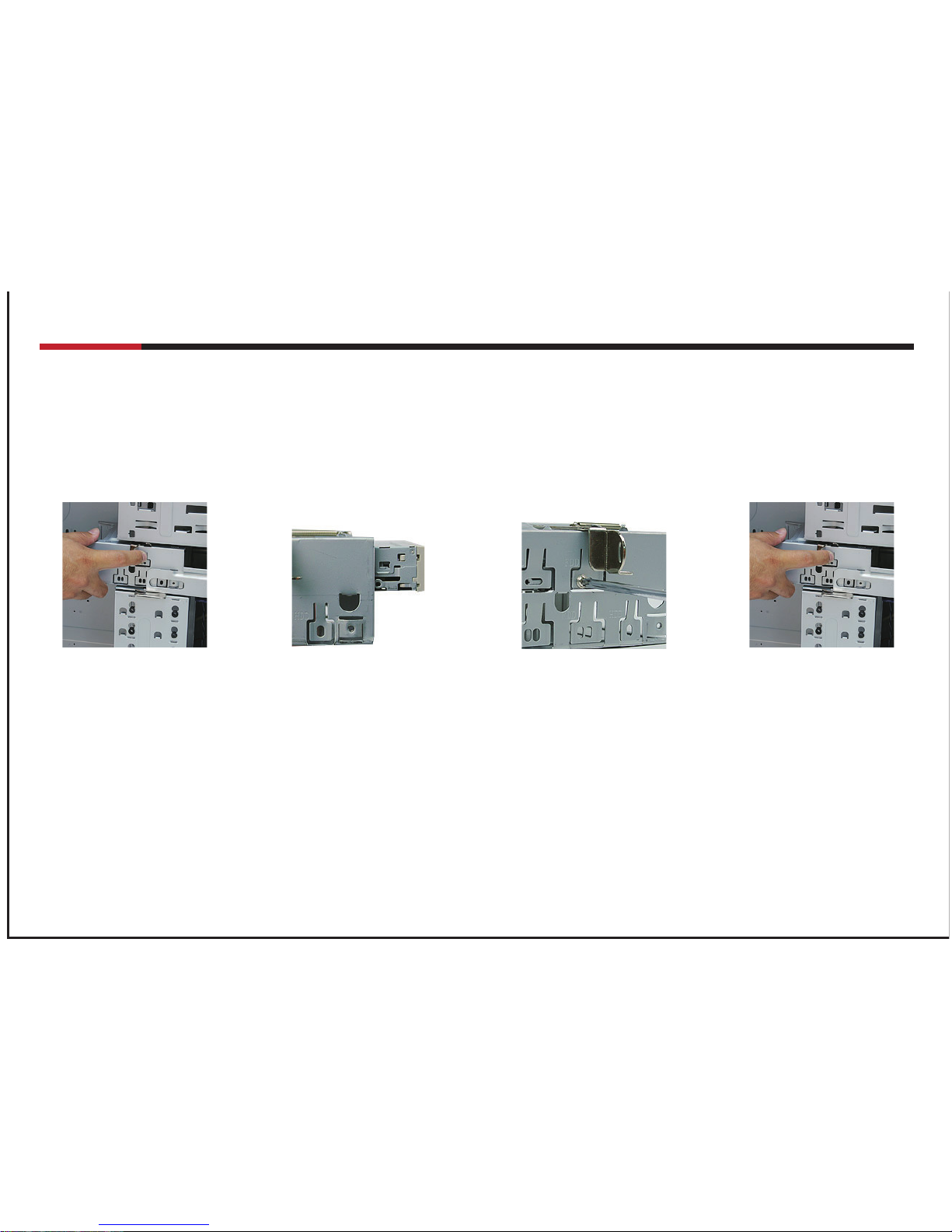

5.Installing 3.5" Floppy

5.2

Slide the ﬂoppy or, if necessary

HDD into the drive bay

5.4

Slide the small cage into drive

bay, make sure the cate is

properly positioned

5.1

Pull the handle and cage back-

wards to take off the small cage

5.3

Fasten the ﬂoppy on cage by

screws

CASE 6A series User Manual

6.Installing 3.5" HDD

6.2

Push the handle down and pull

the large cage out

6.4

Screw up and fasten HDD on the

cage

*Handle with care because

HDD is likely to be damaged by

careless management

6.1

Take off the thumb screw on the

large cage

6.3

Slide the HDD into the drive bay

6.5

Slide the large cage into drive

bay and fasten the thumb screws
