Rosewill RNX-N4PS Manuale utente

Quick Installation Guide

Wireless Router RNX-N4PS

Quick Installation Guide

Wireless Router RNX-N4PS

1

Physical Installation

1. Internet connection should be setup & ready to use (ADSL or cable modem).

2. Modem must provide RJ45 port to connect with ESR-9750.

3. CAT 5 network cable(s), RJ45 port on PC/Notebook.

4. Microsoft Windows compatible PC/Notebook with UPnP enabled network adapter.

STEP 1

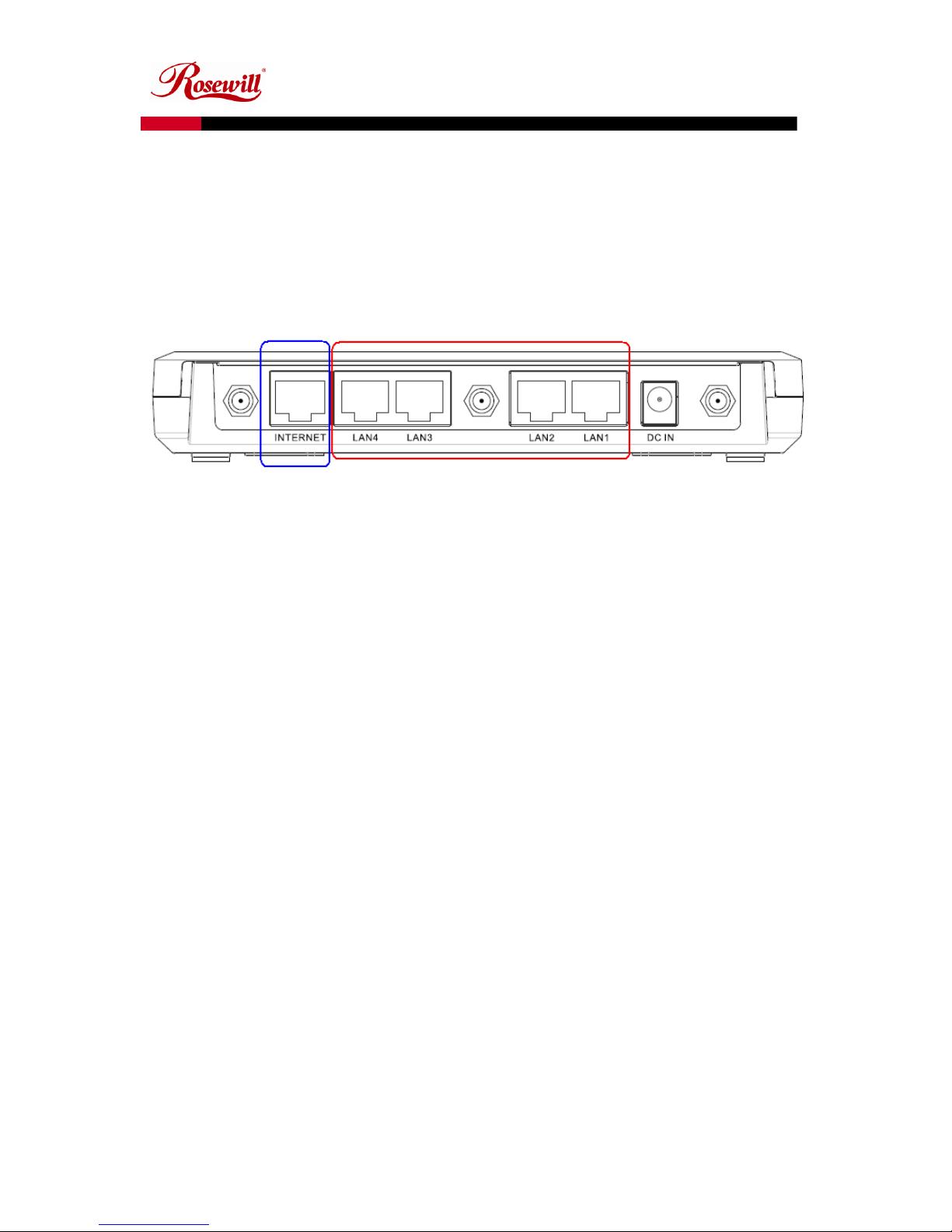

Using the LAN cable to connect the INTERNET port with ADSL/Cable modem WAN

port.

STEP 2

Power up by checking POWER LED on the front panel. Waiting until POWER LED light

stays on.

STEP 3

Using the supplied LAN cable to connect LAN port with PC/Notebook LAN port.

STEP 4

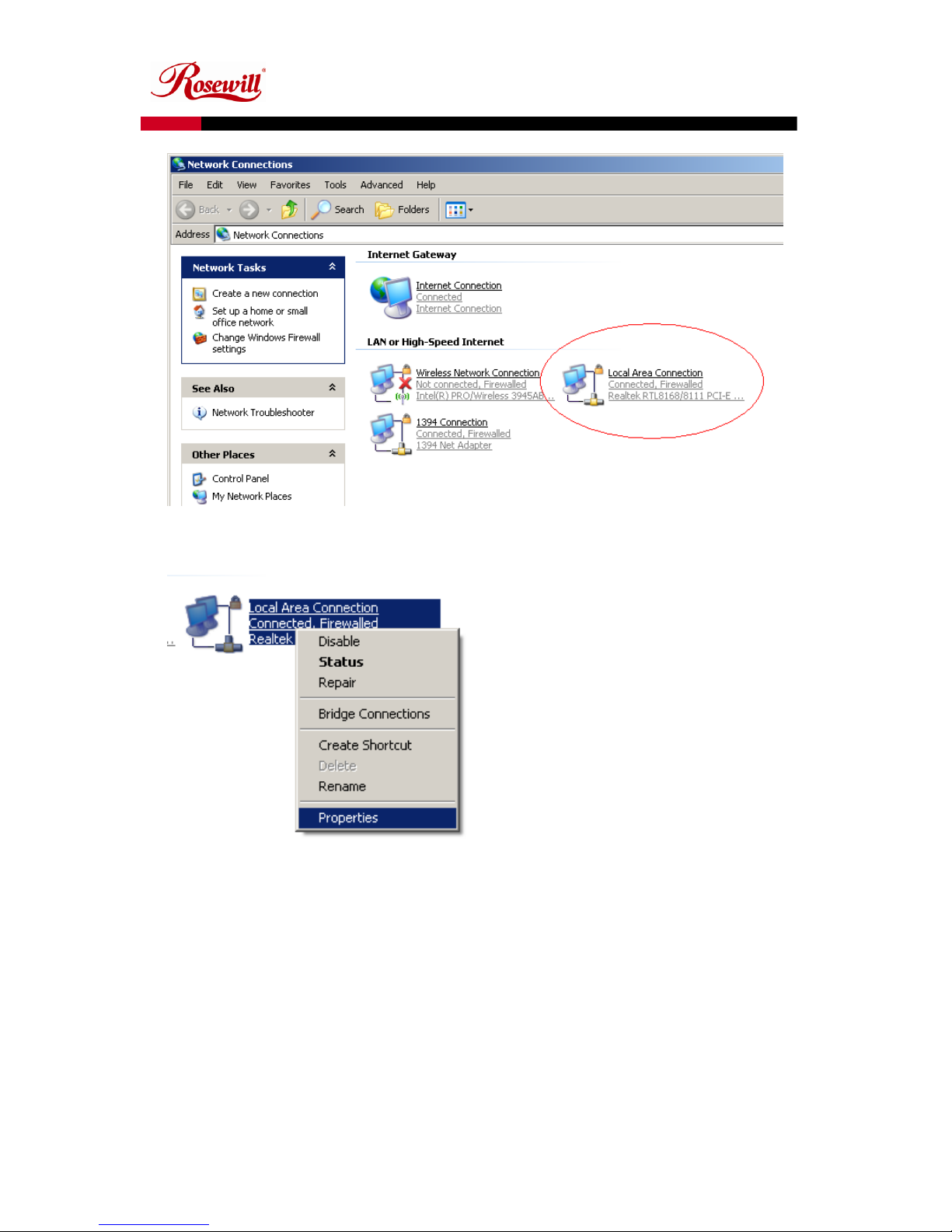

You will see the network connection enabled at your computer. Edit network adapter

properties and configure to [Obtain an IP address automatically] and [Obtain DNS

server address automatically].

Quick Installation Guide

Wireless Router RNX-N4PS

2

Quick Installation Guide

Wireless Router RNX-N4PS

3

Quick Installation Guide

Wireless Router RNX-N4PS

4

Configuration

1. Insert CD

2. Click Wizard for few steps and you are ready to use RNX-N4PS.

3. After finishing the configuration in the setup wizard, start your WEB browser

(e.g. Internet Explorer)

4. In the Address box, enter http://192.168.0.1

5. When prompted to login, use the following user name and password.

User Name : admin

Password : admin.

Quick Installation Guide

Wireless Router RNX-N4PS

5

6. Click OK to navigate into RNX-N4PS configuration home page.

7. You will see the home page of RNX-N4PS as follows.

8. Enable WLAN with default settings & save.

Thank you for purchasing a quality Rosewill Product.

Please register your product at : www.rosewill.com for complete warranty information and future

support for your product.
