REARSIGHT CAMERA SYSTEM

250-8309, 250-8309B, and 250-8309-LPB Installation Instructions

Parts Identification

Page 1

Vehicle Preparation

Page 1

System Layout

Page 2

Installation

Page 2

Troubleshooting

Page 2

Parts Identification

Item

Qty.

Part Number

Description

250-8208

4.3” LCD Mirror/Monitor

250-8082

CMOS Camera (Hinge/Tab)

250-8083

CMOS Camera (Bullet)

250-8092

CMOS Camera (License Plate)

250-8505

Male DC Power Harness

250-8584

S-video to RCA Adapter Harness

250-8579

30-foot S-video Extension Harness

250-8598

Sack Parts: Tie Straps, T-taps, Foam Tape

Vehicle Preparation

Before beginning your installation, familiarize yourself with the installation instructions and the RearSight

camera system components.

To ensure your safety, (A) apply the emergency brake and (B) read this entire manual before beginning.

CAUTION: It is advisable to disconnect the negative battery cable for 3 minutes before

beginning installation, to avoid unintended air bag deployment. Note and record any anti- theft

radio codes prior to disconnecting.

Form #5397, 5-03-2012

Rostra Precision Controls, Inc. - 2519 Dana Dr. - Laurinburg, NC 28352 - 800-782-3379 - rostra.com

Page 2"

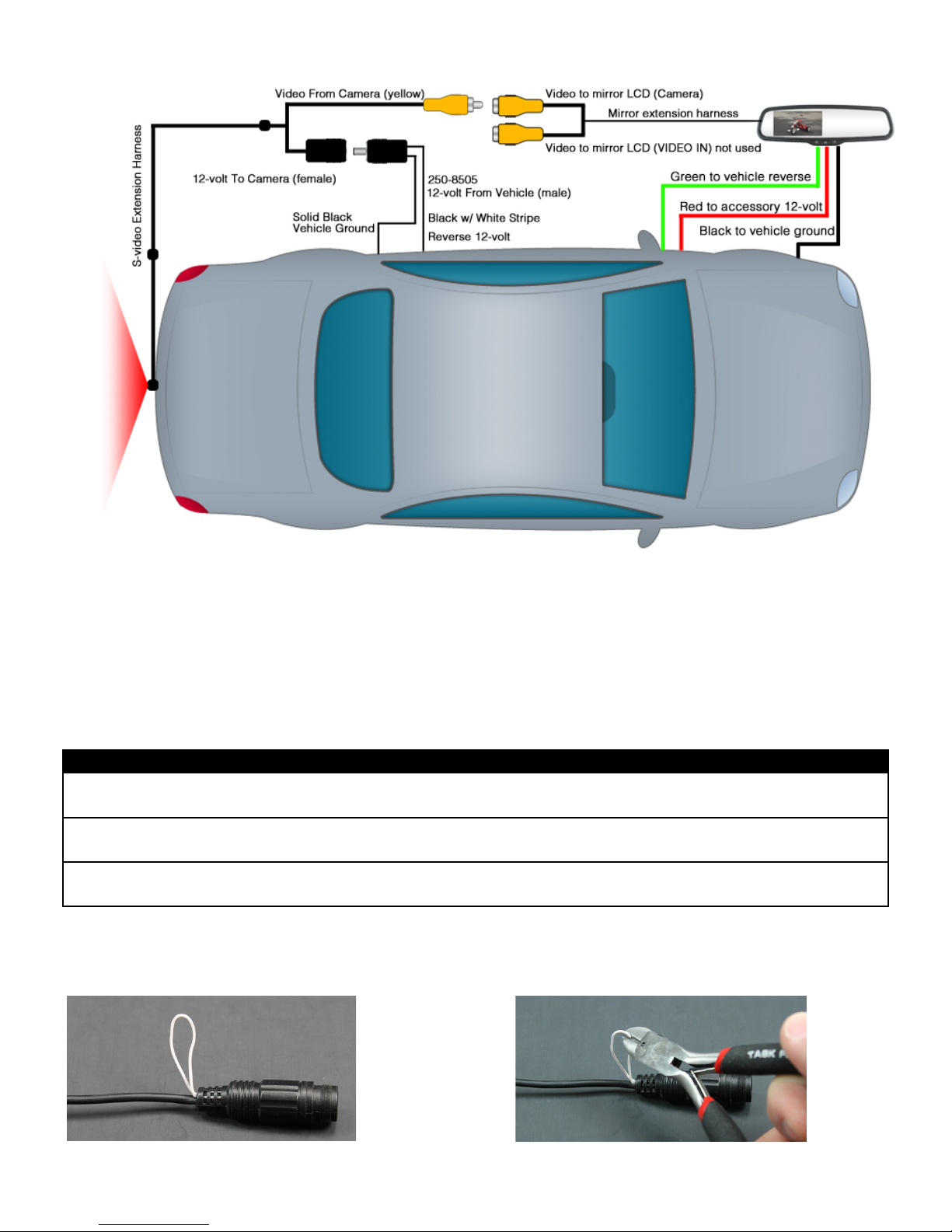

System Layout

Installation

1. Remove the existing mirror from the windshield and replace with RearSight mirror tightening the mirror

stem to the windshield with a Philips screwdriver. (Some vehicles require a mirror removal tool).

2. Connect the Red Wire to a fused Ignition 12-volt power circuit, the Black Wire to a vehicle ground point,

and the Green Wire to the reverse power circuit at the fuse panel or the rear lamp.

3. Connect the S-video extension harness and S-video to RCA adapter harness to the camera as shown in the

system layout above. Mount the camera using the provided hardware so that the on-screen image includes a

portion of the rear bumper as a point of reference.

Troubleshooting

Mirror/Monitor Not Working

No Video

No Reverse Override

Verify 12-volts to monitor red

wire.

Verify extension harness

connection to camera.

Check connectivity of green

reverse wire.

Verify ground < 10 Ohms

resistance.

Verify harnesses are mated

correctly at camera.

Verify extension harness

connection to camera.

Verify secure connection to

monitor extension harness.

Verify 12-volts and ground

connection at camera.

Parking Gridlines Note

This camera includes parking gridlines overlaid on the video feed by default to assist when parking in reverse.

If the driver does not wish for gridlines to be included, simply locate the loop wire connected to the camera

harness (Figure 1) and cut it in half (Figure 2).

Figure 1 Figure 2
