Royal Sovereign RSL-2701 Manuale utente
Table Top Laminator
OWNER'S MANUAL
Read all instructions carefully before use.
For any Customer Support needs please choose the
Customer Support tab on www.royalsovereign.com
Royal Sovereign International Inc.
www.royalsovereign.com
2
TABLE OF CONTENTS
TOPIC PAGE
1. Introduction ....................................................................................................... 3
2. Package Contents .............................................................................................. 3
3. Safety Precautions.............................................................................................. 4
4. Parts.................................................................................................................... 5
5. Features Guide ................................................................................................... 6
6. Operation Instructions ......................................................................................... 9
7. Film Loading and Threading ............................................................................. 10
8. Maintenance .................................................................................................... 12
9. Trouble Shooting Guide .................................................................................... 13
10.Specification .................................................................................................... 14
11.Warranty ........................................................................................................... 15
Table Top Laminator
3
1. INTRODUCTION

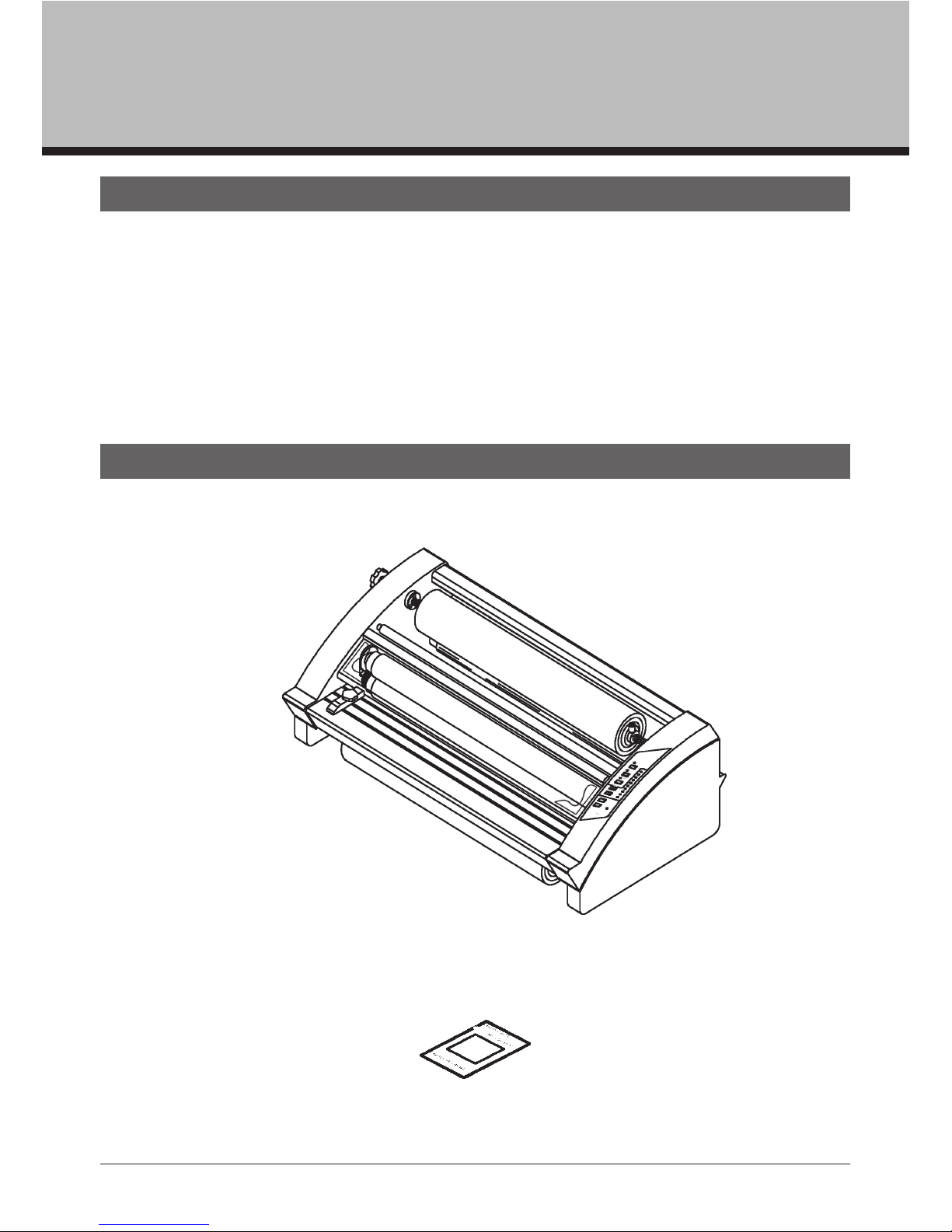

2. PACKAGE CONTENTS
380-Series
Preloaded Roll Films
(380mm×75mic×30m)
(14in×3mil×98.4ft）
2701-Series
Preloaded Roll Films
(635mm×75mic×30m)
(25in×3mil×98.4ft）
Owner's Manual
Thank you for purchasing RS Table Top Laminator. It has been designed and manufactured
to provide years of continuous service. For high quality lamination, please read this
instruction manual thoroughly. This manual will provide you with complete operating and
maintenance information.
4
3. SAFETY PRECAUTIONS
Failure to comply with any of the following safety procedures could result in
serious injury. Please read the instructions carefully and keep for future
1. Only a licensed electrician should install wiring and outlet for the laminator.
2. Ensure the unit is plugged into a properly grounded outlet with the correct voltage.
3. Keep hands and clothing (i.e. Neckties) away from rollers.The rollers have pinch points
that can trap body parts or clothing and cause serious injury.
4. Keep flammable and wet objects away from the machine.
5. Place machine on a level surface.
6. Avoid excessive sunlight, humidity and extreme temperatures.
7. Ensure the unit is turned off, cooled, and unplugged from the outlet prior to moving and/
or repairing.
8. Keep out of reach of children.
9. Only Royal Sovereign authorized maintenance and service technicians should make
repairs.
10. Do not attempt to laminate items that exceed total recommended material thickness
for the unit
11. When cleaning the machine, don't use flammable sprays or materials.
12. Do not touch the rollers when they are hot or place foreign objects inside the machine.
13. Do not cover the surface of the machine until the machine has completely cooled.
*14.You can laminate by single film when the switch in the left cover is “O”.
(Insure the machine drastically cold, press the button in the left cover be “ O ”,then you
can laminate by single side. It is a damage for the paper to laminate by single side while
the rollers up and low are heating all together.)
y
5
4. PARTS

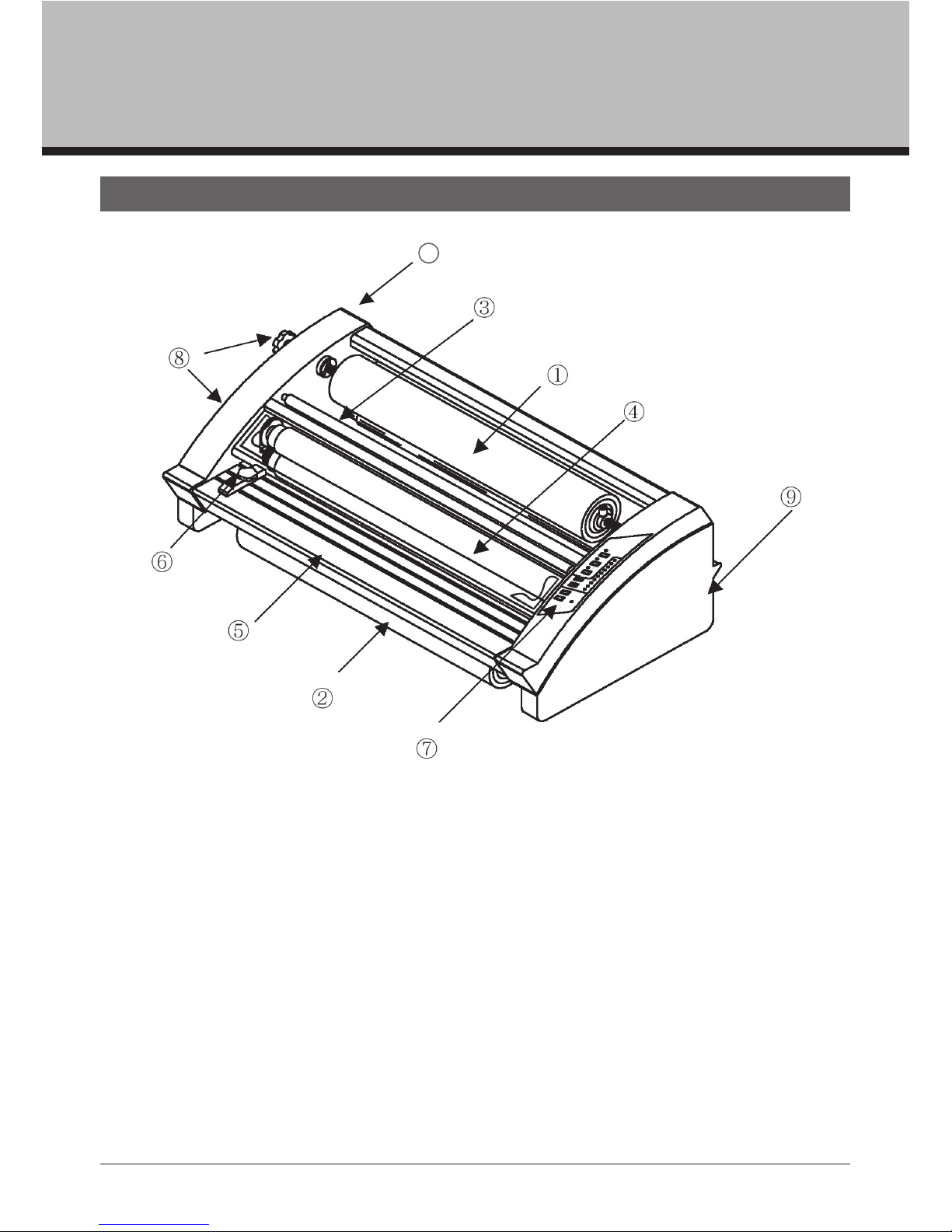

1.Upper Film 2.Lower Film 3.Idle Bar
4.Hot Rollers 5.Feed Table 6.Paper Guide
7.Control Panel 8.Tension Knob 9.Power Switch
*10.Single/Double Laminating Switch “O” (on) “I” (off).
* For Single Laminator.
10
Table Top Laminator
6

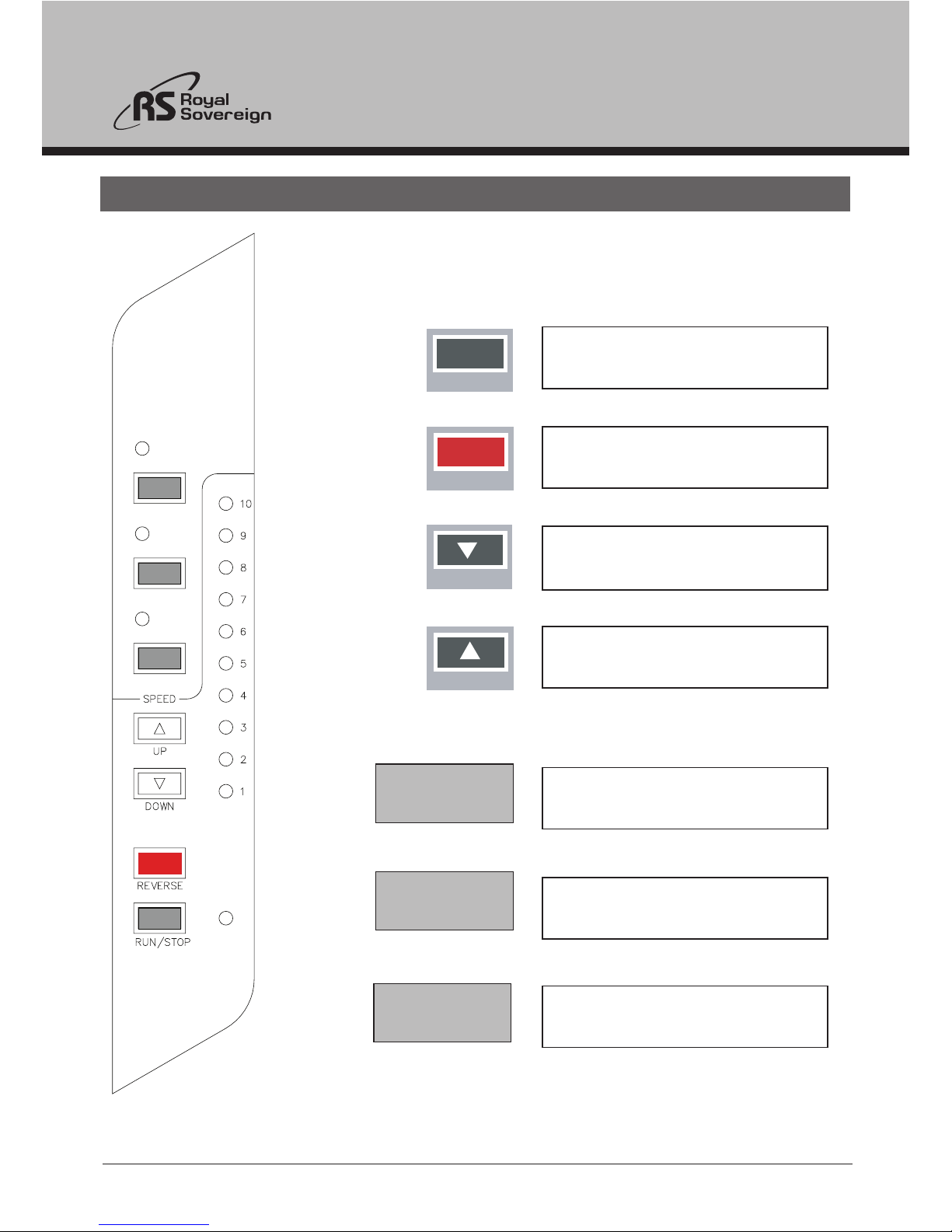

5. FEATURES GUIDE-1
Reverse the rollers to undo jams
and correct misfed documents
Run and stop the machine
Reduce roller speed
(1~10 speed settings)
Increase roller speed
(1~10 speed settings)
Film Application Thickness
Film Application Thickness
Film Application Thickness
125mic
* (100~125mic)
50~100mic
* (50~75mic)
25~38mic
* (25~38mic)
Figure 1
125mic(100~125mic)
50~100mic(50~75mic)
25~38mic(25~38mic)
RUN/STOP
REVERSE
DOWN
UP
* For Single Laminator.
25-38 mic
50-100 mic
125 mic
210-230 F
230-270 F
270-310 F

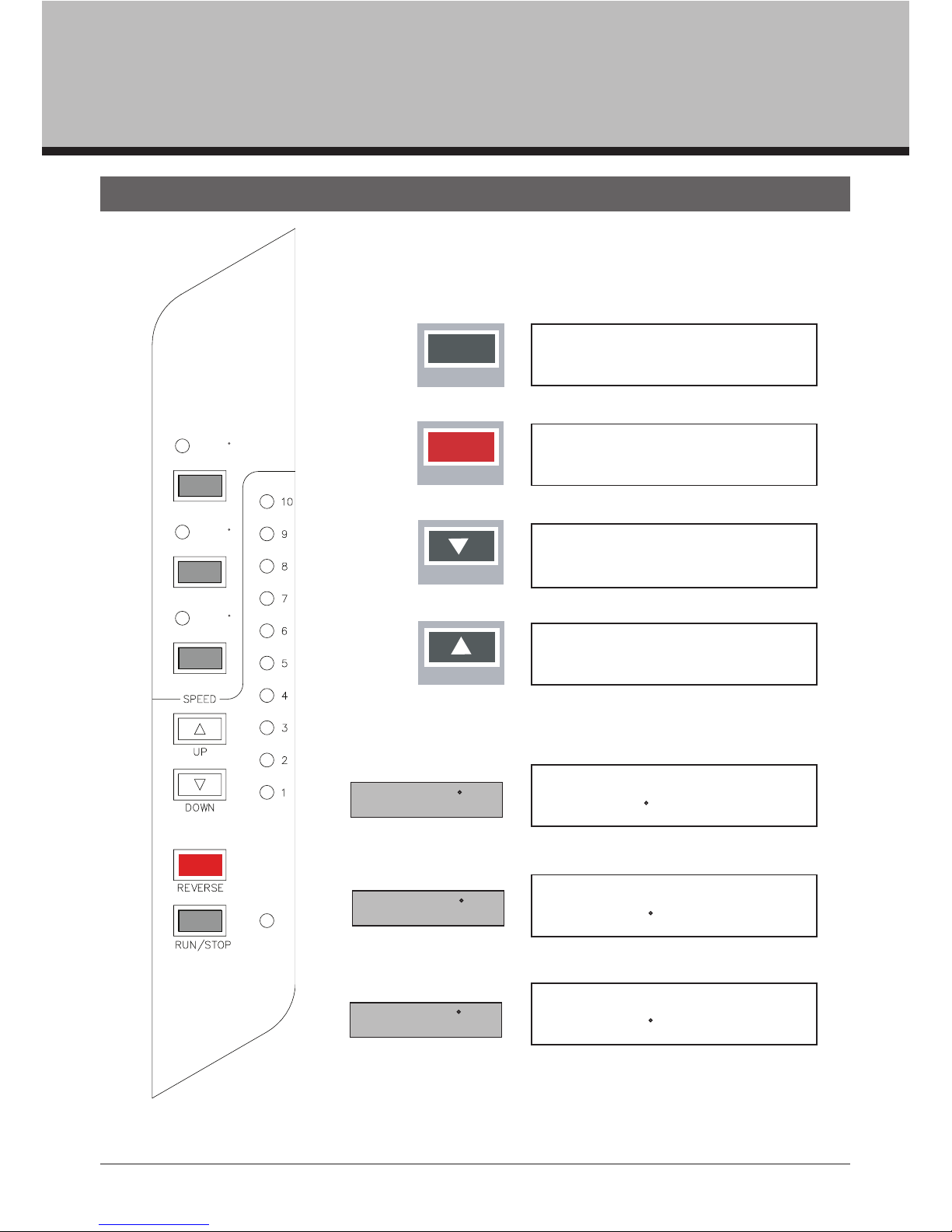

5. FEATURES GUIDE-2
Reverse the rollers to undo jams
and correct misfed documents
Run and stop the machine
Reduce roller speed
(1~10 speed settings)
Increase roller speed
(1~10 speed settings)
Film Application Temperature
Film Application Temperature
Film Application Temperature
7
210 ~230 F
230 ~270 F
270 ~310 F
Figure 1
210~230 F
230 ~270 F
270 ~310 F
Table Top Laminator
25-38 mic
50-100 mic
125 mic
210-230 F
230-270 F
270-310 F
RUN/STOP
REVERSE
DOWN
UP
8
Power Switch (1) - Located on the rear of
the machine. “I” (on) “0” (off). (Fig. 2)
Cross Cutter (2) - Used to cut off the
laminated web. (Fig. 2)
Feed Guide (3) -The feed guide permits
alignment of the item(s) to be laminated. To
position the adjustable guide, loosen the knob,
slide it to the desired position and tighten the
knob to secure the feed guide in place. (Fig. 3)
Safety Cover (4) - It prevents entanglement
NOTE: If the safety cover is opened, the power
to the motor will turn off.
Film Shaft and Locking
Core Adapter (5) -
The film shaft holds the film supply on the
machine. The locking core holds and locks the
film on the shaft to prevent shifting. (Fig. 4)
Film Tension Adjustment (6) - Allows the
operator to increase or decrease film web
tension. To increase the tension turn the knob
clockwise and to decrease tension turn the
knob counterclockwise. (Fig. 5)
Figure 2
Figure 3
Figure 4
Figure 5
9
1. Turn the laminator ON (I) located on the rear of the machine. (Fig. 2)
2. Choose appropriate laminating thickness and speed. (Fig. 1)
3. Do not begin laminating until the blinking light is steady (approximately 8 minutes).
4. Position the item to be laminated on the feed table.
5. Press the RUN button. The rollers will begin to turn, wait for heat line to disappear,
feed the item into the machine.
6. Insure the machine drastically cold, press the button in the left cover be “ O ”,then you
can laminate by upper roller for single laminating.(It is a damage for the paper to
laminate by single side while the rollers up and low are heating all together.)
7. The first paper is bad while OPP film laminating, please use a test paper first and then
the second paper must keep the distance less than 15mm form the front one.
8. Stop the laminator when all of the items have completely exited the rear of the
machine.
9. Please loose the film tension as loosed as possible.
10.If there the temperature is high while laminating by some films with thin paper on the
middle temperature level that you can use the low temperature level.
Repeat the above steps until all of your lamination is completed. When lamination is
completed the machine is not in use for an extended period of time turn the power off.
NOTE: Stand by mode and auto power off mode
- Stand by mode: If no activity is made within 30 minutes after each use the
machine will automatically switch into stand by mode. (In stand-by mode the
temperature will decrease to 80~90℃ and the three film thickness setting
indicators will blink).
- Auto power off mode: If the machine is in stand by mode and no activity is
made for 60 minutes the machine will automatically power off.
- If any activity is made while in stand by or auto power off mode the machine
will return to it’s previous stage.
6. OPERATION INSTRUCTIONS
Table Top Laminator
10
Figure 7
Figure 8

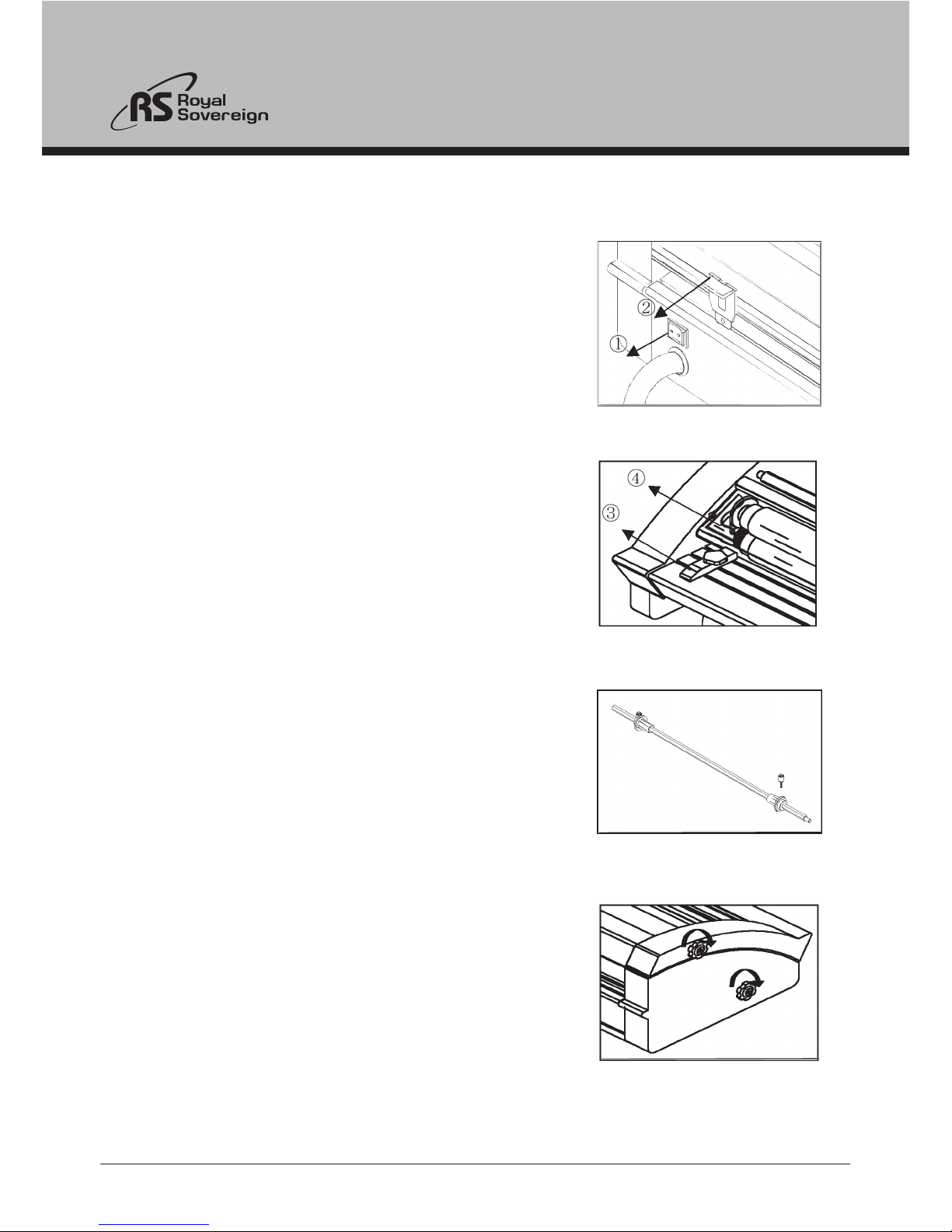

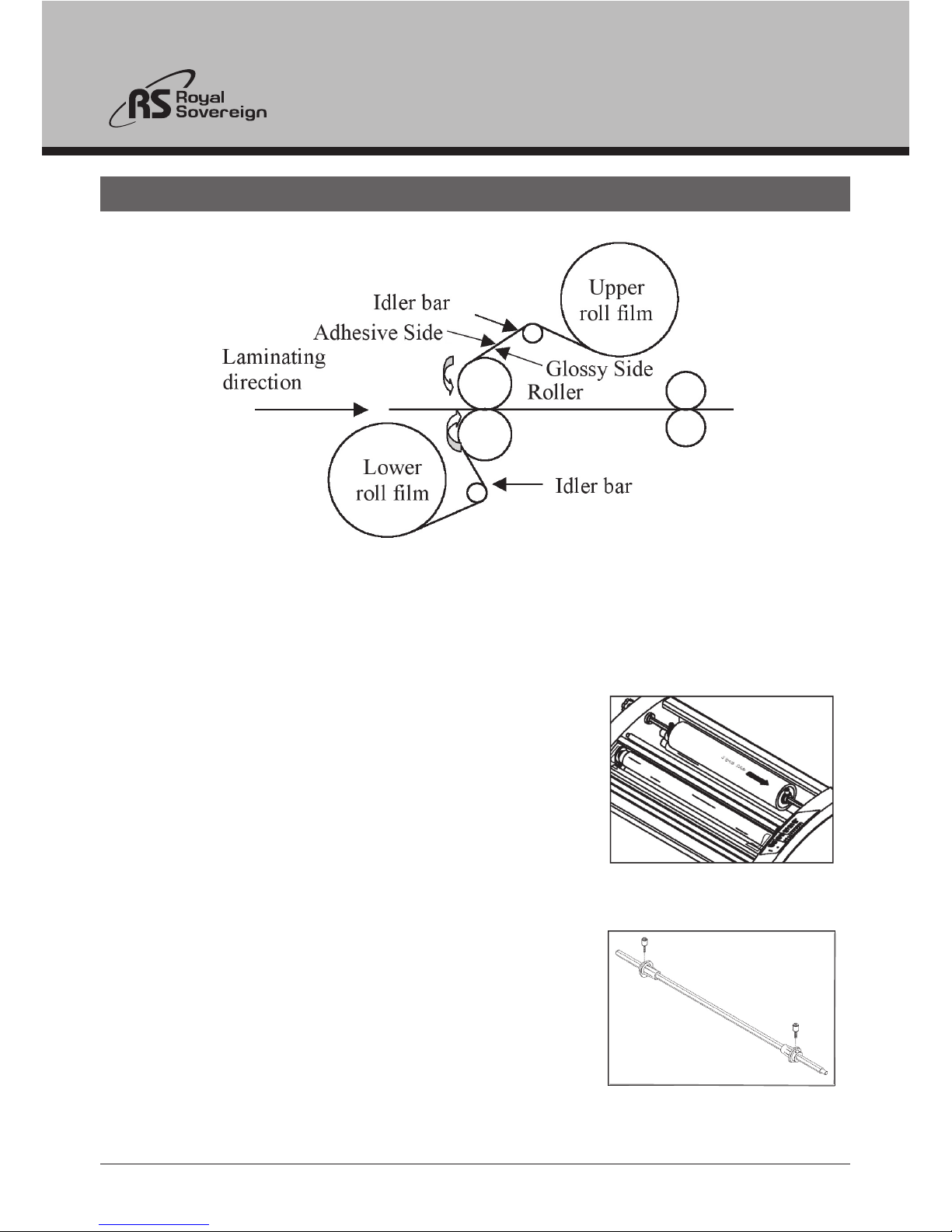

7. FILM LOADING & THREADING
Figure 6
1. Slightly slide the shaft to the right and pull it out
from the machine. (Fig. 7)
2. Take both lock core adapters off from the shaft.
