RGM-2106 Operational Manual
RGM-2106 Operational Manual
Version 0.2
2010/12/08
This document contains information highly confidential to RoyalTek Company
LTD (RoyalTek). It is provided for the sole purpose of the business discussions
between supplier and RoyalTek and is covered under the terms of the
applicable Non-Disclosure Agreements. Disclosure of this information to other
parties is prohibited without the written consent of RoyalTek.
Prepared by RoyalTek Company LTD.
4F., No.188, Wen Hwa 2nd Rd., Kuei Shan,
Tao Yuan 333, Taiwan
TEL: 886-3-3960001
FAX: 886-3-3960065
http://www.royaltek.com/contact
RGM-2106 Operational Manual
1 Introduction...........................................................................................................2
1.1 Product applications .............................................................................2
1.2 Product Picture .....................................................................................3
1.3 RGM-2106 System Block Diagram.......................................................3
1.4 RGM-2106 Technical Specification ......................................................4
1.5 Application Circuit.................................................................................5
1.6 Mechanical ...........................................................................................6
1.7 Hardware interface ...............................................................................6
2 Software Interface ................................................................................................9
2.1 NMEA V3.0 Protocol.............................................................................9
2.1.1 GGA-Global Positioning System Fixed Data ................................9
2.1.2 GLL-Geographic Position –Latitude/Longitude...........................10
2.1.3 GSA-GNSS DOP and Active Satellites.......................................11
2.1.4 GSV-GNSS Satellites in View.....................................................11
2.1.5 RMC-Recommended Minimum Specific GNSS Data .................12
2.1.6 VTG-Course Over Ground and Ground Speed...........................13
3 Contact Information Section...............................................................................14
4 Revision History .................................................................................................14
RGM-2106 Operational Manual
1 Introduction
RoyalTek RGM-2106 is the smart antenna GPS module with SiRFstar IV GPS solution.
The module embedded active Jammer remover to ensure fast and accurate navigation in
hostile signal/high noise environment. Power by the new SiRFStar IV architecture, the module
can acquire satellites as low as -163dBm better than SiRF Star III. The high sensitivity, low
power, 48-channel GPS module is the best choice to be embedded in a portable device such
as Car tracking device, Locator application, safety alarm device, personal locator and digital
camera.
Product Features
Wire to board connector type
Additional 3 dB in track sensitivity is better than the Sirf Star III.
Support MEMS Sensor to detection and wake up the device for power saving and longer
battery life.
Adaptive Micro-power controller- only 50 to 500uA to maintain hot start capability.
Embedded InstantFix CGEE and Reverse CGEE (3 days) for faster warm start.
Embedded active Jammer remover to ensure fast and accurate navigation in hostile
signal environments – GSM, NB environments
1.1 Product applications
Personal Navigation Device including GPS PDA and GPS Handheld
Pet/personal Tracker, AVL / Location-Based Services Tracker
Cameras / Digital camcorder
RGM-2106 Operational Manual
1.2 Product Picture
Figure 1-1 RGM-2106 Front View
Figure 1-2 RGM-2106 Bottom View
1.3 RGM-2106 System Block Diagram
System block diagram description :
a. External antenna.
b. 6 pin I/O pin
RGM-2106 Operational Manual
1.4 RGM-2106 Technical Specification
Impedance：50Ω
No Function Specification
GPS receiver
1 Chipset SiRFstarIV GSD4e-9311-TR Signature
ROM
2 Frequency L1 1575.42MHz
3 Code C.A. Code.
4 Channels 48 track verification channels
5 Chipset Sensitivity High sensitivity navigation engine (PVT) tracks as
low as -163dBm
6 Chipset Cold start 35 sec (open sky)
7 Chipset Warm start 35 sec (open sky)
8 Hot start 1 sec (open sky)
9 Reacquisition 0.1sec typical
10 Position accuracy 2.5meters(50% 24hr static, -130dBm)
11 Maximum altitude 18288 m
12 Maximum velocity 514 m/s
13 Update rate 1Hz
14 Protocol setup NMEA0183 standard V3.01 and
backward compliance-Adjustable by firmware
15 LNA Embedded 1 stage LNA
16 SBAS(Optional) WAAS, EGNOS
17 Active Jammer Remover:
■Removes in-band jammers up to 80 dB-Hz
■Tracks up to 8 CW jammers
Interface
18 I/O Pin 6pins
Power consumption
19 VCC DC +1.8V@ ±5%
Hibernate mode: Avg.≦30uA @1.8V(without ext. antenna)
Environment
21 Temperature Operating : -30 ~ 85℃
Storage : -40 ~ 85℃
22 Humidity ≦95%
RGM-2106 Operational Manual

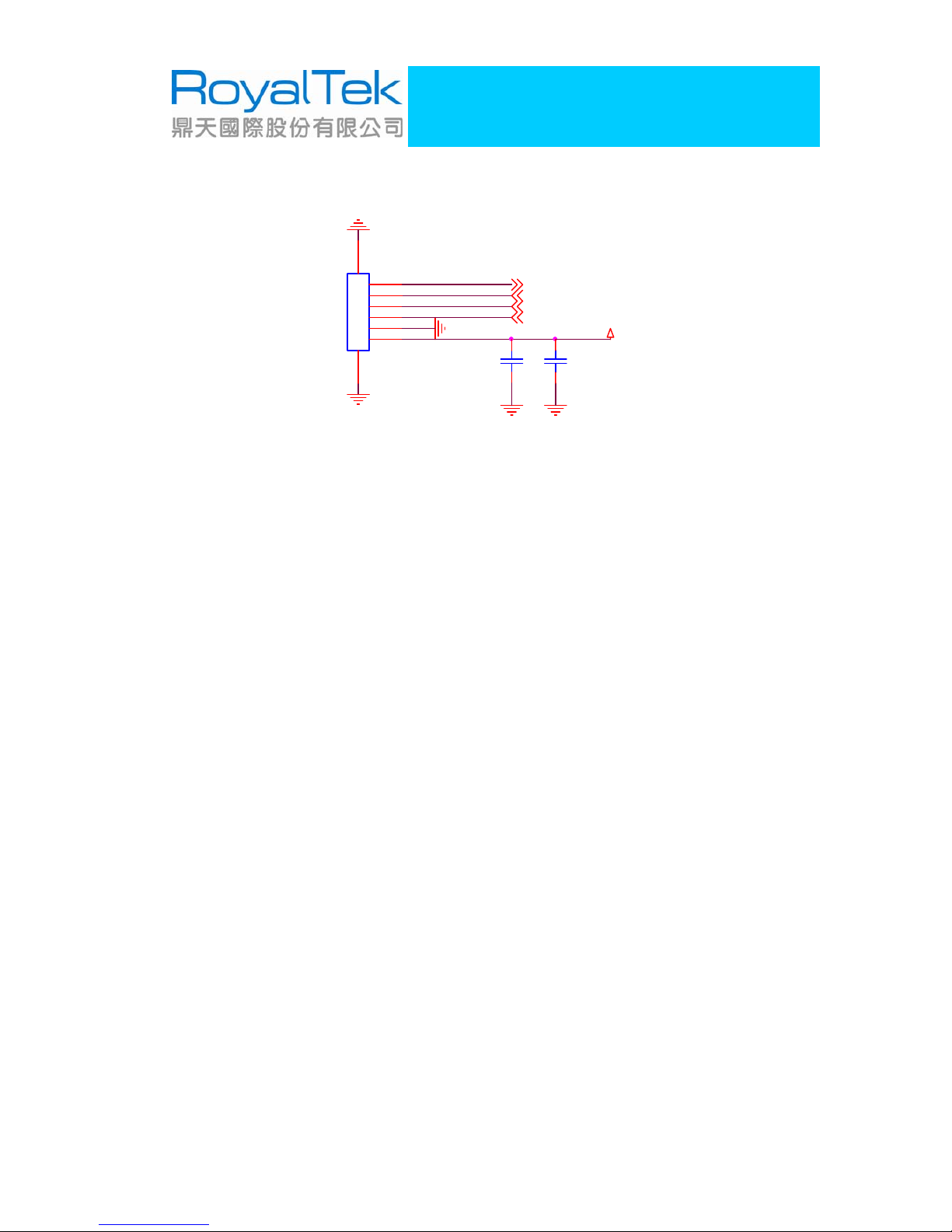

1.5 Application Circuit
TXA-1v 8
V_1V8
TXA-1v 8
J1
FH34SRJ-6S-0.5SH(50)
7
4
3
2
1
5
6
RXA-1v8
1PPS
1PPS
8
C2
0.1uF
RXA-1v8
C1
1uF
ON/OFF
ON/OFF
Note:
zV_1V8 (DC 1.8V@ 5% power Input)
This is the DC power supply input pin for GPS system. It provides voltage to module.
zGND
GND provides the ground.
zRXD
This is the main receiver channel and is used to receive software commands to the
board from SIRFdemo software or from user written software.
zTXD
This is the main transmitting channel and is used to output navigation and measurement
data to SiRFdemo or user written software.
zPPS (TIMEMARK)
This pin provides one pulse-per-second output from the board, which is synchronized to
GPS time. Need firmware supporting. If don’t used, can open.
Note: At present PPS function has not opened.
zPower
Connect VCC_IN_1V8 pin to DC 1.8V. The power supply must add bypass capacitor
(10uF and 1uF).It can reduce the Noise from power supply and increase power stability.
zShutdown
Shutdown the RGM-2106 module, don’t remove the Vcc_IN_1V8 Pin, must be use on/off
pulse make it into Hibernate mode.(It’s will keep the Warm start and Hot start function
work well)
zON/OFF
Input pulse is required to start the system, and switch the operation mode tofull-power
mode or Hibernate mode.
RGM-2106 Operational Manual
1.6 Mechanical
1.7 Hardware interface
RGM-2106 Operational Manual

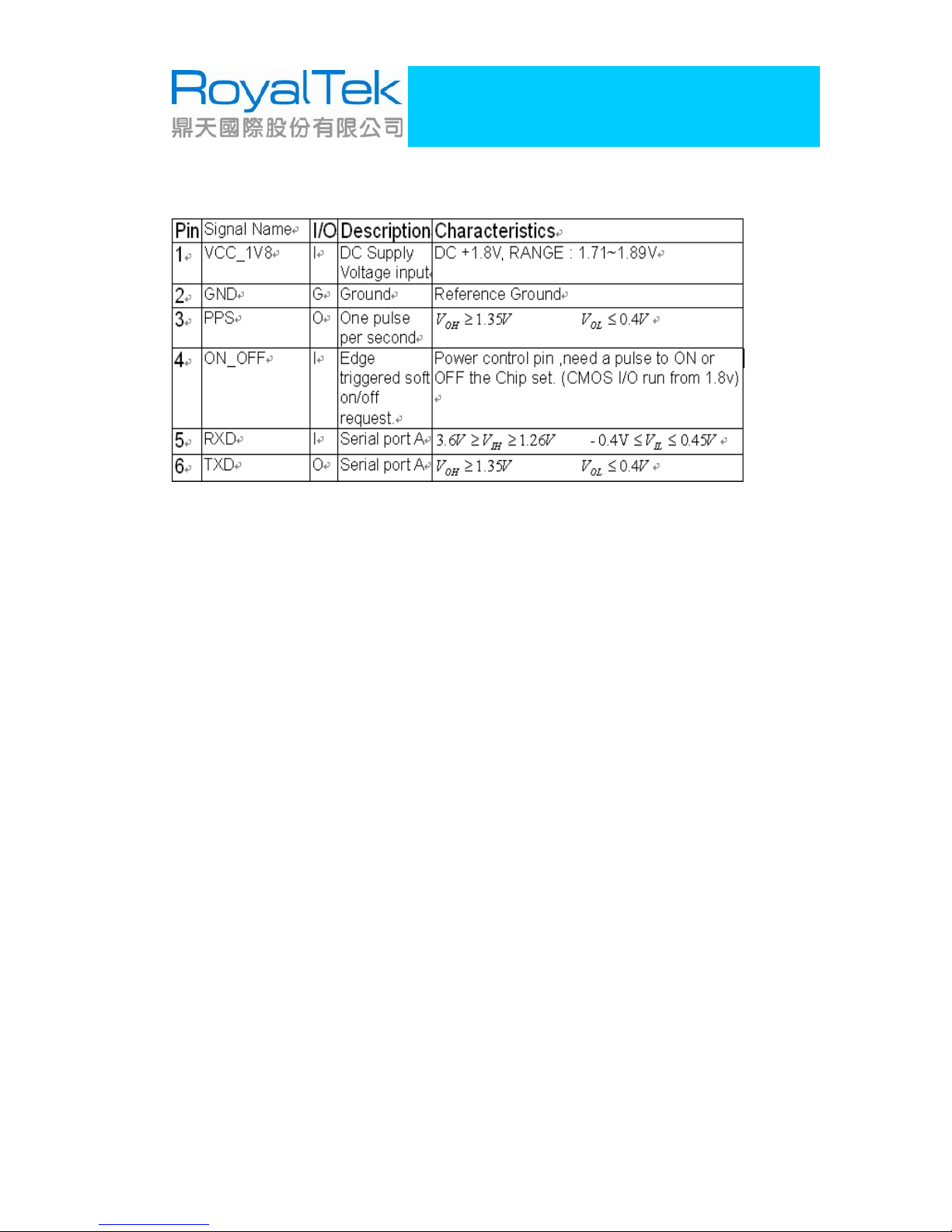

Pin Definition
RGM-2106 Operational Manual
Definition of Pin assignment
zV_1V8 (DC 1.8V@ 5% power Input)
This is the DC power supply input pin for GPS system. It provides voltage to module.
zGND
GND provides the ground.
zRXD
This is the main receiver channel and is used to receive software commands to the board from
SIRFdemo software or from user written software.
zTXD
This is the main transmitting channel and is used to output navigation and measurement data
to SiRFdemo or user written software.
zPPS (TIMEMARK)
This pin provides one pulse-per-second output from the board, which is synchronized to GPS
time. Need firmware supporting. If don’t used, can open.
Note: At present the PPS function has not open.
zPower
Connect VCC_IN_1V8 pin to DC 1.8V. The power supply must add bypass capacitor (10uF
and 1uF).It can reduce the Noise from power supply and increase power stability.
zShutdown
Shutdown the RGM-2106 module, don’t remove the Vcc_IN_1V8 Pin, must be use on/off
pulse make it into Hibernate mode.(It’s will keep the Warm start and Hot start function work
well)
zON/OFF
Input pulse is required to start the system, and switch the operation mode to full-power mode
or Hibernate mode.
RGM-2106 Operational Manual
2 Software Interface
2.1 NMEA V3.0 Protocol
Its output signal level is TTL. It can support the following NMEA-0183 sentence.
Messages: GGA, GLL, GSA, GSV, RMC and VTG.
NMEA Output Messages: the Engine board outputs the following messages as shown in Table 2-1:
Table 2-1 NMEA-0183 Output Messages
NMEA Record Description
GGA Global positioning system fixed data
GLL Geographic position – latitude / longitude
GSA GNSS DOP and active satellites
GSV GNSS satellites in view
RMC Recommended minimum specific GNSS data
VTG Course over ground and ground speed
2.1.1 GGA-Global Positioning System Fixed Data
Table 2-2 contains the values of the following example:
$GPGGA, 161229.487, 3723.2475, N, 12158.3416, W, 1, 07, 1.0, 9.0, M, , , ,0000*18
Table 2-2 GGA Data Format
Name Example Units Description
Message ID $GPGGA GGA protocol header
UTC Position 161229.487 hhmmss.sss
Latitude 3723.2475 ddmm.mmmm
N/S Indicator N N=north or S=south
Longitude 12158.3416 Dddmm.mmmm
E/W Indicator W E=east or W=west
Position Fix Indicator 1 See Table 2-1
Satellites Used 07 Range 0 to 12
HDOP 1.0 Horizontal Dilution of Precision
MSL Altitude 9.0 meters
Units M meters
Geoid Separation meters
Units M meters
