DESCRIPTION Catalog # Type

Project

Comments Date

Prepared by

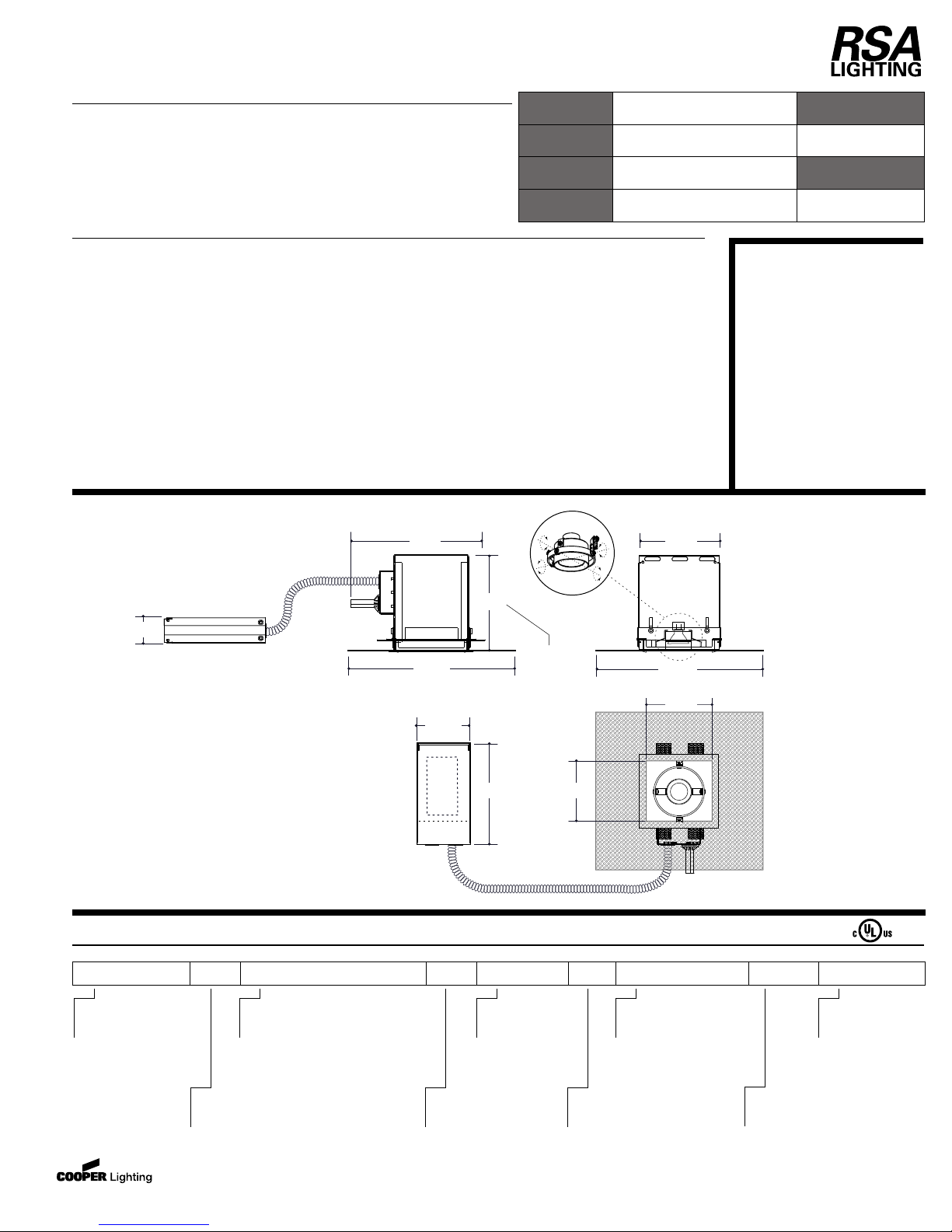

SPECIFICATION FEATURES

www.cooperlighting.com

Thermal

Protector

Integral Low Voltage

Transformers

Separate Wiring

Compartment

18” flexible conduit

3.88”

4.70”

10.24”

6.25”

5.75”

Required

above

ceiling

8.50”

10.24”

3.88”

1.60”

6.50”

3.39”

Perforated

Meshplate

45º x 45º

Adjust

Double

Gimbal

A ... Housing

Housing and junction box are aluminum,

trimless meshplate is steel with powder

coated ﬁnish. Perforated meshplate

allows for trimless installation in drywall/

plaster ceilings by allowing the ceiling’s

mudding compound to be applied right

up to the edge of the ﬁxture opening.

Includes a beveled “knife-edge” lips to

ensure a clean edge. Can accommodate

various ceiling thickness.

B ... System Protection:

Thermal protection provided to guard

against overheating and misuse of

insulation over and around ﬁxture. Vent

holes in housing provide cooler operation.

C... Junction Box

Junction Box is UL listed for through branch

wiring, 6 #12 90º C supply conductors or

60º C for end of run. The ﬁxture is also UL

listed as ‘access above ceiling not required’.

D... Electrical

Integral electronic or magnetic low voltage

transformers. Transformers and electrical

are mounted in a separate metal enclosure

box attached to the junction box with 18”

of ﬂexible conduit. Transformer enclosure

includes a separated wiring compartment

and two knockouts for conduit entry.

Transformer enclosure features perforated

metal door for easy maintenance access

and cooler operation. Entire electrical

assembly (jbox and transformer enclosure)

is removable from the housing for easy

maintenance.

E ... Lamps

One (1) 12V MR11 lamp mounted in

adjustable double gimbal. Lamp holder is

removable and may be regressed 1” for

additional cut-off. Lamp can accept up to

three optical accessories (i.e. lens + hex

louver + snoot). 45º x 45º locking lamp

adjustment. Beveled-edge lamp ring is

secured with threadless, bayonet action.

Optional retractable arm is available for

lamp pulldown and extreme aiming.

F ... Mounting

Mounting clips are provided which

mount the housing edge ﬂush with the

ﬁnished ceiling line. Mounting clips are

secured to the housing through the

meshplate with screws.

G... Labels

cULus listed for non-type IC

applications, suitable for use in damp

locations.

Ceiling Cut-Out: 5.00” x 5.00

COMBOLIGHT®

Next Generation

Recessed

Single-Lamp Fixture

One (1) Light

12V MR11

Remodel Housing

Trimless

ORDERING INFORMATION

An adjustable Single-lamp Recessed ﬁxture for trimless installation suitable for

downlighting and accent applications. Utilizes ONE (1) 12V MR11 lamp.

For remodel applications. Insulation must be kept 3” from all sides and at least

1” above the housing.

Speciﬁcations and Dimensions subject to change without notice.

RSA Lighting • 7945 Orion Ave. • Van Nuys, CA 91406 • 818-349-3030 • FAX 818-349-3031

rev 121107

Conﬁguration

C1 =COMBOLIGHT

Recessed One (1) Light

Housing

R =Remodel

C1 R N N

Lamp Type / Wattage Label

020M11 =20 Watt max. MR11 12V

035M11 =35 Watt max. MR11 12V

Power Supply

E =Electronic Low Voltage

Transformer

M =Magnetic Low Voltage

Transformer

Power Supply

Voltage

1 =120V

2 =277V

Lamp Mechanism

G =Double Gimbal

R =Retractable Double Gimbal

Trim Insert Finish

N =Trimless

Trim Insert

N =Trimless

Housing Interior/Electrical Door/Sleeve

Finish

W =White

B =Black

S =Industrial Silver

NOTES:

De-Rated wattage labels are available.

12V Primary voltage is available.
