Get to Know the Physical Features of the Controller

The following sections identify the physical features of the controller that are relevant to the installation and mounting

instructions that this guide provides. Before you begin the installation process, Ruckus Networks strongly recommends that you

become familiar with these physical features.

Front Panel

The following gure shows the controller’s front panel with the bezel installed. For descriptions of the numbered parts, refer to

the table below.

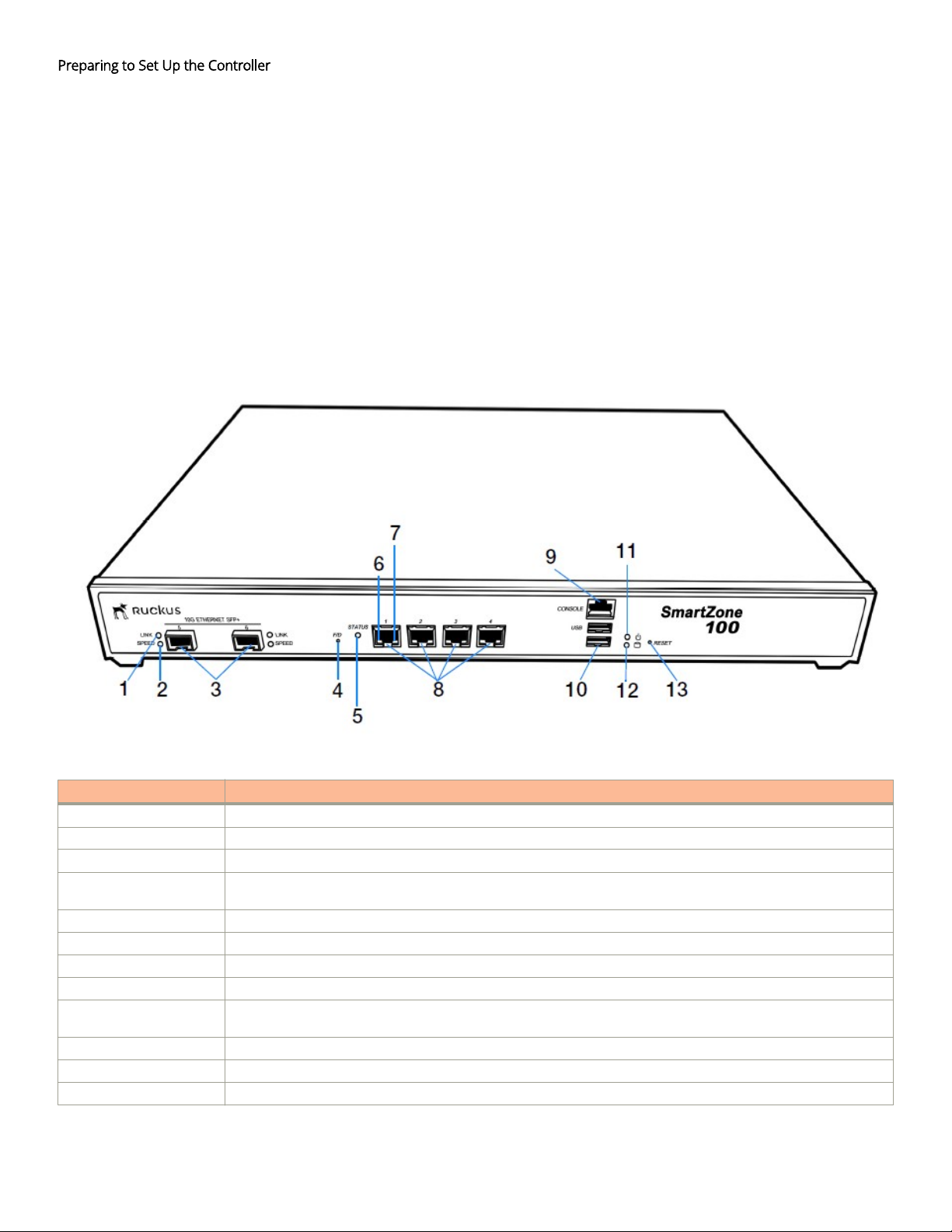

FIGURE 3 The front panel of the SmartZone 100 (SKU P01-S124-WW10)

TABLE 3 Front panel parts

Number Description

1 10G Ethernet link LED (see LEDs on the Front Panel on page 15)

2 10G Ethernet speed LED (see LEDs on the Front Panel on page 15)

3 Two 10GBASE-X (SFP+) ports (SKU P01-S124-WW10 only)

4 F/D (factory default) button. Press this button for at least 10 seconds to reset the controller to factory default

settings.

5 Status LED (see LEDs on the Front Panel on page 15)

6 1000BASE-T link LED (see LEDs on the Front Panel on page 15)

7 1000BASE-T status LED (see LEDs on the Front Panel on page 15 )

8 Four 1000BASE-T (RJ-45) ports

9 Console (RJ-45 serial) port. Use the supplied console cable (or any rollover cable, also known as Cisco

™

serial RJ-45

cable) to connect this port to another device.

10 Two USB ports

11 Power LED (see LEDs on the Front Panel on page 15)

12 HDD LED (see LEDs on the Front Panel on page 15)

Before You Begin

Ruckus SmartZone 100 Getting Started Guide

14 Part Number: 800-71960-001 Rev A

TABLE 3 Front panel parts (continued)

Number Description

13 Reset button. Press for 5 seconds to restart the SZ 100.

LEDs on the Front Panel

The table below describes the behavior of the LEDs on the front panel.

TABLE 4 LED behavior

LED Description

10G Ethernet link LED Green: Operational

Flashing: TX/RX data

O: Not operational

10G Ethernet speed LED Blue: Operating at 10Gbps

Yellow/Orange: Operating 1Gbps

O: Not operational

Status Green: System operational/no fault

Red: System fault

Blinking red: Starting up or shutting down

Slow ashing red: System shut down

1000BASE-T link LED Green: Operational

Flashing green: TX/RX data

O: Not operational

1000BASE-T speed LED Green: 1000Mbps

Amber: 100Mbps

O: 10Mbps

Power On: Power available

O: No power

HDD On: Disk I/O (usually blinking)

O: No disk I/O

Rear Panel

The gure below shows the rear panel of the SmartZone 100. For descriptions of the numbered parts, refer to the table below.

Before You Begin

Ruckus SmartZone 100 Getting Started Guide

Part Number: 800-71960-001 Rev A 15
