Ruijie EG3000 Series Manuale utente
EG3000 Series Quick Start Guide
[EG3250, EG3000UE/XE Model]
1. WAN Uplink Quick Setup
1) Modify the IP address of PC.
IP address: 192.168.1.x (except 192.168.1.1)
Subnet mask: 255.255.255.0
Default gateway: 192.168.1.1 (default LAN IP)
2) Connect the PC to any port (except WAN0) on the device.
3) Visit http://192.168.1.1 by Chrome browser.
4) Enter the username and password on the login page and click “Log In”.
Default Username: admin
Default Password: admin
5) Change the password at the first login.

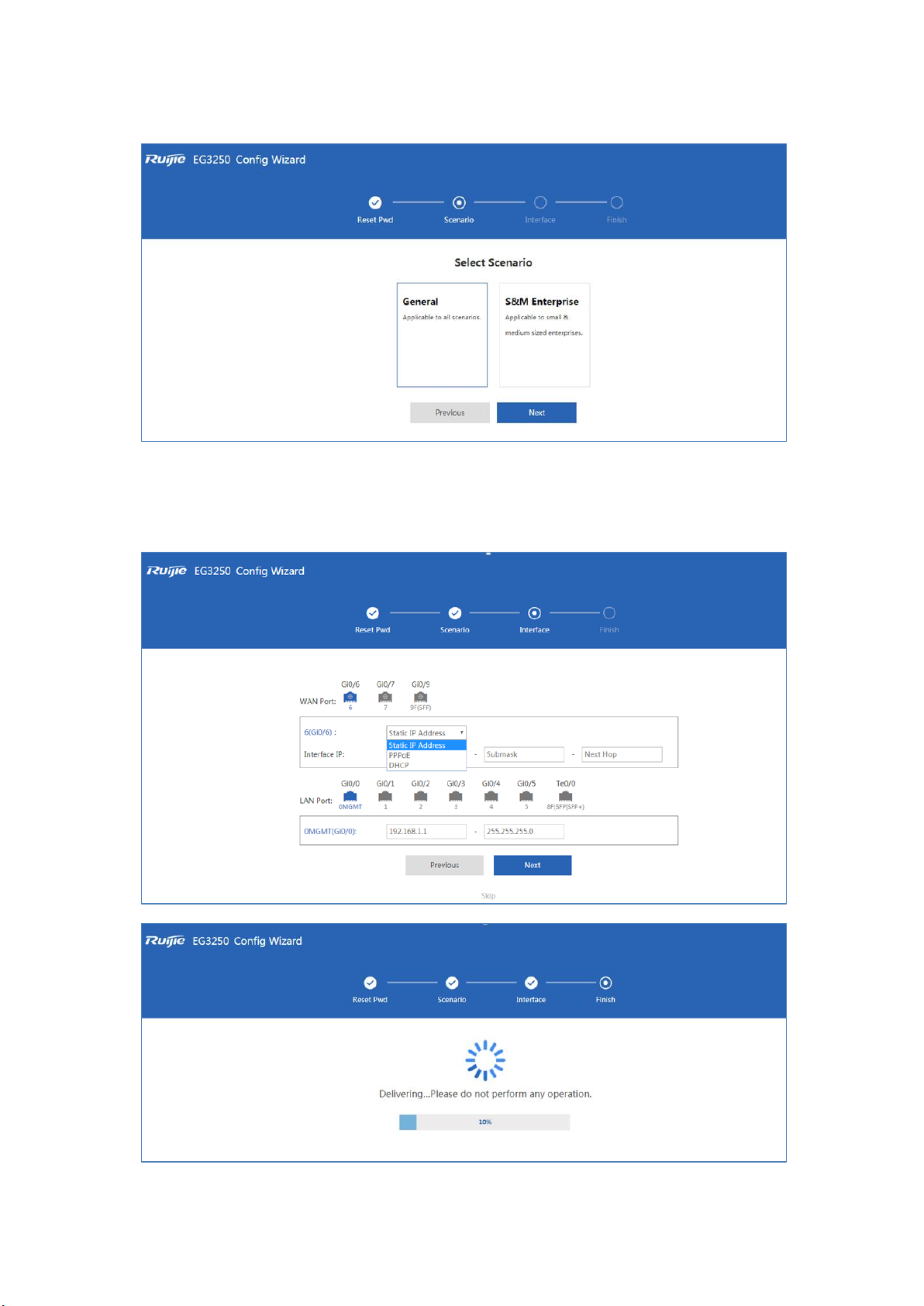

Select a scenario.
Configure the WAN port (DHCP, Static IP or PPPoE).
It is not recommended to change the IP of LAN port; otherwise, you may need to log in and
configure again. After wizard completes, you can configure LAN port on the interface
configuration page.

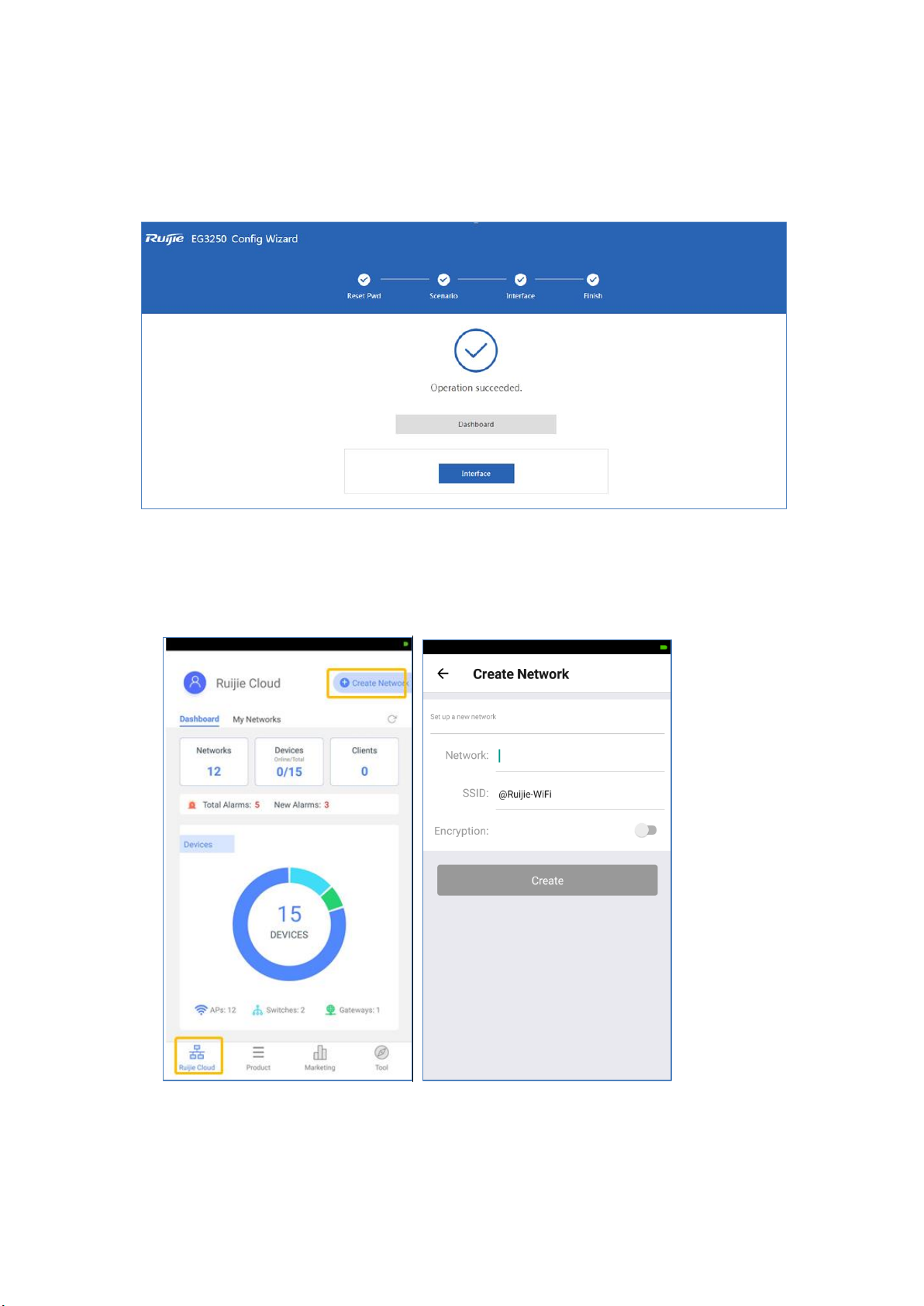

6) Click Dashboard to open the homepage, or click Interface to enter the interface configuration
page. If the WAN port is connected to the Internet, you can access the Internet now and add the
EG to the Cloud.
2. Add Device to Ruijie Cloud
1) Open the Ruijie Cloud App, tap Create Network, and enter the network name and SSID.
2) After the network is created, enter the network and tap Add Device to add AP and EG3250 by
scanning the QR code (AP SN/MAC) on the back of the device (Note: There is no QR code behind
EG3000UE/XE, so please manually enter SN). When adding an EG, you need to enter its Web
management password.
3) Wait for about 3 to 5 minutes, and you can see the online status of EG device.
The SN/MAC QR-Code demo on the back of EG:
3. Access EG Web from Cloud
1) After an EG comes online on the Ruijie Cloud, you can visit its eWeb page for advanced
configuration. Select the EG in the Gateway List, and click eWeb.
2) After the tunnel is created, the Web management page will open automatically, as shown
below:
3) If the following information is displayed, click Proceed to enter the eWeb system.
4. Common Functions
Click Common on the menu for commonly-used functions.
5. Cache Configuration
EG supports static resource (such as image, video and file) cache and App cache (both on iOS and
Android).
Cache is disabled by default. You can enable it in the Service menu (device will restart).
5.1 Resource File Cache
Static resources, including files, images and videos, can be cached on EG.
Step1: Set up one HTTP server and upload the file to be cached.
Step2: Enable the cache, and input the resource address (MUST be based on HTTP resource).
Example
When cache is disabled, the traffic mainly comes from WAN:
When cache is enabled:
As the file is downloaded from cache, the WAN traffic throughput is lower and the Internet
bandwidth is saved. Even when the Internet bandwidth is limited to 0.5 Mbps, the download
speed can reach 15.5MB/s (124Mbps).

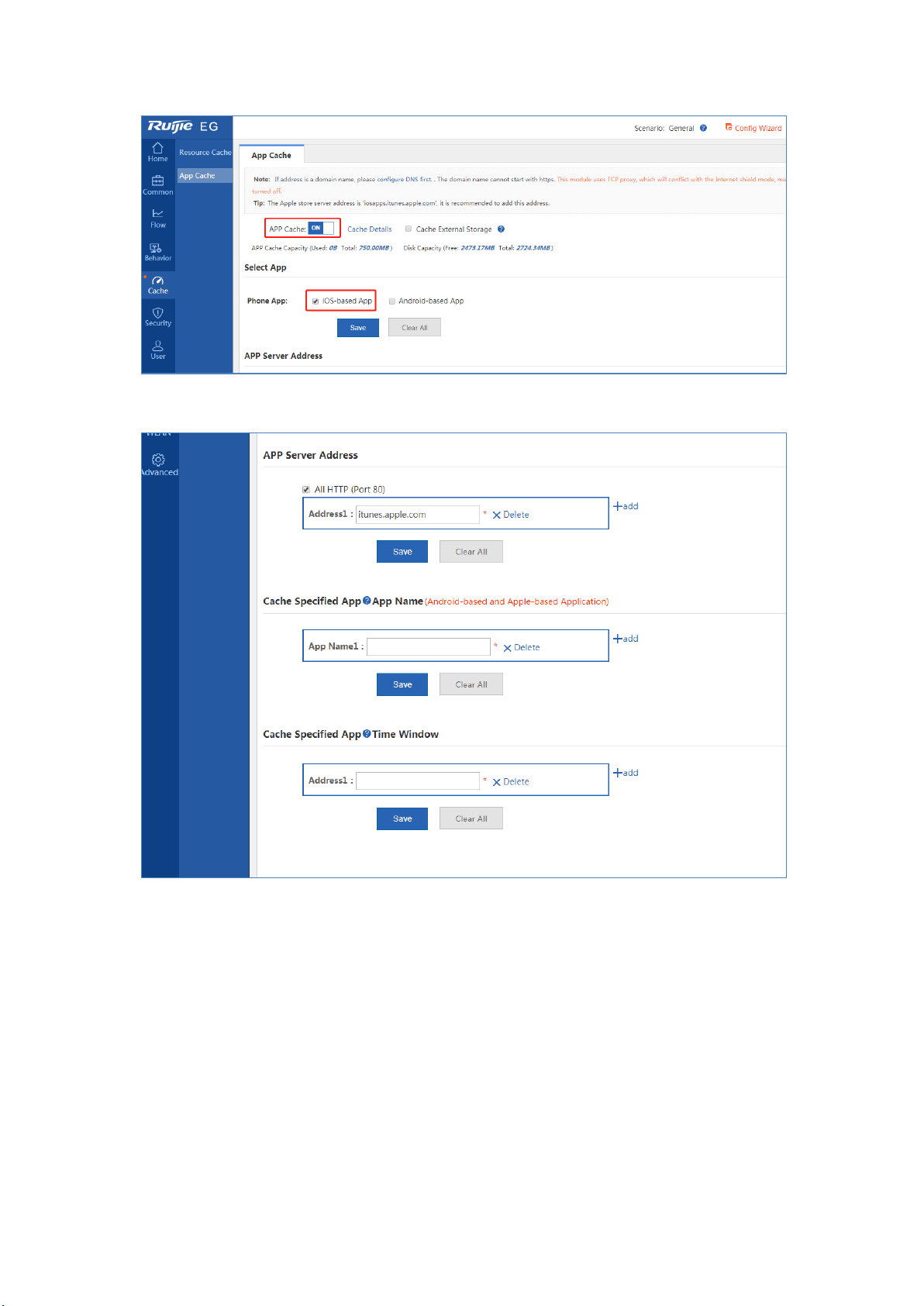

5.2 iOS App Cache
Step1: Enable APP Cache and select iOS-based App.
Step2: Enter the App server address and enable all HTTP. Keep the App name and App address
empty.
Step3: After STA begins to download the App from App Store, you can check the EG cache status.
