Ruijie Reyee RG-EST310 Manuale di installazione e funzionamento

Ruijie Reyee RG-EST310 V2

Wireless Bridge

Hardware Installation and Reference Guide

Document Version: V1.0

Date: 2021.9.16

All rights are reserved in this document and this statement.

Any reproduction, excerption, backup, modification, transmission, translation or commercial use of this

document or any portion of this document, in any form or by any means, without the prior written consent of

Ruijie Networks is prohibited.

Trademarks including , , are

owned by Ruijie Networks.

All other trademarks or registered trademarks mentioned in this document are owned by their respective

owners.

Disclaimer

The products, services or features you purchase are subject to commercial contracts and terms. Some or all of

the products, services or features described in this document may not be within the scope of your purchase or

use. Unless otherwise agreed in the contract, Ruijie Networks does not make any express or implied statement

or guarantee for the content of this document.

Due to product version upgrades or other reasons, the content of this document will be updated from time to

time. Ruijie Networks reserves the right to modify the content of the document without any notice or prompt.

This manual is for reference only. Ruijie Networks endeavors to ensure content accuracy and will not shoulder

any responsibility for losses and damages caused due to content omissions, inaccuracies or errors.

Preface

Intended Audience

This document is intended for:

⚫Network engineers

⚫Technical support and servicing engineers

⚫Network administrators

Technical Support

⚫The official website of Ruijie Reyee: https://www.ruijienetworks.com/products/reyee

Conventions

1. Signs

The signs used in this document are described as below:

Danger

An alert that calls attention to safety operation instructions that if not understood or followed when operating the

device can result in physical injury.

Warning

An alert that calls attention to important rules and information that if not understood or followed can result in

data loss or equipment damage.

Caution

An alert that calls attention to essential information that if not understood or followed can result in function

failure or performance degradation.

Note

An alert that contains additional or supplementary information that if not understood or followed will not lead to

serious consequences.

Specification

An alert that contains a description of product or version support.

2. Note

This manual provides the device installation steps, hardware troubleshooting, module technical specifications,

and specifications and usage guidelines for cables and connectors. It is intended for the users who have some

experience in installing and maintaining network hardware. At the same time, it is assumed that the users are

already familiar with the related terms and concepts.

Hardware Installation and Reference Guide 1 Product Overview

1 Product Overview

1.1 RG-EST310 V2

The RG-EST310 V2 is an 802.11ac wireless bridge launched by Ruijie Reyee. It provides services such as

surveillance video backhaul and wireless remote transmission in elevators, tower cranes, factories, parks,

construction sites and other scenarios. RG-EST310 V2 works in the 5GHz frequency band, supports two spatial

streams and 2 x 2 MIMO, and provides a wireless transmission speed of up to 867Mbps, which is sufficient to

meet the bandwidth requirements of user services for data links.

1.2 Package Contents

Table 1-1 Package Contents

No.

Item

Quantity

RG-EST310 V2 (Network Video Recorder Side)

RG-EST310 V2 (Camera Side)

24 V/0.6 A Non-Standard PoE Adapter

Bracket

Hardware Installation and Reference Guide

Hose Clamp

Wall Anchor and Self-Tapping Screw

Note

●A normal delivery should contain the above mentioned items, which may differ from the actual delivery,

depending on purchase contracts. Please check your goods carefully against the Package Contents or

purchase contract. If you have any questions or there are any errors, please contact your distributor.

1.3 Appearance

Figure 1-1 Appearance

Front View

Hardware Installation and Reference Guide 1 Product Overview

Rear View

Hardware Installation and Reference Guide 1 Product Overview

1.3.1 Port & Button

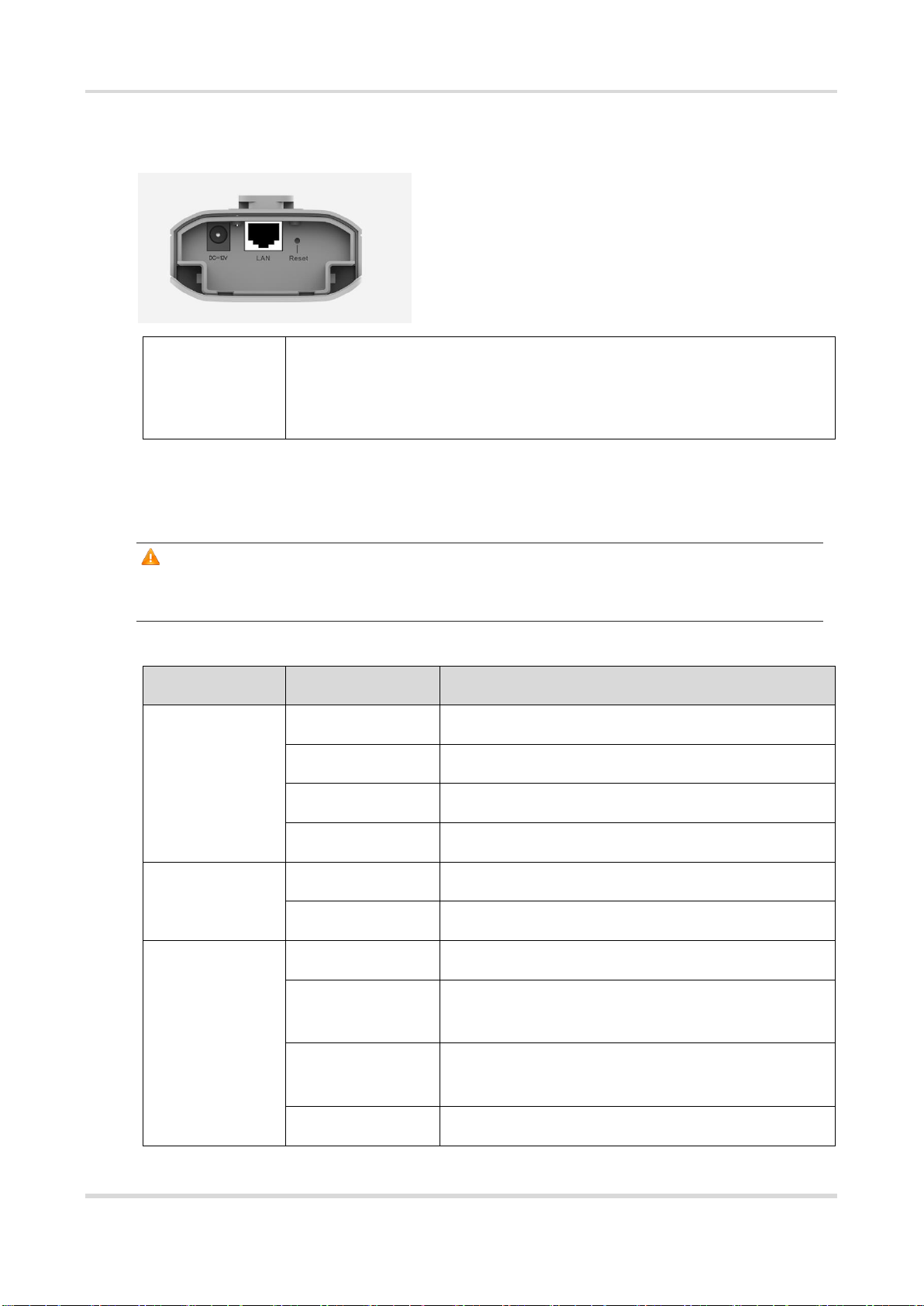

Figure 1-2 Port & Button

Note

1. 12 VDC Port

2. 10/100Base-T Ethernet Port (PoE-capable)

3. Reset button

1.3.2 Power Supply

RG-EST310 V2 adopts 12 V/1 A DC or 24 V non-standard PoE power supply. The device is delivered with a 24

V/0.5A power adapter.

Caution

●Please do not use a switch or a PoE adapter of another model for power supply. Otherwise, the device

may be damaged.

Table 1-2 LED Description

LED

Status

Description

System Status

LED

Off

System is not powered on.

Solid On

Initiation process is complete.

Slow Blinking

System is working but there is an alert.

Fast Blinking

System is being initialized.

Port Status LED

Solid On

The LAN port is not receiving or transmitting data.

Blinking

The LAN port is receiving or transmitting data.

Signal LED

LED 1 is solid on.

-73 dBm< RSSI <-59 dBm

LED 1 and LED 2

are solid on.

RSSI > -59 dBm

LED 1, LED 2 and

LED 3 are solid on.

RSSI > -49 dBm

Off

There is no signal.

Hardware Installation and Reference Guide 1 Product Overview

Table 1-3 Reset Button Description

Button

Function

Operation

Reset

Reboot

Press the button for 2 seconds, and the device will be

rebooted.

Reset

Press the button for over 5 seconds, and the device will be

reset.

No Action

Press the button for 2 to 5 seconds.

1.4 Device Specification

Table 1-4 Specification

Radio Design

Single-Frequency Dual-Stream

Transmission

Protocol

802.11 a/n/ac

Operating Frequency

Antenna Type

Built-in Directional Antenna, Horizontal 60°, Vertical 30°

Spatial Streams

Max Throughput

The 5GHz frequency band provides a wireless transmission speed of up to

867Mbps.

Modulation Types

OFDM: BPSK@6/9Mbps, QPSK@12/18Mbps, 16-QAM@24Mbps,

64-QAM@48/54Mbps

OFDM: BPSK, QPSK,16QAM, 64QAM, 256QAM

Receiver sensitivity

802.11a: -89 dBm (6 Mbps), -80 dBm (24 Mbps), -76 dBm (36 Mbps), -71 dBm (54

Mbps)

802.11n: -83 dBm@MCS0, -65 dBm@MCS7, -83 dBm@MCS8, -65 dBm@MCS15

802.11ac: -86 dBm(MCS0), -63 dBm(MCS9)

Max Transmit Power

400mw (26dBm) (Single-Stream)

Transmit Power

Adjustment

1 dBm

Dimensions (L x W x

H, without bracket)

147 mm ×76 mm ×37 mm (5.78 in. x 2.99 in. x 1.46 in.)

Weight

0.35 kg (0.77 lbs.)

Hardware Installation and Reference Guide 1 Product Overview

Service Ports

One 10/100BASE-T port, supporting 24 V non-standard PoE power supply

Management Ports

N/A

Status LED

One system LED, one Ethernet port LED, and three signal LEDs

Power Supply

Method

12 VDC and 24 V non-standard PoE power supply

Max Power

Consumption

7 W

Bluetooth 5.0

Not supported

Temperature

Operating Temperature: -30°C to 55°C (-22°F to 131°F)

Storage Temperature: -40°C to 70°C (-40°F to 158°F)

Operating Humidity: 5% to 95% RH (non-condensing)

Storage Humidity: 5% to 95% RH (non-condensing)

Installation Methods

Wall Mounting/Pole Mounting

Safety

GB 4943.1-2011

EMC Compliance

GB/T 9254-2008

Vibration

IEC61373

Radio Approvals

China Radio Transmission Equipment TypeApproval Certificate, EN300 328, EN301

893

MTBF

>400000H

Warning

●This is a Class A product. In a living environment, this product may cause radio interference in which case

the user may be required to take adequate measures. In this case, users are advised to take proper

measures against the disturbance.

1.5 Power Specification

RG-EST310 V2.0 adopts 12 VDC or 24 V/0.6 A non-standard PoE power supply.

Hardware Installation and Reference Guide 1 Product Overview

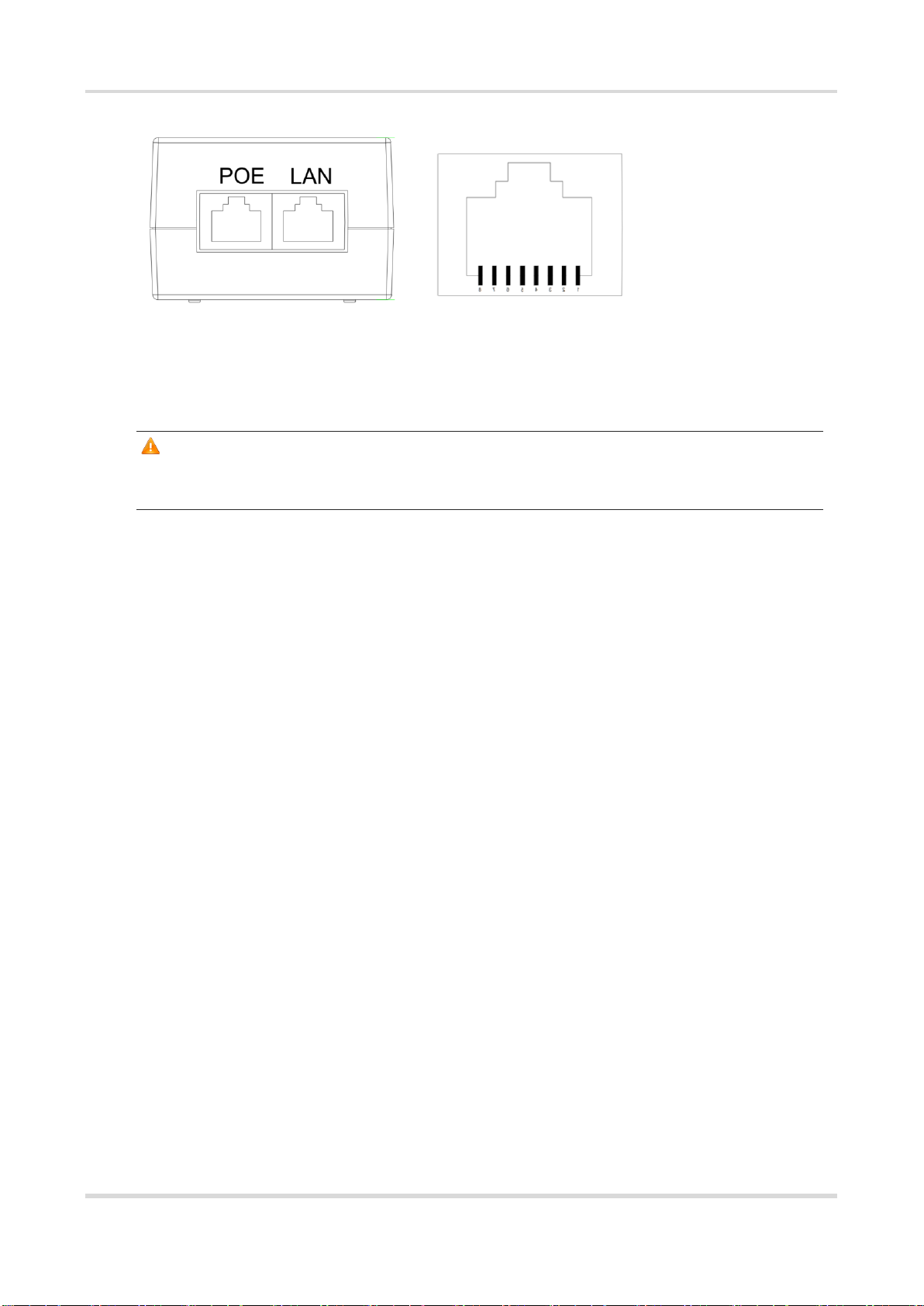

Figure 1-3 Non-Standard PoE Adapter

⚫RJ45 Connector for LAN: 1, 2, 3 and 6 are data cables. 4 and 5 connect the positive post. 7 and 8 connect

the negative post.

⚫RJ45 Connector for PoE: 1, 2, 3 and 6 are data cables. 4 and 5 connect the positive post. 7 and 8 connect

the negative post.

Caution

●Please do not use a switch or a PoE adapter of another model for power supply. Otherwise, the device

may be damaged.

1.6 Heat Dissipation

RG-EST310 V2 adopts a fanless design. Leave sufficient space around the device for ventilation

Hardware Installation and Reference Guide 1 Safety Precautions

2 Safety Precautions

2.1 Safety Precautions

Note

●To prevent device damage and physical injury, please read carefully the safety recommendations

described in this chapter.

●The following safety suggestions do not cover all possible dangers.

2.1.1 General Safety Precautions

⚫Do not expose the device to high temperature, dusts, or harmful gases. Do not install the device in an

inflammable or explosive environment. Keep the device away from EMI sources such as large radar stations,

radio stations, and substations. Do not subject the device to unstable voltage, vibration, and noises.

⚫The installation site should be far away from the sea. Keep the device at least 500 meters away from the

seaside and do not face it toward the wind from the sea.

⚫The installation site should be free from water flooding, seepage, dripping, or condensation. The installation

site shall be selected according to network planning and features of communications device, and

considerations such as climate, hydrology, geology, earthquake, electric power, and transportation.

Caution

●Please follow the correct methods described in the installation guide to install and remove the device.

2.1.2 Handling Safety

⚫Prevent the device from being frequently handled.

⚫Cut off all power supplies and unplug all power cords before you move or handle the device.

2.1.3 Electric Safety

Warning

●Improper or incorrect operations may cause a fire or electric shock and other accidents, thus causing

severe even fatal damages to human bodies and device.

●Direct or indirect contact with high voltage or mains power supply via wet objects may cause fatal dangers.

⚫Please observe local regulations and specifications when performing electric operations. Only personnel

with relevant qualifications can perform such operations.

⚫Please carefully check for any potential danger in the working area, for example, damp/wet ground or floor.

⚫Find out the location of the emergency power supply switch in the room before installation. First cut off the
