INSTRUCTIONS AND WARRANTY

MODEL NO. RHIC202

RUSSELL HOBBS SINGLE PLATE INDUCTION COOKER

Congratulations on purchasing our Russell Hobbs Single Plate Induction Cooker. Each unit

is manufactured to ensure safety and reliability. Before using this appliance for the first time,

please read the instruction manual carefully and keep it for future reference.

INTRODUCTION

However daunting Induction Cooking may seem, just remember that Induction Cookers are

to stoves, what microwaves are to ovens. An Induction Cooker is not difficult to use once

you get the hang of it. Take some time to read the instruction manual and familiarise

yourself with the controls. The unit works similar to a stove top so we know that this will

come easy to you.

FEATURES OF THE RUSSELL HOBBS SINGLE PLATE INDUCTION

COOKER

Induction technology

Powerful 2100W

Rapid, healthy, safer, energy efficient cooking

Safer than traditional cooking methods - no flames from burning gas or red-hot electric

elements

Easy to use touch control

18 power levels from 100W to 2100W

Adjustable temperature settings allows you more control

Stylish black crystal surface with digital LED Display

Heated surface range: 26 cm x 26 cm

5 one-touch cooking menus: Soup, Simmer, Stew, Steam and Fry

With Pause function and 10 hour timer

Convenient 24 hour Delay Start (preset) function

Great for home entertaining! Use as a food warmer or an additional cooking surface

Its compact, portable design makes it ideal for garden cottages, holiday makers, camping,

caravanning or student dorm rooms

Advanced structural and technical design for your safety assurance

Generous 1.2m cord

Automatic switch off after 2 hours without operation

Compatible with inverters

Suitable for Induction-ready cookware only

Save up to 56% of energy compared to other cooking methods

Up to 56% faster than traditional cooking methods

For domestic use only

WHY YOU CHOSE INDUCTION TECHNOLOGY

Induction cooking brings time-saving innovation to the modern kitchen. Not only is it rapid,

healthy and safe but it is also a more energy efficient cooking method. Induction cooking

offers you the ultimate cooking convenience with less of the cost.

An induction cooker is ideal for all households and occasions. It is great for home

entertaining for example. Use it as a food warmer to keep your food at the optimal serving

temperature or as an additional cooking surface when needed. Use it in garden cottages,

when camping or caravanning or even as a compact cooktop for student accommodation

such as dorm rooms.

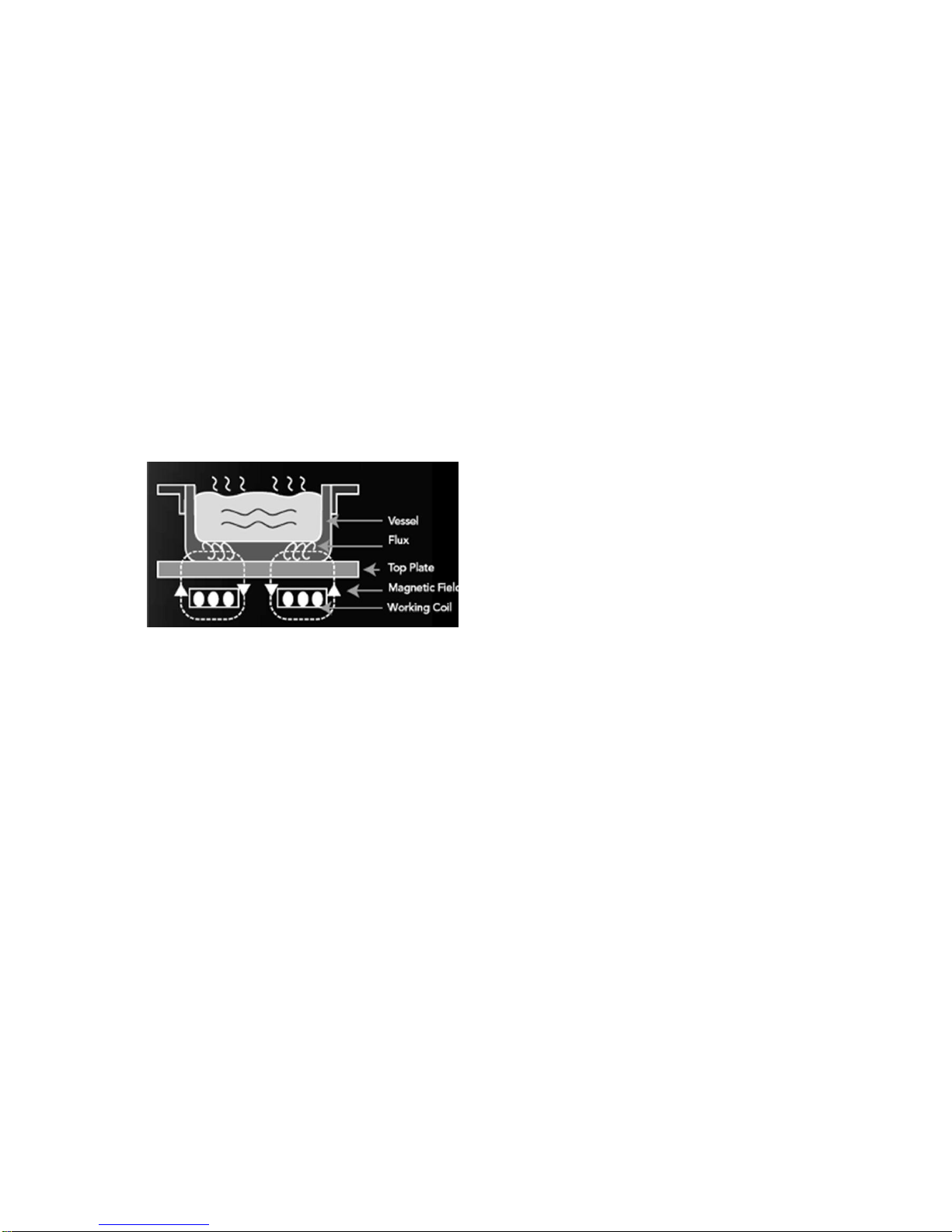

HOW DOES IT WORK?

An Induction Cooker uses induction

heating to directly heat a cooking pot or

pan. Traditional cooking methods would

transfer heat from electric elements,

coils or burning gas ie. spiral or solid

typed hotplates, stove tops and gas

cookers.

In an Induction Cooker, a coil of copper wire is placed underneath the cooking surface. An

alternating electric current flows through the coil which produces an oscillating magnetic

field. This field induces an electric current in the cooking pot or pan. It is this resistive

heating technology that instantly heats the cooking pot or pan. The copper coil itself does not

get hot - without a pot or pan in place, there is no heat produced.

An Induction Cooker heats cookware instantly, similar to gas cooking but provides you with

more control over the cooking process. The possibility of burn injury is also significantly less

than with traditional cooking methods as the surface of the cook top is only heated from

contact with the cooking pot or pan. There are no flames or red-hot electric heating elements

as found in traditional cooking equipment.

The induction effect does not heat the air around the cooking pot or pan which results in

further energy efficiencies. Some air is blown through the cook top to cool the internal

electronics but this air emerges only a little warmer than ambient room temperature.

Induction cooking also promotes a healthier and balanced lifestyle. It utilizes high heat and

reduced cooking times to help seal in nutrients and tasty goodness!

Induction Cookers are designed specifically for use with Induction-ready pots and pans.

Test your cookware for compatibility by trying to stick a magnet to its bottom. Your

cookware is compatible and will work with an Induction Cooker if the magnet stays in place.

IMPORTANT SAFEGUARDS

When using any electrical appliance, basic safety precautions should always be followed

including the following:

1. Please read the instructions carefully before using any appliance.

2. Always ensure that the voltage on the rating label corresponds to the mains voltage in

your home.

3. Always use a dedicated single mains socket for this appliance. Never connect the unit

to a socket which is sharing a power supply with other electrical appliances.

4. Incorrect operation and improper use can damage the appliance and cause injury to

the user.

5. The appliance is intended for household use only. Commercial use invalids the

warranty and the supplier cannot be held responsible for injury or damage caused

when using the appliance for any other purpose than that intended.

6. Avoid any contact with moving parts.

7. This appliance is not intended for use by persons (including children) with reduced

physical, sensory or mental capabilities, or lack of experience and knowledge, unless

they have been given supervision or instruction concerning use of the appliance by a

person responsible for their safety.

8. Children should be supervised to ensure that they do not play with the appliance.

9. Check the power cord and plug regularly for any damage. If the cord or the plug is

damaged, the manufacturer or a qualified person must replace it in order to avoid an

electrical hazard.

10. Do not allow this appliance to touch curtains, wall coverings, clothing, dishtowels or

other flammable materials during use. Caution is required on surfaces where heat

may cause damage -an insulated heat pad is recommended. Never place the

appliance on a plastic, fabric or carpeted surface while cooking. Do not use the

appliance on carpet or vinyl) or any other low heat-resistant surface.

11. Do not use this appliance on an iron or steel table as the oscillating magnetic field

may cause the table to heat up as well.

12. Do not heat an empty cooking pot or pan as this could cause the cookware to become

distorted or the heating coil to become damaged.

13. Do not overheat a cooking pot or pan. Do not overfill your cooking pot or pan.

14. Do not leave the appliance unattended during use. Always unplug the unit when not in

use or before cleaning.

15. 

16. Do not place metallic objects such as knives, forks, spoons, lids, cans and aluminium

foils on top of the cooking plate.

17. Do not place anything between the pot or the pan and the appliance.

18. The maximum weight that can be put on the appliance is 5kg.

19. The appliance is not intended to be operated by means of an external timer or

separate remote-control system.

20. DANGER OF SCALDING. Extreme caution must be used. Do not move the

appliance while it is in operation. It is recommended that you do not move the

appliance when it is in use with a cooking pot or pan, when switched on or before it

has cooled down.

21. Beware of hot steam which escapes out of the cookware during the cooking process

or when you remove the lid.

22. Avoid contact with the cooking area directly after cooking as it retains heat from the

cookware.

23. DO NOT place the product near flammable materials.

24. Food should not be kept warm for more than 4-6 hours in order to maintain the

continued freshness of the food.

25. Never use this appliance for heating food in a can as it may cause the can to explode

from built up pressure.

26. Let the appliance cool down completely before you clean it or put it away.

27. Do not use the appliance if it has been dropped or damaged in any way. In case of

damage, take the unit in for examination and/or repair by an authorised service agent.

28. Do not use harsh abrasives, caustic cleaners or oven cleaners when cleaning this

appliance.

29. To reduce the risk of electric shock, do not immerse or expose the appliance, plug or

the power cord to water or any other liquid. Do not touch the power cord or plug with

wet hands.

30. Never immerse the unit in water or any other liquid for cleaning purposes. Do not

place the unit into a dishwashing machine.

31. Do not use the appliance in a bathroom or near a source of water.

32. The appliance cannot be partially or fully immersed in water for cleaning.

33. Remove the plug from the socket by gripping the plug. Do not pull on the cord to

disconnect the appliance from the mains. Always unplug the unit when not in use,

before cleaning or when adding or removing parts.

34. The use of accessory attachments that are not recommended or supplied by the

manufacturer may result in injuries, fire or electric shock.

35. A short cord is provided to reduce the hazards resulting from becoming entangled in

or tripping over a longer cord.

36. DO NOT carry the appliance by the power cord.

37. Do not let the cord hang over the edge of a table or counter. Ensure that the cord is

not in a position where it can be pulled on inadvertently.

38. Do not allow the cord to touch hot surfaces and do not place on or near a hot gas or

electric burner or in a heated oven.

39. Do not place the appliance close to those objects which are affected by magnets such

, , automatic banking cards and cassette tapes.

40. Position the appliance on a firm, level and heat resistant surface, near a power socket

and out of reach of children.

41. Do not use the appliance on a gas or electric cooking top or over or near an open

flame. Do not place the unit on a hot surface.

42. Do not block the air intake or exhaust vent. Use the unit with sufficient space around

it. Keep the front side as well as right and left side of the unit clear. Make sure there is

at least 10cm free space around it to prevent it from overheating.

43. Use of an extension cord with the appliance is not recommended. However, if it is

necessary to use an extension lead, ensure that the lead is suited to the power

consumption of the appliance to avoid overheating of the extension cord, appliance or

plug point. Do not place the extension cord in a position where it can be pulled on by

children or animals, or tripped over.

44. This appliance is not suitable for outdoor use. For household use only. Do not use

this appliance for anything other than its intended use.

45. The manufacturer does not accept responsibility for any damage or injury caused by

improper or incorrect use, or for repairs carried out by unauthorised personnel.

46. If the black crystal surface is cracked, please switch the appliance off and take it to an

authorised service centre immediately.

47. In case of technical problems, switch off the machine and do not attempt to repair it

yourself. Return the appliance to an authorised service facility for examination,

adjustment or repair. Always insist on the use of original spare parts. Failure to

comply with the above mentioned pre-cautions and instructions, could affect the safe

operation of this machine.

PARTS DIAGRAM

A. Black Crystal Cooking Plate

B. Main Body

C. Control Panel

D. LED Display

E. Fan

CONTROL PANEL

A. LED Display

B. Power: ON / OFF

C. Pause

D. Automatic cooking function: Soup

E. Automatic cooking function: Simmer

F. Automatic cooking function: Steam

G. Manual cooking function: Stew

H. Manual cooking function: Fry

I. Timer

J. Preset

K. +/- buttons (for setting cooking time, power

level and cooking temperature)

BEFORE FIRST USE

Before using the appliance for the first time, take it out of the box and take off any

protective wrappings. REMEMBER: DO NOT LEAVE PROTECTIVE PACKAGING

LYING AROUND, AS IT COULD BE DANGEROUS AROUND INFANTS AND

SMALL CHILDREN.

Carefully clean the unit by wiping the control panel and cooking area with a small

amount of dishwashing liquid and a damp cloth. Dry immediately with a soft cloth or

paper towel.

Do not use any aggressive detergents, brushes with metal or nylon bristles or sharp

objects such as knives or spatulas for cleaning the unit.

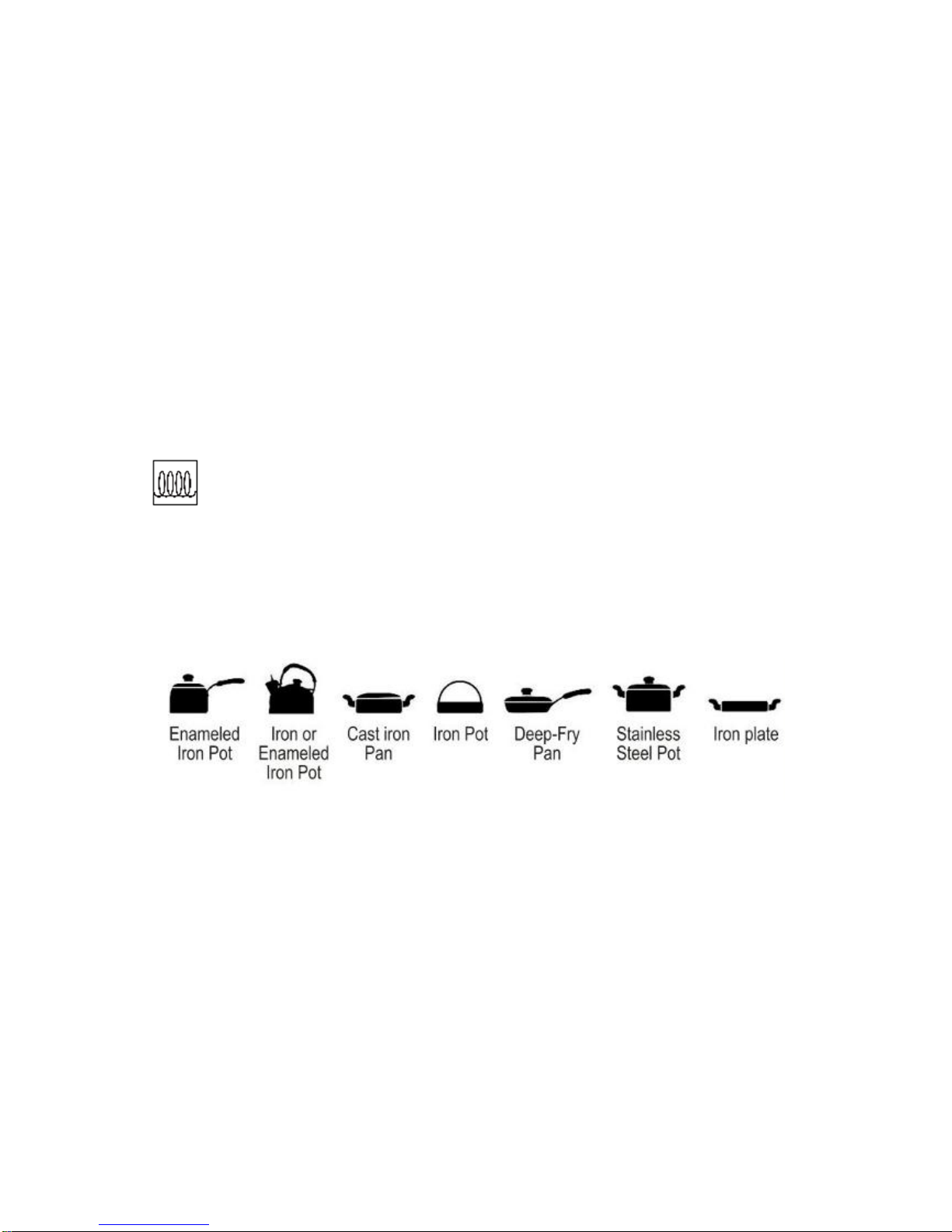

INDUCTION-READY COOKWARE:

Material: steel, cast iron, enamelled iron, stainless steel

Shape: flat bottom pots or pans

Size: diameter measuring from 12cm to 26cm

Weight: cookware with a weight of up to 5kg (including contents)

COOKWARE NOT SUITABLE FOR INDUCTION USE:

Material: heat-resistant glass, ceramics, copper, bronze, aluminium

Shape: convex or concave. Round bottoms

Size: diameter measuring less than 12cm

Weight: cookware with a weight over 5kg (including contents)

NOTE: The induction cooker will not heat and will present an error in the following

situations:

Once a cooking function has been selected but there is no pot or pan on the

cooking area

When a pot or pan is used that is not made from induction-ready material

When the shape of the pot or pan is incorrect or if it is too small in diameter

When the pot or pan is too heavy

QUICK REFERENCE GUIDE

FUNCTIONS

SOUP

SIMMER

STEAM

STEW

FRY

Function

Type

Automatic

Manual

Display

indication

Running

lines and

power level

bars

Running

lines and

power level

bars

Remaining

cooking time

and power

level bars

Wattage and

power level

bars

Temperature

and power

level bars

Can I use the

Preset (delay

start) setting

with this

function?

Yes

Temperature

range

300-1200W

1200-2100W

100-2100W

60-240°C

Can I adjust

the power

level during

cooking?

No, has its

own optimal

heating

pattern

No, has its

own optimal

heating

pattern

No, has its

own optimal

heating

pattern

Yes

Default

cooking time

2 hours

1 hour

25 minutes

Can I adjust

the cooking

timer?

Yes, from 1

hour up to 3

hours and 59

minutes

Yes, from 1

hour up to 3

hours and 59

minutes

Yes, from 10

minutes up to

3 hours and

59 minutes

Yes, from 1

minute up to

9 hours and

59 minutes

Yes, from 1

minute up to

9 hours and

59 minutes

Auto switch

to keep warm

mode?

Yes. Will be

active for 2

hours cycling

60°C at

100W.

Yes. Will be

active for 1

hours cycling

60°C at

100W.

Heat Resistant

Glass Pot

OPERATING INSTRUCTIONS

1. Position the unit on a dry, firm, level surface, close to a power socket and out

of reach of children.

2. Plug the power cord into a suitable mains power socket.

3. The LED display will flash----- key will

also be flashing. Note that the unit is not yet switched on.

4.  to switch the appliance on. A beep will sound once and the

LED display will show static lines -----, no longer flashing. The indicator light next to

the    key also remains on and is no longer flashing. The unit is now in

standby mode and the cooling fan of the appliance has turned on.

5. Place the induction-ready pot or pan onto the cooking area.

6. As per the recipe at hand, place the cooking ingredients into the cooking pot or pan.

7. If required, set the Preset (delay start) function now. Refer to the PRESET

FUNCTION section. NOTE: the Preset function only works for the automatic cooking

functions.

8. Select one of the cooking function keys to start cooking. The induction cooker will

function normally when an induction-ready pot or pan has been placed on the cooking

surface.

NOTE: If no function key is pressed within one minute then the unit will automatically

turn off.

9. Next, adjust the power level as needed. Refer to the POWER SETTINGS section.

NOTE: the power level can only be adjusted when using the manual cooking

functions.

10. Now, adjust the required cooking time as necessary. Refer to the TIMER SETTING

section.

11. To switch the unit off, touch the ON / OFFkey once.

NOTE:

During the automatic cooking functions the LED display will show running lines in

clockwise direction.

To display the remaining time during the cooking process, simply touch the TIMER

key once.

You can switch to a different cooking function during cooking. If you want to select a

different cooking function then simply press the desired cooking function key. Note

that you will need to input any presets, power level and/or timer settings from scratch.

At the end of the cooking process the LED display will show 

sound 5 times.

Indice

Lingue:

Altri manuali Russell Hobbs Piano cottura

Russell Hobbs

Russell Hobbs RHBS650 Guida all'installazione

Manuali Piano cottura popolari di altre marche

Bonnet

Bonnet OPTIMUM 700 Manuale del proprietario

Jenn-Air

Jenn-Air JGCP430 Manuale utente

Frigidaire

Frigidaire FES367FCC Guida rapida

Ztove

Ztove EZ2 DUO Manuale utente

Kleenmaid

Kleenmaid cooking GCTK9011 Guida all'installazione

Casselin

Casselin CSASRE24 Manuale utente

Jenn-Air

Jenn-Air JGC2536EB00 Manuale utente

Waldorf

Waldorf RN8603E-B Manuale di istruzioni

Whirlpool

Whirlpool SMP658CNEIXL Manuale utente

Wolf

Wolf CI243C/B Manuale utente

Fulgor Milano

Fulgor Milano F5PGK305S1 Manuale utente

GE JP389 Manuale utente

Wells

Wells WV-2HFG Manuale utente

IKEA

IKEA Lagan HGA4K Manuale utente

Samsung

Samsung NA36N9755 Manuale utente

Miele

Miele KM 404 Manuale utente

Lacor

Lacor 69562 Scheda tecnica

Keating Of Chicago

Keating Of Chicago MG-2 Manuale utente
