INSTRUCTIONS AND WARRANTY

MODEL NO. RHFP001

RUSSELL HOBBS PRO ELITE 8-IN-1 FOOD PROCESSOR

Congratulations on purchasing our Russell Hobbs Pro Elite 8-in-1 Food Processor. Each

unit is manufactured to ensure safety and reliability. Before using this appliance for the

first time, please read the instruction manual carefully and keep it for future reference.

FEATURES OF THE RUSSELL HOBBS Pro Elite 8-in-1 FOOD PROCESSOR

•1000W

•2 speed control plus pulse for precise start and stop control

•Stylish silver aluminium and black design

•Extra-large 75mm feed chute

•Non-slip rubber feet for stability

•The Pro Elite Food Processor includes the following accessories:

- dough tool

- stainless steel slicing/chopping/mixing blade

- stainless steel reversible thin slicing and fine shredding disc

- stainless steel rasping/grating disc

- stainless steel chip slicing disc

- citrus juicing attachment

- 1.5L glass blender jug

- plastic 1.2L food processing bowl with maxi blend canopy

•Double safety lock system

•Blue illuminated control panel

•For domestic use only

•2 year warranty (1 year retail • 1 year extended upon online registration of

product • visit www.russellhobbs.co.za)

IMPORTANT SAFEGUARDS

When using any electrical appliance, basic safety precautions should always be followed

including the following:

1. Please read the instructions carefully before using any appliance.

2. Always ensure that the voltage on the rating label corresponds to the mains

voltage in your home.

3. Incorrect operation and improper use can damage the food processor and cause

injury to the user.

4. This food processor is intended for household use only. Commercial use invalids

the warranty and the supplier can not be held responsible for injury or damage

caused when using the appliance for any other purpose than that intended.

5. Avoid any contact with moving parts.

6. This food processor is not intended for use by persons (including children) with

reduced physical, sensory or mental capabilities, or lack of experience and

knowledge, unless they have been given supervision or instruction concerning

use of the appliance by a person responsible for their safety.

7. Children should be supervised to ensure that they do not play with the food

processor.

8. Check the power cord and plug regularly for any damage. If the cord or the plug

is damaged, it must be replaced by the manufacturer or a qualified person in

order to avoid an electrical hazard.

9. Do not use the food processor if it has been dropped or damaged in any way. In

case of damage, take the unit in for examination and/or repair by an authorised

service agent.

10. To reduce the risk of electric shock, do not immerse or expose the motor

assembly, plug or the power cord to water or any other liquid.

11. Never immerse the unit in water or any other liquid for cleaning purposes.

12. Remove the plug from the socket by gripping the plug. Do not pull on the cord to

disconnect the appliance from the mains. Always unplug the unit when not in

use, before cleaning or when adding or removing parts.

13. The use of accessory attachments that are not recommended or supplied by the

manufacturer may result in injuries, fire or electric shock.

14. Care must be taken when dismantling and assembling the blender as the blades

and discs are very sharp.

15. Never reach with your fingers into the feed chute.

16. Never place hard objects into the processor, the blades could become blunt. This

process may also result in injury.

17. The maxi blend should only be removed when the tools/blades /discs/ are

stationary.

18. Do not fill the processing bowl with hot liquids (only cold or warm liquids).

19. The appliance can be used for up to 1 minute without stopping (this is one cycle).

Ensure the appliance is cooled down for at least 2 minutes after each cycle. After

the 3rd cycle the food processor should be switched off for 5 minutes.

20. Always remove the tools/blades/discs and spindles before removing the contents

of the bowl.

21. Do not exceed the maximum filling volume.

22. Please be careful with the metal blade, it is extremely sharp, store it with the

blade protector fitted.

23. A short cord is provided to reduce the hazards resulting from becoming

entangled in or tripping over a longer cord.

24. Do not let the cord hang over the edge of a table or counter. Ensure that the cord

is not in a position where it can be pulled on inadvertently.

25. Do not allow the cord to touch hot surfaces and do not place on or near a hot gas

or electric burner or in a heated oven.

26. Do not use the food processor on a gas or electric cooking top or over or near an

open flame.

27. Use of an extension cord with this appliance is not recommended. However, if it

is necessary to use an extension lead, ensure that the lead is suited to the power

consumption of the appliance to avoid overheating of the extension cord,

appliance or plug point. Do not place the extension cord in a position where it can

be pulled on by children or animals or tripped over.

28. This food processor is not suitable for outdoor use. Do not use this appliance for

anything other than its intended use.

29. DO NOT carry the food processor by the power cord.

30. Do not leave this food processor unattended during use. Always unplug the unit

when not in use or before cleaning.

31. Always operate the appliance on a smooth, even, stable surface. Do not place

the unit on a hot surface.

32. Ensure that the switch is in the “Off” position after each use.

33. The manufacturer does not accept responsibility for any damage or injury caused

by improper or incorrect use, or for repairs carried out by unauthorised

personnel.

34. In case of technical problems, switch off the machine and do not attempt to repair

it yourself. Return the appliance to an authorised service facility for examination,

adjustment or repair. Always insist on the use of original spare parts. Failure to

comply with the above mentioned pre-cautions and instructions, could affect the

safe operation of this machine.

35. The appliance is fitted with a safety switch to prevent the motor operating unless

the food processor bowl or blender jug is in place. Do not use this to switch the

appliance on and off.

36. Do not use the appliance without first locking the lid in place.

37. Do not put your hand into the bowl or jug, even when it has been

removed for cleaning –the blades are very sharp.

38. Do not put any other object (spoon, spatula, etc.) into the bowl or jug while the

blender is plugged in.

39. Do not let the bowl or jug overflow. If liquid gets under the motor unit, it may be

sucked into the motor, damaging it.

40. Do not fill the bowl or jug above the MAX. mark. If you do, the contents may force

the lid off when you start the motor.

41. Do not use the appliance for any purpose other than those described in these

instructions.

42. Do not run the appliance empty, as it may overheat.

43. This appliance is designed for processing household quantities; it is not suitable

for commercial purposes. Use the appliance only for the purpose it was designed

for.

44. Do not run this appliance with an external timer or remote control system.

45. To avoid the danger of fire and/or explosion, do not use this appliance to stir/mix

paints or solvents.

Safety System

The processor will only operate once the maxi blend cover is fitted correctly.

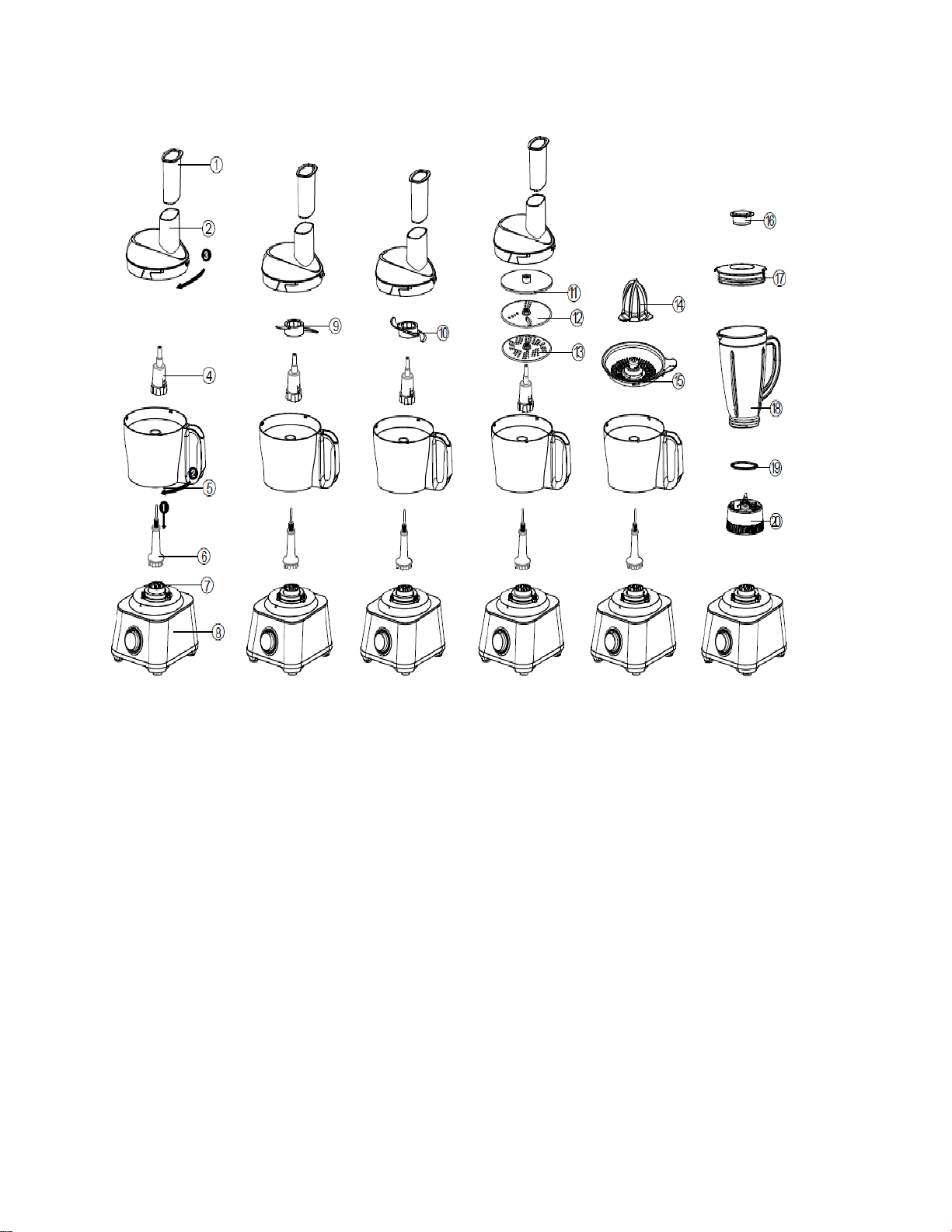

PARTS DIAGRAM

(1) Safety pusher (11) Stainless steel reversible thin slicing/fine shredding disc

(2) Feed chute (12) Stainless steel chip slicing disc

(3) Maxi blend canopy (13) Stainless steel rasping/grating disc

(4) Removable drive attachment (14) Citrus press juicing cone

(5) Plastic food processor bowl (15) Citrus press attachment plastic strainer

(6) Motor shaft attachment (16) Blender measuring cap

(7) Rotor (17) Blender lid

(8) Motor body (18) Blending jug

(9) Dough tool (19) Sealing ring

(10) Stainless steel chopping/mixing/slicing blade (20) Blender base

PLEASE NOTE: When opening the box for the first time, the removeable drive attachment

(4) comes as one attachment joined with the dough tool (9). You would then have to

detach it when you need to use it with the stainless-steel chopping blade (10). To achieve

this, remove the dough tool by pressing on the drive attachment at the far end (close to

the tool) then slide up the dough tool to detach it from the drive attachment.

OPERATING INSTRUCTIONS

Locking the bowl/jug

Align the base and jug/bowl as illustrated. Turn the jug/bowl clockwise until it locks into

place. The jug/bowl will lock onto the base in 3 different positions for user

convenience.

NOTE: The food processor will not work unless the jug/bowl is locked into position.

Assembling the lid

Align the lid as illustrated by placing your thumb on the lid tab and twisting the lid

clockwise. Four visual alignment markers are provided, one on the bowl, one on the

handle and two on bowl lid. NOTE: The food processor will not work unless the lid is

locked into position.

Operating the controls

The control dial is conveniently located on the front of the base. Rotate the dial

clockwise to speed up. Rotate counter clockwise to slow down. For more precise

start/stop control, turn the dial clockwise to the (P) PULSE setting by rotating it counter

clockwise. To turn off the machine, rotate the dial to the OFF (O) position.

Processing tips and techniques

1. The food processor is excellent for chopping, mixing, slicing and shredding most

foods. However, to maintain peak performance, do not use your food processor

for the following: grinding grain, coffee beans or spices or slicing frozen meat.

2. To process the maximum capacity, use the stainless steel

chopping/slicing/mixing blade and add food no higher than the maximum fill line

on the plastic food processor bowl.

3. Operating time will depend on the quantity of the food being processed. Most

foods can be sliced, chopped, or shredded in seconds.

4. Do not puree or mash starchy vegetables like potatoes. They will be over

processed in a matter of seconds and turn gummy.

Processing using the stainless steel slicing/chopping/mixing blade

1. For a more uniform consistency, start with pieces of food that are similar in size.

Do not process 10cm pieces together with 1cm pieces for example.

2. The stainless steel slicing/chopping/mixing blade can be used to coarsely chop,

finely mince, mix, or puree food to a smooth consistency.

3. Make sure the control dial is turned to OFF (O) and the unit is unplugged.

4. Place the motor shaft attachment onto the motor body.

5. Lock the food processor bowl onto the motor body. (See “Locking the bowl”)

6. Place the removable drive attachment into the food processor bowl

7. Place the slicing/chopping/mixing blade onto the removable drive attachment of

the food processor in centre of the bowl. Turn slowly until the blade drops into

place. Handle carefully as the blade is sharp.

Removable drive

attachment

Chopping/mixing

blade

Motor shaft

attachment

8. Lock the lid onto the bowl.

9. Plug in the appliance and switch it on to process the food.

10. Process the food by pushing it through the feed chute with the safety pusher.

11. When finished processing, turn the dial to the OFF (0) position or release from

the PULSE position. Wait until the blade has stopped rotating before removing

the lid.

12. Unplug the appliance.

Processing using the stainless steel reversible thin slicing and fine

shredding disc

1. The reversible thin slicing/fine shredding disc has a slicing blade on one side

and shredding teeth on the other. The name engraved on the blade, facing

up, is the function selected.

2. Place the disc on the removable drive attachment with the desired cutting

edge facing up.

3. Make sure the control dial is turned to OFF (O) and the unit is unplugged.

4. Lock the bowl onto the base. (See “Locking the bowl”.)

5. Place the removable drive attachment on the motor shaft. Put the thin

slicing/fine shredding disc on the removable drive attachment with the

desired side facing up for either slicing or shredding. Lock lid onto bowl (See

“Assembling the lid”).

6. Plug in the appliance and switch it on to process the food.

7. Process the food by pushing it through the feed chute with the safety pusher.

Slicer/shredder

disc

Removable

drive

attachment

Motor shaft

attachment

Tips

•To slice or shred cheese, make use of firm cheese like, Cheddar, Monterey

Jack, or Swiss. Place the cheese in the freezer for 30 minutes before

processing for best results.

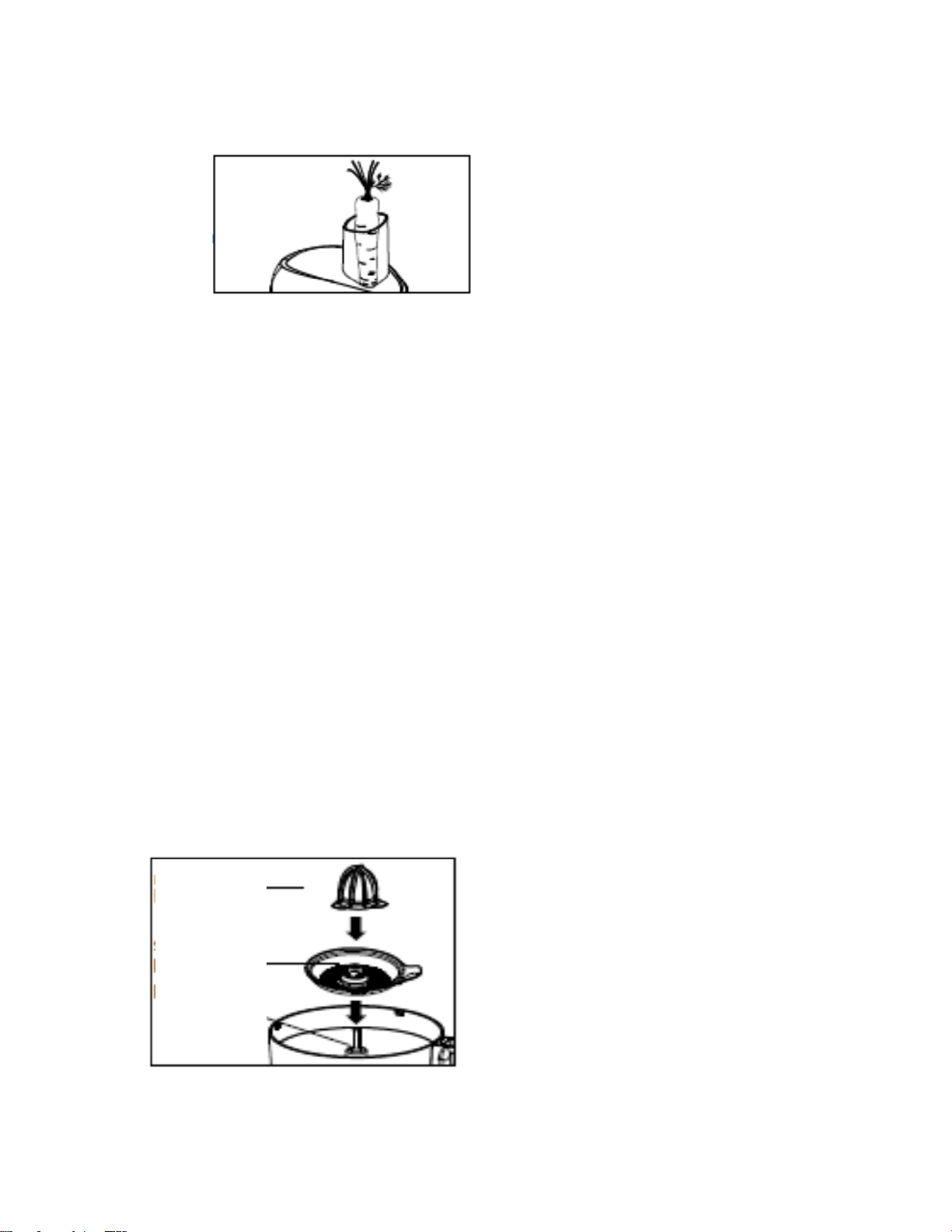

•To slice/shred longer shaped thin foods (such as pepperoni, carrots, and

celery) lock the lid. These foods can be inserted into the feed chute opening

and processed as long as the feed chute lid is closed. Always use the

safety pusher to feed food into the chute.NEVER PUSH FOOD

THROUGH THE FEED CHUTE WITH HANDS, FINGERS, UTENSILS OR

ANY OTHER OBJECTS.

Select speed

•While pressing down the safety pusher, rotate the control dial for optimum

slicing and shredding performance or set it to PULSE mode.

•NOTE: The feed chute lid is designed to pivot towards the right when processing

food that fills the whole feed chute capacity.

Processing using the citrus juicer

Citrus press

juicing cone

Citrus press

plastic strainer

Motor shaft

attachment

Indice

Altri manuali Russell Hobbs Robot da cucina

Russell Hobbs

Russell Hobbs 14568 Manuale utente

Russell Hobbs

Russell Hobbs 19006 Manuale utente

Russell Hobbs

Russell Hobbs 19030 Manuale utente

Russell Hobbs

Russell Hobbs RHFP750 Manuale di istruzioni per l'installazione

Russell Hobbs

Russell Hobbs 23810-56 Manuale utente

Russell Hobbs

Russell Hobbs DESIRE RHMFP5BLK Manuale di istruzioni per l'installazione

Russell Hobbs

Russell Hobbs STUDIO RHCFP500 Manuale di istruzioni per l'installazione

Russell Hobbs

Russell Hobbs RHFP6010AU Manuale di istruzioni per l'installazione

Russell Hobbs

Russell Hobbs RHFP3000 Series Manuale utente

Russell Hobbs

Russell Hobbs 25920 Manuale utente

Russell Hobbs

Russell Hobbs 24732 Manuale utente

Russell Hobbs

Russell Hobbs 24730-56 Manuale utente

Russell Hobbs

Russell Hobbs RHFP5BLK Manuale di istruzioni per l'installazione

Russell Hobbs

Russell Hobbs 19000-56 Manuale utente

Russell Hobbs

Russell Hobbs 22220 Manuale utente

Russell Hobbs

Russell Hobbs Food Collection 18560-56 Manuale utente

Russell Hobbs

Russell Hobbs 25182-56 Manuale utente

Russell Hobbs

Russell Hobbs RHFP1000 Manuale di istruzioni per l'installazione

Russell Hobbs

Russell Hobbs 19005-56 Manuale utente

Russell Hobbs

Russell Hobbs Aura 19005-56 Guida all'installazione

Russell Hobbs

Russell Hobbs 18553 Guida rapida

Russell Hobbs

Russell Hobbs T22-5000583 Manuale utente

Russell Hobbs

Russell Hobbs RHMP700 Manuale di istruzioni per l'installazione

Russell Hobbs

Russell Hobbs 25180-56 Manuale utente

Manuali Robot da cucina popolari di altre marche

INNOLIVING

INNOLIVING INN-727 Manuale utente

Berkel

Berkel C32 Manuale utente

Beko

Beko CHP5554W Manuale utente

KitchenAid

KitchenAid 5KFP0719 Manuale utente

QUIGG

QUIGG KM 2017Wi.20 Manuale utente

Lakeland

Lakeland PRESS AND CHOP 31557 Manuale utente

Bosch

Bosch MMR08 GB Series Manuale utente

HOFFEN

HOFFEN Chef Express T9532 Manuale utente

Garland

Garland 852 ZG Manuale utente

Robot Coupe

Robot Coupe CL50 Gourmet Manuale utente

SAPIRHOME

SAPIRHOME SP-1111-K Manuale utente

Moulinex

Moulinex DJ3051 Manuale utente

Bosch

Bosch MUM5 Manuale utente

cecotec

cecotec Mambo Touch Manuale utente

KitchenAid

KitchenAid 9KFC0516 Manuale utente

Black & Decker

Black & Decker hc 300 Istruzioni per l'installazione

Gorenje

Gorenje SBR 1000 DV Manuale utente

Arzum

Arzum AR 1128 Manuale utente
