The CA Keypad Color Conversion Kit is used to change the keypad’s exterior plastics to another color. The kit consists of a

bezel and volume up/down buttons (KPSC does not have volume buttons).

Note: The keypad must be powered off before installing the conversion kit. For installed keypads, unplug the CA controller.

CA Keypad Color Conversion Kit Instructions

Locate the four tabs (two on

each side) that hold the bezel in

place. Press the tab until the

bezel is free. (KP6 keypad is

shown)

Place the new bezel over the

buttons and press firmly until

the four tabs snap into place.

The label window must be cor-

rectly placed on the keypad for

the bezel to snap into place.

To replace, line up

the openings in

the back of the

light box over the

corresponding

LEDs on the cir-

cuit board.

The light box that

holds the source

labels may come out.

Pull off the volume up/down rockers. The

elastomer source button and mat (one piece)

may move out of place.

To replace, make sure the two protruding

guides on the bottom of the pad are placed

in the corresponding holes on the keypad.

Position the replace-

ment volume rockers

over the elastomer

mat. The volume

arrows protrude from

the elastomer and fit

into the openings on

the volume buttons.

Caution: Too much

force may cause the

tabs to break.

KP4, KP6, KPL, KPSC Keypads

KP4, KP6 Keypads

See reverse side for KPL and

KPSC keypad instructions

5 Forbes Rd. Newmarket, NH 03857

Tel 603.659.5170 • Fax 603.659.5388

e-mail: [email protected] 09/29/05

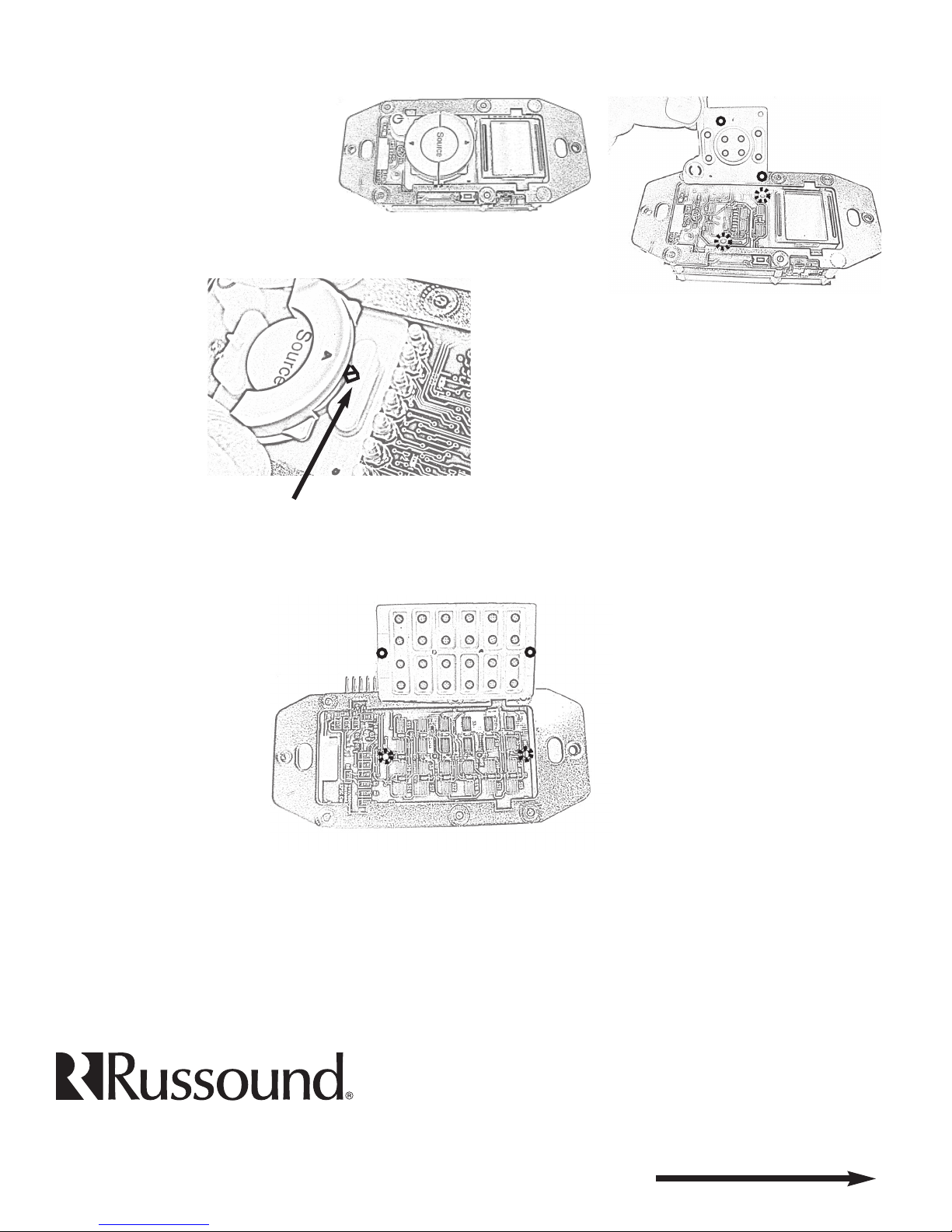

The elastomer button mat comes

off with the bezel. To replace, pull

the button mat away from the

bezel, and lay it back on top of

the keypad, making sure the two

protruding guides on the bottom

of the mat are placed in the corre-

sponding holes on the keypad.

See reverse side for KP4 and

KP6 keypad instructions

KPL Keypad

Pull off the volume up/down rockers. The

elastomer source button and mat (one piece)

may move out of place.

To replace, make sure the two protruding

guides on the bottom of the pad are placed

in the corresponding holes on the keypad.

Place the new bezel over the buttons and

press firmly until the four tabs snap into

place.

Position the replace-

ment volume rockers

over the elastomer

mat. The volume

arrows protrude from

the elastomer and fit

into the openings on

the volume buttons.

KPSC Keypad

Place the new bezel over the buttons and

press firmly until the four tabs snap into

place.
