RVMedia AUC2000 Manuale utente

INSTRUCTION MANUAL

Model.: AUC2000

iPodSD

USB REC

LOC

AF TA TP

INT PRT RDM F F

SOURCE

AUDIO

INFO

ESC

BAND

MUTE

AUC2000

AUX

Quick

Tune

Part Number: 041841

BLUETOOTH AUDIO STREAMING

QUICK TUNE RADIO STATION PRESET

CD/MP3/WMA PLAYER/RECEIVER FOR RV’s

TV AUDIO INPUT

Trim Plate

Before removing the unit, release the optional stay screw if ﬁtted.

Removing the unit

When using the optional stay

Step

1. Press the Panel Release Button.

2. After ﬂipping the front panel down, push it to the right

( ), then pull the left side out ( ).

Step

To remove the front panel:

Step

Trim Plate

Insert the two disassembly

tools, then pull them as

illustrated so that the unit

can be removed.

Disassembly

tools

Release

30°

Panel

Stay(option)

Screw

(4x12mm)

Washer

Screw

Sleeve

Install the unit at

an angle of less

than 30°.

182m m

53mm

Screw

RV Panel

Sleeve

Bend the appropriate

tabs to hold the sleeve

ﬁrmly in place.

Trim

Plate

Control

Panel

To re-attach the front panel back on to the unit chassis,

ﬁrst insert the right mounting hole in to the right mounting

tab ( Step ), then insert the left mount in to the left

tab ( Step ).

When you stand the unit, be careful

not to damage the fuse on the rear.

Sleeve

Disassembly

tool

Nut

E - 9

Step 1

Step 2

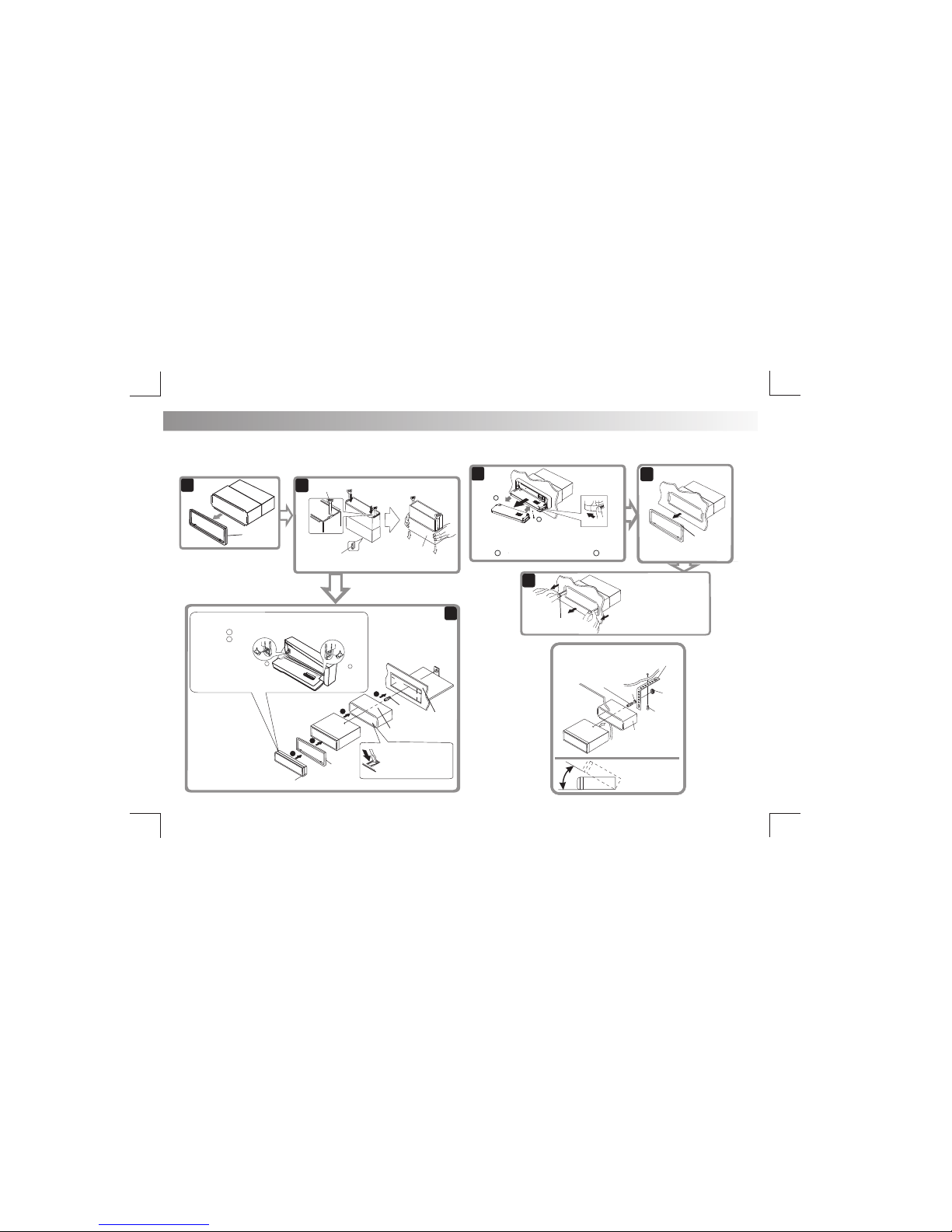

1. INSTALLATION

The following illustrations show a typical RV installation.

If you are not sure how to install this unit correctly, please have it

installed by a qualiﬁed technician.

(optional)

E - 2

2. CONNECTING THE SYSTEM

ANTENNA

FUSE

CONNECTOR

ISO

RED

WHITE

REAR LINE OUT

RCA TO RCA CABLE

(NOT INCLUDED)

AMP

RIGHT OUTSIDE SPEAKER ( - )

LEFT OUTSIDE SPEAKER ( - )

RIGHT INSIDE SPEAKER (-)

LEFT INSIDE SPEAKER ( - )

LEFT OUTSIDE SPEAKER (+)

LEFT INSIDE SPEAKER (+)

RIGHT INSIDE SPEAKER (+)

RIGHT OUTSIDE SPEAKER (+)

B1 VIOLET

GREY/BLACK

WHITE/BLACK

VIOLET/BLACK

GREEN/BLACK

B7 GREEN

GREY

WHITE

WIRE COLOR

ISO CONNECTOR WIRING CHART

YELLOW

A7 RED

A8 BLACK

A5 BLUE

FUNCTION/LABEL

( - ) 12V POWER

(+) 12V POWER

FUSE

2 4

CONNECTOR A

Figure 1

CONNECTOR B

041842

(optional)

041843

RF Remote Transmitter

(optional)

REAR USB CONNECTION CABLE (BLACK)

REMOTE CABLE (BLACK)

TV INREAR

(NOT INCLUDED)

REAR TV IN

RCA TO 3.5mm CABLE

CONSTANT 12V (for Memory Fn)

OTHERWISE CONNECT WITH RED

WIRE BELOW

CONNECT TO AMPLIFIER TRIGGER

TERMINAL (max 150mA +12VDC)

(optional)

Wired Remote

iPodSD

USB REC

LOC

AF TA TP

INT PRT RDM F F

SOURCE

AUDIO

INFO

ESC

BAND

MUTE

AUC2000

AUX

Quick

Tune

78910

642

No. Item Decriptions

(RELEASE)

VOLUME

KNOB

BAND

Press this button to change between BAND FM1,

FM2,FM3, AM1(MW1) or AM2 (MW2).

Rotate the volume knob to increase or

decrease the volume.

In CD/USB/SD media playback mode press,

press and hold to Fast Forward / Rewind

the ﬁle being played.

In tuner mode, press

this button to access

the Auto Seek mode, press and hold this

button again to return to Manual Seek mode.

In CD/USB/SD media playback mode press,

these buttons to skip a chapter / track /

ﬁle.

FILE UP/DOWN

PRESET

NUMERIC

BUTTONS

TUNE UP/DOWN

FAST FORWARD/

REWIND

In Tuner mode, press the Numeric buttons to

recall the preset stations. Press and hold the

Numeric Buttons to store the current station.

In CD/USB/SD playback mode, press the Numeric

Buttons to perform the following functions:

SOURCE

Press this button to select a different

playback mode: AUX IN / TV IN / RADIO /

F-USB / R-USB / SD / CD / BT AUDIO

In CD/USB/SD media playback mode,

press this button to activate the Music

Folder/File search mode.

Rotate the volume knob to navigate through

the Folder and File list. Once the desired ﬁle

appears on the LCD. Press the ‘MENU’

button to conﬁrm and start the ﬁle playing.

Number

Button

5 6

1 2 3 4

Pause/

Play

Intro Repeat

Random

Folder

Down

E - 3

MUTE

Press this button to turn Mute On/Off.

(POWER)

Press this button or any other button on the

front panel (except Release) to turn the unit

on. Press and hold this button again to turn

the unit off.

3. HEAD UNIT CONTROLS

Press this button to open the control panel.

A short Press this button allows you to

easily return to the previous menu or mode.

ESC

AUDIO/SYSTEM

Press this button to access the Audio

Settings Menu (see Page E4 for more info).

Press and hold this button to access the

System Menu.

(Quick Tune)

In the Tuner mode, press this button to

access the Quick Tune mode. The six

strongest stations of the selected band are

saved in preset channel automatically:

FM1,FM2,FM3(1-6),AM1,AM2.

INFO

Press this button brieﬂy to display the clock. .

In media playback mode, Press this

button repeatedly to display Id3 information :

Clock->Play time->Folder-> File >Song

>Artist->Album

(SEARCH)

Scan

E - 4

14 12 13

No. Item Decriptions

Press this button to eject the Disc.

Insert the disc into CD slot with the label facing

upwards. The disc will automatically play.

You can reset the unit to its default settings.

Press this button by using a ball-point pen

or a similar thin metal object.

CD EJECT

DISC SLOT

RESET

Press AUDIO/SYSTEM MENU button to enter the Audio Menu. Rotate the

volume knob to cycle through the selections below and press to adjust:

VOL (Volume Level)

BAS (Bass Level)

TRB (Treble Level)

BAL (Balance)

ZONE (Fader)

You have 5 seconds to use the Encoder Volume knob to adjust the desired

volume level. The volume level will be shown on the LCD display ranging

from 00 (lowest) to 50 (highest).

You have 5 seconds to use the Encoder Volume knob to adjust the desired

Bass level range from -10 to +10.

You have 5 seconds to use the Encoder Volume knob to adjust the desired

Treble level range from -10 to +10.

You have 5 seconds to use the Encoder Volume knob to adjust the Balance

between the right and left speakers from 10R (full right) to 10L (full left).

You have 5 seconds to use the Encoder Volume knob to adjust the Zone

between the Inside & Outside speakers - 10 I (INSIDE) to 10 O (OUTSIDE).

4. MAIN BODY CONTROLS & FUNCTIONS

5. ADJUSTING THE AUDIO SETTINGS

You have 5 seconds to use the Encoder Volume knob to adjust the Equaliser

to select the following: USER--> FLAT--> CLASSIC--> POP-->ROCK

EQ (Equalizer )

Quick Tune (Auto Store)

LOCAL/DISTANCE SELECT

Press & hold the AUDIO/SYSTEM MENU button to access the System

Menu which allows you to adjust the following functions & settings:

In Radio mode, push Encoder Volume knob to automatically store the

six strongest stations in the current band.

This feature is used to designate the strength of the signals at which the

radio will stop during automatic tuning. "Distance" is the default, allowing

the radio to stop at a broader range of signals. To set the unit to select

only strong local stations during automatic tuning, rotate the Volume

Control until “Local”appears on the display.

TUNER AREA (Tuner Frequency Spacing)

Use the Encoder Volume Knob to select the frequency spacing

which is most appropriate for the area this unit is used in: AUSTRALIA,

JAPAN, USA, LATIN, EUROPE, ASIA or MIDEAST.

BEEP TONE ON/OFF (BEEP)

TIME SET (CLK)

The time on the clock will default to 12:00 when power is connected to the

unit. To set the current time, rotate the Encoder Volume Control clockwise

to adjust minutes and counter clockwise to adjust the hours.

The beep tone feature allows the selection of an audible beep tone to be

heard each time a button is pressed on the face of the radio. "BEEP

TONE On" is the default setting. Rotate the Volume Knob to select the

“BEEP TONE OFF” option.

E - 5

6. ADJUSTING THE SYSTEM MENU

AF ON/OFF

PTY ON/OFF

Rotate the Volume Knob to turn the AF function ON/OFF.

Rotate the Volume Knob to select the PTY function to be turned ON/OFF.

TA ON/OFF

Rotate the Volume Knob to turn the TA function ON/OFF.

Re-connection/Dis-connection(RE-CON/DIS-CON)

This feature allows you to Re-connect or Dis-connect the paired mobile

phone or Bluetooth device manually. To Re-connect/Dis-connect the

Bluetooth device, press & hold Audio/Menu button, “RE-CON”/“DIS-CON”

is displayed on the LCD, then press the Power/Mute button to activate

the selection.

In Radio mode, if no buttons or functions are operated for 30 seconds,

the LCD will revert to the Clock display as this is more useful in an RV.

RV Clock Screen Saver

Press & hold the AUDIO/SYSTEM MENU button to access the System

Menu, then use the Up / Down buttons to select [ PTY ON / OFF ], then

rotate the Encoder Volume Knob to select the PTY list and press the

‘MENU’ button to conﬁrm to search for the selected PTY type.

E - 6

The RDS (Radio Data System) function operates only in areas where FM

stations broadcast RDS signals. If you tune to an RDS station, an RDS

icon and information about the presenter, station or program is

displayed.

Before tuning to RDS stations, you can select program type and let the

unit search only for programs of the selected category.

Select Program Type ( PTY )

TALK RADIO CATEGORIES

NEWS, AFFAIRS, INFO

CULTURE, SCIENCE, VARIED

SPORT, EDUCATE, DRAMA

SOCIAL, RELIGION, PHONE IN

TRAVEL, LEISURE, DOCUMENT

WEATHER,FINANCE, CHILDREN

MUSIC CATEGORIES

POP M , ROCK M

CLASSICS, OTHER M

JAZZ, COUNTRY

EASY M, LIGHT M

NATION M, OLDIES

FOLK M, TEST, ALARM

This unit supports the following RDS features:

If you do not want to miss trafﬁc announcement while enjoying music,

you can turn on the TA (Trafﬁc Announcement) function.

Press & hold the DISP/TA key to turn TA on/off.

The RDS signal also includes an accurate clock time (where available)

which can set the unit’s clock automatically.

TA ON/OFF (Trafﬁc Announcement)

Clock Time ( CT ON/OFF )

When there is a trafﬁc announcement, the unit switches to

the tuner mode (regardless of the current mode) and

begins to broadcast the announcement on trafﬁc

conditions. When the trafﬁc announcement is over, the

unit will return to the previous mode.

Trafﬁc announcements do not cut in.

TA On

TA Off

If the current radio station’s signal is poor, you can turn on the AF

(Alternate Frequency) function to let the unit search for another station

with a stronger signal but with the same program identiﬁcation and

content as the current station.

Select Alternate Frequencies ( AF)

Press & hold the AUDIO/SYSTEM MENU button access the System Menu

mode, then use the up/down buttons to select AF function, then rotate the

Volume Knob to turn AF On/Off.

7. RDS EXPLAINED

NOTE

Ensure that the USB/SD device contains playable MP3 or WMA music ﬁles.

Inserting the USB Device

Removing the USB Device

1. Open the cover marked on

the front panel or open the lid of the

Before you remove the USB device from the front panel, always

remember to switch off the unit's power then remove the USB device.

Never try to remove the USB device while playing a music ﬁle as it

may damage the ﬁle and may cause the unit to freeze (if this happens,

please press the Reset button).

2. Insert the USB device into the USB

socket. The unit will start playing from

Inserting the Memory Card

1. Press panel button to open the front panel.

USB Device Operation

Connecting Front Aux-In

SD Card Operation

Removing the SD card.

Push on the end of the SD Card to eject it. Once the SD card is

removed, the unit will automatically switch to the previous mode.

2. Insert the SD Card into the card socket.

3. Press the centre of the front panel until a “click” sound is heard.

The unit will start playing from the SD card automatically.

Push in until

you hear a “click”

Click

Remove the

SD Card

E - 7

Ground

Left Track

Right Track

Connect the external signal to AUX in

jack located at the front of the panel,

then press the Source button to select

Aux mode. Press the Source Button

again to cancel the Aux mode and

return to the previous mode.

8. EXTERNAL CONNECTION AND MEDIA PLAYBACK

You can signiﬁcantly improve the sound quality of your TV -

especially for movies & music if you direct your LCD TV’s

output through your RV’s Audio system. To do this, the TV

will need to have an audio output socket - which in most

cases is the headphone socket.

(NOT INCLUDED)

REAR TV IN

RCA TO 3.5mm CABLE

Using an optional 3.5mm to RCA cable, connect it between

the headphone socket of the TV and the Rear RCA TV Input.

Select “TV IN” via the source button to listen to your TV

through the RV’s Audio System

Connecting the TV’s Audio Output

USB cable at the rear of the unit.

the USB device automatically.

Connecting a TV Using Rear TV In

9. iPod / iPhone OPERATION

E - 8

This unit is equipped with iPod/iPhone Ready function which allows you

to directly control an iPod/iPhone from the front panel controls and

display iPod/iPhone song information on the unit's LCD screen. Please

see below for further information on these functions.

Compatible iPod/iPhone Models

Connecting an iPod / iPhone

Suits most iPod and iPhone models:

Made for:

Works with:

• iPod nano (2nd generation)

• iPod nano (3rd generation, 4GB only)

• iPod nano (3rd generation, 8GB only)

• iPod nano (4th generation)

• iPod nano (5th generation)

• iPod classic (1st generation)

• iPod classic (2nd generation)

• iPod touch (1st generation)

• iPod touch (2nd generation)

• iPod touch (3rd generation)

• iPod video (30GB, 80GB only)

• iPhone

• iPhone 3G

• iPhone 3GS

• iPhone 4

• iPhone 4S

• iPhone 5

Insert the iPod/iPhone USB cable in to the Front Panel USB socket.

The unit will start playing the iPod/iPhone automatically.

Press & hold the INFO/MENU button on front panel to switch between the

the following two control modes:

• iPod control mode: Use the iPod/iPhone to operate music functions.

• Head Unit control mode: Use the head unit button to control the

functions of the iPod/iPhone.

iPod/iPhone control music playback mode

Search for a track on iPod/iPhone

CHARGING FUNCTION

Connecting you iPod/iPhone to the front or rear USB port (Note only

one iPod or iPhone can be connected to the unit at a time) will also

1. Press BAND/ to browse iPod/iPhone menu.

2. Rotate the Encoder Volume knob to search through the following

options: PLAYLIST/ARTIST/ALBUM/SONGS/GENRE/COMPOSER/.

3. Then rotate the Volume Knob to ﬁnd an item within your selection and

depending on which setting you are in, press the Volume Knob to

iPod/iPhone USB cable

(not supplied with this unit)

charge the device at the same time.

AUDIOBOOK/PODCAST. Press the Volume Knob to make a selection.

start playing or make a further selection within your chosen option.

E - 10

10. BLUETOOTH OPERATION

Bluetooth Audio Streaming A2DP (Advanced

Audio Distribution Proﬁle)

You can listen (or stream) music ﬁles from an audio device on this unit if the

audio device supports Bluetooth A2DP (Advanced Audio Distribution Proﬁle)

Technology. Please read the below for information on the

instructions

Pairing a Bluetooth Audio Device With This Unit

Before using audio device to play music on this unit, the audio device must

be paired ﬁrst. Please follow the steps below to pair the units:

(1) Connect this unit with the Bluetooth audio device.

Listening To Music From a Bluetooth Audio Device

(2) Press SOURCE button repeatedly until “BT AUDIO” appears on the

display.

(3) Once in “BT AUDIO” mode, you can use the audio device to start

playback of the song via Bluetooth wireless with this unit. Note you may

(1) Turn on Bluetooth in the device to be paired settings menu.

(2) Search for “RVMEDIA” and select it.

(3) Enter the Pin code “0000" to pair the device.

(4) The device & RV Media head unit should now be paired.

(5) Whenever your RV Media head unit is powered up in future, it should

automatically reconnect to your device. If not, follow the steps above.

need to adjust the volume on your Bluetooth device to match the output

level of other sources on your RV Media head unit.

IMPORTANT: To listen Bluetooth audio streaming from the audio

device, you MUST select the “BT AUDIO” source ﬁrst. Any other

source or input modes of this head unit are unable to activate the

Bluetooth audio streaming ( A2DP ) function.

If the audio device has lost Bluetooth connection with the head unit or

no device is connected, when the source mode is changed to

“BT AUDIO”, the display will show “NODEVICE”. In this instance, you

CONNECTION NOTE

PLAYBACK NOTES

1. When “BT AUDIO” is selected on the head unit, some audio devices

(providing they are already paired) may start music playback

automatically. For some devices such as Smartphones & Tablets, you

may need to open the ‘Media ‘Player’ to start music playback.

2. If auto playback is not supported by the device, please refer to the

on the audio device then please refer to the instruction manual of the

the device’s manual on how to perform music playback via Bluetooth.

technology.

may need to re-pair the unit using the instructions on the opposite page.

3. Depending on the type of Bluetooth Device you have, you may also

be able to stream audio directly from Apps such as, but not limited to,

Pandora, Spotify, TuneIn radio - plus commentry from sporting apps etc!

Generally this may mean selecting the desired audio output on the

device (eg Speaker, Headphones or Bluetooth etc). Please consult

your device user manual for further clariﬁcation.

(2) Track up/down - by pressing the Track up/down buttons on this unit.

(3) Pause/Play – by pressing the Pause / Play button on this unit.

(4) Volume up/down – by rotating the Encoder Volume Knob on this unit.

(5) Audio Mute – by pressing the Mute button on this unit.

(6) Stop playback – by changing to another source on this unit.

(1) Automatic Playback - every time you select the “BT AUDIO source”,

this unit will automatically send a “PLAY” command via AVRCP

to the audio device activate automatic playback.

This unit can perform the following operations with the connecting Audio

device which supports AVRCP (Audio Video Remote Control Proﬁle).

Operating an audio device with this unit AVRCP

Indice

Altri manuali RVMedia Ricevitore per auto

RVMedia

RVMedia AUM1000 Manuale utente

Manuali Ricevitore per auto popolari di altre marche

Motorola

Motorola VWA63 Manuale utente

Nextar

Nextar D3201 Manuale utente

Alpine

Alpine CDE-163BT Manuale utente

Pioneer

Pioneer DEH-P645R Manuale utente

Axxera

Axxera XDMA7600 Istruzioni operative

XM OnyX Manuale utente

Sound Storm

Sound Storm STM93R Manuale utente

Soundstream

Soundstream VIR-5000 Manuale utente

Avson

Avson MKT Platform Manuale utente

Sony

Sony MEX-1HD - Audio Library System Manuale utente

Pioneer

Pioneer DVH-P500UB Manuale utente

JVC

JVC KD-AHD69 Manuale utente

Blaupunkt

Blaupunkt SANTIAGO CR 87 Manuale utente

Sony

Sony CDX-4160 - Cd Receiver Manuale utente

XFIRE AUDIO

XFIRE AUDIO BMW42S Manuale utente

VDO

VDO CD 2253 Manuale utente

Volvo

Volvo 13 84 580 Manuale utente

ZENEC

ZENEC ZE-160DVD Manuale utente
