Sabio DM1U Manuale utente
-OR-
DM1U
DM1F
USB Type A to
mini-B cable
IEEE 1394a
(FireWire) cable
(DM1F only)
IEEE 1394b
(FireWire) cable
(DM1F only)
So case
Screws
Quick Start Guide
Press the lid down while sliding it away
from the end with the USB port. The
enclosure contains a circuit board and a
package of four screws.
Carefully remove the circuit board from the
enclosure, then insert your 2.5" hard drive’s
SATA and power connectors into the SATA
and power slots on the circuit board. Make
sure that the connectors are fully inserted.
Quick
Start
Guide
2.5" Hard Drive Enclosure
Contact Us
Important: Contact Sabio before returning product to the retailer.
402-494-6013
1
2
3
4
5
6

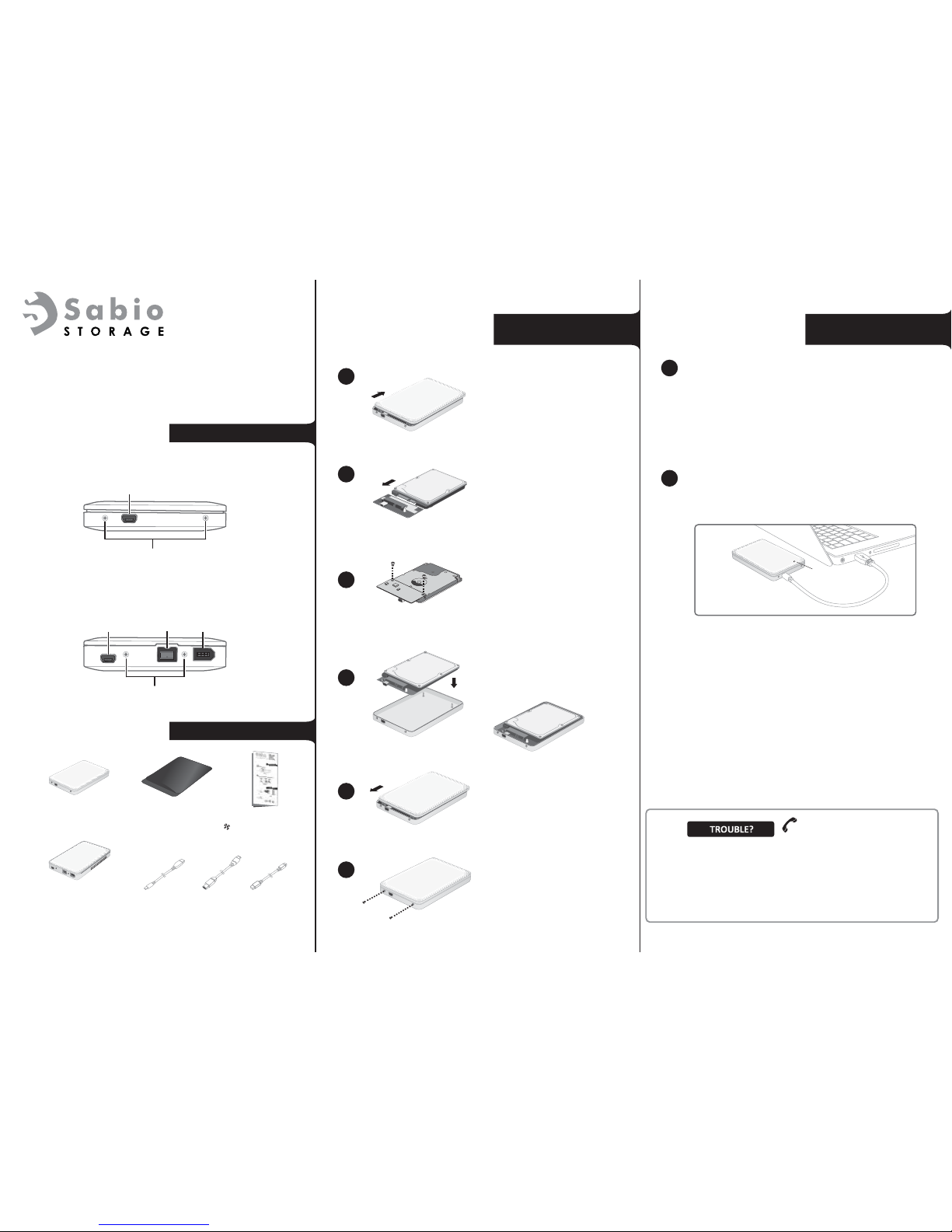

Package contents
Assembling the
enclosure
Connecng to a
computer
Models and features
2.5” HDD USB 2.0 enclosure kit
DM1U
USB mini-B port
Case screws
2.5” HDD USB 2.0/FireWire 400/FireWire 800 enclosure kit
DM1F
USB mini-B
port
FireWire 400
Port
FireWire 800
Port
Case screws
1
2
www.sabioproducts.com
Turn the hard drive assembly over, then
secure the circuit board to the hard drive
using the two large screws in the package.
Make sure that the circuit board and hard
drive remain aligned while you ghten the
screws.
Carefully slide the assembly into the
enclosure so that the port(s) on the circuit
board slide into the port opening(s) on the
enclosure, and the two posts in the
opposite end of the enclosure align with
the two holes at the boom of the drive.
Place the lid on top of the enclosure,
making sure that the two copper screw
holes in the enclosure are aligned with the
screw holes on the circuit board, then
press the lid down while sliding it toward
the end with the USB port. Make sure that
the lid is flush with the enclosure case.
Secure the lid to the case using the two
small screws in the package.
LED
Turn on the computer, then connect the USB 2.0 or IEEE 1394
(FireWire) cable to the corresponding port in the enclosure.
Connect the USB 2.0 or IEEE 1394 (FireWire) cable to an
available port on the computer. The enclosure is automacally
detected by the computer, and the enclosure’s LED acvity
indicator shines steadily blue. The same LED flashes while the
drive is being accessed.
Cauon: The enclosure should be connected to the computer
using only one type of cable. Connecng more than one cable
may cause data errors and damage the enclosure’s circuit board
and hard drive.
Note: FireWire cables can only be connected to the DM1F
enclosure.
Contact Us
Important: Contact Sabio before returning product to the retailer.
All contents © copyright 2009 Sabio Storage, Inc. ZSD003Q
www.sabioproducts.com
402-494-6013

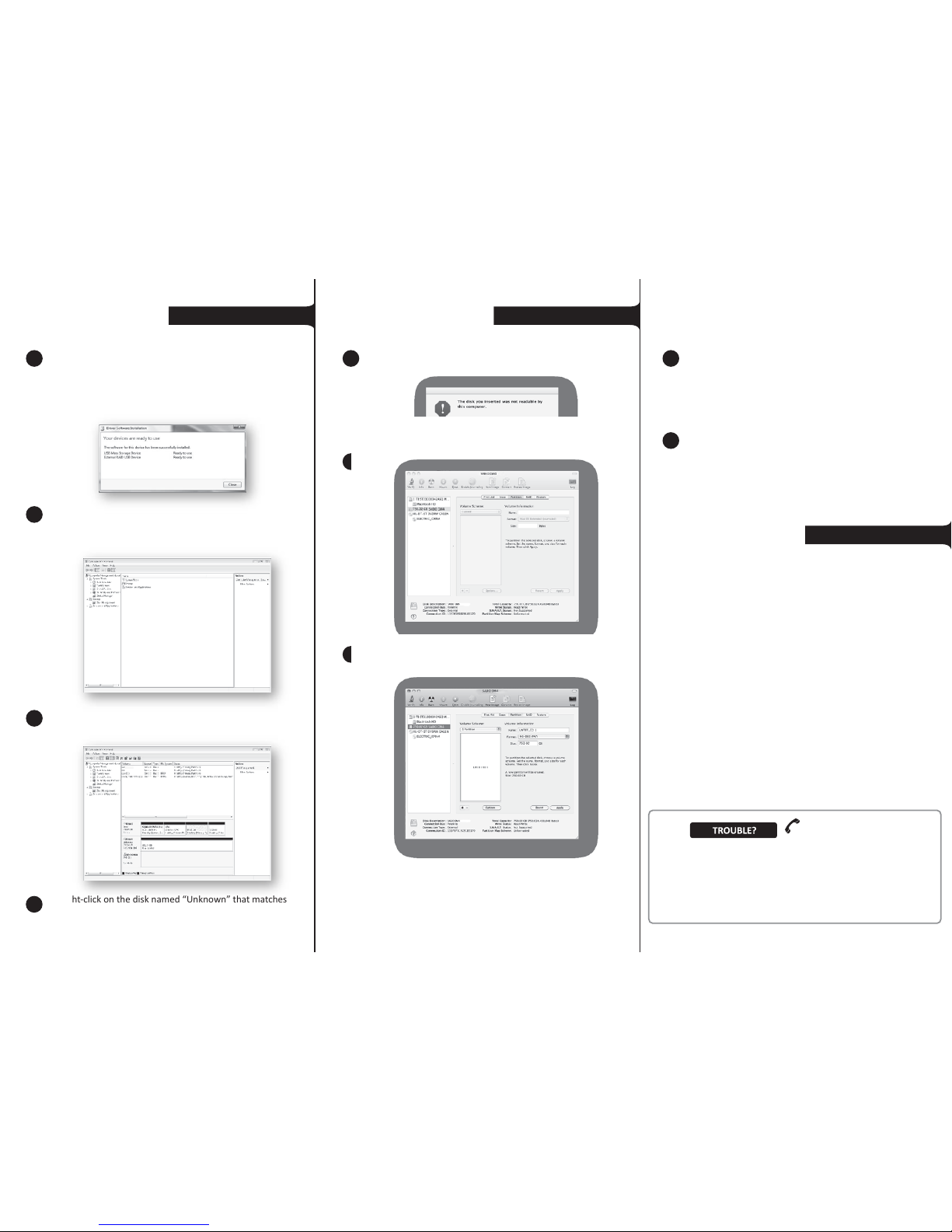

Seng up on a PC
When your new hard drive is connected to your
Windows Vista computer and turned on, you may noce
nothing at all, or a small message may appear saying that
Windows Vista is installing device driver soware. Either
may be the case, since Windows handles new, unformat-
ted drives in several different ways.
1
When the enclosure is connected to your computer, you
should run the computer management soware built
into Windows. Click Start, right-click Computer, then
click Manage.
Click in the Disk Management secon. Aer a few
moments, all disks connected to the system appear in
the list.
Right-click on the disk named “Unknown” that matches
the capacity of the hard drive you installed into the
enclosure, then click Inialize. Accept the defaults, then
click OK.
Type the name you want to give this new storage volume
(if any), then select the type of format you want to give
the disk. Most Mac users will select the nave Mac file
system.
4
2
3
4
Make sure that the size matches the hard drive you
installed, click Paron, then click Paron again to
confirm. You are now ready to store files on your new
hard drive.
5
Idenfy the new hard drive.
Click Paron and select a volume scheme that matches
how you want to use your hard drive. Most users choose
a single paron (1 paron).
Seng up on a Mac
Mulple operang systems
When your new hard drive is connected to your Mac and
powered on, a “Disk Inseron” noce opens. Click
Inialize, and the Disk Ulity opens.
1
2
3
Note: If you want to use this storage device on mulple
operang systems (such as Mac OS X, Windows, or Linux),
then you may want to format it with a cross-plaorm file
system, such as FAT32. Windows cannot format large
volumes using FAT32, but you can format it using
third-party disk ulies or the built-in tools on Mac OS X
or Linux systems. For more informaon, visit our Web site.
