Safco Simple 5507 Manuale utente
Storage # 5507
2
Insert 4 cams (with arrow out) into the box top panel. Using a
Philips screwdriver, screw 2 cam posts into the outside holes on
the back edge of the panel until tight to the panel. Insert 1 dowel
in each of the short edges of the panel and tap with a rubber
mallet until they cannot be inserted any further.
Insert 4 cams (with arrow out) into the bottom of the box bottom
panel. Using a Philips screwdriver, screw 2 cam posts into the
outside holes on the back edge of the panel until tight to the
panel. Insert 1 dowel in each of the short edges of the panel and
tap with a rubber mallet until they cannot be inserted any further.
1
Simple Collection™Assembly Instructions
For questions or concerns, please call 1-888-971-6225
available Monday-Friday 7:30 AM to 5:00 PM CST
(English-speaking operators)
safcoproducts.com
Product Warranty is available at:
Pan Head Screw
905000506
QTY:4
Cam Post
920000504
QTY:12
Barrel Nut
920000579
QTY:8
L-Bracket
420000198
QTY:4
Dowel
920000472
QTY:6
Cam
920000310
QTY:12
Pan Head Screw
905000508
QTY:8
Wood Screw
X5108
QTY:4
Leveler
Q444
QTY:4
Hardware Included:
Pack# 900000385
Other Hardware
Laminate Stickers
FCAP5
QTY:16
Box Bottom Panel
Tools required for assembly:
Phillips screwdriver and rubber mallet
Top Box Panel
Box Bottom Panel
Box Back Panel
Box Top Panel
Box Side Panel Box Side Panel
Top Panel
99000359, Page 1 of 3, Rev B, Rev Date 01-MAR-2021

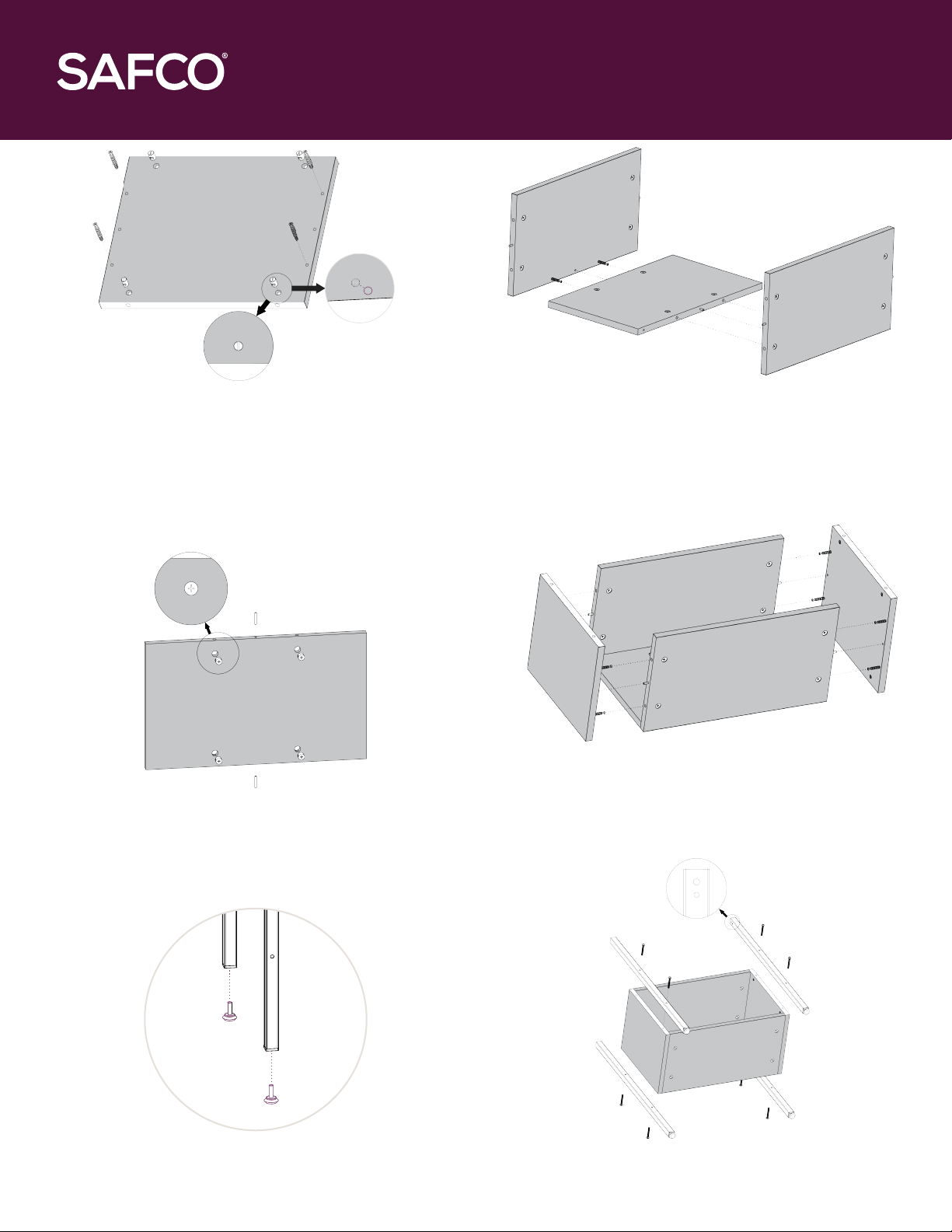

4
Insert 1 dowel in each of the long edges of the box back
panel and tap with a rubber mallet until they cannot be
inserted any further. Attach 4 cams into the panel with
the arrows facing the board edge.
3
Insert 4 barrel nuts into the box side panel (with the
open threaded holes in line with the holes in the panel)
and cover the head of each of the barrel nuts with a
laminate sicker. Using a Philips screwdriver, screw 2
cam posts into the outside holes on the top edge of the
panel and screw 2 cam posts into the outside holes on
the bottom edge of the panel until tight to the panel.
Repeat all of step 3 on the second box side panel.
Use a Phillips screwdriver to attach the legs to the box
side panels using the long pan head screws. Ensure the
threaded holes at the top of the legs are facing in.
8
Screw 1 leveler into
each leg until tight.
5
6
7
Attach the 2 box side panels (from step 3) to the box top
panel and box bottom panels. Use a Phillips screwdriver
to turn cams clockwise to tighten.
Place the box back panel (from step 4) on a flat surface.
Attach the box top panel (from step 2) and the bottom
box panel (from step 1). Use a Phillips screwdriver to
turn cams clockwise to tighten.
Storage # 5507
Simple Collection™Assembly Instructions
Box Back Panel
Box Side Panel
Place cam sticker
over barrel nut
99000359, Page 2 of 3, Rev B, Rev Date 01-MAR-2021

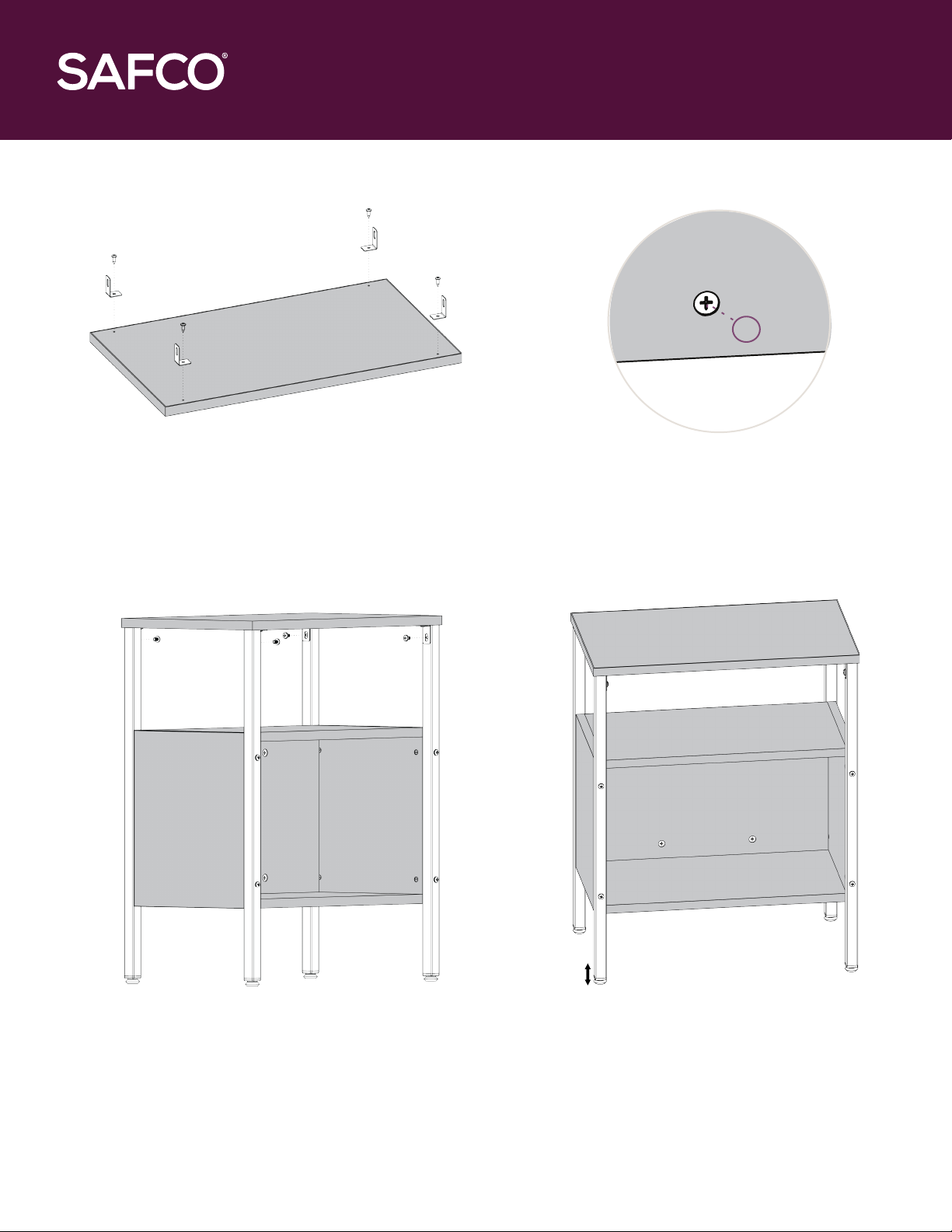

Storage # 5507
Simple Collection™Assembly Instructions
9
10
Use a Phillips screwdriver to attach L-brackets to legs
through slots using the 4 short pan head screws.
11
Use laminate stickers to cover cams on the inside
of storage box.
12
Ensure proper leveling of the storage unit by
adjusting the levelers.
Use a Phillips screwdriver to attach 4 L-brackets to the
top panel through the single hole with wood screws.
Brackets should face the short side of the top
Top Panel
99000359, Page 3 of 3, Rev B, Rev Date 01-MAR-2021
