Safescan 2995-SX Manuale utente

Quick installation guide

Banknote Counter

2985-SX / 2995-SX

More info, articles, tutorials and videos at: support.safescan.com

Thank you for purchasing a Safescan 2985-SX / 2995-SX banknote counter. For proper use and maintenance we advise

you to read this user manual carefully.

- Place the machine on a ﬂat and stable surface.

- Do not place the machine in dusty or dirty environments.

- Use the supplied dust cover when the machine is not in use.

- Do not place the machine in direct sunlight or near heat sources or air conditioners.

- Always connect the device to a grounded power outlet.

- Use only the supplied power cord.

- Operation temperature 15-35 °C / 59-95 °F.

- Operation humidity 30-80% R.H.

- Do not use the machine outdoors.

- Do not expose the machine to liquids.

- This machine contains rotating parts. Never touch the moving parts when the machine is switched ON.

- Please ensure that no foreign objects (coins, paper clips, staples,) fall into the machine, these may block

the mechanical parts and the sensors of the machine and damage or break them and will void your warranty.

- Keep jewellery, long hair, ties and other protruding parts away while operating the machine.

- Never disassemble the machine.

- To prevent shock hazard, do not touch the power cable with wet hands.

- Unplug the device if you want to move it to another position.

- Hold the plug when disconnecting the unit from the power outlet, never pull the cord.

Introduction

Please note

Should the equipment be altered in any way or used in a manner for which it was not intended at the time of

delivery, the supplier of the equipment accepts no responsibility for injury or damage to personnel or equipment.

If the conditions for use of the equipment are changed, the supplier must be contacted or the declaration of

conformity will be invalidated.

Safety instructions

English

More info, articles, tutorials and videos at: support.safescan.com

149 10 1211

Front Back

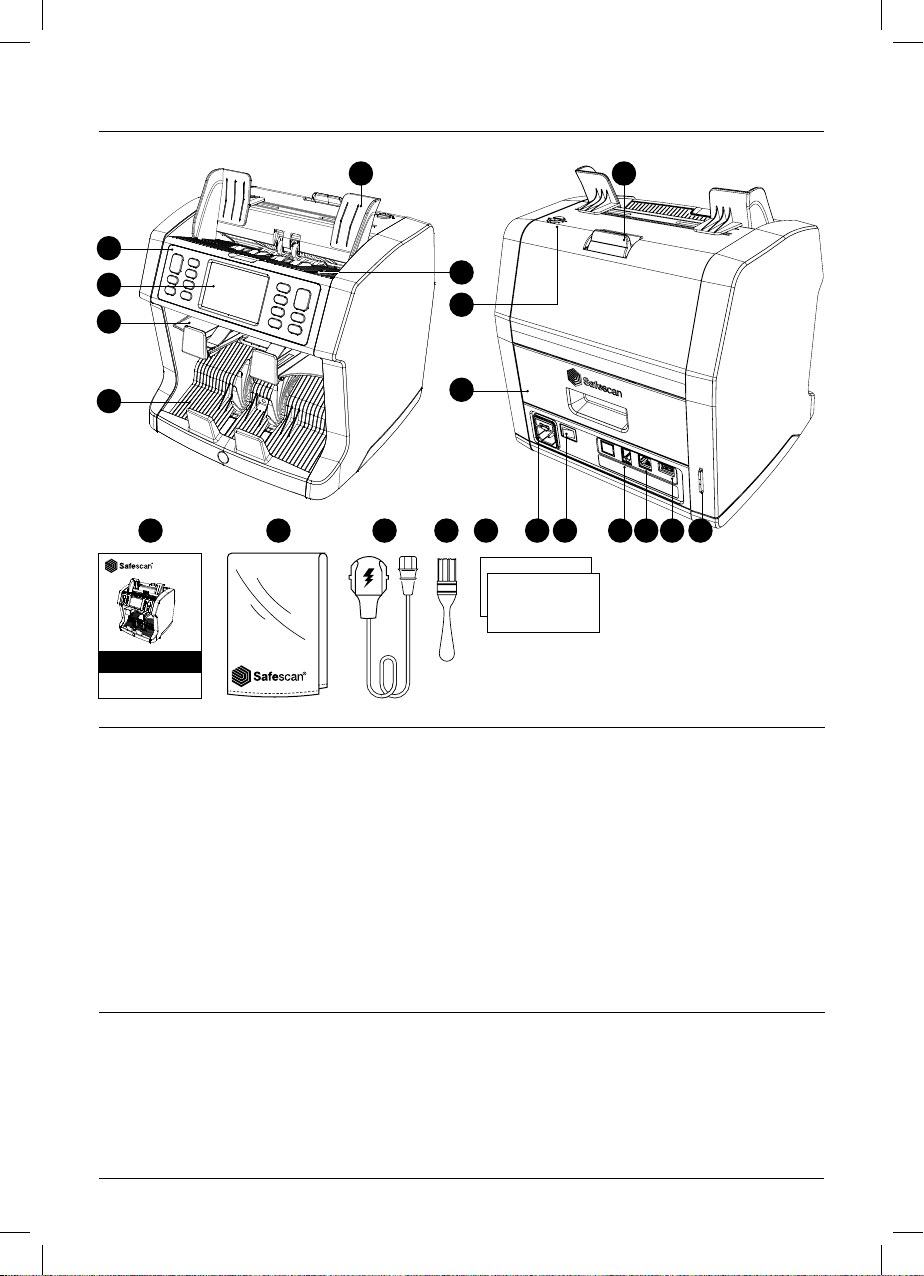

1. Control panel

2. LCD touch screen

3. Reject pocket

4. Stacker

5. Banknote guides

6. Hopper

7. Feeding gab adjusting knob

8. Back panel

9. Power connector

10. Power switch

11.

Printer connector / MCS software cable connector

12. External display connector (RJ-12)

13. Update port (USB-A)

14. SD-card slot

15. Lever for opening top panel

16 Manual

17. Dust cover

18. Mains cable

19. Cleaning brush

20. 2x Cleaning sheets

English

Setting up your machine

1. Remove the protective foil from the LCD screen.

2. Connect the power cable to the power outlet.

3. Power on the device with the power switch.

4. The banknote counter will start. Select a language by pressing the touch screen and coﬁrm the langauage selection in

the next screen.

5. The device will perform a self test, during which its software version and product number will be displayed.

After a successful self-test, the machine will open the count screen and is ready to use.

17 18 19 20

16 13

2985-SX - 2995-SX

Banknote Counter

Quick Installation Guide

Product overview and box contents

More info, articles, tutorials and videos at: support.safescan.com

Nr.

10.

Touch buttons

Screen elements

11.

12.

13.

3655

AddAuto EUR

batch pcs

value

Mix 900

Buttons & touch display

1 2 3 4 5 6 7 8 9 10 12

English

Button

[START/OK]

[UP/DOWN]

[ADD]

[DETECT]

[REPORT]

[MODE]

[BATCH]

[MENU]

[CLEAR]

[BACK]

batch

value

pcs

Description

Start counting / Conﬁrm selection. In Menu: Open/conﬁrm selection.

(In Menu) Go to next/previous menu item. Long press: Go to next menu page.

Add function On/Off (ADD count results of multiple counts to the total.)

Open detection menu. (Select currency/detection type)

Open counting results report and print interface.

Open Count mode menu.

Open Batch menu. (In BATCH menu: Loop: 100 - 50 - 25 - 20 - 10 - Off)

Open the settings menu.

Clear counting results.

(In Menu) Back to count screen.

Open Quick menu

Open Count mode menu

Automatic start counting On/Off

Add function On/Off

Open counting speed menu

Open detection type menu

Selected batch number

Total value of counted banknotes

Number of counted notes

B C D E F

A 1311 12

More info, articles, tutorials and videos at: support.safescan.com

First operation

2985-SX

1. The device starts by default with the following settings:

A. Detection type: *CUR* (Automatic currency recognition)

B. Counting mode: MIX

C. Auto start: ON

D. Add mode: Off

E. Counting speed: 900

2. Prevent unnecessary counting errors. Set the banknote hopper guide so that the sides of the banknotes are

enclosed and therefore the banknotes are centered. Organise your banknotes in a neat stack, make sure the back of

the stack is aligned straight and the notes are centered.

3. When the banknotes are placed on the hopper the machine will automatically start counting. Press [AUTO] on the

screen to switch Off this function. If AUTO is switched off, press [START/OK] to start counting.

AddAuto

pcs

Value

Mix 900 *CUR*

English

2995-SX

1. The device starts by default with the following settings:

A. Detection type: USD*

B. Counting mode: Fit

C. Auto start: ON

D. Add mode: Off

E. Counting speed: 720

* If you would like to count another currency, press the DETECT button

or press USD on the screen to open theDETECT menu.

Note: Only currencies displayed in white text are available for

ﬁtness counting.

Selecting a currency which is not availble for ﬁtness counting (black text)

will change the counting mode from Fitness to Mix counting.

Please visit www.safescan.com to check for currency updates.

AddAuto USD

pcs

value

Fit 900

CURRENCY

1 / 3

USD GBP EUR CHF

PLN BGN CZK HUF

DETECT

1 / 3

*CUR* EUR USD

GBP

Multi

CNY HKDCHF

More info, articles, tutorials and videos at: support.safescan.com

93 1.545Total

EUR Report

Den Pcs Value

5 23

160

420

50 17 850

115

1655

AddAuto

pcs

Value

Mix 900 *EUR*

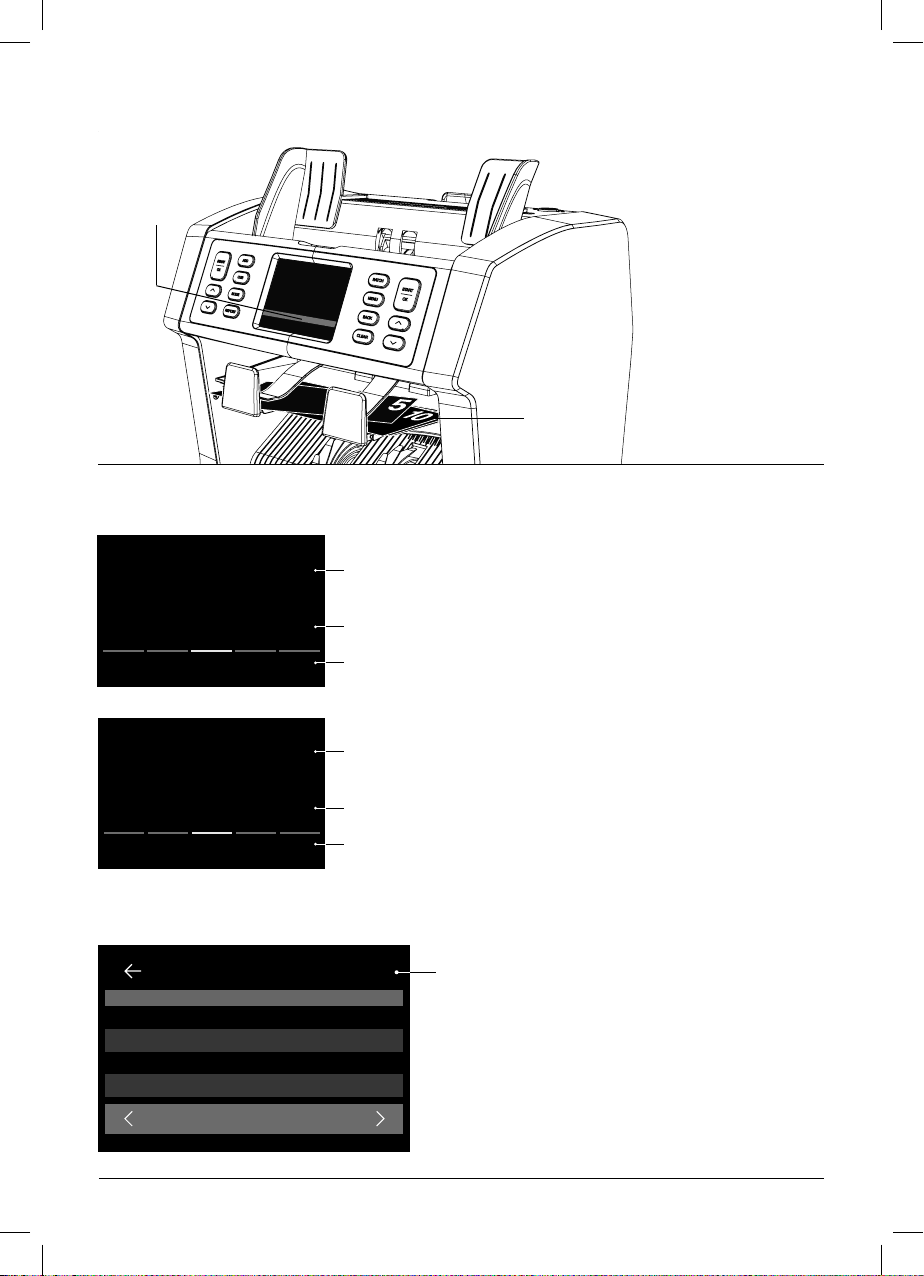

5. After the count has ﬁnished, the results are shown on the screen.

6. Press the [REPORT] button to view the detailed counting results speciﬁed per denomination.

Press [PRINT] on the screen to print the counting results*.

* Safescan TP-230 printer separately available

4. When the device detects a suspect banknote during counting, it will transport this note to the reject pocket.

The device will sound an alarm and the blue coloured lines in the display will turn red.

Total number of banknotes

Total counted value

Red coloured

lines

Automatic detected currency

Suspected notes

in reject pocket

Press to print*

English

1655

AddAuto

pcs

Value

Fit 900 USD

2995-SX

2985-SX

Total number of banknotes

Total counted value

Selected currency

More info, articles, tutorials and videos at: support.safescan.com

Technical Specifications

Supported currencies: Regional currency packs (European, Asian, American and Middle Eastern

available online. Please visit www.safescan.com for up to date availability.

Counting modes: Fit (Value counting with banknote ﬁtness function)

Mix (Value counting for sorted & unsorted currencies)

Sort (Value counting with denomination sorting or sheets counting with

size-sorting and detection (None, UV, MG or UV + MG)

Face (Sort banknotes per face side.)

Orient (Sort banknotes per orientation.)

V-sort (Sort banknotes per denomination version (Old / New))

V-mix (Count banknotes in batches of a preset value.)

Count (Sheet count, with detection settings : Off, UV, MG or UV + MG

Serial number scanning Yes

Fitness sorting function 2985-SX: No, 2995-SX: Yes

Counting speed: 720, 900 and 1.200 banknotes/minute

Banknote feature detection: UV, MG, MT, IR, Image, 3D-size, Thickness, Paper Quality

Banknote size range: 50 x 110 mm ~ 90 x 180 mm

Hopper capacity: 500 banknotes

Stacker capacity: 220 banknotes

Power: AC 100-240V / 50-60Hz.

Power consumption: 60W maximum

Dimensions: (W x D x H) 259 x 254 x 255 mm

Weight: 9.2 kg

Operating Temperature: 15-35 °C / 59-95 °F.

3 year warranty

Warranty procedure: www.safescan.com

This product is in compliance with the essential requirements and other relevant provisions of the applicable

European directives. The Declaration of Conformity (DoC) is available at www.safescan.com

Take the device to a recycling centre if you want to dispose of it. Never dispose of any electronic devices with

household waste.

Technical Support

Please visit our online support center ﬁrst - go to support.safescan.com and select 'Banknote Counters'.

If you need any further assistance: our support team is available by phone during ofﬁce hours (GMT +1 timezone) or by e-mail

to answer any question you may have regarding the usage of your Safescan device. Visit www.safescan.com for details.

When calling or e-mailing our support center, always make sure you have the following information at hand: model

number, serial number (see product sticker at the bottom of the device), software version number (shown at startup of

the device) and date of purchase.

Serial number Software version number

Model: 2985-SX

Software version: 2985SXG3-E01

English
