Salamander SEM 800 PDS Manuale utente

G03325

INSTRUCTIONS FOR USE AND INSTALLATION

ELECTRIC SALAMANDER

SEM 800 PDS

Made in France

March 2014

Rep Code Qty Pièce Spare part

1 A15018 1 Poignée Handle

272075 1 Ecarteur de poignée Handle spacer

372076 1 Toit Roof

472094 1 Réflecteur Reflector

5 D06009 3 Foyer Ceramic chamber

6 H01072 1 Glace Glass

772072 1 Casquette Deflector

8 F01068 1 Grille Grid

972065 1 Plat Tray

10 F02007 2 Glissière plat Tray slide

11 72095SE 1 Détecteur de plat Tray sensor

12 72093 1 Socle Base

13 A10032 1 Presse étoupe Cord closer

14 C01018 1 Cable Cord

15 A01016 1 Commutateur PDS PDS commutator

16 A04006 1 Régulateur Régulator

17 A08003 1 Voyant orange Orange pilot light

18 A08009 1 Voyant vert Green pilot light

19 A14078 3 Bouton 12 H Knob 12 H

20 A01001/1 1 Commutateur Commutator

21 72056 1 Fond de socle Bottom casing

22 A13006 4 Pied Foot

23 B06017 10 Roulement Ball bearing

24 TP0010 1 Axe Diam 10 Lg 756 Axle Diam 10 Lg 756

25 B07004 2 Ressort Spring

26 B07028 2 Chaîne Chain

27 B01002 4 Pignon Gear wheel

28 72055 1 Fond arrière Back casing

29 A16010 2 Plaque à borne Terminal plate

30 A07037 1 Microswitch Microswitch

31 A05008 1 Contacteur Contactor

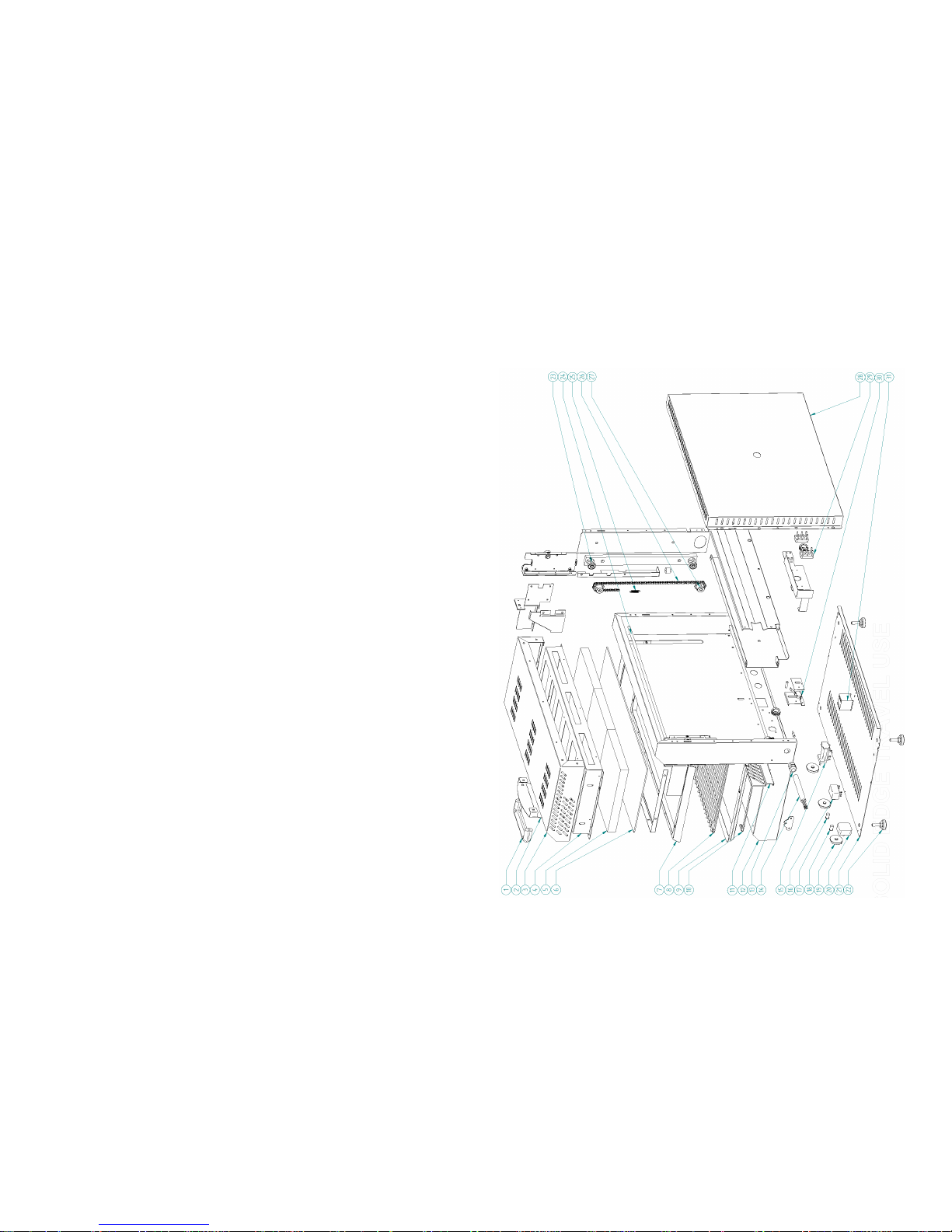

Nomenclature SEM 800 PDS

Spare parts SEM 800 PDS

SALAMANDER SEM 800 PDS

Congratulations for the acquisition of this upmarket appliance made in France. You

chose an appliance which alloys the best technical qualities with a big user-

friendliness. We wish you the biggest contentment

1. SECURITY INSTRUCTIONS

Please respect these instructions scrupulously to avoid any risk of fire, electric shock,

scald or other wounds and damage. During the use of this appliance, fundamental

circumspection of security must always be noticed, such as:

- Take into account the instructions to be systematically kept with the appliance.

- Install the appliance always in instructions respect. A 50 cm distance minimum

with the partition or the wall is necessary.

- Protect the appliance from direct light of the sun, frost and humidity.

- Never leave the appliance within the reach of children or disabled persons with-

out surveillance.

- Never move the appliance when it is working or when the cooking surfaces are

still hot.

- Check that the appliance is definitely off before connecting it up or disconnect-

ing it.

- Do not touch the hot surfaces of the appliance. The temperature of the hot sur-

faces can be very important when the appliance is working. Always use handles

and control knobs.

- Do not use the appliance for other functions than determined use.

- Do not leave the cord of electrical feeding in the contact of hot surfaces.

- The appliance should not be used close to combustible materials.

- During use, look after not to obstruct hearings of aeration of the appliance

- To avoid any electric shock, never plunge the appliance, the cord or plug in wa-

ter or quite other liquid.

- If the cord is harmed, it must be replaced by the producer, his after sale service

or persons of similar skills to avoid any risk.

- Entrust compensations only to a skilled person.

- Use only spare parts of origin.

- At the end of cooking, before cleaning the appliance, do not forget to disconnect

it.

2. CONTENTS OF CARDBOARD PACKAGING

Device: a salamander

Accessories: - A tray

- A grid

- The present note

See exploded view at the end of the document.

3. CONFORMITY OF USE

Use the device only to defrost, brown, glaze, grill toasts, gratins, pizzas, onion

soups… without pre-heating.

4. WAY OF FUNCTIONING

This salamander is fitted with three cooking areas, a removable inside tray with grid,

a commutator to select the cooking zone, an energy regulator to set the power and a

plate detection system (PDS)

The top of the salamander is movable and enables you to adapt the cooking position

to grill, glaze or brown your foodstuffs.

To turn on the salamander, just action the commutator (n°5 on picture) on one of the

position according to the desired cooking zone to be used, set the energy regulator

(n°2 on picture) on the desired power (the position C enables to obtain a continuous

heating power).

Your salamander is fitted with a plate detection system ((PDS) n°6 on picture). When

the commutator is on position Start, the heating will automatically works when you

place a plate or tray in contact with the plate detection system (n°6 on picture). To

use this function, the energy regulator (n°2 on picture) has to be set on C position

If the PDS commutator (n°1 on picture) is on position 0, your salamander is running

continuously and is regulated by the energy regulator

The green pilot light (n°4 on picture) indicates the salamander is on. The orange one

(n°3 on picture) indicates the salamander is heating up

Position 1 : Left area

Position 2 : Right area

Position 3 : Complete area.

Reach rule

Never put the device among household waste.

The device must be put down in a centre of recycling for the electric equipments.

The materials of the device are indeed reusable. By eliminating correctly the electric

and electronic wastes, the recycling and quite other shape of re-use of worn equip-

ments, you participate in a significant way in the environmental protection.

For any information about the collection of electric and electronic waste, please con-

tact your distributor.

10. GUARANTEE

Conditions of guarantee

The guarantee applicable to any device is the commercial guarantee of the distributor

or the retailer. Please contact the store where you bought your device to know the

precise conditions.

The guarantee grants no right for damages.

The dispositions which follow are not exclusive of the profit of the legal guarantee

planned by articles 1641 and following ones of the Civil code relative to the defects

and the latent defects.

Exclusion clauses of the guarantee

Bad installation and bad maintenance, in particular if they do not respect cur-

rent regulations or instructions appearing in this user guide.

Cannot benefit from the guarantee the repairs required as a result of false operations,

of inappropriate use, of carelessness or of excess loads of the device, as well as

those resulting from variations of the power supply, over tension or from defective in-

stallations.

The damage due to shocks, bad weather is not flatware by the guarantee. The materi-

al travels at the risks of the user; in case of delivery by carrier, the consignee has to

have reservations towards the carrier before any delivery of the device.

The guarantee comes to an end in case of intervention, of repair, of modification by no

qualified persons, or of use in inappropriate purposes.

7. TECHNICAL SPECIFICATIONS

Wires colours correspondence Phase 1 Brown

Phase 2 Black

Phase 3 Grey

Neutral Blue

Earth Yellow-Green

The equipotential connection marked by this symbol must be linked with the

equipotential conductive connection of your installation by means of a minimum con-

duction of a 2.5 mm² section.

8. NORMS AND LEGALS DISPOSALS

The device is conform to :

IEC/EN 60335-1

IEC/EN 60335-2-48

EN 55014-1 + 55014-2

EN 61000-3-2 + 61000-3-3

Humidity protection degrees IPX3, in conformity with the norm 60335-2-48 (2008)

9. ELIMINATION OF THE ELECTRIC AND ELECTRONIC WASTE

The device respects the directives:

2002/96/CE (DEEE) N°34270064800021

2002/95/CE (ROHS)

2066/95 CE

2004/108 CE

Model SEM 800 PDS

Voltage 380-415 V 3 N ~

Current 6.5 A/Phase

Power 4500 W

Weight 57 kg

Nb element 3

Cooking surface 740x375 mm

Outside dimensions 800x590x590 mm

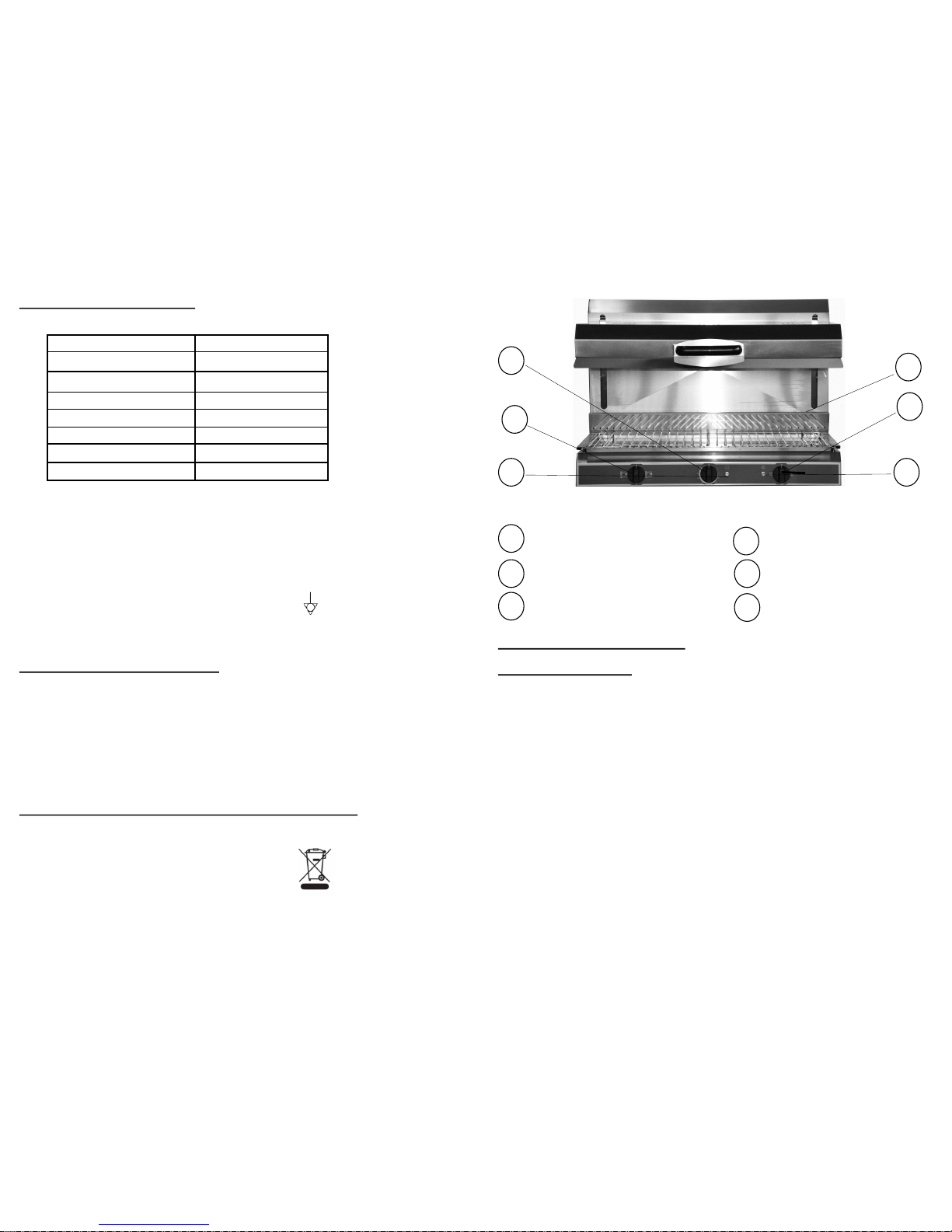

PDS commutator Energy regulator

Control pilot light On/off pilot light

Commutator Plate detection system (PDS)

5. FUNCTIONING / MANIPULATION

a) Installation / assembly:

- Unpack carefully the device of its packaging.

- Place the salamander on a plane and heatproof surface.

- Never place the device near a wall or near a partition makes of combustible

materials even if it is very well isolated.

- A distance of minimum 50 cm with the partition or the wall is necessary.

- Remove the protective film from the top, the rear, the sides and the tray.

- Unlock the movable top by unscrewing the screw located on the back of the

machine thanks to a 10 pipe key.

- In case of connection directly to the electrical network, a disconnection mode

has to be planned in conformity with the norms.

CAUTION :

During use: never place the machine on surfaces or near walls, partitions or

kitchen furniture and similar— except if they are made with a non combustible

material or recovered with non combustible thermic insulation, and pay atten-

tion to fire preventions rules.

b) First starting:

During the first use, warm your machine up outside to evacuate residual smokes of

manufacturing oil from the metallic parts. This may emit a slight smell for a few mo-

ments.

First cleaning

Clean the device before the first use. (See 6. Cleaning)

Connection of the device

- Check that the tension and the frequency of the electricity network suit to the values

indicated on the descriptive plate.

- Make sure that every control knob is positioned on 0.

- Unwind completely the electric power cable and connect it in a plug connected with

the earth.

- The device is connected.

NB: in case of connection of the device in a plug without earth protection or directly on

the electricity network, confide its connection to a qualified person .

c) Use of device :

Elements of command and display

Command/Display Function

PDS commutator (n°1 on

picture)

Plate detection system on/off

Energy regulator (n°2 on

picture)

Regulate the heating power

Orange pilot light (n°3 on

picture)

Heating up (pilot light on)

Green pilot light (n°4 on

picture)

On/off for each cooking area (pilot light on)

Commutator 4 positions (n°5

on picture

Cooking area selection

Stop

All

Areas

Left

area

Right area

Stop

Continuous

Stop

Start

Putting on

Turn on the commutator control knob (n°5 on picture) on wished position according

to desired cooking zone to be used and the energy regulator (n°2 on picture) on

wished power.

The pilot lights (n°3 and 4 on picture) ignite.

To use the plate detection system (PDS), set the commutator (n°1 on picture) on

Start position and the energy regulator on position C.

The cooking with infrared radiation does not need preheating.

Stopping the appliance

Set the commutator control knob, the PDS commutator and the energy regulator on

Disconnect the power cable.

Let the device cool down

Clean the appliance. (see 6. Cleaning)

d) Breakdown / repair:

In case of breakdown or of damaged part, please call your after-sales service and con-

fide any technical operation to qualified person.

When you contact the after-sales service of your distributor or your store, give him the

complete reference of your device (commercial name, type and serial number). This

information appears on the visible descriptive plate behind the device.

6. CLEANING AND MAINTENANCE

Disconnect the device.

- Let cool completely the device before any technical intervention or cleaning.

- Never clean the ceramic glass when it is hot

- Clean regularly the external walls of your device with warm water and wash liquid:

avoid the abrasive towelling. Rinse your device with a wet sponge.

- Never clean the device under a water jet, the infiltrations would risk to damage it in a

irreparable way.

- Never immerse the device, the cord or the plug in the water or quite other liquid to

avoid any electric shock.

- During a prolonged non-use, we recommend you strongly to keep the device shielded

from the humidity.

Indice

Altri manuali Salamander Stufa

Salamander

Salamander 1901 eco Manuale utente

Manuali Stufa popolari di altre marche

Arada

Arada Cassette Stove Manuale utente

Parmco

Parmco FS 600 Manuale utente

MCZ

MCZ SUITE AIR 10 M2 Manuale utente

HearthStone

HearthStone Stowe DV 8321 Guida alla risoluzione dei problemi

Cattara

Cattara FAMILY Manuale utente

Stanley

Stanley Argon F500 OVAL Manuale utente

Avalon

Avalon B-VENT Manuale utente

Nordpeis

Nordpeis Vega Manuale utente

Exquisit

Exquisit EKC601-5 Manuale operativo

Stanley

Stanley Oisin Oil MK II Manuale del proprietario

Thermocet

Thermocet Brookfield S/CC Manuale utente

HASE

HASE delhi Manuale utente

Vermont Castings

Vermont Castings Intrepid 2 Manuale utente

Italiana Camini

Italiana Camini CLASSICA Guida rapida

Avalon

Avalon Vashon Avanti DVS FS Manuale utente

Spartherm

Spartherm ambiente a1 Manuale utente

Dimplex

Dimplex MCFSTV12AU Manuale utente

Warmlite

Warmlite WL46040 Manuale utente
