Whirlpool Pedicure Spa Manual
AK Products Inc.
Thank you for choosing , the leading manufacturer well known worldwide for its
innovation and design in pedicure spas. takes pride in bringing you quality products
that meet today’s demand for safety and service. The Whirlpool Pedicure Spa has been
designed for dependability, and to benefit all with a health conscious clientele.
PLEASE TAKE TIME TO READ THIS MANUAL THOROUGHLY BEFORE USE.
If you have any questions or problems with your pedicure spa, please contact our Customer
Service and Technical Support at 516-932-8888,
Monday thru Friday 9AM-6PM, or Email us at [email protected]
Important Requirements
requires that you contact your local, licensed plumber and licensed electrician to install
your new spa. Installation MUST be in compliance with all local and state building codes. Your
Pedicure spa cannot operate efficiently or safely unless it is provided with adequate electrical power,
sufficient water pressure, proper water temperature, and required drainage capabilities. Contact your
local building inspector for information and local code compliance procedure that need to be
followed when having your new pedicure spa installed. Subsequent inspections and approvals that
may be required are the responsibility of the purchaser.
Shipment Inspection
Examine the components immediately upon arrival to make sure no damages have occurred to the
pedicure spa and chair during the shipment. It is very important that you notify the driver on the face
of the freight bill or bill lading of any damage. Failure to note damage on the bill of lading may
prevent any claims you may have against the carrier. If damage is found, you MUST notify the
carrier at once and request an inspection. DO NOT DISCARD THE SHIPPING CARTON. If you
do, you do so at your own risk and expense.
Precaution
- Do not stand in the basin of the spa.
- Excessive water temperature is dangerous and should be checked before use.
- Maximum water Temperature should not exceed 150°F (65°C).
- Always enter and exit the spa slowly and carefully.
- Never bring or operate any electrical device near pedicure spa.
- The unit has a weight capacity of 250 pounds.
Health Warning
Individuals whose feet or legs are inflamed or have open wounds should not be allowed to use the
pedicure spa at any time. The technician should advise clients to consult their physician before using
the spa if there is any sign of fungal infection, swelling, fracture, or persistent pain. In some cases
diabetics may experience improved circulation in their feet, but should first consult their physician
prior to receiving a pedicure.
If the client experiences any pain or discomfort, discontinue the use of the pedicure spa
immediately.
P.1
Electrical Service
A 110V, 60HZ, 15AMP GFCI protected ground must be used to supply power to each indivisual
pedicure spa. And the main circuit breaker MUST be at 25AMP for maximum of two unit.
Water Supply
All plumbing connections must conform to local codes.
Water supply to the spa should be provided with adequate water pressure and water temperature.
-Water pressure
To fill the basin correctly up to level, Normal water pressure should be between 30 to 80 P.S.I.
-Water temperature
The hot water supply temperature must not exceed 140°. Adjust your hot water accordingly. For hot
and cold water supply fittings and drain fittings location, see below diagram. Carefully connect the
water supply line to the appropriate fittings located on the rear of the pedicure spa.
Backflow Preventive Device
All pedicure spas are pre-installed with Dual Back flow Preventive Device for the following state:
CA, AZ, NV, OR, WA, and NE. This Device is optional, therefore yot need to order seperately.
Salontech does not guarantee the quality of this device.
Specification
Backflow preventive device for faucet: Vacuum breaker comply with ANSI / NSF - 61 - 2000,
ASMB A112.18.1 - 2000,
ASSE1014 and CSA standard - B125.98
ANSI / ASME A112.18.3M (performance requirements for backflow preventive device
and systems in plumbing fixture fittings) is applicable to plumbing fixture fittings with
outlets not protected by an air gap. Included in the possible range of applications are
fittings with hose connected outlets, fitting with pull out spout, hand held showers,
shampoo fittings and deck mounted fittings.
ASME A112.18.3M is now referenced in ASME A112.18.1M (plumbing fixture fittings)
and CSA B125. Backflow preventive devices are listed to both standards with the
Canadian Standard Association, IAPMO and UL.
ANSI - American National Institute. ASME - American Society of Mechanical Engineers.
CSA - Canadian Standard Association.
APMO - International Association of Plumbing and Mechanical Officials. UL -
Underwriters Laboratory.
Drain Facilities
The pedicure spa drain must meet local plumbing codes. Check valve for Drain (not
provided) Must be installed by a licensed
plumber.
Important Considerations

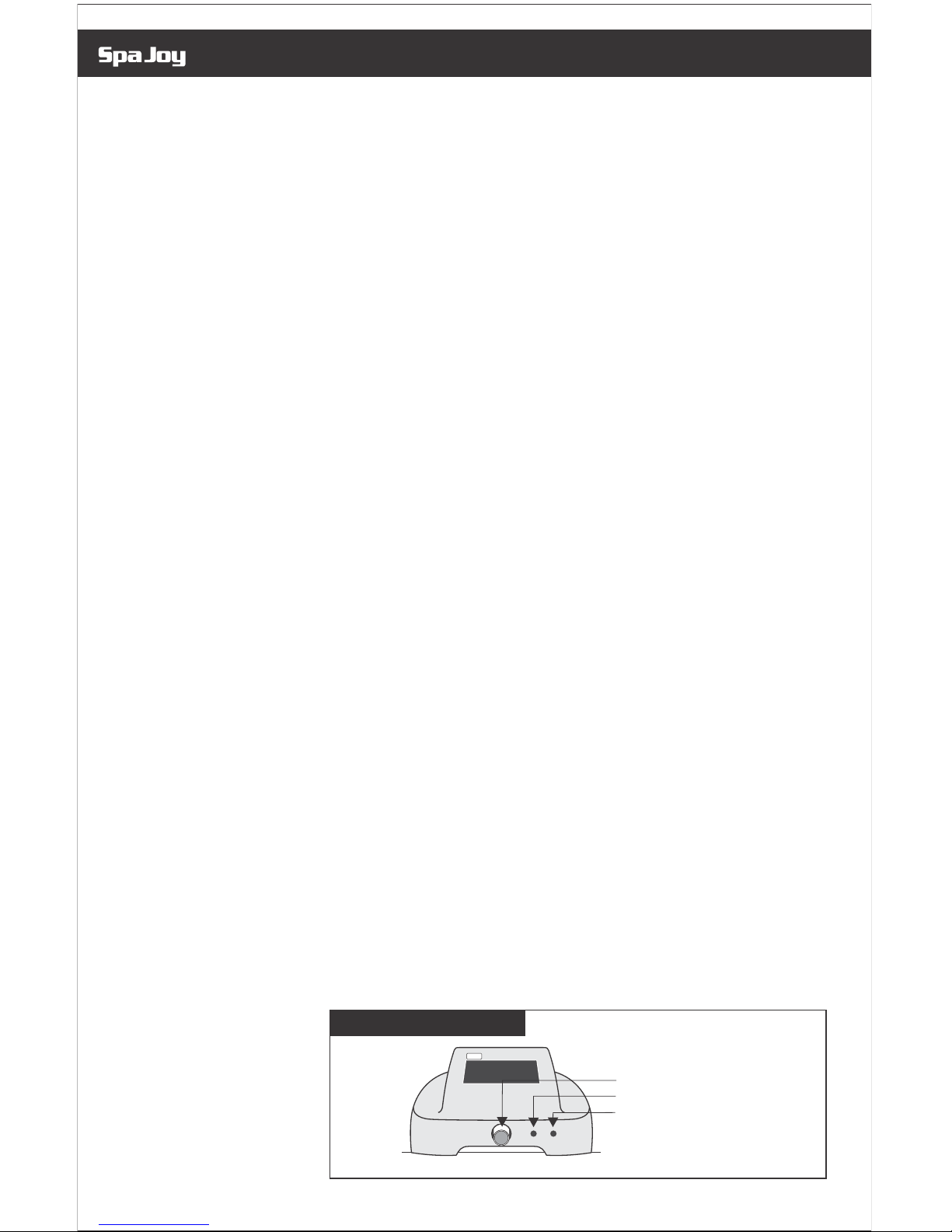

Back of the pedicure spa
1-1/2" PVC Drain Outlet
3/8" PIP Cold Water Supply Inlet
3/8" Hot Water Supply Inlet
Plumbing Connections
P.2

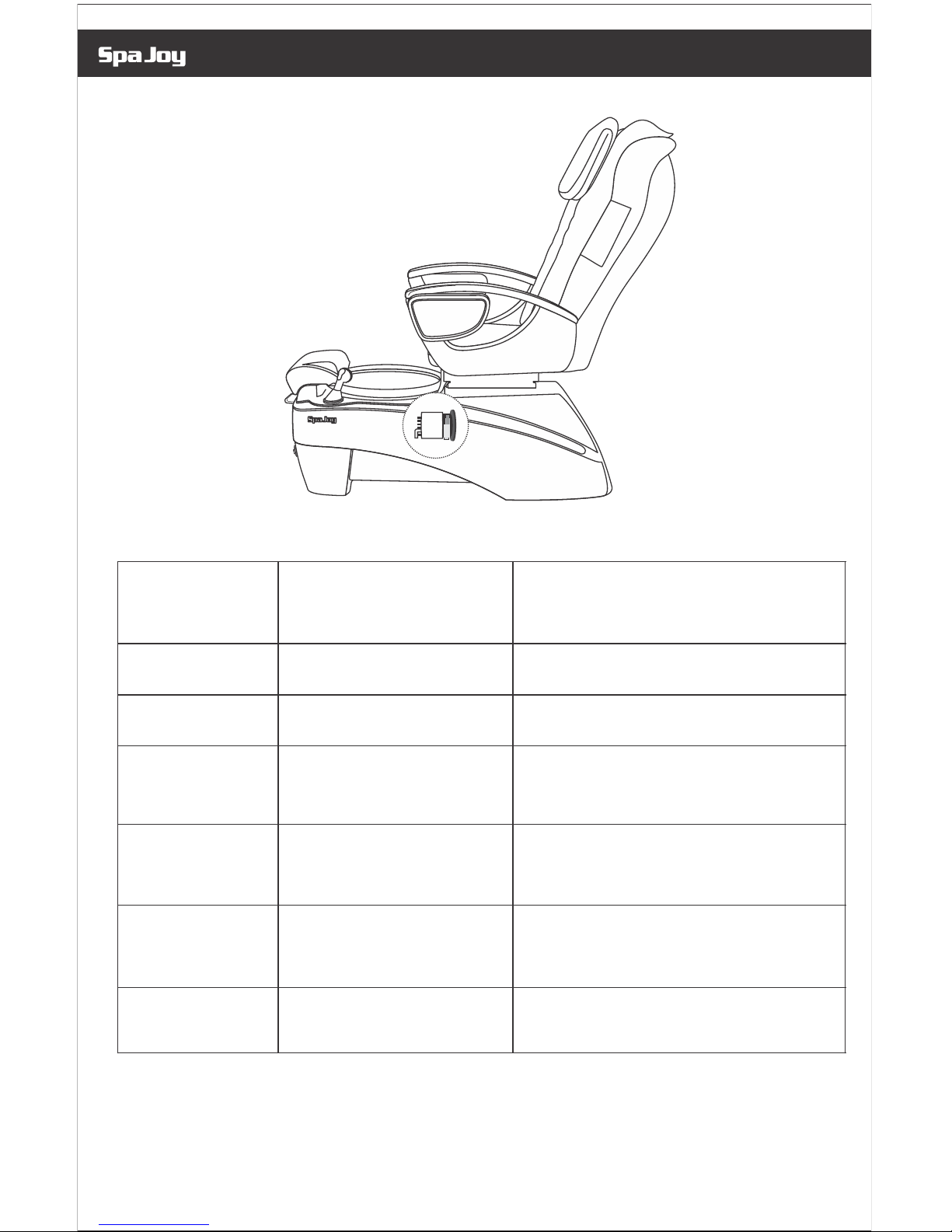

Identifying Components
Head Rest
Tongue
Manicure Tray
Armrest
Footrest
Polish Tray
Shower Spray
On/Off
Due to continuous improvements on all of our products, specification, characteristics, packing, color and design are
subject to change without notice.
P.3
Dimension & Weight
Capacity of Tub
Switch
Whirlpool
Power Source
Plumbing Source
Warranty
SpaJoy(Base Unit)
SpaJoy(Chair)
Stool
JJT Impeller Motor Jets
Air Control
Motor
Discharge Pump(Optional)
Massage System
Hot Water
Cold Water
Drain
Unit
Optional Item
29 3/4"W x 54 1/4"L x 14 1/4"H Wt. 165Lbs
22"W x 34 1/2"L(Incline), 50"L(Recline)
x 44"H(Incline), 34"H(Recline)Wt. 125Lbs
19"W x 19"L x 22"HWt. 13Lbs
4.25 US Gallon
On/Off Air Activated Switch
Hydro Therapeutic Motor Jet with Impeller System
Air Induction System
115V 1.2Amp 60Hz 55W
115V 32Amp 60Hz
110V-120V 60Hz 90W 5Amp
1/2 inch(Fitting pre-installed)
1/2 inch(Fitting pre-installed)
1-1/2 inch(see Plumbing Instruction)
One Year(see Warranty)
180 Days
Due to continuous improvements on all of our products, specification, characteristics, packing, color and design are
subject to change without notice.
Specifications P.4

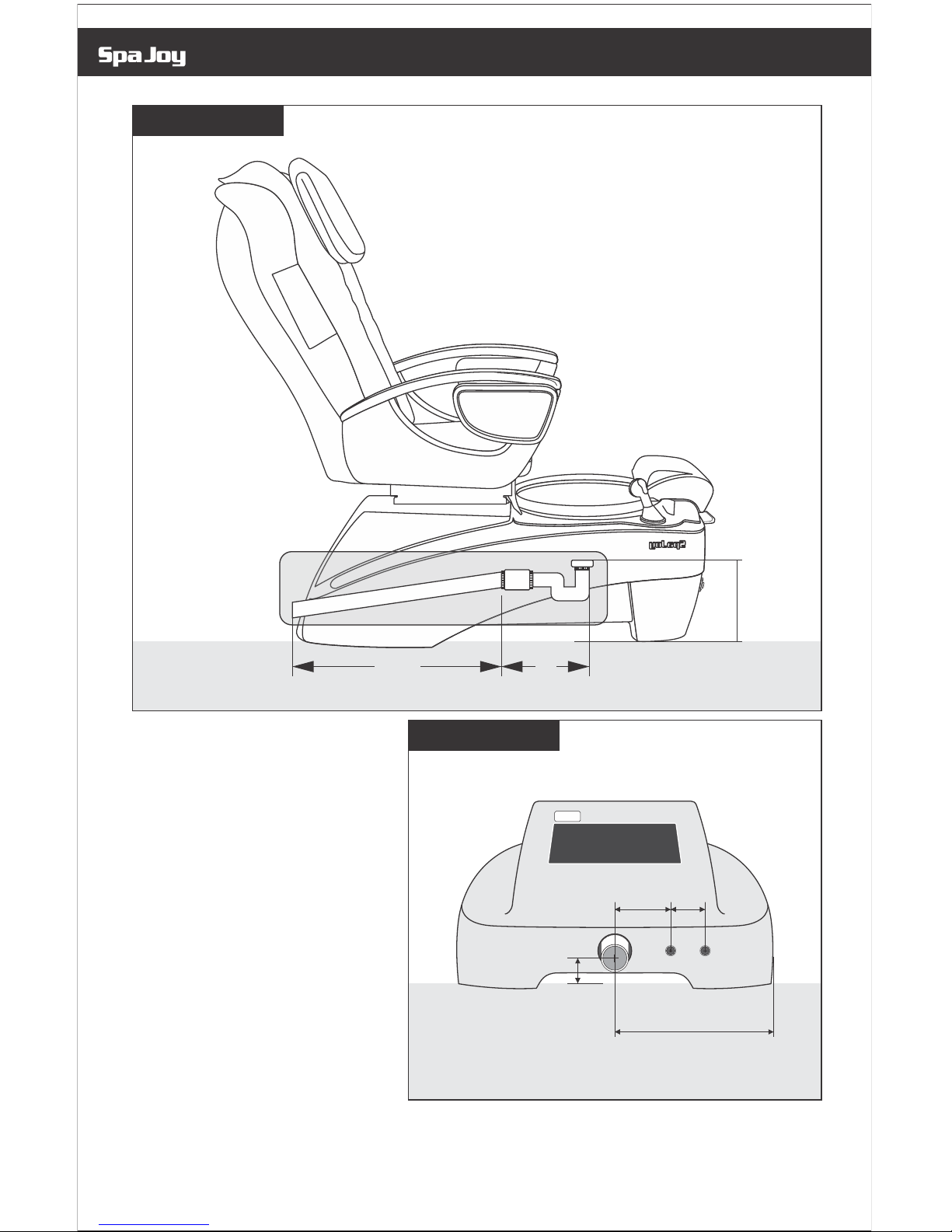

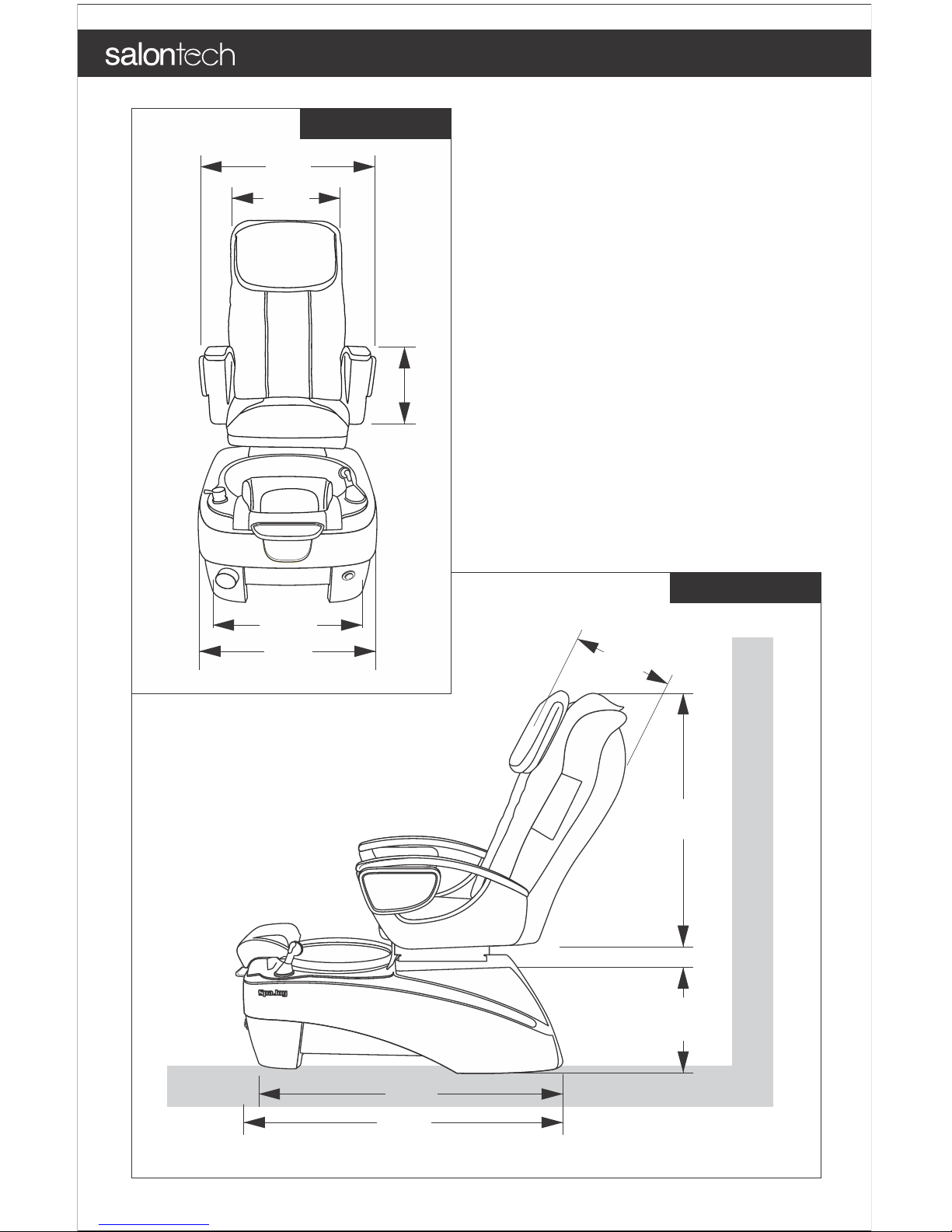

SIDE VIEW
Dimension
WALL
41"
14 1/4"
14 1/2"
FRONT VIEW
25 1/4"
29 3/4"
15"
P.5
24 1/2"
30 1/2"
51"
54 1/4"
SIDE VIEW
REAR VIEW
6"
37"
5.5"
Back of the pedicure spa
P.6
14 1/2"
3"
4 5/8" 3"
Minimum space from the wall
!
WALL
22"
INSTALLATIONSPECIFICATONSSUMMARY
Warning: Failure to comply with federal, state or local codes and ordinances will result in warranty
being null and void.
As stated, the pedicure spa installation must comply with all plumbing and electrical codes. A licensed plumber and
licensed electrician must complete the applicable connections of the pedicure spa.
!
Location And Support
Select a level location. The floor structure beneath the pedicure spa must be capable of supporting the occupied pedicure spa.

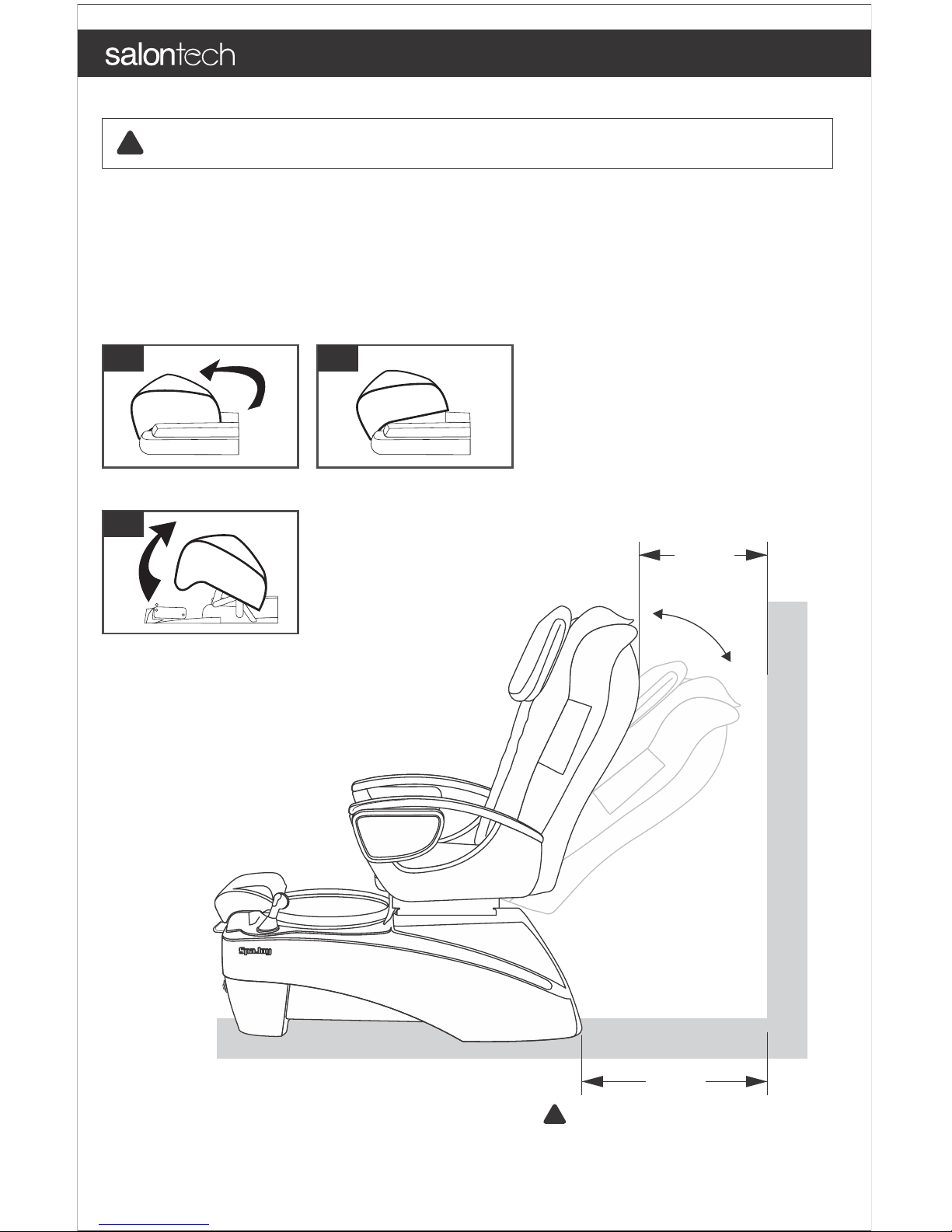

For the seat back to full recline, the pedicure spa base must be mounted 22 inches from the wall as shown below:
How to use adjustable footrest
Place left hand on the back of the footrest and gently pull up toward the front as shown fig2.
Place right hand on the front of the footrest and gently pull up
for desired height and use locking lever to secure the footrest.
Fig 1 Fig 2
Fig 3
Due to continuous improvements on all of our products, specification, characteristics, packing, color and design are
subject to change without notice.
P.7
15 3/4"
30°
6" 37"
Discharge
Pump
FLOOR
WALL
POWER DRAIN
5 1/2"
5 1/2"

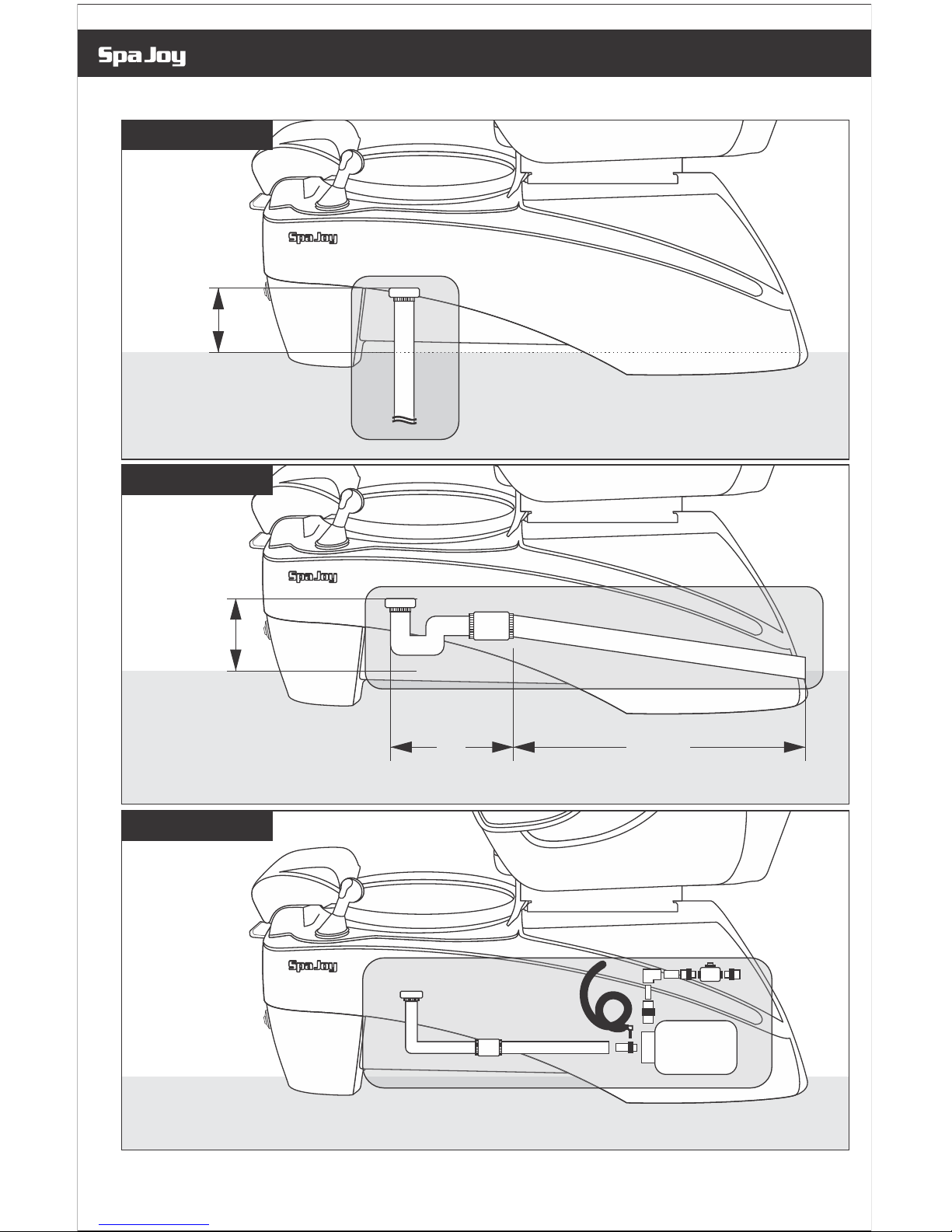

Adjustable P-trap
and Connector
1.5" PVC Drain Pipe
See Detailed Installation Page
NOTE: The requirement for vacuum breaker varies from state to state and province to province. Please consult with the licensed
plumber.
P.8
Important Safety Instructions
Warning: To reduce risk of burns, fire, electric shock or injury:
!READALLINSTRUCTIONSBEFOREUSE;
burns will result from improper use; please be careful handling this product.
Close supervision is necessary when unit is used by, on , or near children and the disabled. Use this unit only for its
intended use as described in this manual. Do not use any attachments not recommended by MFG.
- Keep the cord away from heated and wet surfaces.
- Do not use outdoors.
- Do not operate where aerosol products are being used or where oxygen is being administered.
- Never operate If it has a damaged cord or plug, or dropped in the water. To disconnect, press power button to turn off,
then remove the plug from the outlet.
- Allow 30 minutes break time between operations.
- Do not place any heavy object on the chair and do not let children play with it.
- The maximum weight capacity for the massage chair is 250lbs.
Your massage chair is simple to operate using the handheld controller included with your chair.
Before you use your chair, we recommend that you familiarize yourself with the remote control and the basic massage
functions.
Due to continuous improvements on all of our products, specification, characteristics, packing, color and design are
subject to change without notice.
Massage System P.9
