Salter Brecknell Weighing Products

1000 Armstrong Drive

Fairmont, Minnesota 56031

Toll Free 800-637-0529 · Voice 507-238-8702 · Fax 507-238-8271

Email: sales@salterbrecknell.com

www.salterbrecknell.com

February 2004

Models BS150 and BS300

Portable Bench Scales

INDICATOR (DP-10)

User and Service Manual

Introduction:

Model BS150 and BS250 are portable scales designed for

today’s tough and demanding remote situations.

Each scale comes with an internal, rechargeable

battery that provides up to

8 hours of continuous operation (non-backlight,

four hours with backlight on).

A built in carry handle allows for easy transport of the scale

to locations where AC power may not be present.

Operation:

With only four keys the scale is simple to operate – simply

turn it on and begin weighing. An automatic off

function saves battery life for extended operation.

On/Zero/Off

The first press turns the scale on.

Units – switches between units of measure.

Count –basic count features.

Zero – functions as zero when the weight applied

is less than 2% of the scale capacity.

“OFF”- Functions when the key is held down

for 3 seconds.

INTENTIONALLY LEFT BLANK

Hold

Used for larger items or unstable loads. Press the hold

key, apply the load for 5 seconds and then remove

the load. The display will hold the weight until the

hold key is pressed again and the scale returns to

normal operation.

Main Scale Features:

•Portable operation or AC operation for full time use.

•Each unit comes with an AC adapter for battery

charging or full time use.

•14 hour charge time.

•Stainless steel shroud.

•Extra durable feet for long term performance.

•An easy to read display with backlight.

•Light weight (33 lbs.) for easy transport.

•Carry handle for ease of movement.

•Heavy duty, steel construction for durability.

•Hold feature for large items or unstable loads.

•Unit switching.

INDICATOR FEATURES:

1. Compact Dimensions: 11.3” X 3.5” X 2.7” (290 x 90 x 70

mm)

2. Material: Aluminum

3. Display: 1.0 inch 4 1/2 digital LCD

4. Capacity/Division

CAPACITY DIVISION 1 DIVISION 2 DIVISION 3

2.5/3 kg 0.5 g 1 g 2 g

5/6 kg 1 g 2 g 5 g

10/15 kg 0.002 kg 0.005 kg 0.01 kg

25/30 kg 0.005 kg 0.01 kg 0.02 kg

50/60 kg 0.01 kg 0.02 kg 0.05 kg

100/150 kg 0.02 kg 0.05 kg 0.1 kg

250/300 kg 0.05 kg 0.1 kg 0.2 kg

500/600 kg 0.1 kg 0.2 kg 0.5 kg

1000/1500 kg 0.2 kg 0.5 kg 1 kg

2500/3000 kg 0.5 kg 1 kg 2 kg

5. Accuracy: OIML/NTEP 1000d

6. Power: Rechargeable battery pack/AC adapter (battery

life in continuous mode: 8 hours, no backlight; 4 hours

with backlight on)

7. Power saving (auto shut-off timing selectable: 120

seconds/180 seconds/240 seconds/300 seconds)

8. Operating Temperature: 5~35°C

9. Operating Humidity: 25%~95%RH

10.4 Keys: ON/ZERO/OFF, UNIT, COUNT, HOLD

ON/ZERO/OFF

Switch scale on, zero, or off.

UNIT

Toggle among KG, LB and OZ unit

COUNT

Press count-A 10 pcs. Press count again for

more choices of pieces to add.

When stable indicator is on, place unknown

amount on scale and count is functional. Press

UNIT key to return to normal mode.

HOLD

Press this key to store weight value

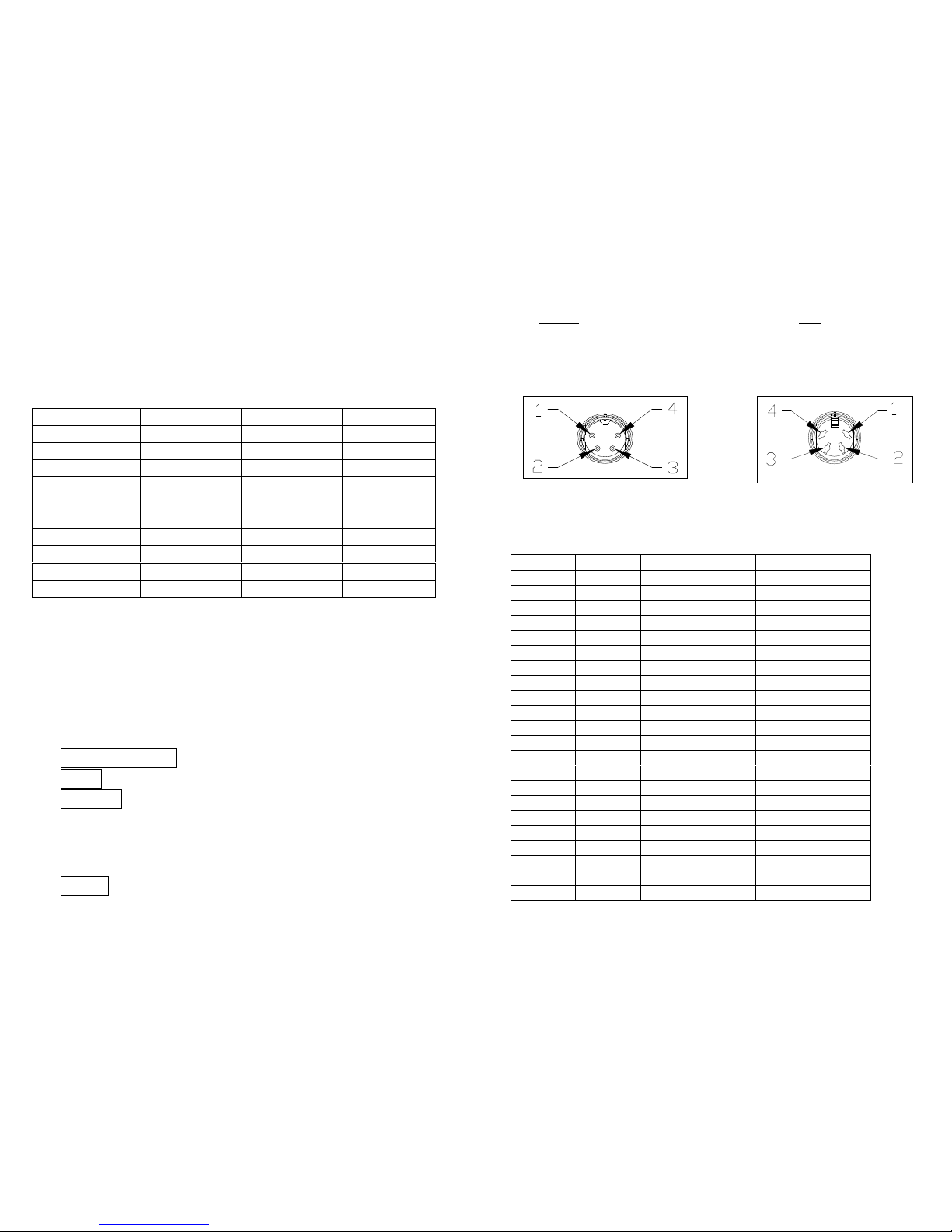

PIN ASSIGNMENTS FOR THE EXTERNAL CABLE:

DP 10 L/C

Pin 1: (+) Sig. (Green) Pin 1: (+) Sig. (Red)

Pin 2: (+) Exc. (Red) Pin 2: (+) Ex. (Green)

Pin 3: (-) Sig. (White) Pin 3: (-) Sig. (White)

Pin 4: (-) Exc. (Blue) Pin 4: (-) Exc. (Black)

ADAPTOR:

115VAC in; 15V DC out.

PARTS LIST (See diagram on following page.)

Item Qty Name Material

2 1 Load Bridge 98060-2163

3 1 Shroud 98060-2148

4 2 Spacer 98060-2338

5 8 Bolt-Hex 54004-1548

6 4 Nut-Locking 17955-0058

8 1 Weldment Base 98060-2197

11 4 Foot Assembly 98060-2270

12 2 Strip, Locking 98060-2130

13 2 Caplug 98060-2213

14 1 Set Screw 98060-2254

15 8 Washer 1029-80008

28 2 Label 98060-2288

29 1 Decal 1070-11776

30 1 Decal Scale 98060-2312

31 3 Cable Tie 13762-1025

32 AR Loctite 15566-0046

33 1 Users Guide 98060-2262

34 1 Load Cell 98060-2346

35 1 Indicator 98060-2353

36 1 Adapter, AC 816965000906

37 2 Indicator Knob 52731-0015

N/A 1 Battery Pack 816965000890

CAP. CALIBRATION

WAY

SPAN

RANGE

CALIBRATION

WEIGHT

Lb.

SPAN

RANGE

CALIBRATION

WEIGHT

1/4

1000∼

5000 25 kg 910∼

4100 50 lb.

1/2

2000∼

10000 50 kg 1820∼

9100 100 lb.

100 kg

150 kg

Full

4000∼

20000 100 kg 4100∼

18000 200 lb.

1/4

1000∼

5000 100 kg 910∼

4550 200 lb.

1/2

2000∼

10000 250 kg 2270∼

11350 500 lb.

500 kg

600 kg

Full

5000∼

25000 500 kg 4550∼

22500 1000 lb.

1/4

1000∼

5000 250 kg 910∼

4100 500 lb.

1/2

2000∼

10000 500 kg 1820∼

9100 1000 lb.

1000

1500

Full

4000∼

20000 1000 kg 4100∼

18000 2000 lb.

1/4

1000∼

5000 500 kg 910∼

4550 1000 lb.

1/2

2000∼

10000 1000 kg 1820∼

9100 2000 lb.

2500

3000

Full

4000∼

20000 2000 kg 4550∼

22500 5000 lb.

4. Press UNIT key to select weight unit: kg or lb

5. When the weight is stable, press ON/ZERO/OFF key

to start calibrating.

6. The display shows the calibration weight in normal mode.

7. Remove the weight from the platform and the calibration is

finished.

11. Error message indication:

A. Overload

B.: Power on zero count too low

C. Power on zero count too high

D. High zero count

E. Low zero count

F. Low battery indication

G. Eprom Error

12. Two calibration weight units: kg / lb

13. Three calibration capacity: 1/4, 1/2, Full

14. Power on zero-setting range: ±10%

15. Zero range: ±2%

16. Three software filter functions: FAST/NORMAL/SLOW

17. Three modes: Normal mode/Setting mode/Internal Auto

Calibration mode

Err

0000

Err

ErrL

ErrE

KEY DESCRIPTIONS:

HOLD UNIT ON

ZERO

OFF COUNT

1. UNIT:

1) Select weight units: kg, lb., or oz.

2. ON/ZERO/OFF:

1) Power on the indicator.

2) Press and hold this key for 3 seconds to power off.

3) This key is “Zero” feature if load is below 2% of full

capacity or a negative value.

3. HOLD:

1) When the weight is unstable, press this key to hold the

weight value.

2) To release Hold feature, press the HOLD key again.

4. COUNT

1.) Press the count key and the indicator will say “A 10”. For

more samples press the count key additional times.

2.) When the stable indicator comes on the scale should

indicate a count of 10 pieces.

3.) Place an unknown amount on the scale and it will indicate

the count.

4.) To exit the count mode press the “Unit” key.

CALIBRATION PROCEDURE

1. Press ON/ZERO/OFF key without releasing, and then press

UNIT key 3 times to enter test mode, the display shows zero

count (1000-6000).

2. Press ON/ZERO/OFF key and display shows “0”.

3. Load the calibration weight. (Note: Please see following table-

calibration weight):

CAP. CALIBRATION

WAY

SPAN

RANGE

CALIBRATION

WEIGHT

Lb.

SPAN

RANGE

CALIBRATION

WEIGHT

¼1000∼

5000 500 g 910∼

4550 1 lb.

½2000∼

10000 1 kg 1820∼

9100 2 lb.

2.5 kg

3 kg

Full 4000∼

20000 2 kg 4550∼

22500 5 lb.

¼1000∼

5000 2 kg 910∼

4550 2 lb.

½2000∼

10000 5 kg 2270∼

11350 5 lb.

5 kg

6 kg

Full 5000∼

25000 2 kg 4550∼

22500 10 lb.

¼1000∼

5000 2 kg 910∼

4100 5 lb.

½2000∼

10000 5 kg 1820∼

9100 10 lb.

10 kg

15 kg

Full 4000∼

20000 10 kg 4100∼

18000 20 lb.

¼1000∼

5000 5 kg 910∼

4550 10 lb.

½2000∼

10000 10 kg 1820∼

9100 20 lb.

25 kg

30 kg

Full 4000∼

20000 20 kg 4000∼

20000 50 lb.

¼1000∼

5000 10 kg 910∼

4550 20 lb.

½2000∼

10000 20 kg 1820∼

9100 40 lb.

50 kg

60 kg

Full 4000∼

20000 40 kg 4000∼

20000 100 lb.

10 (next page)

FUNCTION SETTINGS

1. A.OFF Time for auto off (120s/180s/240s/300s/off).

2. Unit Weight units (kg/lb./oz.).

3. CAP Capacity (3/6/15/30/60/150/300/600/1500/3000kg).

4. OvL Overload (100/150kg).

5. divS Division (1/1500, 1/3000, 1/6000).

6. Filt Filter (fast, normal, slow).

7. CAL.C Calibration Capacity (1/4, 1/2, full).

8. Hold Hold (Average Hold / Peak Hold).

9. A.H.d.r. Average Hold range.

10. A.H.d.t. Average Hold times.

11. trAn Transfer.

12. t.b.r. Transfer baud rate.

Outline Drawing 7
