Instruction Manual
Model No ST320RF
2
ST320RF Manual Version 005:Layout 1 21/10/10 15:32 Page 1
ST320RF INSTRUCTION MANUAL2
ST320RF Manual Version 005:Layout 1 21/10/10 15:32 Page 2
PRODUCT COMPLIANCE
This product complies with the essential requirements of the following EC Directives:
•Electro-Magnetic Compatibility directive 2004/108/EC
•Low Voltage Directive 2006/95/EEC
•EC Marking directive 93/68/EEC
SAFETY INFORMATION
These instructions are applicable to the Salus Controls model stated on the front cover of this manual
only, and must not be used with any other make or model.
These instructions are intended to apply in the United Kingdom only, and should be followed along
with any other statutory obligations.
This accessory must be fitted by a Competent person, and installation must comply with the guidance
provided in the current editions of BS7671 (IEE Wiring Regulations) and Part ‘P’ of the Building
Regulations. Failure to comply with the requirements of these publications could lead to prosecution.
When fitting the receiver always isolate the AC Mains supply before opening or removing the unit from
the wall or wall box.
When fitting batteries don’t mix old and new batteries together. Do not use rechargable batteries.
Please leave these instructions with the end user where they should be kept in a safe place for future
reference.
3ST320RF INSTRUCTION MANUAL
ST320RF Manual Version 005:Layout 1 21/10/10 15:32 Page 3
INTRODUCTION
A thermostat is a device that is used to switch the heating system in your home on and off as needed. It
works by sensing the air temperature and switching on the heating when the air temperature falls below
the thermostat setting, and switching it off once the set temperature has been reached.
The ST320RF from Salus Controls is a stylish and accurate electronic thermostat with a large, easy to
read LCD display. The thermostat has been specifically designed to be used Volt Free. Unlike ordinary
single unit design thermostats, this is a new type of thermostat separating the operational functions
into two units.
The Receiver is used for wiring connections and heat on/off
control. The Control Centre provides the user interface and
temperature sensing / control. The two units are linked together
by a Radio Frequency (RF) signal.
The use of the revolutionary Touch Ring technology makes for
simple usage, and is coupled with a unique, smart design. The
LCD display will show the current room temperature and the ‘one
touch’ operation makes the ST320RF easy to operate.
ST320RF INSTRUCTION MANUAL4
FEATURES
•Touch Ring Technology
•Large LCD with white backlight
•Stylish Casing
•Volt Free Contacts
•Intelligent Communication Technology
•Battery Powered with Replacement Indicator
•Frost Protection
•Burner on symbol
•Secure RF Transmission
(one million unique RF address codes)
ST320RF Manual Version 005:Layout 1 21/10/10 15:32 Page 4
INSTALLATION
Please read the important safety information at the start of this manual before you start to install the device.
The ideal position to locate the Control Centre is about 1.5m above floor level. It should be mounted in a
location where the thermostat is accessible, reasonably lit and free from extremes of temperature and
draughts. Do not mount the thermostat on an outside wall, above a radiator or in a location where it may
be subjected to direct sunlight.
To ensure trouble free operation of the Radio Frequency (RF) signal, always ensure that the programmable
thermostat is mounted away from any possible sources of interference (such as radios, TV sets, computers,
etc.), and is not mounted on or in close proximity to large metal objects. Installing the ST320RF in enclosed
areas such as cellars and basements is not recommended.
5ST320RF INSTRUCTION MANUAL
RECEIVER BOILER
MAINS
FEED
N
L
Thermostat loop (Remove link)
Live Feed
LSL LNE
COM N/O L N
ST320RF Manual Version 005:Layout 1 21/10/10 15:32 Page 5
CONNECTING THE ST320RF RECEIVER
NOTE: All electrical installation work should be carried out by a suitably qualified Electrician or other
competent person. If you are not sure how to install this digital thermostat consult either with a qualified
electrician, heating engineer or your boiler / heating system supplier for advice on how to continue.
The ST320RF Receiver should be mounted in a suitable location that is both accessible for the connection
of mains and control wiring, and allows good reception of the RF signal. The Receiver needs a 230V AC
mains supply to operate, and this should be fused appropriately (16A max.). The Receiver should be
mounted in a location where it will not come into contact with water, moisture or condensation. Please
be reminded that touch can be held up by condensation on the touch ring surface and can reduce
sensitivity.
There are few electrical connections required to the ST320RF, and these connections should be made to
the terminal block inside the Receiver. No Earth connection is required for the correct and safe operation
of the ST320RF, but a parking terminal is provided to connect an Earth wire if one is present.

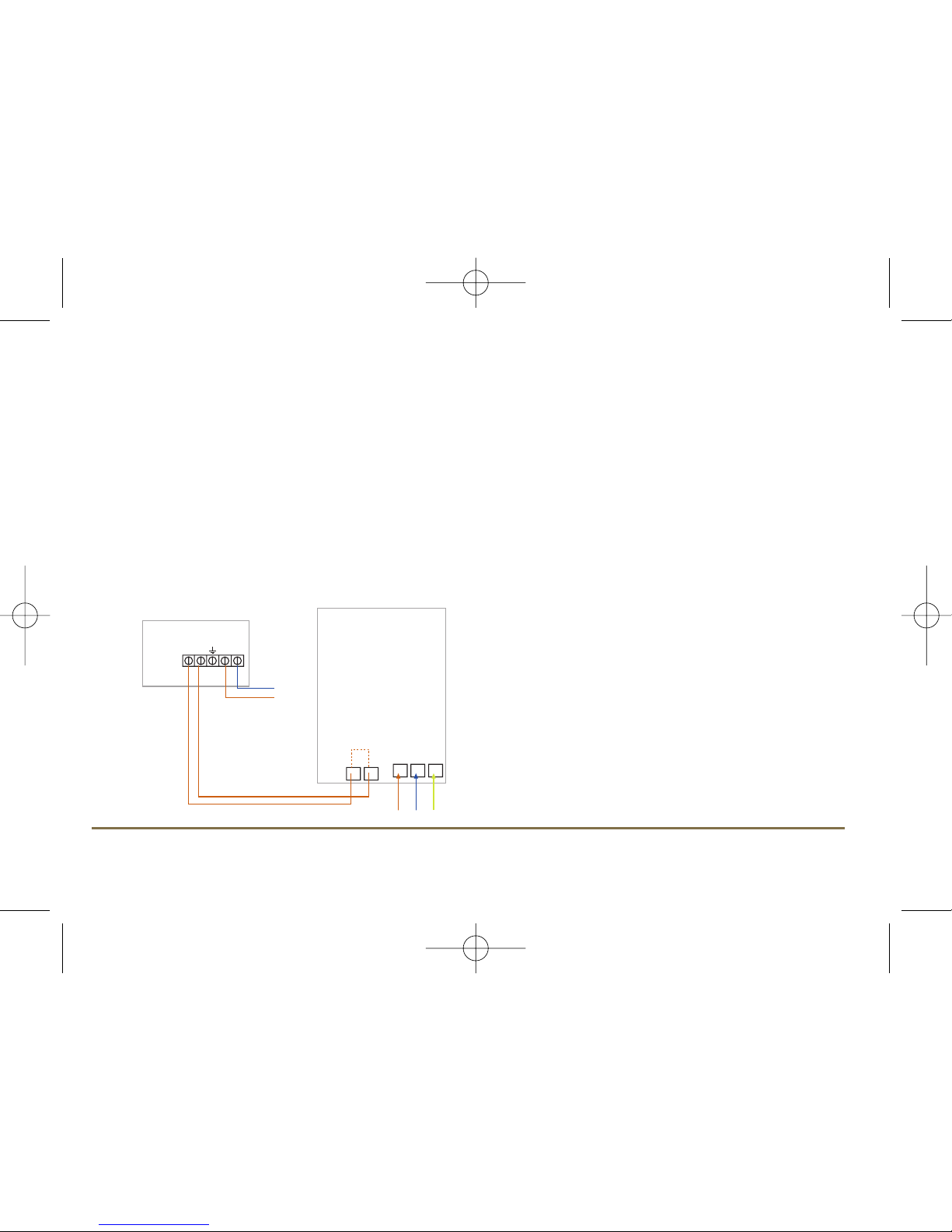

These electrical connections are shown in the table below:
ST320RF INSTRUCTION MANUAL6
Terminal Function
COM Common Contact (volt free input)
NO Normally Open Contact (volt free output)
Earth Parking (No electrical connection)
L Incoming Mains - Live
N Incoming Mains - Neutral
ST320RF Manual Version 005:Layout 1 21/10/10 15:32 Page 6
INSTALLING AND REPLACING BATTERIES
Installing or replacing the ST320RF Control Centre batteries is
a straightforward operation, but does require you to open the
case of the thermostat.

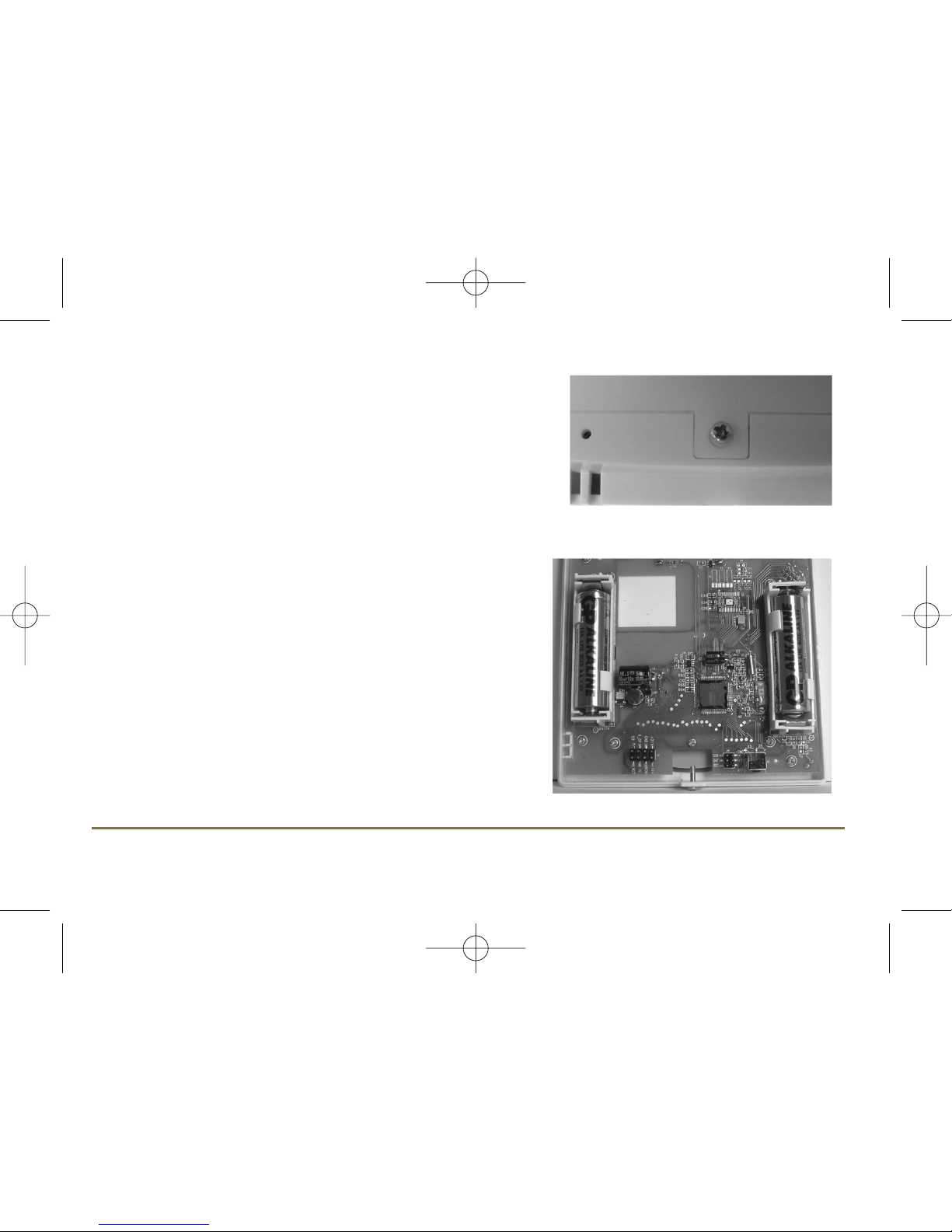

To open the ST320RF case, undo the securing screw on the
bottom of the case (just to the right of the hole for the Reset
Button):
After undoing the screw pull it forward until the screw stops
moving, then carefully separate the two halves of the case
by gently pulling in an upwards direction. Once the case has
been separated, the batteries should be visible:
Ensure that the batteries are inserted correctly, paying
careful attention to the polarity markings on the battery and
next to the battery holders. After inserting the batteries, refit
the ST320RF case and retighten the securing screw.
7ST320RF INSTRUCTION MANUAL
ST320RF Manual Version 005:Layout 1 21/10/10 15:32 Page 7
PAIRING THE ST320RF RECEIVER AND CONTROL CENTRE
It is important to correctly pair both the Receiver and Control Centre to ensure that the RF address codes
are matched and that reliable communication is established between the units. Please follow the
instructions below to ensure that the units are configured correctly.
ON THE RECEIVER:
Press and hold the SYNC button to allow the Receiver to enter the learning mode. The Red SYNC LED will
turn on to indicate it is ready to receive a signal and pair with another unit.
While the signal is being received, the SYNC LED will turn on until the pairing has completed successfully;
the SYNC LED will then turn off and the Green Power LED will turn on again. The Control Centre will
continue to transmit a pairing signal for 10 minutes before returning to NORMAL mode.
ST320RF INSTRUCTION MANUAL8
ST320RF Manual Version 005:Layout 1 21/10/10 15:32 Page 8
9ST320RF INSTRUCTION MANUAL
ON THE CONTROL CENTRE:

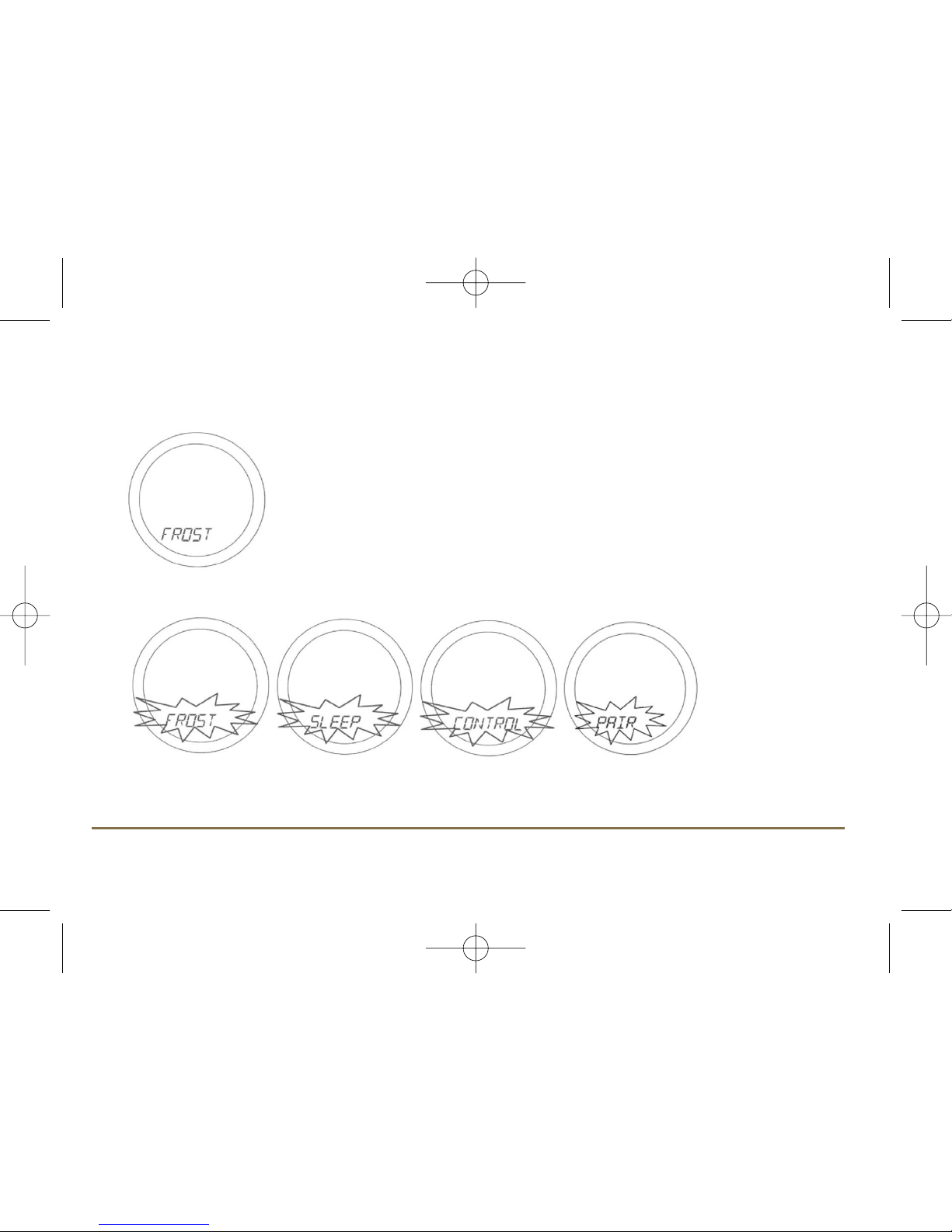

The Arrow key is not active when the ST320RF is in NORMAL mode. To access the Menu screens, press
the OK key once. The first menu displayed is the FROST menu:
Use the Touch Ring to scroll through the Menus, and press the OK key to select the PAIR menu:
You can scroll through the menus in either direction (forwards or backwards) depending on the direction you
move your finger around the Touch Ring. The menus are displayed in the order shown in the picture above.
ST320RF Manual Version 005:Layout 1 21/10/10 15:32 Page 9

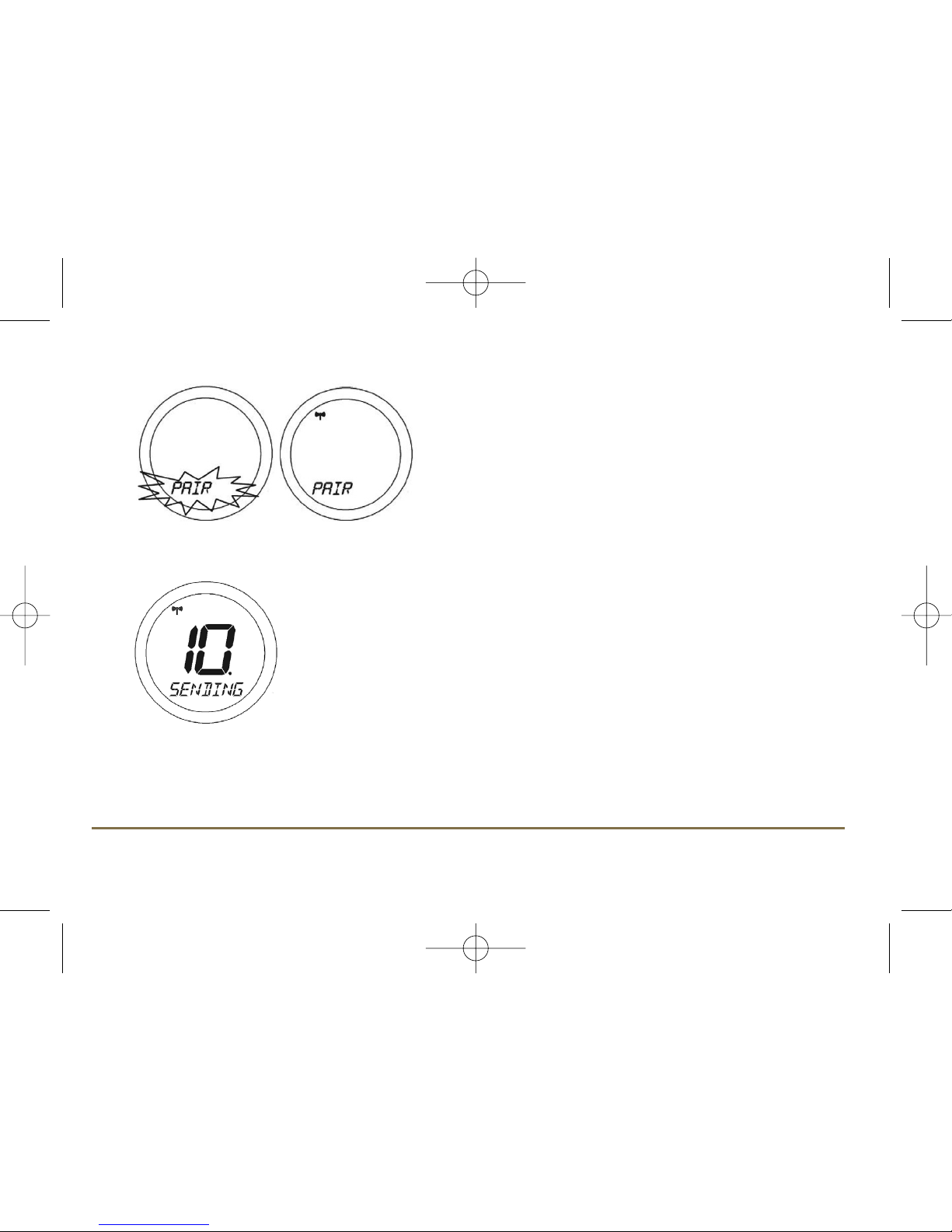

After selecting the PAIR Menu, PAIR and the RF icon are displayed.
Press the OK key to start sending the RF address code to the Receiver.
The ST320RF Control Centre display will change to show a rundown timer:
The unit counts down for a period of 10 minutes, with the RF Signal indicator flashing while the signal
is being transmitted. The RF address code will be generated randomly and the Control Centre will
transmit the signal every second for the full 10 minutes until:
ST320RF INSTRUCTION MANUAL10
