Dial Thermostat
Models: VS05
INSTALLER / USER MANUAL
iT600 VS05 Installer - User Manual 005_Layout 1 08.12.2014 13:32 Strona 1
02 VS05 Installer Manual
Contents
1 x Installer / User manual VS05Fixing screws
Contents
Introduction.
Product Compliance.
Safety information.
Mounting position and
installation.
System grouping and
communication.
User interface.
LED indication.
Box Contents
Icons used in this manual:
Safety
Important info
Your benet
For latest PDF installation
guide please go to
www.salus-controls.com
iT600 VS05 Installer - User Manual 005_Layout 1 08.12.2014 13:32 Strona 2
Product Compliance & Safety Information
We hope you enjoy this product...
VS05 Installer Manual 03
INTRODUCTION
Thank you for purchasing the SALUS room
thermostatVS05. TheVS05 is a 230V dial
thermostat which oers simple temperature
control of your heating system.
SALUS recommends that you use your VS05
with the SALUS KL10 wiring centre and VS10
digital room thermostat.TheVS10 can be used
as a group control thermostat to control groups
of VS05’s. Please see pages 6 and 7.
Product Compliance
This product is CE compliant and meets the
following EC Directives Electro-Magnetic
Compatibility directive 2004/108/EC
Low voltage Directive 2006/95/EC
Safety Information
Use in accordance with the regulations
The SALUSVS05 is to be used for room
control of hot water heating systems
inside the house.
Installation
This product must be tted by a competent
person, and installation must comply with the
guidance, standards and regulations applicable
to the city, country or state where the product
is installed. Failure to comply with the
requirements of the relevant guidance,
standards and regulations could lead to injury,
death or prosecution.
Always isolate the AC mains supply
before installing or working on any components
that require 230V AC 50Hz supply.
iT600 VS05 Installer - User Manual 005_Layout 1 08.12.2014 13:32 Strona 3
Product Compliance & Safety Information
Sources of danger
The thermostat must be disconnected from
mains supply before removing the cover.
230V AC
Emergency
Switch o the voltage to the individual
thermostat wiring centre or complete system.
Installer parameter settings
The SALUSVS05 is equipped
with installer parameters. See page 13.
For the installer
Please enter any parameter
changes in the installer notes section.
04 VS05 Installer Manual
iT600 VS05 Installer - User Manual 005_Layout 1 08.12.2014 13:32 Strona 4
VS05 Installer Manual 05
Installation –Thermostat Mounting
Not to be positioned on an exterior wall.
Mounting position and installation

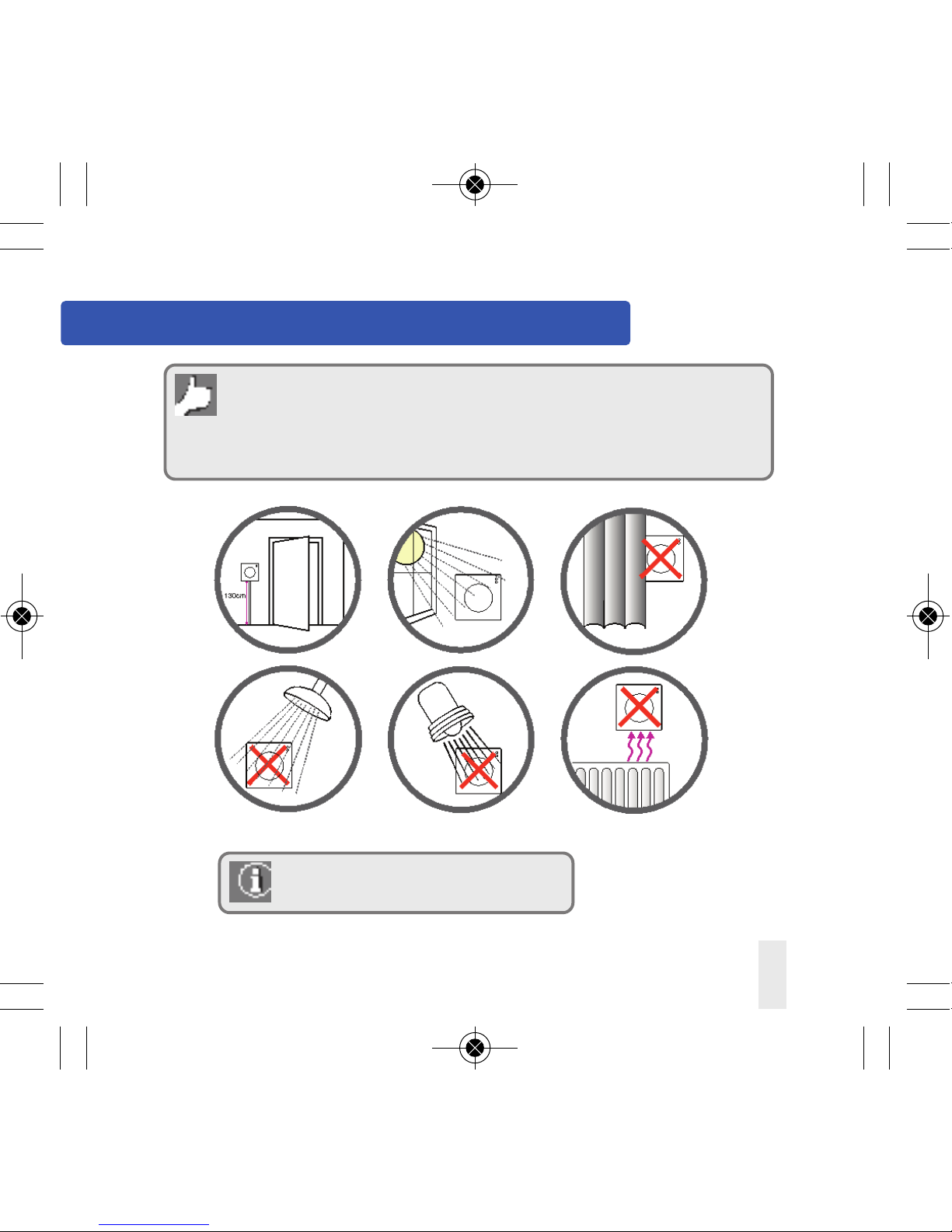

To ensure trouble free operation and ecient control, the unit is best positioned in
a draft free area and at 130cm from the oor. Do not position the thermostat near
any heat source, behind curtains, direct sunlight or an area of high humidity.
iT600 VS05 Installer - User Manual 005_Layout 1 08.12.2014 13:32 Strona 5
06 VS05 Installer Manual

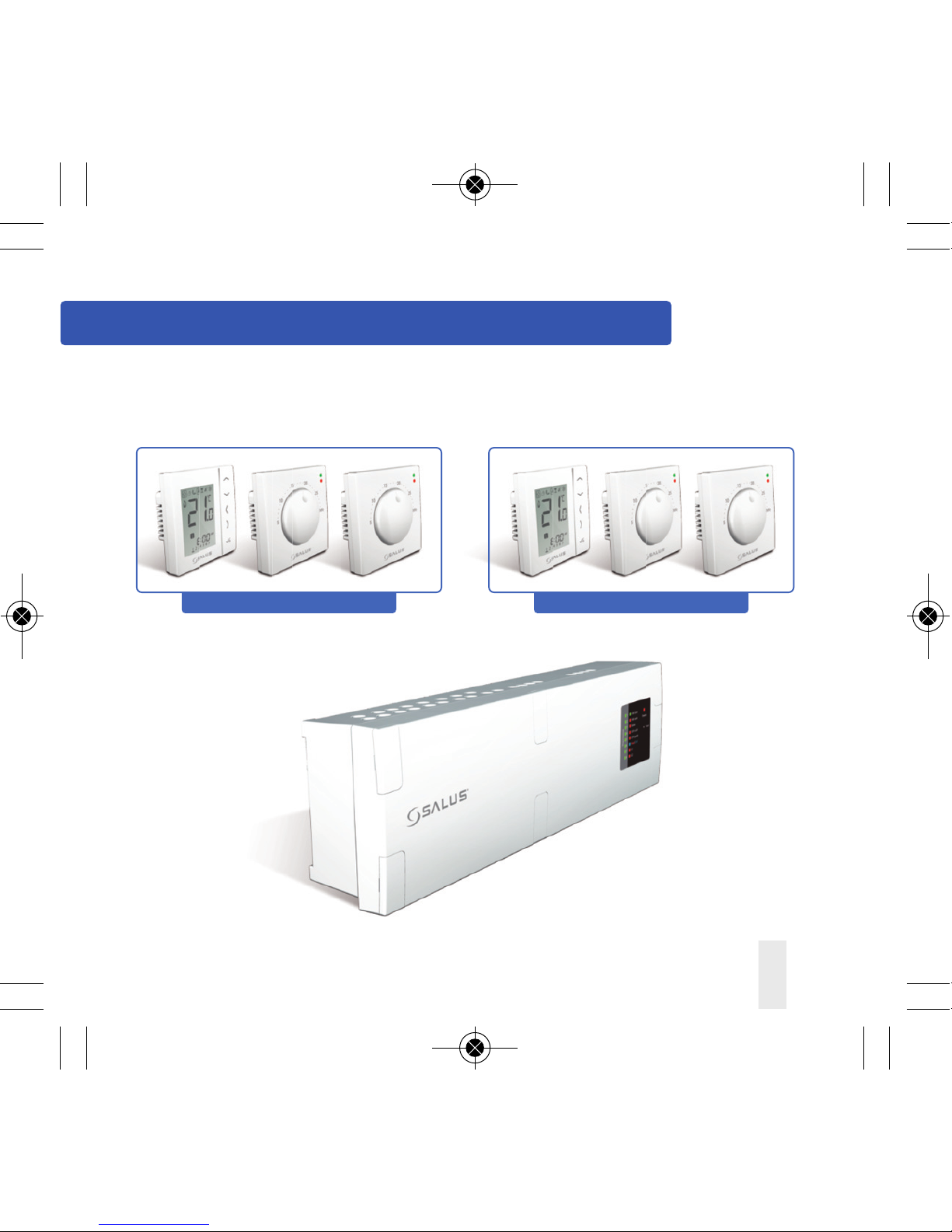

System Overview Grouping and Communication
Power and Switching Cable - used to
power thermostats and drive output.
Grouping and Communication cable.

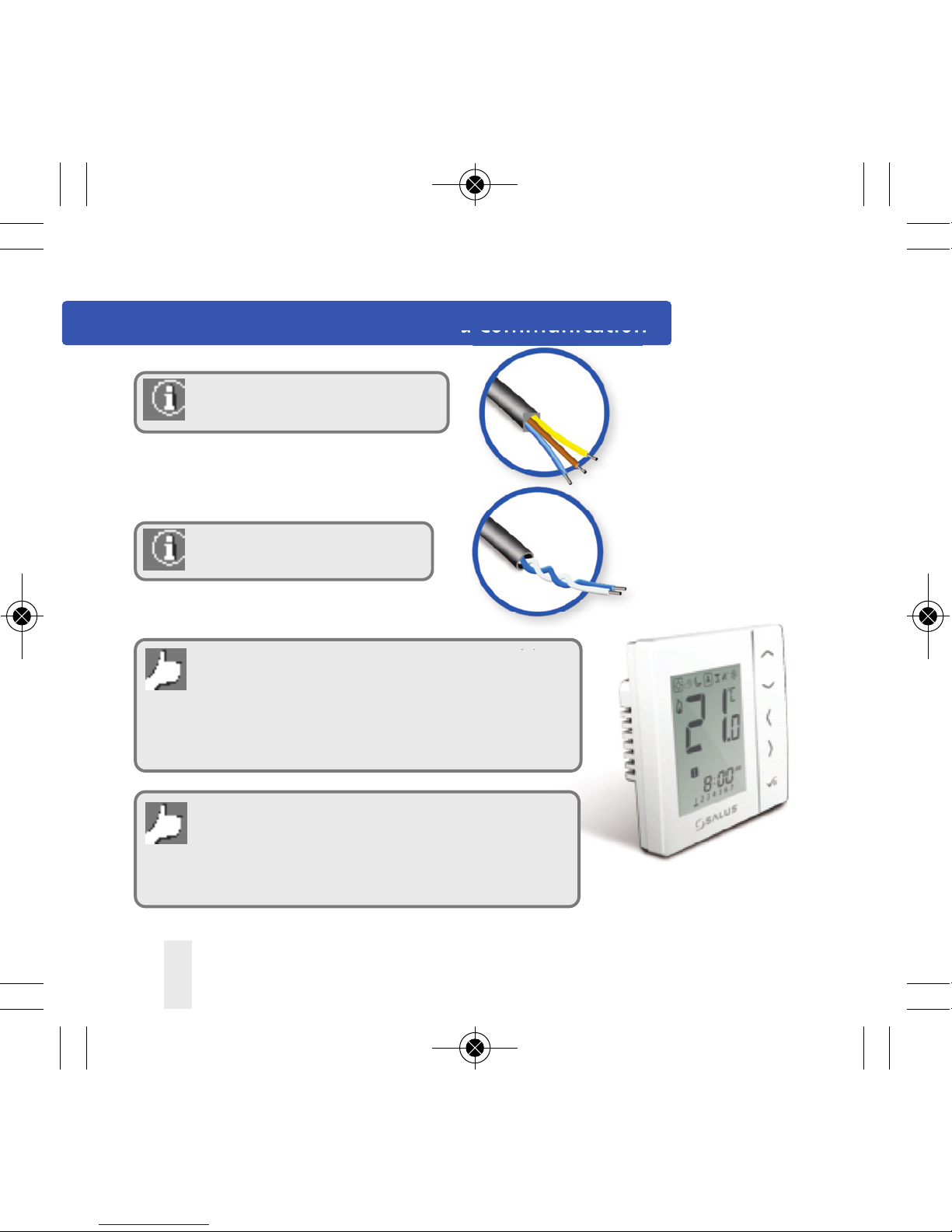

While the thermostats can function as standalone,
installing this optional inexpensive communication cable
allows the thermostats to communicate with the SALUS
VS10 congured as a group control thermostat and used
with the SALUS KL10 WC (both sold separately).
The VS05 will follow instructions from the VS10 bringing
central control of features such asTime Control, Holiday &
Party functions as well as Frost Control.TheVS05 can leave
or re-enter group control at the slide of a switch. VS10 Group ControlThermostat
(sold separately )
iT600 VS05 Installer - User Manual 005_Layout 1 08.12.2014 13:32 Strona 6
Group 2 – For Example upstairs
VS05 Installer Manual 07
System Overview Grouping and Communication
The maximum number of groups per KL10 wiring centre is two. The group selection
communication cable must correspond to the group terminals on the KL10WC.
Please refer to note 5 and the KL10 installation guide.
Group 1 – For Example Down stairs
SALUS KL10 Wiring Centre
iT600 VS05 Installer - User Manual 005_Layout 1 08.12.2014 13:32 Strona 7
08 VS05 Installer Manual
Installation –Thermostat Mounting
1
3
2
60mm
Wall Mounting

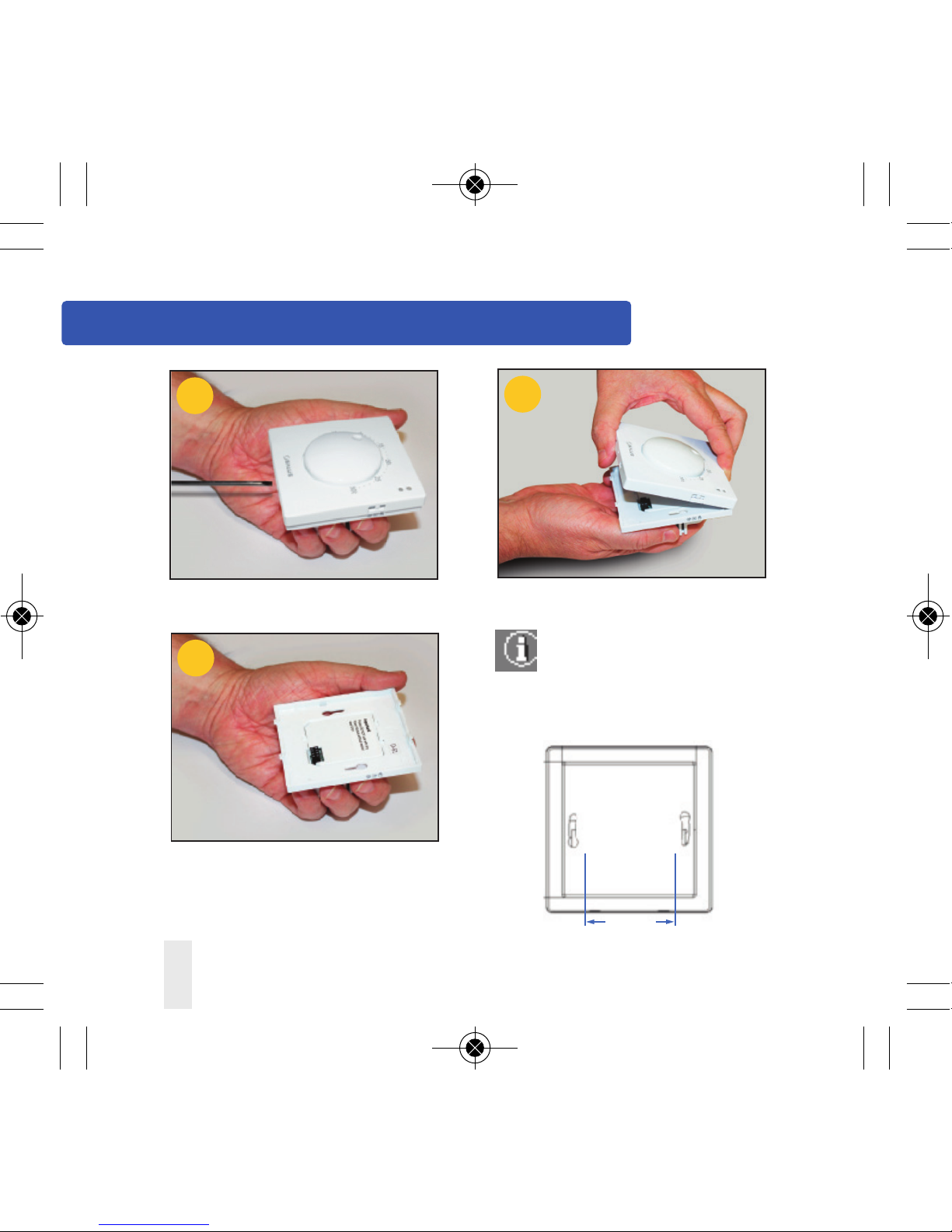

For wall mounting, mark and mount
the rear case to the wall.TheVS05 is
suitable for wall boxes with a centre
hole distance of:
Gently remove front housing.
iT600 VS05 Installer - User Manual 005_Layout 1 08.12.2014 13:32 Strona 8
VS05 Installer Manual 09
Installation –Terminal Connections

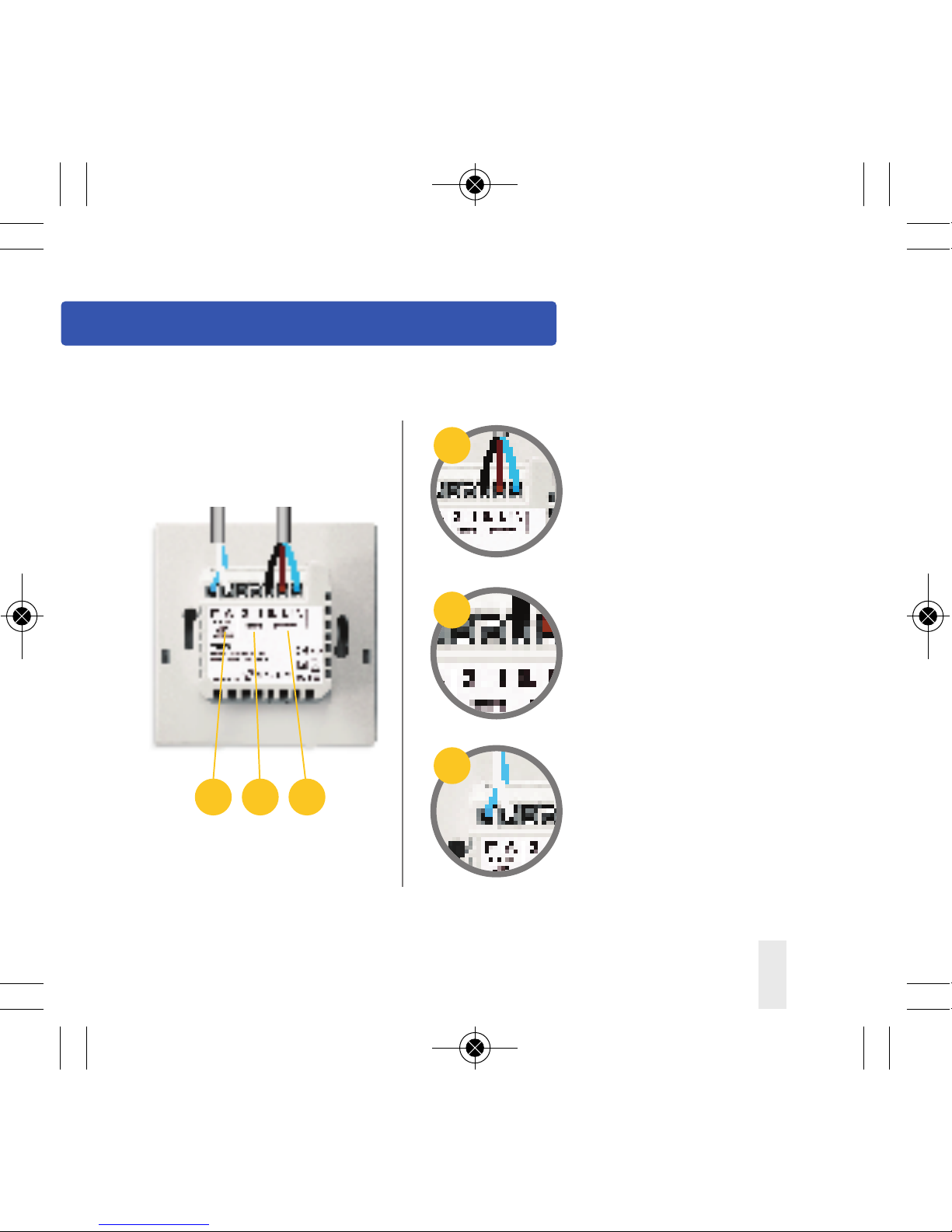

Understanding your terminal connections
Rear of VS05
Power Terminals 230 Vac
Used for supplying power to the
unit and switched output.
Sensor Terminals
Can be used for external Air or
Floor sensor.
Communication Terms 12VDC
Two wire twisted pair
can be used for grouping
functions between VS10 and VS05.
Also required for Heat/Cool
changeover.
3
1
2
3 2 1
iT600 VS05 Installer - User Manual 005_Layout 1 08.12.2014 13:32 Strona 9
10 VS05 Installer Manual

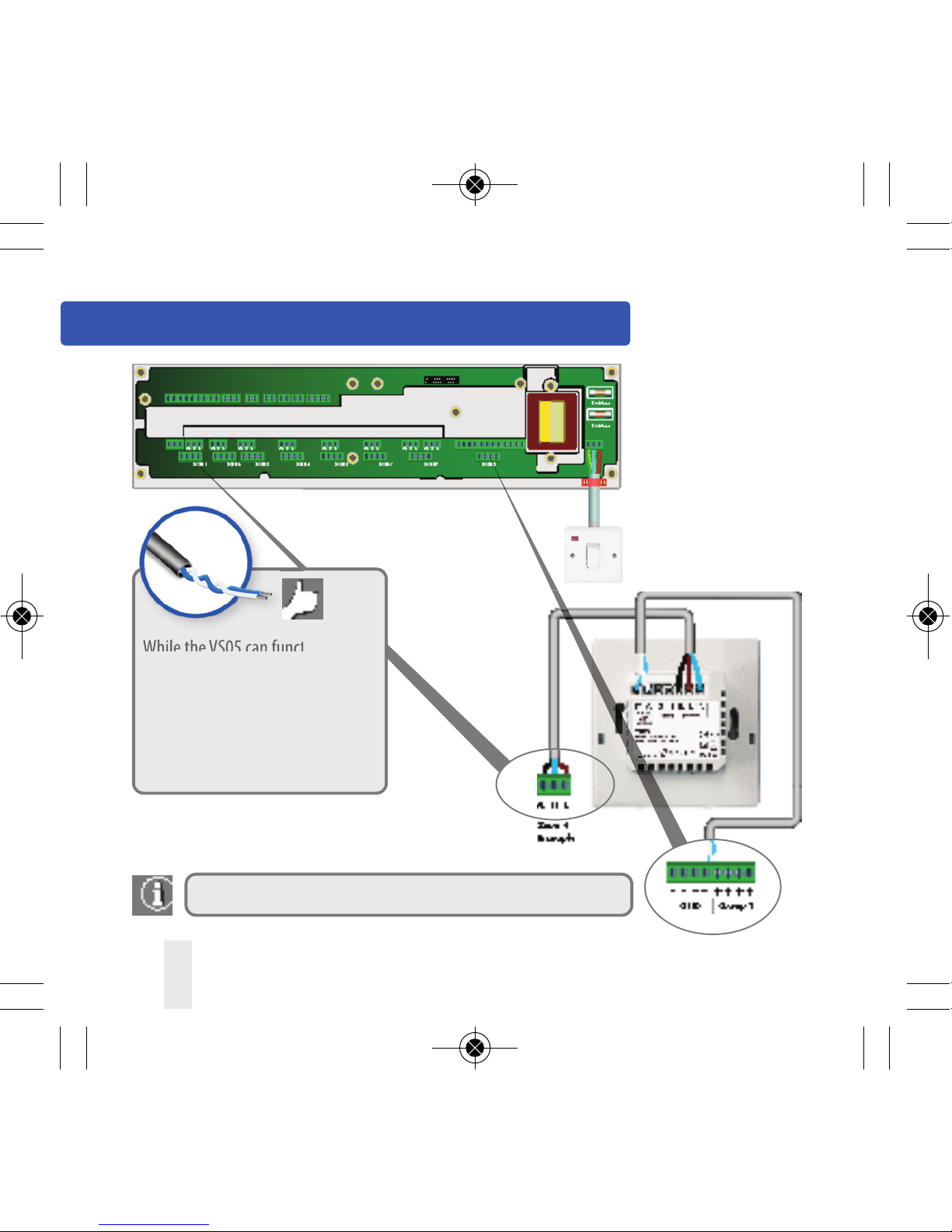

Installation –Thermostat Connections
While theVS05 can function on
its own, installing this optional,
inexpensive communication
cable allows theVS05 to
communicate with the SALUS
VS10 (sold separately).
Optional
communication
connection 12VDC
For more detail refer to note 5 on the wiring centre installation guide.
iT600 VS05 Installer - User Manual 005_Layout 1 08.12.2014 13:32 Strona 10
