Digital Colour Bullet Camera
SCB119HQMV
RS Part No. 696-1207
DIGITAL COLOUR VARI-FOCAL BULLET CAMERA
CAUTION
Do not open or strike this equipment. Sensitive electronics inside are vulnerable to excessive shock.
• Do not install the equipment near any naked flames or heat sources. Excessive heat could damage this unit.
• Do not cover cloth or to install this unit in poorly ventilated places. This may lead to overheating.
• Do not continue to operate if there appears to be fault.
If the unit ceases to function, contact qualified service personnel for help.
• Do not touch the power connection with wet hands. Risk of short circuit or electric shock.
• Do not damage the power cord or leave it under pressure. Risk of fire or shock circuit.
FEATURE
1/3" COLOUR SONY SUPER HAD
HIGH RESOLUTION (26 )
High Resolution : 560TV Line
B/W Mode : 600TV Line (True Day&Night)
Minimum Illumination : 0.2Lux(Day),0.03(Night) (F:1.2)
Auto White Balance
Automatic Gain Control
Power Source : DC12V ( 10%)
Manual Vari-Focal Lens Type
SPECIFICATION
Image Device
Picture Elements
Scanning System
Sync System
Video Output
S/N Ratio
Gamma Characteristic
Gain Control
White Balance
Electronic Shutter
LENS
Lens Option
Smear Effect
Minimum Illumination
Power Consumption
Operation Temperature
Storage Temperature
Weight
Housing
Dimension(mm)
Cable(option)
12V 10% DC, 140mA
26 × 105
0dB ~ 32dB Auto
Auto 2100 K ~ 9100 K Auto Push Lock (option : ATW)
Manual 4mm~9mm
10 ~50 , RH95% Max
1/60~1/100,000sec (Auto) 1/50~1/100,000sec (Auto)
Manual 9mm~22mm
0.005%
Approx 125g
ALUMINUM
20 ~60 , RH95% Max
Standard 500mm BNC/DC Jack
SCB119HQMV
Internal Synchronization
1Vp-p 75 Composite
SCB119HQMV (NTSC)
Horizontal Resolution
0.2Lux (Day)
(f:1.2)
752(H) 582(V)768(H) 494(V)
0.45
560 TV Line
More Than 50dB (AGC Off)
525 Lines, 60Field/sec
SCB119HQMV (PAL)
1/3" Colour SONY Super HAD CCD (1/3" Color SONY Exview CCD)
625 Lines, 50Field/sec
600TV Line (5~7Lux B/W Mode : True Day & Night)
•
℃℃
℃℃
Φ
±
Φ
RS PART No.:696-1207
OWNER’S MANUAL
How to use Bullet camera
SCB119HQMV
* Before installing or adjusting please read installation
guide that accompany with this product. Failure to follow
warning notices and instructions may result in property
damage. Improper installation and/or operation will void the
warranty.
Before Using or Installing
Please do not make any attempt to disassemble the camera.
To avoid any electrical shock, Please do not remove camera cover &
screw.
Please consult with Installation specialist since there is no user
execution.
Please do not use strong chemicals or detergent.
Use dry towel to wipe off the camera, to clean off the stain use weak
Cleaning detergent.
Before operation please check the temperature, humidity, and level of
the power.
Please operate camera between temperature levels of -10℃~ 50℃.
Please do not disclose the camera, if there is lot of smoke or gas.
Please do not disclose the camera under direct sunlight.
Do not aim camera directly at bright object.
By doing so, this action will cause blooming or smear.
Please handle camera with care.
Do not put camera near fire, as this may cause fire.
Please do not hit, or shake the camera.
This could cause camera to malfunction.
Improper care or use of the camera could damage the camera.
Please do not make children handle or operate camera. It may
cause children’s accidents or camera’s malfunction.
.How to Use &Installations & Warnings
Use of DC12V. ( Please use Adapter 300mA for DC12V).
Please use dry towel to clean camera instead of the abrasive.
(This could bring low quality screen view of camera)
Please do not misplace the camera. And prevent any malfunction.
Please do not use camera in humid or wet area.
Do not disclose camera to direct sunlight
Do not expose camera to massive electric wave.
Do not install camera location with lot of vibration.
Do not install product near very high temperature or very low
temperature area. (Please refer to our operation manual on
operation temperature & storage temperature)
Do not attempt to open dome cover after installation and
image adjustment

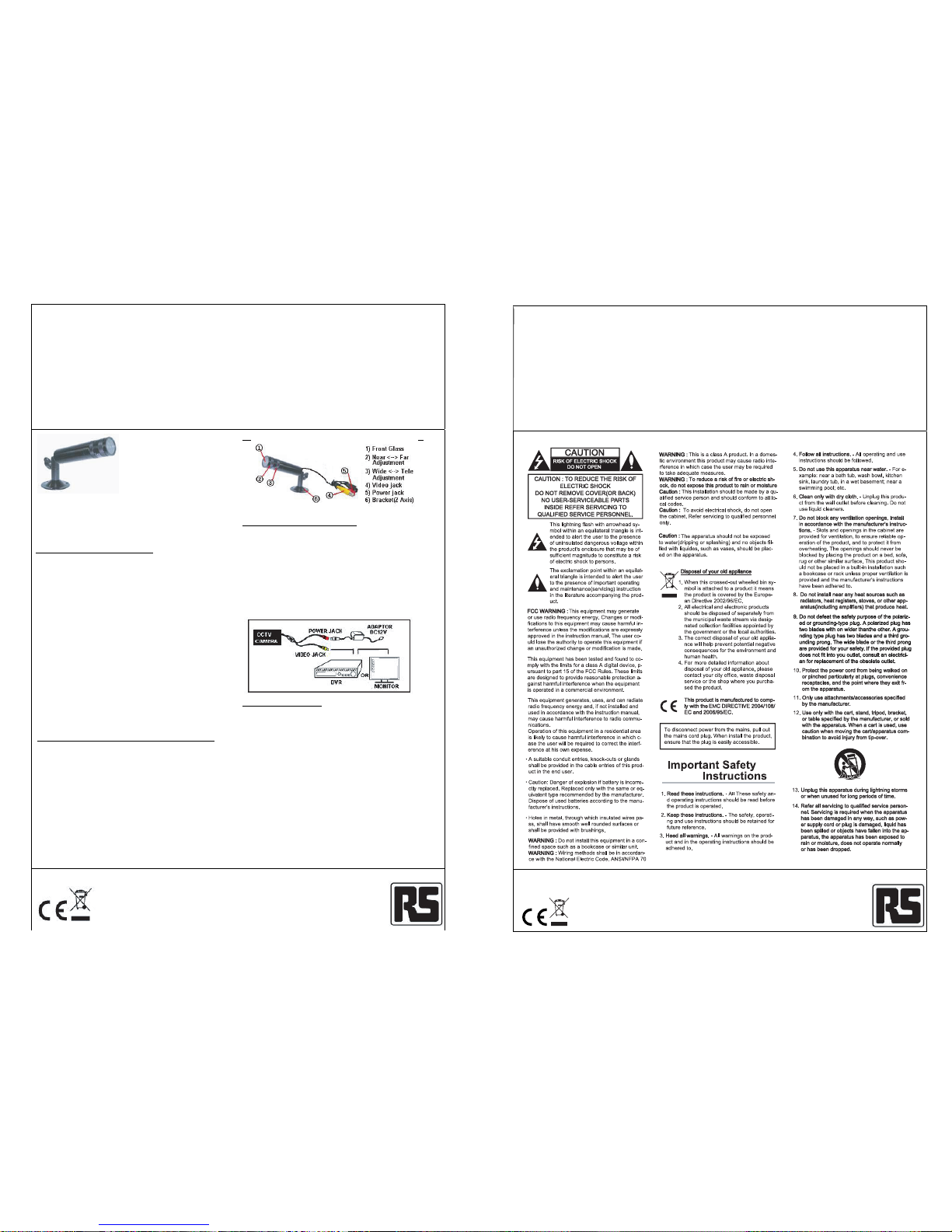

Production composition & Parts Names
Installation & connection
1)Locate installation area. Select area where it holds camera’s
weight for long time.
2)Please note the front direction shall be headed toward the
surveillance area. As the bracket is 2 axis adjustable, fix bracket
with its station screws to consider the surveillance area.
3)It’s Manual varifocal lens 4~9mm. You can adjust Wide > Tele &
Near > Far to turn to arrow indication around the lens.
4)Connect power jack(Red cable) with DC12V and Video jack(yellow)
to monitor or to DVR whichever is available
5) If under low illumination, the color changes to Black/White. You
can see clearer image than color at night.
Trouble Shooting
ㅤIf you are not able to view anything from the screen.
Check power, video, strength of signal.
Check monitor input/output.
Check camera connection number with monitor.
ㅤFor Fuzzy Screen
Check camera lens for dust or dirt. If so wipe them
off with dry towel or brush.
Check cover to see if it’s clean. If so wipe them off with dry towel or
brush.
Check for direct sunlight exposure towards camera.
Check if protection film from camera cover is removed
ㅤFor Dark Screen
Check for Monitor Brightness.
ㅤUnbalanced Black & White on the Monitor.
-Check Monitor
-Adjust the cameras position or angle of lens when screen is bright
If problem still remains please contact our Technical
Support Department.
OWNER’S MANUAL
How to use CCTV camera
