2 | SAMLEX AMERICA INC.

SECTION 1 | Safety Instructions

IMPORTANT SAFETY INSTRUCTIONS

SAVE THESE INSTRUCTIONS

This manual contains important Safety and Operating Instructions. Please read before

using this unit .

The following safety symbols will be used in this manual to highlight safety

and information:

WARNING!

Indicates possibility of physical harm to the user in case of non-compliance.

!CAUTION!

Indicates possibility of damage to the equipment in case of non-compliance.

Please read these instructions before installing or operating the unit to prevent personal

injury or damage to the unit.

WARNINGS!

1. DO NOT OPEN TO REDUCE RISK OF FIRE OR ELECTRIC SHOCK. THERE ARE NO USER

SERVICEABLE PARTS INSIDE—REFER TO QUALIFIED SERVICE PERSONNEL.

2. It is recommended that you return your inverter to a qualied dealer for any service

or repair. Incorrect assembly may result in electric shock or re.

3. To reduce the risk of electric shock, unplug the DC input from the battery before

attempting any maintenance or cleaning.

4. To reduce risk of damage to electric plug and cord, pull by plug rather than cord when

disconnecting the unit.

5. An extension cord should not be used unless absolutely necessary. If an extension cord

is used, make sure that it has 2-prong, male plug (NEMA1-15P) and 2-prong, female

receptacle (NEMA1-15R). The size of the current carrying conductors should be such

that they are able to carry at least 2.5A for the length of the extension.

6. Place the unit in an area that will allow air to ow freely around the unit. DO NOT

block or obstruct vent openings or install the unit in an enclosed compartment.

7. Keep the unit away from moisture and water.

8. NEVER OPERATE TWO OR MORE UNITS IN PARALLEL.

9. Precautions when working with batteries.

- Batteries contain very corrosive diluted Sulphuric Acid as electrolyte.

Precautions should be taken to prevent contact with skin, eyes or clothing.

- Batteries generate Hydrogen and Oxygen during charging resulting in

evolution of explosive gas mixture. Care should be taken to ventilate the

battery area and follow the battery manufacturer’s recommendations.

- NEVER smoke or allow a spark or ame near the batteries.

- Use caution to reduce the risk of dropping a metal tool on the battery. It

could spark or short circuit the battery or other electrical parts and could

cause an explosion.

- Remove metal items like rings, bracelets and watches when working with bat-

teries. The batteries can produce a short circuit current high enough to weld a

ring or the like to metal and thus cause a severe burn.

- If you need to remove a battery, always remove the Negative Ground Terminal

from the battery rst. Make sure that all the accessories are OFF so that you do

not cause a spark.

!CAUTIONS!

1. Please refer to 12V Plug Adapter (8) at Fig 2.3. Please ensure that the battery is

connected with correct polarity - Positive of the battery to the tip of the Adapter (8)

and the Negative of the battery to the spring contacts of the Adapter (8). Reversal of

polarity will blow 15A fuse (5). Reversal of polarity may result in permanent damage

to the unit and to the load. DAMAGE DUE TO REVERSE POLARITY IS NOT COVERED

UNDER WARRANTY.

2. The inverter has no ON/OFF switch. It will switch ON automatically after plugging

into 12V battery through the 12V Plug Adapter. Unplug the inverter from the battery

when not in use, as it will drain 0.5A from the battery even if no load is connected.

3. Ensure that the unit is connected to 12V battery and the battery charger voltage is

≤ 16.5V. Higher DC input voltage will damage the unit.

SECTION 1 | Safety Instructions

4 | SAMLEX AMERICA INC.

DESCRIPTION

This inverter converts 12 VDC from a battery or from a suitable 12 VDC power source to

120 VAC, 60 Hz Pure Sine waveform at rated power of 120W.

DESIGN FEATURES

• PureSineWaveACoutputwithTotalHarmonicDistortion(THD)of<3%

• USBChargingPort:5V,500mAwithovervoltageprotection

• Compactandlightweight

• 3colorLEDindicatorforoperationalstatus

• Temperaturecontrolledfanforhigherefciency

• DetachableDCPowerCordwith12VPowerPlug

• Forusewithsmalllaptops,portableelectronics,smallTVsVCRs,soundsystemsand

other sensitive portable electronics

• ListedtoULSafetyStandardUL60601-1forMedicalElectricalEquipment

• ComplieswithFCCPart15(B),ClassB

LAYOUT

SECTION 2 | Description, Layout & Installation

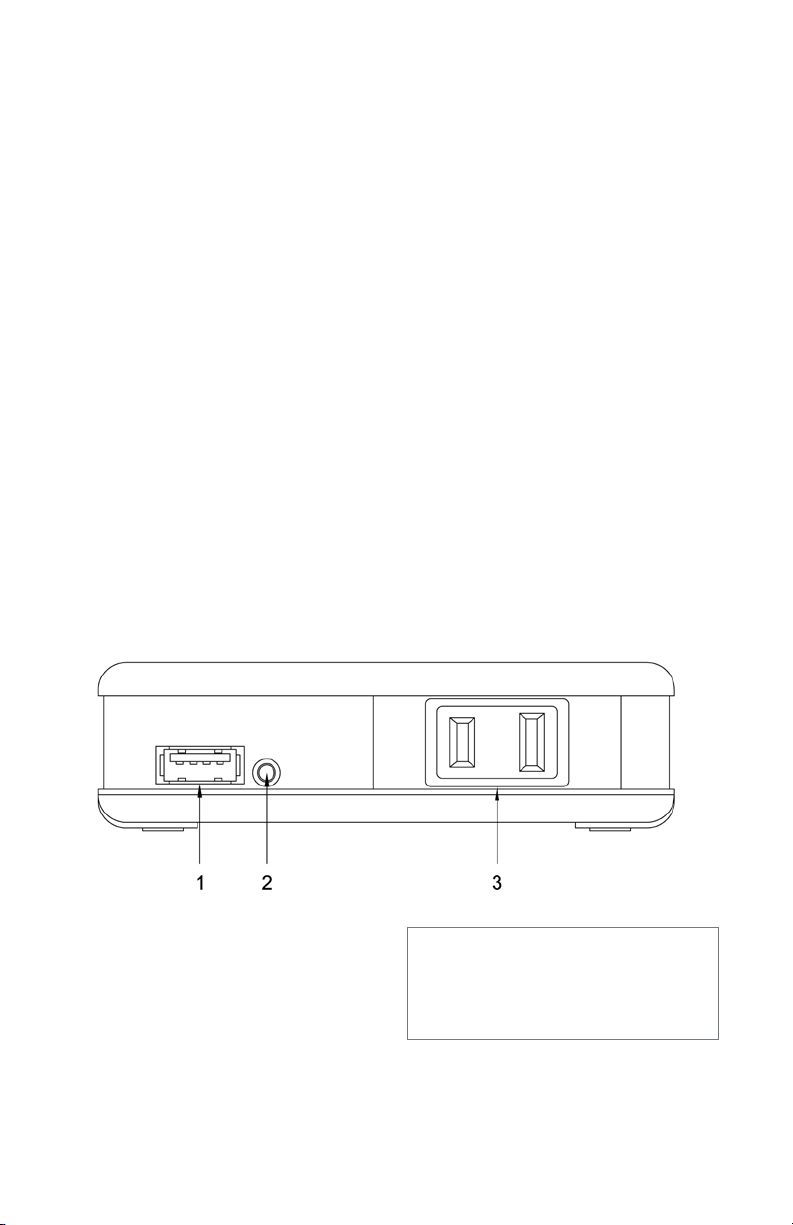

Fig. 2.1: Front View

LEGEND

1. USB Charging Port (5 VDC / 500mA)

2. LED Status Indicator

3. AC Outlet – NEMA1-15R

SECTION 2 | Description, Layout & Dimensions

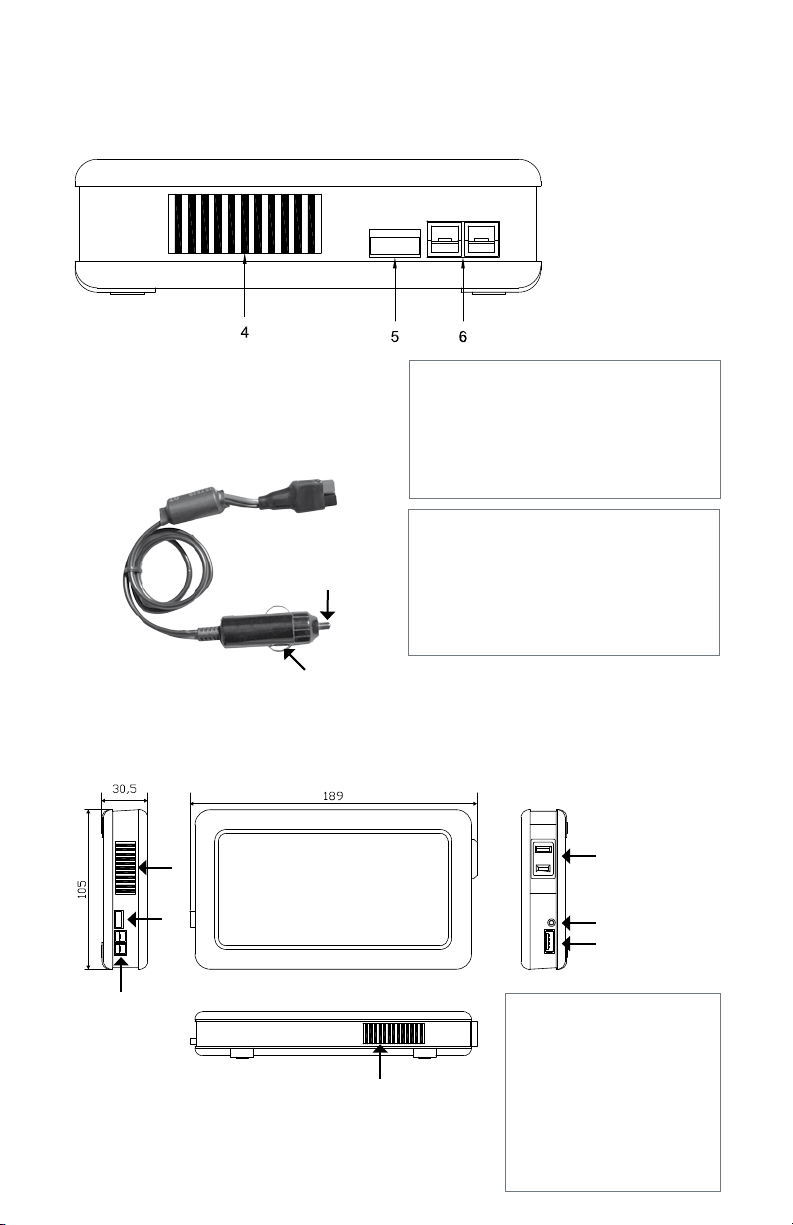

Fig. 2.2: Rear View

Fig. 2.3: DC Input Cord

Fig. 3: Plan, Elevations & Dimensions

LEGEND

1. USB (5 VDC / 500 mA)

2. LED Status Indicator

3. AC Outlet – NEMA1-15R

4. Slots for Fan Suction

5. DC Input Fuse - 32V, 15A

6. Battery Modular Inlet Connector

11. Slots for Fan Discharge

(Fan is located behind the slots)

LEGEND

4. Slots for Fan Suction

5. DC Input Fuse - Automotive Mini Blade Type

32V, 15A

6. Battery Modular Inlet Connector for DC Input

Power Cord

LEGEND

7. Detachable DC Input Power Cord (2')

8. 12V Plug Adaptor for Battery Side

9. Ferrite Bead for Noise Suppression

10. Mating Battery Modular Connector

for inverter side

Spring contacts connect to

Negative of 12V battery

Tip connects to

Positive of the 12V

battery

DIMENSIONS

6 | SAMLEX AMERICA INC.

SECTION 3 | Installation & Operation

INSTALLATION & OPERATION

- Ensure installation clearances are as shown in Fig. 3.1 above for proper cooling.

- A detachable 2' DC input power cord (7, Fig. 2.3) has been provided.

- This unit does not have a power ON/OFF switch. The unit will switch ON automatically as soon

as 12 VDC power is fed from the battery through the 12V plug adaptor (8, Fig. 2.3).

- Connect the detachable DC input power cord (7, Fig. 2.3) by sliding the mating

Battery Modular connector (10, Fig. 2.3) into the DC input connector (6, Fig. 2.2).

- Plug in the 12V Plug Adaptor (8, Fig. 2.3) of the DC input cord into the 12V outlet of the

battery supply.

- When the LED Status Indicator (2, Fig. 2.1) is GREEN, the inverter's AC Outlet (3, Fig. 2.1) and

USB port (1, Fig. 2.1) will have voltage outputs.

- Insert plug of your electrical appliance into the AC Outlet (3, Fig. 2.1) of the inverter.

- Remove the inverter from the 12V outlet when not in use. This will prevent unnecessary drain

from the battery.

Cooling Slots

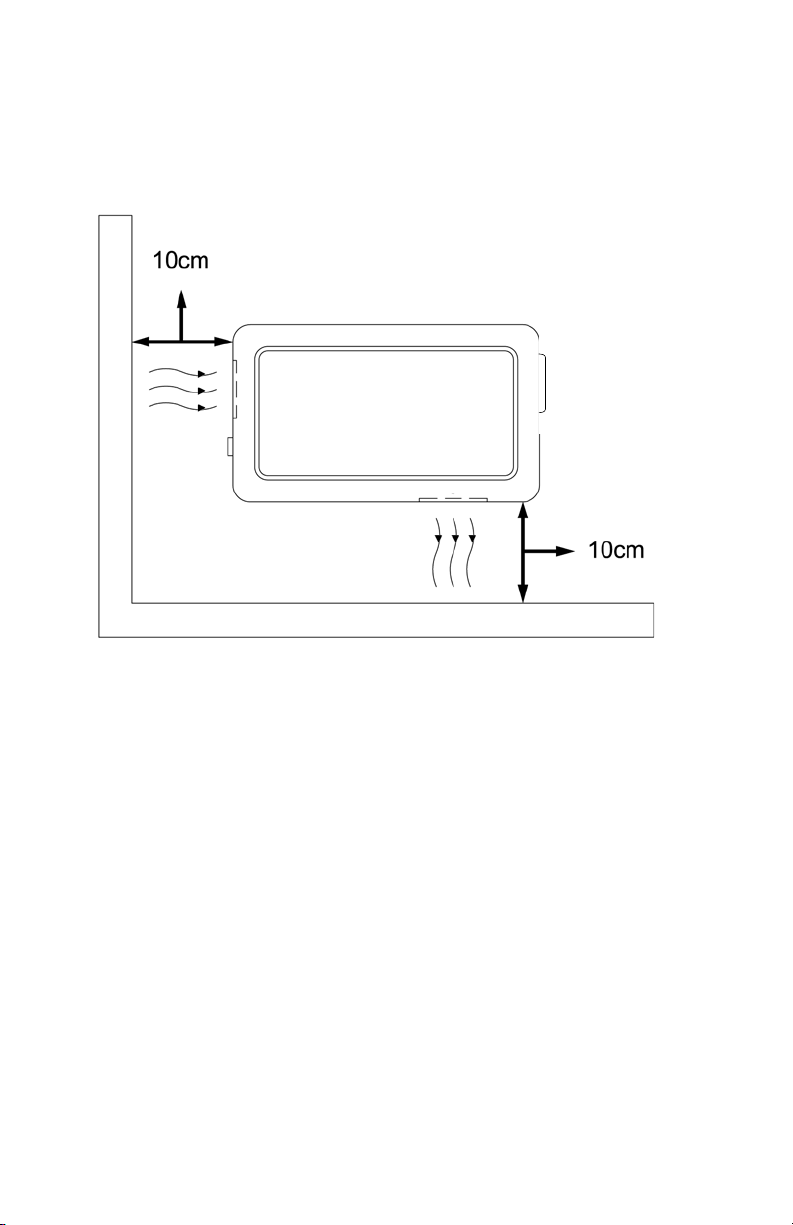

Fig. 3.1: Installation Clearances

SECTION 3 | Installation & Operation

PROTECTIONS

Overload and short circuit on the AC output side

- If the load exceeds 120W, the output voltage will start dropping, but the unit will

NOT shut down.

- The LED Status Indicator (2, Fig. 2.1) will remain GREEN.

-The output voltage waveform will be distorted and will not have pure sine waveform,

but will be clipped at top and bottom and will look like a square waveform.

- There will be excessive RF noise.

- The until will reset automatically once the overload/short circuit is removed.

Over temperature due to fan failure or due to lack of cool replacement air

- The unit will shut down if temperature of hot spot inside the unit > 105°C. The LED

Status Indicator (2, Fig. 2.1) will turn ORANGE.

- The unit will reset automatically on cooling.

Low DC Input Voltage

- TheunitwillshutdownifDCinputvoltageis<10VDC.

- The LED Status Indicator (2, Fig. 2.1) will turn ORANGE.

- The unit will reset automatically when the voltage rises to 11.5 VDC.

High DC Input Voltage

- The unit will shut down if DC input voltage > 16.5 VDC.

- The LED Status Indicator (2, Fig. 2.1) turns ORANGE.

- Theunitwillresetautomaticallywhenvoltageis<16.5VDC.

Over Voltage On USB Port

- USB output is shut down if USB output ≥ 6.2 VDC.

- The LED Status Indicator (2, Fig. 2.1) will be OFF or RED.

Operational conditions indicated by the LED Status Indicator (2, Fig. 2.1) are given in

the following table:

8 | SAMLEX AMERICA INC.

LED STATUS

INDICATOR STATUS OF INVERTER STATUS OF USB PORT

OFF

AC output is available No output from USB port due to:

- Over voltage ≥6.2V

- USB section is defective

AC output is not available No DC input, check:

- 12V Plug Adaptor (8) is rmly

connected to the 12 VDC power

source

- 15A fuse (5) is not blown

GREEN AC output is available USB output is available

ORANGE

AC output is not available due to operation of one

or more of the following protections:

- Over temperature

- Low DC input voltage

- High DC input voltage

USB output is available

RED

AC output is not available due to operation of one

or more of the following protections:

- Over temperature

- Low DC input voltage

- High DC input voltage

No output from USB port due to:

- Over voltage ≥6.2V

- USB section is defective

SECTION 3 | Installation & Operation

Cooling

- The inverter has a temperature controlled fan for cooling.

- The fan will start once the temperature of the hot spot inside the unit exceeds

70°C / 158°F. Note: In cooler ambient temperature and/or at no/low loads, the hot spot

may not reach 70°C / 158°F and hence, the fan will be OFF.

- If the fan fails, or if adequate cool air change is not available, temperature of hot spot

will continue to rise and at ≥ 105°C / 221°F, AC output will be shut down. AC output

will be restored when the unit cools down sufciently.

- Place the unit in a cool, well ventilated space that has adequate cool replacement

air (Fig. 3.1).

SECTION 4 | Specications

MODEL NO. PST-120-12

AC OUTPUT

OUTPUT VOLTAGE 120 VAC ± 3%

OUTPUT CURRENT 1A

OUTPUT FREQUENCY 60 Hz ± 1%

TYPE OF OUTPUT WAVEFORM Pure Sine Wave

TOTAL HARMONIC DISTORTION OF

OUTPUT WAVEFORM < 3%

CONTINUOUS OUTPUT POWER

(At Power Factor = 1) 120 Watts

SURGE OUTPUT POWER (At Power Factor = 1) 120 Watts

PEAK EFFICIENCY 88%

AC OUTPUT CONNECTION NEMA1-15R Receptacle

DC INPUT

NOMINAL DC INPUT VOLTAGE 13 VDC

DC INPUT VOLTAGE RANGE 10 - 16.5 VDC

MAXIMUM INPUT CURRENT 15A

DC INPUT CURRENT AT NO LOAD < 500 mA

DC INPUT CONNECTION - Battery Modular Connector on the inverter

- 2 ft. detachable Power Cord with:

- AWG #14 wires

- Mating Battery Modular Connector on inverter side

- 12V Plug Adapter on battery side

DISPLAY 3 COLOR LED For Operational Conditions

PROTECTIONS

LOW DC INPUT VOLTAGE Shutdown at ≤ 10V; Auto-reset at ≥ 11.5V

HIGH DC INPUT VOLTAGE Shutdown at ≥ 16.5V; Auto-reset at ≤ 16.5V

SHORT CIRCUIT / OVERLOAD Output voltage drops, but does not shut down.

Auto-reset on removal.

OVER TEMPERATURE Shut down when internal hot spot is ≥ 105°C / 221°F.

Auto-reset on cooling

REVERSE POLARITY ON DC INPUT SIDE Automotive Mini Blade Fuse: 32V, 15A

HIGH DC OUTPUT OF USB PORT Shuts down USB Port at ≥ 6.2V

COOLING Temperature Controlled Fan

COMPLIANCE

SAFETY Intertek - ETL Listed. Conforms

to ANSI/UL Standard 60601-1.

EMI FCC Part 15(B), Class B

EN 55022: 2006; EN 55024: 1998+A1; 2001+A2; 2003

EMC EN61000-3-2: 2006

EN 61000-3-3: 1995+A1; 2001+A2; 2005

ENVIRONMENT OPERATING

TEMPERATURE RANGE 0˚C to 40˚C / 32˚F to 104˚F

(W x D x H), MM 105 x 189 x 30.5

DIMENSIONS &

WEIGHTS (W x D x H), INCHES 4.13 x 7.44 x 1.2

KG 0.453

LBS 1.0

SAMLEX AMERICA BATTERY CAR BATTERIES

Indice

Altri manuali Samlexpower Invertitore

Samlexpower

Samlexpower SAM-1000-12 Manuale utente

Samlexpower

Samlexpower PST-15S-12E Manuale utente

Samlexpower

Samlexpower PST-600-12 Manuale utente

Samlexpower

Samlexpower Evolution EVO-4248SP Manuale utente

Samlexpower

Samlexpower Pure Sine PST-1500-12 Manuale utente

Samlexpower

Samlexpower PST-12S-12A Manuale utente

Samlexpower

Samlexpower PST-300-12 Manuale utente

Samlexpower

Samlexpower Evolution EVO-2212 Manuale utente

Samlexpower

Samlexpower SI-A1-VR1500 Manuale utente

Samlexpower

Samlexpower SAM-1500C-12 Manuale utente

Samlexpower

Samlexpower PSE-24100A Manuale utente

Samlexpower

Samlexpower PSE-24125A Manuale utente

Samlexpower

Samlexpower SAM-250-12 Manuale utente

Samlexpower

Samlexpower PST-12S-12A Manuale utente

Samlexpower

Samlexpower PST-600-48 Manuale utente

Samlexpower

Samlexpower Evolution Series Manuale utente

Samlexpower

Samlexpower Evolution EVO-4248SP Manuale utente

Samlexpower

Samlexpower PST-100S-12A Manuale utente

Samlexpower

Samlexpower SSW-350-12A Manuale utente

Samlexpower

Samlexpower Pure Sine PST-1500-12 Manuale utente

Samlexpower

Samlexpower SA-600R Series Manuale utente

Samlexpower

Samlexpower Soleil 2000-120 Manuale utente

Samlexpower

Samlexpower VR175 Manuale utente

Samlexpower

Samlexpower SA-1500 Series Manuale utente

Manuali Invertitore popolari di altre marche

Fourgroup

Fourgroup Easy Manuale utente

Velleman

Velleman PI300M Manuale utente

Sungrow

Sungrow SG350HX-US Manuale utente

WilTec

WilTec 61897 Manuale utente

SMA

SMA SUNNY BOY STORAGE 2.5 Manuale utente

Simplicity

Simplicity LANDLORD 316 Manuale utente

Santak

Santak SMAX 3000 Manuale utente

ATON

ATON RA.Store-3 Manuale utente

ZIEHL-ABEGG

ZIEHL-ABEGG FXET4AMQ Manuale utente

Tektronix

Tektronix CFG250 Manuale utente

Champion

Champion 200989 Manuale utente

Vanner

Vanner 20-500 Series Manuale utente

GE GEP Manuale utente

Astrel Group

Astrel Group Power Reducer Guida rapida

MULTIQUIP

MULTIQUIP GDP-5H Guida

GoWISE

GoWISE PS1007 Manuale utente

Promate

Promate PM13500D ES Manuale utente

Mastervolt

Mastervolt WHISPER 3.5M3000 RPM Manuale utente
