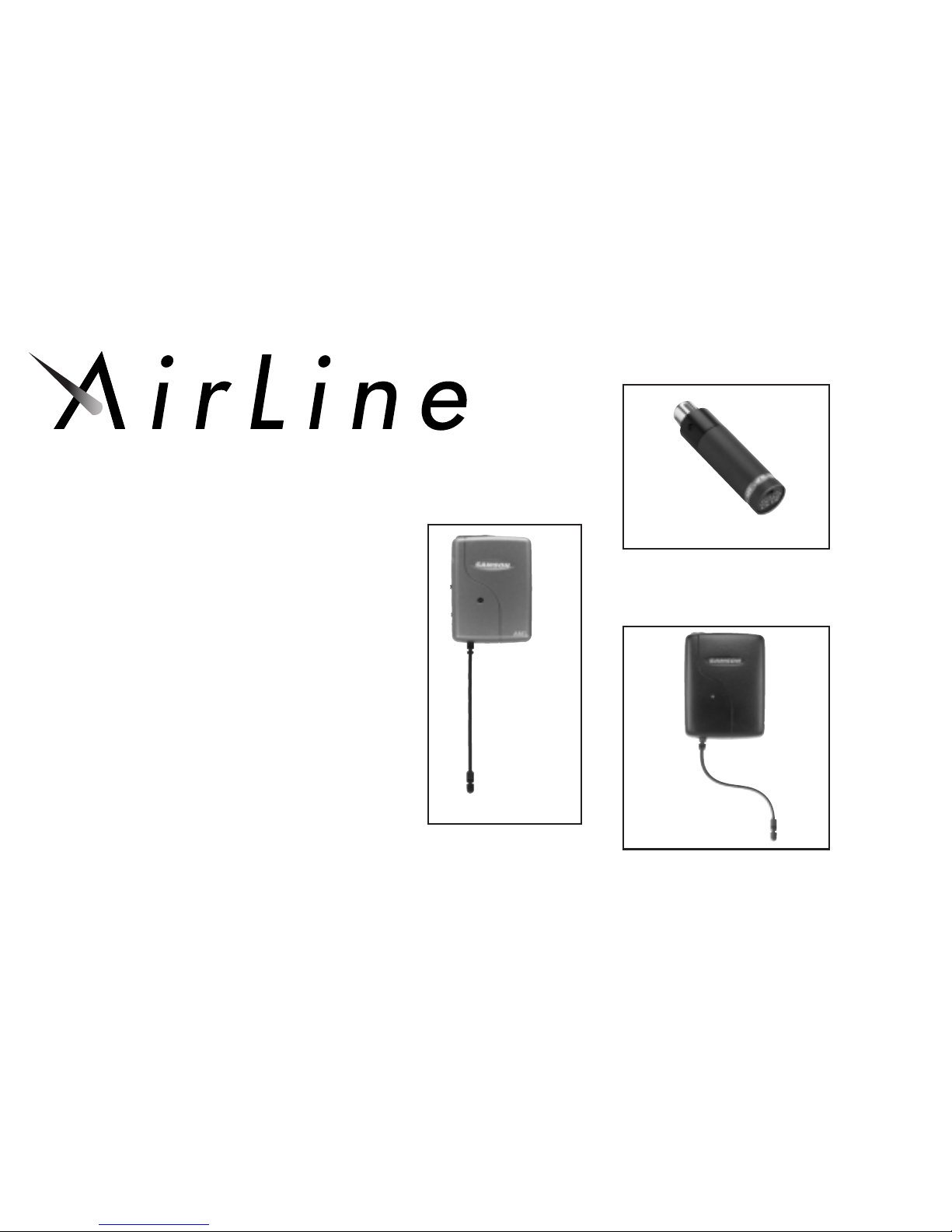

Samson AirLine AX1 Manuale utente

UHF Wireless System

Owners Manual

Handheld Transmitter

Presentation

Transmitter

• AX1 Handheld Transmitter

• AL1 Presentation Transmitter

• AM1 Receiver

SAMSON

AM1 Receiver

ENGLISH

Introduction 1

QuickStart 2

Guided Tour - AM1 Receiver 4

Guided Tour - AX1 Handheld Transmitter 6

Guided Tour - AL1 Presentation Transmitter 8

Setting Up and Using Your AirLine System 11

Attaching the Lanyard to the AL1 15

Specifications 69

Wiring Diagram 19

Channel Plan 71

FRANCAIS

Introduction 23

Prise en main 24

Tour d’horizon - Récepteur AM1 26

Tour d’horizon - Émetteur main AX1 28

Tour d’horizon - Émetteur de présentation AL1 30

Paramétrage et utilisation du système AirLine 31

Fixation du cordon àL’AL1 37

Caractéristiques techniques 39

Schéma de câblage 41

Plan des canaux 42

DEUTSCH

Einleitung 45

Schnellstart 46

Führung - AM1 Empfänger 48

Führung - AX1 Aufsteck-Sender 50

Führung - AL1 Vario-Sender 52

AirLine-System einrichten und einsetzen 55

Halsgurt am AL1 befestigen 59

Technische Daten 61

Verdrahtungsplan 63

Kanalplan 64

ESPAÑOL

Introducción67

Guía rápida 68

Visita guiada - Receptor AM1 70

Visita guiada - Transmisor portátil AX1 72

Visita guiada - Transmisor para presentaciones AL1 74

Instalar y utilizar el sistema AirLine 77

Montar la correa en el AL1 81

Especificaciones 83

Esquema de cableado 85

Plano de canales 86

Table of Contents

Samson Technologies Corp. •575 Underhill Blvd. •P.O. Box 9031 •Syosset, NY 11791-9031

Phone: 1-800-3-SAMSON (1-800-372-6766) •Fax: 516-364-3888

www.samsontech.com

Printed May 2001

Introduction Samson AirLine

ENGLISH

Welcome to Samson AirLine—the wireless system for the new millennium! Wireless microphone and instrument systems were

originally developed to eliminate cables, providing unparalleled freedom of movement. AirLine takes this concept to a new level with

transmitters and receivers so small, lightweight and aerodynamic, they are nearly invisible, providing a completely “hassle-free”user

experience. To create the world’s smallest wireless systems, we developed new proprietary technology. Featuring miniaturized circuitry

and the ability to operate on a single tiny AAA battery (with 14 hours typical battery life), these systems also feature significantly

improved wireless reception and sound quality. What’s more, the AM1 micro receiver developed especially for the AirLine system is as

small as the AL1 transmitter.

There are two different Samson AirLine systems detailed in this manual. Both operate in the 801 - 805 MHz UHF frequency range

and each contains an AM1 micro receiver. The AirLine UHF Microphone System contains an AX1 hand-held transmitter, which plugs

into any standard wired dynamic microphone. The AirLine UHF Presentation System contains an AL1 presentation transmitter, which

contains a built-in electret condenser microphone and connection for an optional lavalier microphone.

In this manual, you’ll find a more detailed description of the features of all AirLine systems, as well as a guided tour through all com-

ponents, step-by-step instructions for setting up your system and full specifications. If your AirLine system was purchased in the United

States, you’ll also find a warranty card enclosed—don’t forget to fill it out and mail it! This will enable you to receive online technical

support and will allow us to send you updated information about this and other Samson products in the future. If your AirLine system

was purchased outside of the U. S., contact your local distributor for warranty details. Also, be sure to check out our website

(http://www.samsontech.com) for complete information about our full product line.

SPECIAL NOTE for U.S. purchasers: Should your AirLine system ever require servicing, a Return Authorization number (RA) is

necessary. Without this number, the unit will not be accepted. If your AirLine system was purchased in the United States, please call

Samson at 1-800-372-6766 for a Return Authorization number prior to shipping your system. If possible, return the unit in its original

carton and packing materials. If your AirLine system was purchased outside of the U. S., contact your local distributor for information.

Quick Start

Samson AirLine

ENGLISH

If you’ve had some prior experience using wireless systems, these QuickStart instructions will get you up and running with your

AirLine system in a matter of minutes! Detailed instructions for setting up and using your AirLine system can be found on page 11 of

this manual, and the “Guided Tour”sections on pages 4 - 16 provide full descriptions of all AirLine component controls and displays.

1. Make sure that the AM1 receiver and AX1 and/or AL1 transmitter are factory preset to the same channel.

2. Place a fresh battery in the AM1 receiver. Place the receiver where it will be used. The AM1 receiver can be mounted to the hot

shoe of the camera, clipped with the supplied clip or fastened by the use of the supplied velcro.

3. Set the power switch to your transmitter to the “off”position (away from the arrow) and place a fresh battery in it. Then turn the

transmitter back on momentarily; its LED will flash once and then go off if the battery is sufficiently strong. Once battery strength

is verified, turn the transmitter off.

4. If you are using an AX1, plug its XLR connector into a wired dynamic microphone; make a good tight connection, using the sup-

plied rubber gasket if necessary. If you are using the AL1 with an external lavalier microphone, make the physical connection

between its input connector and the microphone.

5. Make the physical cable connection between the AM1 receiver’s 2.5mm stereo output jack and audio input of your camera or

mixer using the supplied 2.5mm to 3.5mm SMM14 cable (see wiring diagram on page 19 for options).

6. Select the correct gain by using the MIC/LINE switch on the AM1 receiver to match the input of your camera or mixer.

Quick Start Samson AirLine

ENGLISH

7. Turn on the receiver. The POWER/BATTERY LED will light momentarily indicating the power has been turned on.

8. Turn on your transmitter. The audio signal can be monitored through the 3.5mm stereo headphone output and headphone volume

can be adjusted via the headphone level trim pot with the supplied plastic screwdriver.

9. Turn on your camera or mixer but keep its volume all the way down. If your system contains an AL1 transmitter, make sure it is

unmuted. Set the Volume, Level or AF Level knob on the receiver fully clockwise; this is unity gain.

10. Speak or sing into your mic at a normal performance level while slowly raising the audio input control of your camera (if you

have one) or mixer until the desired level is reached. If necessary, use the supplied plastic screwdriver to adjust the transmitter’s

Gain trimpot in order to increase or decrease its signal level. If you are using an AL1 transmitter with the built-in microphone,

correct placement is critical to sound quality. It should be unobstructed by clothing and either clipped to a shirt pocket or lapel,

or worn around the neck on the supplied lanyard.

11. Do a walkaround through the intended area of coverage while monitoring the audio signal via the AM1 receiver headphone out-

put or input level meter (if one is available).

Guided Tour - AM1 Receiver

Samson AirLine

ENGLISH

1: Multi-color LED - The LED will flash red momentarily when the power is switched on and a

charged battery is in place. It will light continuously red when battery is low and needs to be

replaced. When the AM1 is receiving RF the LED will light green. The LED will appear orange

when any combination of these events cause the LED to light green and red simultaneously.

2: Headphone Output - This 3.5mm headphone level output jack can be used to monitor

audio signal.

3: Audio Output - This 2.5mm jack will accept the supplied 2.5mm to 3.5mm stereo SMM14

cable and send the audio signal to the camera or mixer input (see #5 below to set the

correct output level; see wiring diagram on page 19 for options).

4: Headphone Level Trimpot - Use this to adjust the volume

routed to the Headphone Output.

5: Line/Mic Switch - This switch will set the correct signal level at

the Audio Output jack. Set the switch to Line when connecting

the output to a line level input as on a mixer. Set the switch to

Mic when connecting to Mic level input as on a camera.

(Check your equipment manuals for correct gain structure)

6: Power Switch - Switches the Power on and off. The LED on the

front of the AM1 receiver will light momentarily when

switched on. (see #1 above)

AM1

OUTPUT

Guided Tour - AM1 Receiver Samson AirLine

ENGLISH

7: Hot Shoe Clip/Belt Clip - The AM1 is shipped with

the Belt Clip mounted to the rear of the receiver. The

hot shoe clip (included with hardware) can be fixed

to the rear of the AM1 to mount the receiver to the

hot shoe of your camera. To fasten the hot shoe clip

to the receiver, first remove the phillips head screw

and belt clip, then secure the hot shoe clip with the

supplied phillips head screw.

8: Battery Compartment - Insert a standard AAA alka-

line battery here, being sure to observe the plus and

minus polarity markings shown.

WARNING: Do not insert the battery

backwards; doing so can cause severe

damage to the AM1 and will void your

warranty.

9: Antenna - Receives RF signal from

the transmitter. Once you have

selected the placement of the

receiver the antenna should be

turned to be in a vertical position

for optimum reception.

LINE MIC

LEVEL

Guided Tour - AX1 Handheld Transmitter

Samson AirLine

ENGLISH

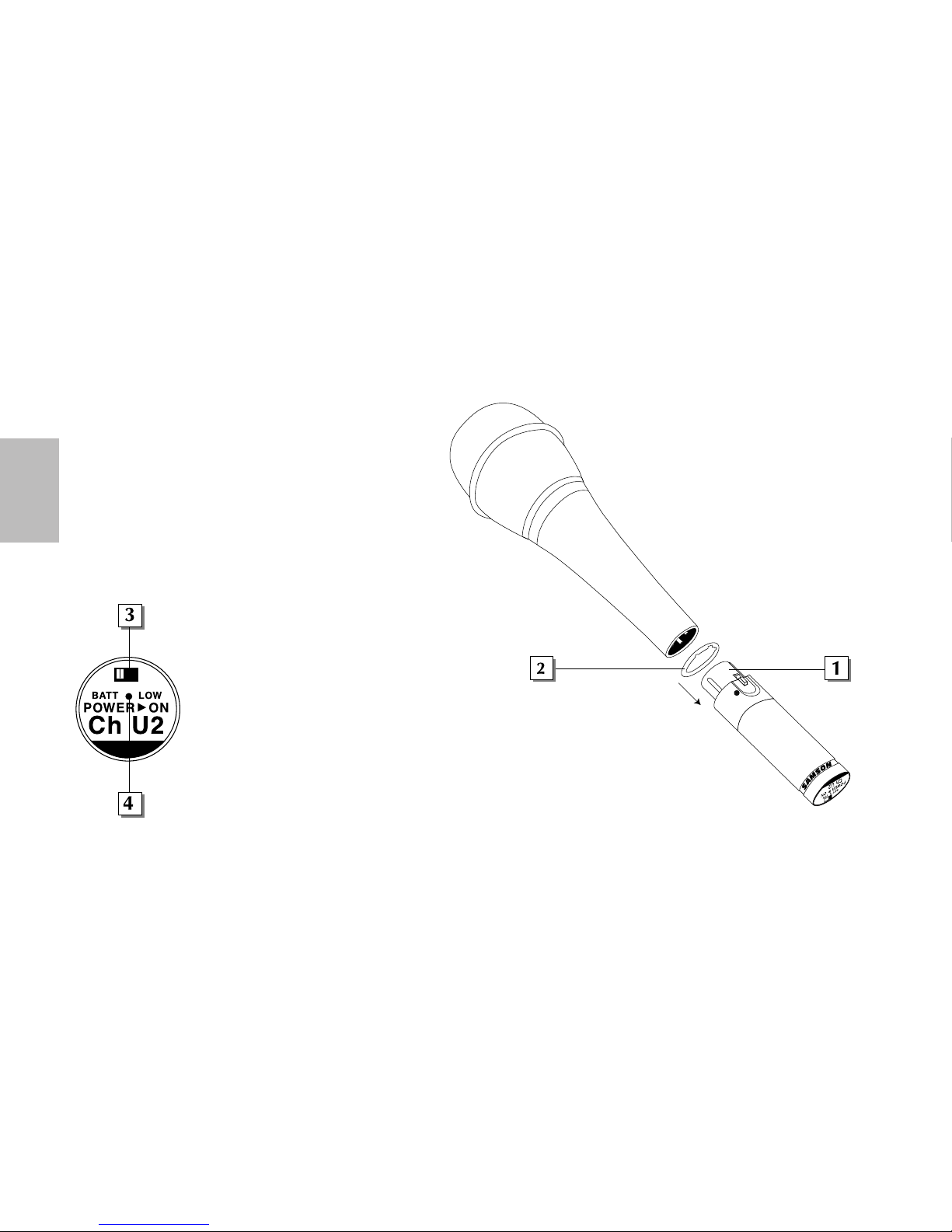

1: XLR connector - Connect this standard female XLR connec-

tor into any standard wired dynamic microphone in order to

make it a wireless mic.

2: Rubber gasket - If necessary, use this provided rubber gasket

in order to make a solid connection between the AX1 XLR

connector and your microphone (note that not all microphones

require its use).

3: Power on-off switch - Move this switch in the direction of

the arrow to turn power to the AX1 on; move it away from the

arrow to turn power off. (to con-

serve battery power, be sure to

turn the AX1 off when not in use).

Be sure to mute the audio signal at

your external mixer or amplifier

before turning the AX1 power on or

off, or an audible pop may result.

4: Power / Battery LED - This LED

flashes once when the AX1 is first

turned on and lights steadily red

when there is less than 2 hours of

battery power remaining, indicating

that the battery needs to be changed.

Guided Tour - AX1 Handheld Transmitter Samson AirLine

ENGLISH

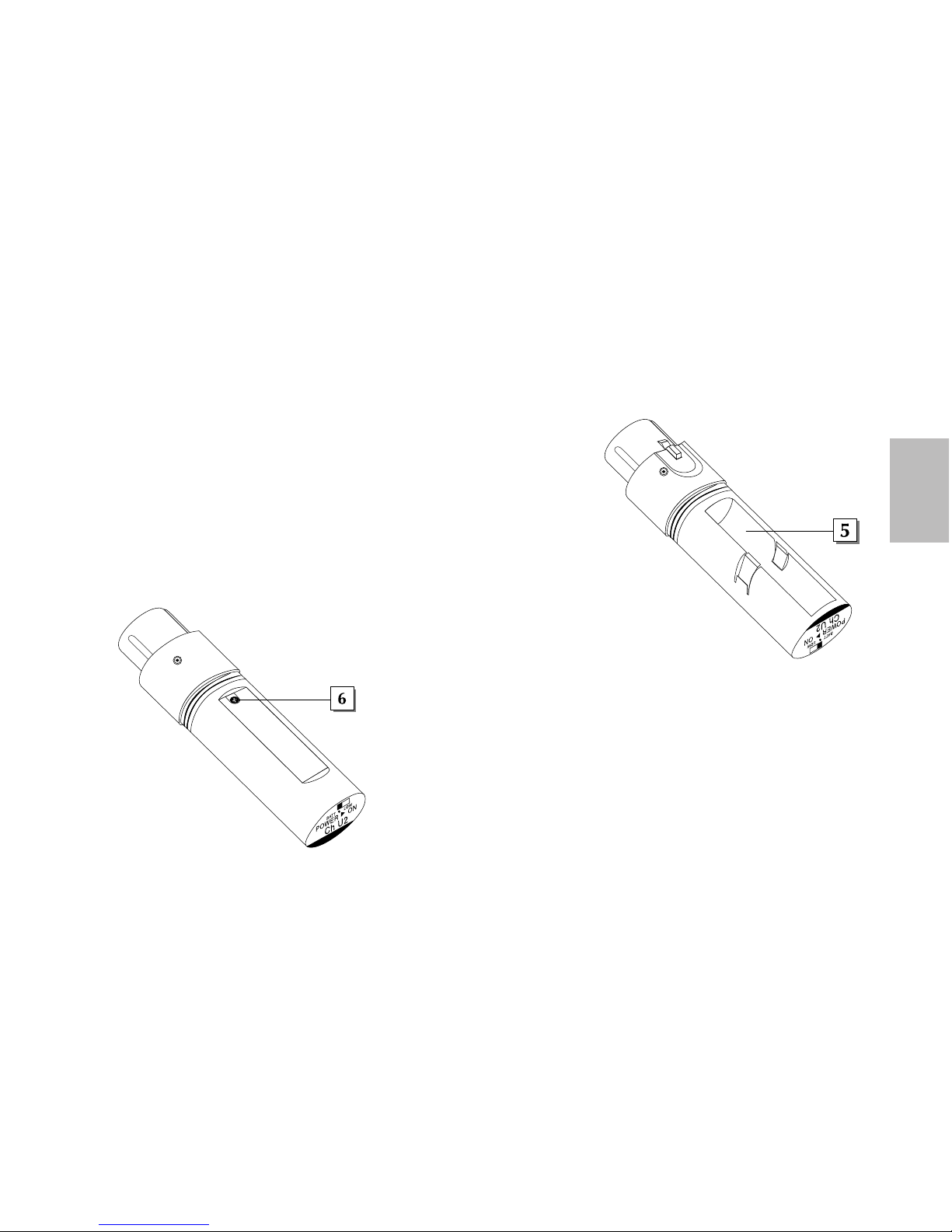

5: Battery compartment - Insert a standard AAA alkaline battery here,

being sure to observe the plus and minus polarity markings shown. We

recommend the Duracell type battery. Although rechargeable Ni-Cad

batteries can be used, they do not supply adequate current for more than

four hours. WARNING: Do not insert the battery backwards; doing so can

cause severe damage to the AX1 and will void your warranty.

6: Microphone Input Level control (trimpot) - Use the supplied plastic

screwdriver to raise or lower the input level sensitivity of the AX1 as required.

See the “Setting Up and Using Your AirLine System”section on page 11 in this

manual for more information.

AF LEVEL

MIN

MAX

Guided Tour - AL1 Presentation Transmitter

Samson AirLine

ENGLISH

1: Power On/RF/ Battery LED - This LED flashes once when the AL1 is first turned on and

lights steadily red when there is less than 2 hours of battery power remaining, indicating that

the battery needs to be changed.

2: Antenna - This permanently attached flexible antenna should be fully extended during

normal operations. See the “Setting Up and Using Your AirLine System”section on page 11

in this manual for more information about antenna positioning.

3: Electret condenser microphone - This high- quality unidirectional electret condenser

microphone with metal windscreen is optimized for clear, crisp reproduction of speech. It

is active whenever the AL1 is powered on, as long as there is no connection made to the

lavalier microphone input connector (see #4 below). When a plug is inserted into the

lavalier microphone input connector, this built-in microphone is muted.

4: Lavalier microphone input connector - Use this

standard 2.5 mm mini-jack if you want to connect

an external lavalier microphone to the AL1.

Note that, because the AL1 has a built-in electret

condenser microphone (see #3 above), the use of an

external lavalier mic is optional and not required.

The AL1 provides 2.7V of phantom power, so

condenser mics can be used if desired.

Questo manuale è adatto per i seguenti modelli

Indice

Lingue:

Altri manuali Samson Sistema microfonico

Samson

Samson AIRLINE CR77 Manuale utente

Samson

Samson AIRLINE CR77 Manuale utente

Samson

Samson AIRLINE CR77 Manuale utente

Samson

Samson VHF Micro VHF Micro TRUE DIVERSITY WIRELESS Manuale utente

Samson

Samson Concert 288 Manuale utente

Samson

Samson Stage v466 Manuale utente

Samson

Samson Stage 212 Manuale utente

Samson

Samson Go Mic Manuale utente

Samson

Samson Concert 88 Manuale utente

Samson

Samson Concert 77 Manuale utente

Samson

Samson CONCERT 88X Manuale utente

Samson

Samson Stage XPD1 Manuale utente

Samson

Samson XPDm Manuale utente

Samson

Samson Stage v266 Manuale utente

Samson

Samson Conert 277 Manuale utente

Samson

Samson XPD2 Manuale utente

Samson

Samson Concert88 Manuale utente

Samson

Samson UHF Series One Manuale utente

Samson

Samson AirLine Manuale utente

Samson

Samson AirLine SYNTH AR300 Manuale utente

Samson

Samson SYNTH32 Manuale utente

Samson

Samson VHF Series Manuale utente

Samson

Samson CB88 Manuale utente

Samson

Samson Stage XPD1 Manuale utente

Manuali Sistema microfonico popolari di altre marche

Paso

Paso R824 Manuale utente

Naxa

Naxa NAM-982 Manuale utente

Motorola

Motorola PMNN4461 Manuale utente

Xvive

Xvive U3 Manuale utente

Tekon

Tekon DUOS Manuale utente

Heyuan Intelligence

Heyuan Intelligence IOT-G2S-01 Manuale utente

Devine

Devine WMD-IE Manuale utente

LG LF-D7150 Manuale utente

GE S768DAV Manuale utente

LD U305 HBH 2 Manuale utente

Chainway

Chainway URA8 Manuale utente

ORATOR

ORATOR D860TD Manuale utente

Sennheiser

Sennheiser Evolution Wireless Digital EW-DX EM 2 Manuale utente

Alpha Technologies

Alpha Technologies RBMS Manuale utente

SWIT Electronics Co.,LTD.

SWIT Electronics Co.,LTD. CW-S150 Manuale utente

Shure

Shure UA844 Manuale utente

Panasonic

Panasonic SHFX70 - DVD HOME THEATER WIRELESS SYSTEM Manuale utente

Pyle

Pyle PDWM5000 Manuale utente
