Samson Mixpad 12 Manuale utente

• 12-channel stereo ultra-compact mixer.

• 6 balanced monophonic mic/line channels and 3

additional stereo channels.

• Independent CD/tape input; signal is routed via

channel EQ.

• Trim controls on mic input channels.

• 48 volt phantom power for mic input connectors.

• 2-band equalization on all channels.

• Constant level stereo panpot on each monophonic

channel.

• Left/right balance control on each stereo channel.

• 2 Aux sends (one pre-fade and one post-fade) on

each channel.

• 2 stereo Aux returns with front panel level controls.

• Front-panel stereo headphone output.

• Master peak and power LEDs.

• 2 balanced main outs.

• Optional battery power for convenience in ENG,

field broadcast and recording applications.

MIXPAD 12

COMPACT

MIXER

The ultra-compact MIXPAD 12 Mixer provides a 12-

input stereo mic/line mixer in a very small package.

Equipped with 2-band equalization and pan/balance and

level controls on each channel, the MIXPAD 12 is an

ideal device for ENG, field recording, broadcast and con-

tracting applications. It also features optional battery

power, a front-panel stereo headphone jack, 6 electroni-

cally balanced mic/line inputs (XLR and 1/4″connec-

tors), 3 stereo line inputs (1/4″connectors), a CD/tape

input (phono connectors), 48 volt phantom power, 2

Aux sends and 2 stereo Aux returns (which have inde-

pendent level controls, allowing for use as 4 mono Aux

returns), as well as a main level control and power and

peak LEDs.

Contact:

Samson Technologies Corp., P.O. Box 9031, Syosset, NY 11791-9031 •Phone: (516) 364-2244 •Fax: (516) 364-3888 •www.samsontech.com

SAMSON

LOW

HIGH+15-15

+15-15

+10

PAN

LEVEL

AUX 2

AUX1 PRE

LINE

TRIM -50

-10

MIC 5

PAN

LOW

HIGH+15-15

+15-15

+10

LEVEL

AUX 2

AUX1 PRE

LINE

TRIM -50

-10

MIC 6

LOW

HIGH+15-15

+15-15

+10

LEVEL

AUX 2

AUX1 PRE

LOW

HIGH+15-15

+15-15

+10

LEVEL

AUX 2

AUX1 PRE

AUX SEND 1

<75Ω+4dBU RIGHT

AUX

RETURN

1/2

AUX

RETURN

3/4

AUX RET. 3/4

AUX RET.1/2

POWER

LEFT PEAK RIGHT

TAPE/CD

MAIN LEVEL

+10

BALANCE BALANCE

8L 9R

+10

MIXPADPAD12

LOW

HIGH+15-15

+15-15

+10

LEVEL

AUX 2

AUX1 PRE

LEFT

BALANCE

MONOMONO MONO

+10

56 789101112

+10

AUX SEND 1

<75Ω+4dBU

MAIN OUTPUT

BALANCED +4dBU

LEVEL

4+10

LOW

HIGH+15-15

+15-15

PAN

AUX 2

AUX1 PRE

LINE

TRIM -50

-10

MIC 4

+10

LEVEL

3+10

LOW

HIGH+15-15

+15-15

PAN

AUX 2

AUX1 PRE

LINE

TRIM -50

-10

MIC 3

+10

LEVEL

2+10

LOW

HIGH+15-15

+15-15

PAN

AUX 2

AUX1 PRE

LINE

TRIM -50

-10

MIC 2

+10

LEVEL

1+10

LOW

HIGH+15-15

+15-15

PAN

AUX 2

AUX1 PRE

LINE

TRIM -50

-10

MIC 1

+10

ARCHITECT’S & ENGINEER’S

SPECIFICATION

The mixer shall be 12 in/2 out and shall incorporate 6

monophonic and 3 stereo line input channels, including 6

microphone channels. Microphone inputs shall be on XLR-

type connectors, monophonic line inputs shall be on bal-

anced 1/4″Tip-Ring-Sleeve phone connectors, and stereo

line inputs shall be on 1/4″phone connectors. An inde-

pendent stereo line-level CD/tape input (routed to chan-

nels 11-12) shall be on phono connectors. Each channel

shall have 2 Aux sends, 2-band equalization and a level

control. In addition, monophonic channels shall have a

stereo panpot and stereo channels shall have a left/right

balance control. Microphone inputs (on channels 1-6)

shall have an input trim control.

The mixer shall provide main outputs on balanced

1/4″Tip-Ring-Sleeve phone connectors, effects outputs on

1/4″phone connectors, and a headphone output on a

1/4″Tip-Ring-Sleeve phone connector. 2 stereo effects

returns shall be provided on 1/4″phone connectors, and

each shall have an independent level control. The mixer

shall be powered either from provided mains adapter or

from optional battery pack. The unit shall be of an ultra-

compact type.

The mixer shall have residual noise of 95 dB, THD

less than 0.01%, and frequency response of ±3 dB from 10

Hz to 50 kHz. Dimensions shall be 12.8″(324 mm) wide,

9″(228 mm) deep and 2.3″(58 mm) high. Weight shall be

6.5 lb. (2.9 kg). The mixer shall carry a three-year warran-

ty. The mixer shall be a SAMSON MIXPAD 12.

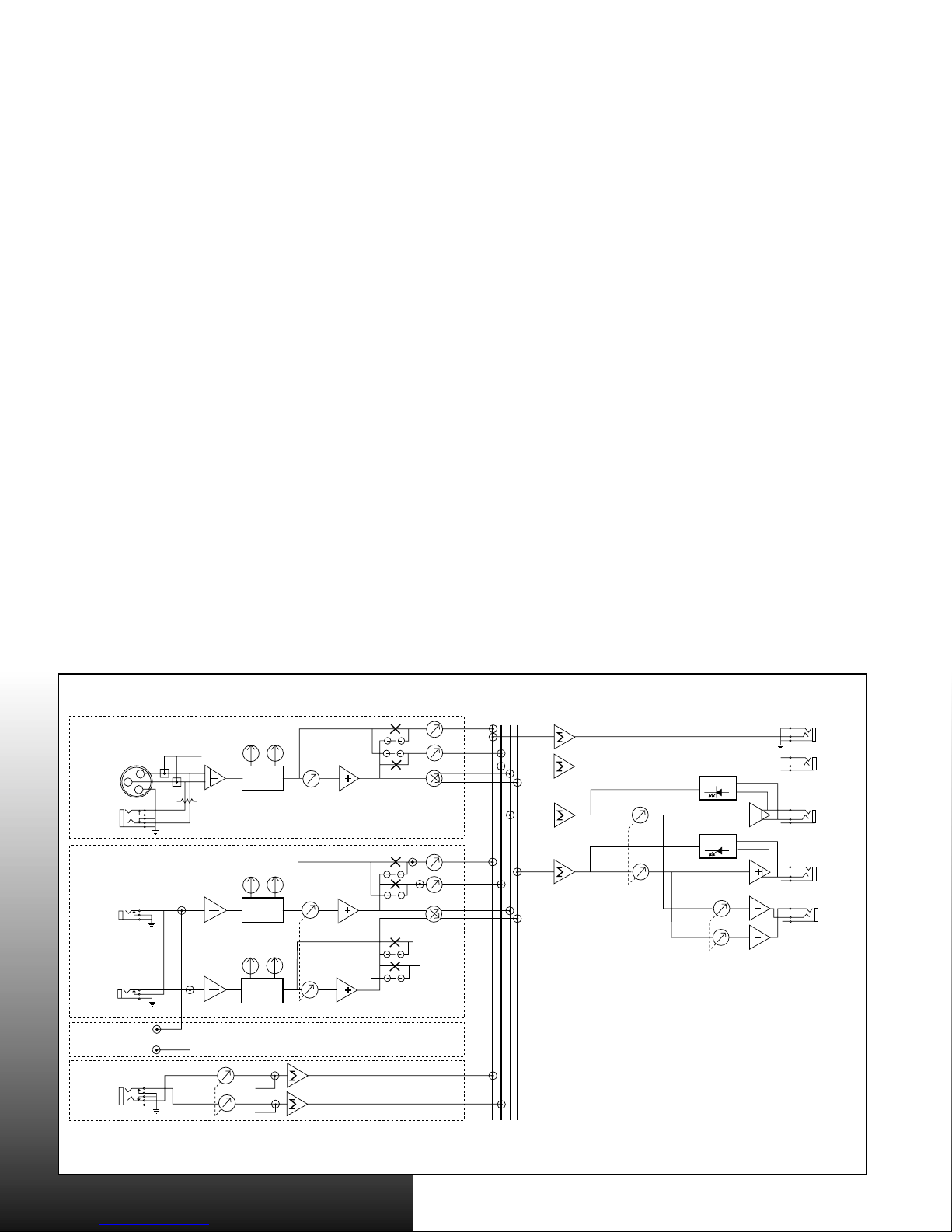

PEAK

DETECTOR

PEAK

DETECTOR

AUX 1

UNBALANCED

Zout = .1k

+4dbu

AUX 2

UNBALANCED

Zout = .1k

+4dbu

MAIN L

BALANCED

Zout = .1k

+4dbu

MAIN R

BALANCED

Zout = .1k

+4dbu

PHONES

UNBALANCED

Zout = .15k

150mW

+10dB

-10db

+10db

HEADPHONE

+4db

-10dbu

-10db

0dbu

0db

+14db

AUX 1

AUX 2

LEFT

RIGHT

-10dbu

0dbu

AUX 1

-10db

AUX 2

-10db

PAN

-3db

mid

PRE/POST

+10db

0dbu

-10dbu

-10db

Level

LOW HIGH

0dbu 2 BAND EQ

+/-15db

(NON-INV)

0dbu

PAD

-20db

+30db

MIC PRE

(LINE)

+42VDC

MIC INPUT

BALANCED

XLR

Zin = 1k5

LINE INPUT

BALANCED

TRS

Zin = 10k

CHANNELS 1-6

MONO TYPES

MAIN

PRE/POST AUX 1

AUX 2

BAL

-10db

0db

mid

0dbu

+10db

-10dbu

-10db

-10dbu

-10db

Level

0dbu

+10db

2 BAND EQ

+/-15db

(NON-INV)

2 BAND EQ

+/-15db

(NON-INV)

0dbu

LOW HIGH

0dbu

AUX 3

AUX 4

LINE INPUT

UNBALANCED

Zin = 10k

(ODD)

LINE INPUT

UNBALANCED

Zin = 10k

(EVEN)

CHANNELS 7-12

STEREO TYPES

TAPE IN

AUX RETURNS 1-4

STEREO TYPES

AUX RTN 1/2

UNBALANCED

TRS

Zin = 10k

AUX RTN 1/2

-10db

(PARALLEL TO 8-9)

MIXPAD 12 SPECIFICATIONS

CHANNEL SECTION

Total harmonic distortion (with 30 kHz LPF): < 0.01%

Residual noise (with 30 kHz LPF, VR min):

L/R main: 95 dB

Aux send 1/2 85 dB

Frequency response (±3 dB): 10 Hz to 50 kHz

Maximum voltage gain:

Mic to main: 74 dB

Line to main (mono ch): 54 dB

Line/Tape to main (stereo ch): 34 dB

Aux return to main: 20 dB

Crosstalk (1 kHz):

Channel vs. channel: 70 dB

Input vs. output: 75 dB

EIN (“A”filter on, input shorted):

Mic: -128 dB

Line: -111 dB

Maximum input level (1 kHz, ± 3dB):

Mic input (mono ch): +22 dBu

Line input (stereo ch): +7 dBu

Headphone output level (600 Ωloaded): 100 mW

Peak LED sensitivity (before clipping): 3 dB± 2 dB

EQUALIZATION

10 kHz High (shelving): ±15 dB

100 Hz Low (shelving): ±15 dB

GENERAL

Dimensions: 324 mm (w) x 228 mm (d) x 58 mm (h)

12.8″(w) x 9″(d) x 2.3″(h)

Weight: 6.5 lb. / 2.9 kg.
