OWNER’S

INSTRUCTIONS

AW0560A

AW0660A

WINDOW-TYPE

ROOM AIR CONDITIONER

( Cool )

DB98-04345A(1)

E-2

The manufacturer does not assume responsibility for accidents or injury

caused by an incorrectly installed air conditioner. If you are unsure about

installation, contact an installation specialist.

CCAA

AAUU

UUTT

TTII

IIOO

OONN

The following safety precautions must be taken when using your air conditioner.

Safety Precautions

1 The unit must be plugged into an independent circuit.

The air conditioner must be installed in accordance with national wiring regulations and

safety regulations wherever applicable.

2 Some installation locations may require installation of a short circuit breaker or grounding.

4 MAKE sure that the unit is correctly ventilated at all times :

do NOT place clothing or other materials over it.

5 NEVER spill any kind of liquid into the unit. Should this happen, unplug the unit and contact

an authorized service center.

6 Do NOT insert anything between the air outlet blades because the inner fan may be damaged

and could cause injury. Keep children away from the unit.

7 Do NOT place any obstacles in front of the unit.

8 Users of this product are cautioned not to attempt repairs.

Instead, they are requested to directly contact a designated service center or the outlet

at which the product was purchased.

9 Do not use an extension cord with this product.

10 The appliance is not intended for use by young children without supervision ;

young children should be supervised to ensure that they do not play with the appliance.

11 Never store or ship the air conditioner upside down or sideways to avoid damage to the

compressor.

12 If the remote control will not be used for a long time, remove the batteries.

3 If the supply cord is damaged, it must be replaced by a special cord or assembly available

from the manufacturer or its service agent.

E-3

Contents

◆PREPARING YOUR AIR CONDITIONER

■Safety Precautions ......................................................................................... 2

■Description of Each Component .................................................................... 4

■Remote Control - Buttons .............................................................................. 5

■Getting Started ............................................................................................... 6

■Inserting the Remote Control Batteries .......................................................... 7

◆OPERATING YOUR AIR CONDITIONER

■Cooling Your Room ........................................................................................ 8

■Airing Your Room ........................................................................................... 9

■Adjusting the Air Flow Direction Horizontally ................................................. 10

◆PROGRAMMING YOUR AIR CONDITIONER

■Setting the On Timer ...................................................................................... 11

■Setting the Off Timer ...................................................................................... 12

■Setting the Sleep Timer .................................................................................. 13

■Selecting Energy Saving mode ...................................................................... 14

◆RECOMMENDATIONS FOR USE

■Temperature and Humidity Ranges ............................................................... 15

■Cleaning Your Air Conditioner ........................................................................ 16

■Solving Common Problems ............................................................................ 17

■Technical Specifications ................................................................................. 17

◆INSTALLATION

E-4

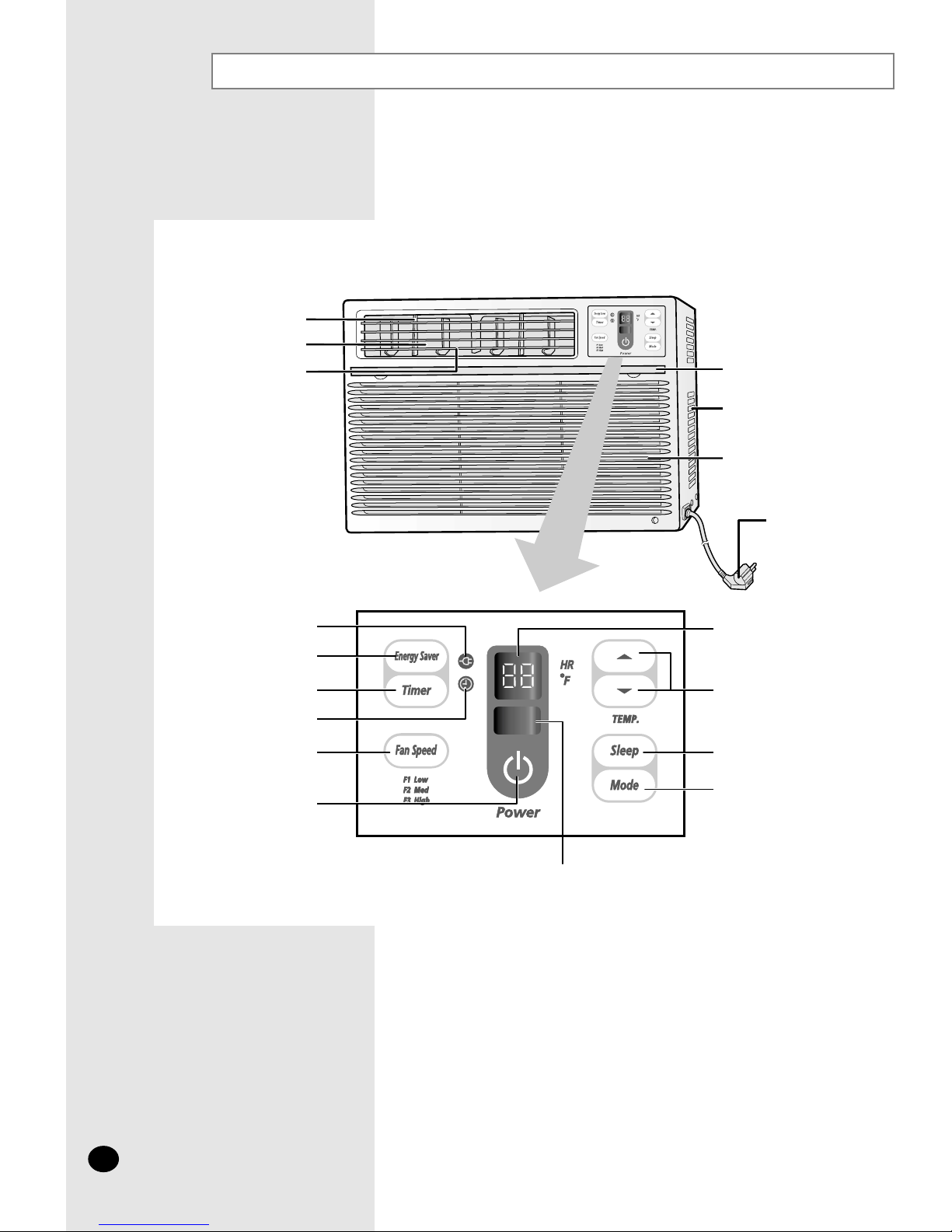

Description of Each Component

Air inlet (inside)

Air filter

Inner air flow blades

(right/left orientation)

Air outlet

Outer air flow blades

Air inlet (Outside)

Power plug

(The type of the

power plug may

differ, depending

on the local

power supply.)

Temperature/Timer

settings

Temperature adjustment

buttons

Remote control sensor

Fan speed adjustment button

Energy Saver indicator

Sleep timer setting button

Timer indicator

Energy Saver button

ON/OFF button Operating mode selection

button

(COOL, FAN)

Timer setting button

❄The design and shape are subject to

change, depending on the model.

E-5

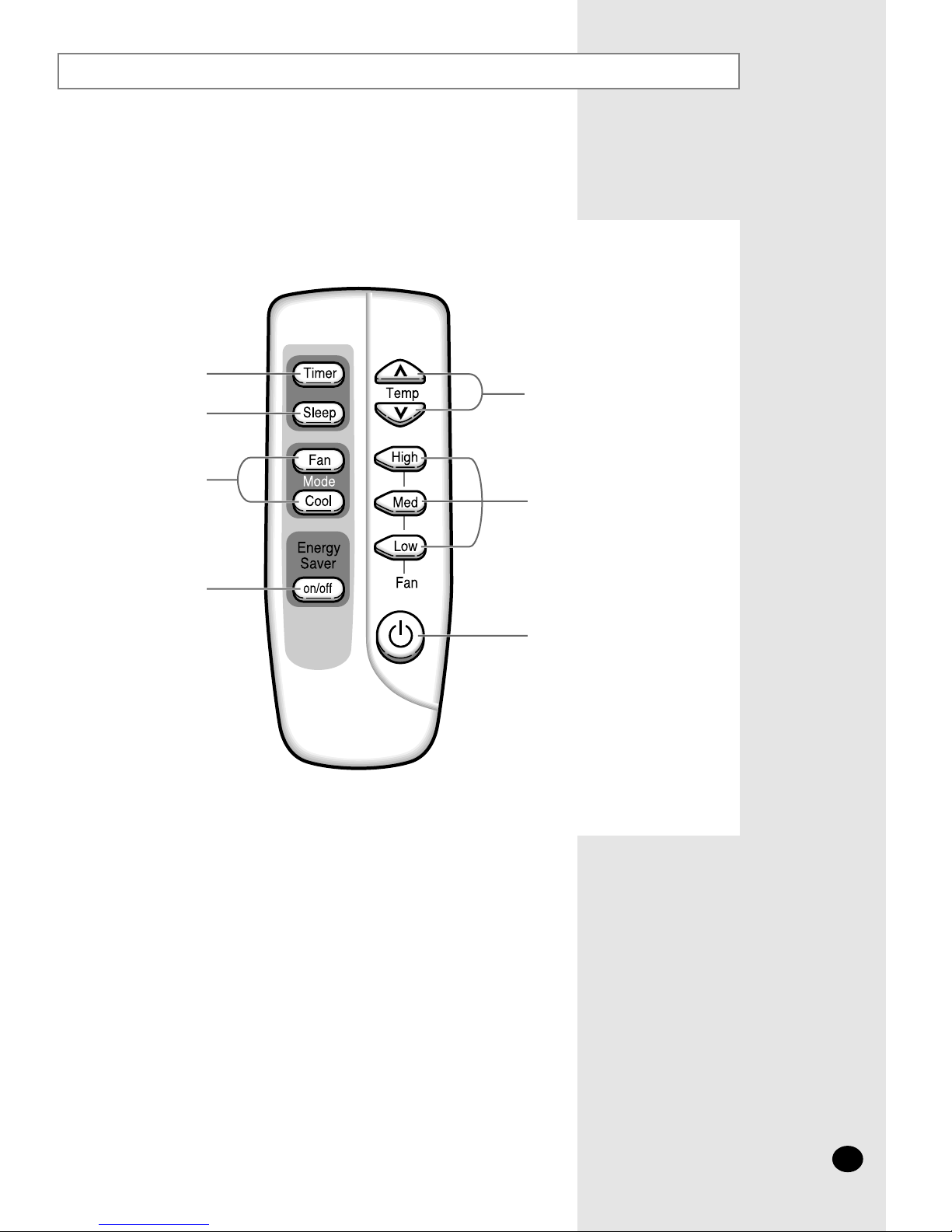

Remote Control - Buttons

Temperature adjustment

buttons

Fan speed

adjustment buttons

ON/OFF button

Timer setting button

Sleep timer setting button

Operating mode

selection buttons

Energy Saver button

E-6

Getting Started

IMPORTANT NOTE

You have just purchased a Samsung window-type room air conditioner which should be installed

following your installation manual.

Your Owner’s Instructions contain much valuable information on using your air conditioner.

Please take the time to read them as they will help you take full advantage of the unit’s features.

The booklet is organized as follows.

◆The following figures are shown on pages 4 and 5:

-Description of Each Component

-Remote control (buttons)

They will help you find the buttons and understand the symbols displayed.

◆In the main part of the document, you will find a series of step-by-step procedures for each

function available.

The illustrations in the step-by-step procedures use four different symbols:

☛

➢

PRESS PUSH

E-7

Inserting the Remote Control Batteries

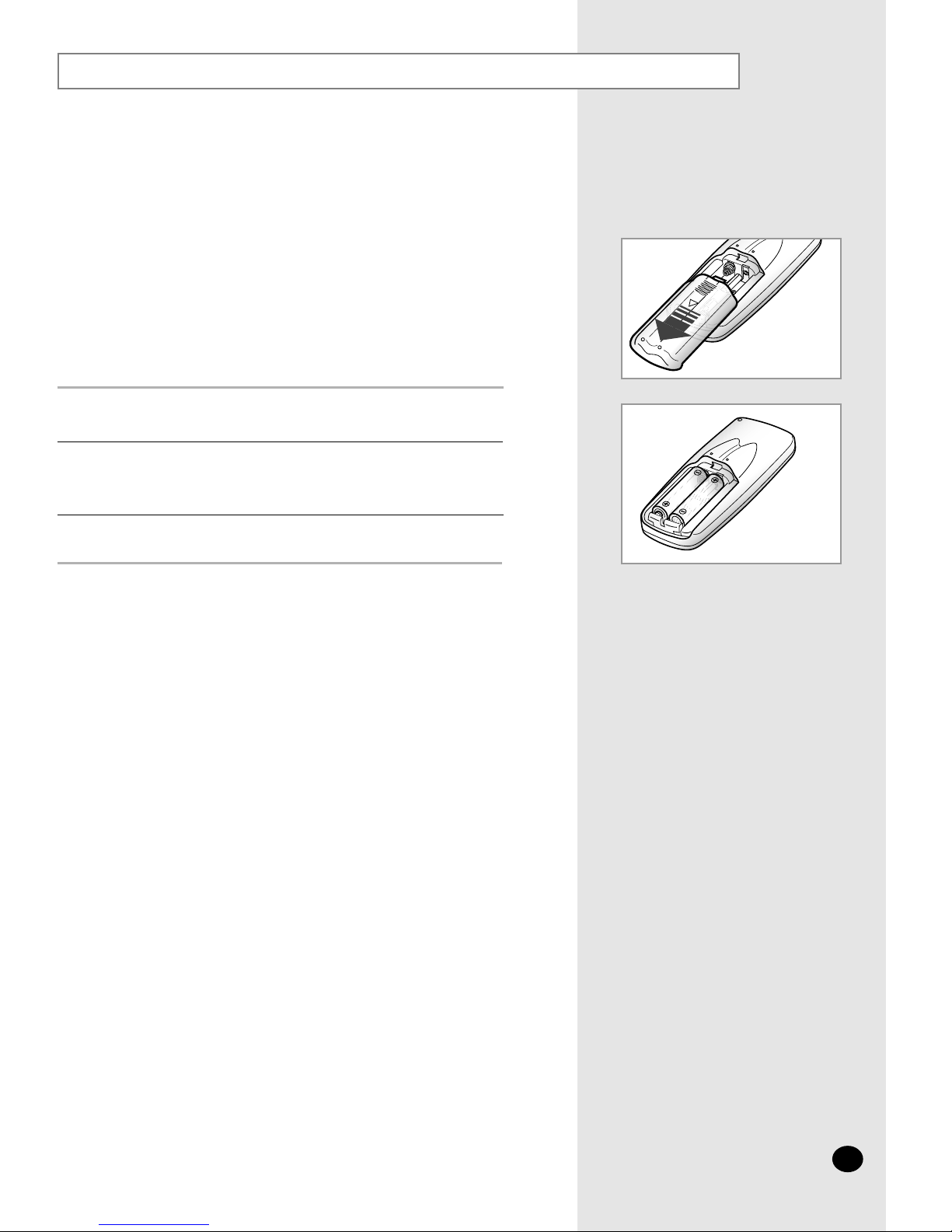

Push the battery cover on the rear of the remote control with your thumb

in the direction of the arrow and remove it.

Insert the two batteries, taking care to respect the polarities :

◆+ on the battery with + on the remote control.

◆- on the battery with - on the remote control.

Close the cover by sliding it back until it clicks into place.

◆Use two AAA, LR03 1.5V batteries.

◆Do not use old batteries or different kinds of batteries together.

◆Batteries may be completely discharged after 12 months, even

if they have not actually been used.

You must insert or replace the remote control batteries when :

◆You purchase the air conditioner

◆The remote control does not work correctly

➢

E-8

Cooling Your Room

To adjust the temperature, press the Temperature buttons on the remote

control or unit one or more times until the desired temperature is displayed.

The temperature can be set between 64°F and 86°F.

Result:

◆

Each time you press the temperature buttons:

– The temperature is adjusted by 1°F and displayed on

the control panel

– The unit beeps

◆

The air conditioner starts cooling if the room temperature is

higher than the selected temperature.

Press the (On/Off) button.

Result: ◆ The air conditioner starts up in the mode selected when the

unit was last used.

◆ The unit beeps twice.

☛The air conditioner is fitted with a protection mechanism to prevent

the unit from being damaged when it is started immediately after

being:

◆ Plugged in

◆ Stopped

It will start up normally after three minutes.

If the temperature is not displayed on the control panel:

◆

Press the COOL button on the remote control

◆

Press the Mode button on the unit one or more times until the

temperature is displayed.

Result:

◆

The unit beeps each time you press the COOL/Mode button.

◆

The air conditioner starts up in the Cool mode.

➢

You can change modes at any time.

You must select the Cool mode if you wish to lower the temperature

in your room. You can also set the fan speed.

To set the fan speed:

◆

Press the HIGH, MED or LOW button on the remote control as desired.

◆

Press the Fan Speed button on the unit one or more times until the

desired Fan speed(F1, F2 or F3) is displayed.

To control the direction of the air flow, refer to page 10.

Remote Control Control Panel

E-9

Airing Your Room

If you want to provide air circulation without cooling, you can use the Fan mode.

If necessary, press the (On/Off) button.

Result: ◆

The air conditioner starts up in the mode selected when

the unit was last used.

◆The unit beeps twice.

To set the fan speed:

◆

Press the HIGH, MED or LOW button on the remote control as desired.

◆

Press the Fan Speed button on the unit one or more times until the

desired fan speed(F1, F2 or F3) is displayed.

To control the direction of the air flow, refer to page 10.

If the fan speed(F1, F2 or F3) is not displayed on the control panel:

◆ Press the FAN button on the remote control

◆ Press the Mode button on the unit one or more times until the fan speed

(F1, F2 or F3) is displayed.

Result: ◆ The unit beeps each time you press the Fan/Mode button.

◆The air conditioner starts up in Fan mode.

➢

◆You can change modes at any time.

◆When the air conditioner is in the Fan mode, the temperature

cannot be set or displayed.

Remote Control Control Panel

E-10

Adjusting the Air Flow Direction Horizontally

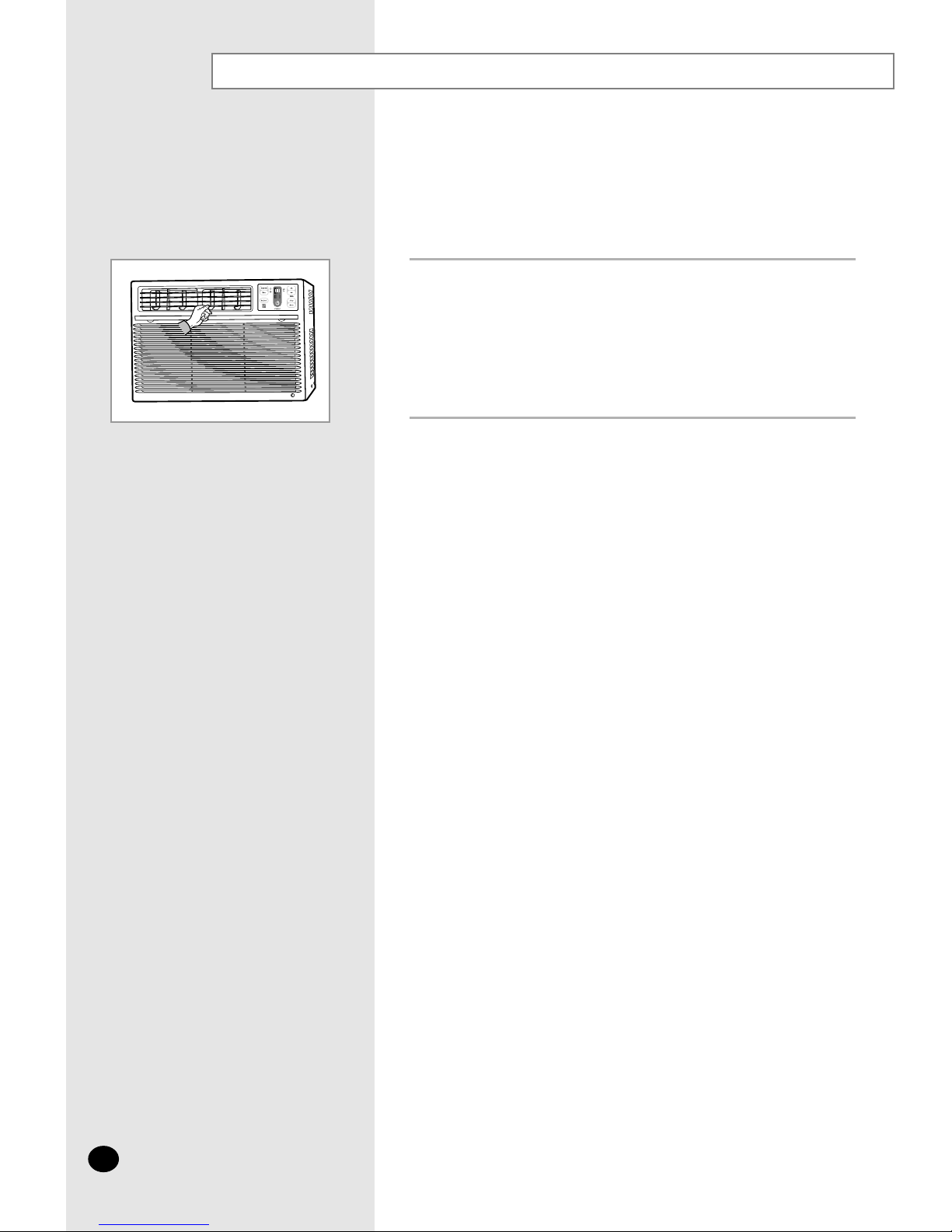

Depending on the position of the unit in your room, you can adjust

the orientation of the inner air flow blades on the unit.

Adjust the air flow blades to the desired position, by pushing them side to side.
