Samsung AW0700 Manuale utente

OWNER’S

INSTRUCTIONS

AW0700/AW1000

AW0800/AW1200

AW0700A

WINDOW-TYPE

ROOM AIR CONDITIONER

( Cool )

DB68-00963A(3)

E-2

The following safety precautions must be taken when using your air conditioner.

Safety Precautions

1 The unit must be plugged into an independent circuit.

The air conditioner must be installed in accordance with national wiring regulations and

safety regulations wherever applicable.

2 Some installation locations may require installation of a short circuit breaker or grounding.

4 MAKE sure that the unit is correctly ventilated at all times :

do NOT place clothing or other materials over it.

5 NEVER spill any kind of liquid into the unit. Should this happen, unplug the unit and contact

an authorized service center.

6 Do NOT insert anything between the air outlet blades because the inner fan may be damaged

and could cause injury. Keep children away from the unit.

7 Do NOT place any obstacles in front of the unit.

8 Users of this product are cautioned not to attempt repairs.

Instead, they are requested to directly contact a designated service center or the outlet

at which the product was purchased.

9 Do not use an extension cord with this product.

10 The appliance is not intended for use by young children without supervision ;

young children should be supervised to ensure that they do not play with the appliance.

11 Never store or ship the air conditioner upside down or sideways to avoid damage to the

compressor.

3 If the supply cord is damaged, it must be replaced by a special cord or assembly available

from the manufacturer or its service agent.

The manufacturer does not assume responsibility for accidents or injury

caused by an incorrectly installed air conditioner. If you are unsure about

installation, contact an installation specialist.

Contents

◆PREPARING YOUR AIR CONDITIONER

■Safety Precautions ......................................................................................... 2

■Description of Each Component .................................................................... 4

■Getting Started ............................................................................................... 5

◆OPERATING YOUR AIR CONDITIONER

■Cooling Your Room ......................................................................................... 6

■Ventilating Your Room ..................................................................................... 7

■Switching the Air Conditioner Off ................................................................... 7

■Adjusting the Air Flow Direction Horizontally ................................................. 8

■Adjusting the Air Flow Direction Vertically ...................................................... 8

◆RECOMMENDATIONS FOR USE

■Power Failure .................................................................................................. 9

■Temperature and Humidity Ranges ................................................................ 9

■Cleaning Your Air Conditioner ......................................................................... 10

■Solving Common Problems ............................................................................ 11

■Technical Specifications ................................................................................. 11

E-3

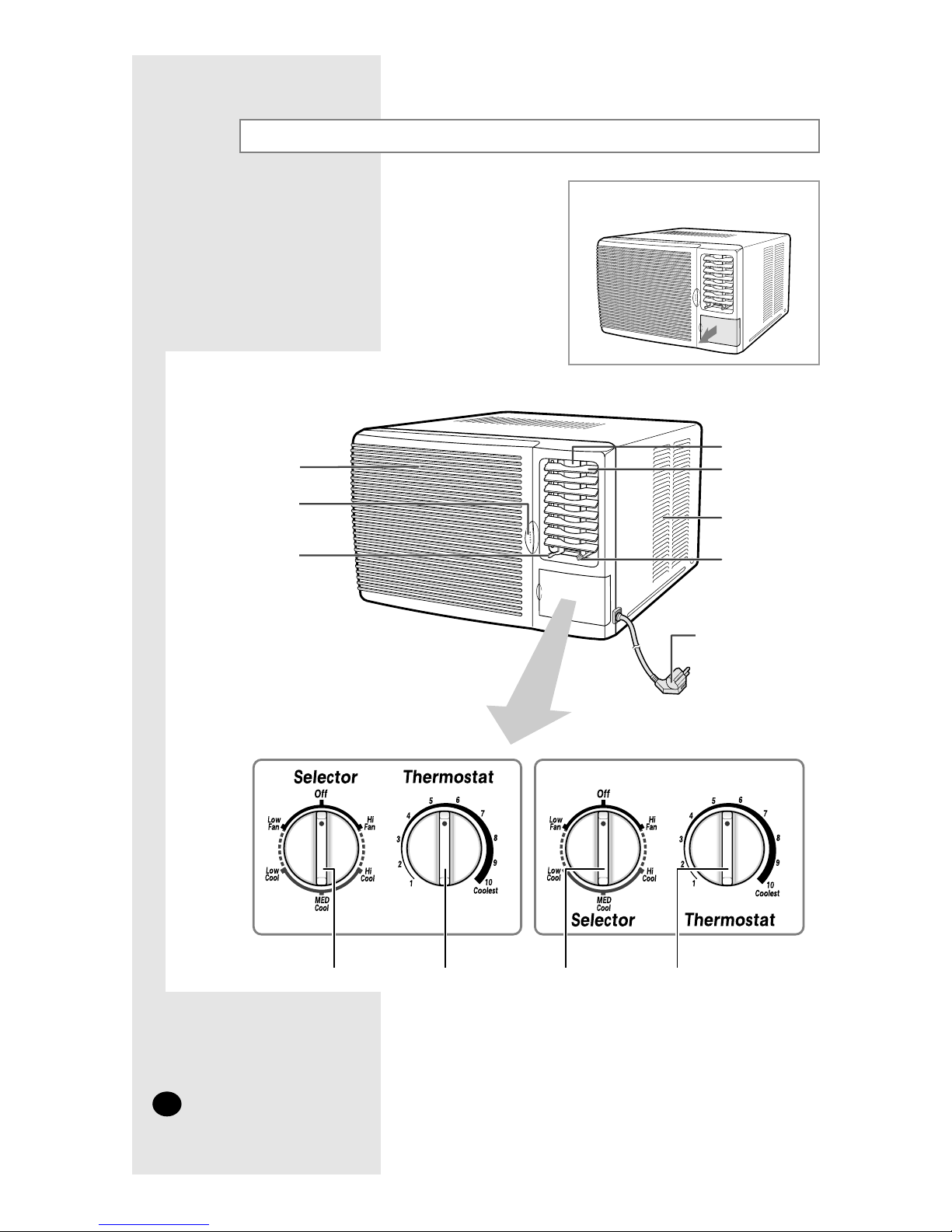

Description of Each Component

Air filter(Inside)

Air flow direction

adjustable lever Ventilation lever

Air flow blades

(Up/down orientation)

Air outlet

Air inlet (Outside)

Power plug

(

The type of power plug

may differ, depending on

the local power supply.)

Selector Thermostat control Selector Thermostat control

AW0700/AW0700A/AW0800 AW1000/AW1200

Air inlet(Inside)

HOW TO OPEN THE OPERATING UNIT.

◆ Simply open using the handle.

❄The design and shape are subject to

change, depending on the model.

E-4

Getting Started

E-5

You have just purchased a Samsung window-type room air conditioner which should be

installed following your Owner’s Instructions.

Your Owner's Instructions contain much valuable information on using your air conditioner.

Please take the time to read them as they will help you take full advantage of the unit's

features.

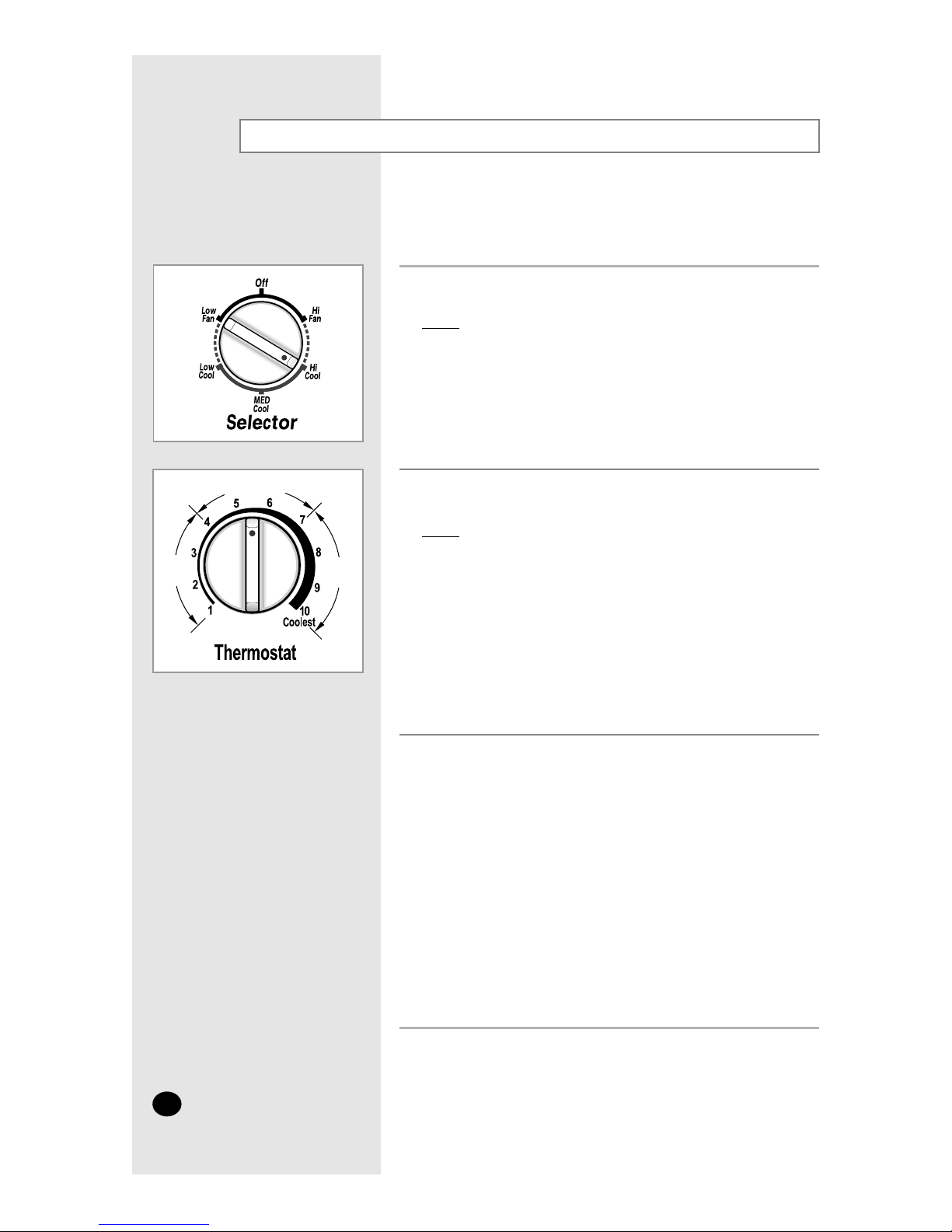

CoolingYour Room

To control the direction of the air flow, refer to page 8.3

81˚F ~ 73˚F

73˚F

~ 64˚F

81˚F

~ 84˚F

E-6

Turn the SELECTOR and set it to “ HI COOL ” , “ MED COOL ” or

“ LOW COOL ”.

Result: ◆ The air conditioner starts up in cool mode.

NNoo

oott

ttee

ee◆You can change modes at any time.

Turn the THERMOSTAT control to the desired position.

You must select the COOL mode if you wish to adjust the:

◆ Cooling temperature

◆ Fan speed when Cooling

Possible temperatures: Can be set between 64°F and 84°F.

Result: The air conditioner starts cooling if the room temperature is

higher than the selected temperature.

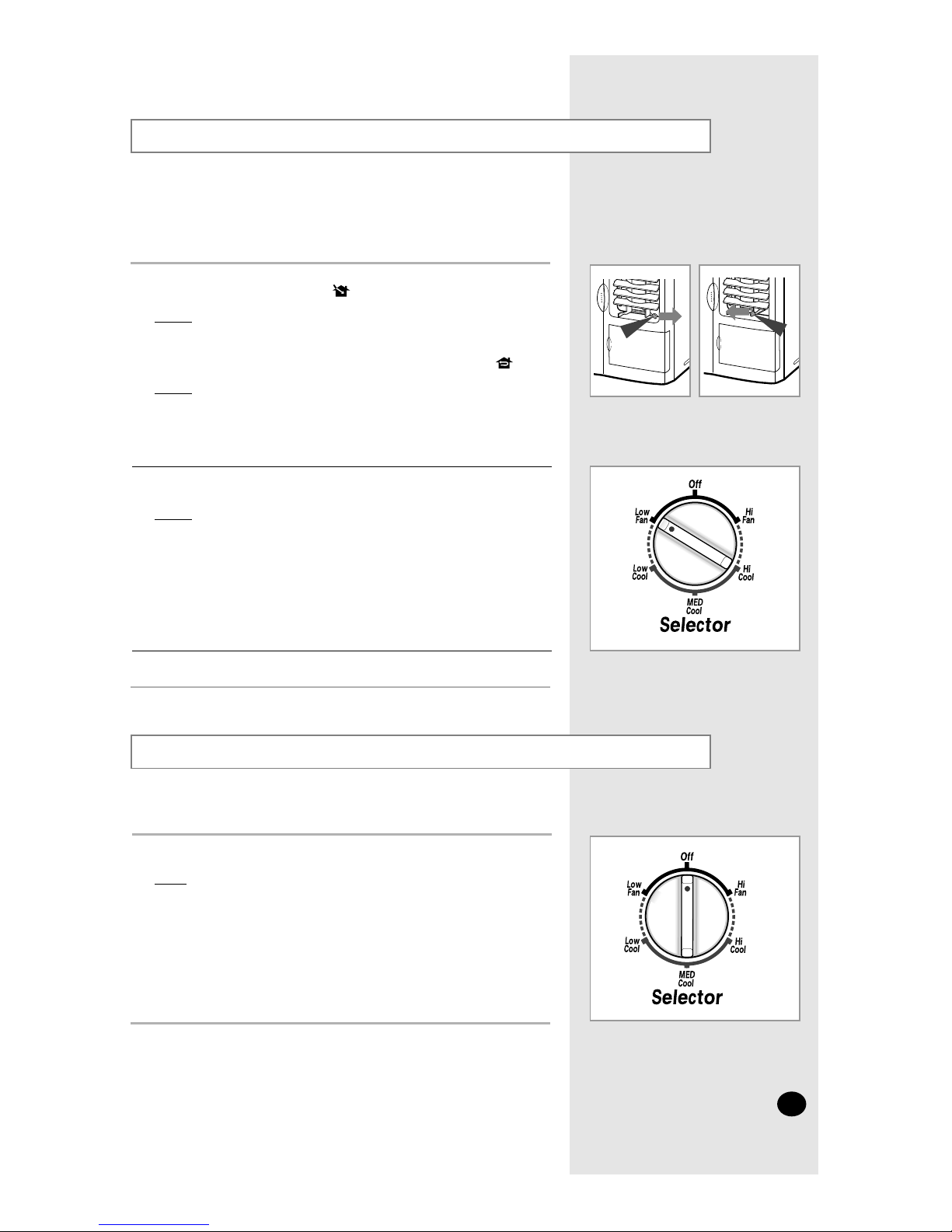

Ventilating Your Room

Switching the Air Conditioner Off

To switch the unit off, simply set the SELECTOR to the OFF position.

Result: The air conditioner stops operating.

If the air in your room is stale, you can ventilate the room using

the Fan feature.

You can switch the air conditioner off whenever you want.

Turn the SELECTOR and set it to “HI FAN” or “LOW FAN” position.

Result: ◆ The air conditioner starts up in fan mode.

NNoo

oott

ttee

ee◆ HI FAN :The fan turns rapidly.

◆ LOW FAN : The fan turns slowly.

◆ You can change modes at any time.

To control the direction of the air flow, refer to page 8.

If you wish to discharge stale air, push the ventilation lever on the front of the

unit to the right and open position ( ).

Result: ◆

The air inside the room circulates and stale air is discharged

outside.

Otherwise, push the ventilation lever to the left and closed position ( ).

Result: ◆

The air simply circulates inside the room.

E-7

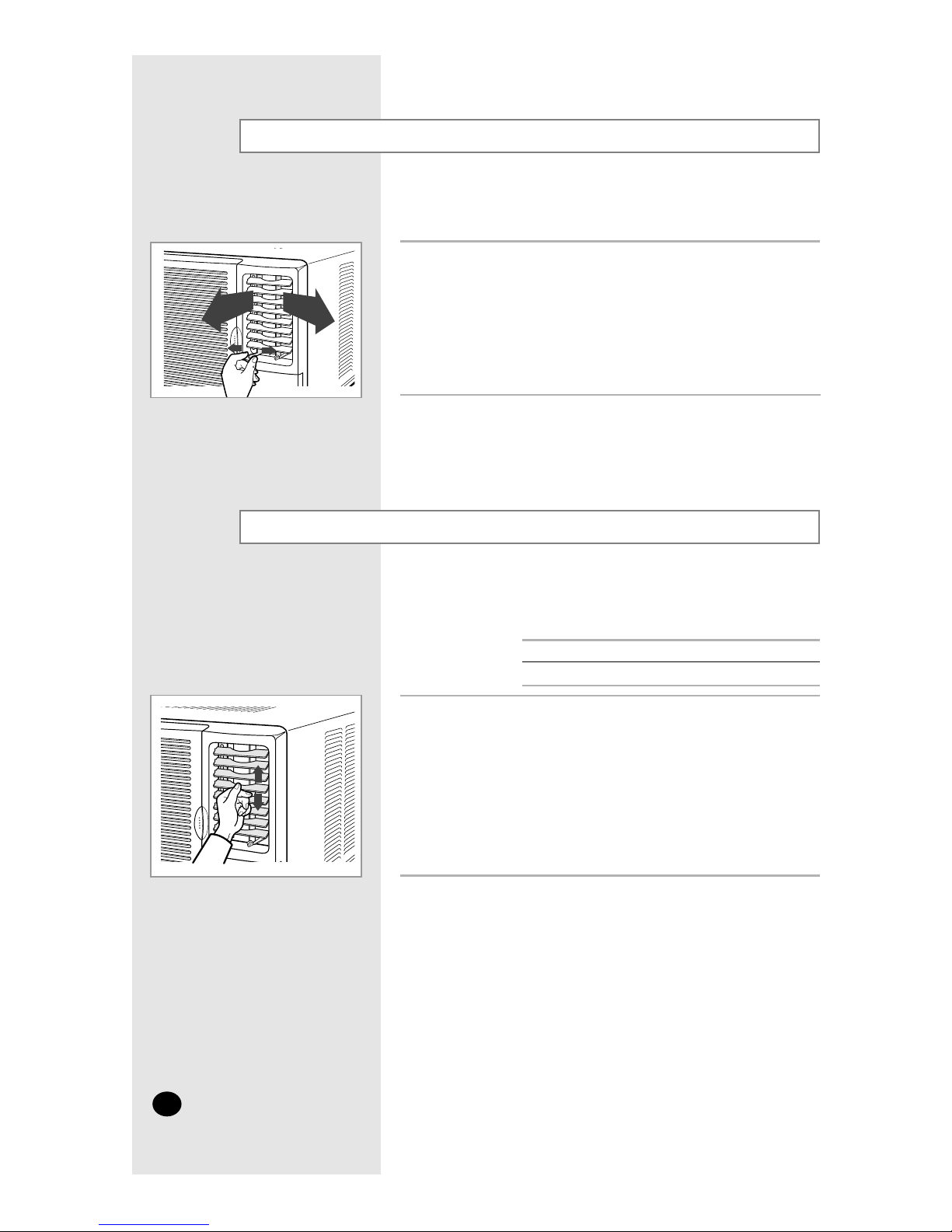

Adjusting the Air Flow Direction Horizontally

Adjusting the Air Flow Direction Vertically

The outer air flow blades on the right side of the unit can be adjusted to

control the vertical air flow direction.

RECOMMENDATION When...

Cooling

Adjust the blades to face...

Upwards.

Adjust the air flow blades to the desired position, by pushing them

upwards or downwards.

◆

If you orient the air flow blades downwards and the unit operates

in Cool mode for long periods of time, dew may:

Form on the surface of the blades

Drip from the blades

NNoo

oott

ttee

E-8

The air flow direction blades can be adjusted to improve the efficiency

of the air conditioner.

The side by side air direction louvers are controlled by a lever.

They regulate air discharge to the right, left or straight.

If the air conditioner is used at... Then...

Higher temperature The automatic protection feature may be triggered

and the air conditioner stopped.

Lower temperature A water leakage or some other malfunction may happen

if the heat exchanger freezes.

Higher humidity levels Water may condense on and drip from the surface of the unit

if it is used for long periods.

The following table indicates the temperature and humidity ranges

within which the air conditioner can be used.

Mode Indoor

Temperature Outdoor

Temperature Indoor Humidity

Cooling 70°F to 90°F approx. 70°F to 110°F approx. 80% or less

Power Failure

Temperature and Humidity Ranges

E-9

If a power failure occurs, set the SELECTOR to OFF. When the power

comes back on, wait five minutes before turning the unit back on.

CleaningYour Air Conditioner

If you...

Will not be using the

air conditioner for a

long period of time

Have not used the air

conditioner for a long

period of time

Then...

◆ Set the SELECTOR to “LOW FAN” and

let it run of a few hours to dry the

inside of the air conditioner thoroughly.

◆ Switch the air conditioner off and

unplug it from the wall socket.

◆ Clean the filter and outer surfaces.

Set the SELECTOR to “LOW FAN” and

let it run for a few hours to dry the inside

of the air conditioner thoroughtly.

Hold the air filter handle, slightly pull it to the left side and open the front grille.

Pull the air filter to the right side.

Remove all dust on the air filter with a vacuum cleaner or brush.

When you have finished, insert the air filter back into its original position.

Wipe the surface of the unit with a neutral detergent and then wipe it again

with dry cloth.

(Be sure not to use benzene, solvent or other chemical products.)

NNoo

oott

ttee

E-10

The removal of the front grille makes it easier to clean the air

conditioner. Open the grille as much as possible.

NNoo

oott

ttee

Be sure to clean the air filter periodically to maintain the air conditioner

in the best condition for a long period of time.

When cleaning the air conditioner, turn it off and pull out

the power plug.

IMPORTANT

Removal and Reassembly of the Front Grille

Grasp the lower part of the

front grille and the air filter

handle, then open the grille.

Remove the safety clip and

the front grille.

When reassembling the front

grille, you should install the

safety clip again.

For user's safety, a safety clip has been installed in the front grille.

Safety clip
