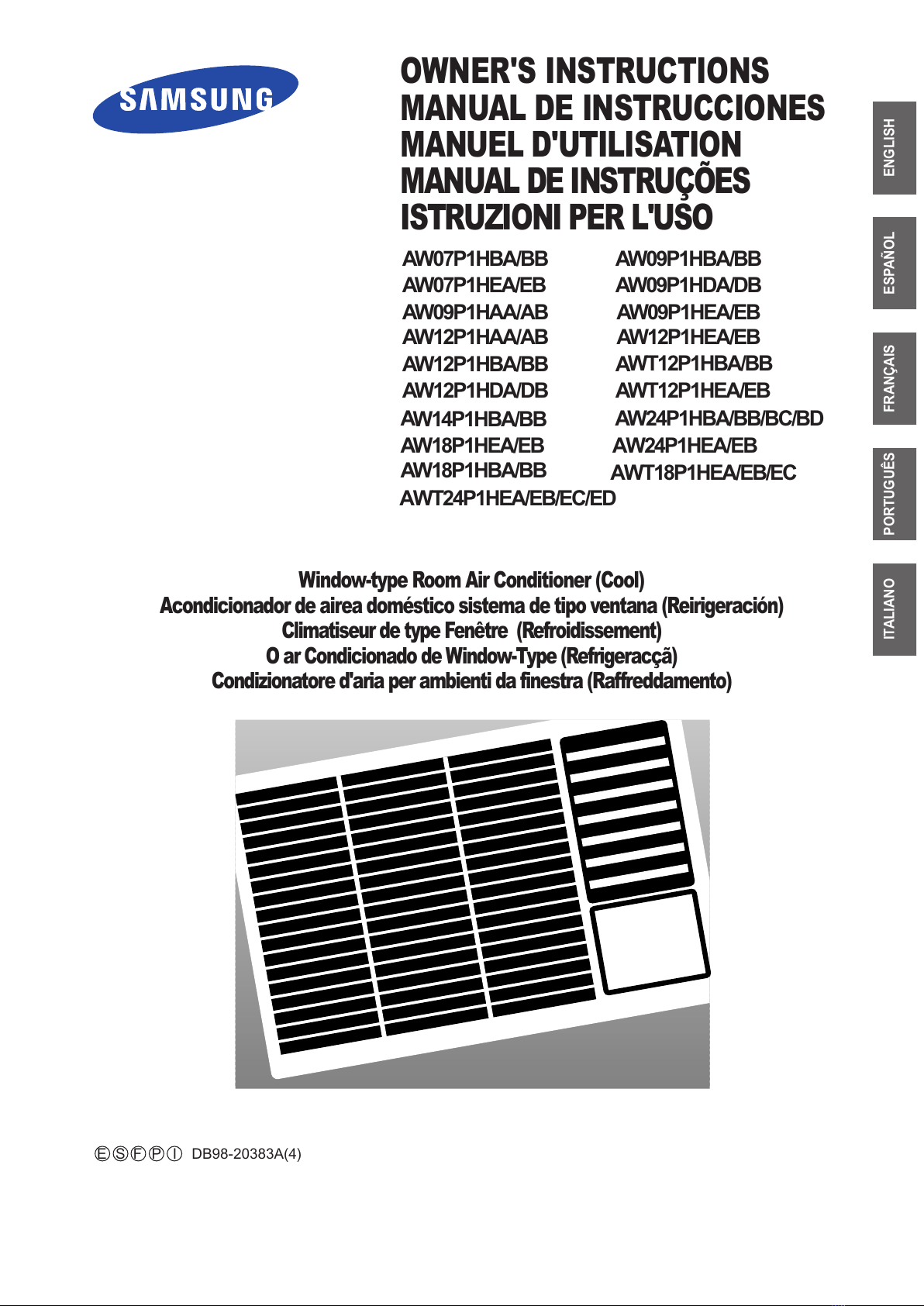

OWNER'S INSTRUCTIONS

MANUAL DE INSTRUCCIONES

MANUEL D'UTILISATION

MANUAL DE INSTRUÇÕES

ISTRUZIONI PER L'USO

ENGLISH

ESPAÑOL

FRANÇAIS

PORTUGUÊS

ITALIANO

Window-type Room Air Conditioner (Cool)

Acondicionador de airea doméstico sistema de tipo ventana (Reirigeración)

Climatiseur de type Fenêtre (Refroidissement)

O ar Condicionado de Window-Type (Refrigeracçã)

Condizionatore d'aria per ambienti da finestra (Raffreddamento)

AW07P1HEA/EB

AW07P1HBA/BB

AW09P1HDA/DB

AW09P1HBA/BB

AW09P1HAA/AB AW09P1HEA/EB

AW12P1HAA/AB AW12P1HEA/EB

AW12P1HDA/DB

AW12P1HBA/BB

AWT12P1HEA/EB

AWT12P1HBA/BB

AW14P1HBA/BB AW24P1HBA/BB/BC/BD

AW18P1HBA/BB

AW18P1HEA/EB

AW24P1HEA/EB

AWT18P1HEA/EB/EC

AWT24P1HEA/EB/EC/ED

E-2

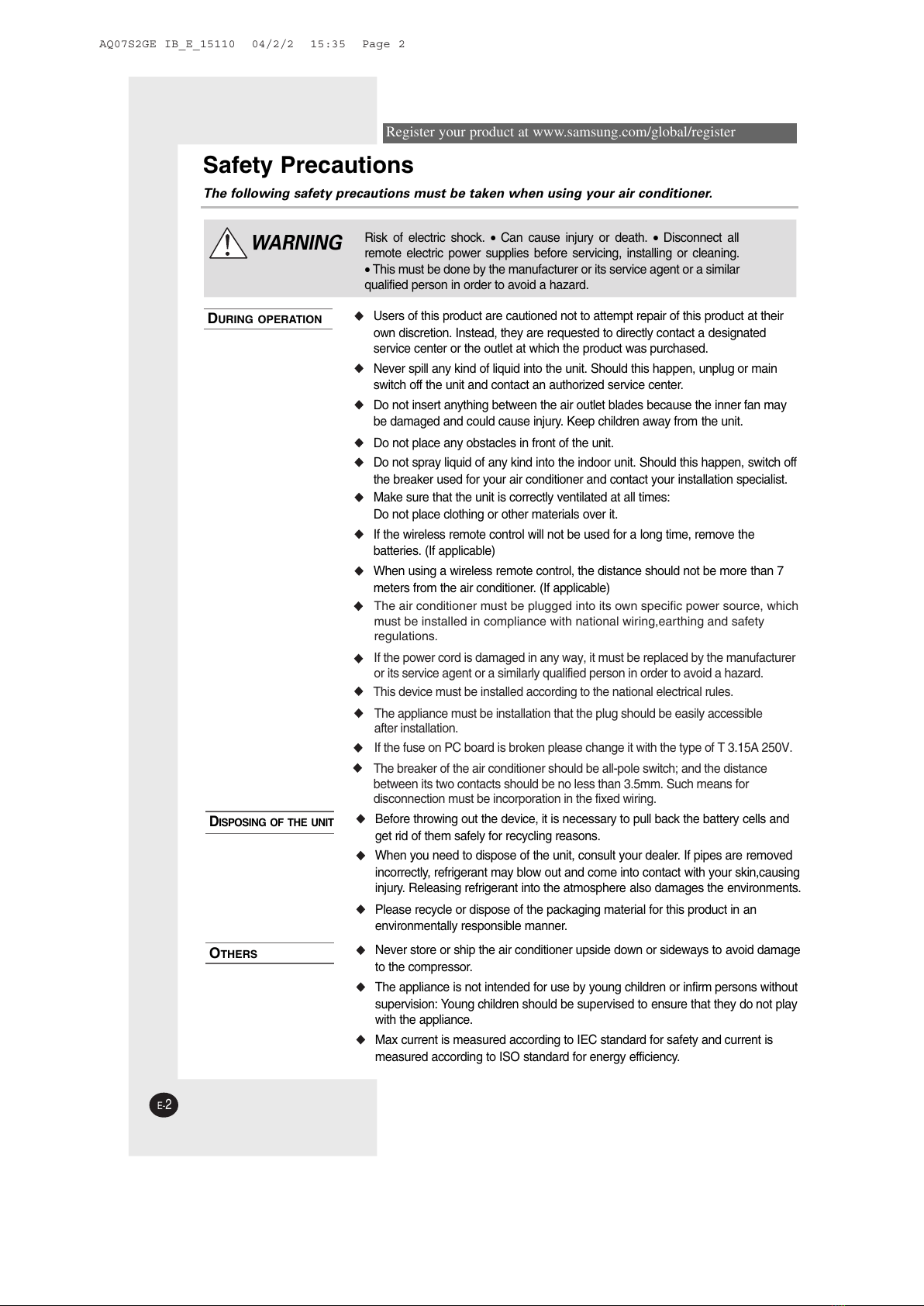

Safety Precautions

The following safety precautions must be taken when using your air conditioner.

Users of this product are cautioned not to attempt repair of this product at their

own discretion. Instead, they are requested to directly contact a designated

service center or the outlet at which the product was purchased.

Never spill any kind of liquid into the unit. Should this happen, unplug or main

switch off the unit and contact an authorized service center.

Do not insert anything between the air outlet blades because the inner fan may

be damaged and could cause injury. Keep children away from the unit.

Do not place any obstacles in front of the unit.

Do not spray liquid of any kind into the indoor unit. Should this happen, switch off

the breaker used for your air conditioner and contact your installation specialist.

Make sure that the unit is correctly ventilated at all times:

Do not place clothing or other materials over it.

If the wireless remote control will not be used for a long time, remove the

batteries. (If applicable)

When using a wireless remote control, the distance should not be more than 7

meters from the air conditioner. (If applicable)

WARNING

DURING OPERATION

Risk of electric shock. • Can cause injury or death. • Disconnect all

remote electric power supplies before servicing, installing or cleaning.

• This must be done by the manufacturer or its service agent or a similar

qualified person in order to avoid a hazard.

AQ07S2GE IB_E_15110 04/2/2 15:35 Page 2

The air conditioner must be plugged into its own specific power source, which

must be installed in compliance with national wiring,earthing and safety

regulations.

If the power cord is damaged in any way, it must be replaced by the manufacturer

or its service agent or a similarly qualified person in order to avoid a hazard.

This device must be installed according to the national electrical rules.

The appliance must be installation that the plug should be easily accessible

after installation.

If the fuse on PC board is broken please change it with the type of T 3.15A 250V.

The breaker of the air conditioner should be all-pole switch; and the distance

between its two contacts should be no less than 3.5mm. Such means for

disconnection must be incorporation in the fixed wiring.

Never store or ship the air conditioner upside down or sideways to avoid damage

to the compressor.

The appliance is not intended for use by young children or infirm persons without

supervision: Young children should be supervised to ensure that they do not play

with the appliance.

Max current is measured according to IEC standard for safety and current is

measured according to ISO standard for energy efficiency.

OTHERS

Before throwing out the device, it is necessary to pull back the battery cells and

get rid of them safely for recycling reasons.

When you need to dispose of the unit, consult your dealer. If pipes are removed

incorrectly, refrigerant may blow out and come into contact with your skin,causing

injury. Releasing refrigerant into the atmosphere also damages the environments.

Please recycle or dispose of the packaging material for this product in an

environmentally responsible manner.

ISPOSING OF THE UNIT

E-3

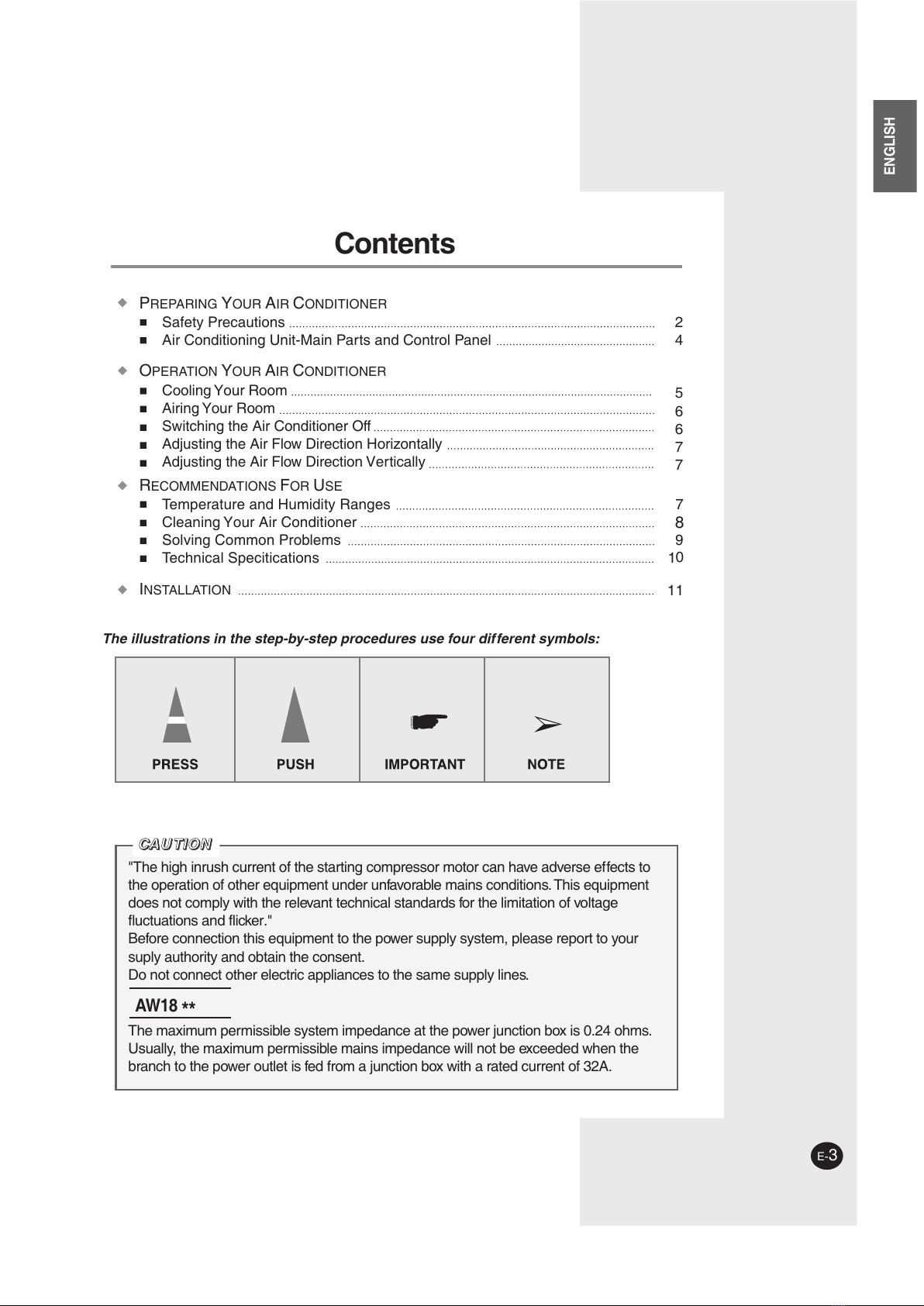

Contents

PREPARING YOUR AIR CONDITIONER

Safety Precautions

Air Conditioning Unit-Main Parts and Control Panel

Cooling Your Room

Airing Your Room

Switching the Air Conditioner Off

Adjusting the Air Flow Direction Horizontally

Adjusting the Air Flow Direction Vertically

OPERATION YOUR AIR CONDITIONER

Temperature and Humidity Ranges

Cleaning Your Air Conditioner

Solving Common Problems

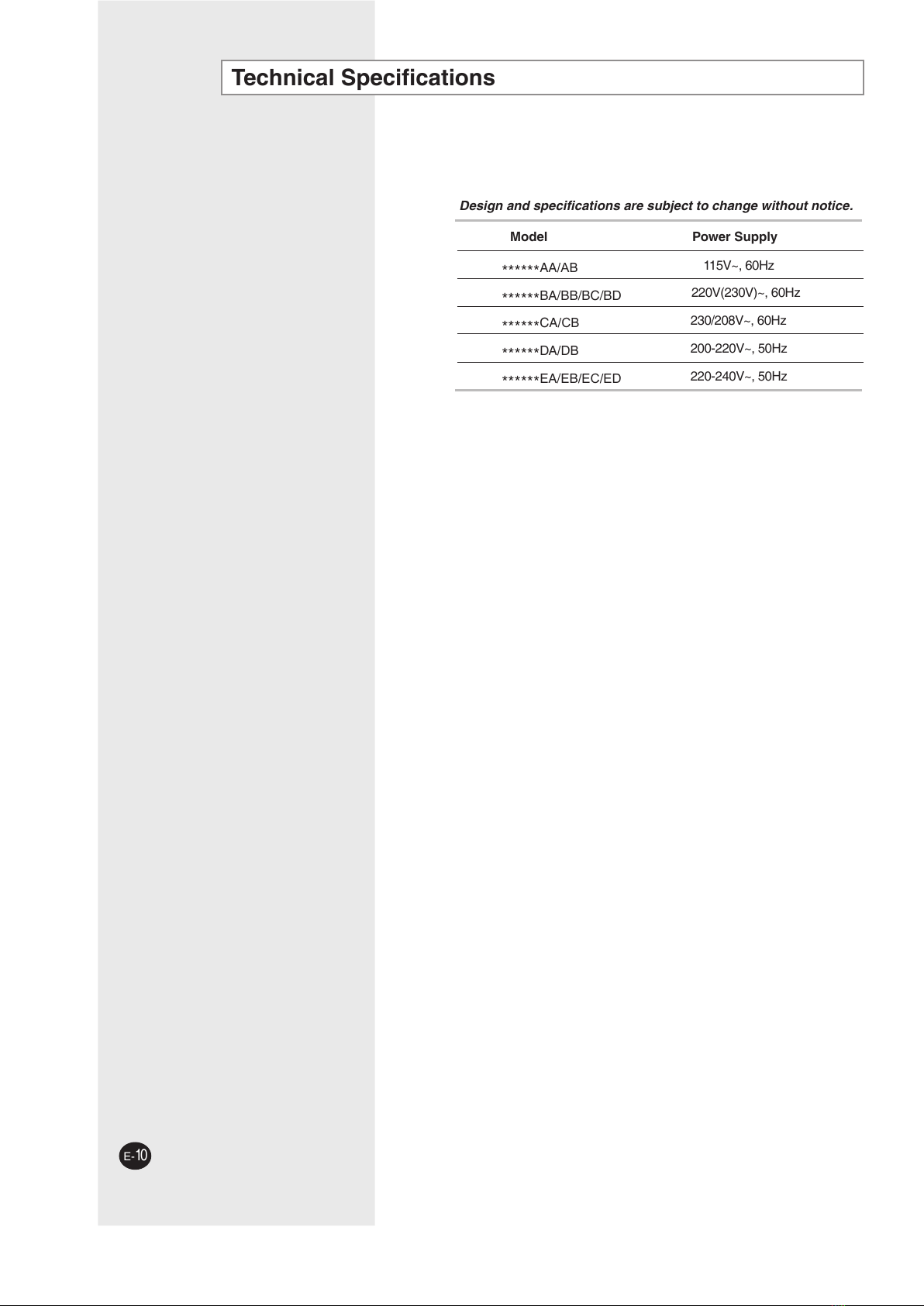

Technical Specitications

RECOMMENDATIONS FOR USE

CCAA

AAUU

UUTT

TTII

IIOO

OONN

"The high inrush current of the starting compressor motor can have adverse effects to

the operation of other equipment under unfavorable mains conditions. This equipment

does not comply with the relevant technical standards for the limitation of voltage

fluctuations and flicker."

Before connection this equipment to the power supply system, please report to your

suply authority and obtain the consent.

Do not connect other electric appliances to the same supply lines.

The maximum permissible system impedance at the power junction box is 0.24 ohms.

Usually, the maximum permissible mains impedance will not be exceeded when the

branch to the power outlet is fed from a junction box with a rated current of 32A.

INSTALLATION

The illustrations in the step-by-step procedures use four different symbols:

AW18 **

HSILGNE

E-4

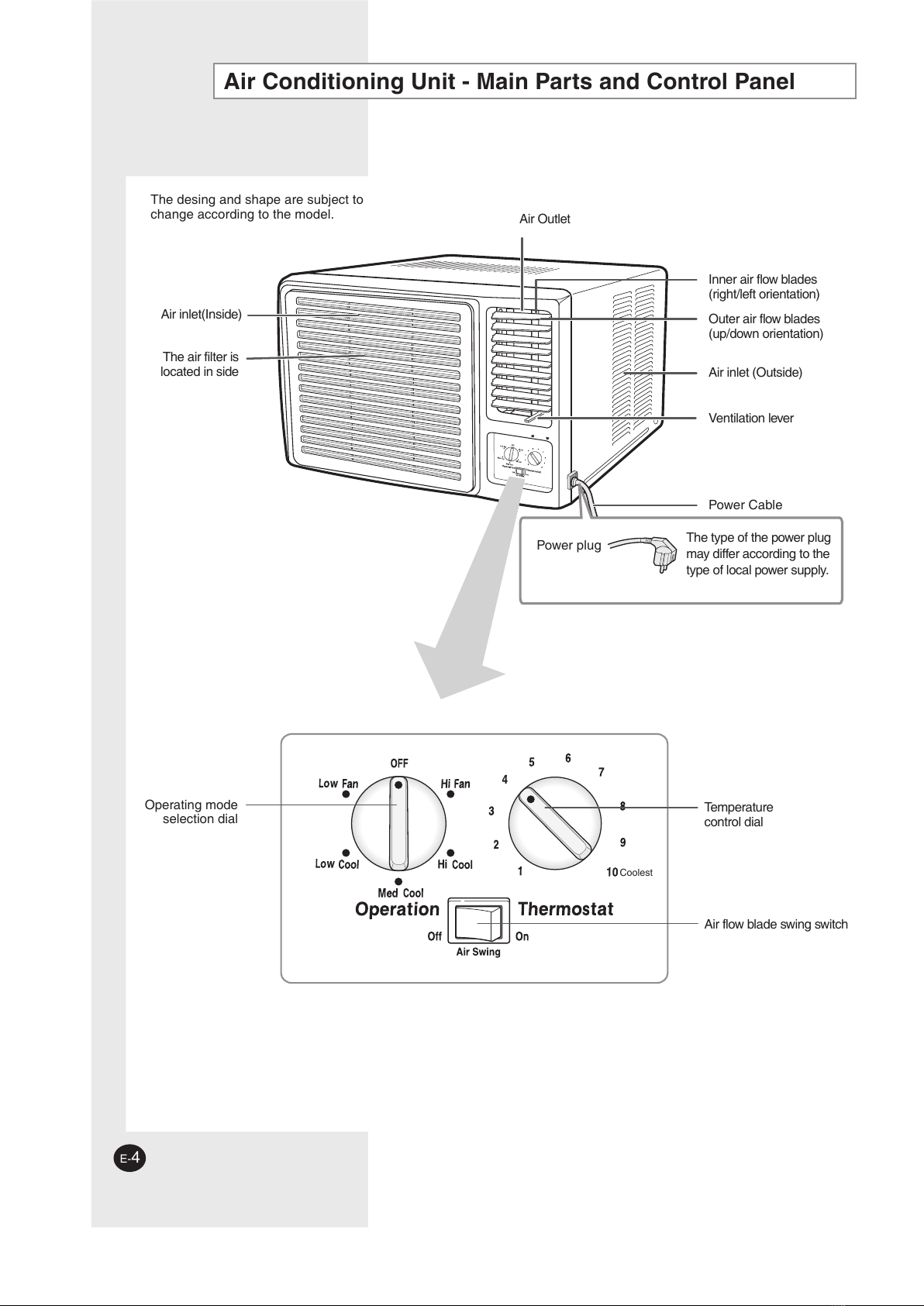

Air Conditioning Unit - Main Parts and Control Panel

The desing and shape are subject to

change according to the model.

Power plug The type of the power plug

may differ according to the

type of local power supply.

Inner air flow blades

(right/left orientation)

Outer air flow blades

(up/down orientation)

Air inlet (Outside)

Ventilation lever

Power Cable

Air inlet(Inside)

The air filter is

located in side

Operating mode

selection dial Temperature

control dial

Air flow blade swing switch

Air Outlet

Coolest

E-5

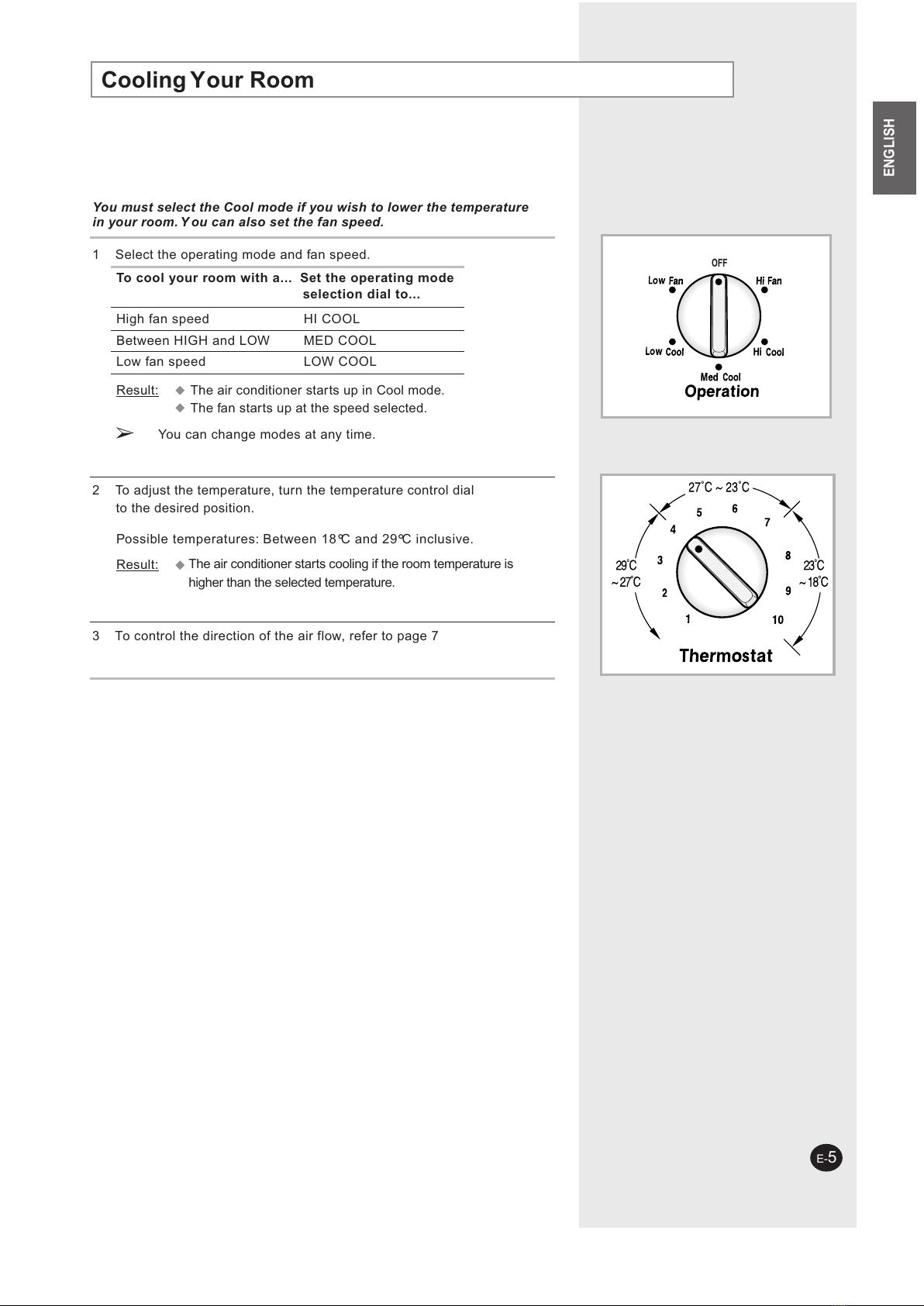

Cooling Your Room

You must select the Cool mode if you wish to lower the temperature

in your room. Y ou can also set the fan speed.

1 Select the operating mode and fan speed.

To cool your room with a... Set the operating mode

selection dial to...

High fan speed

Between HIGH and LOW

Low fan speed

HI COOL

MED COOL

LOW COOL

Result: The air conditioner starts up in Cool mode.

The fan starts up at the speed selected.

You can change modes at any time.

2 To adjust the temperature, turn the temperature control dial

to the desired position.

Possible temperatures: Between 18 C and 29 C inclusive.

Result: The air conditioner starts cooling if the room temperature is

higher than the selected temperature.

3 To control the direction of the air flow, refer to page 7

ENGLISH

E-6

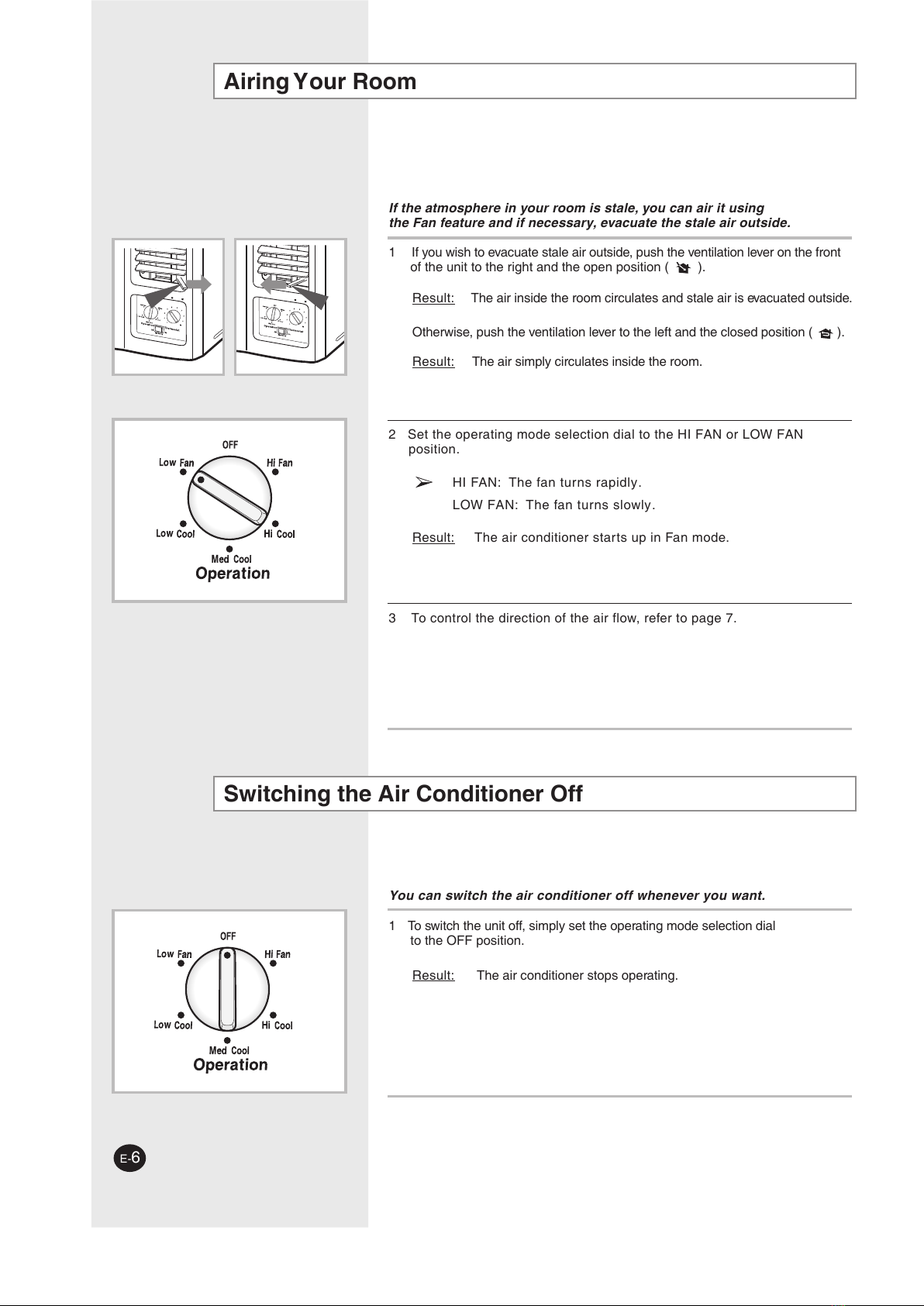

Airing Your Room

If the atmosphere in your room is stale, you can air it using

the Fan feature and if necessary, evacuate the stale air outside.

1 If you wish to evacuate stale air outside, push the ventilation lever on the front

of the unit to the right and the open position ( ).

You can switch the air conditioner off whenever you want.

1 To switch the unit off, simply set the operating mode selection dial

to the OFF position.

Result:

The air inside the room circulates and stale air is evacuated outside.

Otherwise, push the ventilation lever to the left and the closed position ( ).

The air simply circulates inside the room.

Result: The air conditioner starts up in Fan mode.

Result: The air conditioner stops operating.

2 Set the operating mode selection dial to the HI FAN or LOW FAN

position.

3 To control the direction of the air flow, refer to page 7.

HI FAN: The fan turns rapidly.

LOW FAN: The fan turns slowly.

Switching the Air Conditioner Off

E-7

If you orient the air flow blades downwards and the unit operates

in Cool mode for long periods of time, dew may:

Form on the surface of the blades

Drip from the blades

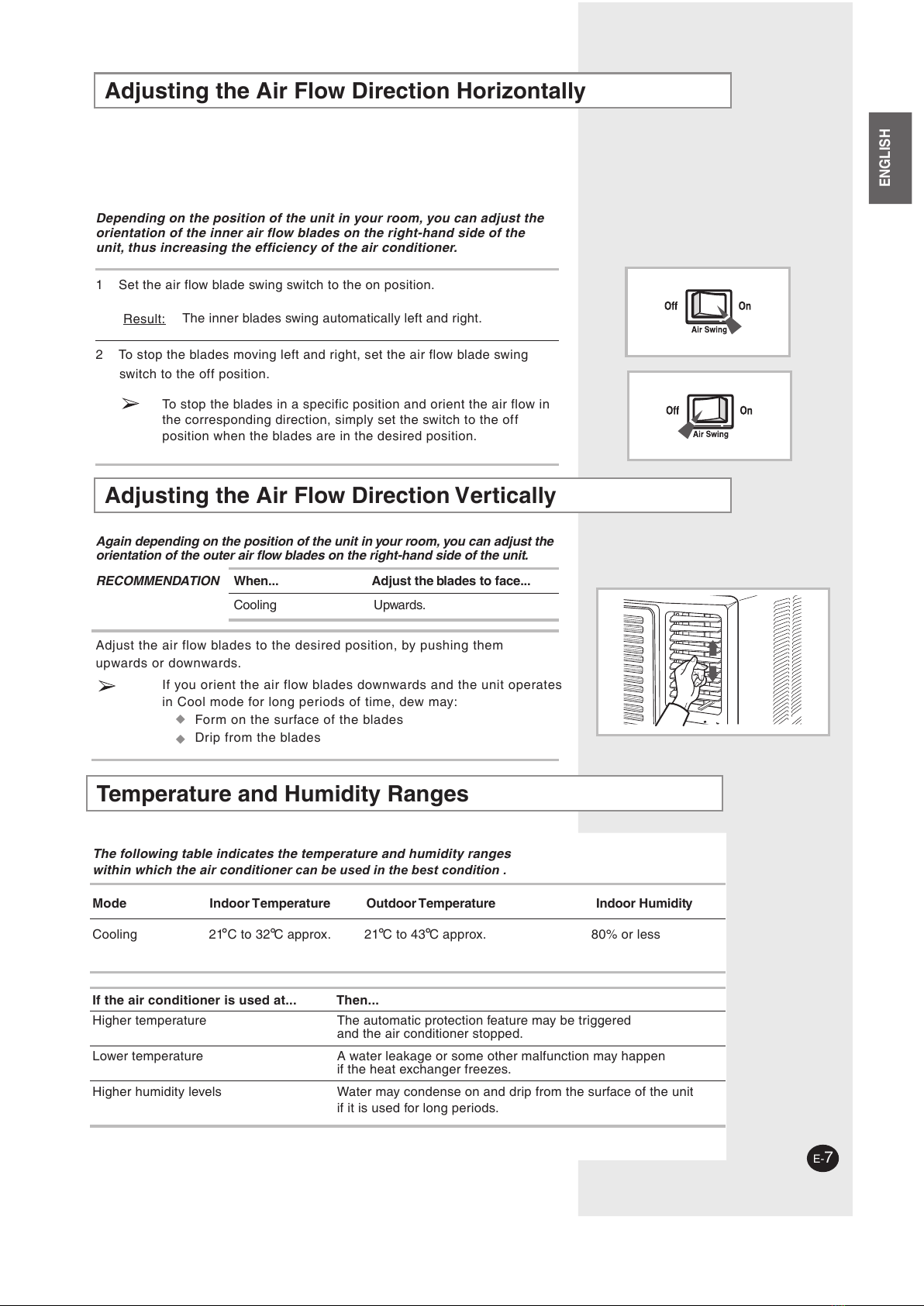

Adjusting the Air Flow Direction Horizontally

Adjusting the Air Flow Direction Vertically

HSILGNE

Depending on the position of the unit in your room, you can adjust the

orientation of the inner air flow blades on the right-hand side of the

unit, thus increasing the efficiency of the air conditioner.

1 Set the air flow blade swing switch to the on position.

Result: The inner blades swing automatically left and right.

2 To stop the blades moving left and right, set the air flow blade swing

switch to the off position.

To stop the blades in a specific position and orient the air flow in

the corresponding direction, simply set the switch to the off

position when the blades are in the desired position.

Again depending on the position of the unit in your room, you can adjust the

orientation of the outer air flow blades on the right-hand side of the unit.

RECOMMENDATION When... Adjust the blades to face...

Cooling Upwards.

Adjust the air flow blades to the desired position, by pushing them

upwards or downwards.

Temperature and Humidity Ranges

The following table indicates the temperature and humidity ranges

within which the air conditioner can be used in the best condition .

Mode Indoor Temperature Outdoor Temperature Indoor Humidity

If the air conditioner is used at... Then...

Higher temperature

Lower temperature

Higher humidity levels

The automatic protection feature may be triggered

and the air conditioner stopped.

A water leakage or some other malfunction may happen

if the heat exchanger freezes.

Water may condense on and drip from the surface of the unit

if it is used for long periods.

Cooling 21 C to 32 C approx. 21 C to 43 C approx. 80% or less

CCAA

AAUU

UUTT

TTII

IIOO

OONN

E-8

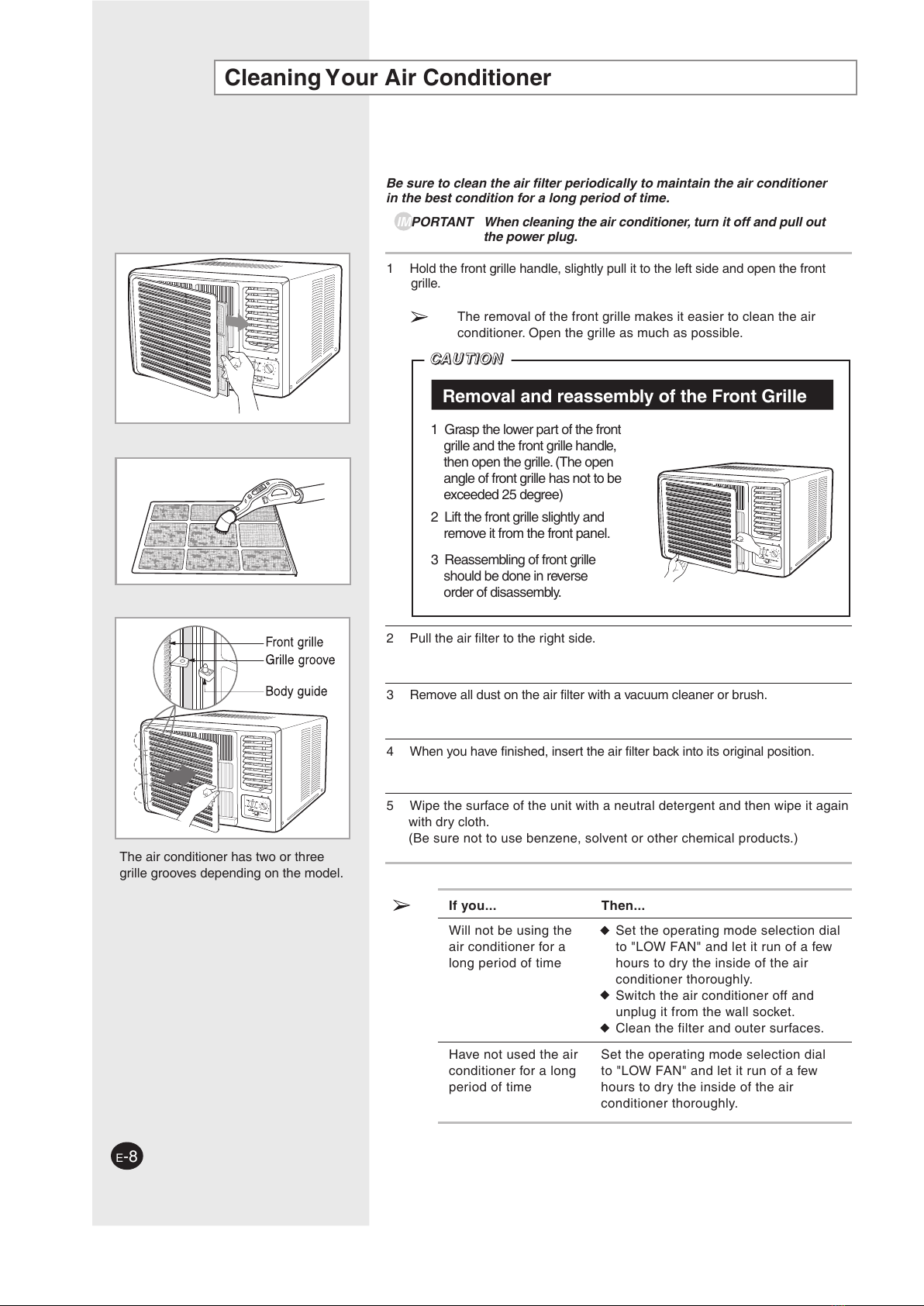

Cleaning Your Air Conditioner

Be sure to clean the air filter periodically to maintain the air conditioner

in the best condition for a long period of time.

1 Hold the front grille handle, slightly pull it to the left side and open the front

grille.

2 Pull the air filter to the right side.

3 Remove all dust on the air filter with a vacuum cleaner or brush.

4 When you have finished, insert the air filter back into its original position.

5 Wipe the surface of the unit with a neutral detergent and then wipe it again

with dry cloth.

(Be sure not to use benzene, solvent or other chemical products.)

IMPORTANT When cleaning the air conditioner, turn it off and pull out

the power plug.

The removal of the front grille makes it easier to clean the air

conditioner. Open the grille as much as possible.

1 Grasp the lower part of the front

grille and the front grille handle,

then open the grille. (The open

angle of front grille has not to be

exceeded 25 degree)

2 Lift the front grille slightly and

remove it from the front panel.

3 Reassembling of front grille

should be done in reverse

order of disassembly.

If you... Then...

Will not be using the

air conditioner for a

long period of time

Have not used the air

conditioner for a long

period of time

Set the operating mode selection dial

to "LOW FAN" and let it run of a few

hours to dry the inside of the air

conditioner thoroughly.

Switch the air conditioner off and

unplug it from the wall socket.

Clean the filter and outer surfaces.

Set the operating mode selection dial

to "LOW FAN" and let it run of a few

hours to dry the inside of the air

conditioner thoroughly.

The air conditioner has two or three

grille grooves depending on the model.

Removal and reassembly of the Front Grille

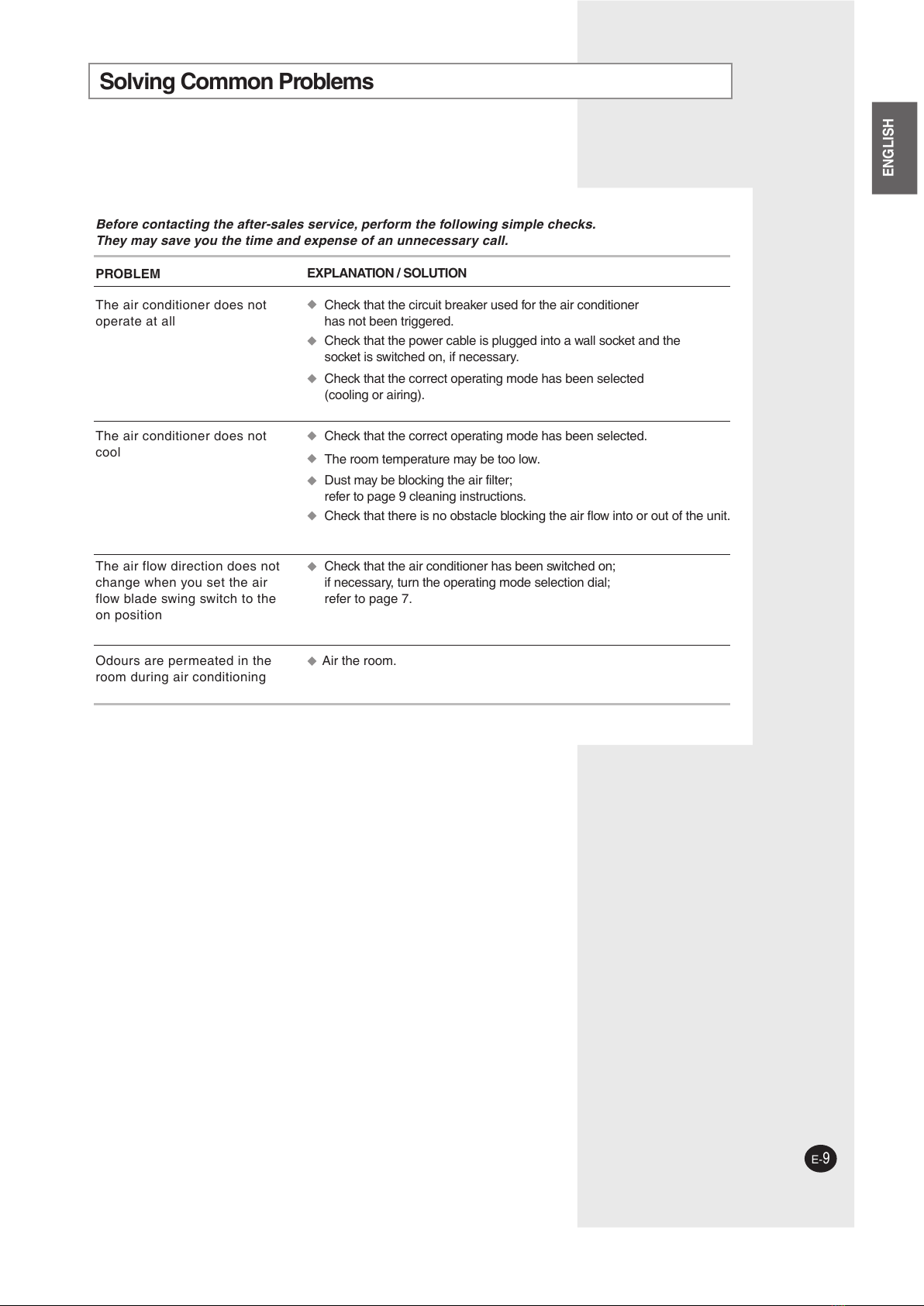

Solving Common Problems

Before contacting the after-sales service, perform the following simple checks.

They may save you the time and expense of an unnecessary call.

PROBLEM EXPLANATION / SOLUTION

The air conditioner does not

operate at all

The air conditioner does not

cool

The air flow direction does not

change when you set the air

flow blade swing switch to the

on position

Odours are permeated in the

room during air conditioning

Check that the circuit breaker used for the air conditioner

has not been triggered.

Check that the power cable is plugged into a wall socket and the

socket is switched on, if necessary.

Check that the correct operating mode has been selected

(cooling or airing).

Check that the correct operating mode has been selected.

The room temperature may be too low.

Dust may be blocking the air filter;

refer to page 9 cleaning instructions.

Check that there is no obstacle blocking the air flow into or out of the unit.

Check that the air conditioner has been switched on;

if necessary, turn the operating mode selection dial;

refer to page 7.

Air the room.

E-

HSILGNE

E-

Technical Specifications

Design and specifications are subject to change without notice.

Model Power Supply

******AA/AB

******BA/BB/BC/BD

******CA/CB

******DA/DB

******EA/EB/EC/ED

115V~, 60Hz

220V(230V)~, 60Hz

230/208V~, 60Hz

200-220V~, 50Hz

220-240V~, 50Hz

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Samsung Condizionatore d'aria

Samsung

Samsung AW18P1HBC Manuale utente

Samsung

Samsung NS0714DXEA Manuale utente

Samsung

Samsung AR07BSFCMWKNCV Manuale utente

Samsung

Samsung AF55JV MA N Series Guida

Samsung

Samsung NS 1DXEA Series Manuale utente

Samsung

Samsung AQV09FCN Manuale utente

Samsung

Samsung JH052EAV1 Manuale utente

Samsung

Samsung AXM260VE Manuale utente

Samsung

Samsung AR12KC3JAMV Guida alla risoluzione dei problemi

Samsung

Samsung AM***FNHDCH Manuale utente

Samsung

Samsung AR-EC03E Manuale utente

Samsung

Samsung AS09E Series Guida

Samsung

Samsung AQV09J Series Manuale utente

Samsung

Samsung PC4NUC N Series Manuale utente

Samsung

Samsung SH09BPDX Manuale utente

Samsung

Samsung AW0719 Manuale utente

Samsung

Samsung AC***KN4DKH Manuale utente

Samsung

Samsung AJ052RBNDEG/EU Manuale utente

Samsung

Samsung AJ026TN1DKH Manuale utente

Samsung

Samsung AW0690 Manuale utente

Samsung

Samsung AS07A5 Manuale utente

Samsung

Samsung AR NV3X Series Manuale utente

Samsung

Samsung APH450PG Manuale utente

Samsung

Samsung APC3270E Manuale utente

Manuali Condizionatore d'aria popolari di altre marche

Spheros

Spheros CC 355 Manuale utente

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE Manuale utente

Panasonic

Panasonic CS-E12HKEW Manuale utente

nedis

nedis ACMB1WT7 Manuale utente

Daikin

Daikin FCFV50A Manuale utente

Fujitsu

Fujitsu Inverter ASBA30JFC Manuale utente

Toshiba

Toshiba RAS-M10SMUV-E Manuale utente

Daikin

Daikin FXLQ20MAVE Manuale utente

Hitachi

Hitachi RAS-E24CAK Manuale utente

CIAT

CIAT Magister 2 Series Guida

Bestron

Bestron AAC6000 Manuale utente

Hisense

Hisense 7K Manuale tecnico

Frigidaire

Frigidaire FFRE0533S1E0 Manuale utente

Frigidaire

Frigidaire CRA073PU11 Manuale del proprietario

Soleus Air

Soleus Air GB-PAC-08E4 Manuale utente

McQuay

McQuay MCK020A Manuale utente

Webasto

Webasto Frigo Top 25 DS Manuale utente

Frigidaire

Frigidaire FAZ12ES2A Manuale utente
