Samsung DH052EAV1 Manuale utente

E-2

Correct Disposal of This Product

(Waste Electrical & Electronic Equipment)

(Applicable in the European Union and other European countries with separate collection systems)

This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes

at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste

disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of

material resources.

Household users should contact either the retailer where they purchased this product, or their local government office,

for details of where and how they can take this item for environmentally safe recycling.

Business users should contact their supplier and check the terms and conditions of the purchase contract.

This product should not be mixed with other commercial wastes for disposal.

Contents



PREPARING YOUR AIR CONDITIONER



Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3



View of the Indoor unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8



RECOMMENDATIONS FOR USE



Periodical Checks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10



Protections enabled by the Unit control system. . . . . . . . . . . . . . . . . . . . . . . 11



Operating Recommendations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12



Operating Limits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13



Cleaning Your Air Conditioner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14



Solving Common Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

E-3

ENGLISH

Safety Precautions

The following safety precautions are provided to protect the users’ safety and prevent property damage.

Make sure to read the followings and use the air conditioner properly.

 Keep this user’s manual together with the installation manual in a handy place so that you can find it whenever

you need to see it after reading this manual thoroughly.



Do not pull the electric wire

or touch the power plug with

the wet hands.



Install the switch and circuit

breaker only for

air conditioner.



Use the rated current fuse.

REGARDING POWER SOURCE



Do not bend the electric wire

by force or weigh down the

air conditioner not to be out

of order.



Use the power source with

separate wiring only for air

conditioner.



If the power plug is

damaged, replace it by the

manufacturer or qualified

personnel to avoid the risk.



Do not install the unit in a

place where it is exposed to

inflammable gas leakage.



Do not install the outdoor

unit where there’s the risk of

dropping such as on high

outer wall or outside of the

terrace.



Do not connect the ground

to a gas pipe, water pipe,

lightning rod or telephone

earth.

WHEN INSTALLING



Contact the service center

if the air conditioner is

under water.



The installation must be carried out

by a licensed installer or qualified

personnel when installing the unit

for the first time or reinstalling it.

WARNING

 This indicates the possibility of serious injury or death.

E-4

WARNING



Do not attempt to repair,

move, modify or reinstall

the unit on your own. Make

sure that these installations

are carried out by qualified

personnel to avoid electric

shock or fire.



Never spill any kind of liquid

into the unit. Should this

happen, unplug or main

switch off the unit and

contact an authorized

service center.

DURING OPERATION



Do not place any obstacles in

front of the unit.

Make sure that the unit is

correctly ventilated at all

times: Do not place clothing

or other materials over it.



If the wireless remote

control is not used for

a long time, remove the

batteries. (If applicable)



When using a wireless

remote control, the distance

should not be more than

7 meters from the air

conditioner. (If applicable)



Do not place any materials

so that children cannot step

on it.



Do not connect the electric

heater to the air conditioner

or repair it with your

discretion.



The manufacturer declines

any liability for damage

resulting from modifications

or errors in the electrical or

hydraulic connections.



Do not insert anything

between the air outlet

blades because the inner fan

may be damaged and could

cause injury. Keep children

away from the unit.



Failure to observe the

installation instruction, or use

of the unit under conditions

other than those indicated in

the table 'Operating limit' of

the unit installation manual,

will immediately invalidate

the unit warranty.

E-5

ENGLISH



Before throwing out the

device, it is necessary to pull

back the battery cells and get

rid of them safely for recycling

reasons.



When you need to dispose of

the unit, consult your dealer.

If pipes are removed

incorrectly, refrigerant may

blow out and come into

contact with your skin, causing

injury. Releasing refrigerant

into the atmosphere also

damages the environments.



Please recycle or dispose

of the packaging material for

this product in an

environmentally responsible

manner.

DISPOSING THE UNIT

WARNING



Install the air conditioner

avoiding direct sunlight or

heater, especially water.



Install the outdoor unit so as

to let the discharged air out

properly. Avoid a place that

may disturb your neighbor by

noise.



Install the drain hose to let

the water run safely and

correctly.

WHEN INSTALLING

CAUTION

 This indicates the possibility of serious injury or damage to

environments when operated incorrectly.

E-6



Disconnect the circuit breaker

when you don’t use the

air conditioner for a long time

to save energy.



Contact the service center or

manufacturer if you want to

repair the air conditioner.



Contact the service center

after turning off the air

conditioner if strange noise

is heard, burning smell or

smoke blow.

REGARDING POWER SOURCE



Do not drink the water from

the air conditioner.



Avoid cold and hot air

reaching to person, pet or a

plant directly for a long time.



Avoid the water from

getting into the

air conditioner.

DURING OPERATION



Do not use the air conditioner

for a long time in a closed room

or in a place where there’s a

baby or an old person.



Do not step on the air

conditioner or put heavy

object on it.

CAUTION

E-7

ENGLISH



Do not touch the pipes

connected to the air

conditioner.



Do not use the air conditioner

to maintain the machine, food,

pet, plant or cosmetics.



Do not give excessive shock

to the air conditioner.

DURING OPERATION



The appliance is not intended

for use by young children or

infirm persons without

supervision: Young children

should be supervised to

ensure that they do not play

with the appliance.



The maximum input power &

current is measured

according to the IEC standard

and the input power & current

is measured according to the

ISO standard.

OTHERS



Be sure that the air filter not to

be exposed to direct sunlight.



Do not clean the air

conditioner by spraying water

directly or with benzene,

thinner or alcohol.



The surface of the heat

exchanger is sharp, so be

careful of it when cleaning.



Be sure to insert the air filter.

CAUTION



All of the manufacturing and

packaging materials used for your

new appliance are compatible

with the environment and can be

recycled.



Dispose of the packaging

material in accordance with

the local requirements.



Turn off the air conditioner

and if the fan stops to operate,

clean the air conditioner.

E-8

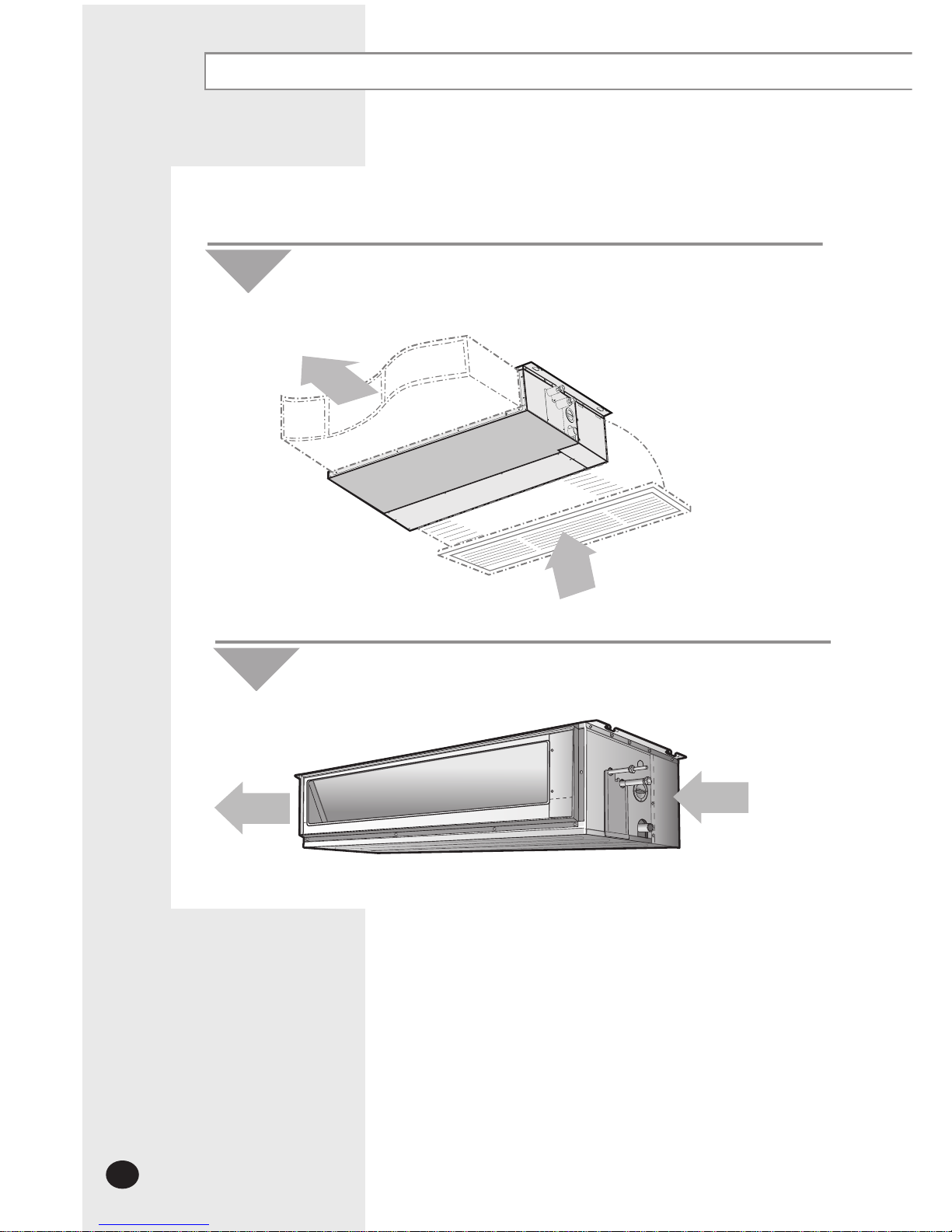

View of the Indoor Unit

The figures are shown in this instruction may differ from yours depending on the model.

Indoor Unit

EH035EAV1

Indoor Unit

Air Outlet

Air Inlet

EH052/070EAV1

E-9

ENGLISH

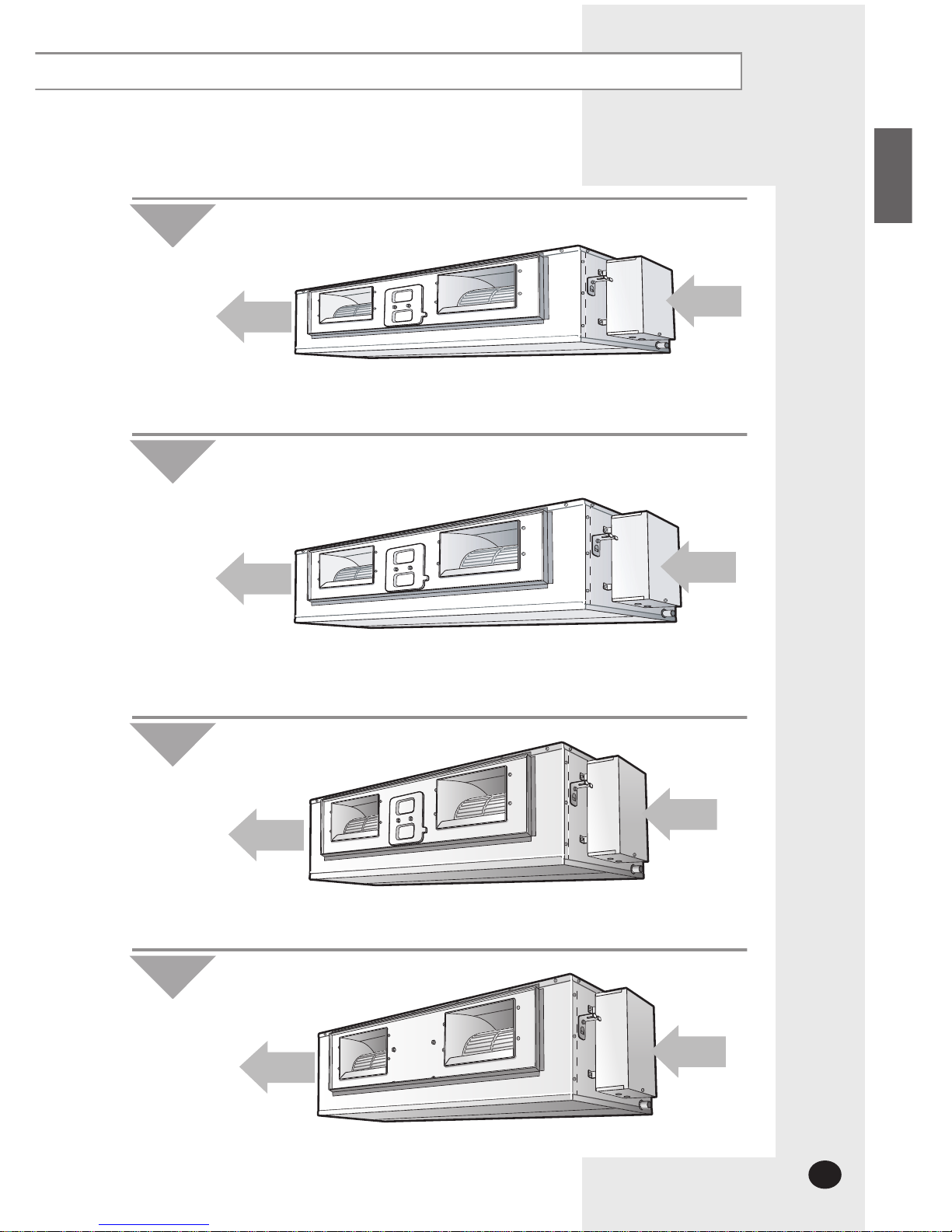

View of the Indoor Unit

Indoor Unit

DH052/070EAS

DH052EAV1

Indoor Unit

DH070EAV1

DH090EAV

DH105EAS

Air Inlet

Air Outlet

Air Inlet

Air Outlet

DH105EAV

DH140EAV

E-10

Periodical Checks

Type Description Monthly Every 4 months Once a year

Indoor unit

Clean the air filter (1)

Clean the condensate drain pan (2) 

Thoroughly clean the heat exchanger (2) 

Clean the condensate drain pipe (2) 

Replace the remote control batteries 

Outdoor unit

Clean the heat exchanger on the outside

of the unit (2) 

Clean the heat exchanger on the inside

of the unit (2) 

Clean the electric components with jets

of air (2) 

Verify that all the electric components

are firmly tightened (2) 

Clean the fan (2) 

Verify that all the fan assembly is firmly

tightened (2) 

Clean the condensate drain pan (2) 

 The checks and maintenance operations described are essential to guarantee the efficiency of the air conditioner.

The frequency of these operations varies according to the characteristics of the area, the amount of dust, etc.

(1) The described operations should be performed more frequently if the area of installation is very dusty.

(2) These operations must always be performed by qualified personnel. For more detailed information, see the

Installation Manual.
