Samsung MRK-A10N Guida

Receiver & Display Unit

MRK-A10N, MRK-A10UN

Air Conditioner

user & installation manual

imagine the possibilities

Thank you for purchasing this Samsung product.

EN PT

ES DE

FR EL

TR ZH AR

DB68-03717A-05

SOL Receiver & Display Unit_IBIM_EN_DB68-03717A-05.indd 7 2016-05-12 오전 11:21:53

EN-2

Safety Precautions

Do not attempt to install or repair this receiver & display

unit by yourself.

This receiver & display unit contains no userserviceable

parts. Always consult authorized service personnel for

repairs.

When moving, consult authorized service personnel for

disconnection and installation of the receiver & display

unit.

Ensure that the wall is strong enough to support the

weight of the receiver & display unit.

In the event of a malfunction (burning smell, etc.),

immediately stop operation, turn off the electrical

breaker, and consult authorized service personnel.

Read carefully this installation manual before installation

and check whether the receiver & display unit is installed

correctly after installation.

Must install the receiver & display unit with the wire kit

which is supplied with the unit.

The receiver & display unit must be installed according

to the national electrical rules by an installation

specialist.

When you want to disuse the receiver & display unit,

consult authorized installation center.

WARNING

 Before using the receiver & display unit, read carefully this instructions.

 After reading the instructions, keep this owner’s instructions and the

installation manual in a handy and safe place. If a user is changed, you must

hand over the manuals.

 Never attempt to install the air conditioning system or to move the receiver &

display unit by yourself.

SOL Receiver & Display Unit_IBIM_EN_DB68-03717A-05.indd 2 2016-05-12 오전 11:21:52

EN-3

ENGLISH

CAUTION Do not use inflammable gases near the receiver &

display unit.

Do not spill water into the wired receiver & display unit.

Do not operate the receiver & display unit with wet

hands.

Do not install the receiver & display unit in a location

where it will come into contact with the combustible

gases, machine oil, sulphide gas, etc.

Do not press buttons with a pointed thing.

Do not pull or bend the receiver & display unit cable

excessively.

Do not use this receiver & display unit for other purpose.

Do not spray an insecticide or other combustible things

on the receiver & display unit.

Do not clean the receiver & display unit with benzene,

solvents or other chemicals.

Do not give a shock to the receiver & display unit or

disassemble it by yourself.

Avoid a location where acid/alkali solution or special

spray is used.

Choose a location that is dry and sunny, but not

exposed to direct sunlight. Available temperature is

between 0°C(32°F) and 39°C(102°F).

Do not give tensile strength to the cable to avoid

disconnection.

If the receiver & display unit is installed in a hospital or

other special places, it should not affect other electronic

devices.

SOL Receiver & Display Unit_IBIM_EN_DB68-03717A-05.indd 3 2016-05-12 오전 11:21:52

EN-4

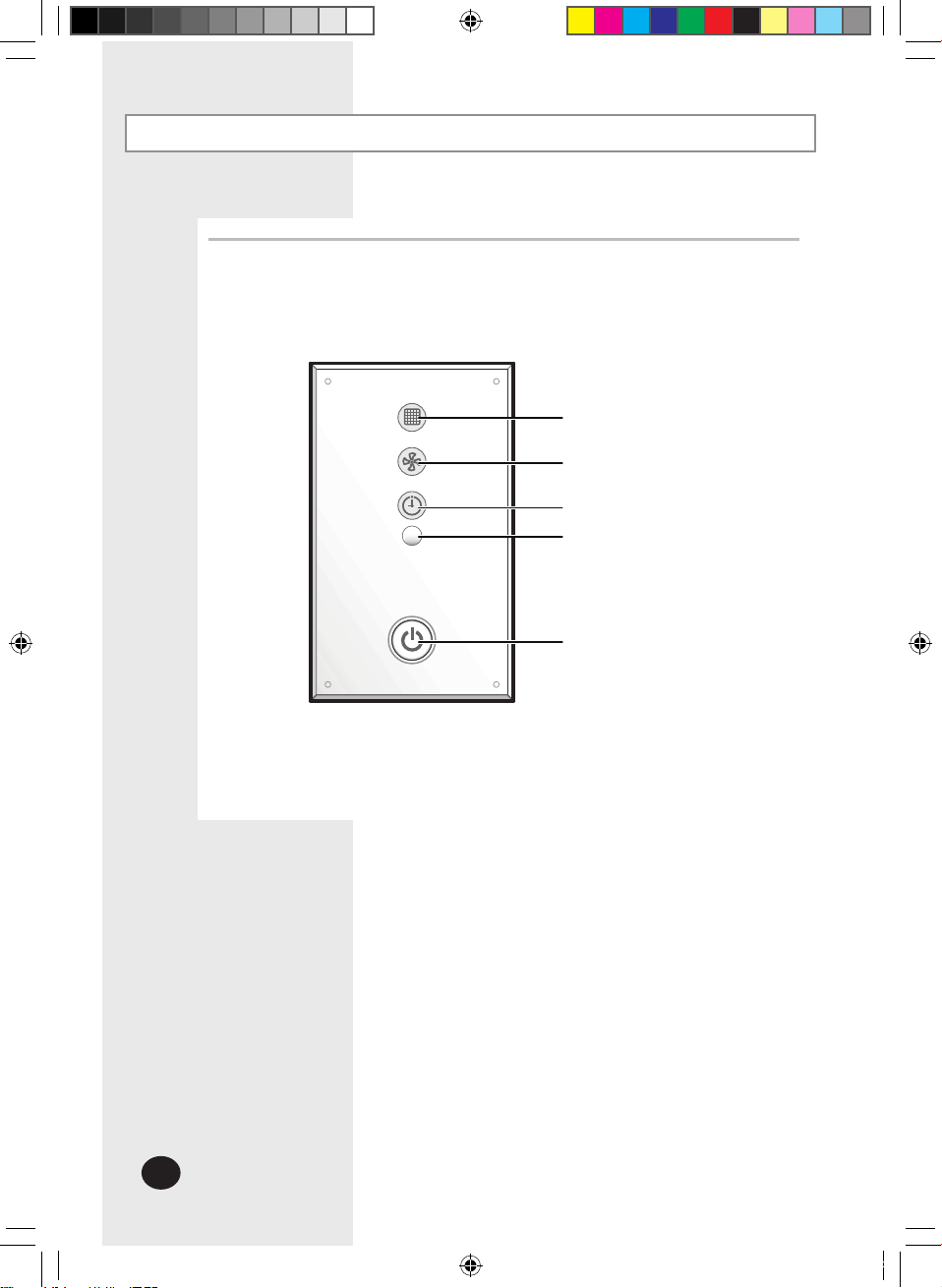

View of the Receiver & Display Unit

Filter sign indicator

Fan indicator

Timer indicator

Remote control sensor

On/Off Indicator(Blue) &

defrost Indicator for heat

pump model (Red)

SOL Receiver & Display Unit_IBIM_EN_DB68-03717A-05.indd 4 2016-05-12 오전 11:21:52

EN-5

ENGLISH

Receiver & Display Unit Installation

Accessories

Receiver & display

unit (1)

PH, +, 2, M2, L10

tapped screw (4)

TH, +, 1, M4, L20

tapped screw (2)

User & Installation

Manual (1)

Wire kit [Length:

10m (32.80ft)]

Remove the receiver & display unit cover by using the

tab on its bottom.

2Open the receiver & display unit.

Connect the end of the connector wire to the receiver

& display unit and connect the other end of the wire to

the DISPLAY connector of Indoor PCB as shown in figure.

X

Do NOT keep the receiver & display unit cable with a

220V cable because the remote controller cables have

low voltage.

Receiver &

display unit

Secure the receiver & display unit on the wall with

two screws.

5Reassemble the receiver & display unit cover.

X The receiver & display unit must be installed by an

installation specialist.

X Before installing the receiver & display unit, ensure that

you have turned off the main power.

X All receiver & display unit cables should be installed

according to the national wiring rules and you must install

it in the wall not to be touched by users.

SOL Receiver & Display Unit_IBIM_EN_DB68-03717A-05.indd 5 2016-05-12 오전 11:21:53
