Samsung MXD-E32K300A Manuale utente

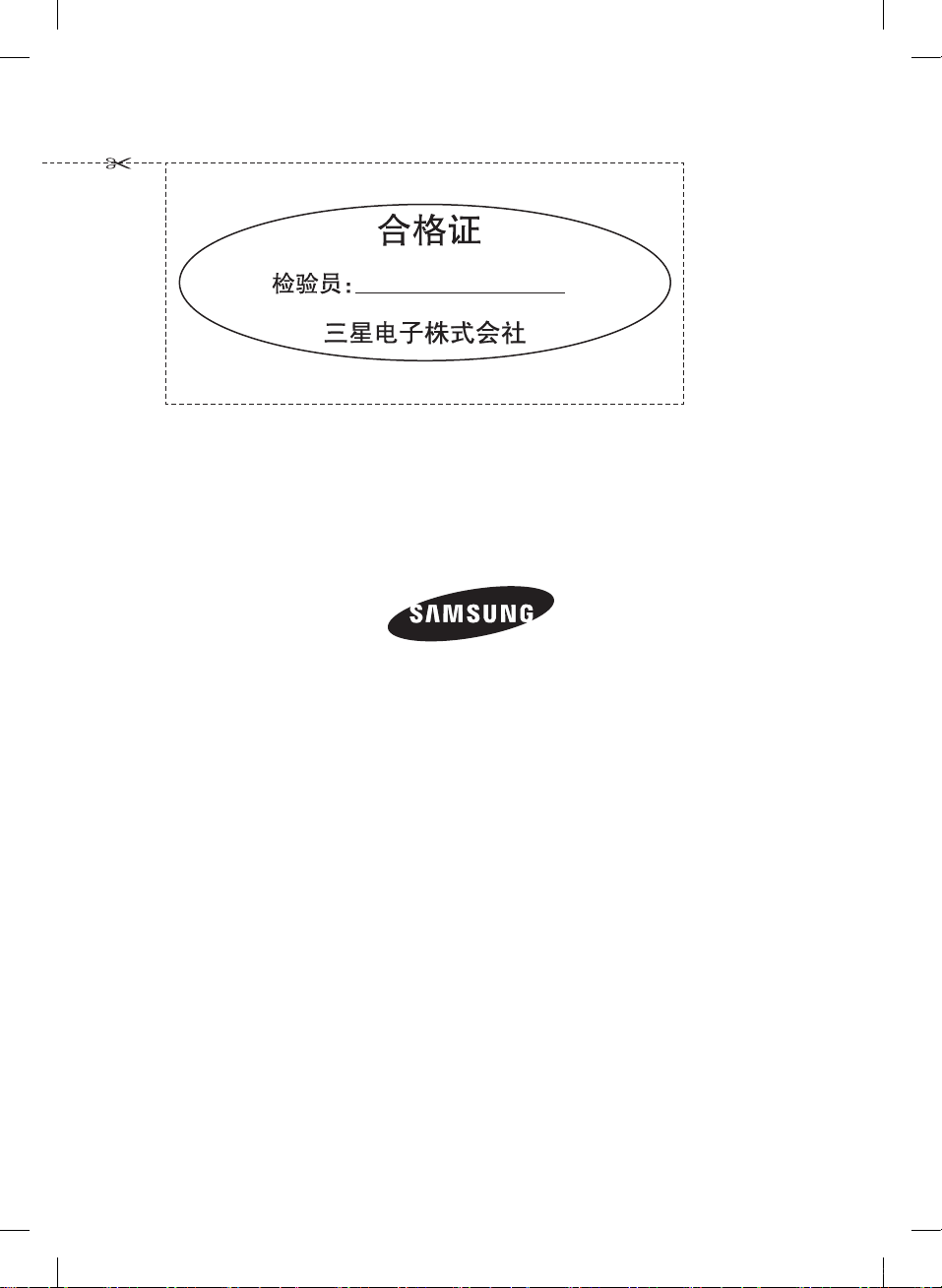

制造商：三星电子株式会社

原产地：韩国制造

销售商名称：三星（中国）投资有限公司

销售商地址：北京市朝阳区建国路乙118号京汇大厦2108室

NASA_Distributor Kit_IM_EN_03757A-03.indd 6 2014-05-26 오후 2:39:44

Air Conditioner

installation manual

imagine the possibilities

Thank you for purchasing this Samsung product.

This manual is made with 100% recycled paper.

Distributor Kit

MXD-E24K Series

MXD-E32K Series

EN IT ELES PT RU ZH

FR DE AR

DB68-03757A-03

NASA_Distributor Kit_IM_EN_03757A-03.indd 7 2014-05-26 오후 2:39:44

Preparation for Installation

Unit : mm(inch)

450(17.71)

105(4.13)

120(4.72)

100(3.93)

(1.96)

380

(14.96)

190(7.48)

333(13.11)

Inspection area

549(21.61)

500(19.68)

458(18.03)

403(15.86)

97(3.81)

74(2.91)

85(3.34)

204(8.03)

40(1.57) 40(1.57)

323(12.71)

313(12.32)

Inspection area

NASA_Distributor Kit_IM_EN_03757A-03.indd 2 2014-05-26 오후 2:39:42

ENGLISH

Electronic Expansion Valve Kit Installation

Connection of refrigerant piping & Installation

1. Decide an installation place that can support the electronic expansion

valve kit.

2. Connect the “IN” refrigerant pipe to the outdoor unit.

3. Connect the “OUT” refrigerant pipe to each indoor unit (A, B and C).

 The liquid and gas pipes should not be crossed when piping

connection.

4. Insulate the connection piping. A joint part of pipe needs double

thickness of insulation.

5. The expansion valve has to be installed that the user has no access to

it.

Electronic

Expansion

valve

body

Nylon band

NASA_Distributor Kit_IM_EN_03757A-03.indd 3 2014-05-26 오후 2:39:43

Electronic Expansion Valve Kit Installation (cont.)

Wiring & Assigning address

1(L) 2(N)

1(L) 2(N) 1(L) 2(N) 1(L) 2(N)

Another

distributor kit

Outdoor

unit

Room A

Room B

Room C

1. Connect the AC power cable and communication cable from the outdoor unit to terminal, then connect the cable to

another electronic expansion valve kit.

2. Connect the AC power cable and communication cable to each indoor unit (A, B and C).

3. Align the SW01/SW02, SW03/SW04 and SW05/SW06’s addresses with A, B and C indoor units’.

Switch No. Appropriate indoor unit

(Electronic expansion valve) Connector No.

SW01/SW02 A EEV.1 CN801(YELLOW)

SW03/SW04 B EEV.2 CN802(BLUE)

SW05/SW06 C EEV.3 CN803(WHITE)

NASA_Distributor Kit_IM_EN_03757A-03.indd 4 2014-05-26 오후 2:39:43

ENGLISH

Function of Display

 The numbers which is displayed on left are the status of indoor unit

checking status through communication with same outdoor unit. (If

it indicates 1, 3 and 7 that means the ADDRESS of indoor unit is set to

1, 3 and 7.)

 The numbers which is displayed on right indicate the ADDRESS

of SW01/SW02, SW03/SW04 and SW05/SW06 in sequential. (If it

indicates 0, 1 and 2 that means the SW01/SW02 is set to 0, the SW03/

SW04 is set to 1, and the SW05/SW06 is set to 2.)

 If the communication error occurs in distributor, the Er↔C0 message

will be shown on the display alternatively.

KEY function

 If you press a KEY on the PCB, the display will show you a step of

appropriate electronic expansion valve.

KEY No. Meaning Example

K1 Step of electronic expansion valve A 19

(19 x 10 =

190 STEP)

K2 Step of electronic expansion valve B

K3 Step of electronic expansion valve C

K4 - -

Applicable capacity

Model A B C Refrigerant

MXD-E24K132✴2 ~ 4.5 kW

(7000 ~ 15500 Btu/h)

5 ~ 9 kW

(17000 ~ 31000 Btu/h) -

R-410A

MXD-E24K200✴2 ~ 4.5 kW

(7000 ~ 15500 Btu/h)

2 ~ 4.5 kW

(7000 ~ 15500 Btu/h) -

MXD-E24K232✴2 ~ 4.5 kW

(7000 ~ 15500 Btu/h)

2 ~ 4.5 kW

(7000 ~ 15500 Btu/h)

5 ~ 9 kW

(17000 ~ 31000 Btu/h)

MXD-E24K300✴2 ~ 4.5 kW

(7000 ~ 15500 Btu/h)

2 ~ 4.5 kW

(7000 ~ 15500 Btu/h)

2 ~ 4.5 kW

(7000 ~ 15500 Btu/h)

MXD-E32K200✴5 ~ 9 kW

(17000 ~ 31000 Btu/h)

5 ~ 9 kW

(17000 ~ 31000 Btu/h) -

MXD-E32K224✴5 ~ 9 kW

(17000 ~ 31000 Btu/h)

5 ~ 9 kW

(17000 ~ 31000 Btu/h)

2 ~ 4.5 kW

(7000 ~ 15500 Btu/h)

MXD-E32K300✴5 ~ 9 kW

(17000 ~ 31000 Btu/h)

5 ~ 9 kW

(17000 ~ 31000 Btu/h)

5 ~ 9 kW

(17000 ~ 31000 Btu/h)

NASA_Distributor Kit_IM_EN_03757A-03.indd 5 2014-05-26 오후 2:39:44
