OWNER’S INSTRUCTIONS

MANUAL DE INSTRUCCIONES

ISTRUZIONI PER L’USO

MANUAL DE INSTRUÇÕES

MANUEL D’UTILISATION

GEBRAUCHSANWEISUNG

O¢H°IE™

Split-type Room Air Conditioner (Cool and Heat)

Aire acondicionado doméstico sistema Split (Refrigeración y Calefacción)

Condizionatore d’aria per ambienti ad unità Separate (Raffreddamento e Riscaldamento)

Aparelho de ar condicionado tipo Split (Refrigeração e Aquecimento)

Climatiseur de type Séparé (Refroidissement et Chauffage)

Geteilte raumklimaanlage (Kühlen und Wärmen)

¢IAIPOYMENO K§IMATI™TIKO ¢øMATIOY(æ‡ÍË˜ Î·È £¤ÚÌ·Ó Ë˜)

AQ07ACVE

AQ09ACVE

AQ12ACVE

SH07CA1

SH09CA1

SH12CA1

Indoor Unit

ENGLISH

ESPAÑOL

ITALIANO

PORTUGUÊS

FRANÇAIS

DEUTSCH

E⁄⁄HNIKA

ES I PFDGDB68-01273A(3)

E-2

Safety Precautions

The following safety precautions must be taken when using your air conditioner.

1 Make sure that the indoor unit is correctly ventilated at all times; do NOT place clothing or other materials

over it.

2 NEVER spill liquid of any kind into the indoor unit. Should this happen, switch off the breaker used for your

air conditioner and contact your installation specialist.

3 Do NOT insert anything between the air flow blades, as the inner fan may be damaged and you may be hurt.

Keep children away from the indoor unit.

4 Do NOT place any obstacles in front of the outdoor unit.

5 If the remote control will not be used for a long time, remove the batteries.

6 Users of this product are cautioned not to attempt repair of this product at their own discretion.

Instead, they are requested to directly contact a designated service center or the outlet at which the

product was purchased.

7 If the supply cord is damaged, it must be replaced by a special cord or assembly available from the

manufacturer or its service agent.

8 This device must be installed according to the national electrical rules.

9 Before throwing out the device, it is necessary to pull back the battery cells and get rid of them safely.

10 The appliance is not intended for use by young children or infirm person without supervision;

young children should be supervised to ensure that they do not play with the appliance.

The manufacturer do not take the responsibility of the accident happened

because the air conditioner is not fixed firmly or installed securely, during

installing or using the product. In case you have difficulty in installation,

you must ask for an installation specialist help. The accident will be hap-

pened in case of installing improperly.

E-3

Contents

◆

REPARING YOUR AIR CONDITIONER

■ Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

■

View of the Indoor Unit

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

■

View of the Outdoo Unit

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

■ Remote Control-Buttons and Display . . . . . . . . . . . . . . . . . . . . .5

■ Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

■ Inserting the Remote Control Batteries . . . . . . . . . . . . . . . . . . . .7

◆

PERATING YOUR AIR CONDITIONER

■ Selecting the Automatic Operating Mode . . . . . . . . . . . . . . . . . .8

■ CoolingYour Room . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

■ HeatingYour Room . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

■ Changing the Room Temperature Quickly . . . . . . . . . . . . . . . .11

■ Removing Excess Humidity . . . . . . . . . . . . . . . . . . . . . . . . . . .12

■ AiringYour Room . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

■ Adjusting the Air Flow Direction Vertically . . . . . . . . . . . . . . . .14

■ Adjusting the Air Flow Direction Horizontally . . . . . . . . . . . . . .15

◆

ROGRAMMING YOUR AIR CONDITIONER

■ Setting the On Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

■ Setting the Off Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

■ Setting the Sleep Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

◆

ECOMMENDATIONS FOR USE

■ Operating Recommendations . . . . . . . . . . . . . . . . . . . . . . . . . .19

■ Temperature and Humidity Ranges . . . . . . . . . . . . . . . . . . . . . .20

■ CleaningYour Air Conditioner . . . . . . . . . . . . . . . . . . . . . . . . . .20

■ Solving Common Problems . . . . . . . . . . . . . . . . . . . . . . . . . . .21

■ OperatingYour Air ConditionerWithout the Remote Control . . . .22

■ Installing a Filter (Option) . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22

◆

ECHNICAL SPECIFICATIONS

ENGLISH

View of the Indoor Unit

OPERATION TURBO

FAN

TIMER

ON/OFF switch

(operation without

remote control)

Air Filter

(under the grille)

TIMER indicator

-YELLOW

OPERATION indicator

- Operation : GREEN

- Deice : RED

TURBO indicator

- RED

FAN indicator

- GREEN

Air flow blades (outlet)

Remote control sensor

Air Inlet

View of the Outdoor Unit

❄The design and shape are subject to change according to the model.

UQ07ACVE

SH07CA1X UQ09/12ACVE

SH09CA1X

SH12CA1X

Air Outlet Air Outlet

Connection Valve

Air InletAir Inlet

Connection Valve

E-4

E-5

ENGLISH

Remote Control - Buttons and Display

Operating mode

( AUTO, COOL, DRY,

FAN, HEAT)

Remote control

transmission indicator Mode selection button

(AUTO, COOL, DRY, FAN, HEAT)

Turbo/Sleep mode

selection button

Swing button

On Timer button

Off Timer button

On/Off &

Timer Set/Cancel button

Fan speed adjustment

button

Temperature adjustment

buttons

Temperature setting

Sleep mode

Turbo mode

Fan speed

Air flow direction

On Timer setting

Off Timer setting

Battery discharge indicator

E-6

Getting Started

You have just purchased a split type air conditioner and it has been

installed by your installation specialist.

Your Owner’s Instructions contain much valuable information on using your

air conditioner. Please take the time to read them as they will help you take full

advantage of the unit’s features.

The booklet is organized as follows.

◆The following figures are shown on pages from 4 to 5 :

- Indoor and outdoor units

- Remote control(buttons and display)

They will help you find the buttons and understand the symbols displayed.

◆In the main part of the document, you will find a series of step-by-step

procedures for each function available.

The illustrations in the step-by-step procedures use three different symbols:

PRESS PUSH HOLD DOWN

E-7

ENGLISH

Inserting the Remote Control Batteries

Push the battery cover on the rear of the remote control with your thumb

in the direction of the arrow and remove it.

Insert the two batteries, taking care to respect the polarities :

◆+ on the battery with + on the remote control.

◆- on the battery with - on the remote control.

Close the cover by sliding it back until it clicks into place.

◆Use two AAA, LR03 1.5V batteries.

◆Do not use old batteries or different kinds of batteries together.

◆Batteries may be completely discharged after 12 months, even

◆if they have not actually been used.

You must insert or replace the remote control batteries when :

◆You purchase the air conditioner

◆The remote control does not work correctly

E-7

E-8

Selecting the Automatic Operating Mode

You can start the air conditioner in Automatic mode from your remote

control. In the Automatic mode, the standard temperature and the

optimum fan speed is selected automatically. You can adjust the

standard temperature but not the fan speed.

If the is not displayed at the top of the remote control,

press the MODE button on the remote control one or more times until it

appears.

Result:◆The indoor unit beeps each time you press the MODE button.

◆The air conditioner runs in AUTO mode.

You can change modes at any time.

If necessary, press the (On/Off) button.

Result:◆The OPERATION indicator on the indoor unit comes on.

◆The air conditioner starts up in the mode selected

when the unit was last used.

◆The indoor unit beeps.

The air conditioner is fitted with a protection mechanism to

prevent the unit from being damaged when it is started

immediately after being:

◆Plugged in

◆Stopped

lt will start up normally after three minutes.

IMPORTANT

To adjust the standard temperature (The air conditioner automatically

set the standard temperature by the current room temperature.),

press the TEMPERATURE buttons one or more times.

SET TEMP. SET TEMP. - SET TEMP. SET TEMP.

-2°C -1°C Standard temperature +1°C +2°C

< When you feel hot > < When you feel chilly >

E-9

CoolingYour Room

1If necessary, press the (On/Off) button.

Result:

◆

The OPERATION indicator on the indoor unit comes on.

◆The air conditioner starts up in the mode selected

when the unit was last used.

◆The indoor unit beeps.

The air conditioner is fitted with a protection mechanism to

prevent the unit from being damaged when it is started

immediately after being:

◆Plugged in

◆Stopped

lt will start up normally after three minutes.

IMPORTANT

If the is not displayed at the top of the remote control,

press the MODE button on the remote control one or more times until it

appears.

Result:

◆

The indoor unit beeps each time you press the MODE button.

◆

The air conditioner runs in COOL mode.

You can change modes at any time.

To adjust the temperature, press the TEMPERATURE buttons one or

more times until the required temperature is displayed.

Possible temperatures are between 18°C and 30°C inclusive.

Result:◆

Each time you press the TEMPERATURE buttons:

- The temperature is adjusted by 1°C

- The indoor unit beeps

◆The air conditioner starts cooling, provided that the room

temperature is higher than the selected temperature;

the fan will, however, operate.

Select the fan speed by pressing the FAN button one or more times

until the required setting is displayed:

Automatic (rotated : )

Low

Medium

High

Result: Each time you press the FAN button, the indoor unit beeps.

To control the direction of the air flow, refer to page 14 and 15.

ENGLISH

You must select the Cool mode if you wish to adjust the:

◆Cooling temperature

◆Fan speed when cooling

E-10

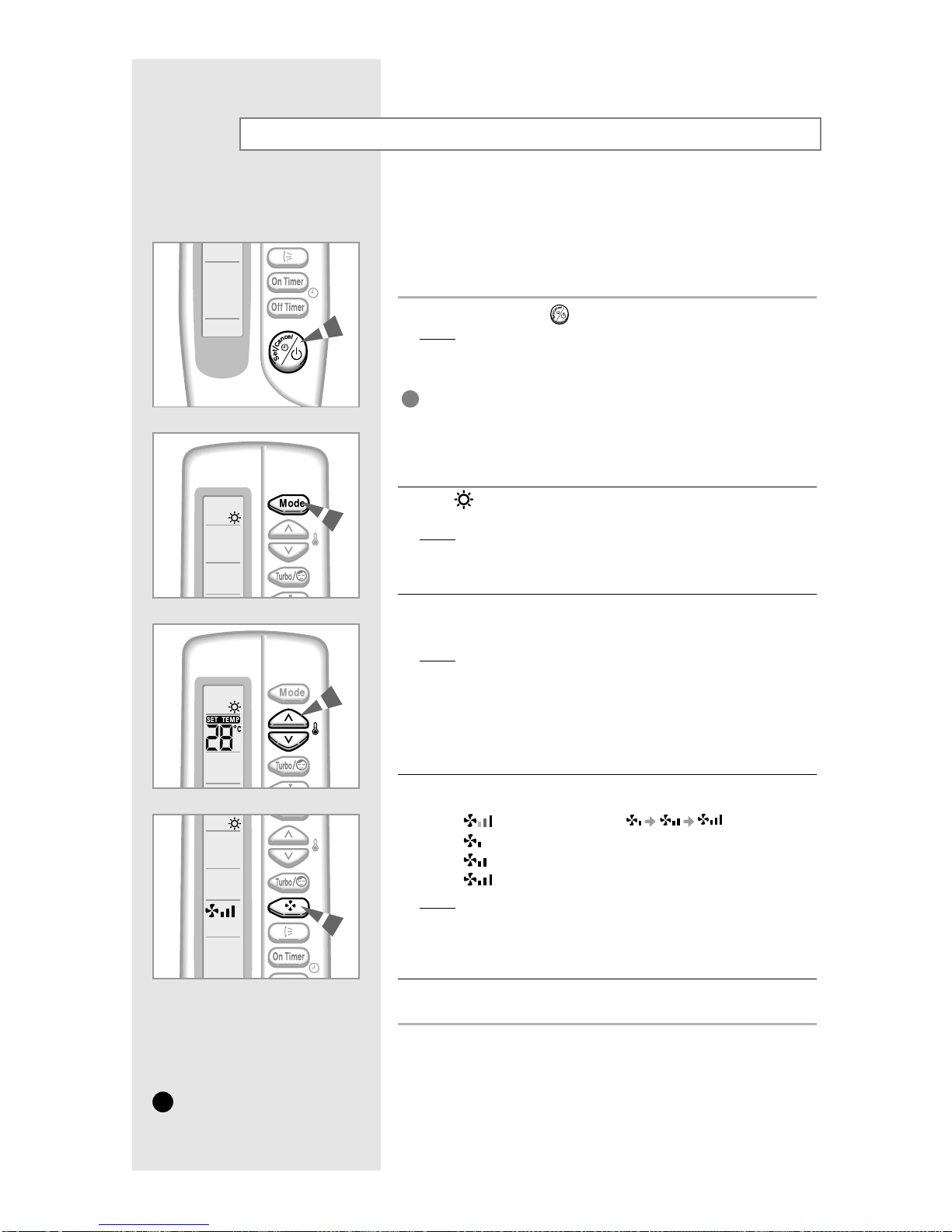

HeatingYour Room

You must select the Heat mode if you wish to adjust the:

◆Heating temperature

◆Fan speed when heating

1If necessary, press the (On/Off) button.

Result:◆

The OPERATION indicator on the indoor unit comes on.

◆The air conditioner starts up in the mode selected when

the unit was last used.

◆The indoor unit beeps.

The air conditioner is fitted with a protection mechanism

to prevent the unit from being damaged when it is started

immediately after being:

◆Plugged in

◆Stopped

It will start up normally after three minutes.

2If the is not displayed at the top of the remote control, press the

MODE button on the remote control one or more times until it appears.

Result:◆

The indoor unit beeps each time you press the MODE button.

◆

The air conditioner runs in HEAT mode.

NNoo

oott

ttee

eeYou can change modes at any time.

3To adjust the temperature, press the TEMPERATURE buttons one or

more times until the required temperature is displayed.

Possible temperatures are between 16°C and 30°C inclusive.

Result:◆Each time you press the TEMPERATURE buttons:

- The temperature is adjusted by 1°C

- The indoor unit beeps

◆The air conditioner starts heating, provided that the room

temperature is lower than the desired temperature

(selected temperature+3°C); the fan will, however, operate.

4Select the fan speed by pressing the FAN button one or more times

until the required setting is displayed:

Automatic (rotated : )

Low

Medium

High

Result:◆

Each time you press the FAN button, the indoor unit beeps.

◆

For the first three to five minutes, the fan operates very

slowly until the air has been sufficiently warmed. Once the

correct temperature has been reached, the fan is automatically

set to the required speed.

5To control the direction of the air flow, refer to page 14 and 15.

IMPORTANT

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Samsung Condizionatore d'aria

Samsung

Samsung AC KN4DKH Series Manuale utente

Samsung

Samsung SH18AS0 Manuale utente

Samsung

Samsung AQV18FA Manuale utente

Samsung

Samsung AC NN4DKH Series Manuale utente

Samsung

Samsung SH24TS6 Manuale utente

Samsung

Samsung CH070EAV1 Manuale utente

Samsung

Samsung AC048KXQPCC Manuale utente

Samsung

Samsung MCM-D211UN Manuale utente

Samsung

Samsung AS09N8MD/AAE Manuale utente

Samsung

Samsung AC36BTVA Manuale utente

Samsung

Samsung AC090FCAPEH Manuale utente

Samsung

Samsung DB98-17032A(5) Manuale utente

Samsung

Samsung SH07ZP2 Series Manuale utente

Samsung

Samsung AC MN4PKH Series Manuale utente

Samsung

Samsung AQT18PJG Series Manuale utente

Samsung

Samsung AJ TNNDKG Series Manuale utente

Samsung

Samsung AC KXADKH Series Manuale utente

Samsung

Samsung EH035CAV Manuale utente

Samsung

Samsung AC026FBRDEH Manuale utente

Samsung

Samsung MH020FVEA Manuale utente

Samsung

Samsung AR09AXKAAWKNEU Manuale utente

Samsung

Samsung AW05N0YAD Manuale utente

Samsung

Samsung EH035CAV Manuale utente

Samsung

Samsung AC***FB4DEH Manuale utente

Manuali Condizionatore d'aria popolari di altre marche

Spheros

Spheros CC 355 Manuale utente

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE Manuale utente

Panasonic

Panasonic CS-E12HKEW Manuale utente

nedis

nedis ACMB1WT7 Manuale utente

Daikin

Daikin FCFV50A Manuale utente

Fujitsu

Fujitsu Inverter ASBA30JFC Manuale utente

Toshiba

Toshiba RAS-M10SMUV-E Manuale utente

Daikin

Daikin FXLQ20MAVE Manuale utente

Hitachi

Hitachi RAS-E24CAK Manuale utente

CIAT

CIAT Magister 2 Series Guida

Bestron

Bestron AAC6000 Manuale utente

Hisense

Hisense 7K Manuale tecnico

Frigidaire

Frigidaire FFRE0533S1E0 Manuale utente

Frigidaire

Frigidaire CRA073PU11 Manuale del proprietario

Soleus Air

Soleus Air GB-PAC-08E4 Manuale utente

McQuay

McQuay MCK020A Manuale utente

Webasto

Webasto Frigo Top 25 DS Manuale utente

Frigidaire

Frigidaire FAZ12ES2A Manuale utente
