02_ English

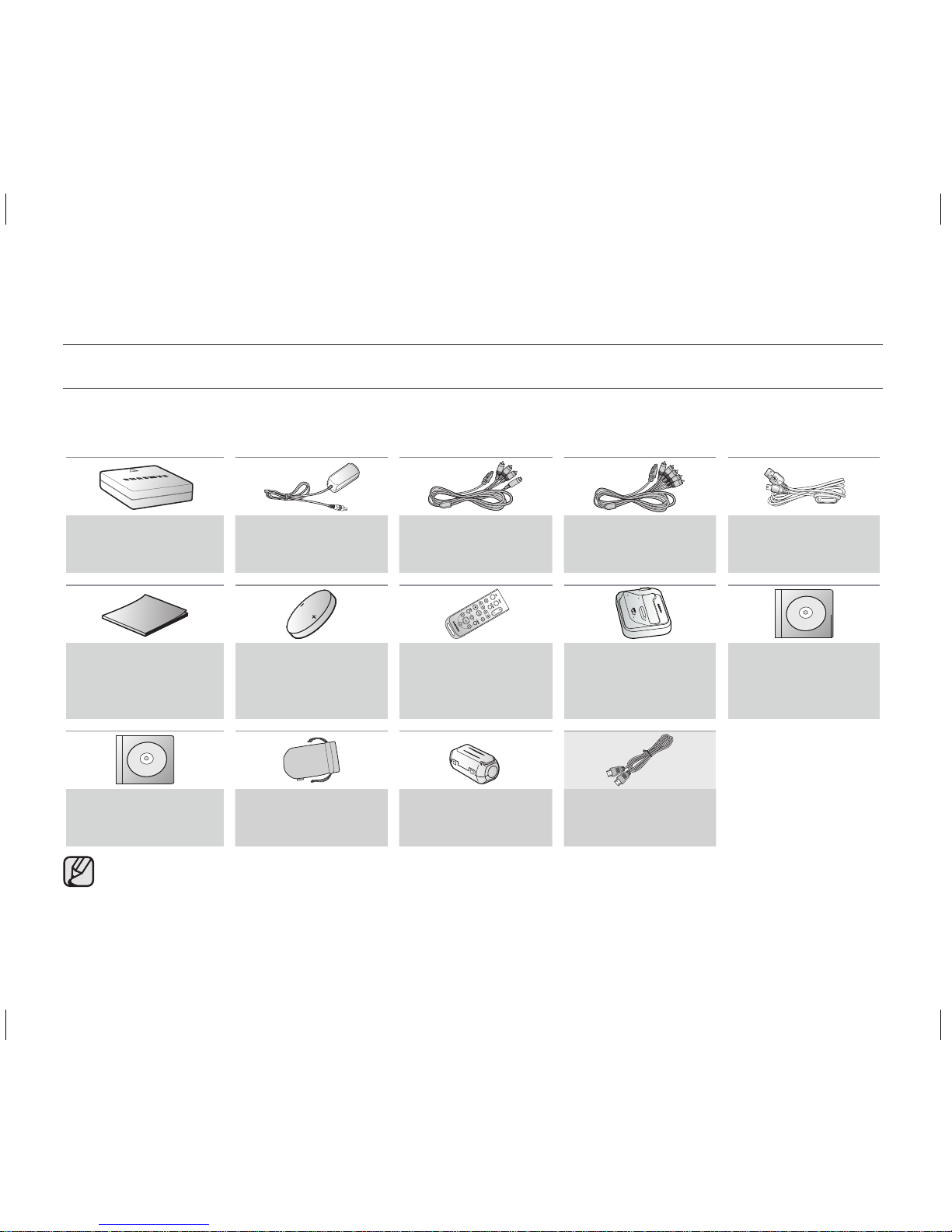

WHAT’S INCLUDED WITH YOUR HD CAMCORDER
Your new HD camcorder comes with the following accessories. If any of these items is missing from your box, call
Samsung’s Customer Care Center.
✪ The exact appearance of each item may vary by model.
The contents may vary depending on the sales region.
Parts and accessories are available at your local Samsung dealer.
To buy this one, contact your nearest Samsung dealer.
You have to connect the AC power adaptor to the cradle when connecting external devices using the cradle.
getting to know your HD camcorder
Battery pack
(IA-BP85ST)
(AD43-00180E)
AC power adaptor
(AA-E9 type)
(AD44-00116B)
Multi-AV cable
(AD39-00119E)
Component cable
(AD39-00142B)
USB cable
(AD82-00295A)
Quick start guide
(AD82-00324A)
Button type
battery
(type: CR2025)
(AD43-10130H)
Remote control
(AD59-00153C)
Cradle
(AD82-00321A)
Software CD
(AD46-00095A)
User manual CD
(AD82-00322A)
Pouch
(AD69-00932A)
Core filters
(AD82-00323A)
HDMI cable
(Optional)
(MF39-00299A)
SC-HMX20C_ENG_QG_0703.indd 2 2008-07-15 ¿ÀÈÄ 2:39:18
English _03
ENG

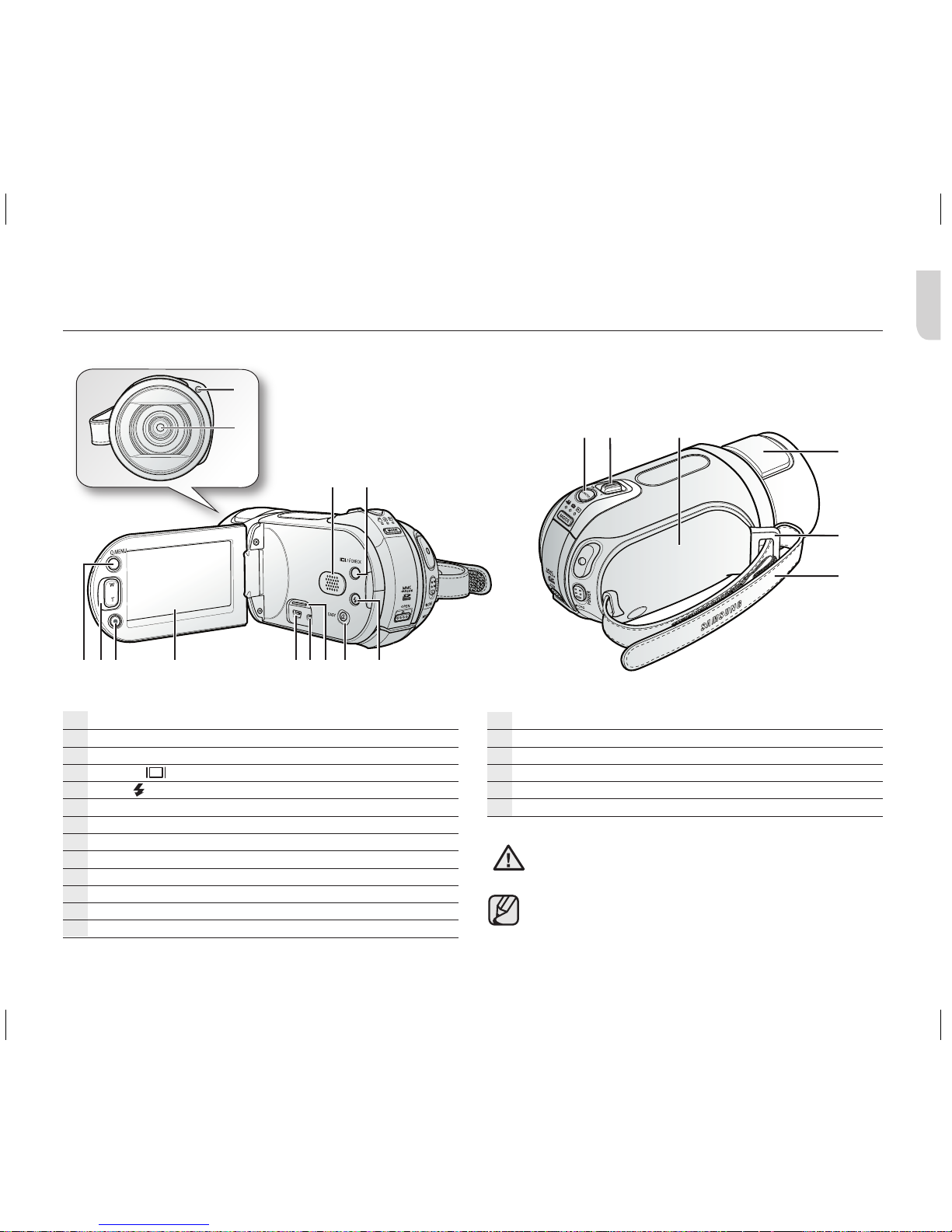

FRONT & LEFT VIEW / RIGHT & TOP VIEW
Recording indicator
Lens
Built-in speaker
Display ( ) / iCHECK button
Flash ( ) button
EASY Q button
Jack cover
COMPONENT / AV / S-Video (S) jack
USB jack
TFT LCD screen (touch panel)
Recording start/stop button
Zoom (W/T) button / Remote control sensor
Q.MENU button
PHOTO button
Zoom (W/T) lever
Swivel handle
Built-in flash
Grip belt hook
Grip belt
CAUTION
When using the remote control, open the LCD
screen and point directly at the remote sensor.
The HDMI jack is on the Cradle.
SC-HMX20C_ENG_QG_0703.indd 3 2008-07-15 ¿ÀÈÄ 2:39:23
04_ English

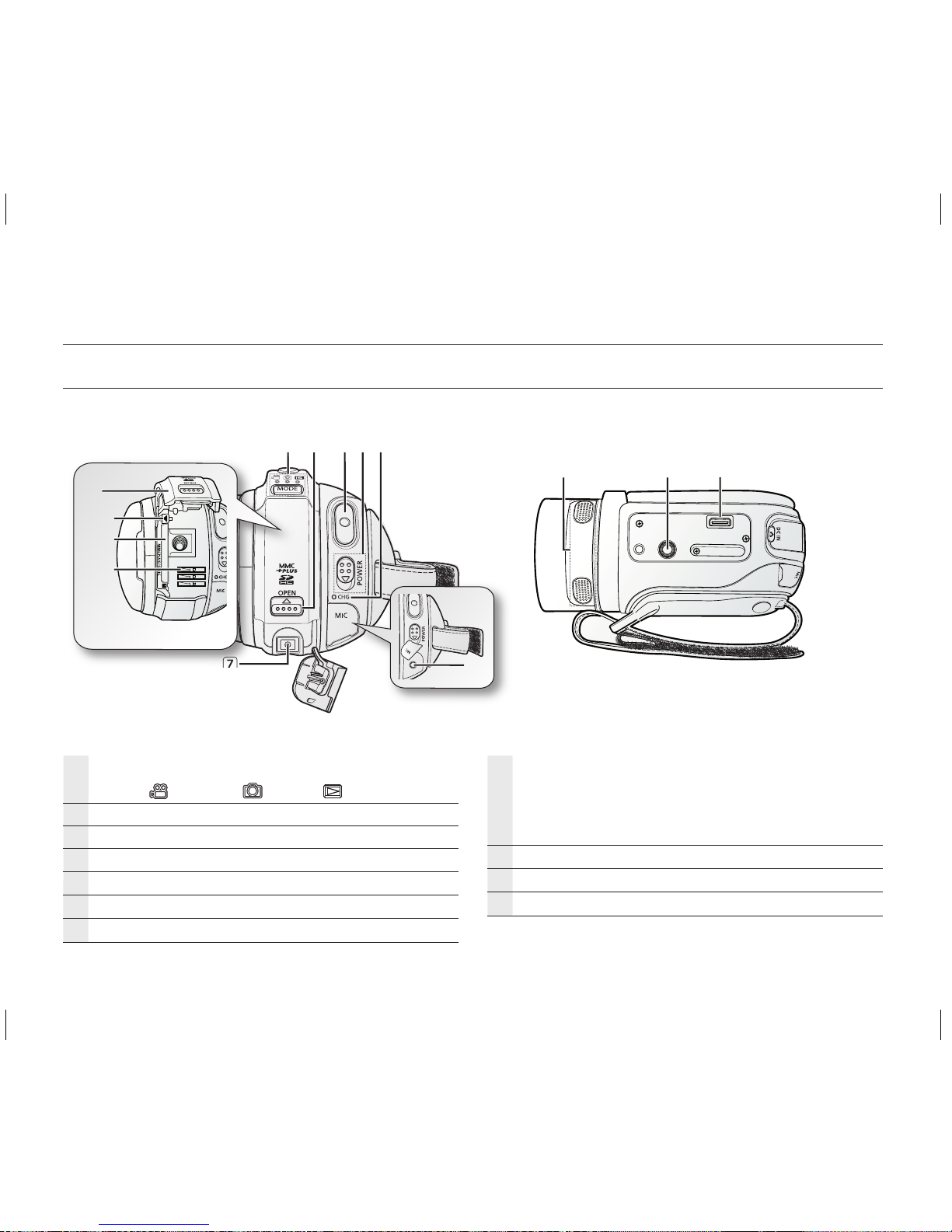

REAR & BOTTOM VIEW
MODE button/Mode indicator
(Movie ( ) / Photo ( ) / Play ( ) mode)
OPEN switch
Recording start/stop button
POWER switch
CHG (charging) indicator
MIC (external microphone) jack
DC IN jack
Battery pack/Memory card cover
ⓐ Battery pack release switch
ⓑ Memory card slot
ⓒ Battery pack slot
Internal microphone
Tripod receptacle
Cradle receptacle
ⓐ
ⓑ
ⓒ
getting to know your HD camcorder
SC-HMX20C_ENG_QG_0703.indd 4 2008-07-15 ¿ÀÈÄ 2:39:30
English _05
ENG
preparation

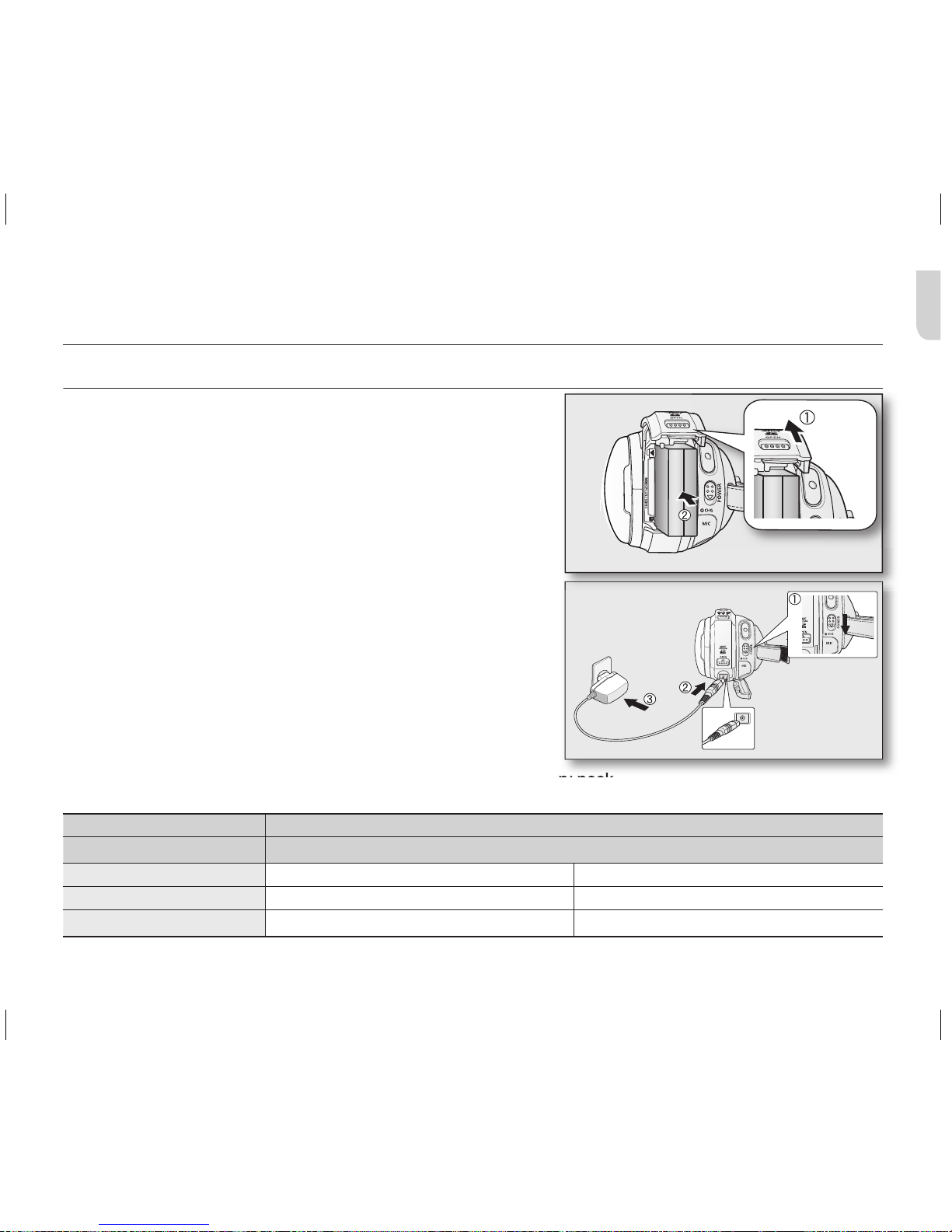

CHARGING THE BATTERY PACK
• Use the IA-BP85ST battery pack only.
• The battery pack may be charged a little at the time of purchase.
• Be sure to charge the battery pack before you start using your HD
camcorder.
Inserting the battery pack
1. Open the battery pack cover by sliding the OPEN switch upward
as shown in the figure.
2. Insert the battery pack into the battery pack slot until it softly
clicks.
• Make sure that word mark (SAMSUNG) is facing left while the
camcorder is placed as shown in the figure.
3. Close the battery pack cover.
Charging the battery pack
1. Slide the POWER switch downward to turn off the power.
2. Open the DC IN jack cover and connect the AC power adaptor to
the DC IN jack.
3. Connect the AC power adaptor to a wall socket.
4. Once charged, disconnect the AC power adaptor from the DC IN
jack on your HD camcorder.
• Even with the power switched off, the battery pack will still
discharge if it is left inserted in the HD camcorder.
Charging, recording and playback times with a fully charged battery pack
(with no zoom operation, LCD open, etc.)
Battery type IA-BP85ST
Charging time approx. 100 min
Recording format Continuous recording time Playback time
HD approx. 85 min approx. 120 min
SD approx. 90 min approx. 130 min
Charging, recording and playback times with a fully charged battery pack
SC-HMX20C_ENG_QG_0703.indd 5 2008-07-15 ¿ÀÈÄ 2:39:39
06_ English
before recording

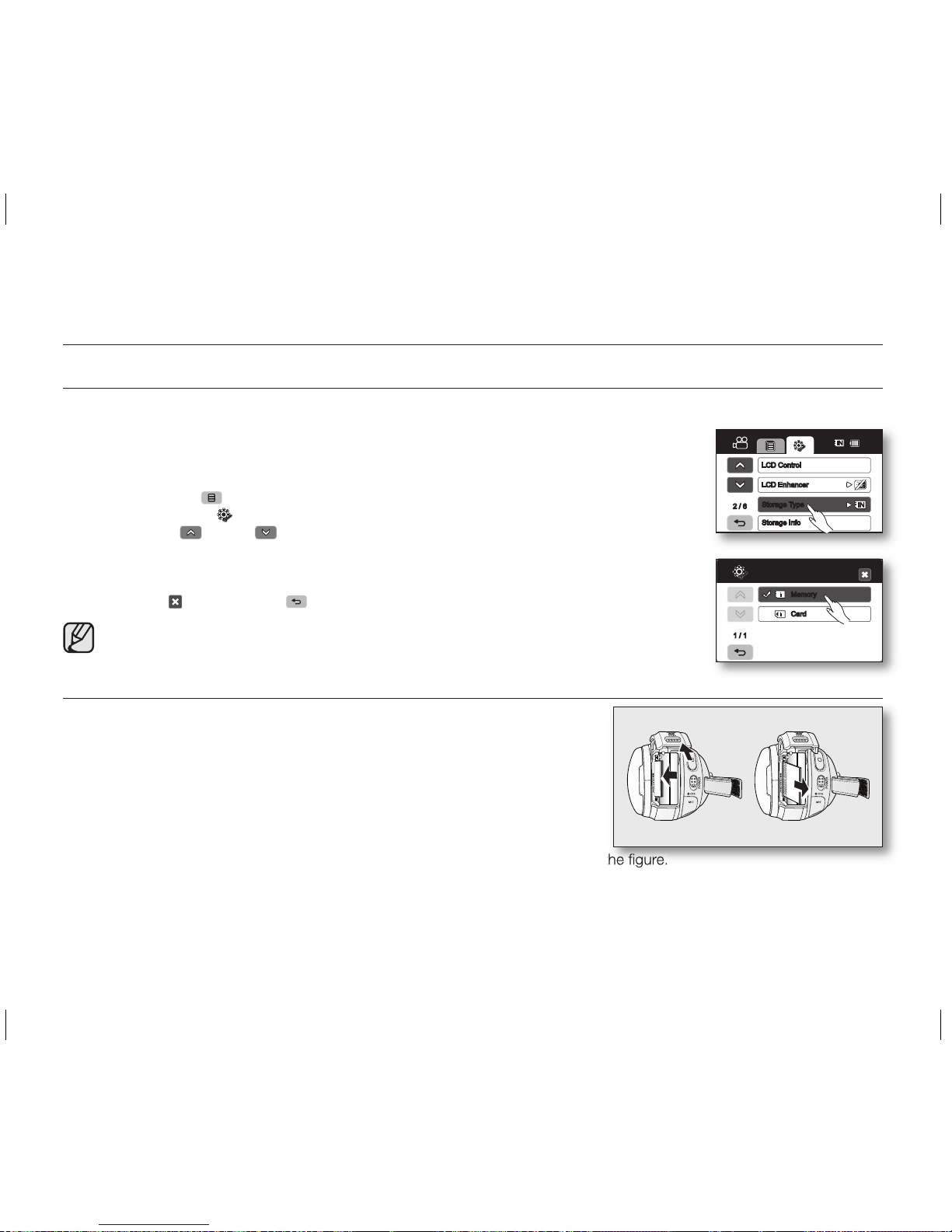

SELECTING THE STORAGE MEDIA
• You can record movie and photo images on the built-in memory or a memory card, so you should select the desired
storage media before starting recording or playback.
• You can use SDHC and MMCplus cards on your HD camcorder. (Some cards are not
compatible depending on the memory card manufacturer and memory card type.)
• Before inserting or ejecting the memory card, turn the HD camcorder off.
1. Touch the Menu ( ) tab.
2. Touch the Settings ( ) tab.
3. Touch the up ( )/down ( ) tab until “Storage Type” is displayed.
4. Touch “Storage Type,” then the desired storage media.
• “Memory”: When using the built-in memory.
• “Card”: When using the memory card (SDHC or MMCplus card).
5. To exit, Exit ( ) tab or Return ( ) tab repeatedly until menu disappears.
When you insert a memory card, the storage media setup screen appears.
Touch “Yes” if you want to use a memory card, or “No” if not.
INSERTING/EJECTING A MEMORY CARD
Inserting a memory card
1. Open the memory card cover by sliding the OPEN switch upward as shown in
the figure.
2. Insert the memory card into the slot until it softly clicks.
• Make sure that the terminal portion is facing left and the camcorder is
placed as shown in the figure.
3. Close the memory card cover.
Ejecting a memory card
1. Open the memory card cover by sliding the OPEN switch upward as shown in the figure.
2. Slightly push the memory card inwards to pop it out.
3. Pull the memory card out of the slot and close the memory card cover.
switch upward as shown in the figure.
Storage Type
Memory
Card
1 / 1
LCD Control
LCD Enhancer
Storage Type
Storage Info
2 / 6
80
Min
SC-HMX20C_ENG_QG_0703.indd 6 2008-07-15 ¿ÀÈÄ 2:39:51
English _07
ENG

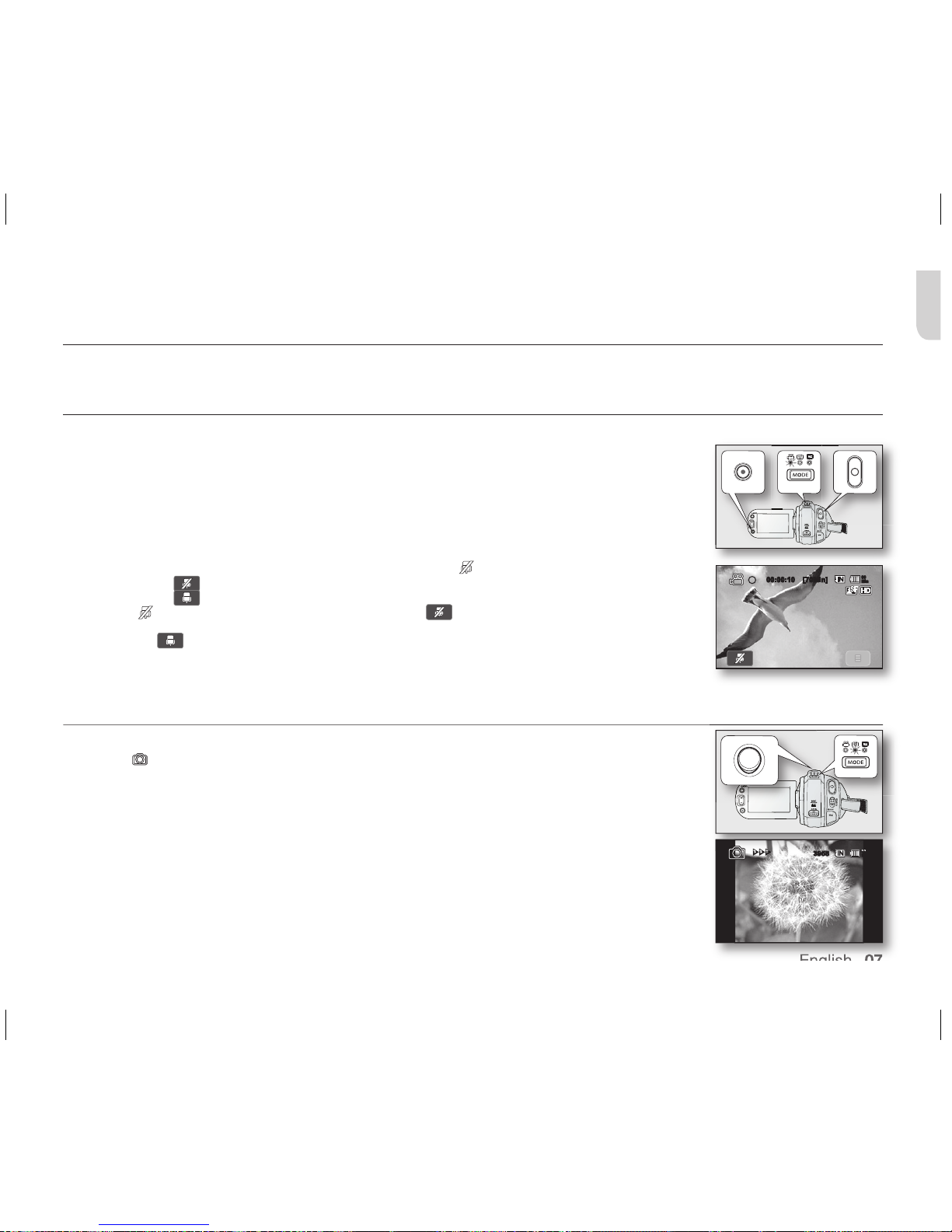

recording
Basic procedures to record a movie or photo image are described below.
RECORDING MOVIE IMAGES
1. Turn the HD camcorder on.
• Connect a power source to the HD camcorder. (A battery pack or an AC power adaptor)
• Slide the POWER switch downward to turn the HD camcorder on.
The lens opens automatically with HD camcorder on.
• Set the appropriate storage media.
(If you want to record on a memory card, insert the memory card.)
2. Check the subject on the LCD screen.
3. Press the Recording start/stop button.
• The recording () indicator will display, and recording will start.
• Each touch of Mute tab on the LCD screen toggles Mute on ( ) and off.
- Touch ( ) tab to record movie images without audio.
- Touch ( ) tab to record movie images with audio.
- ( ) is displayed on the screen when touching the ( ) tab.
This indicator keeps you reminded of the current Mute status until you turn on the audio (by touching
the ( ) tab), or stop recording.
- When recording with audio, no indicator is displayed.
• To stop recording, press the Recording start/stop button again.
4. When recording is finished, turn the HD camcorder off.
TAKING PHOTO IMAGES
1. Slide the POWER switch downward to turn on the power and press the MODE button to set
Photo ( ).
• The lens opens automatically with HD camcorder on.
• Set the appropriate storage media.
(If you want to record on a memory card, insert the memory card.)
2. Check the subject on the LCD screen.
3. Press the PHOTO button halfway down (half press).
• The HD camcorder automatically focuses on the subject at the center of screen (when auto focus is
selected).
• When the image is in focus, the () indicator is displayed in green.
4. Press the PHOTO button down fully (full press).
• A shutter sound is heard. When the () indicator disappears, the photo image has been recorded.
• While saving the photo image on the storage media, you cannot proceed with the next recording.
English _
07
3958 80
MIN
►►►
3958
3958
80
80
80
80
80
80
80
►► ►
►► ►
00:00:10 [70Min] 80
Min
SC-HMX20C_ENG_QG_0703.indd 7 2008-07-15 ¿ÀÈÄ 2:40:01
08_ English

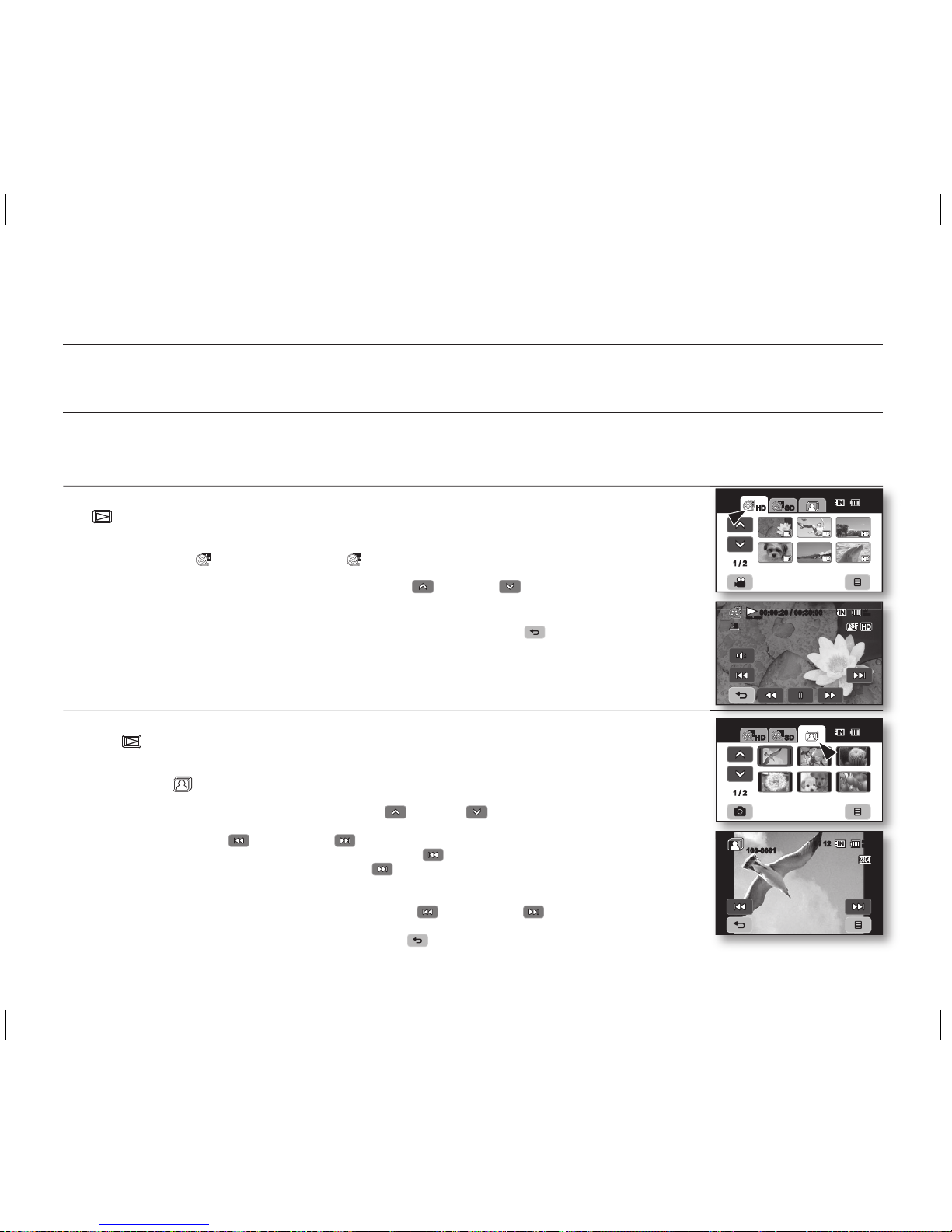

playback
You can view recorded movie and photo images in thumbnail index view and play them in various ways.
CHANGING THE PLAYBACK MODE
•
You can set the movie recording, the photo recording and the play mode in turn with the MODE button.
•
You can switch the play mode to the recording mode in turn by touching the tab on the lower left of the LCD screen.
• The recorded movie and photo images are displayed in thumbnail index view.
PLAYING MOVIE IMAGES
1. Slide the POWER switch downward to turn on the power and press the MODE button to set Play
( ).
• Set the appropriate storage media.
(If you want to play from a memory card, insert the memory card.)
2. Touch HD Movie ( HD) tab or SD Movie ( SD) tab.
• The thumbnail index view appears accordingly.
• To change the current thumbnail page, touch up ( ) or down ( ) tab.
3. Touch a desired movie image.
• The selected movie image is played according to Play Option setting.
• To stop playback and return to thumbnail index view, touch Return ( ) tab.
VIEWING PHOTO IMAGES
1. Slide the POWER switch downward to turn on the power and press the MODE button to set
Play ( ).
• Set the appropriate storage media.
(If you want to playback images on a memory card, insert the memory card.)
2. Touch Photo ( ) tab.
• The thumbnail index view appears.
•
To change the current thumbnail page, touch up ( ) or down ( ) tab.
3. Touch a desired photo image.
4. Touch previous image ( )/next image ( ) tab, search for the desired photo image.
• To view the previous image, touch previous image ( ) tab.
• To view the next image, touch next image ( ) tab.
• Drag your finger from left to right to select the previous image on the LCD screen, reverse to
select the next image.
• Place and hold your finger on the previous image ( )/next image ( ) tab to search for an
image quickly. Actually the image number is changed during search with images not changed.
5. To return to the thumbnail index view, touch Return ( ) tab.
80
MIN
00:00:20 / 00:30:00
100-0001
80
Min
1 / 12
100-0001
1 / 2
HD SD
80
Min
80
80
1 / 2
HD SD
80
Min
SC-HMX20C_ENG_QG_0703.indd 8 2008-07-15 ¿ÀÈÄ 2:40:15
English _09
ENG
connecting to a PC

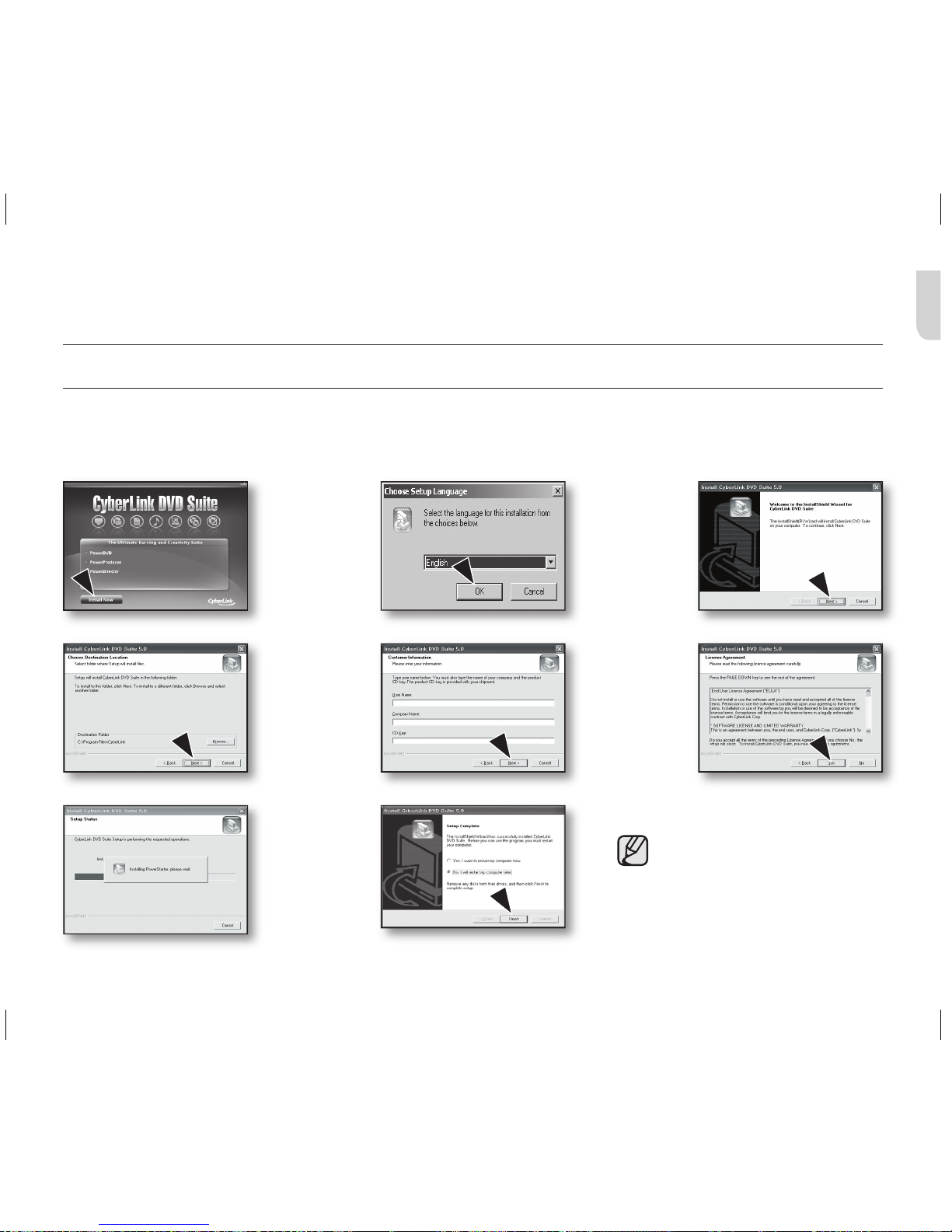

INSTALLING THE CyberLink DVD Suite
DVD Suite is software for easily editing MPEG, AVI, and other video files, still images, and other contents for creating
a movie.
Before you begin:
Quit any other software you are using. (Check that there are no other application icons on the status bar.)
Frame drop may occur in
preview screen while you are
using Power Producer.
However, this does not affect
any burned image on DVD title.
SC-HMX20C_ENG_QG_0703.indd 9 2008-07-15 ¿ÀÈÄ 2:40:18
10_ English
connecting to a PC

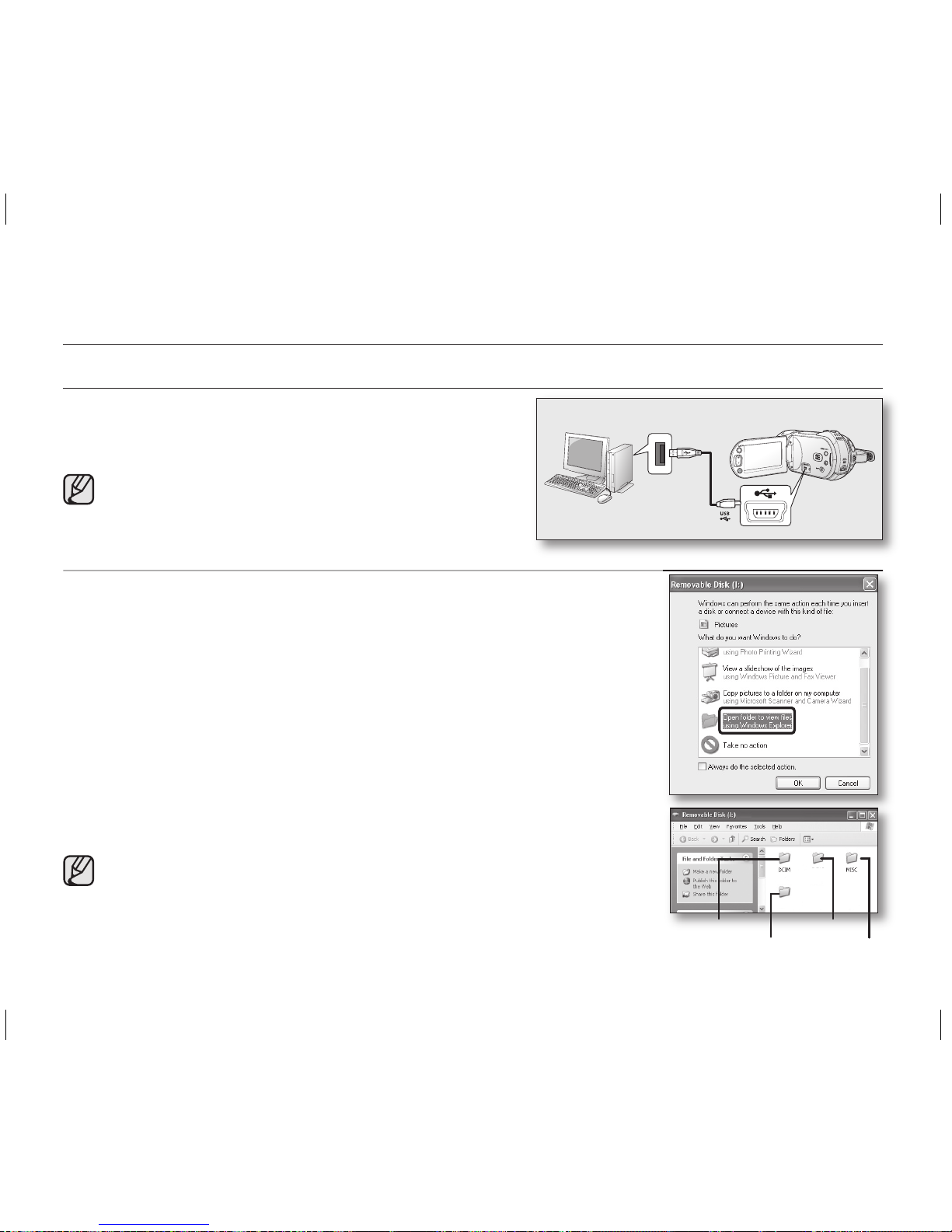

CONNECTING THE USB CABLE
To copy the movie files and photo files to your PC, connect your HD
camcorder to the PC with a USB cable.
1. Set the “USB Connect” to “Mass Storage.”
2. Connect the HD camcorder to the PC with a USB cable.
• Don’t apply excessive force when inserting or extracting a USB
cable into/from a USB jack.
• Insert a USB after checking the direction of its insertion is correct.
• Use the provided USB cable.
VIEWING THE CONTENTS OF STORAGE MEDIA
1. Slide the POWER switch downward to turn the HD camcorder on.
• Set the “USB Connect” to “Mass Storage.”
(It is set to “Mass Storage” by default when you purchase the HD camcorder.)
• Set the appropriate storage media.
(If you want to record on a memory card, insert the memory card.)
2. Connect the HD camcorder to the PC with a USB cable.
• The “Removable Disk” or “Samsung” window appears on the PC’s screen after a
moment.
• Two removable disks appear when connecting a USB.
The built-in memory is the first recognized drive of two removable discs newly registered
in the ‘My Computer’. For example, when (F:) drive and (G:) drive are recognized in the
PC, (F:) drive and (G:) drive are the built-in memory and memory card, respectively.
You can select the desired memory type.
• Select “Open folders to view files using Windows Explorer” and click “OK.”
3. The folders in the storage media appear.
• Different file types are stored in different folders.
• If the “Removable Disk” window does not appear, confirm the connection or
perform steps 1 and 2 again.
• When the removable disk does not appear automatically, open the removable disk
folder of My Computer.
HD camcorder
PC
VIDEO
MUSIC
Photo image files Movie image files
setting data
Music files
SC-HMX20C_ENG_QG_0703.indd 10 2008-07-15 ¿ÀÈÄ 2:40:21
Questo manuale è adatto per i seguenti modelli
2
Indice
Altri manuali Samsung Videocamera
Samsung
Samsung VP-D20 Guida all'installazione
Samsung
Samsung Hi8 SC-W71 Manuale del proprietario
Samsung
Samsung HMX-H100N Manuale utente
Samsung
Samsung SCD6550 - DuoCam MiniDV Camcorder Manuale del proprietario
Samsung
Samsung SC-D457 Manuale del proprietario
Samsung
Samsung VP-D11 Manuale del proprietario
Samsung
Samsung VP-L650 Manuale utente
Samsung
Samsung VP-DC565i Manuale del proprietario
Samsung
Samsung VP-D903 Manuale del proprietario
Samsung
Samsung SMX-K40BN Manuale utente
Samsung
Samsung VP-M2100S Manuale del proprietario
Samsung
Samsung SMX-F500BN/SMX-F500RN/SMX-F500SN/SMX-F500UN Manuale utente
Samsung
Samsung SC-DX10 Manuale utente
Samsung
Samsung SC-DCl 73(U) Manuale utente
Samsung
Samsung SC-D93 Manuale del proprietario
Samsung
Samsung SC-HMX10C Manuale utente
Samsung
Samsung SCW61 Guida all'installazione
Samsung
Samsung VP L 900 Manuale utente
Samsung
Samsung HMX-S10BN Manuale utente
Samsung
Samsung VP-D907 Manuale utente
