Samsung SLA-M-M21D Manuale utente

NETWORK CAMERA

User Manual SNB-5003/SNB-5004

SND-5083/SND-5084

Samsung Lens

Installation Guide SLA-M-M21D

Trademark

is the registered logo of Samsung Techwin Co., Ltd.

The name of this product is the registered trademark of Samsung Techwin Co., Ltd.

Other trademarks mentioned in this manual are the registered trademark of their respective company.

Restriction

Samsung Techwin Co., Ltd shall reserve the copyright of this document. Under no circumstances, this document shall

be reproduced, distributed or changed, partially or wholly, without formal authorization of Samsung Techwin.

Disclaimer

Samsung Techwin makes the best to verify the integrity and correctness of the contents in this document, but no

formal guarantee shall be provided. Use of this document and the subsequent results shall be entirely on the user’s own

responsibility. Samsung Techwin reserves the right to change the contents of this document without prior notice.

Design and specifications are subject to change without prior notice.

The default password can be exposed to a hacking thread so it is recommended to change the password

after installing the product.

Note that the security and other related issues caused by the unchanged password shall be responsible

for the user.

Network Camera

User Manual

Samsung Lens

Installation Guide

Thank you very much for purchasing our Cameras and Lenses.

Please follow the procedures outlined in this guide for

changing out the lens on the SNV-6012M and SNV-6013

cameras.

The procedure will be dierent for each camera.

Please take care not to touch the glass parts on the lenses

after removing the protective coverings.

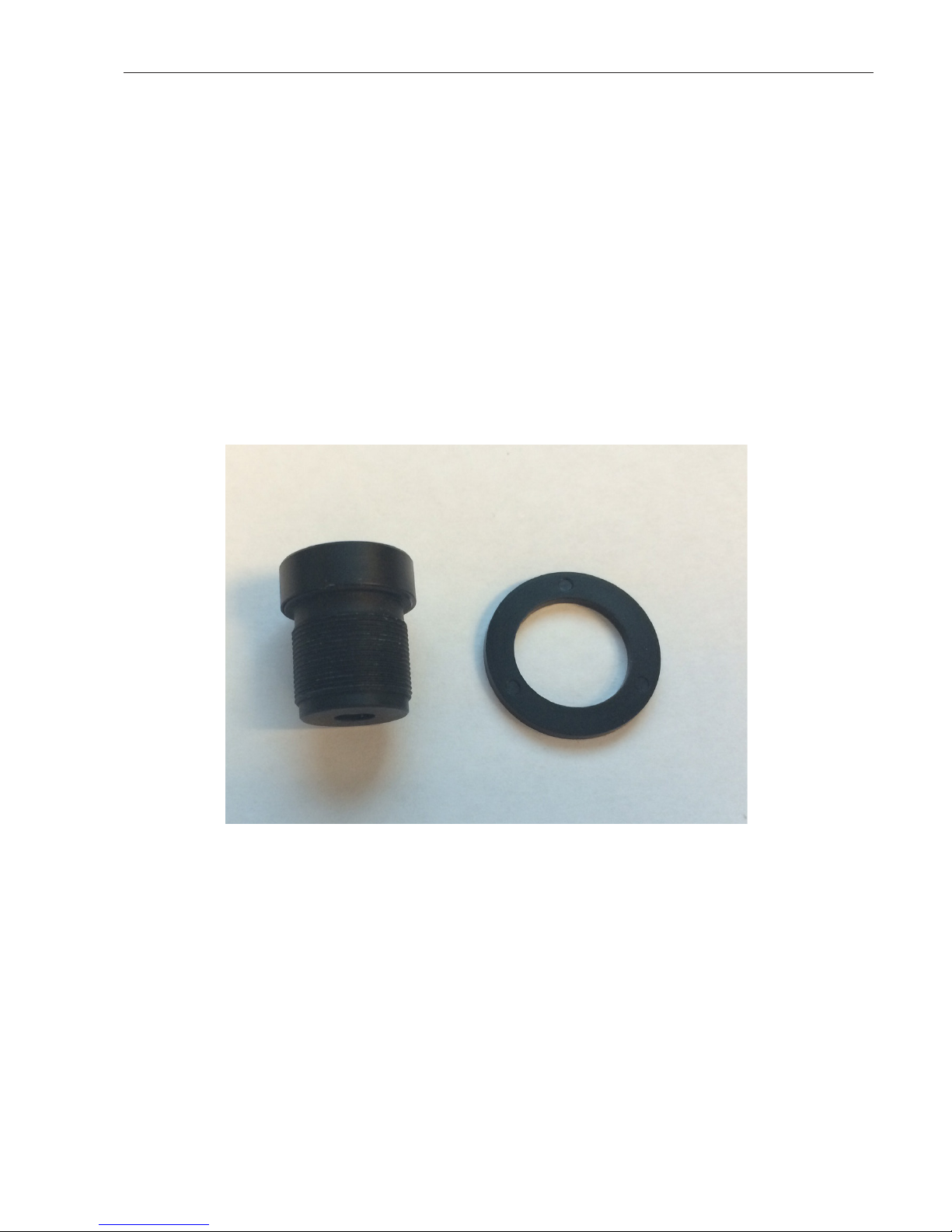

The package will include the actual lens and a Nylon ring

shown above.

English _3

● overview

important Safety inStructionS

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with dry cloth.

7. Do not block any ventilation openings, Install in accordance with the manufacturer’s

instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other

apparatus (including amplifiers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized

plug has two blades with one wider than the other. A grounding type plug has two

blades and a third grounding prong. The wide blade or the third prong are provided for

your safety. If the provided plug does not fit into your outlet, consult an electrician for

replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at plugs,

convenience receptacles, and the point where they exit from the apparatus.

11. Only use attachments/ accessories specified by the manufacturer.

12. Use only with the cart, stand, tripod, bracket, or table specified by

the manufacturer, or sold with the apparatus. When a cart is used,

use caution when moving the cart/apparatus combination to avoid

injury from tip-over.

13. Unplug this apparatus during lighting storms or when unused for

long periods of time.

14. Refer all servicing to qualified service personnel. Servicing is required when the

apparatus has been damaged in any way, such as power-supply cord or plug is

damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus

has been exposed to rain or moisture, does not operate normally, or has been dropped.

overview

SNV-6013 Overview

English _3

● overview

important Safety inStructionS

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with dry cloth.

7. Do not block any ventilation openings, Install in accordance with the manufacturer’s

instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other

apparatus (including amplifiers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized

plug has two blades with one wider than the other. A grounding type plug has two

blades and a third grounding prong. The wide blade or the third prong are provided for

your safety. If the provided plug does not fit into your outlet, consult an electrician for

replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at plugs,

convenience receptacles, and the point where they exit from the apparatus.

11. Only use attachments/ accessories specified by the manufacturer.

12. Use only with the cart, stand, tripod, bracket, or table specified by

the manufacturer, or sold with the apparatus. When a cart is used,

use caution when moving the cart/apparatus combination to avoid

injury from tip-over.

13. Unplug this apparatus during lighting storms or when unused for

long periods of time.

14. Refer all servicing to qualified service personnel. Servicing is required when the

apparatus has been damaged in any way, such as power-supply cord or plug is

damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus

has been exposed to rain or moisture, does not operate normally, or has been dropped.

overview

SNV-6013 Lens Installation

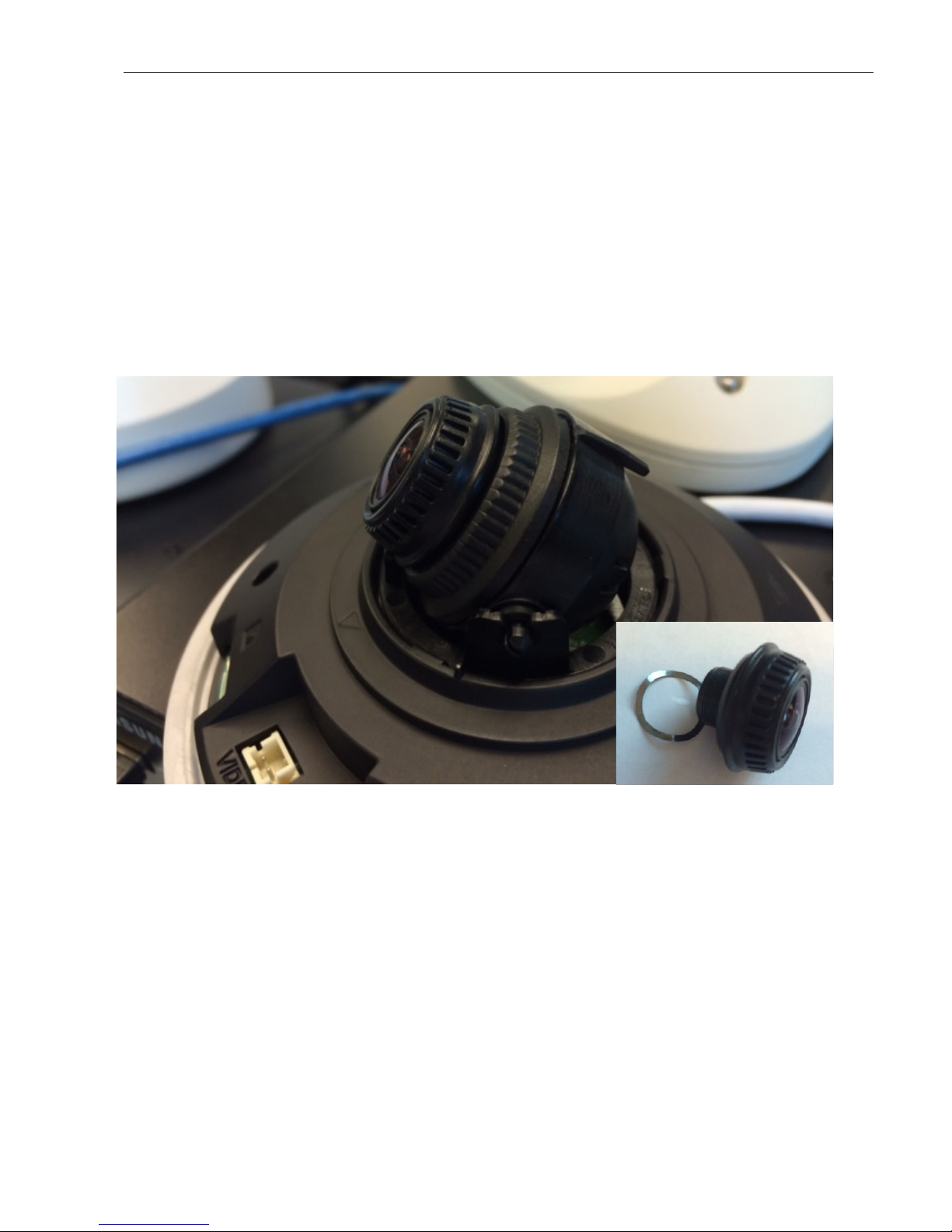

To install the lens on to the SNV-6013 camera, please open

the camera.

Now remove the installed lens by turning it counter clockwise.

Please hold the camera module with your other hand.

Please take care not to lose the spring-washer included with the

original lens.

Take the new optional lens and insert the Nylon washer and

spring washer, mount it to the camera as in the picture below.

Take care not to damage the threads or cross thread the lens.

English _3

● overview

important Safety inStructionS

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with dry cloth.

7. Do not block any ventilation openings, Install in accordance with the manufacturer’s

instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other

apparatus (including amplifiers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized

plug has two blades with one wider than the other. A grounding type plug has two

blades and a third grounding prong. The wide blade or the third prong are provided for

your safety. If the provided plug does not fit into your outlet, consult an electrician for

replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at plugs,

convenience receptacles, and the point where they exit from the apparatus.

11. Only use attachments/ accessories specified by the manufacturer.

12. Use only with the cart, stand, tripod, bracket, or table specified by

the manufacturer, or sold with the apparatus. When a cart is used,

use caution when moving the cart/apparatus combination to avoid

injury from tip-over.

13. Unplug this apparatus during lighting storms or when unused for

long periods of time.

14. Refer all servicing to qualified service personnel. Servicing is required when the

apparatus has been damaged in any way, such as power-supply cord or plug is

damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus

has been exposed to rain or moisture, does not operate normally, or has been dropped.

overview

SNV-6013 Lens Installation

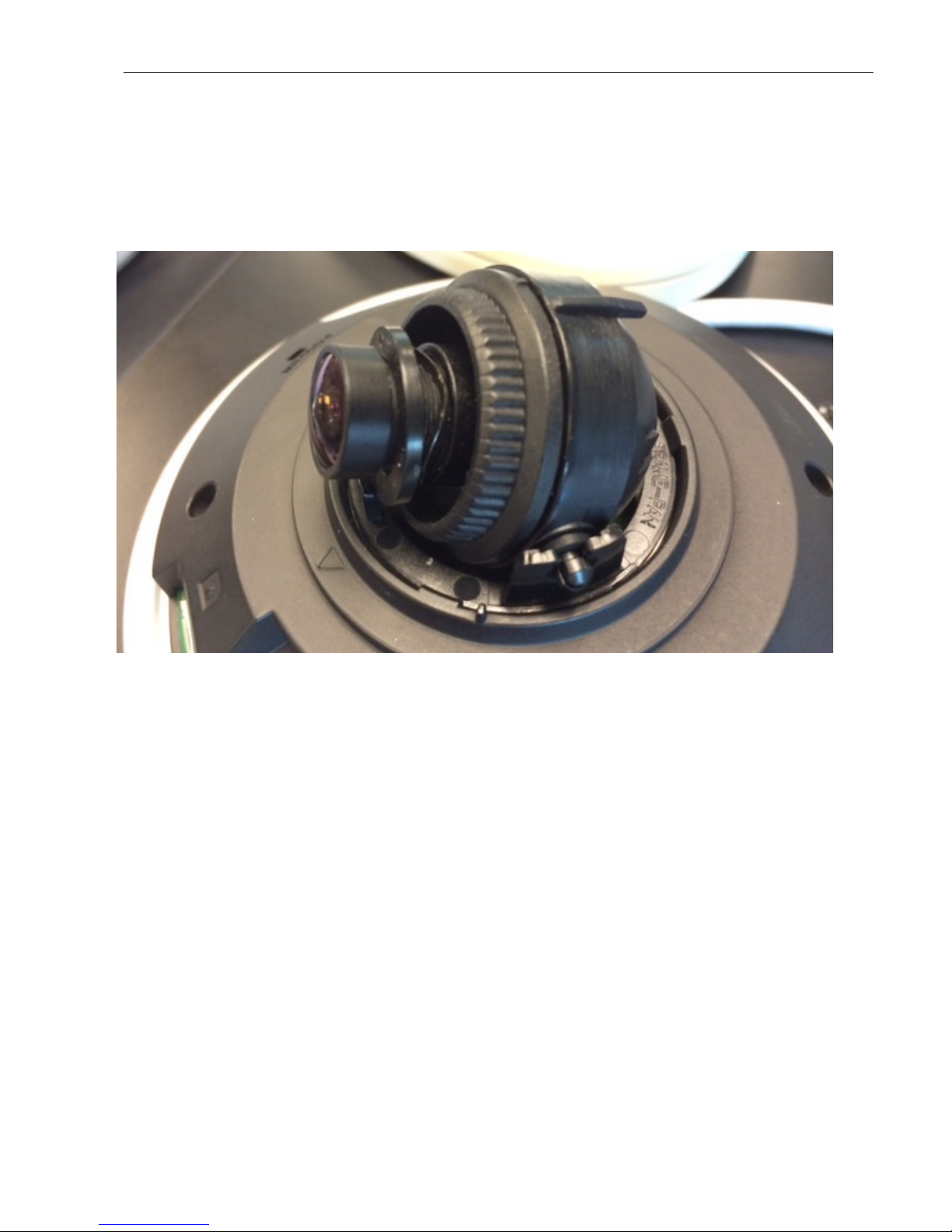

Turn the lens until the spring washer starts to compress some

pressure is felt.

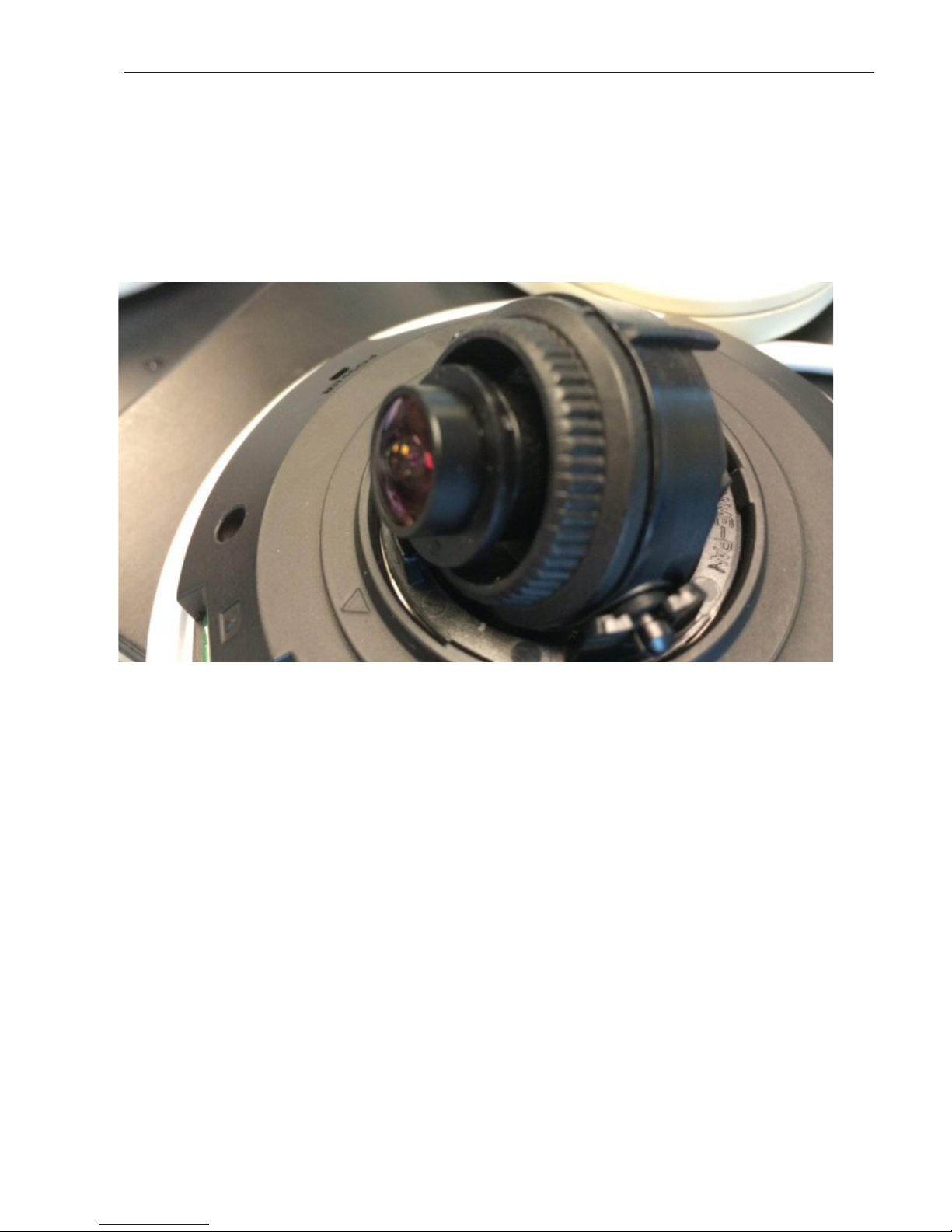

Now power up and focus the camera by moving the lens until

the picture is in focus.

English _3

● overview

important Safety inStructionS

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with dry cloth.

7. Do not block any ventilation openings, Install in accordance with the manufacturer’s

instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other

apparatus (including amplifiers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized

plug has two blades with one wider than the other. A grounding type plug has two

blades and a third grounding prong. The wide blade or the third prong are provided for

your safety. If the provided plug does not fit into your outlet, consult an electrician for

replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at plugs,

convenience receptacles, and the point where they exit from the apparatus.

11. Only use attachments/ accessories specified by the manufacturer.

12. Use only with the cart, stand, tripod, bracket, or table specified by

the manufacturer, or sold with the apparatus. When a cart is used,

use caution when moving the cart/apparatus combination to avoid

injury from tip-over.

13. Unplug this apparatus during lighting storms or when unused for

long periods of time.

14. Refer all servicing to qualified service personnel. Servicing is required when the

apparatus has been damaged in any way, such as power-supply cord or plug is

damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus

has been exposed to rain or moisture, does not operate normally, or has been dropped.

overview

SNV-6013 Lens Installation

You are now ready to mount and close up the camera.

Thank you very much for purchasing our Cameras and Lenses.

Please follow the procedures outlined in this guide for

changing out the lens on the SNV-6012M and SNV-6013

cameras.

The procedure will be dierent for each camera.

Please take care not to touch the glass parts on the lenses

after removing the protective coverings.

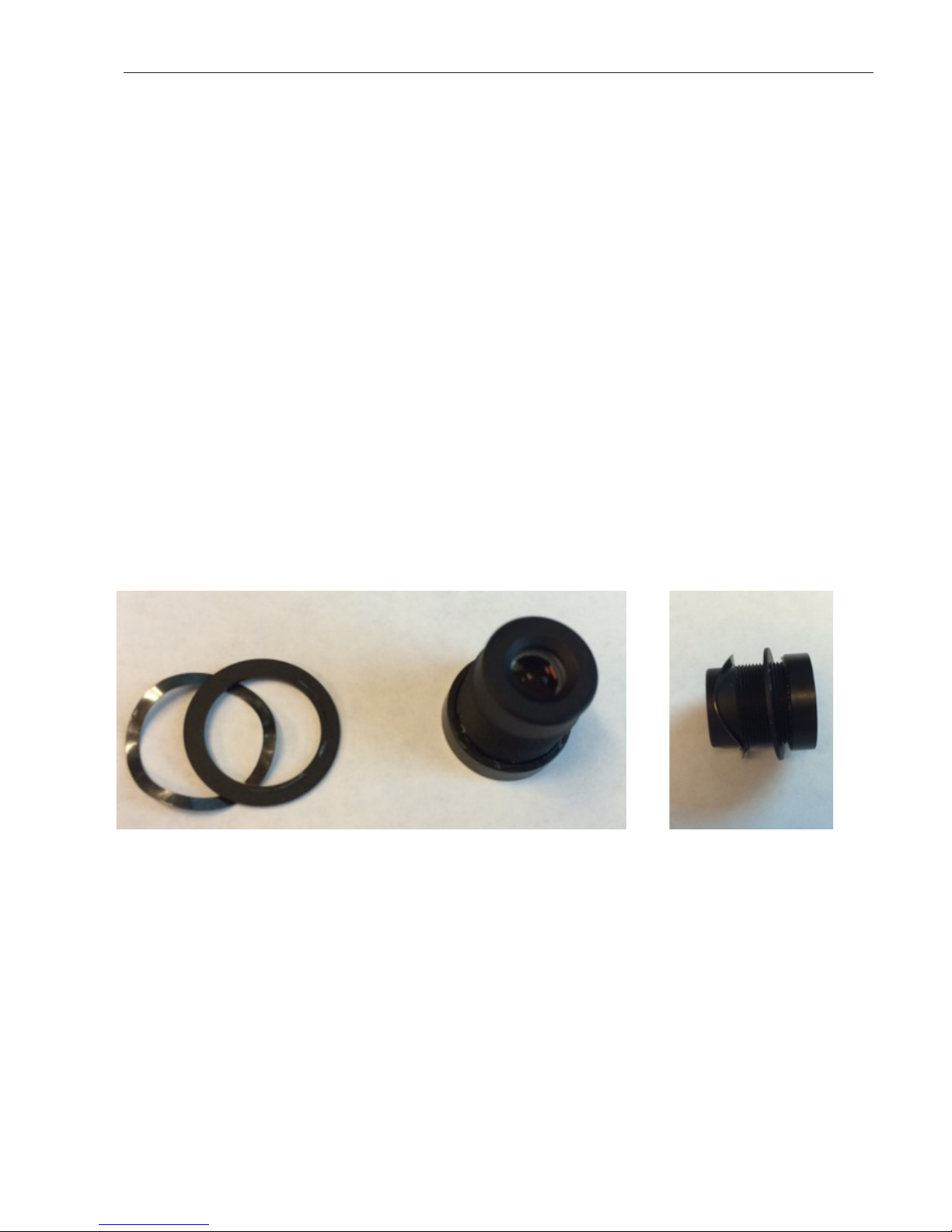

For the SNV-6012M, when removing the included lens, you will

nd the lens has a black metal washer and a spring-washer.

Take care not to misplace the washers as you will need them

for the new lens installation.

English _3

● overview

important Safety inStructionS

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with dry cloth.

7. Do not block any ventilation openings, Install in accordance with the manufacturer’s

instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other

apparatus (including amplifiers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized

plug has two blades with one wider than the other. A grounding type plug has two

blades and a third grounding prong. The wide blade or the third prong are provided for

your safety. If the provided plug does not fit into your outlet, consult an electrician for

replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at plugs,

convenience receptacles, and the point where they exit from the apparatus.

11. Only use attachments/ accessories specified by the manufacturer.

12. Use only with the cart, stand, tripod, bracket, or table specified by

the manufacturer, or sold with the apparatus. When a cart is used,

use caution when moving the cart/apparatus combination to avoid

injury from tip-over.

13. Unplug this apparatus during lighting storms or when unused for

long periods of time.

14. Refer all servicing to qualified service personnel. Servicing is required when the

apparatus has been damaged in any way, such as power-supply cord or plug is

damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus

has been exposed to rain or moisture, does not operate normally, or has been dropped.

overview

SNV-6012M Overview

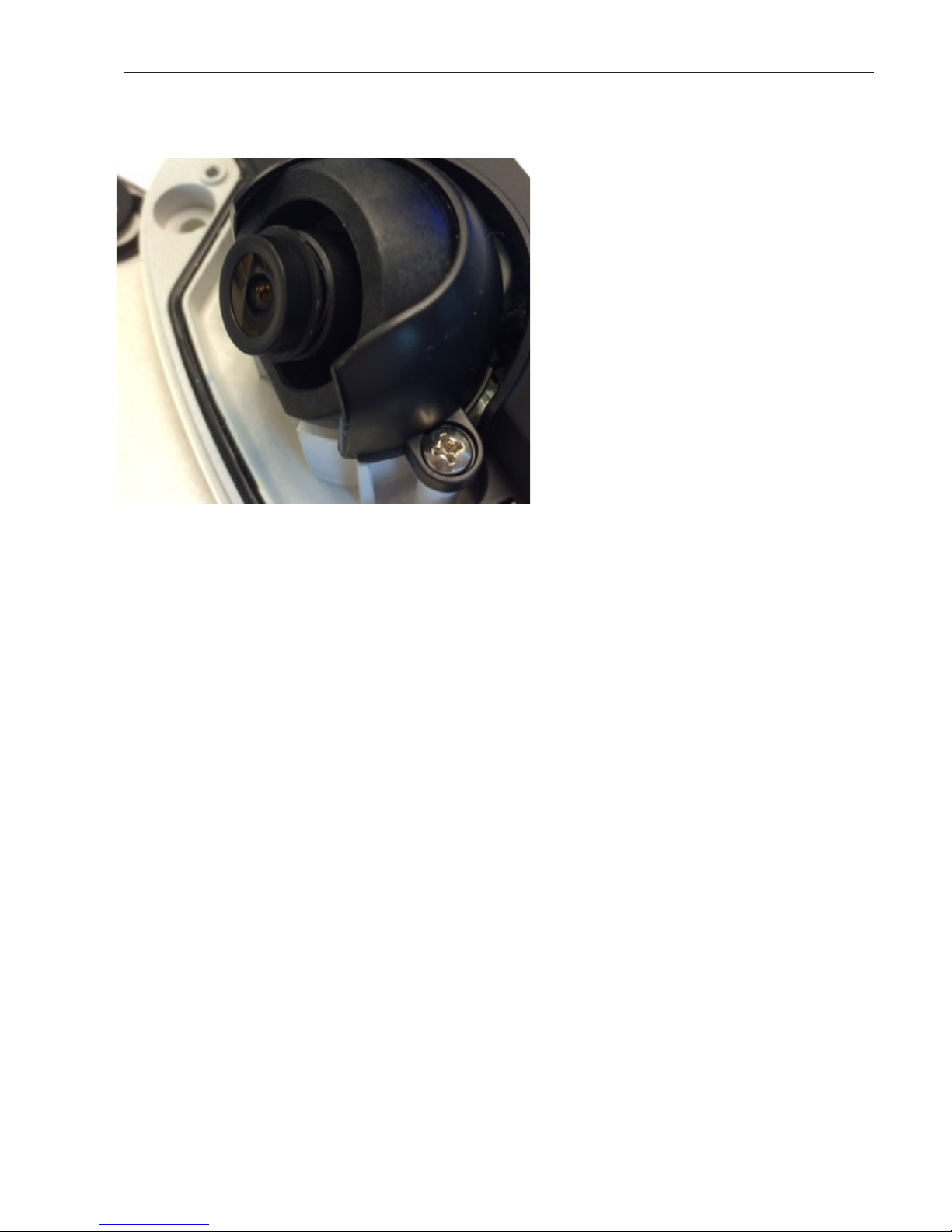

Utilize the same two washers in the same order to mount the

lens. (The Nylon washer included with the new lens will not be

needed for the SNV-6012M)

English _3

● overview

important Safety inStructionS

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with dry cloth.

7. Do not block any ventilation openings, Install in accordance with the manufacturer’s

instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other

apparatus (including amplifiers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized

plug has two blades with one wider than the other. A grounding type plug has two

blades and a third grounding prong. The wide blade or the third prong are provided for

your safety. If the provided plug does not fit into your outlet, consult an electrician for

replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at plugs,

convenience receptacles, and the point where they exit from the apparatus.

11. Only use attachments/ accessories specified by the manufacturer.

12. Use only with the cart, stand, tripod, bracket, or table specified by

the manufacturer, or sold with the apparatus. When a cart is used,

use caution when moving the cart/apparatus combination to avoid

injury from tip-over.

13. Unplug this apparatus during lighting storms or when unused for

long periods of time.

14. Refer all servicing to qualified service personnel. Servicing is required when the

apparatus has been damaged in any way, such as power-supply cord or plug is

damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus

has been exposed to rain or moisture, does not operate normally, or has been dropped.

overview

SNV-6012M Lens Installation

Install the lens in to the camera.

Turn the lens until some pressure is felt, Now power up and

focus the camera by moving the lens until the picture is in

focus.

You are now ready to mount and close up the camera.

SALES NETWORK

SAMSUNG TECHWIN CO., LTD.

Samsungtechwin R&D Center, 701, Sampyeong-dong, Bundang-gu, Seongnam-si, Gyeonggi-do, Korea, 463-400

TEL : +82-70-7147-8740~60 FAX : +82-31-8018-3745

SAMSUNG TECHWIN AMERICA Inc.

100 Challenger Rd. Suite 700 Ridgefield Park, NJ 07660

Toll Free : +1-877-213-1222 Direct : +1-201-325-6920

Fax : +1-201-373-0124

www.samsungcctvusa.com

SAMSUNG TECHWIN EUROPE LTD.

Samsung House, 1000 Hillswood Drive, Hillswood Business

Park Chertsey, Surrey, UNITED KINGDOM KT16 OPS

TEL : +44-1932-45-5300 FAX : +44-1932-45-5325

www.samsungtechwin.com

www.samsungsecurity.com

www.samsungipolis.com

Indice

Altri manuali Samsung Obiettivo della fotocamera

Samsung

Samsung 10mm F3.5 Fisheye Manuale utente

Samsung

Samsung Schneider D-XENOGON 35 Manuale utente

Samsung

Samsung SLA-F-M1550DN Manuale utente

Samsung

Samsung NX-M 17mm F1.8 OIS Manuale utente

Samsung

Samsung SLA-M3180DN Manuale utente

Samsung

Samsung 60mm F2.8 Macro ED OIS SSA Manuale utente

Samsung

Samsung SLA 854C M208X Manuale utente

Samsung

Samsung 45mm F1.8 [T6] 2D/3D Manuale utente

Samsung

Samsung SLA-358V Manuale utente

Samsung

Samsung D-XENON 18-55 Manuale utente

Samsung

Samsung NX 50-150mm F2.8 S ED OIS Manuale utente

Samsung

Samsung NX-M 17mm F1.8 OIS Manuale utente

Samsung

Samsung 18-200mm F3.5-6.3 ED OIS Manuale utente

Samsung

Samsung 30 mm F2 Manuale utente

Samsung

Samsung 45mm F1.8 Manuale utente

Samsung

Samsung SLA-M2882 Manuale utente

Samsung

Samsung NX-M 17mm F1.8 OIS Manuale utente

Samsung

Samsung 18-55mm F3.5-5.6 OIS III Manuale utente

Samsung

Samsung Samsung 18-55mm Manuale utente

Samsung

Samsung 20-50mm F3.5-5.6 ED II Manuale utente

Samsung

Samsung NX-M 9mm F3.5 ED Manuale utente

Samsung

Samsung 45mm F1.8 Manuale utente

Samsung

Samsung SLA-2812DN Manuale utente

Samsung

Samsung 10mm F3.5 Fisheye Manuale utente

Manuali Obiettivo della fotocamera popolari di altre marche

THORLABS

THORLABS ELL15 Manuale utente

FUJICA

FUJICA ZC1000 Manuale utente

Tamron

Tamron A09 Manuale

Sony

Sony SEL-55210 Manuale utente

Sony

Sony VCL-HG2037 Manuale utente

Honeywell

Honeywell HLM25V6F12 Manuale utente

Sony

Sony VCL-ST30 Manuale utente

Canon

Canon FD 35 - 70 mm Manuale utente

Sony

Sony SAL-85F14Z - 85mm f1.4 Carl Zeiss Planar T Coated Telephoto... Manuale utente

ARRI

ARRI Lenses Manuale utente

Panasonic

Panasonic LUMIX G X Vario 45-175mm f/4.0-5.6 Manuale utente

Nikon

Nikon AF-S VR 24-120 f/3.5-5.6G IF-ED Manuale utente

Rokinon

Rokinon DS50M-C Manuale utente

Olympus

Olympus M.Zuiko Digital ES 300mm f4.0 IS PRO Manuale utente

Sony

Sony VCL-DE07T Manuale utente

Canon

Canon FD Lens Manuale

Tamron

Tamron A036 Manuale utente

Tamron

Tamron 272E Manuale utente
