Disassembly & Assembly

Guide for Galaxy S5

June, 2014

HHP

This material is a property of Samsung Electronics Co., Ltd. Any unauthorized use of this material can be punished

under applicable International and/or domestic law.

- This document cannot be used without Samsung’s Authorization -

Notice

All functionality, features, specifications and other product information provided in this

document including, but not limited to, the benefits, design, pricing, components,

performance, availability, and capabilities of the product are subject to change without

notice or obligation.

Samsung reserves the right to make changes to this document and the product described

herein, at anytime, without obligation on Samsung to provide notification of such change.

- This document cannot be used without Samsung’s Authorization -

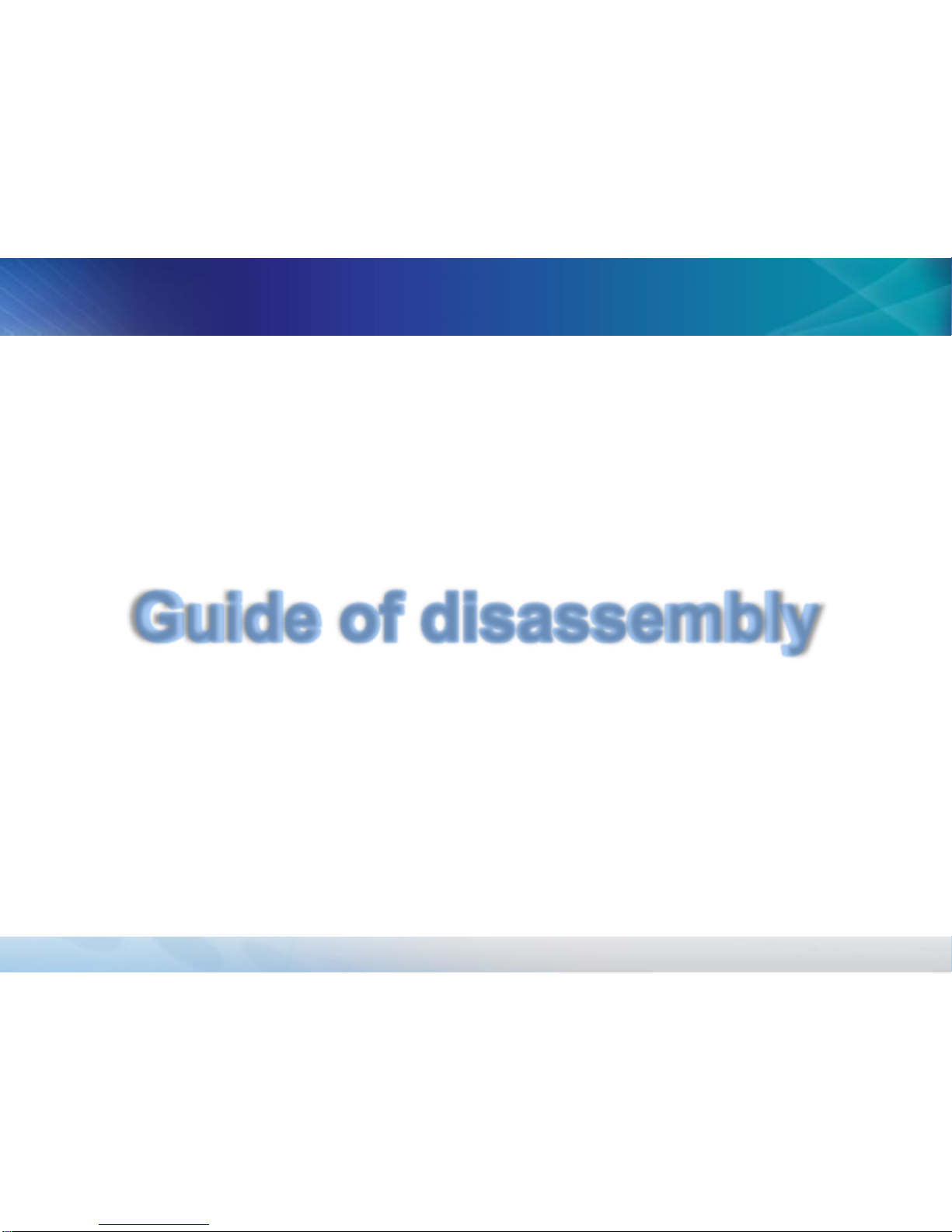

Guide of disassembly

- This document cannot be used without Samsung’s Authorization -

2. Guide of disassembly

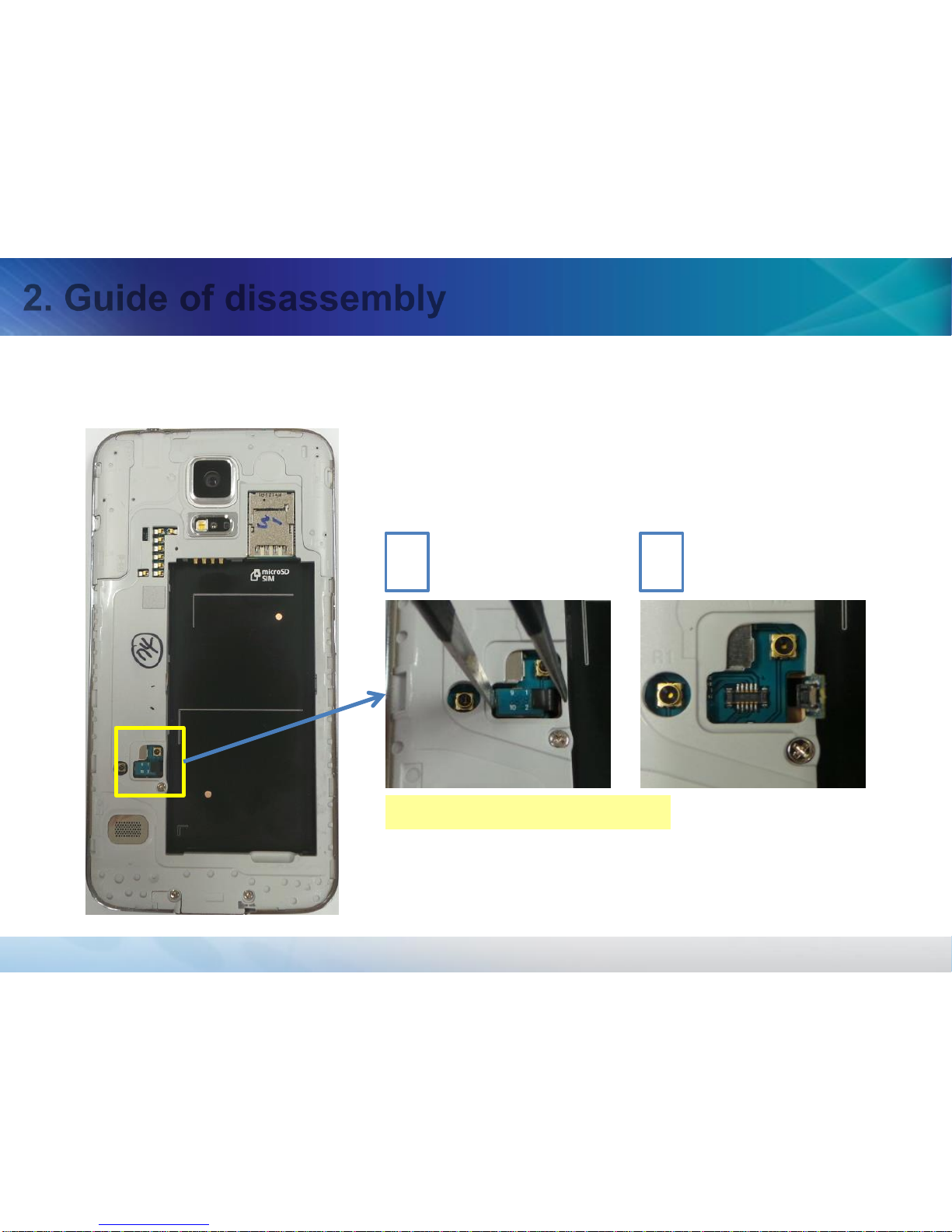

Disassemble Home key Cover & Connector

Do NOT use sharp tweezers

21

- This document cannot be used without Samsung’s Authorization -

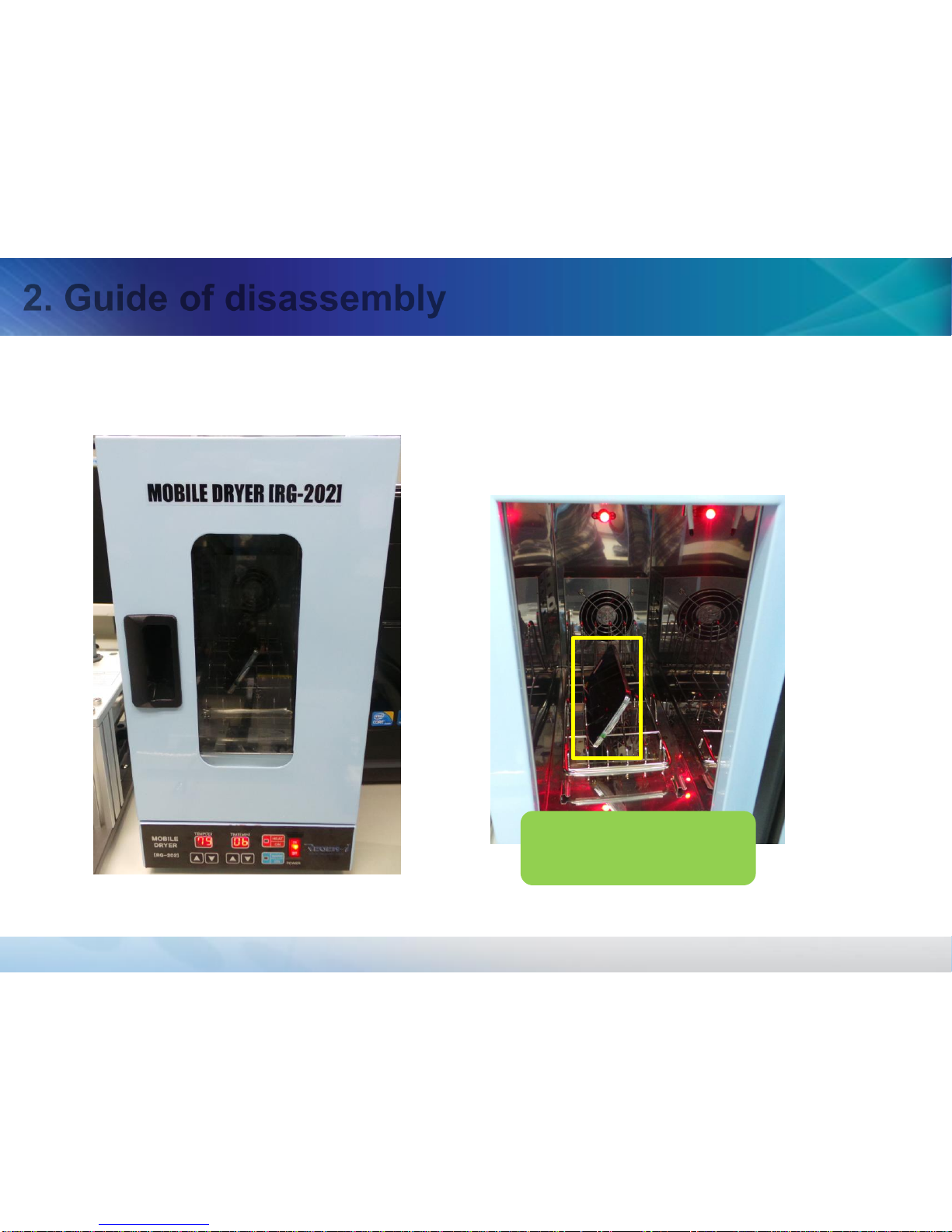

Put the device into the Dryer

2. Guide of disassembly

Temperature: 80℃

Time: 10minutes

- This document cannot be used without Samsung’s Authorization -

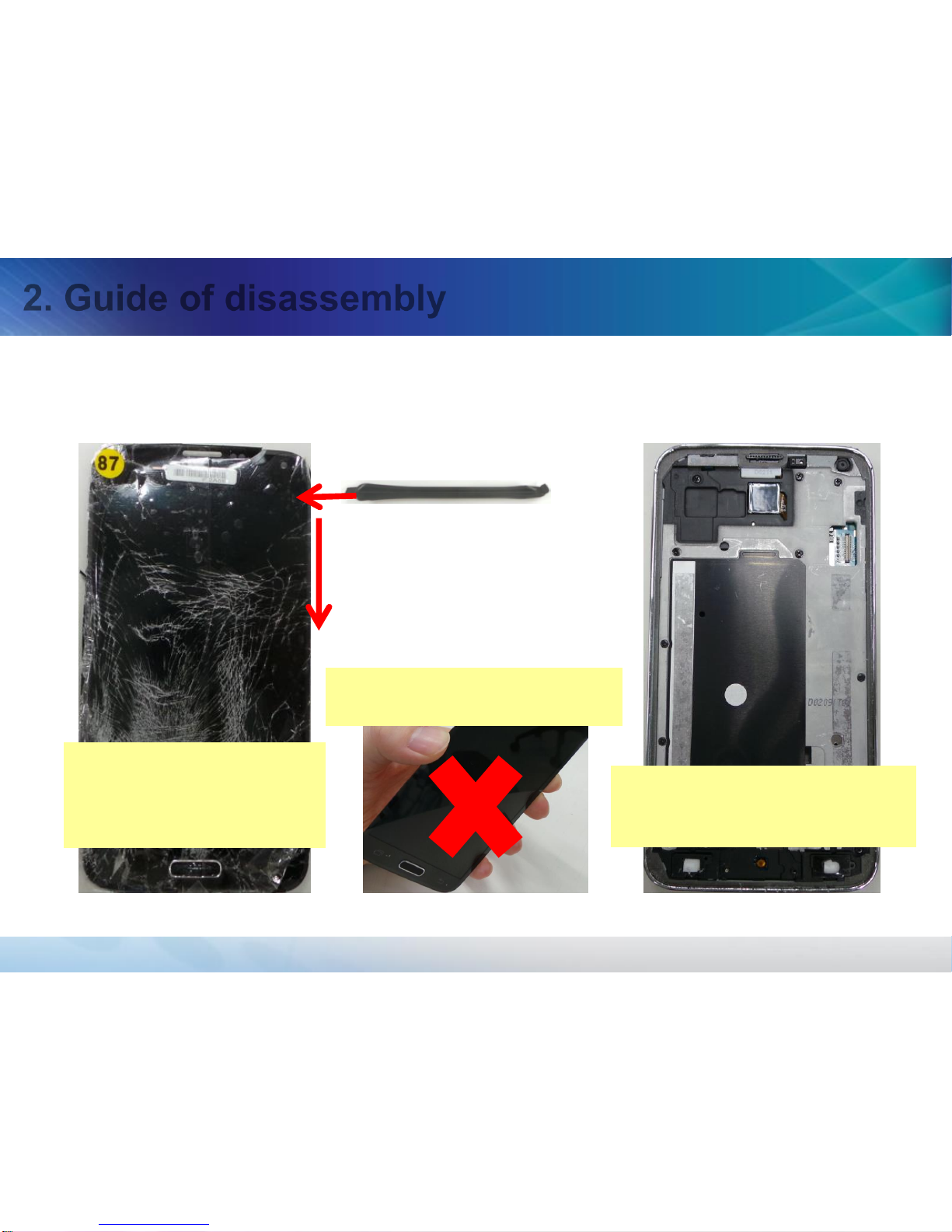

In case of damage on the OCTA glass

2. Guide of disassembly

Scrap Bracket and Rear case

due to remained broken glass

(Never re-use Bracket & Rear)

Use Disassembly knife

instead of Glass absorber

(Cannot use Absorber

due to broken glass)

Never treat with a bare hand

(Must treat with gloves)

- This document cannot be used without Samsung’s Authorization -

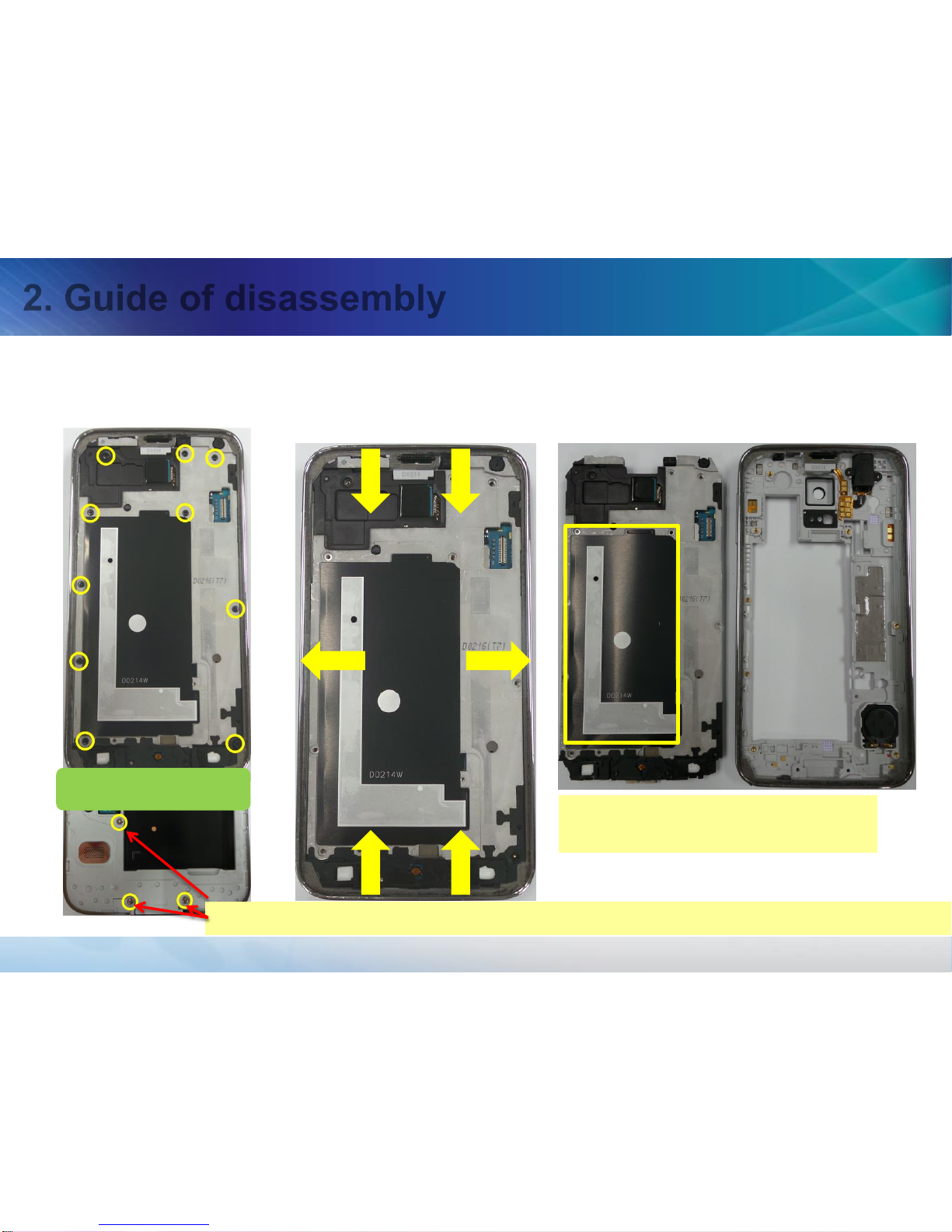

Disassemble Bracket from the Rear case

2. Guide of disassembly

Total 13 points

①

②

①

③

Be careful not to bend bracket,

especially Battery plate

These 3 screws must be changed with new one whenever it is disassembled.

- This document cannot be used without Samsung’s Authorization -

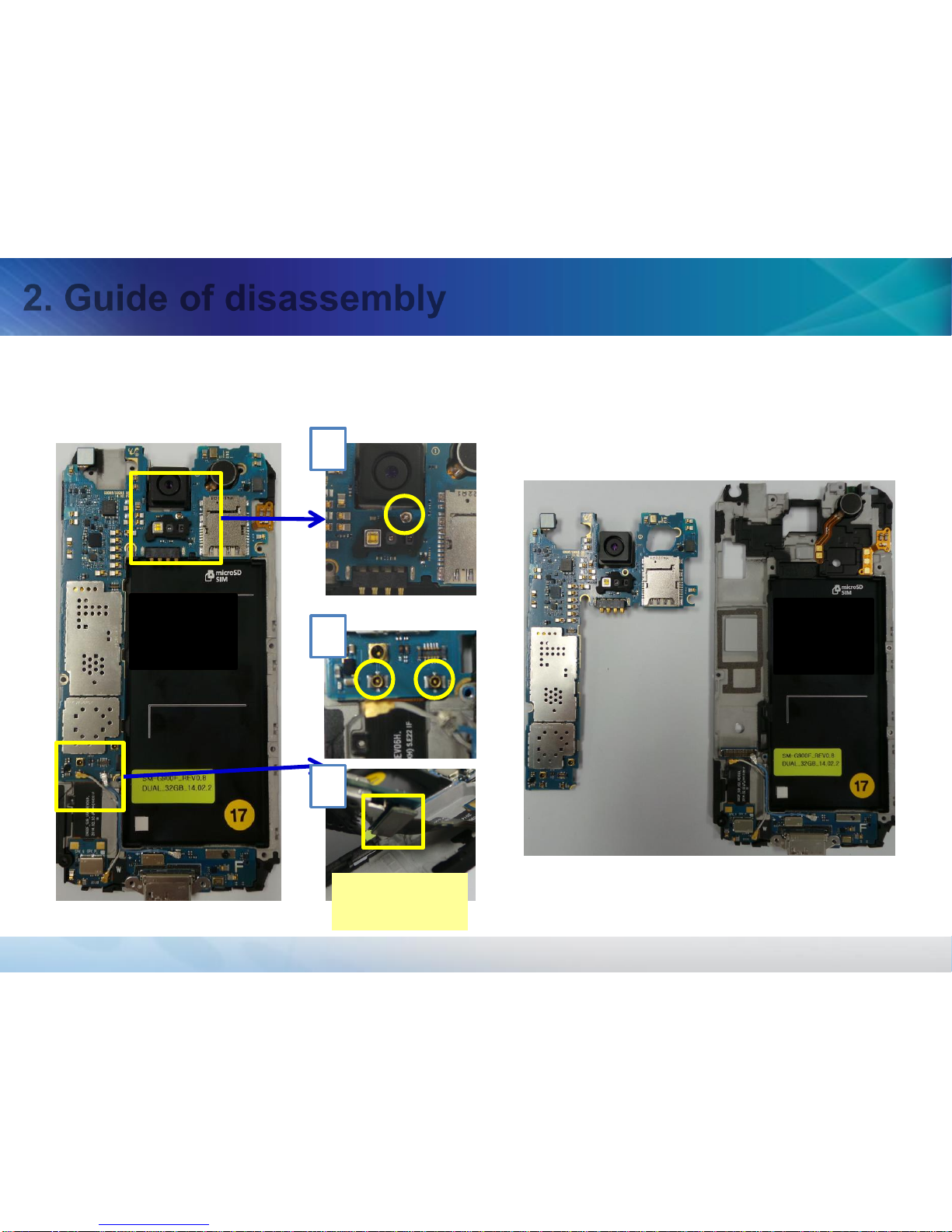

Disassemble PBA from the Bracket

2. Guide of disassembly

Disassemble

connector

1

2

3

- This document cannot be used without Samsung’s Authorization -

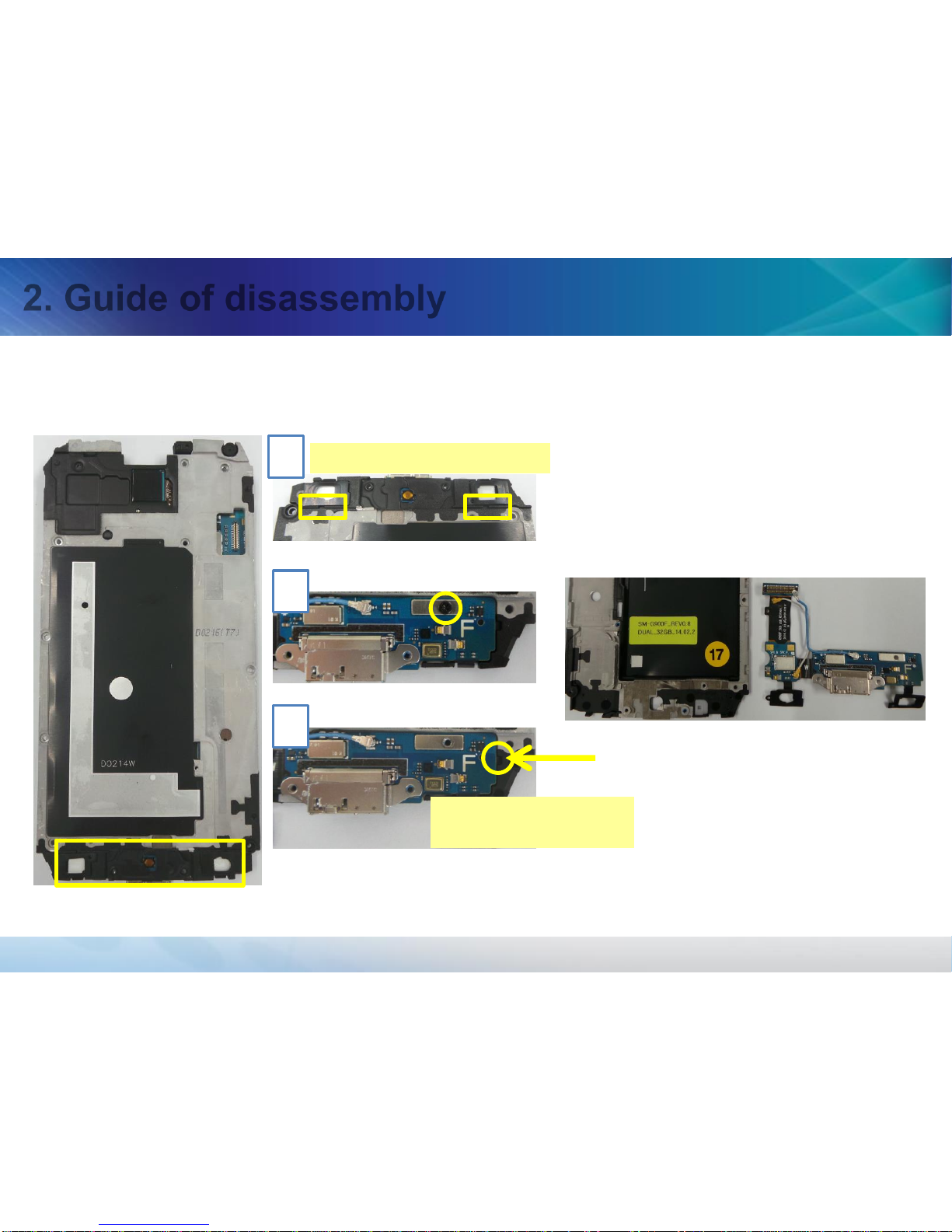

Disassemble Sub PBA from the Bracket

2. Guide of disassembly

Work via disassembly hole

Detach with tweezers

via disassembly hole

1

2

3

- This document cannot be used without Samsung’s Authorization -

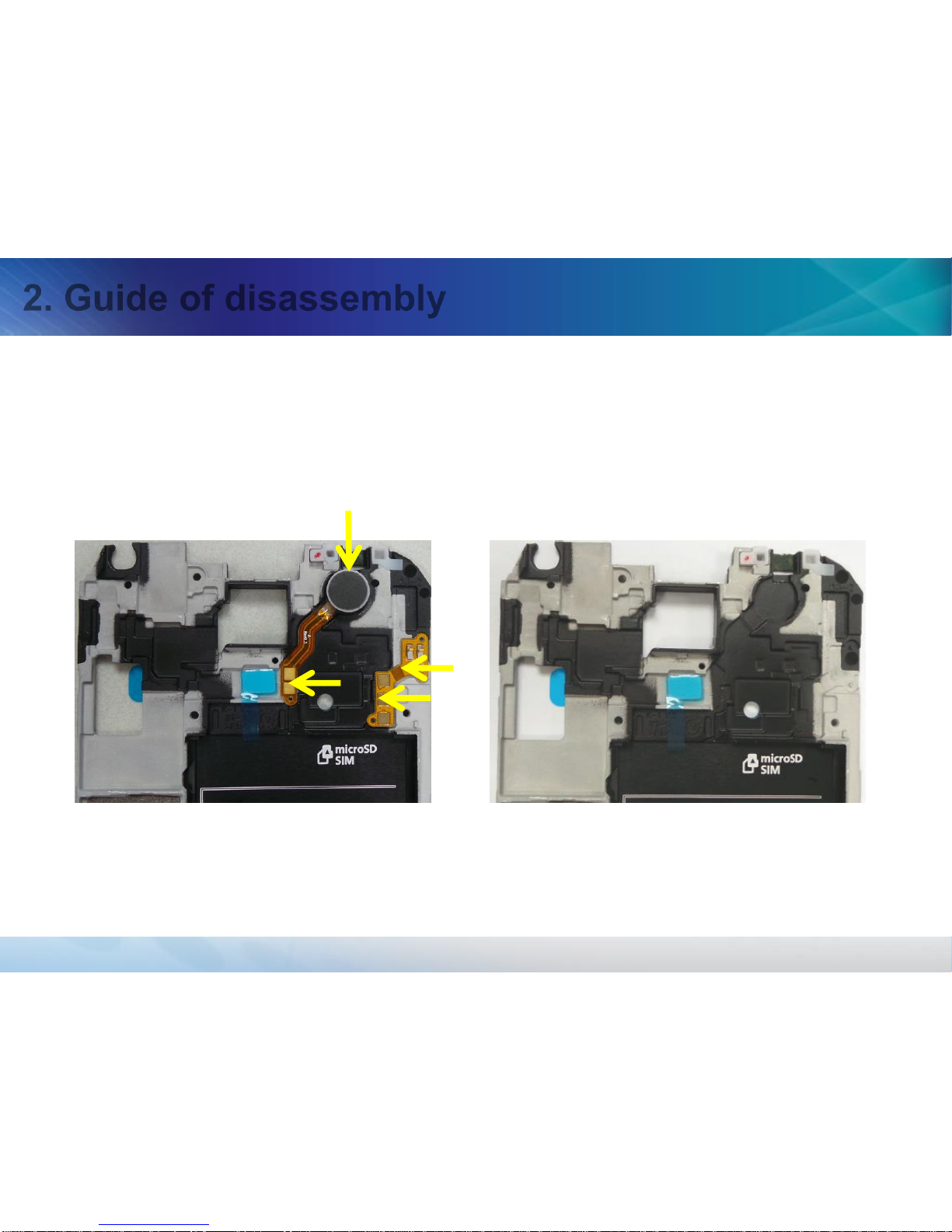

Disassemble Motor & Volume key FPCB from the Bracket

2. Guide of disassembly
