Samsung GT-E1200 Guida all'installazione

SAMSUNG Electronics Co., Ltd.

GT-E1200

Advanced H/W R&D Group

SAMSUNG Electronics Co., Ltd.

Notice :

All functionality, features, specifications and other product

information provided in this document including, but not limited

to, the benefits, design, pricing, components, performance,

availability, and capabilities of the product are subject to change

without notice or obligation.

Samsung reserves the right to make changes to this document

and the product described herein, at anytime, without obligation

on Samsung to provide notification of

such change.

SAMSUNG Electronics Co., Ltd.

Contents

Concept & Main features

Block Diagram

Component & Location

Disassembly and Assembly

Trouble shooting

Calibration

SAMSUNG Electronics Co., Ltd.

Concept & Main features

Detailed Specifications

Display 1.52” 128x128 TFT

Chipset PNX4848

Bearer GSM 900/1800 or 850/1900

Memory User Memory N/A

(internal 32Mb+16Mb)

Camera / Flash N/A

Connectors S20

Connectivity N/A

GPS N/A

Dimension, Weight 108 x 45 x 13.6 mm (TBD)

Battery capacity 800mAh

Torch light Option

OS / Upgrade SGP

Messaging & SNS N/A

Augmented Reality N/A

LBS N/A

Other Services &

Applications

SOS message, Mobile tracker 1.0

Fake call, 40 Poly, Power saving mode

PC Applications N/A

UI / Web Browser Essential

Radio Option

Audio MIDI 40Poly , MP3 ringtone

Video N/A

HW spec.

SAMSUNG Electronics Co., Ltd.

Contents

Concept & Main features

Block Diagram

Component & Location

Disassembly and Assembly

Trouble shooting

Calibration

SAMSUNG Electronics Co., Ltd.

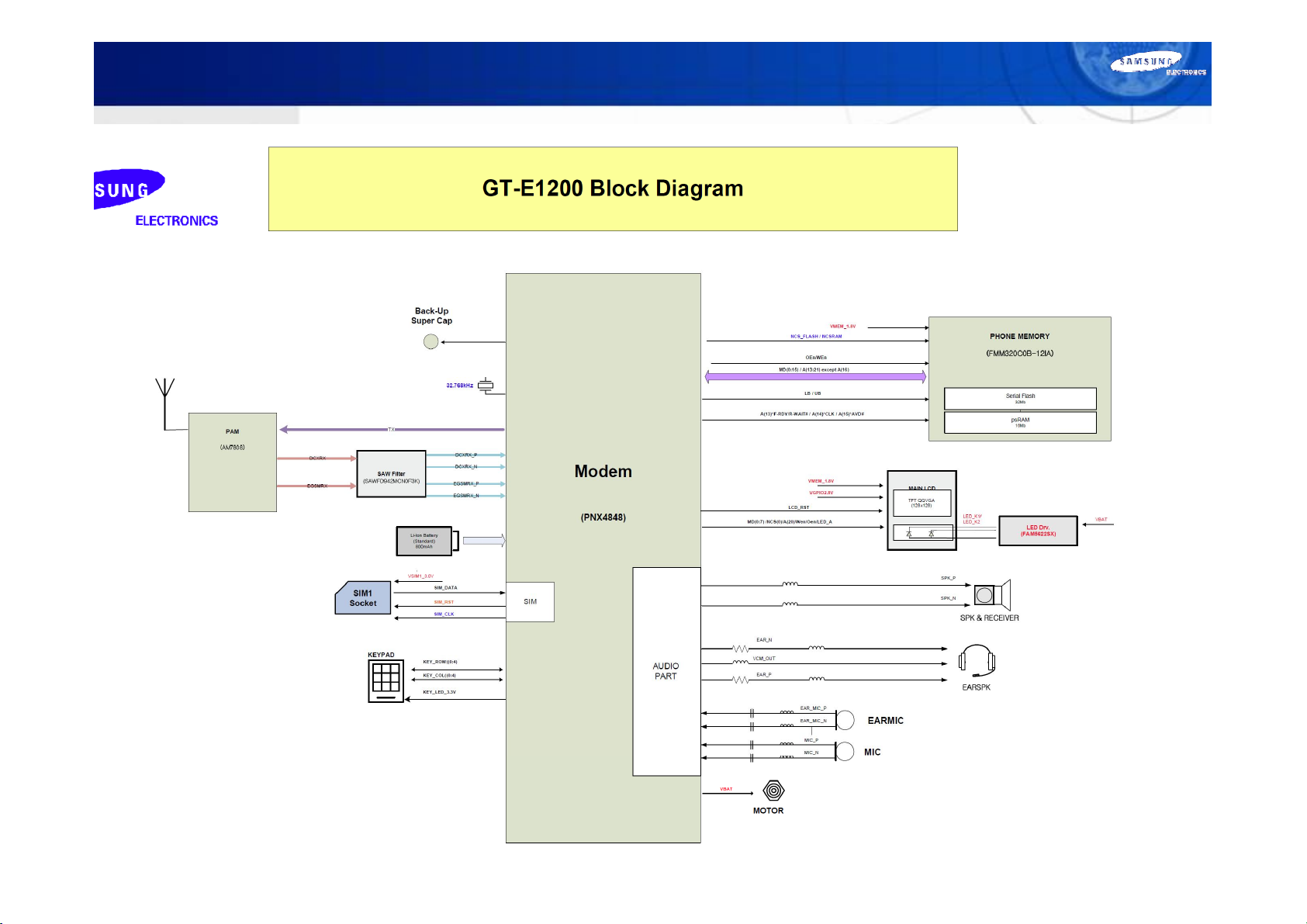

Block Diagram

SAMSUNG Electronics Co., Ltd.

Contents

Concept & Main features

Block Diagram

Component & Location

Disassembly and Assembly

Trouble shooter

Calibration

SAMSUNG Electronics Co., Ltd.

Main Top / Bottom

LCD

MIC

Vibrator

connector

shieldCan

SIM

connector

Speaker connector

Domesheet

MIC

connect

Battery

conn

Antenna

SAMSUNG Electronics Co., Ltd.

Ass’y

LCD

Window

KEY rubber

Front Main PBA Speaker

vibrator

KEY Rubber Rear

SAMSUNG Electronics Co., Ltd.

Contents

Concept & Main features

Block Diagram

Component & Location

Disassembly and Assembly

Trouble shooting

Calibration
