DVM CHILLER

Installation manual

Module control MCM-A00N

•Thank you for purchasing this Samsung air conditioner.

•Before operating this unit, please read this installation manual carefully and retain it for future

reference.

SOL MODULE CONTROLLER_IM_05747A-00_EN.indd 3 2016-01-20 오후 12:00:16

English

Contents

PREPARATION 3

Safety information 3

INSTALLATION 5

Checking before the installation 5

Accessories 5

External dimension 5

Installing the module control 6

DVM CHILLER Tracking 9

Connecting the module control 10

Restarting the module control communication 12

Module control error display 12

SETTING 14

Setting the service mode 14

Service mode setting 14

Service setting mode 16

Setting the option (Example) 25

Option code 27

Module or group operation 28

Setting module and group (Example) 29

SOL MODULE CONTROLLER_IM_05747A-00_EN.indd 2 2016-01-20 오후 12:00:17

English

PREPARATION

WARNING

Hazards or unsafe practices that may result in severe personal injury or death.

CAUTION

Hazards or unsafe practices that may result in minor personal injury or property damage.

WARNING

Contact service center for installation.

yIf not, there is risk of product malfunction, water leakage, electric shock or re.

Install the product on a hard and even place that can support its weight.

yIf the place cannot support its weight, the product may fall down and it may cause

product damage.

Connect the power with rated voltage when installing.

yIf not, there is risk of re or damage to the product.

Check if the installation was done correctly according to the installation manual.

yThere is risk of electric shock or re if the product is installed incorrectly.

Make sure that all wiring work is done by qualied person complying regional

standards and instructions in this manual.

yIf the installation is done by unqualied person, there is risk of product malfunction,

electric shock or re caused by incorrect installation.

Do not attempt to move or re-install the product that is already installed.

yThere is risk of electric shock or re.

Do not attempt to repair, disassemble, or modify the product yourself.

yThere is risk of product damage, electric shock or re. When repair is needed,

consult service center.

Contact the service center when you need to dispose the product.

This installation manual explains how to install a Module control. Please read this manual

thoroughly before installing the product. (Please refer to an appropriate installation manual

for any optional product installation.)

Safety information

PREPARATION

SOL MODULE CONTROLLER_IM_05747A-00_EN.indd 3 2016-01-20 오후 12:00:17

English

PREPARATION

CAUTION

Do not install the product in a place where it is or might be exposed to inammable

gas leakage.

yThere is risk of re or explosion.

Do not install the product in a place where it will be exposed to oil or vapor etc.

yIf the product is installed in a place where it is exposed to oil, vapor or sulphur

dioxide, parts of the product may get damaged or product may function abnormally.

Make sure there is no tension to the cable during installation.

yCable may get cut and cause re.

Install the product in an indoor place with temperature between 0~39°C (32~102℉

)with no direct sunlight.

yIf not, there is risk of re or product malfunction.

Do not install the product in a place where special spray or acid/alkali solution is used.

yIf not, there is risk of re or product malfunction.

Do not connect the power cable to the communication cable terminal.

yThere is risk of re.

When installing the product in hospitals or other places, make sure that the product

does not interrupt with other products.

yIf not, there is risk of product malfunction.

Do not allow water to enter the product.

yIf not, there is risk of electric shock or re.

Do not press the buttons with any sharp objects.

yThere is risk of electric shock or damage to the parts.

Safety information

SOL MODULE CONTROLLER_IM_05747A-00_EN.indd 4 2016-01-20 오후 12:00:17

English

INSTALLATION

Accessories

Item Module control M4xL16 screws User manual

Installation manual

Quantity 1 4 1 1

Shape

CAUTION

• The installation must be performed by a qualied expert.

• Before installing the module control, make sure to check if it is turned off.

• Install the module control cables in accordance with the electrical wiring rules, and

allow it to pass through the inner area of the wall so that other people can’t reach it.

• Install the module control only in an indoor place so that it is not exposed to water.

External dimension

[Unit : mm(inch)]

124.0

19.5

63.8

120.0

120.0(4.72) 19.5(0.76)

124.0(4.88)

63.8(2.51)

Checking before the installation

INSTALLATION

SOL MODULE CONTROLLER_IM_05747A-00_EN.indd 5 2016-01-20 오후 12:00:17

English

INSTALLATION

Installing the module control

1 Disassemble the module control.

yPush a hook with one hand and push

up another hook with another hand to

disassemble the rear cover.

NOTE

• It might be easier to disassemble it if

you put a at-head screw driver into the

square hole above the xing hook.

2 Arrange the power and communication

cable.

yPlace the cable through openings in the

rear cover.

15 cm(6 inch)

10 cm(4 inch)

NOTE

• The opening (A) can be cut and removed

if you need more space.

Installing the module control

SOL MODULE CONTROLLER_IM_05747A-00_EN.indd 6 2016-01-20 오후 12:00:18

English

INSTALLATION

3 Fix the rear cover.

yBefore xing the rear cover, allow

10mm(0.4inch) or more space for upper,

left, and right sides and 50mm(2inch)

space for bottom side.

10 mm(0.4 inch) or

50 mm(2 inch) or

Rear cover

10 mm(0.4 inch)

or more

Screw holes

10 mm(0.4

inch) or more

yMake sure to t the screws into the

provided screw holes.

4 Connect the power and communication

cable.

yConnect the communication cable (F3, F4)

to the PBA terminal on the back of the

front cover in appropriate length.

DVM CHILLER

Module control

Cable (should be

purchased separately)

PBA terminal

Front cover

CAUTION

• Do not tighten the PBA terminal with too

much force.

– Tighten the screws for it with less than

6N·cm tightening torque.

5 Reassemble the module control.

yPut the front cover into the upper

grooves rst, and then t it by turning

it downward. After assembling it, check

if there is any gap because of the

connection cable between the front cover

and rear cover.

SOL MODULE CONTROLLER_IM_05747A-00_EN.indd 7 2016-01-20 오후 12:00:18

English

INSTALLATION

Installing the module control

CAUTION

• The power and communication wire of

the module control and the power wire

of DVM CHILLER should be installed

separately.

– Electrical interference may cause the

module control to malfunction.

• Make sure to connect the power

and communication cable through

a protection tube since the cable is

exposed to an outdoor area.

• When installing the module control on

the wall, consider of the size of the wire

hole, and select a wire with a proper

thickness.

• Wire for module control power and

communication:

– When installing the module control

by embedding it on the wall, install

it according to U-terminal cable

specication.

– If you install the module control by

using two pieces of PVC wire, remove

the 30cm(12inch) of the sheath of

the cable and install it only with the

two pieces of wires. (Recommended

specication: AWG20)

• Specication of compressed U-terminal

for connecting module control PBA

ØD

Stud

Wire range for

connection

Rated size

Stud size

AWG mm2

(inch2)

mm2

(inch2)mm(inch)

22 ~ 16

0.25 ~

1.65

(0.0003 ~

0.0025)

1.5

(0.0023) 3 (0.1181)

Basic size [mm(inch)]

tØD G E F W L

0.7

(0.0275)

3.8

(0.1496)

10.0

(0.3937)

4.5

(0.1771)

6.5

(0.2559)

6.0

(0.2362)

21.2

(0.8346)

※

The maximum wiring length for power

and communication: 200 m(656.17 ft)

• Tighten the xing screws to the PCB

terminal with less than 6N·cm torque.

• If the screws are tightened with too

much force, the screw thread will be

damaged.

SOL MODULE CONTROLLER_IM_05747A-00_EN.indd 8 2016-01-20 오후 12:00:18

English

INSTALLATION

DVM CHILLER Tracking

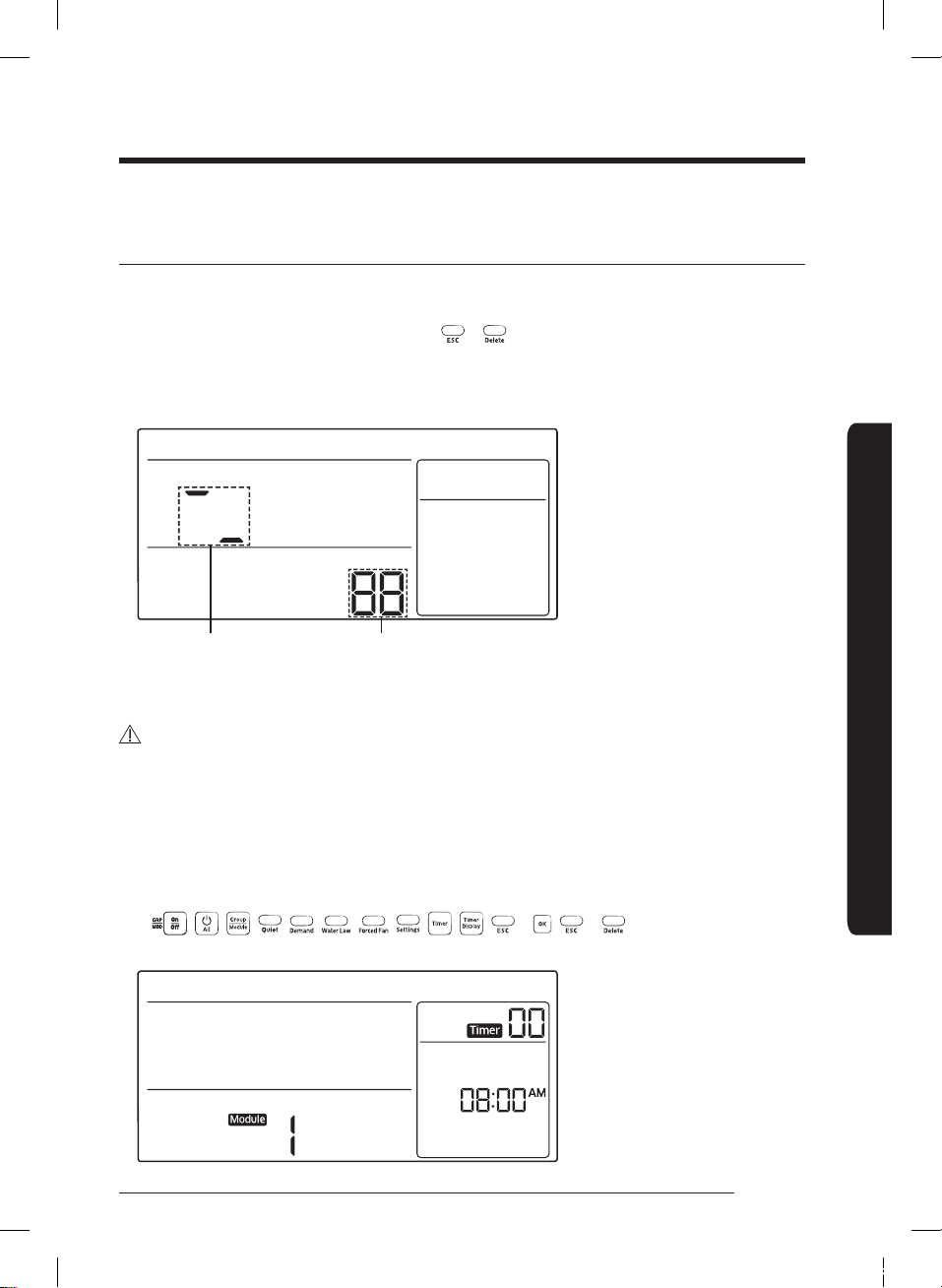

When installing the module control and then turning it on, the tracking will be performed

automatically.

yTo perform the tracking again, press the + button at the same time for more than

5seconds.

yDuring the tracking, the total number of currently searched DVM CHILLERs will be

displayed on the display.

Indicates tracking

in progress

Displays the total number

of DVM CHILLERs

currently searched

CAUTION

• For the tracking function to be processed correctly, you have to press the center of the

buttons at the same time.

• It may take about 5 minutes to complete the tracking at initial installation or when you

re-set the power supplying unit setting.

• When the tracking is completed, the display will show the following.

– Operation mode or set temperature can be set when the module/group control is on.

– , , , , , , , , , , + , + buttons can be used

when the module control is on stand-by.

SOL MODULE CONTROLLER_IM_05747A-00_EN.indd 9 2016-01-20 오후 12:00:19
