Samsung CS21S7 Manuale utente

COLOUR

TELEVISION

Owner’s Instructions

Before operating the unit,

please read this manual thoroughly,

and retain it for future reference.

ENG

REMOTE CONTROL

ON-SCREEN MENUS

ENJOY GAME

ELECT

ENG

Safety Instructions

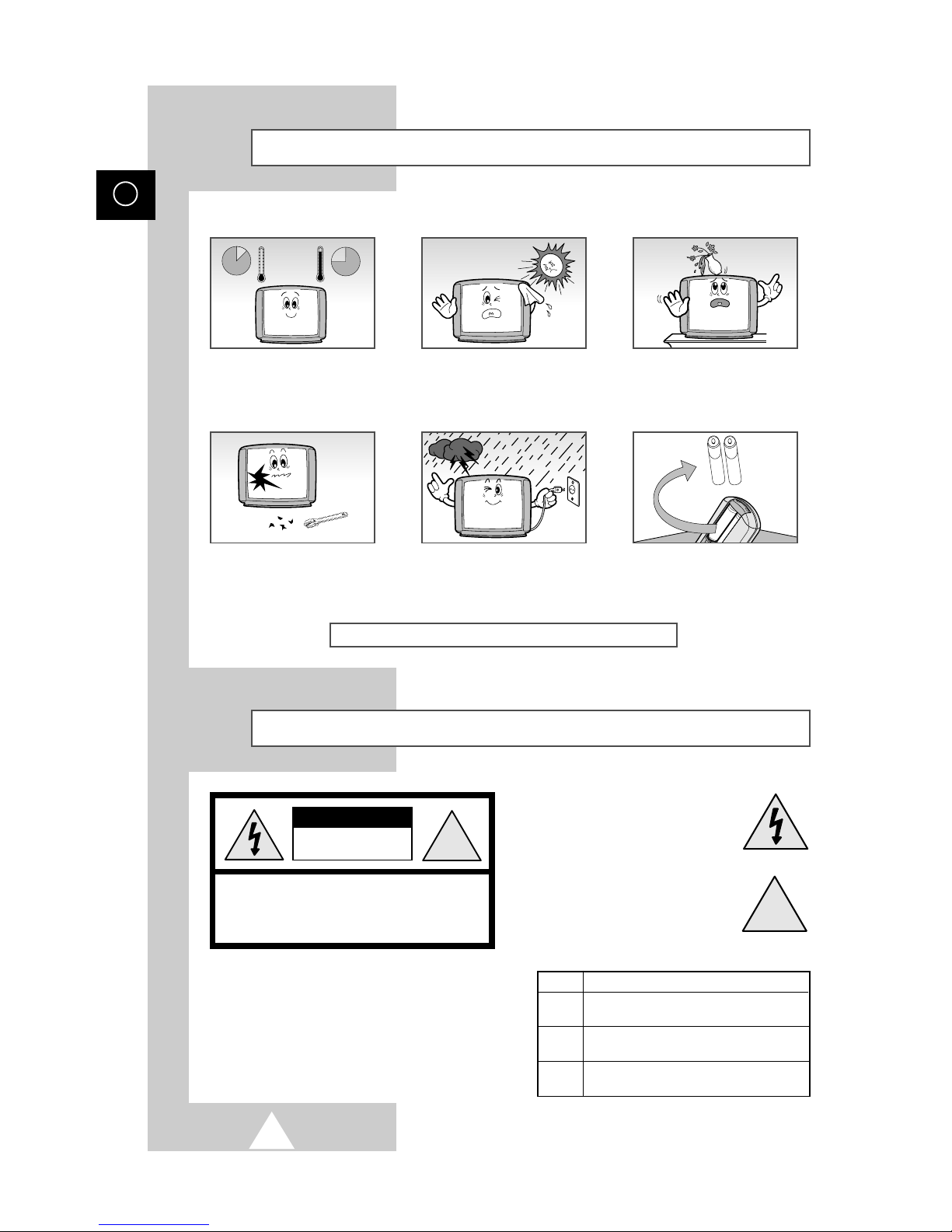

The following illustrations represent the precautions to be taken when using and moving your television.

5°

10%

35°75%

THIS DEVICE IS NOT FOR USE IN INDUSTRIAL ENVIRONMENTS

Caution

CAUTION: TO PREVENT ELECTRICAL SHOCK, DO

NOT REMOVE REAR COVER, NO USER SERVICEABLE

PARTS INSIDE. REFER SERVICING TO QUALIFIED

SERVICE PERSONNEL.

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION

Do NOT expose the television to

extreme temperature conditions

(below 5°C and above 35°C) or to

extreme humidity conditions (less

than 10% and more than 75%).

Do NOT expose the television to

direct sunlight. Do NOT expose the television to

any liquids.

If the television is broken, do not

try to repair it yourself. Contact

qualified service personnel.

During a storm conditions

(especially when there is lightning)

unplug the television from the

mains socket and aerial.

If the remote control is not used for

a long period of time, remove the

batteries and store it in a cool, dry

place.

Mode System

CZ PAL-B/G, D/K, I, SECAM-B/G,D/K, I,

NTSC4.43MHz

CW PAL-B/G, D/K, I, SECAM-B/G,D/K, I, L/L’,

NTSC4.43MHz

CS PAL-B/G, D/K, I, SECAM-B/G,D/K, I,

NTSC4.43/3.58MHz

WARNING: TO PREVENT DAMAGE WHICH MAY

RESULT IN FIRE OR SHOCK HAZARD. DO NOT EXPOSE THIS

APPLIANCE TO RAIN OR MOISTURE.

☛

The main voltage is indicated on the rear

of the TV set and the frequency is 50 or

60Hz.

The lightning flash and arrow head

within the triangle is a warning sign

alerting you of “dangerous voltage”

inside the product.

The exclamation point within the

triangle is a warning sign alerting

you of important instructions

accompanying the product.

ENG

Contents

◆PREPARING YOUR TELEVISION

■Safety Instructions ........................................................................................

■Caution .........................................................................................................

■Front Control Panel ......................................................................................

■Connection Panels .......................................................................................

■Infrared Remote Control ...............................................................................

■Inserting the Batteries in the Remote Control................................................

■Connecting the Aerial (or Cable Television Network)....................................

■Switching Your Television On and Off...........................................................

■Placing Your Television in Standby mode.....................................................

■Plug & Play Feature.......................................................................................

■Viewing the Demonstration............................................................................

■Choosing Your Language..............................................................................

◆SETTING UP THE CHANNELS

■Storing the Channels Automatically...............................................................

■Storing the Channels Manually......................................................................

■Skipping Unwanted Channels .......................................................................

■Fine tuning Channel Reception.....................................................................

■Sorting the Stored Channels .........................................................................

◆USING THE TELEVISION

■Changing the Picture Standard .....................................................................

■Adjusting the Picture Settings .......................................................................

■Selecting the Picture Format.........................................................................

■Activation/Deactivation the Digital Noise Reduction Feature ........................

■Adjusting the Volume.....................................................................................

■Switching the Sound Off Temporarily............................................................

■Changing the Sound Standard......................................................................

■Adjusting the Sound Settings ........................................................................

■Extra Sound Settings.....................................................................................

■Enjoying the Woofer Sound...........................................................................

■Selecting the Turbo Sound............................................................................

■Selecting the Sound Mode ............................................................................

■Setting the Sleep Timer ................................................................................

■Setting and Displaying the Current Time.......................................................

■Setting the On/Off Timers, On Time Program and Volume ..........................

■Setting the Blue Screen Mode.......................................................................

■Activating the Childlock .................................................................................

■Enjoying Games............................................................................................

◆INFORMATION ON CONNECTIONS AND RECOMMENDATIONS FOR USE

■Connecting to the AV-1 or 2 Input/Outputs....................................................

■Connecting to the Rear S-VIDEO Input.........................................................

■Connecting to the Rear DVD Input................................................................

■Connecting to the RCA Input (AV2)...............................................................

■Connecting Headphones...............................................................................

■Viewing Picture From External Sources........................................................

■Automatic Degaussing to Remove Colour Patches.......................................

■Trouble Shooting: Before Contacting Service Personnel..............................

☛➢

Symbols

Press Important Note

■

Changing Channels ......................................................................................

■Pre Channel ..................................................................................................

■

Channel Scan ...............................................................................................

■Selecting a Channel Numbered Ten or Over .................................................

■Setting the Reminder ....................................................................................

ENG

Front Control Panel (depending on the model)

➣ Buttons and markings are subject to change.

TV/VIDEO

SELECTION

MENU DISPLAY

VOLUME ADJUSTMENT

CHANNEL SELECTION

POWER

STAND-BY/TIMER

INDICATOR

REMOTE CONTROL SENSOR

MENU DISPLAY

VOLUME ADJUSTMENT

CHANNEL SELECTION

POWER

STAND-BY/TIMER

INDICATOR

REMOTE CONTROL SENSOR

ENG

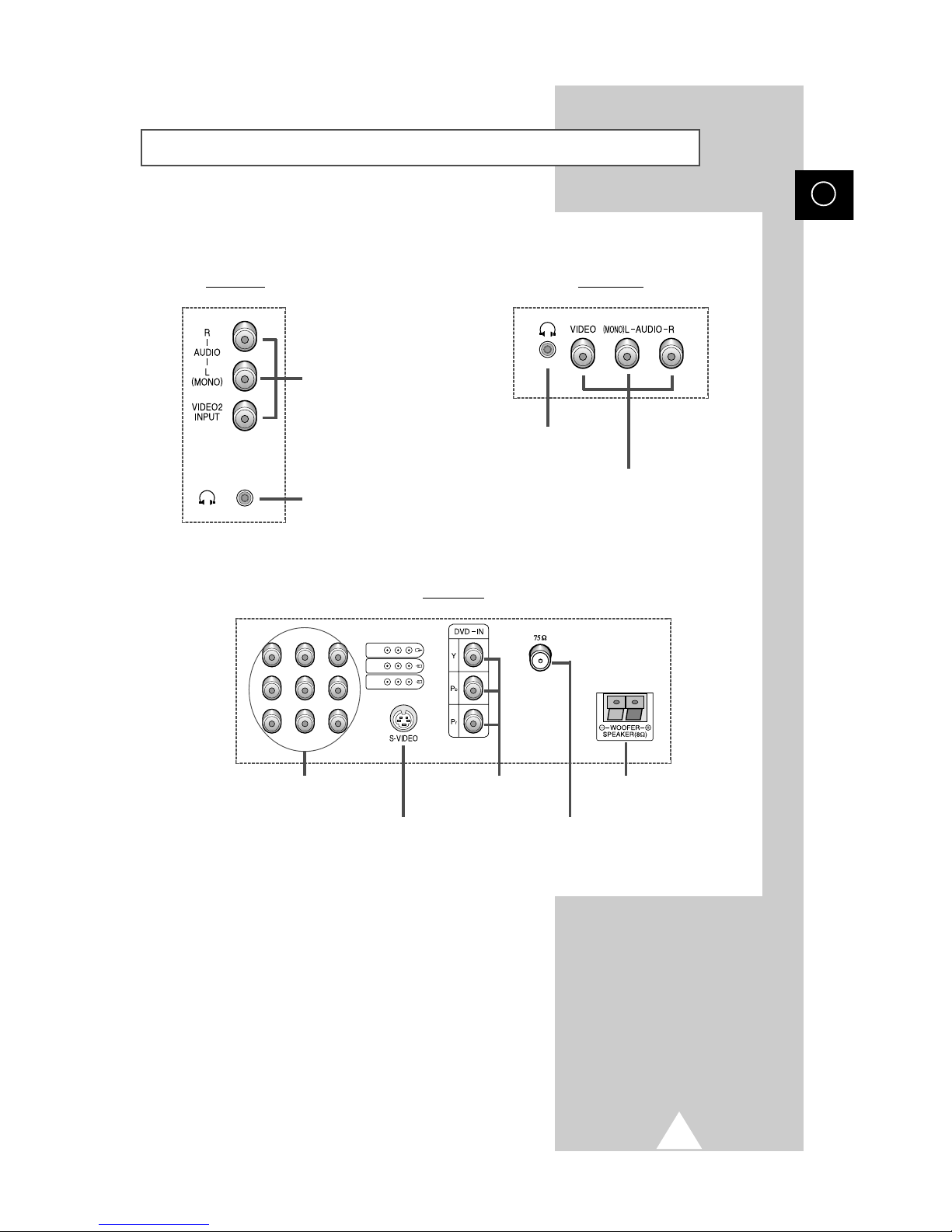

Connection Panels

HEADPHONE JACK (OPTION)

INPUT 1

MONITOR

-OUT

INPUT 2

VIDEO

(MONO)

L-AUDIO-R

Side of TV

Rear of TV

RCA AUDIO/VIDEO

INPUT CONNECTORS

75 ΩCOAXIAL CONNECTOR

FOR AERIAL/CABLE NETWORK

Front of TV

HEADPHONE JACK

(OPTION)

RCA AUDIO/VIDEO

INPUT CONNECTORS

☛This figure shows the Standard Connector-jack panel.

The actural configuration on your TV may be different,

depending on the model.

DVD INPUT CONNECTORS

(OPTION)

S-VIDEO CONNECTOR

(OPTION)

RCA AUDIO/VIDEO

INPUT/OUTPUT CONNECTORS WOOFER SPEAKER

CONNECTORS

(OPTION)

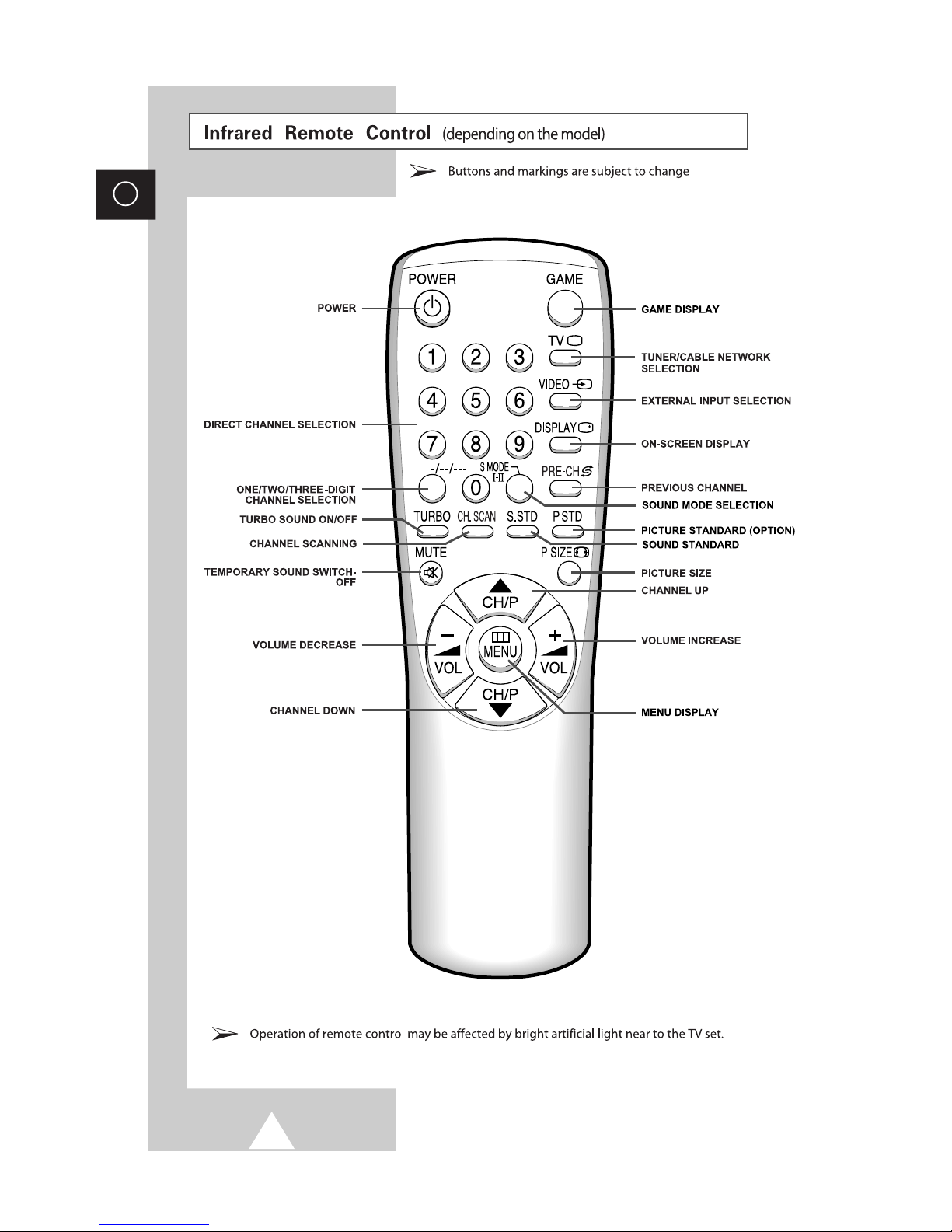

ENG

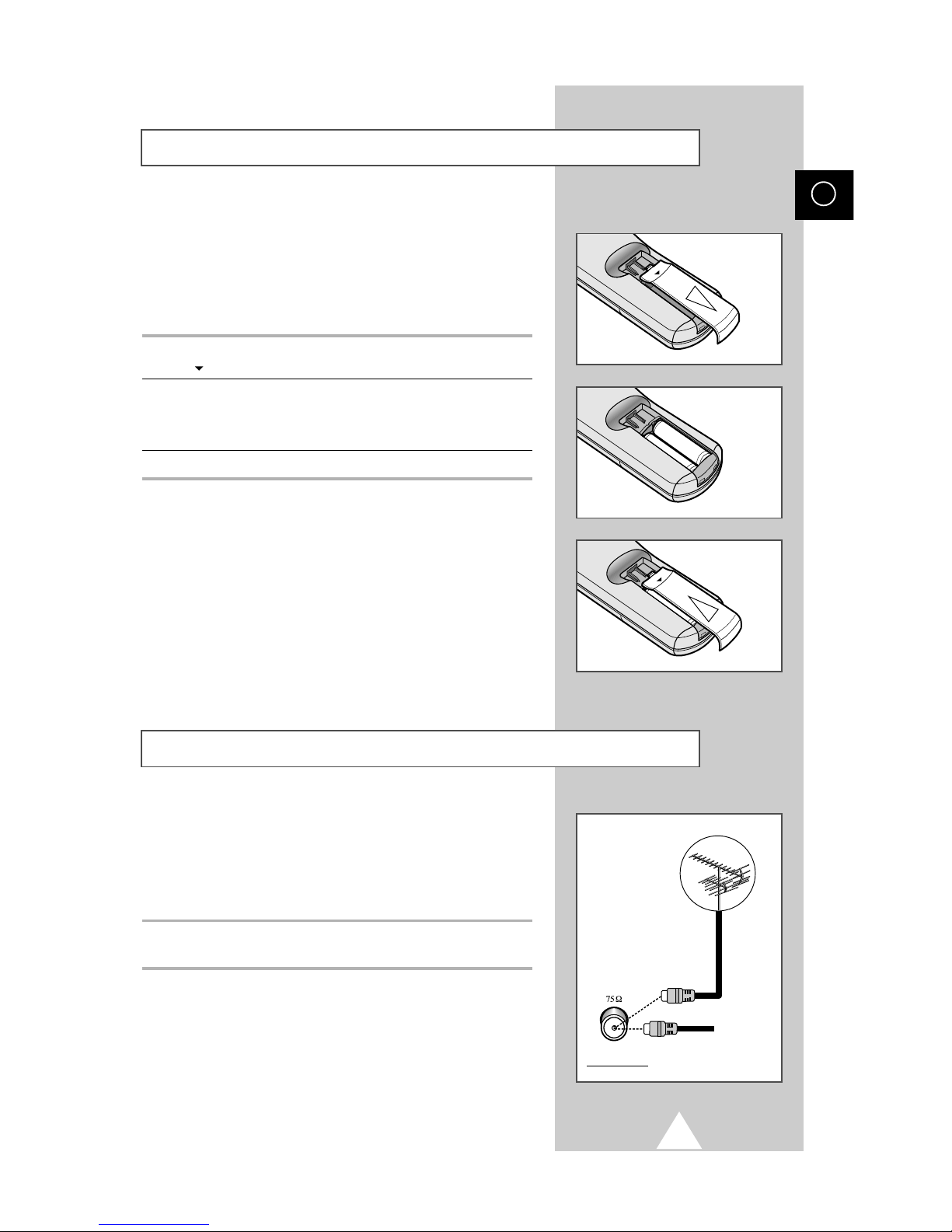

You must insert or replace the batteries in the remote control when

you :

◆Purchase the television.

◆Find that the remote control is no longer operating

correctly.

1Remove the cover of the remote control by pressing the symbol

( ) and pulling the cover in the direction of the arrow.

2Insert batteries, taking care to respect the polarities:

◆+on the battery with +on the remote control

◆

on the battery with

on the remote control

3Replace the cover by pushing it in the direction of the arrow.

PRESS

To view television channels correctly, a signal must be received by

the set from one of the following sources:

◆An outdoor aerial

◆A cable television network

Plug the aerial or cable network input cable to the 75Ωcoaxial socket

on the rear of the television.

Inserting the Batteries in the Remote Control

Connecting the Aerial (or Cable Television Network)

PRESS

Cable

Television

Network

Rear of TV

ENG

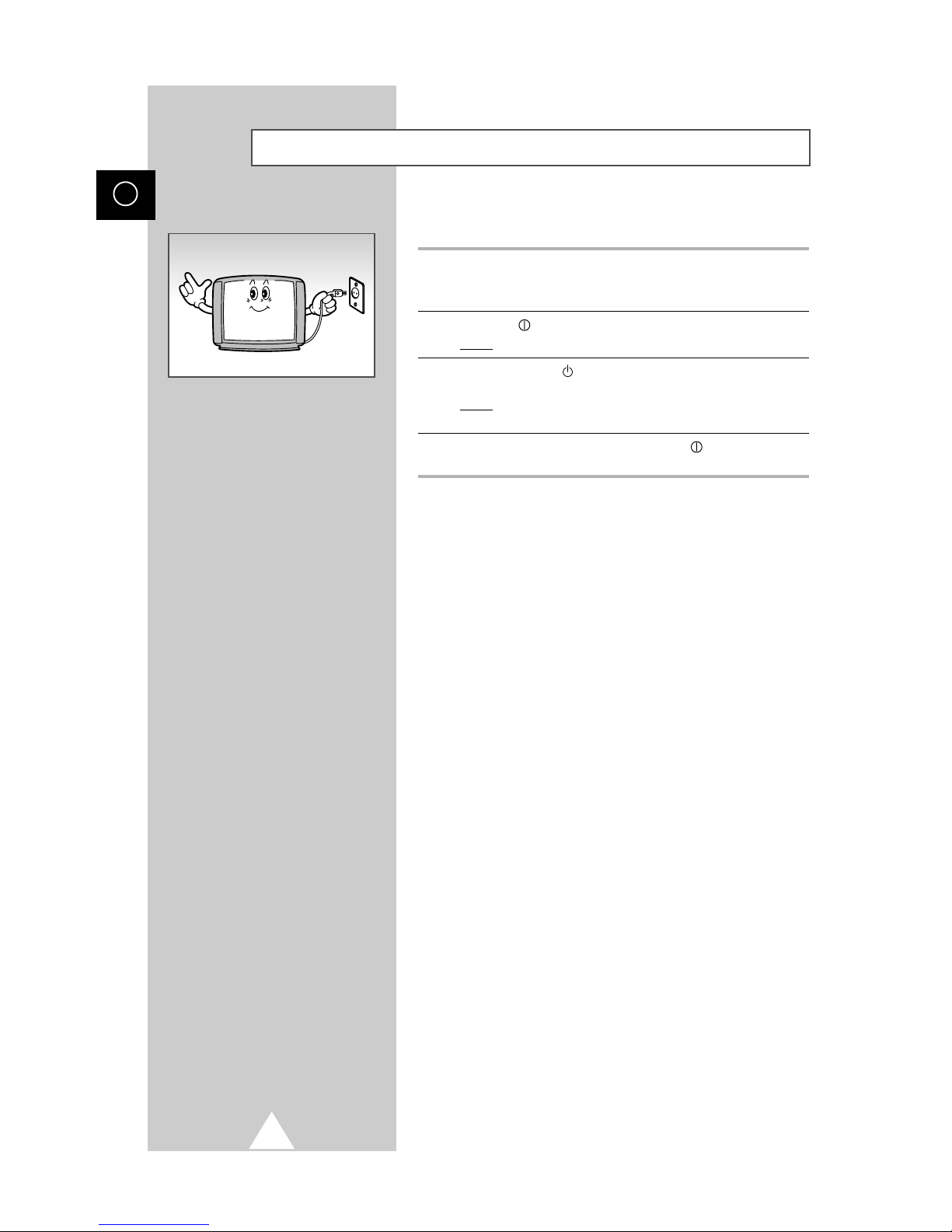

The mains lead is attached to the rear of the television.

1Plug the mains lead into an appropriate socket.

➢The main voltage is indicated on the rear of the TV set and

the frequency is 50 or 60Hz.

2Press the “”(ON/OFF) button on the front of the television.

Result: The Standby indicator lights up on the front panel.

3Press the POWER button on the remote control to switch the

television on.

Result: The programme that you were watching last is re-

selected automatically.

4To switch your television off, press the “”(ON/OFF) button

again on the front of the television.

Switching Your Television On and Off

ENG

Placing Your Television in Standby mode

Your television can be placed in Standby mode, in order to reduce:

◆Power consumption

◆Wear of the cathode ray tube

The Standby mode can be useful when you wish to interrupt

viewing temporarily (during a meal, for example).

The television is placed automatically in Standby mode when you

turn it on.

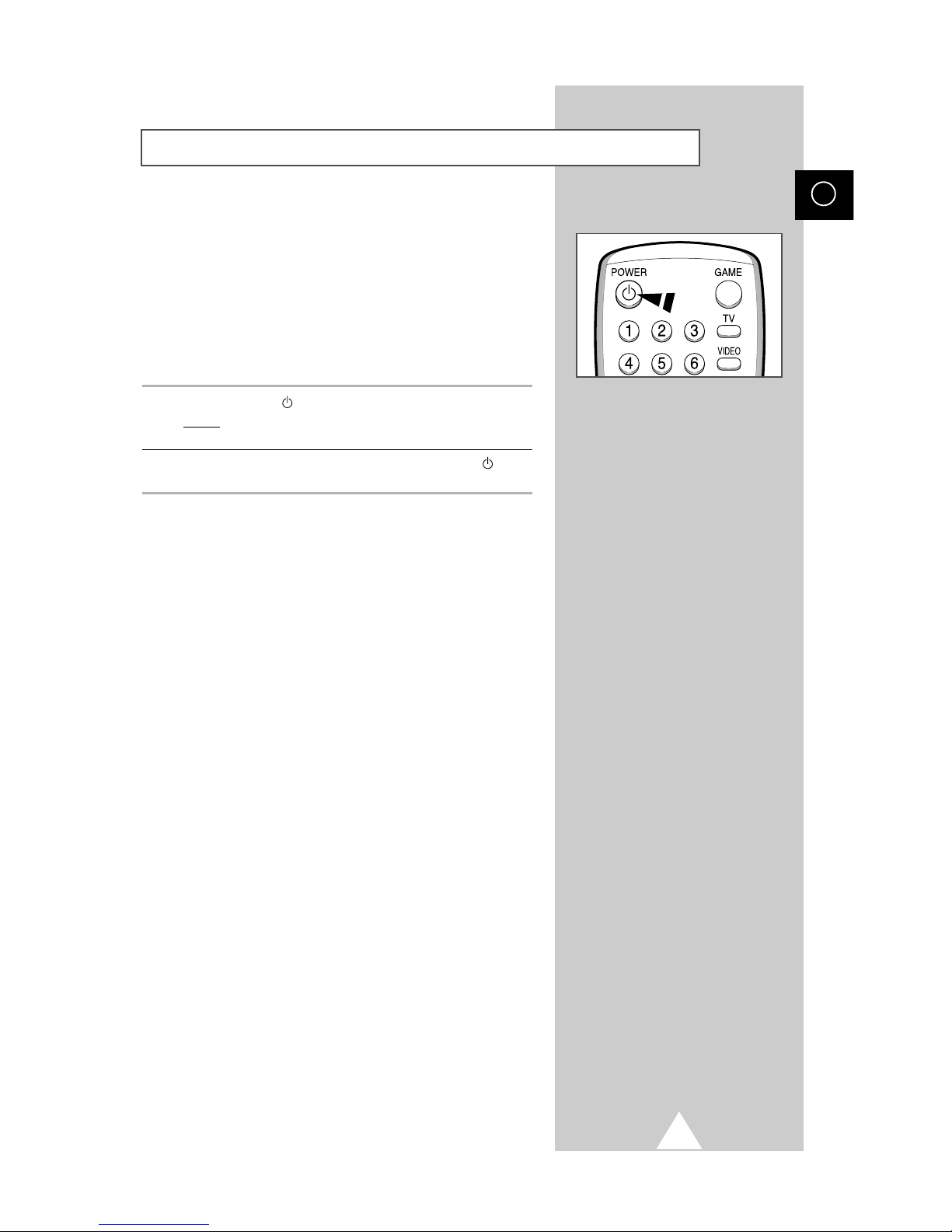

1Press the POWER button on the remote control.

Result: The screen is turned off and the Standby indicator on

the front of the television lights up.

2To switch the screen back on, simply press the POWER button

again on the remote control.

➣Do not leave your television in standby mode for long

periods of time (when you are away on holiday, for example).

In this case, you should switch it off completely.

ENG

Plug & Play Feature

Plug & Play

Ant. Input : Check

Select Exit

Select Adjust Exit

Auto store

Area : ASIA W/EUROPE

Search : -/+

When the television is initially powered ON, three basic customer

settings proceed automatically and subsequently: setting the

language, channel and clock.

1If the television is in Standby mode (red light visible on the

television front panel), press the POWER button on the remote

control.

Result: The message “Plug & Play”is displayed. It flickers for a

little while and then the “Language”menu is

automatically displayed.

2Press the ▲or ▼button to select required language. Press the

MENU button to enter the language, and then the message “Ant.

Input : Check”is displayed.

➣If any language is not selected on the “Language”menu, the

“Language”menu will be displayed about 30 seconds later.

3Make sure that the antenna is connected to the TV. And then press

the +or –button.

Result: The “Auto store”menu is displayed.

4Select your country by pressing the +or –button. To search the

channels, select the “Search”by pressing the ▲or ▼button, and

then press the +or –button (refer to “Storing the Channels

Automatically”on page 13). Press the MENU button to skip.

Result: The “Time”menu is displayed.

5Press the +or –button to move to the hour or minute. Set the hour

or minute by pressing the ▲or ▼button (refer to “Setting and

Displaying the Current Time”on page 28).

6When you have finished, press the MENU button.

Result: The message “ENJOY YOUR WATCHING”is displayed,

and then the channel which has been stored will be

activated.

7If you want to reset this feature...

1Press the MENU button.

2Press the ▲or ▼button to select the “Function”, and then

press the +or –button.

3Select the “Plug & Play”by pressing the ▲or ▼button, and

then press the +or –button.

Result: The message “Plug & Play”is displayed.

Select Adjust Exit

Time

Sleep : Off

Clock : -- : -- am

Select Enter Exit

Function

Language : English

Time

Plug & Play

Blue screen : Off

Demonstration

Select Enter Exit

Function

Language : English

Time

Plug & Play

Blue screen : Off

Demonstration

Timer

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Samsung TV a tubo catodico

Samsung

Samsung CS20Q1 Manuale utente

Samsung

Samsung CB21K5G7 Manuale utente

Samsung

Samsung CB15K10 Manuale utente

Samsung

Samsung CL29A10 Manuale utente

Samsung

Samsung CW-29Z404N Manuale utente

Samsung

Samsung TSL3294HF Manuale utente

Samsung

Samsung 14F2, 14F3, 14H4, 14H5, 14S1, Manuale utente

Samsung

Samsung CW-29M066V Manuale utente

Samsung

Samsung CW-29A2083 Manuale utente

Samsung

Samsung CRT Rear-Projection TV Manuale utente

Samsung

Samsung CW29M064 Manuale utente

Samsung

Samsung CW-21Z573B Manuale utente

Samsung

Samsung CFTD2083 Manuale utente

Samsung

Samsung CS-29A10HE Manuale utente

Samsung

Samsung Tantus TXN 3098WHF Manuale utente

Samsung

Samsung CT21K2 Manuale utente

Samsung

Samsung CS25V10 Manuale utente

Samsung

Samsung SyncMaster 800TFT Manuale utente

Samsung

Samsung ST54T6 ST62T6 Manuale utente

Samsung

Samsung CL-29Z40MQ Guida all'installazione

Samsung

Samsung STM-21F Manuale utente

Samsung

Samsung WS-32A208P Manuale utente

Samsung

Samsung CL32Z7HE Guida utente

Samsung

Samsung CB21K40 Manuale utente

Manuali TV a tubo catodico popolari di altre marche

JVC

JVC AV-21QS5SP Manuale utente

Philips

Philips COLOR TV 25 INCH TABLE TR2517C Manuale utente

Hitachi

Hitachi 27CX01B Manuale utente

LG 30FZ1DC Manuale utente

Sony

Sony FD TRINITON WEGA KV-24FS120 Manuale utente

RCA

RCA F19442 Manuale utente

Philips

Philips 29PT4973 Manuale utente

Panasonic

Panasonic TC-29P100 Series Manuale utente

RCA

RCA F19422 Manuale utente

Sony

Sony WEGA KV 32HS20 Manuale utente

Palsonic

Palsonic MODEL 5179G Manuale utente

Toshiba

Toshiba CF13H22 Manuale utente

Magnavox

Magnavox MS3650C - 36" Smart Ctv Manuale

Toshiba

Toshiba 14AF41 Manuale utente

Philips

Philips 21PT9469 Manuale utente

Mitsubishi

Mitsubishi CS-35305 Manuale utente

Hitachi

Hitachi 35UX60B, 35TX10B Manuale utente

Sony

Sony KD-34XBR970 - 34" Hdtv 16x9 Format Manuale utente
