Quick Start Manual

Guide de prise en main rapide

WB650/WB660

Health and safety informationContents

Warnings

Do not use your camera near ﬂammable or explosive

gases and liquids

Do not use your camera near fuels, combustibles, or

ﬂammable chemicals. Do not store or carry ﬂammable

liquids, gases, or explosive materials in the same

compartment as the camera or its accessories.

Keep your camera away from small children and pets

Keep your camera and all accessories out of the reach of

small children and animals. Small parts may cause choking

or serious injury if swallowed. Moving parts and accessories

may present physical dangers as well.

Prevent damage to subjects’ eyesight

Do not use the ﬂash in close proximity (closer than 1m/3

ft) to people or animals. Using the ﬂash too close to your

subject’s eyes can cause temporary or permanent damage.

Health and safety

information…………………… 2

Camera layout… …………… 4

Setting up your camera… … 5

Unpacking ……………………… 5

Inserting the battery and

memory card …………………… 6

Charging the battery …………… 6

Turning on your camera………… 7

Selecting options ……………… 7

Capturing photos or videos 8

Playing ﬁles ………………… 9

Transferring ﬁles to a PC

(Windows) ……………………10

Speciﬁcations ………………11

104

English

Exercise caution when connecting cables or adapters•

and installing batteries and memory cards. Forcing

the connectors, improperly connecting cables, or

improperly installing batteries and memory cards can

damage ports, connectors, and accessories.

Do not insert foreign objects into any of your camera’s•

compartments, slots, or access points. This type of

damage may not be covered by your warranty.

Protect batteries, chargers, and memory cards from

damage

Avoid exposing batteries or memory cards to very•

cold or very hot temperatures (below 0° C/32° F or

above 40° C/104° F). Extreme temperatures can

reduce the charging capacity of your batteries and

can cause memory cards to malfunction.

Prevent memory cards from making contact with•

liquids, dirt, or foreign substances. If dirty, wipe the

memory card clean with a soft cloth before inserting

in your camera.

Handle and dispose of batteries and chargers with

care

Use only Samsung-approved batteries and chargers.•

Incompatible batteries and chargers can cause serious

injuries or damage to your camera.

Never place batteries or cameras on or in heating•

devices, such as microwave ovens, stoves, or

radiators. Batteries may explode when overheated.

Cautions

Handle and store your camera carefully and sensibly

Do not allow your camera to get wet—liquids can•

cause serious damage. Do not handle your camera

with wet hands. Water damage to your camera can

void your manufacturer’s warranty.

Avoid using or storing your camera in dusty, dirty,•

humid, or poorly-ventilated areas to prevent damage

to moving parts and internal components.

Camera layout

11 12

Mode dial

POWER button

GPS button

GPS antenna

Lens

Speaker

AF-assist light/timer lamp

Flash

Shutter button

Microphone

Zoom T Lever (Digital zoom)

Zoom W Lever (Thumbnail)

Video shooting button

ㄴ

USB and A/V port

HDMI port

ㄴ

Strap eyelet

Fn / Delete button

Play mode button

Navigation button

ㄴ

OK button

ㄴ

MENU button

ㄴ

Display

ㄴ

Status lamp

English

Setting up your camera

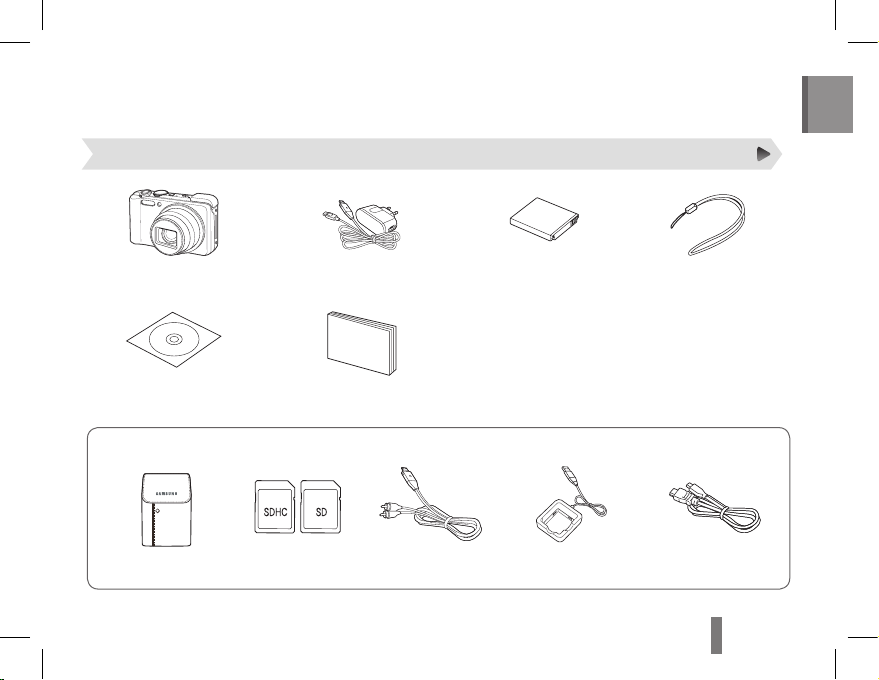

Unpacking

Sold Separately

Camera AC adapter/USB cable Rechargeable battery Strap

User Manual CD-ROM Quick Start Manual

Camera case Memory cards A/V cable Battery Charger HDMI cable

Setting up your camera

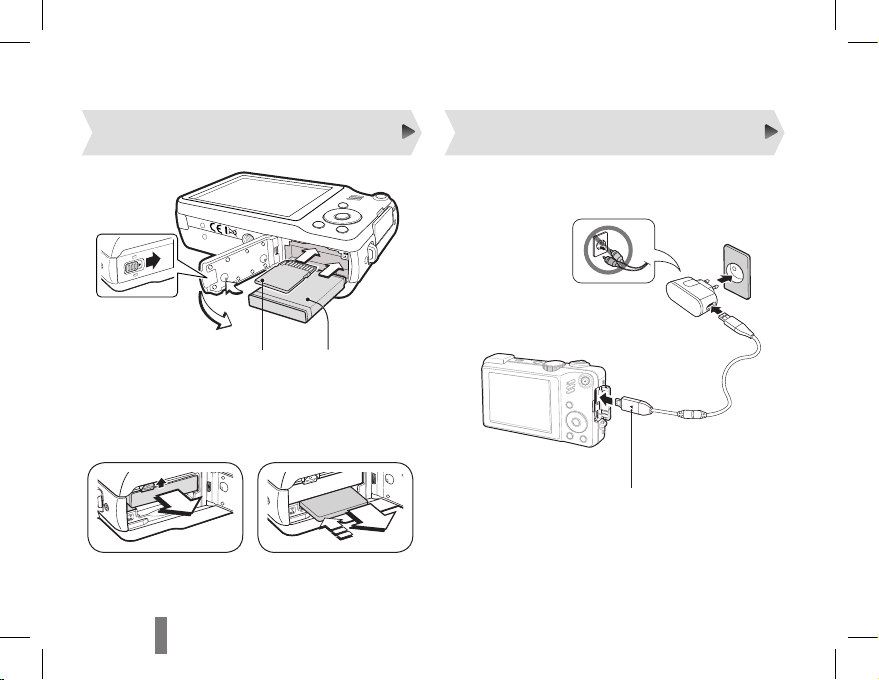

Inserting the battery and memory card Charging the battery

Push gently until the card

disengages from the camera and

then pull it out of the slot.

▼

Removing the battery

▼

Removing the memroy card

Be sure to charge the battery before using the

camera.

With the gold-coloured

contacts facing up

With the

Samsung logo

facing up

Indicator light

Red▪: Charging

Green▪: Fully charged

English

Press [POWER].

The intial setup▪

screen appears.

Press [t] to select

Language and

press [o].

Press [D] or [M] to select Time Zone and

press [t].

Press [F] or [t] to select an item.

Press [D] or [M] to select Date & Time and

press [t].

Press [F] or [t] to select an item.

Press [D] or [M] to change the number or

select another date format and press [o].

In Shooting mode, press [m].

Use the navigation buttons to scroll to an

option or menu.

To move left or right, press [▪F] or [t].

To move up or down, press [▪D] or [M].

Press [o] to conﬁrm the highlighted option or

menu.

Press [▪m] again to go back to the previous

menu.

Turning on your camera Selecting options

Back

White Balance

Move

Language

Date & Time

Time Zone

Recording a video

Rotate the mode dial to v.

Align your subject in the frame.

Press [Shutter].

Press [▪o] to pause or resume.

Press [Shutter] again to stop the recording.

Note

Number of photos by resolution (for 1 GB SD)

These ﬁgures are measured under Samsung’s standard

conditions and may vary depending on shooting conditions

and camera settings.

Capturing photos or videos

Resolution

4000 x 3000 147 284 403

3984 x 2656 167 313 441

3840 x 2160 202 367 528

3264 x 2448 211 374 537

2560 x 1920 339 566 792

2048 x 1536 532 802 1065

1920 x 1080 870 1144 1437

1024 x 768 1471 1670 1872

Taking a photo

Rotate the mode dial to p.

Align your subject in the frame.

Press [Shutter] halfway down to focus

automatically.

A green frame means the subject in focus.▪

Press [Shutter] all the way down to take the

photo.

English

Playing files

Viewing photos

Press [P].

Press [F] or [t] to scroll through ﬁles.

Press and hold to view ﬁles quickly.▪

Viewing videos

Press [P].

Press [o].

Pause

Use the following buttons to control playback.

[F]Scan backward

[o]Pause or resume playback

[t]Scan forward

[Zoom W/T] left or

right Adjust the volume level

Transferring files to a PC (Windows)

Connect the camera to your computer with the

USB cable.

Note

Make sure that the PC Software option is set to On in the

settings menu.

Turn on the camera.

The computer recognizes the camera automatically.▪

For Windows Vista, select▪Run iStudio.exe from

the AutoPlay window.

Select a folder on your computer to save new

ﬁles.

If your camera has no new ﬁles, the pop-up window▪

for saving new ﬁles will not appear.

Select Yes.

New ﬁles will be transferred to your computer.▪

You can now use the Intelli-studio program.

Note

About Intelli-studio

Intelli-studio is a built-in program that allows you to play

back and edit ﬁles. You can also upload ﬁles to websites,

such as Flickr or YouTube.
